3-70 — BRAKE PIPING; AIR,AIR MASTER (#59415) — 118 parça

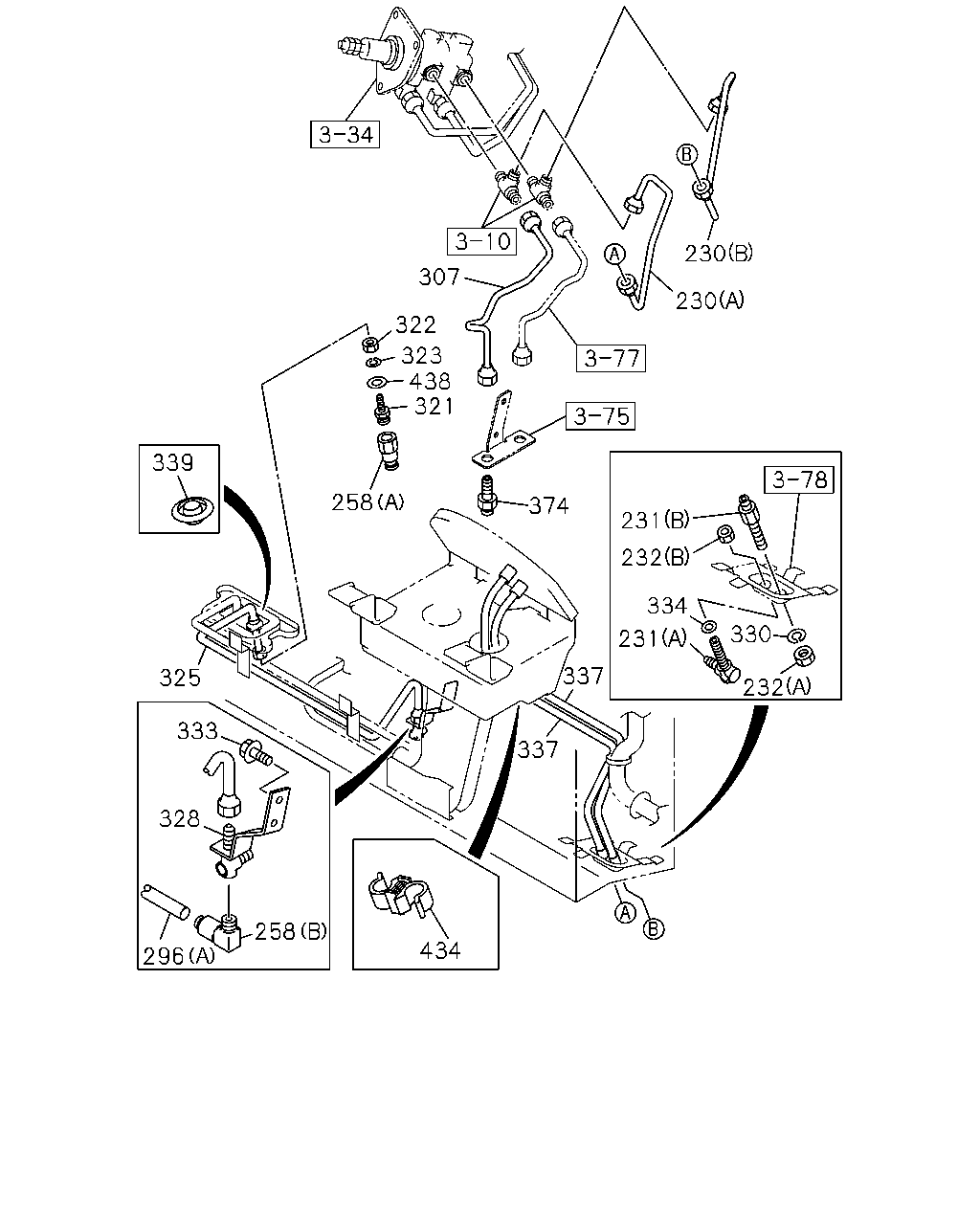

çizim 177212
230 307 230 322 323 438 321 339 258 374 231 232 334 330 231 337 325 232 333 337 328 258 434 296
BalonParca AdiParca NoAdetTipApplied Date
230 PIPE; AIR,UNION TO UNION
(A) L=426 		1-49116-433-0 01 1 0006-
230 PIPE; AIR,UNION TO UNION
(B) L=483 		1-49116-434-0 01 1 0006-
231 UNION; AIR PIPE
(A) M10 ELBOW 		1-09654-186-2 01 1 0006-
231 UNION; AIR PIPE
(B) M10 STRAIGHT 		1-09654-361-0 01 1 0006-
232 NUT; UNION,AIR PIPE
(A) M10 H=8 		1-09400-029-0 01 1 0006-
232 NUT; UNION,AIR PIPE
(B) M10 		9-09110-410-0 01 1 0006-0512
232 NUT; UNION,AIR PIPE
(B) M10 		0-91110-510-0 01 1 0601-
258 CONNECTOR; NYLON TUBE
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0006-
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006-0012
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006-0012
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006-0012
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0101-
258 CONNECTOR; NYLON TUBE
(F) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0006-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0006-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0006-0012
258 CONNECTOR; NYLON TUBE
(E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0101-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0101-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0006-0007
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-1 01 1 0006-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0006-
296 TUBE; NYLON
(C) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0006-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=540 		1-49113-427-2 01 1 0006-
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> 		1-09656-738-0 01 1 0006-
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> M10 H=8 		1-09400-029-0 01 1 0006-
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		9-09150-510-0 01 1 0006-0603
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		0-91510-510-0 01 1 0604-
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> L=791 		1-49116-077-0 01 1 0006-
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> 		1-47470-415-1 01 1 0006-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0006-0603
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0604-
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0006-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0006-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0006-0608
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609-
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 0006-
374 CONNECTOR
M16 STRAIGHT 		1-09654-380-0 01 1 0006-
434 CLIP
ID=10 & 10 		1-09709-221-0 01 1 0006-
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0006-

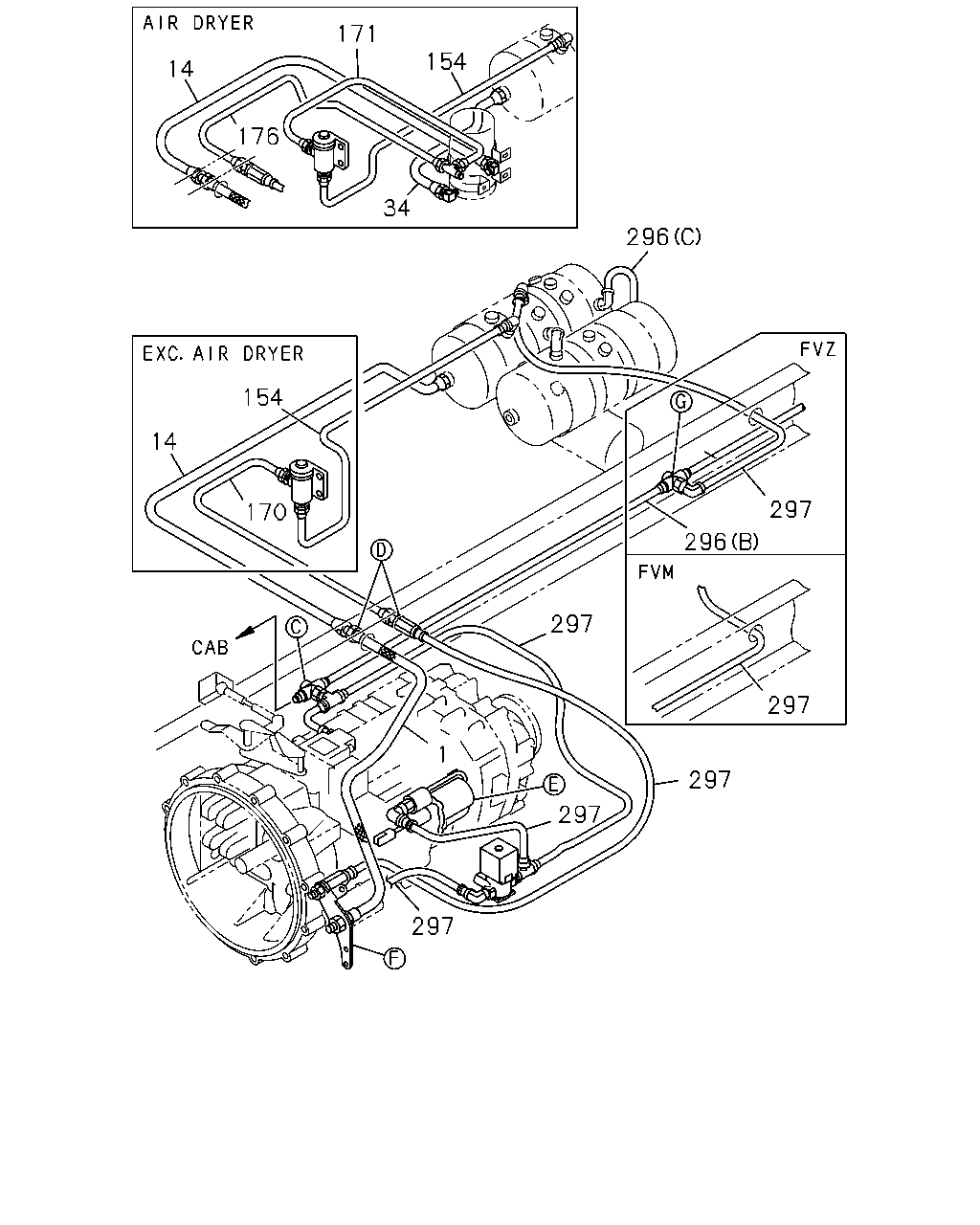

çizim 177217
171 154 14 176 34 296 154 14 297 170 296 297 297 1 297 297 297
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 0006-0605
1 HOSE; FLEX,AIR TANK
L=1500 		0-77716-150-0 01 1 0606-
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-372-0 01 1 0006-0109
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0110-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49115-575-0 01 1 0110-
34 PIPE; AIR
AIR DRYER<PS7> 		1-49118-408-0 01 1 0110-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) L=1096 		1-49122-170-0 01 1 0006-0104
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) 		1-49123-061-0 01 1 0105-0109
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0110-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) AIR DRYER<PS7> 		1-49122-172-0 01 1 0110-
170 PIPE; AIR,AIR GOV TO FLEX HOSE
L=401 		1-49122-185-0 01 1 0006-0104
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49123-060-0 01 1 0105-0109
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0110-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49122-192-0 01 1 0110-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-551-0 01 1 0110-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-1 01 1 0006-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0006-
296 TUBE; NYLON
(C) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0006-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0006-
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0006-

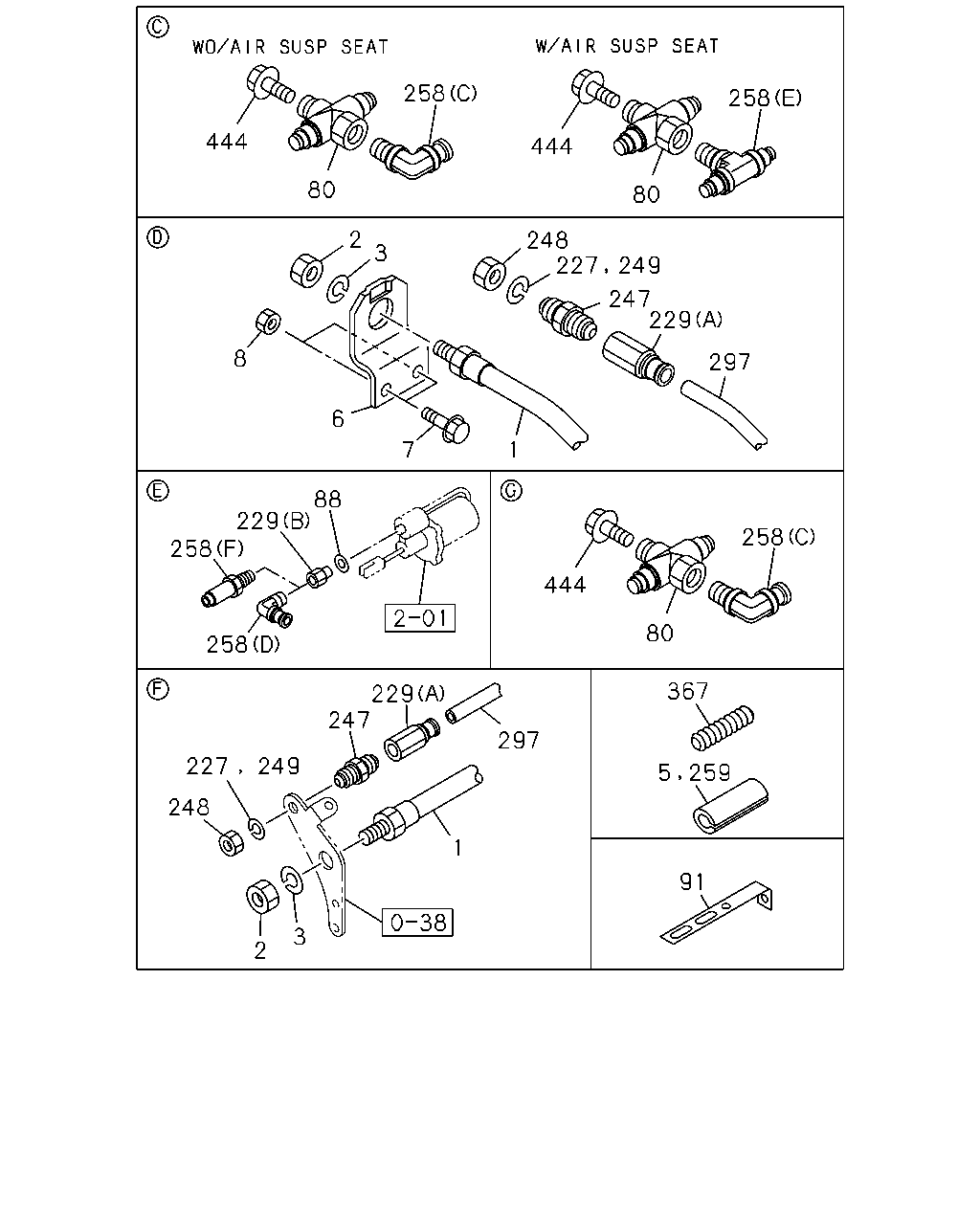

çizim 177222
258 258 444 444 80 80 2 248 3 247 229 8 297 6 7 1 88 229 258 258 444 258 80 367 229 247 297 227 249 248 1 91 3 2 227 249 5 259
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 0006-0605
1 HOSE; FLEX,AIR TANK
L=1500 		0-77716-150-0 01 1 0606-
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 0006-0512
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601-
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 01 1 0006-0512
2 NUT; FLEX HOSE,AIR TANK
M20 		0-91111-520-0 01 1 0601-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 01 1 0006-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		0-91510-520-0 01 1 0604-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 0006-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604-
5 SLEEVE; FLEX HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0006-
6 BRACKET; FLEX HOSE,AIR TANK 1-47476-693-2 01 1 0006-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28680-835-0 02 1 0006-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 0006-0602
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91180-108-0 02 1 0603-
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0006-0012
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0006-0012
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0101-
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0006-
91 BRACKET; TUBE CLIP
L=225 		1-47477-646-3 01 1 0010-
227 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0006-0603
227 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0604-
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0006-
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 0006-0403
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0404-
247 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 02 1 0006-0607
247 UNION; AIR PIPE
M12 L=66.5 		0-92113-306-0 02 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 02 1 0006-0604
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0605-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0605-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0006-0603
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
(D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0006-
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006-0012
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006-0012
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0006-0012
258 CONNECTOR; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0101-
258 CONNECTOR; NYLON TUBE
(F) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0006-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0006-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0006-0012
258 CONNECTOR; NYLON TUBE
(E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0101-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0101-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0006-0007
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 03 1 0006-0112
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 02 1 0201-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0006-
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0006-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0006-
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0006-0012
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0006-0012
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0006-0012
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0101-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0101-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
