1 |

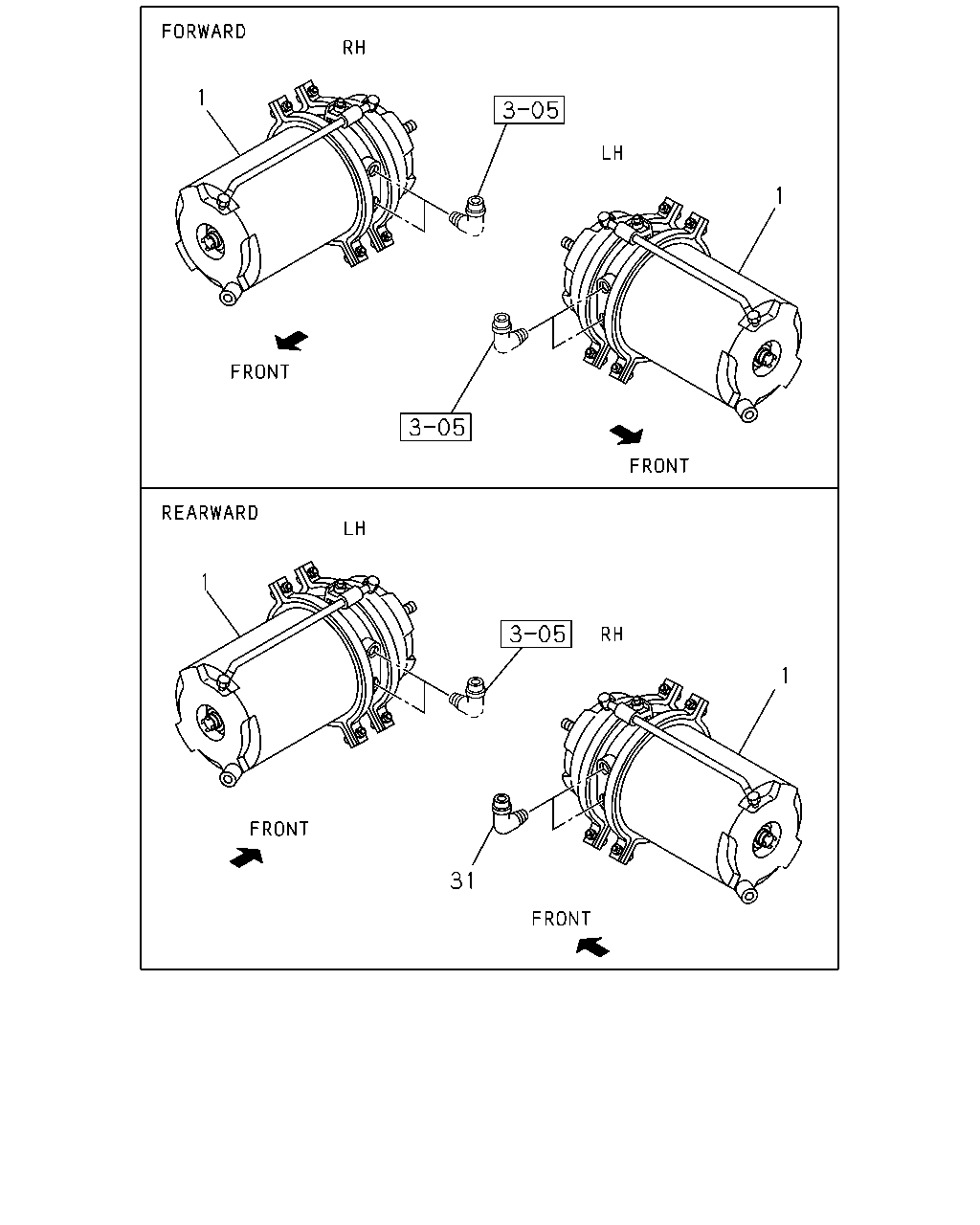

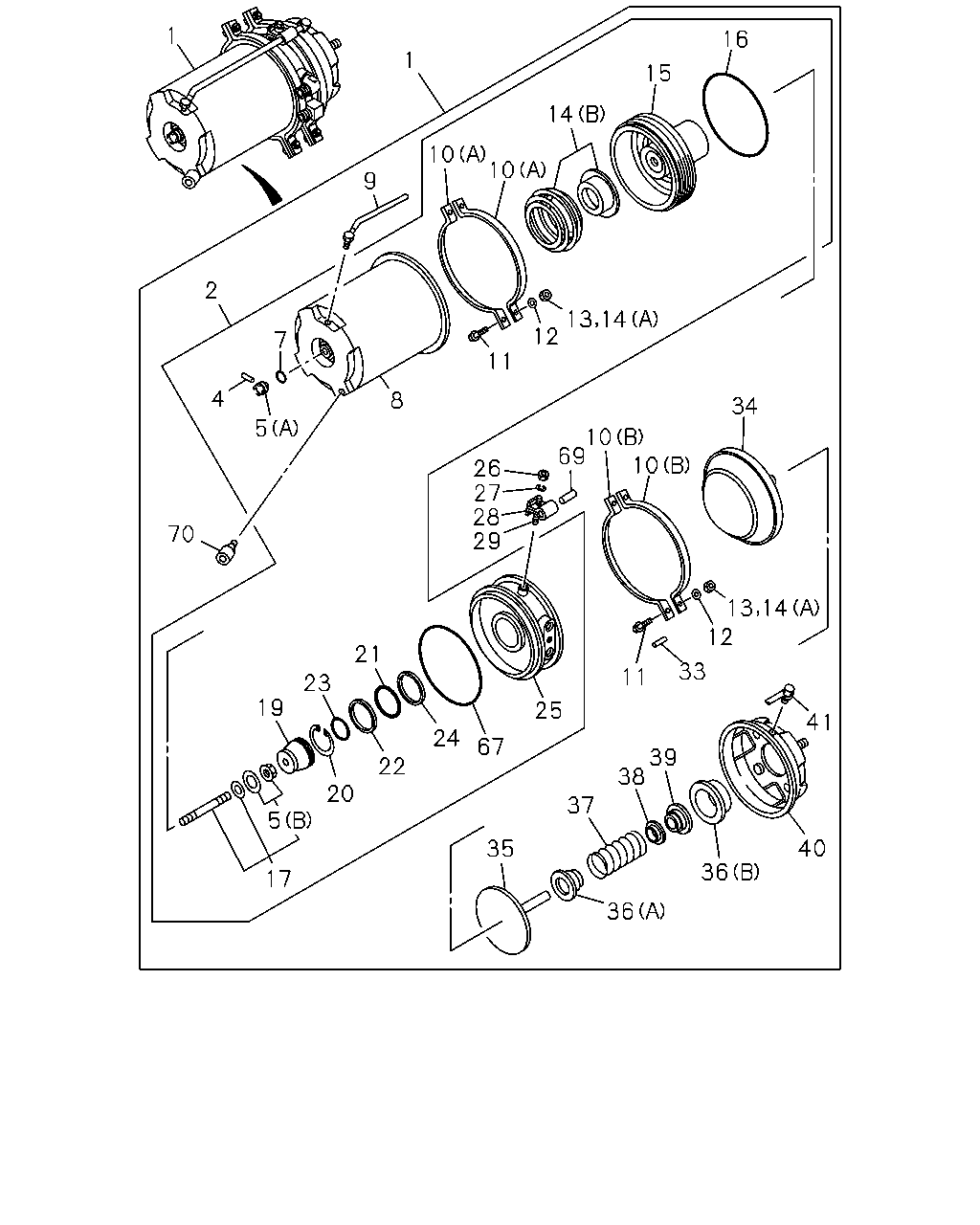

CHAMBER ASM; SPRING
FORWARD
|
1-48250-176-2 |
01 |
1 |
0006- |
| |
1 |
CHAMBER ASM; SPRING
FORWARD
|
1-48250-177-2 |
01 |
1 |
0006- |
| |
1 |
CHAMBER ASM; SPRING
REARWARD
|
1-48250-248-2 |
01 |
1 |
0006- |
| |
1 |
CHAMBER ASM; SPRING
REARWARD
|
1-48250-249-2 |
01 |
1 |
0006- |
| |
2 |
CHAMBER; EMERGENCY
FORWARD
|
1-48252-020-0 |
01 |
1 |
0006- |
| |
2 |
CHAMBER; EMERGENCY
FORWARD
|
1-48252-021-0 |
01 |
1 |
0006- |
| |
2 |
CHAMBER; EMERGENCY
REARWARD
|
1-48252-039-0 |
01 |
1 |
0006-0402 |
| |
2 |
CHAMBER; EMERGENCY
REARWARD
|
1-48252-033-0 |
01 |
1 |
0403- |
| |
2 |
CHAMBER; EMERGENCY
REARWARD
|
1-48252-040-0 |
01 |
1 |
0006-0402 |
| |
2 |
CHAMBER; EMERGENCY
REARWARD
|
1-48252-031-0 |
01 |
1 |
0403- |
| |
4 |
PIN; STRAIGHT,SPR CHAMBER
|
1-48259-056-0 |
08 |
1 |
0006- |
| |
5 |
NUT; SHELL
(A)
|
1-48259-054-0 |
04 |
1 |
0006- |
| |
5 |
NUT; SHELL
(B)
|
1-48259-074-0 |
04 |
1 |
0006- |
| |
7 |
GASKET
|
1-48259-055-0 |
04 |
1 |
0006-0402 |
| |
7 |
GASKET
FORWARD,REARWARD RH
|
1-48259-055-0 |
03 |
1 |
0403- |
| |
7 |
GASKET
REARWARD
|
1-09623-095-0 |
01 |
1 |
0403- |
| |
8 |
SHELL; CYL,SPR CHAMBER
REARWARD
|
1-48251-043-0 |
02 |
1 |
0006- |
| |
8 |
SHELL; CYL,SPR CHAMBER
FORWARD
|
1-48259-069-0 |
01 |
1 |
0006- |
| |
8 |
SHELL; CYL,SPR CHAMBER
FORWARD
|
1-48259-070-0 |
01 |
1 |
0006- |
| |
9 |
PIPE ASM; SHELL
|
1-48259-076-0 |
04 |
1 |
0006- |
| |
10 |
RING; CLAMP,SPR CHAMBER
(A)
|
1-48259-016-0 |
08 |
1 |
0006- |
| |
10 |
RING; CLAMP,SPR CHAMBER
(B)
|
1-48259-031-0 |
08 |
1 |
0006- |
| |
11 |
BOLT; CLAMP RING
|
1-48259-035-0 |
16 |
1 |
0006- |
| |
12 |
WASHER; LK,CLAMP RING
FORWARD
|
1-48259-046-0 |
08 |
1 |
0006- |
| |
12 |
WASHER; LK,CLAMP RING
REARWARD
ID=10.2
|
9-09150-510-0 |
08 |
1 |
0006- |
| |
13 |
NUT; CLAMP RING
M10
|
9-09110-510-0 |
12 |
1 |
0006-0402 |
| |
13 |
NUT; CLAMP RING
M10
|
9-09110-510-0 |
08 |
1 |
0403- |
| |
13 |
NUT; CLAMP RING
M10
|
9-09110-510-0 |
04 |
1 |
0403- |
| |
14 |
SPRING & SEAT SET
(B)
|
1-48259-037-1 |
04 |
1 |
0006- |
| |
14 |
SPRING & SEAT SET
(A)
|
8-83315-080-0 |
04 |
1 |
0006- |
| |
15 |
PISTON
|
1-48262-005-0 |
04 |
1 |
0006- |
| |
16 |
GASKET
|
1-48259-048-0 |
04 |
1 |
0006- |
| |
17 |
BOLT ASM; EMERGENCY
|
1-48259-073-0 |
04 |
1 |
0006- |
| |
19 |
COVER; PISTON
|
1-48269-011-0 |
04 |
1 |
0006- |
| |
20 |
RING; RET
|
1-48259-060-0 |
04 |
1 |
0006- |
| |
21 |
GASKET; SPR CHAMBER
|
1-48259-049-0 |
04 |
1 |
0006- |
| |
22 |
RING; BACKUP,SPR CHAMBER
|
1-48259-019-0 |
04 |
1 |
0006- |
| |
23 |
GASKET; SPR CHAMBER
|
1-48259-047-0 |
04 |
1 |
0006- |
| |
24 |
BEARING; SPR CHAMBER
|
1-48259-020-0 |
04 |
1 |
0006- |
| |
25 |
PLATE; PRESSURE,SPR CHAMBER
FORWARD
|
1-48259-087-0 |
01 |
1 |
0006- |
| |
25 |
PLATE; PRESSURE,SPR CHAMBER
FORWARD
|
1-48259-088-0 |
01 |
1 |
0006- |
| |
25 |
PLATE; PRESSURE,SPR CHAMBER
REARWARD
|
1-48259-138-0 |
01 |
1 |
0006-0402 |
| |
25 |
PLATE; PRESSURE,SPR CHAMBER
REARWARD
|
1-48259-116-0 |
01 |
1 |
0403- |
| |
25 |
PLATE; PRESSURE,SPR CHAMBER
REARWARD
|
1-48259-140-0 |
01 |
1 |
0006-0402 |
| |
25 |
PLATE; PRESSURE,SPR CHAMBER
REARWARD
|
1-48259-122-0 |
01 |
1 |
0403- |
| |
26 |
NUT; PRESSURE PLATE
|
1-48259-058-0 |
08 |
1 |
0006-0402 |
| |
26 |
NUT; PRESSURE PLATE
FORWARD
|
1-48259-058-0 |
04 |
1 |
0403- |
| |
26 |
NUT; PRESSURE PLATE
REARWARD
M8
|
9-09111-508-0 |
04 |
1 |
0403- |
| |
27 |
WASHER; PRESSURE PLATE
FORWARD
|
1-48259-057-0 |
02 |
1 |
0006- |
| |
27 |
WASHER; PRESSURE PLATE
REARWARD
ID=8.2
|
9-09150-508-0 |
02 |
1 |
0006- |
| |
28 |
BRACKET; PRESSURE PLATE,HOSE
|
1-48259-059-0 |
04 |
1 |
0006- |
| |
29 |
STUD; PRESSURE PLATE
|
1-48259-050-0 |
04 |
1 |
0006- |
| |
33 |
RETAINER; DIAPH
REARWARD
|
1-48250-044-0 |
02 |
1 |
0006- |
| |
33 |
RETAINER; DIAPH
FORWARD
|
1-48259-044-0 |
04 |
1 |
0006- |
| |
34 |
DIAPHRAGM
FORWARD
|
1-48252-011-0 |
02 |
1 |
0006- |
| |
34 |
DIAPHRAGM
REARWARD
|
1-48258-011-0 |
02 |
1 |
0006- |
| |
35 |
PLATE; ROD END,SPR CHAMBER
FORWARD
|
1-48253-011-0 |
02 |
1 |
0006- |
| |
35 |
PLATE; ROD END,SPR CHAMBER
REARWARD
|
1-48253-029-0 |
01 |
1 |
0006-0402 |
| |
35 |
PLATE; ROD END,SPR CHAMBER
REARWARD
|
1-48253-029-0 |
02 |
1 |
0403- |
| |
35 |
PLATE; ROD END,SPR CHAMBER
REARWARD
|
1-48253-035-0 |
01 |
1 |
0006-0402 |
| |
36 |
RETAINER; SPR CHAMBER
(A)
|
1-48259-033-0 |
04 |
1 |
0006- |
| |
36 |
RETAINER; SPR CHAMBER
(B)
|
1-48259-043-0 |
04 |
1 |
0006- |
| |
37 |
SPRING; LWR,SPR CHAMBER
|
1-48255-003-0 |
04 |
1 |
0006- |
| |
38 |
COVER; ROD & PLATE
|
1-48259-066-0 |
04 |
1 |
0006- |
| |
39 |
COVER; ROD & PLATE
|
1-48259-065-0 |
04 |
1 |
0006- |
| |
40 |
COVER ASM; LWR,SPR CHAMBER
FORWARD
|
1-48259-081-1 |
01 |
1 |
0006- |
| |
40 |
COVER ASM; LWR,SPR CHAMBER
FORWARD
|
1-48259-082-1 |
01 |
1 |
0006- |
| |
40 |
COVER ASM; LWR,SPR CHAMBER
REARWARD
|
1-48259-137-0 |
01 |
1 |
0006-0402 |
| |
40 |
COVER ASM; LWR,SPR CHAMBER
REARWARD
|
1-48259-115-0 |
01 |
1 |
0403- |
| |
40 |
COVER ASM; LWR,SPR CHAMBER
REARWARD
|
1-48259-139-0 |
01 |
1 |
0006-0402 |
| |
40 |
COVER ASM; LWR,SPR CHAMBER
REARWARD
|
1-48259-119-0 |
01 |
1 |
0403- |
| |
41 |
PIPE ASM; LWR COVER
|
1-48259-080-0 |
04 |
1 |
0006- |
| |
67 |
GASKET; SPR CHAMBER
|
1-48259-053-0 |
04 |
1 |
0006- |
| |
69 |
HOSE; PRESSURE PLATE
|
1-48259-051-0 |
04 |
1 |
0006- |
| |
70 |
COVER; EXH,SPR CHAMBER
|
1-48259-052-0 |
03 |
1 |
0006- |
