Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#59405) — 323 parça

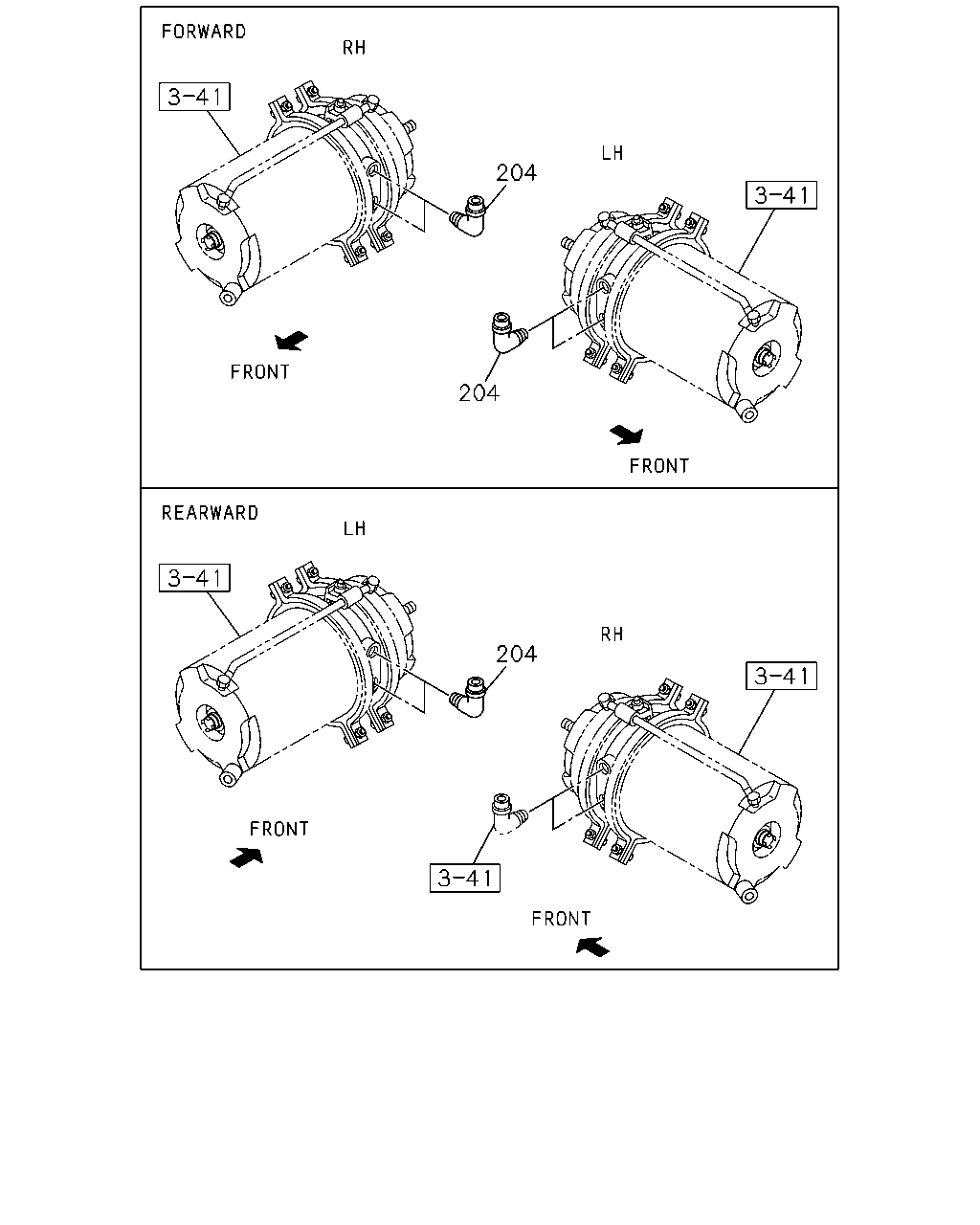

204 204 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	204	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	0006-

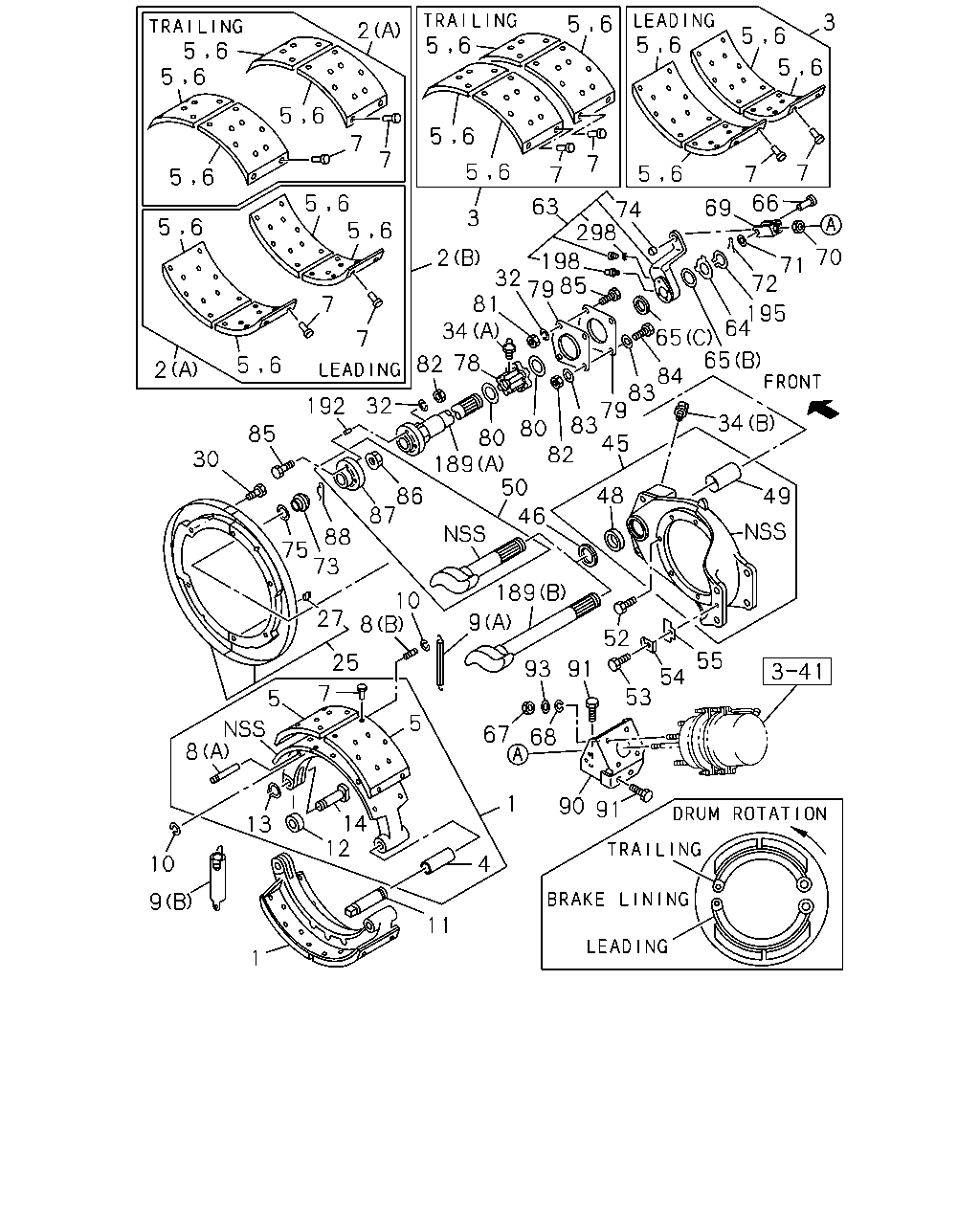

46 34 45 48 52 50 55 54 53 9 8 10 25 27 75 88 73 81 80 80 32 84 85 79 79 83 83 82 78 34 63 198 298 74 65 91 72 70 69 93 66 67 68 91 90 5 6 7 7 5 6 5 3 6 5 6 6 5 7 7 6 5 6 5 5 6 5 14 12 13 1 7 5 4 11 10 1 9 6 5 5 6 5 6 2 5 6 5 5 6 5 5 2 6 6 7 7 7 7 3 2 65 6 64 195 71 30 8 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR LEADING	1-47120-713-0	02	1	0006-
1	SHOE; BRK,RR TRAILING	1-47120-714-0	02	1	0006-
1	SHOE; BRK,RR LEADING	1-47120-715-0	02	1	0006-
1	SHOE; BRK,RR TRAILING	1-47120-716-0	02	1	0006-
2	LINING SET; RR BRK,STANDARD (A) LEADING	1-88310-521-0	02	1	0006-
2	LINING SET; RR BRK,STANDARD (A) TRAILING	1-88310-523-0	02	1	0006-
2	LINING SET; RR BRK,STANDARD (B) LEADING,TRAILING BEST VALUE PARTS	1-87610-129-0	02	1	0006-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	02	1	0006-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	02	1	0006-
4	BUSHING; BRK SHOE,RR WHEEL TRAILING	1-47112-012-0	08	1	0006-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	08	1	0006-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	08	1	0006-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	08	1	0006-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	08	1	0006-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0006-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	0006-1209
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	0006-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	0006-1209
9	SPRING; RETURN,BRK SHOE (B)	8-98219-175-0	04	1	1210-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	0006-1209
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	0006-0604
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	16	1	0605-1209
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	0006-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	0006-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	0006-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	08	1	0006-
25	COVER SET; RR BRK DRUM	1-47151-462-1	04	1	0006-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0006-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	0006-0302
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	18	1	0303-0906
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	18	1	0907-1209
30	BOLT; DRUM COVER M10X12	1-47159-187-0	06	1	0303-1209
30	BOLT; DRUM COVER M10X12	1-47159-187-0	24	1	1210-
32	WASHER; LK ID=10.2	9-09150-510-0	04	1	0006-0603
32	WASHER; LK ID=10.2	0-91510-510-0	04	1	0604-
32	WASHER; LK ID=12.2	9-09150-612-0	04	1	0007-0302
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	0006-0512
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0006-0512
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD	1-47137-120-2	02	1	0006-
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	02	1	0006-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	0006-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	0006-
49	BUSHING; CM/SHF,RR BRK FORWARD	1-47146-003-1	02	1	0006-
49	BUSHING; CM/SHF,RR BRK REARWARD	1-47146-009-0	02	1	0006-
50	CAMSHAFT; BRK,RR BRK FORWARD	1-47141-053-0	01	1	0006-
50	CAMSHAFT; BRK,RR BRK FORWARD	1-47141-054-0	01	1	0006-
50	CAMSHAFT; BRK,RR BRK REARWARD	1-47141-063-0	01	1	0006-
50	CAMSHAFT; BRK,RR BRK REARWARD	1-47141-066-0	01	1	0006-0302
52	BOLT; ANCHOR BRKT REARWARD RH M14X43	1-09040-045-0	01	1	0006-0304
52	BOLT; ANCHOR BRKT FORWARD,REARWARD LH M14X50	1-09040-066-0	03	1	0006-0304
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	04	1	0305-1209
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	0006-0512
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	04	1	0601-1209
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	04	1	1210-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	0006-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	0006-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	02	1	0006-0304
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-045-0	01	1	0305-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-046-0	01	1	0006-
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	0006-
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-051-0	01	1	0305-
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-022-0	02	1	0006-
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	0006-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	0006-
65	SPACER; SLACK ADJ,BRK (C)	1-47143-014-0	02	1	0006-
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	0006-
66	PIN; JAW JOINT	1-09744-088-0	02	1	0006-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0006-0512
67	NUT; POWER CHAMBER FIX M16	0-91110-516-0	08	1	0601-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0006-0604
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0605-0802
68	WASHER; LK,CHAMBER ID=16.2	0-91510-816-0	08	1	0803-
69	JOINT; JAW	1-09768-060-1	02	1	0006-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0006-0512
70	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0006-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0006-0606
72	PIN; SPLIT OD=3.7 L=28	0-81124-028-0	02	1	0607-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	04	1	0006-
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	0006-
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	0006-
78	BUSHING; BRKT	1-47146-008-0	02	1	0006-
79	BRACKET; CM/SHF	9-47145-013-0	04	1	0006-
80	GASKET; BUSHING ID=39.7	9-09561-340-0	04	1	0006-
81	NUT M10	9-09110-410-0	04	1	0006-0512
81	NUT M10	0-91110-510-0	04	1	0601-
82	NUT M16	9-99110-516-0	04	1	0006-0512
82	NUT M16	0-91110-516-0	04	1	0601-
82	NUT M12	9-99110-512-0	04	1	0007-0302
83	WASHER; PL ID=16.2	9-09851-672-2	08	1	0006-
84	BOLT; BRKT TO CASE M16X40	9-92061-640-0	04	1	0006-0512
84	BOLT; BRKT TO CASE M16X40	0-20951-640-0	04	1	0601-
85	BOLT; CM/SHF BRKT M10X20	0-20801-020-0	04	1	0006-0512
85	BOLT; CM/SHF BRKT M10X20	0-20851-020-0	04	1	0601-
85	BOLT; CM/SHF BRKT M12X50	5-09000-143-0	04	1	0007-0302
88	CLIP; BRKT	1-09589-018-0	02	1	0006-
90	BRACKET; CHAMBER	1-42129-240-0	01	1	0006-
90	BRACKET; CHAMBER	1-42129-241-0	01	1	0006-
91	BOLT; CHAMBER M16X30 FLANGE	0-28981-630-0	08	1	0006-0512
91	BOLT; CHAMBER M16X30 FLANGE	0-28951-630-0	08	1	0601-
93	WASHER; PL,CHAMBER ID=17 OD=32	9-09160-616-0	08	1	1109-
195	RING; SNAP,CM/SHF	9-09180-038-0	03	1	0006-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0006-0304
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	03	1	0305-0512
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	0601-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	0305-0512
198	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-
298	GASKET ID=23.3	9-09561-223-0	04	1	0006-

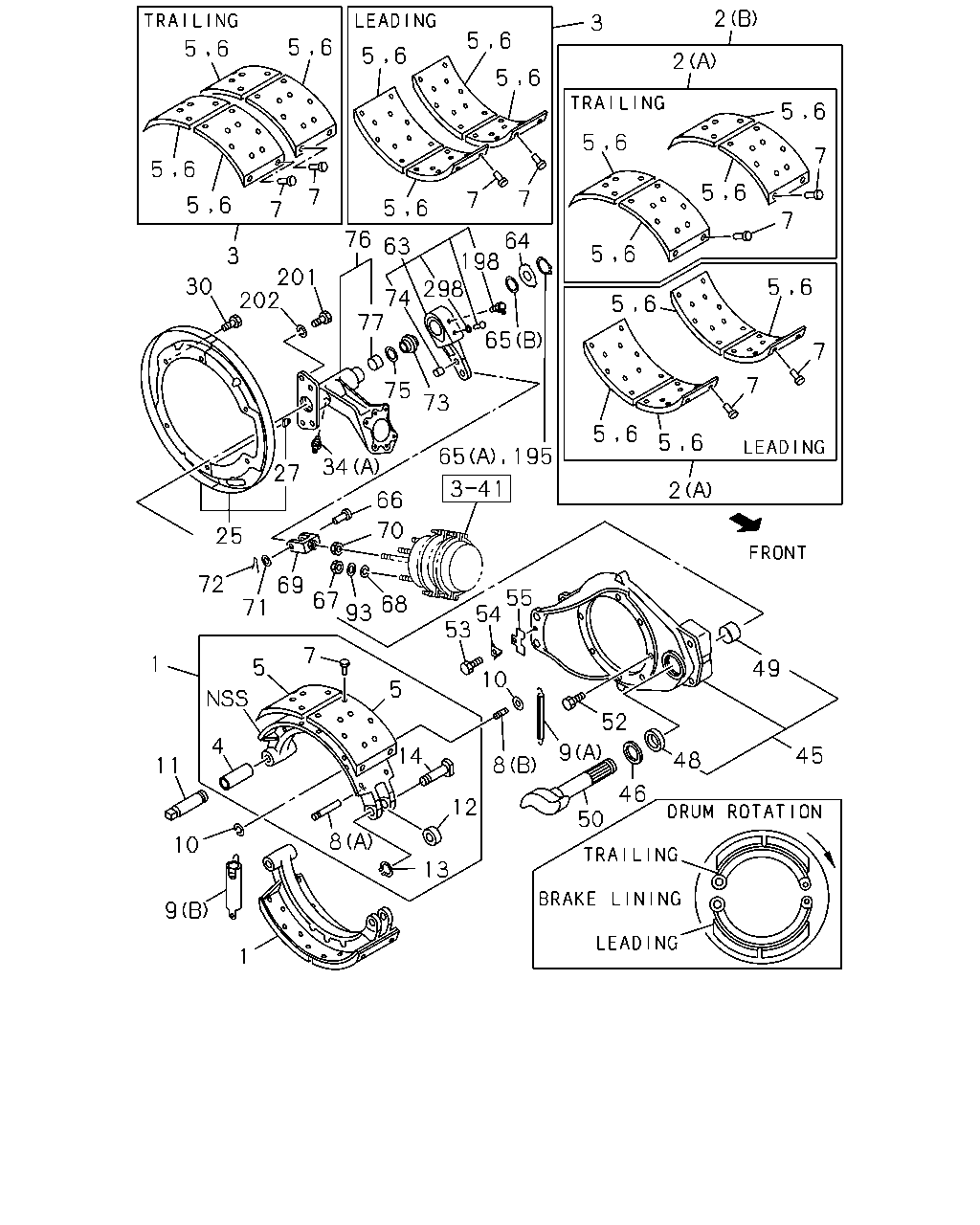

5 6 5 6 5 6 7 7 2 5 6 5 6 5 6 6 5 2 5 6 5 6 5 6 5 6 3 2 63 7 7 5 6 5 6 5 6 5 6 3 7 7 6 5 66 69 74 298 198 85 32 79 81 34 82 78 80 189 50 46 82 80 83 45 79 83 84 65 65 64 195 72 71 70 34 49 48 189 9 10 87 86 32 7 7 85 192 30 75 88 73 27 8 25 7 5 5 8 13 12 14 4 1 11 10 9 67 93 68 91 52 53 54 55 90 91 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR LEADING	1-47120-713-0	02	1	0006-
1	SHOE; BRK,RR TRAILING	1-47120-714-0	02	1	0006-
1	SHOE; BRK,RR LEADING	1-47120-715-0	02	1	0006-
1	SHOE; BRK,RR TRAILING	1-47120-716-0	02	1	0006-
2	LINING SET; RR BRK,STANDARD (A) LEADING	1-88310-521-0	02	1	0006-
2	LINING SET; RR BRK,STANDARD (A) TRAILING	1-88310-523-0	02	1	0006-
2	LINING SET; RR BRK,STANDARD (B) LEADING,TRAILING BEST VALUE PARTS	1-87610-129-0	02	1	0006-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	02	1	0006-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	02	1	0006-
4	BUSHING; BRK SHOE,RR WHEEL TRAILING	1-47112-012-0	08	1	0006-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	08	1	0006-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	08	1	0006-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	08	1	0006-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	08	1	0006-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0006-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	0006-1209
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	0006-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	0006-1209
9	SPRING; RETURN,BRK SHOE (B)	8-98219-175-0	04	1	1210-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	0006-1209
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	0006-0604
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	16	1	0605-1209
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	0006-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	0006-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	0006-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	08	1	0006-
25	COVER SET; RR BRK DRUM	1-47151-462-1	04	1	0006-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0006-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	0006-0302
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	18	1	0303-0906
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	18	1	0907-1209
30	BOLT; DRUM COVER M10X12	1-47159-187-0	06	1	0303-1209
30	BOLT; DRUM COVER M10X12	1-47159-187-0	24	1	1210-
32	WASHER; LK ID=10.2	9-09150-510-0	04	1	0006-0603
32	WASHER; LK ID=10.2	0-91510-510-0	04	1	0604-
32	WASHER; LK ID=12.2	9-09150-612-0	04	1	0007-0302
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	0006-0512
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0006-0512
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD	1-47137-120-2	02	1	0006-
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	02	1	0006-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	0006-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	0006-
49	BUSHING; CM/SHF,RR BRK FORWARD	1-47146-003-1	02	1	0006-
49	BUSHING; CM/SHF,RR BRK REARWARD	1-47146-009-0	02	1	0006-
50	CAMSHAFT; BRK,RR BRK FORWARD	1-47141-053-0	01	1	0006-
50	CAMSHAFT; BRK,RR BRK FORWARD	1-47141-054-0	01	1	0006-
50	CAMSHAFT; BRK,RR BRK REARWARD	1-47141-063-0	01	1	0006-
50	CAMSHAFT; BRK,RR BRK REARWARD	1-47141-066-0	01	1	0006-0302
52	BOLT; ANCHOR BRKT REARWARD RH M14X43	1-09040-045-0	01	1	0006-0304
52	BOLT; ANCHOR BRKT FORWARD,REARWARD LH M14X50	1-09040-066-0	03	1	0006-0304
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	04	1	0305-1209
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	0006-0512
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	04	1	0601-1209
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	04	1	1210-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	0006-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	0006-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	02	1	0006-0304
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-045-0	01	1	0305-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-046-0	01	1	0006-
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	0006-
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-051-0	01	1	0305-
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-022-0	02	1	0006-
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	0006-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	0006-
65	SPACER; SLACK ADJ,BRK (C)	1-47143-014-0	02	1	0006-
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	0006-
66	PIN; JAW JOINT	1-09744-088-0	02	1	0006-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0006-0512
67	NUT; POWER CHAMBER FIX M16	0-91110-516-0	08	1	0601-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0006-0604
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0605-0802
68	WASHER; LK,CHAMBER ID=16.2	0-91510-816-0	08	1	0803-
69	JOINT; JAW	1-09768-060-1	02	1	0006-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0006-0512
70	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0006-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0006-0606
72	PIN; SPLIT OD=3.7 L=28	0-81124-028-0	02	1	0607-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	04	1	0006-
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	0006-
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	0006-
78	BUSHING; BRKT	1-47146-008-0	02	1	0006-
79	BRACKET; CM/SHF	9-47145-013-0	04	1	0006-
80	GASKET; BUSHING ID=39.7	9-09561-340-0	04	1	0006-
81	NUT M10	9-09110-410-0	04	1	0006-0512
81	NUT M10	0-91110-510-0	04	1	0601-
82	NUT M16	9-99110-516-0	04	1	0006-0512
82	NUT M16	0-91110-516-0	04	1	0601-
82	NUT M12	9-99110-512-0	04	1	0007-0302
83	WASHER; PL ID=16.2	9-09851-672-2	08	1	0006-
84	BOLT; BRKT TO CASE M16X40	9-92061-640-0	04	1	0006-0512
84	BOLT; BRKT TO CASE M16X40	0-20951-640-0	04	1	0601-
85	BOLT; CM/SHF BRKT M10X20	0-20801-020-0	04	1	0006-0512
85	BOLT; CM/SHF BRKT M10X20	0-20851-020-0	04	1	0601-
85	BOLT; CM/SHF BRKT M12X50	5-09000-143-0	04	1	0007-0302
86	NUT; FLANGE	1-09440-020-0	01	1	0006-0302
87	FLANGE; SHAFT	1-47149-041-0	01	1	0006-0302
88	CLIP; BRKT	1-09589-018-0	02	1	0006-
90	BRACKET; CHAMBER	1-42129-240-0	01	1	0006-
90	BRACKET; CHAMBER	1-42129-241-0	01	1	0006-
91	BOLT; CHAMBER M16X30 FLANGE	0-28981-630-0	08	1	0006-0512
91	BOLT; CHAMBER M16X30 FLANGE	0-28951-630-0	08	1	0601-
93	WASHER; PL,CHAMBER ID=17 OD=32	9-09160-616-0	08	1	1109-
189	SHAFT; RR,BRK (A)	1-47141-065-1	01	1	0007-0302
189	SHAFT; RR,BRK (B)	1-47141-137-0	01	1	0303-
192	PIN; KNOCK,FLANGE OD=12 L=20	9-08161-220-0	01	1	0007-0302
195	RING; SNAP,CM/SHF	9-09180-038-0	03	1	0006-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0006-0304
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	03	1	0305-0512
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	0601-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	0305-0512
198	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-
298	GASKET ID=23.3	9-09561-223-0	04	1	0006-

5 6 5 6 5 6 5 6 7 7 5 6 5 6 5 6 5 6 7 7 5 6 5 6 5 6 5 6 5 7 7 7 6 5 6 5 6 2 3 30 201 202 76 74 63 64 77 75 65 34 25 72 71 67 93 66 70 5 7 5 53 8 195 55 54 9 48 49 45 46 50 12 13 8 10 9 4 11 65 73 298 198 2 27 2 68 10 52 1 3 7 6 5 14 69 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR LEADING	1-47120-713-0	02	1	0006-
1	SHOE; BRK,RR TRAILING	1-47120-714-0	02	1	0006-
1	SHOE; BRK,RR LEADING	1-47120-715-0	02	1	0006-
1	SHOE; BRK,RR TRAILING	1-47120-716-0	02	1	0006-
2	LINING SET; RR BRK,STANDARD (A) LEADING	1-88310-521-0	02	1	0006-
2	LINING SET; RR BRK,STANDARD (A) TRAILING	1-88310-523-0	02	1	0006-
2	LINING SET; RR BRK,STANDARD (B) LEADING,TRAILING BEST VALUE PARTS	1-87610-129-0	02	1	0006-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	02	1	0006-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	02	1	0006-
4	BUSHING; BRK SHOE,RR WHEEL TRAILING	1-47112-012-0	08	1	0006-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	08	1	0006-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	08	1	0006-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	08	1	0006-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	08	1	0006-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0006-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	0006-1209
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	0006-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	0006-1209
9	SPRING; RETURN,BRK SHOE (B)	8-98219-175-0	04	1	1210-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	0006-1209
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	0006-0604
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	16	1	0605-1209
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	0006-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	0006-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	0006-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	08	1	0006-
25	COVER SET; RR BRK DRUM	1-47151-462-1	04	1	0006-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0006-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	0006-0302
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	18	1	0303-0906
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	18	1	0907-1209
30	BOLT; DRUM COVER M10X12	1-47159-187-0	06	1	0303-1209
30	BOLT; DRUM COVER M10X12	1-47159-187-0	24	1	1210-
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	0006-0512
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0006-0512
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD	1-47137-120-2	02	1	0006-
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	02	1	0006-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	0006-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	0006-
49	BUSHING; CM/SHF,RR BRK FORWARD	1-47146-003-1	02	1	0006-
49	BUSHING; CM/SHF,RR BRK REARWARD	1-47146-009-0	02	1	0006-
50	CAMSHAFT; BRK,RR BRK FORWARD	1-47141-053-0	01	1	0006-
50	CAMSHAFT; BRK,RR BRK FORWARD	1-47141-054-0	01	1	0006-
50	CAMSHAFT; BRK,RR BRK REARWARD	1-47141-063-0	01	1	0006-
50	CAMSHAFT; BRK,RR BRK REARWARD	1-47141-066-0	01	1	0006-0302
52	BOLT; ANCHOR BRKT REARWARD RH M14X43	1-09040-045-0	01	1	0006-0304
52	BOLT; ANCHOR BRKT FORWARD,REARWARD LH M14X50	1-09040-066-0	03	1	0006-0304
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	04	1	0305-1209
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	0006-0512
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	04	1	0601-1209
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	04	1	1210-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	0006-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	0006-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	02	1	0006-0304
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-045-0	01	1	0305-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-046-0	01	1	0006-
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	0006-
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-051-0	01	1	0305-
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-022-0	02	1	0006-
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	0006-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	0006-
65	SPACER; SLACK ADJ,BRK (C)	1-47143-014-0	02	1	0006-
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	0006-
66	PIN; JAW JOINT	1-09744-088-0	02	1	0006-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0006-0512
67	NUT; POWER CHAMBER FIX M16	0-91110-516-0	08	1	0601-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0006-0604
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0605-0802
68	WASHER; LK,CHAMBER ID=16.2	0-91510-816-0	08	1	0803-
69	JOINT; JAW	1-09768-060-1	02	1	0006-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0006-0512
70	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0006-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0006-0606
72	PIN; SPLIT OD=3.7 L=28	0-81124-028-0	02	1	0607-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	04	1	0006-
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	0006-
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	0006-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-083-0	01	1	0006-0906
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-248-0	01	1	0907-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-084-0	01	1	0006-0906
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-249-0	01	1	0907-
77	BUSHING	1-47146-003-1	02	1	0006-
93	WASHER; PL,CHAMBER ID=17 OD=32	9-09160-616-0	08	1	1109-
195	RING; SNAP,CM/SHF	9-09180-038-0	03	1	0006-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0006-0304
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	03	1	0305-0512
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	0601-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	0305-0512
198	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-
201	BOLT; BRKT,POWER CHAMBER M14X35	0-28081-435-0	08	1	0202-1209
201	BOLT; BRKT,POWER CHAMBER M14X35	0-20851-435-0	08	1	1210-
202	WASHER; LK,BRKT ID=14.2	9-09150-514-0	08	1	0202-0603
202	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	0604-
298	GASKET ID=23.3	9-09561-223-0	04	1	0006-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
