Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11312 - FVZ(MIDDLE EAST)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶

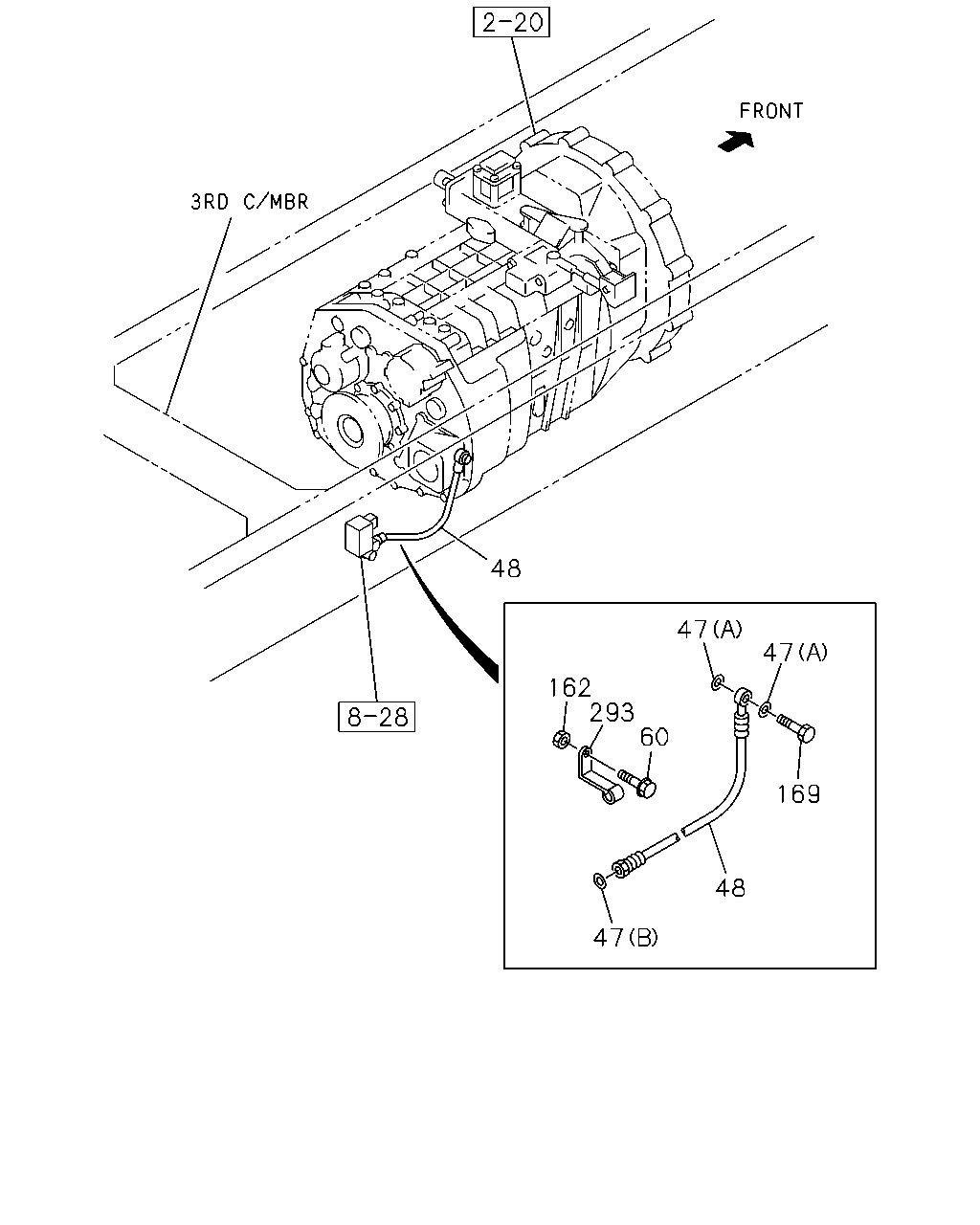

2-85 — POWER TAKE OFF CONTROL
(#59403) — 22 parça
◀
[285A] GROMMET (1 parça)
[285A] -'04/6 FLEX HOSE AND NYLON TUBE (10 parça)

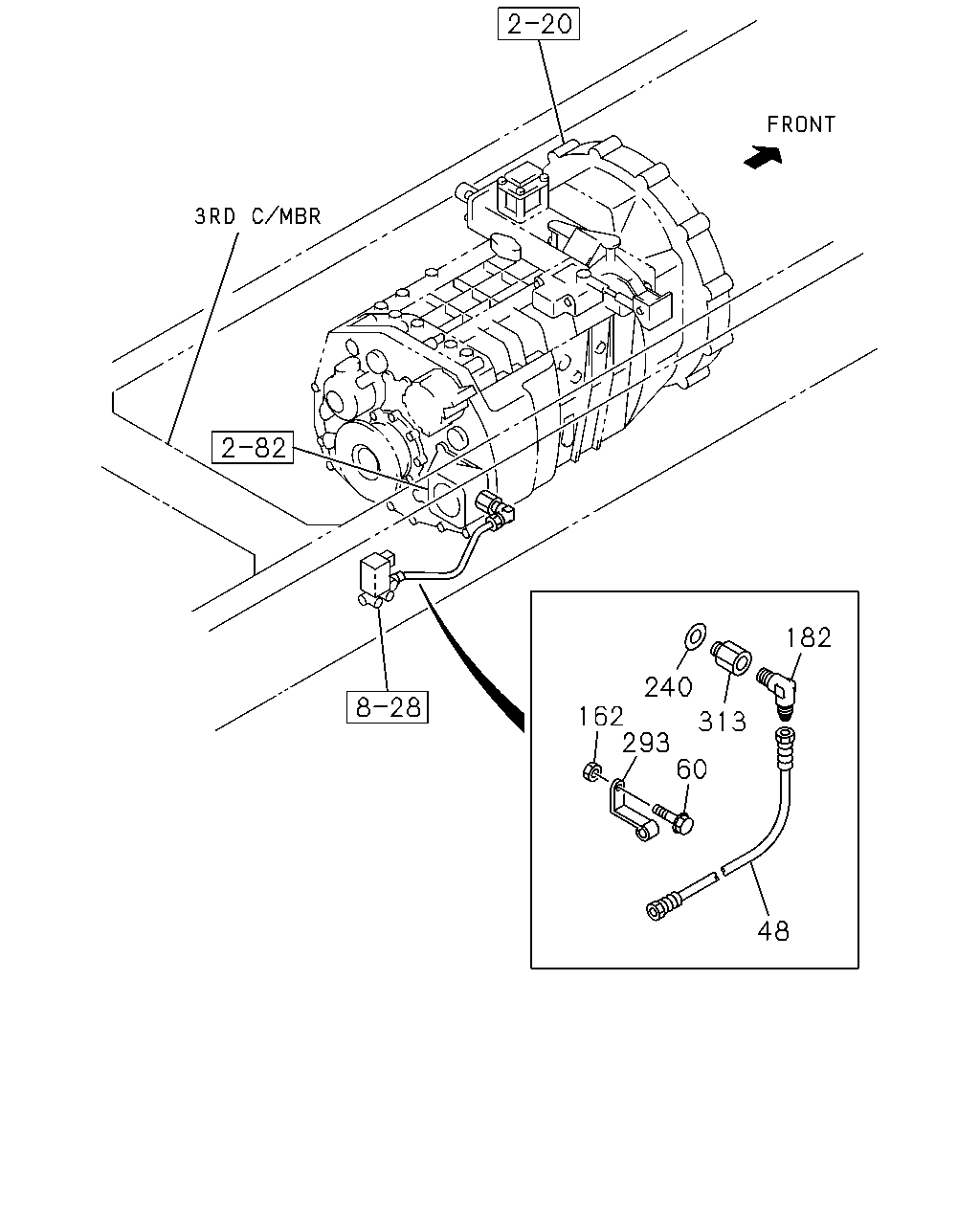

[285A] '04/7- FLEX HOSE AND NYLON TUBE (11 parça)
▶
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
GROMMET; CABLE
1-09983-068-0
01
1
0006-
48
47
47
162
293
60
169
48
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
GASKET; FLEX HOSE
PTO CONTROL<SV6> (A) ID=12.2
9-09572-012-0
02
1
0006-0406
47
GASKET; FLEX HOSE
PTO CONTROL<SV6> (B) ID=11 OD=18
9-09572-510-0
01
1
0006-0406
48
HOSE; FLEX,PTO
PTO CONTROL<SV6> L=1060
1-09363-724-0
01
1
0006-0406
48
HOSE; FLEX,PTO
PTO CONTROL<SV6> L=1100
1-09363-708-0
01
1
0407-
60
BOLT; CLIP FIX
PTO CONTROL<SV6> M8X25 FLANGE
0-28680-825-0
02
1
0006-0512
60
BOLT; CLIP FIX
PTO CONTROL<SV6> M8X25 FLANGE
0-28650-825-0
02
1
0601-
162
NUT; CLIP
PTO CONTROL<SV6> M8 FLANGE
0-91150-108-0
01
1
0006-0602
162
NUT; CLIP
PTO CONTROL<SV6> M8 FLANGE
0-91180-108-0
01
1
0603-
169
BOLT; EYE
PTO CONTROL<SV6> M12X24 EYE-BOLT
1-09675-229-0
01
1
0006-0406
293
CLIP; HOSE
PTO CONTROL<SV6> ID=13 H=75 L=25
1-09700-601-0
02
1
0006-
182
240
162
293
60
313
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
HOSE; FLEX,PTO
PTO CONTROL<SV6> L=1060
1-09363-724-0
01
1
0006-0406
48
HOSE; FLEX,PTO
PTO CONTROL<SV6> L=1100
1-09363-708-0
01
1
0407-
60
BOLT; CLIP FIX
PTO CONTROL<SV6> M8X25 FLANGE
0-28680-825-0
02
1
0006-0512
60
BOLT; CLIP FIX
PTO CONTROL<SV6> M8X25 FLANGE
0-28650-825-0
02
1
0601-
162
NUT; CLIP
PTO CONTROL<SV6> M8 FLANGE
0-91150-108-0
01
1
0006-0602
162
NUT; CLIP
PTO CONTROL<SV6> M8 FLANGE
0-91180-108-0
01
1
0603-
182
CONNECTOR; FLARE
PTO CONTROL<SV6> M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0409-
240
GASKET; CONNECTOR,PTO
PTO CONTROL<SV6> ID=12.2
1-09630-084-0
01
1
0409-1312
240
GASKET; CONNECTOR,PTO
PTO CONTROL<SV6> ID=12.2
8-98251-344-0
01
1
1401-
293
CLIP; HOSE
PTO CONTROL<SV6> ID=13 H=75 L=25
1-09700-601-0
02
1
0006-
313
ADAPTER
PTO CONTROL<SV6> PT1/4
1-09654-396-0
01
1
0409-
