8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#594) — 92 parça
çizim 29649
67 65 65 67
BalonParca AdiParca NoAdetTipApplied Date
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (A) 		1-82380-066-1 01 1 8712-9306
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (B) 		1-82380-070-1 03 1 8712-9306
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (A) 		1-82380-115-1 01 1 9307-
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (B) STAMP NC 		1-82380-125-1 03 1 9307-
67 NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 H=18.5 		1-09409-013-0 01 1 8712-
67 NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 		9-99111-416-0 04 1 8712-

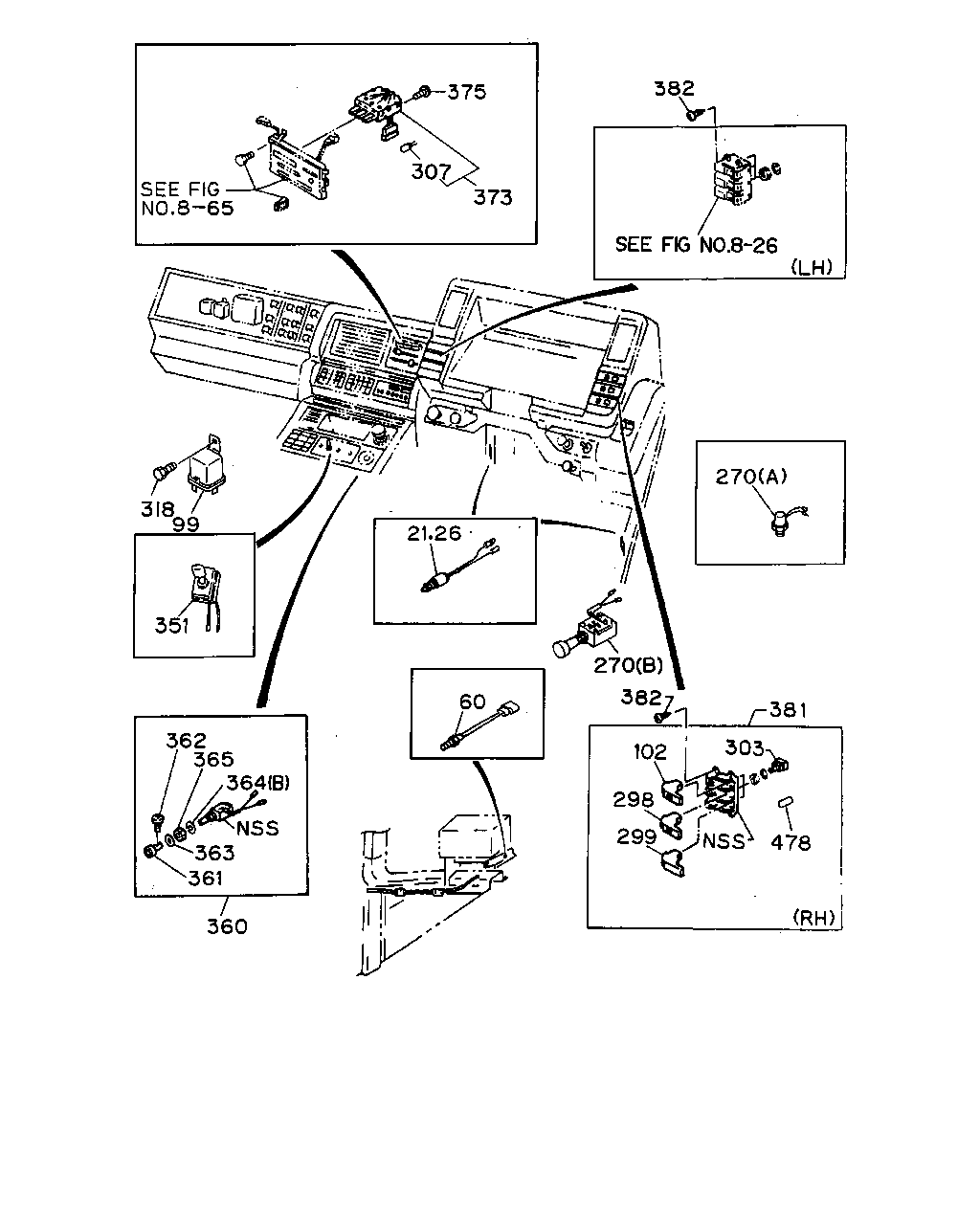

çizim 94242
375 307 373 382 270 270 382 381 303 478 299 298 102 60 26 21 360 361 363 364 365 362 351 99 318
BalonParca AdiParca NoAdetTipApplied Date
21 SWITCH; CLU 1-82380-009-3 01 1 8712-
26 SWITCH; ACCEL 1-82380-089-0 01 1 8712-
60 SWITCH; IGNITION SUB 1-82380-065-0 01 1 8712-9306
60 SWITCH; IGNITION SUB 1-82380-107-1 01 1 9307-
99 RELAY; FOG LAMP
NEW ZEALAND EQUIPMENT(PK5) 24V 12.5A JIDECO 		1-82550-197-0 01 1 8712-
102 KNOB ASM; FOG LAMP 1-82356-005-0 01 1 8712-9001
102 KNOB ASM; FOG LAMP 1-82356-031-0 01 1 9002-
270 SWITCH; PRESS,WHEEL PARKING
(A) 		1-48340-044-0 01 1 8712-9411
270 SWITCH; PRESS,WHEEL PARKING
(A) 		1-48340-057-0 01 1 9412-
270 SWITCH; PRESS,WHEEL PARKING
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-82340-278-0 01 1 9307-
298 KNOB ASM; PARKING LAMP 1-82356-006-0 01 1 8712-9001
298 KNOB ASM; PARKING LAMP 1-82356-028-0 01 1 9002-
299 KNOB ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82356-007-0 01 1 8712-9001
299 KNOB ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82356-083-0 01 1 9002-
303 SWITCH; MICRO
AIRCON /FOG 		1-82350-091-0 02 1 8712-9001
303 SWITCH; MICRO
PARKING 		1-82350-127-0 01 1 9002-
303 SWITCH; MICRO
AIR CONDITIONER MANUAL CONTROL(C60) PARKING 		1-82350-127-0 01 1 8712-9001
303 SWITCH; MICRO
AIR CONDITIONER MANUAL CONTROL(C60) AIRCON /FOG 		1-82350-091-0 02 1 9002-
303 SWITCH; MICRO
EXC. AIR CONDITIONER MANUAL CONTROL(C60) FOG 		1-82350-091-0 01 1 8712-
307 BULB ASM; SW
28V 1.4W 		1-82194-050-0 03 1 9002-
318 SCREW; RELAY
NEW ZEALAND EQUIPMENT(PK5) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 8712-
351 SWITCH; BULB CHECK
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) EXC. WARNING EXH HEAT DELETE<WP5> 		1-82350-023-0 01 1 8712-9001
351 SWITCH; BULB CHECK
EXH HEAT WARNING<W50> 		1-82350-023-0 01 1 9002-
360 SWITCH ASM; DIFF LK 1-82340-143-1 01 1 8712-
361 KNOB; DIFF LK 1-82346-059-1 01 1 8712-
362 SCREW; DIFF LK 1-09106-002-0 01 1 8712-
363 NUT 1-09449-032-0 01 1 8712-
364 WASHER; LK
(B) ID=10.5 TOOTH LK INT 		9-09151-210-0 01 1 8712-
364 WASHER; LK
TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) ID=12.5 TOOTH LK INT 		9-09151-212-0 01 1 9002-
365 NUT; DIFF LOCK SW 1-09400-034-0 01 1 8712-
373 SWITCH; A/C 1-82380-061-2 01 1 8712-
375 SCREW; A/C SW
M5X14 W/PL WASHER 		5-09981-050-0 02 1 8712-
381 SWITCH ASM; METER CLUSTER SIDE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82350-112-0 01 1 8712-9001
381 SWITCH ASM; METER CLUSTER SIDE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82350-179-0 01 1 9002-
381 SWITCH ASM; METER CLUSTER SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82350-111-0 01 1 8712-9001
381 SWITCH ASM; METER CLUSTER SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82350-153-0 01 1 9002-
382 SCREW; SW,METER CLUSTER SIDE
M5X14 W/PL WASHER 		5-09981-050-0 08 1 8712-
478 CAP; COLLAR 1-82199-008-0 03 1 9002-
478 CAP; COLLAR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82119-001-0 03 1 8712-9001
478 CAP; COLLAR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82119-001-0 02 1 8712-9001

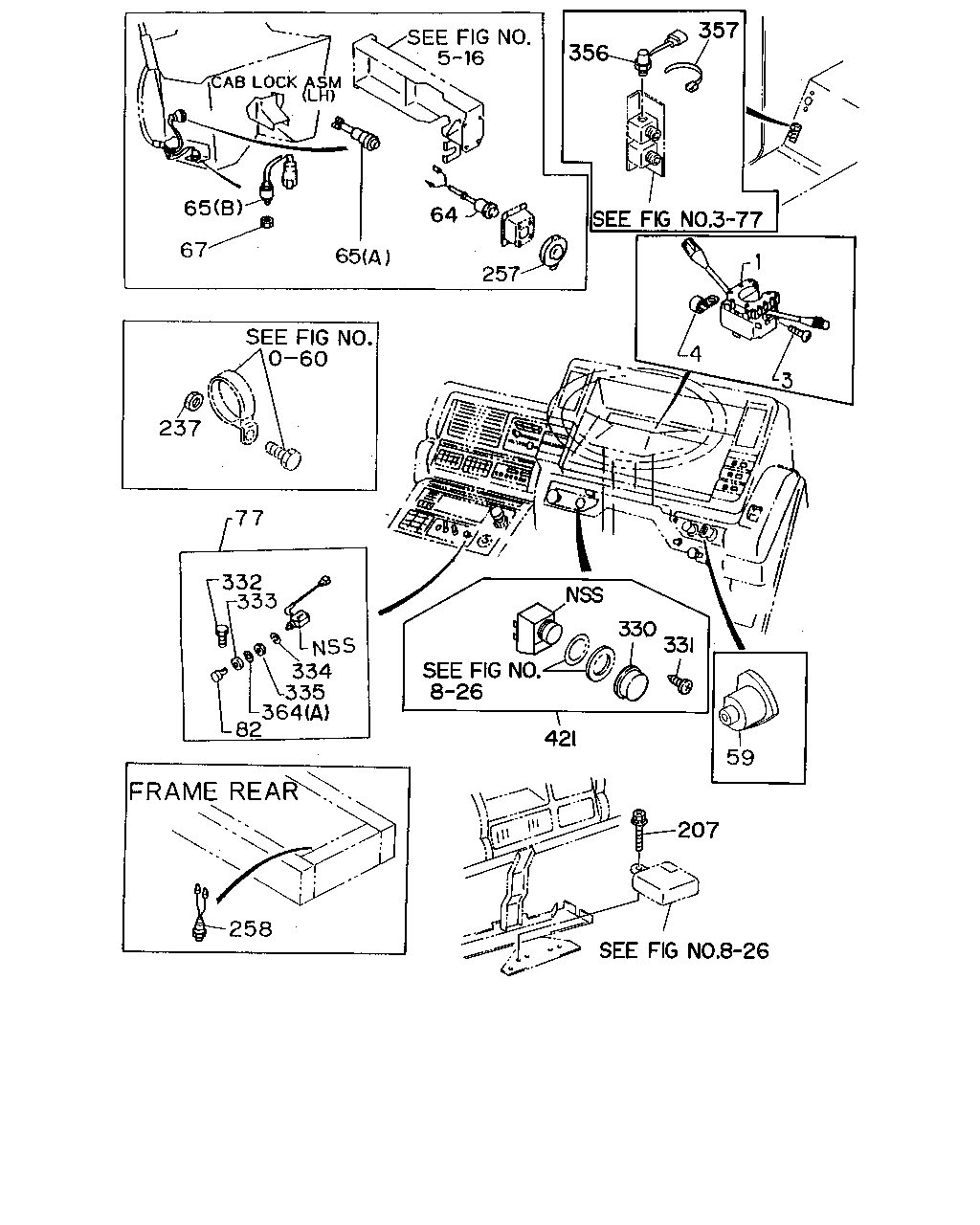

çizim 95015
65 67 65 64 257 356 357 1 4 3 59 331 330 421 207 258 82 364 335 334 333 332 77 237
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
INTERMITTENT WIPER<C13> NEW ZEALAND EQUIPMENT(PK5) 		1-82360-286-4 01 1 8712-
1 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-256-6 01 1 8712-
1 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,NEW ZEALAND EQUIPMENT(PK5) 		1-82360-258-6 01 1 8712-
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) EXC. INTERMITTENT WIPER<C13> 		1-82360-289-4 01 1 8712-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 03 1 8712-
4 CLIP; COMB SW
ID=19 L=20 		9-09525-832-0 01 1 8712-
59 SWITCH; IGNITION 1-82313-009-1 01 1 8712-
64 SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2> 		1-82380-069-0 01 1 8712-9306
64 SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2> 		1-82380-108-0 01 1 9307-
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (A) 		1-82380-066-1 01 1 8712-9306
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (B) 		1-82380-070-1 03 1 8712-9306
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (A) 		1-82380-115-1 01 1 9307-
65 SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> (B) STAMP NC 		1-82380-125-1 03 1 9307-
67 NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 H=18.5 		1-09409-013-0 01 1 8712-
67 NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 		9-99111-416-0 04 1 8712-
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER<SH5> 		1-82340-193-0 01 1 9002-9306
82 KNOB; PTO
TRANSMISSION SIDE PTO WO/LEVER<SH5> 		1-82346-057-1 01 1 9002-
207 SCREW; RELAY
AUTO DOOR LOCK<AU4> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9205-
237 NUT
EXC. AUTO CAB TILT<WV2> M6 		9-09110-406-0 01 1 9002-9011
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> 		1-82389-008-0 01 1 8712-
258 SWITCH; FLASHER UNIT
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> 		1-82410-079-0 01 1 8907-9306
258 SWITCH; FLASHER UNIT
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> 		1-82410-137-0 01 1 9307-
330 KNOB; INT HTR
INTAKE HEATER<SL2> 		1-82336-003-1 01 1 8712-9306
331 SCREW
INTAKE HEATER<SL2> 		1-09106-002-0 01 1 8712-9306
332 SCREW; KNOB
TRANSMISSION SIDE PTO WO/LEVER<SH5> 		1-09106-002-0 01 1 9002-
333 NUT; SW
TRANSMISSION SIDE PTO WO/LEVER<SH5> 		1-09449-033-0 01 1 9002-
334 WASHER; LK,SW
TRANSMISSION SIDE PTO WO/LEVER<SH5> ID=12.5 TOOTH LK INT 		9-09151-212-0 01 1 9002-
335 NUT; SW
TRANSMISSION SIDE PTO WO/LEVER<SH5> 		1-09400-035-0 01 1 9002-
356 SWITCH; TRAILER,LOW PRESS
NEW ZEALAND EQUIPMENT(PK5) 		1-48340-044-0 01 1 9307-9411
356 SWITCH; TRAILER,LOW PRESS
NEW ZEALAND EQUIPMENT(PK5) 		1-48340-057-0 01 1 9412-
357 CLIP; BAND,TRAILER LOW PRESS
NEW ZEALAND EQUIPMENT(PK5) L=140 		5-09707-031-0 01 1 9307-
364 WASHER; LK
(B) ID=10.5 TOOTH LK INT 		9-09151-210-0 01 1 8712-
364 WASHER; LK
TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) ID=12.5 TOOTH LK INT 		9-09151-212-0 01 1 9002-
421 SWITCH ASM; INT HTR
INTAKE HEATER<SL2> 		1-82330-030-0 01 1 8712-9306

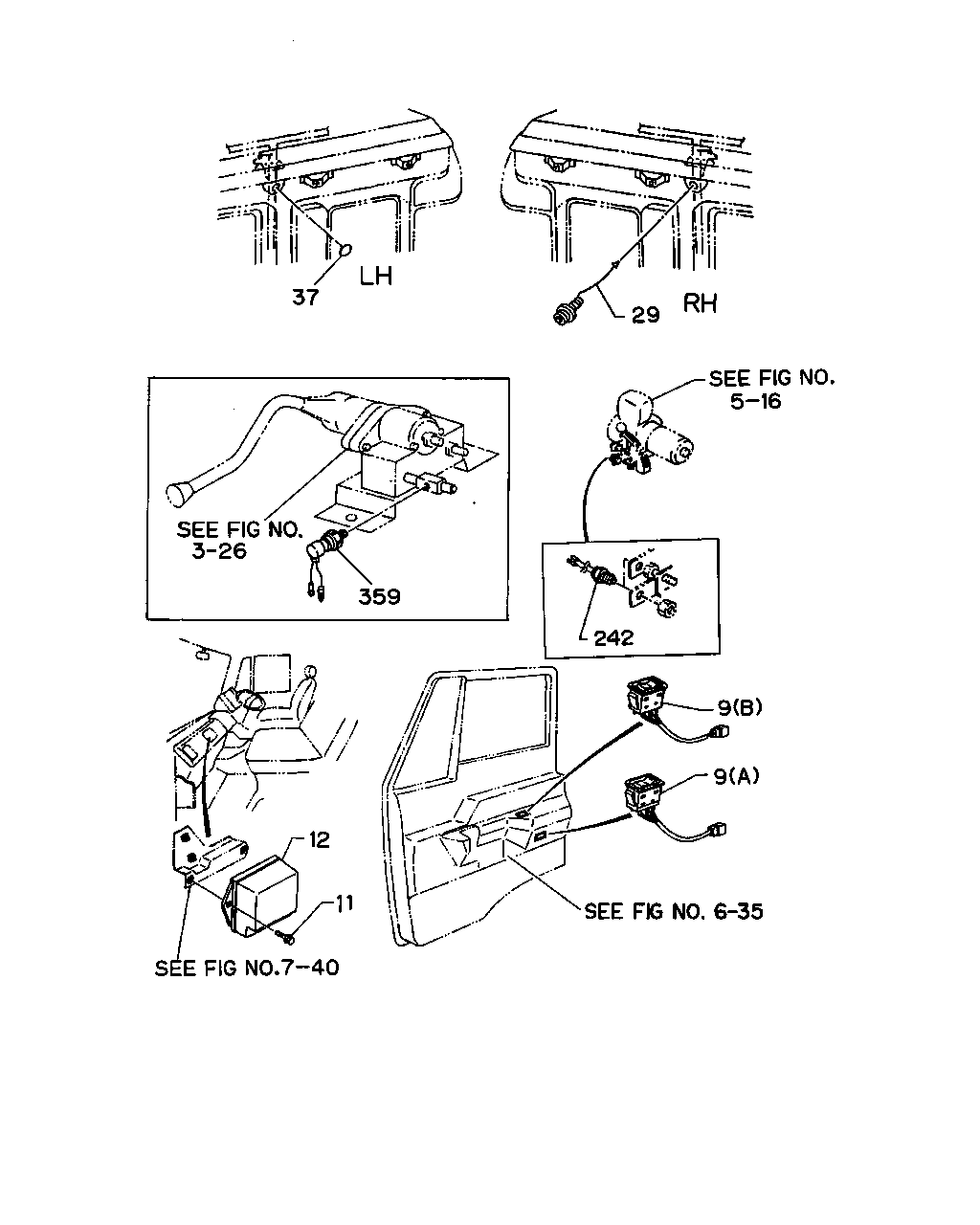

çizim 95639
37 29 242 9 9 11 12 359
BalonParca AdiParca NoAdetTipApplied Date
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) PASSENGER 		1-82380-124-0 02 1 9205-
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (B) DRIVER 		1-82380-123-0 01 1 9205-
11 BOLT; POWER WINDOW
POWER WINDOW<A30> M6X16 W/PL WASHER 		1-09981-438-0 02 1 9205-
12 RELAY; POWER WINDOW
POWER WINDOW<A30> 		1-82550-264-0 01 1 9205-
29 SWITCH; DOOR 1-82440-051-3 01 1 8712-9105
29 SWITCH; DOOR 1-82440-091-0 01 1 9106-
37 SEAL; DOOR SW HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9002-
242 SWITCH
AUTO CAB TILT<WV2> 		1-82380-074-0 02 1 8712-9306
242 SWITCH
AUTO CAB TILT<WV2> STAMP NO 		1-82380-126-0 02 1 9307-
359 SWITCH; TRAILER PARKING
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> OPERATE PRESSURE 0.3 		1-82410-080-1 01 1 8907-9306
359 SWITCH; TRAILER PARKING
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> GREEN 		1-82410-141-1 01 1 9307-9511
359 SWITCH; TRAILER PARKING
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> GREEN 		1-82410-176-0 01 1 9512-
