◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11312 - FVZ(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#59397) — 172 parça

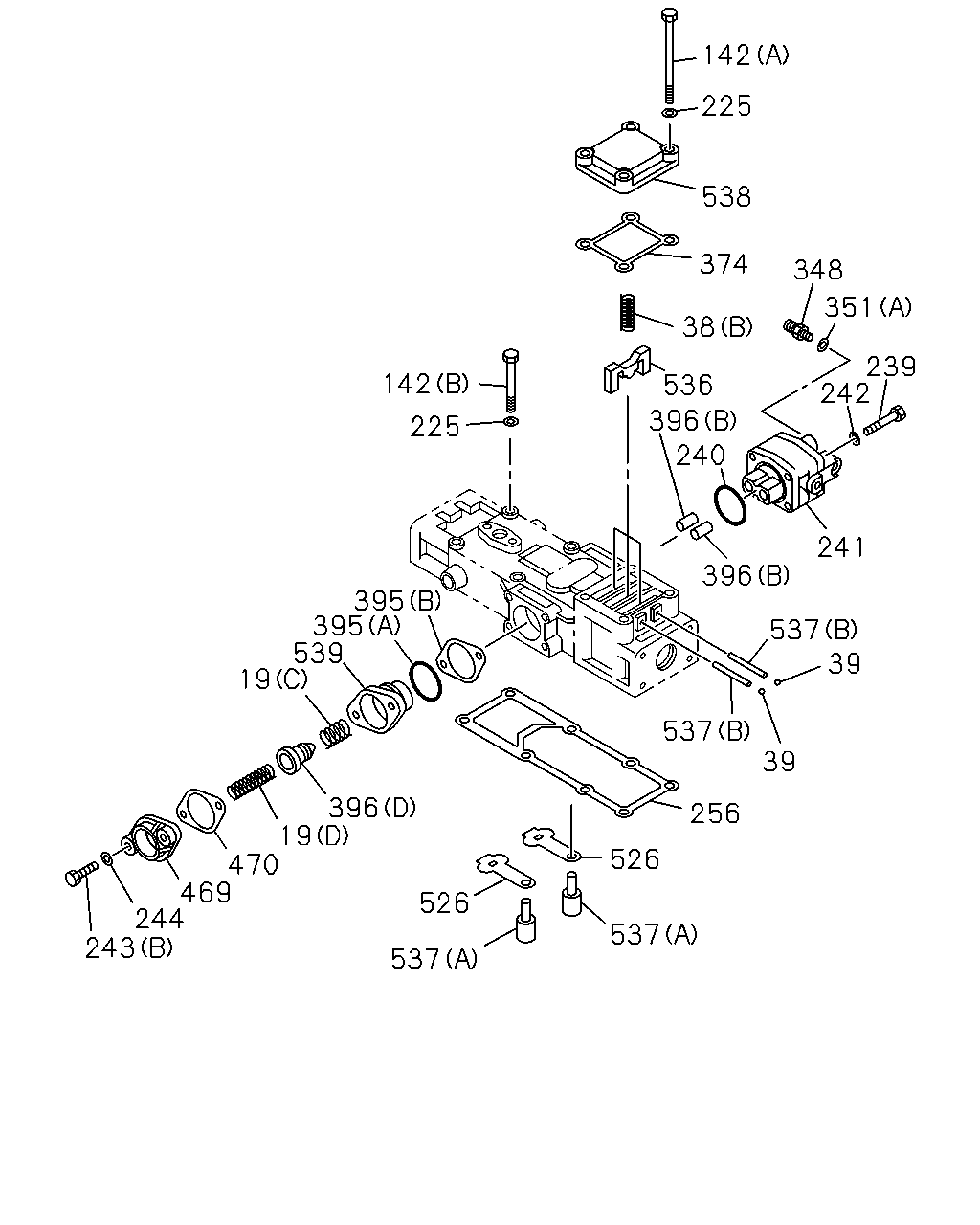

çizim 177167
142 225 538 374 348 351 38 239 242 142 536 396 225 240 241 396 395 395 539 19 537 39 537 39 396 19 470 469 244 243 256 526 526 537 537
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 0006-
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 0006-
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 0006-
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 0006-
38 SPRING; DETENT
(A) 		1-33549-189-0 02 1 0006-
38 SPRING; DETENT
(B) 		1-33549-201-0 03 1 0006-
39 BALL; DETENT 1-33549-210-0 04 1 0006-
142 BOLT; QUAD BOX
(B) M8X75 		1-09089-015-0 04 1 0006-
142 BOLT; QUAD BOX
(A) 		1-33549-205-0 04 1 0006-
225 WASHER; LK,QUAD BOX 1-36129-007-0 08 1 0006-
239 BOLT; CUT OFF VALVE 1-33549-168-0 04 1 0006-
240 GASKET; CUT OFF VALVE 1-33549-127-0 01 1 0006-
241 VALVE; CUT OFF 1-33549-213-0 01 1 0006-
242 WASHER; CUT OFF VALVE 1-36129-007-0 04 1 0006-
243 BOLT; COVER
(A) 		1-33119-296-0 02 1 0006-
243 BOLT; COVER
(B) M8X30 		1-33549-172-0 02 1 0006-
244 WASHER; LK,COVER 1-36129-007-0 10 1 0006-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-058-0 01 1 0006-
348 CONNECTOR; AIR HOSE 1-09660-678-0 01 1 0006-0407
348 CONNECTOR; AIR HOSE
M12 STRAIGHT 		1-09654-246-0 01 1 0408-
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 0006-1312
351 GASKET; CONNECTOR
(A) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 0006-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-295-0 01 1 0006-
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 0006-
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 0006-
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 0006-
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 0006-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 0006-
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 0006-
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 0006-
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 0006-
470 GASKET; SPRING COVER 1-33549-217-0 01 1 0006-
526 LEVER; DETENT 1-33549-187-0 02 1 0006-
536 PLATE; DETENT 1-33549-212-0 03 1 0006-
537 PIN; DETENT
(A) 		1-33549-206-0 04 1 0006-
537 PIN; DETENT
(B) 		1-33549-211-0 02 1 0006-
538 COVER; DETENT 1-33543-045-0 01 1 0006-
539 HOLDER; PLUNGER 1-33529-092-0 01 1 0006-

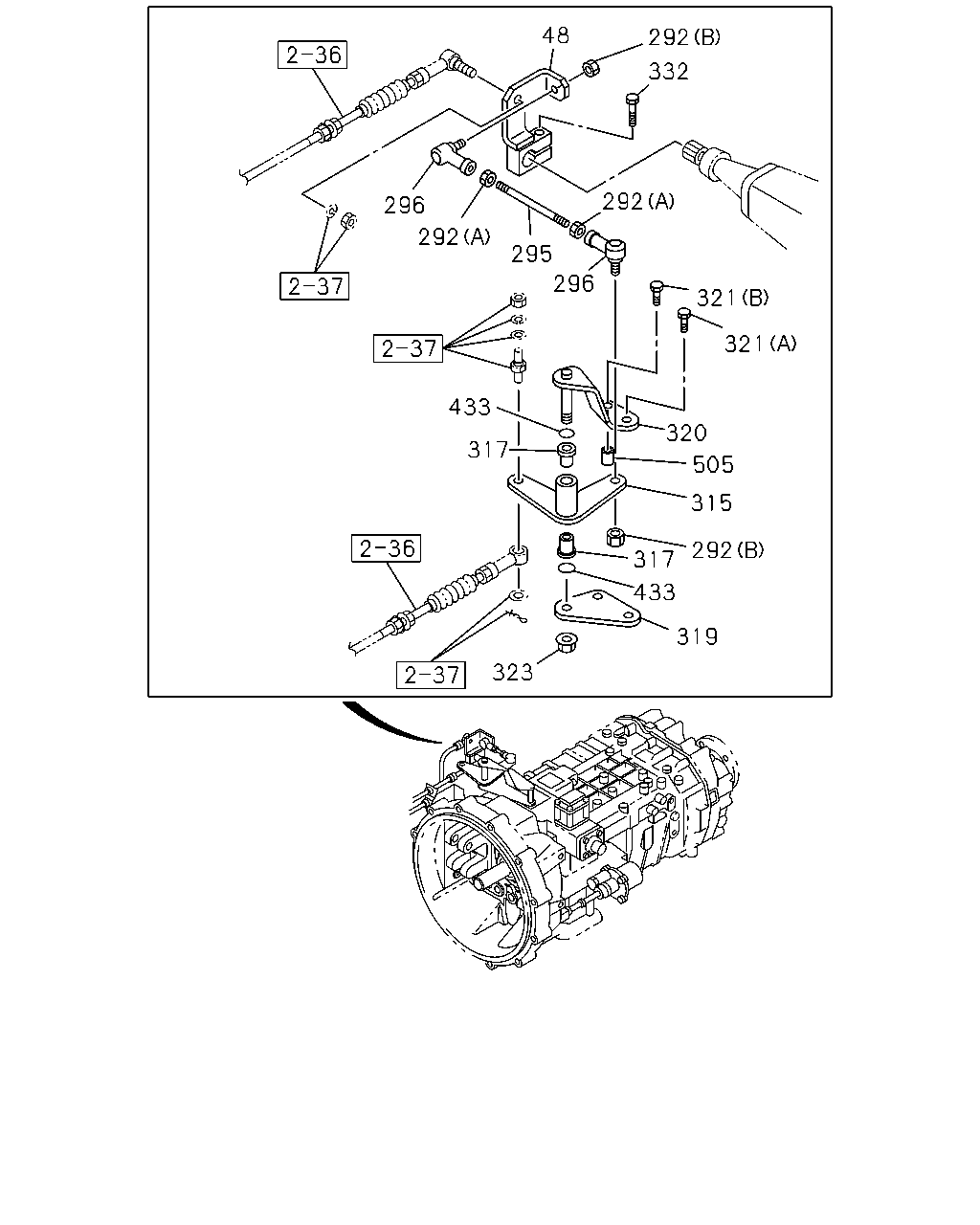

çizim 177168
48 292 332 292 296 292 295 296 321 321 433 320 317 505 315 292 317 433 319 323
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 0006-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0006-
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0006-0512
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601-
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 0006-
296 ROD END
L=48 		1-09760-038-1 02 1 0006-0309
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310-
315 LEVER; SELECT 1-33651-660-1 01 1 0006-
317 BUSHING; LEVER 1-09330-119-0 02 1 0006-
319 BRACKET; SELECT LEVER 1-33657-612-0 01 1 0006-
320 SHAFT; LEVER 1-33619-524-0 01 1 0006-
321 BOLT; BRKT,RELAY LEVER
(A) 		1-09040-100-0 01 1 0006-
321 BOLT; BRKT,RELAY LEVER
(B) M8X20,M8X104 L=132 		1-09049-026-0 01 1 0006-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0006-
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 0006-0512
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 01 1 0601-
433 GASKET; BUSHING 1-09623-594-0 02 1 0006-
505 SPACER; BRKT 1-11349-149-0 02 1 0006-

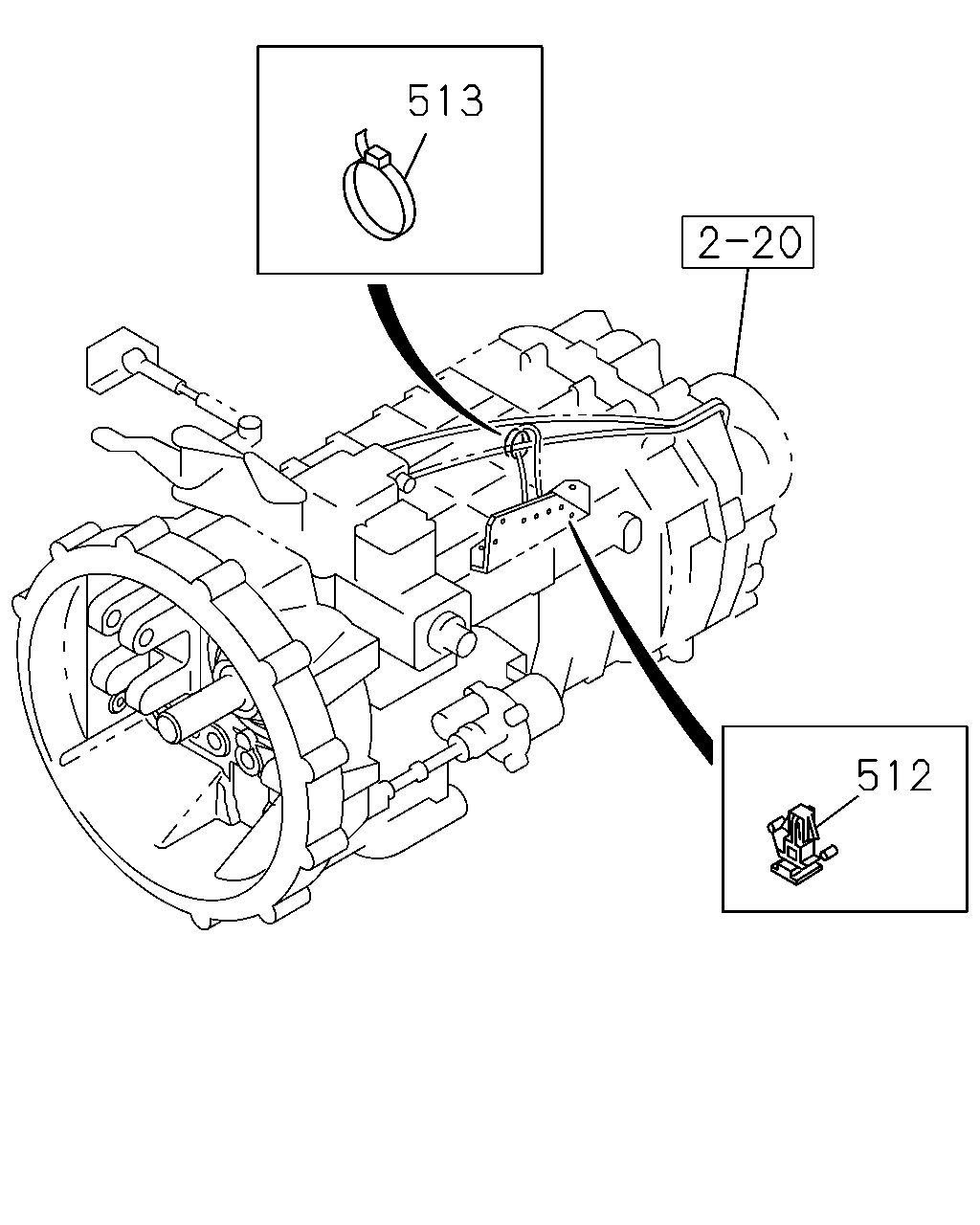

çizim 177169
513 512
BalonParca AdiParca NoAdetTipApplied Date
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 03 1 0006-
513 CLIP; BAND
L=140 		5-09707-031-1 01 1 0006-
çizim 177173
361 359 355 357 356 355 354 363 345 347 358 345 60 352 52 52 60
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 0006-
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 0006-
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 0006-
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 0006-
60 WASHER; LK
(B) 		1-33519-059-0 02 1 0006-
60 WASHER; LK
(A) 		1-33519-085-0 07 1 0006-
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 0006-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 0006-
352 ROD; SHIFT,RANGE CHANGE 1-33531-392-0 01 1 0006-
354 SEAL; AIR CYL 1-33519-045-0 01 1 0006-
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 0006-
356 PISTON; AIR CYL 1-33519-087-0 01 1 0006-
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 0006-
358 NUT; SHIFT ROD 1-33519-049-0 01 1 0006-
359 GASKET; AIR CYL 1-33519-093-0 01 1 0006-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 0006-
363 BOLT; AIR CYL 1-33519-103-0 03 1 0006-

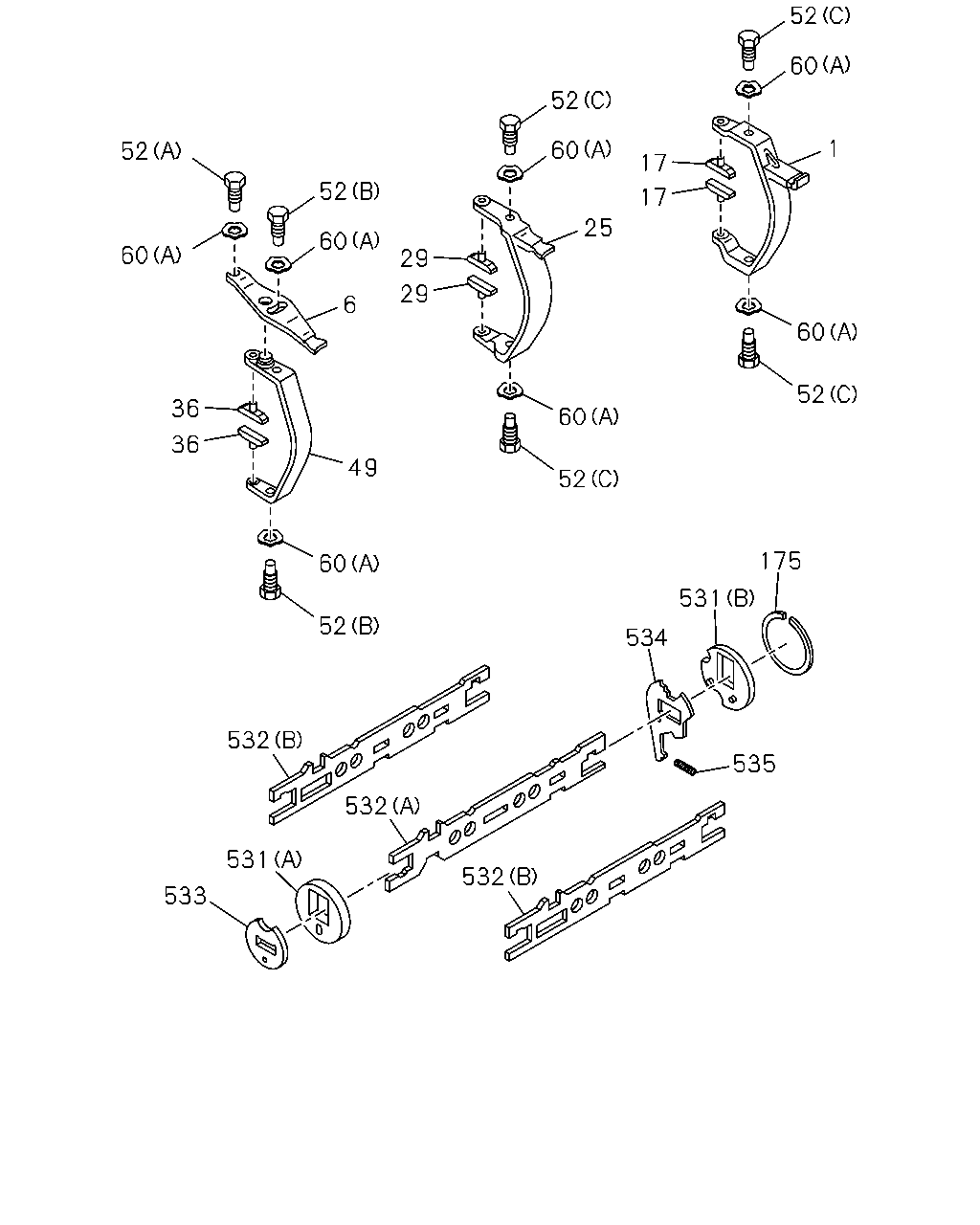

çizim 177174
52 52 1 52 17 52 17 25 60 29 29 6 60 52 36 60 36 49 52 175 60 531 52 534 532 535 532 531 532 533 60 60 60
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-528-0 01 1 0006-
6 LEVER; RELAY 1-33511-526-0 01 1 0006-
17 BLOCK; SHIFT,1ST & REV 1-33519-081-0 02 1 0006-
25 ARM; SHIFT,2ND & 3RD 1-33511-527-0 01 1 0006-
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 0006-
36 BLOCK; SHIFT,4TH & 5TH 1-33519-081-0 02 1 0006-
49 ARM; SHIFT,4TH & 5TH 1-33511-525-0 01 1 0006-
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 0006-
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 0006-
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 0006-
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 0006-
60 WASHER; LK
(B) 		1-33519-059-0 02 1 0006-
60 WASHER; LK
(A) 		1-33519-085-0 07 1 0006-
175 RING; STOPPER,SHIFT LEVER 1-33539-048-0 01 1 0006-
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 0006-
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 0006-
532 PLATE; SHIFT FORK
(A) 		1-33531-390-0 01 1 0006-
532 PLATE; SHIFT FORK
(B) 		1-33531-391-0 02 1 0006-
533 STOPPER; PLATE 1-33539-045-0 01 1 0006-
534 LEVER; LOCK,SHIFT PLATE 1-33539-046-0 01 1 0006-
535 SPRING; LEVER 1-33539-049-0 01 1 0006-

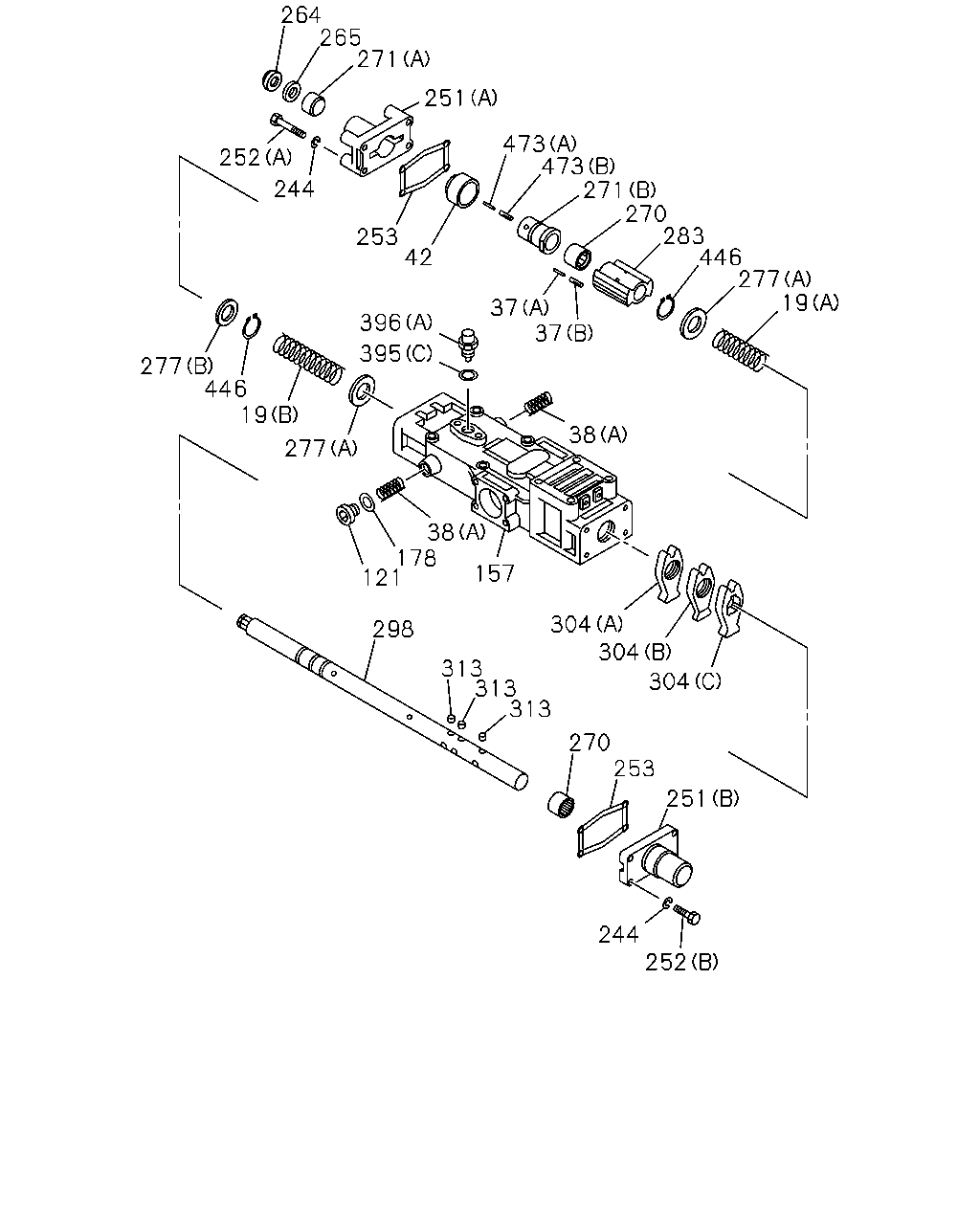

çizim 177177
264 265 271 251 473 473 271 270 283 446 277 19 252 244 253 42 37 37 396 395 277 446 19 38 277 38 178 121 157 304 304 298 313 313 313 304 270 253 251 244 252
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 0006-
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 0006-
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 0006-
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 0006-
37 PIN; STOPPER ARM
(B) 		1-33549-207-0 01 1 0006-
37 PIN; STOPPER ARM
(A) 		1-33549-208-0 01 1 0006-
38 SPRING; DETENT
(A) 		1-33549-189-0 02 1 0006-
38 SPRING; DETENT
(B) 		1-33549-201-0 03 1 0006-
42 CAP; QUAD BOX 1-33549-111-0 01 1 0006-
121 PLUG; DETENT SPR 1-33119-171-0 02 1 0006-
157 BOX; QUAD,TRANS 1-33541-485-0 01 1 0006-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 02 1 0006-
244 WASHER; LK,COVER 1-36129-007-0 10 1 0006-
251 COVER; SIDE
(A) 		1-33543-046-0 01 1 0006-
251 COVER; SIDE
(B) 		1-33543-047-0 01 1 0006-
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 04 1 0006-
252 BOLT; SIDE COVER
(A) 		1-33549-185-0 04 1 0006-
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-044-0 02 1 0006-
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 0006-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-118-0 01 1 0006-
270 BEARING; NEEDLE,QUAD BOX 1-33549-162-0 02 1 0006-
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 0006-
271 BUSHING; QUAD BOX
(B) 		1-33549-209-0 01 1 0006-
277 PLATE; SPRING SEAT
(A) 		1-33539-026-0 02 1 0006-
277 PLATE; SPRING SEAT
(B) 		1-33539-029-0 01 1 0006-
283 STOPPER; SHIFT SHAFT 1-33549-204-0 01 1 0006-
298 SHAFT; SHIFT LEVER 1-33522-155-0 01 1 0006-
304 BLOCK; SHIFT SHAFT
(C) 		1-33529-087-0 01 1 0006-
304 BLOCK; SHIFT SHAFT
(B) 		1-33529-088-0 01 1 0006-
304 BLOCK; SHIFT SHAFT
(A) 		1-33529-089-0 01 1 0006-
313 ROLLER; SHAFT 1-33529-090-0 09 1 0006-
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 0006-
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 0006-
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 0006-
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 0006-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 0006-
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 0006-
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 0006-
446 RING; SNAP,SPR SEAT 1-33539-050-0 02 1 0006-
473 PIN; ROLL
(B) 		1-33519-044-0 01 1 0006-
473 PIN; ROLL
(A) 		1-33529-054-0 01 1 0006-

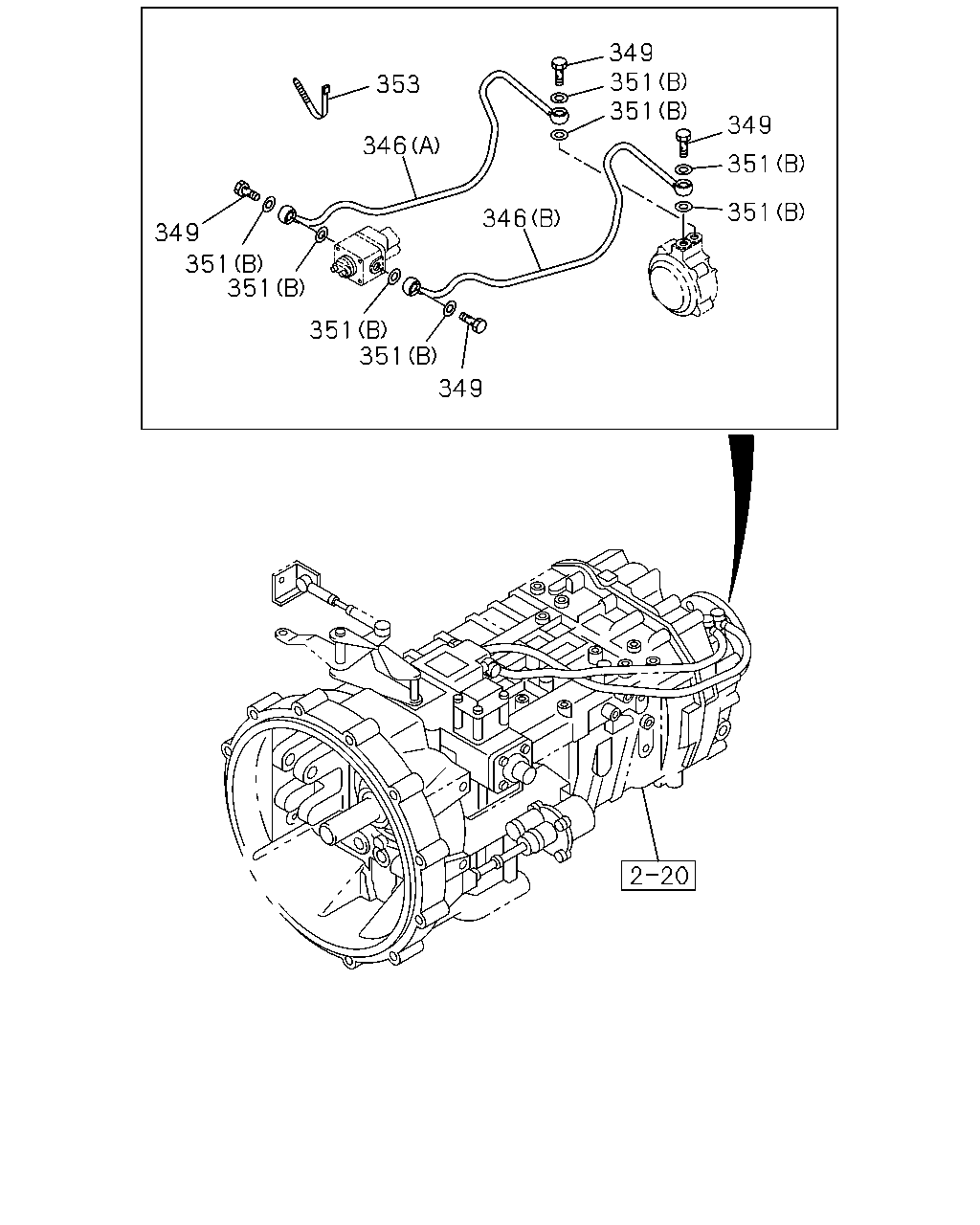

çizim 177178
349 351 351 353 349 346 351 351 346 349 351 351 351 351 349
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
(A) 		1-33549-214-0 01 1 0006-
346 HOSE; AIR
(B) 		1-33549-215-0 01 1 0006-
349 BOLT; EYE,AIR HOSE 1-33549-155-0 04 1 0006-
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 0006-1312
351 GASKET; CONNECTOR
(A) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 0006-
353 CLIP; AIR HOSE 1-33549-142-0 02 1 0006-

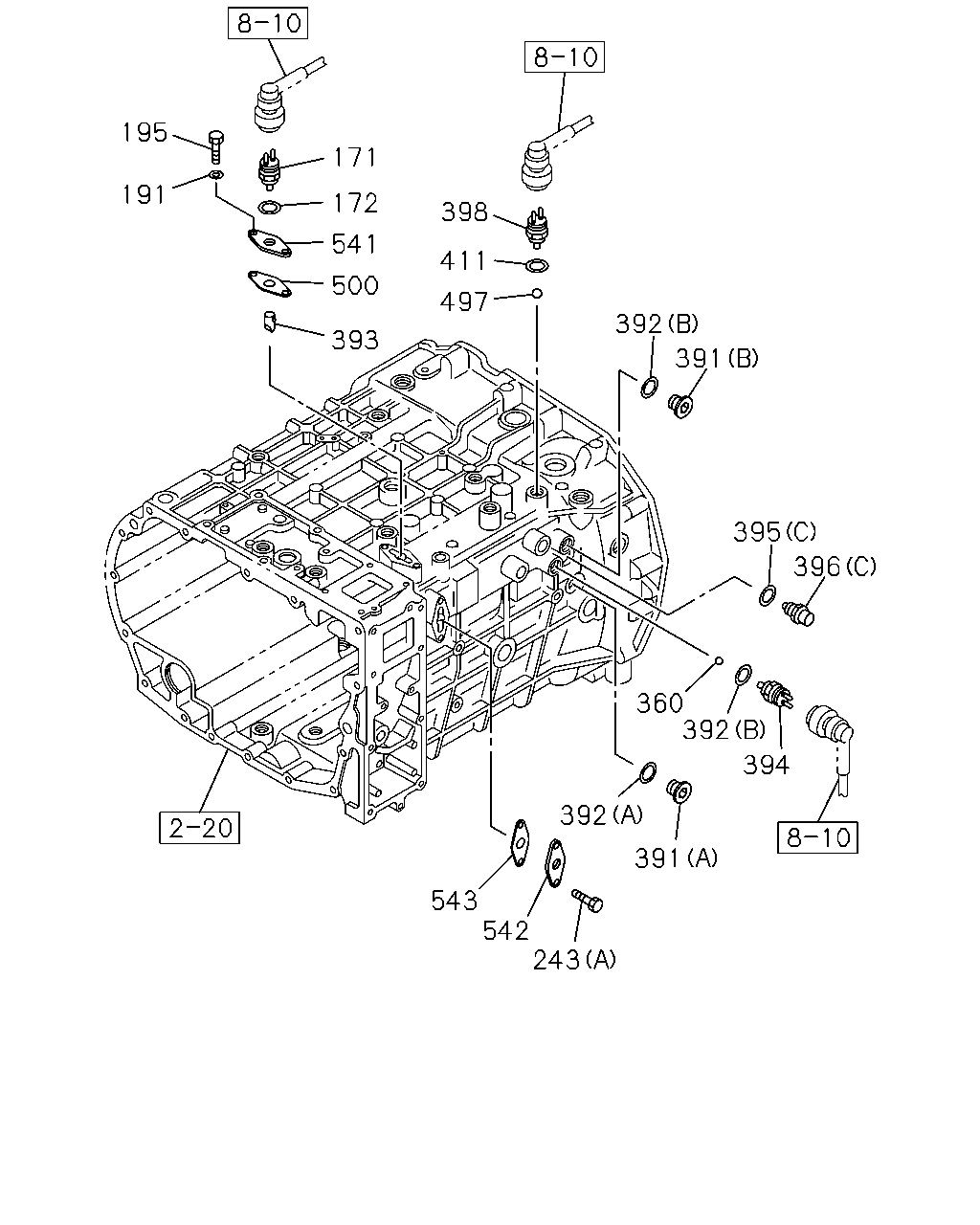

çizim 177185
195 171 191 172 398 541 411 500 497 392 393 391 395 396 360 392 394 392 391 543 542 243
BalonParca AdiParca NoAdetTipApplied Date
171 SWITCH; NEUTRAL 1-82440-095-0 01 1 0006-
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 0006-
191 WASHER; LK 1-36129-007-0 02 1 0006-
195 BOLT 1-33119-301-0 02 1 0006-
243 BOLT; COVER
(A) 		1-33119-296-0 02 1 0006-
243 BOLT; COVER
(B) M8X30 		1-33549-172-0 02 1 0006-
360 BALL; AIR CYL 1-33119-252-0 01 1 0006-
391 PLUG; SW HOLE
(B) 		1-33119-171-0 02 1 0006-
391 PLUG; SW HOLE
(A) 		1-34129-061-0 01 1 0006-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-249-0 03 1 0006-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33549-184-0 01 1 0006-
393 PIN; SW 1-33119-298-0 01 1 0006-
394 SWITCH; RANGE CHANGE 1-82440-095-0 01 1 0006-
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 0006-
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 0006-
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 0006-
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 0006-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 0006-
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 0006-
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 0006-
398 SWITCH; REV LAMP 1-82440-080-1 01 1 0006-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 0006-
497 BALL; SWITCH 1-33119-252-0 01 1 0006-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 0006-
541 PLATE; SWITCH 1-33119-300-0 01 1 0006-
542 COVER; SWITCH HOLE 1-33119-302-0 01 1 0006-
543 GASKET; PLATE 1-33119-299-0 01 1 0006-
