Sayfa 1-50 - Isuzu EPC

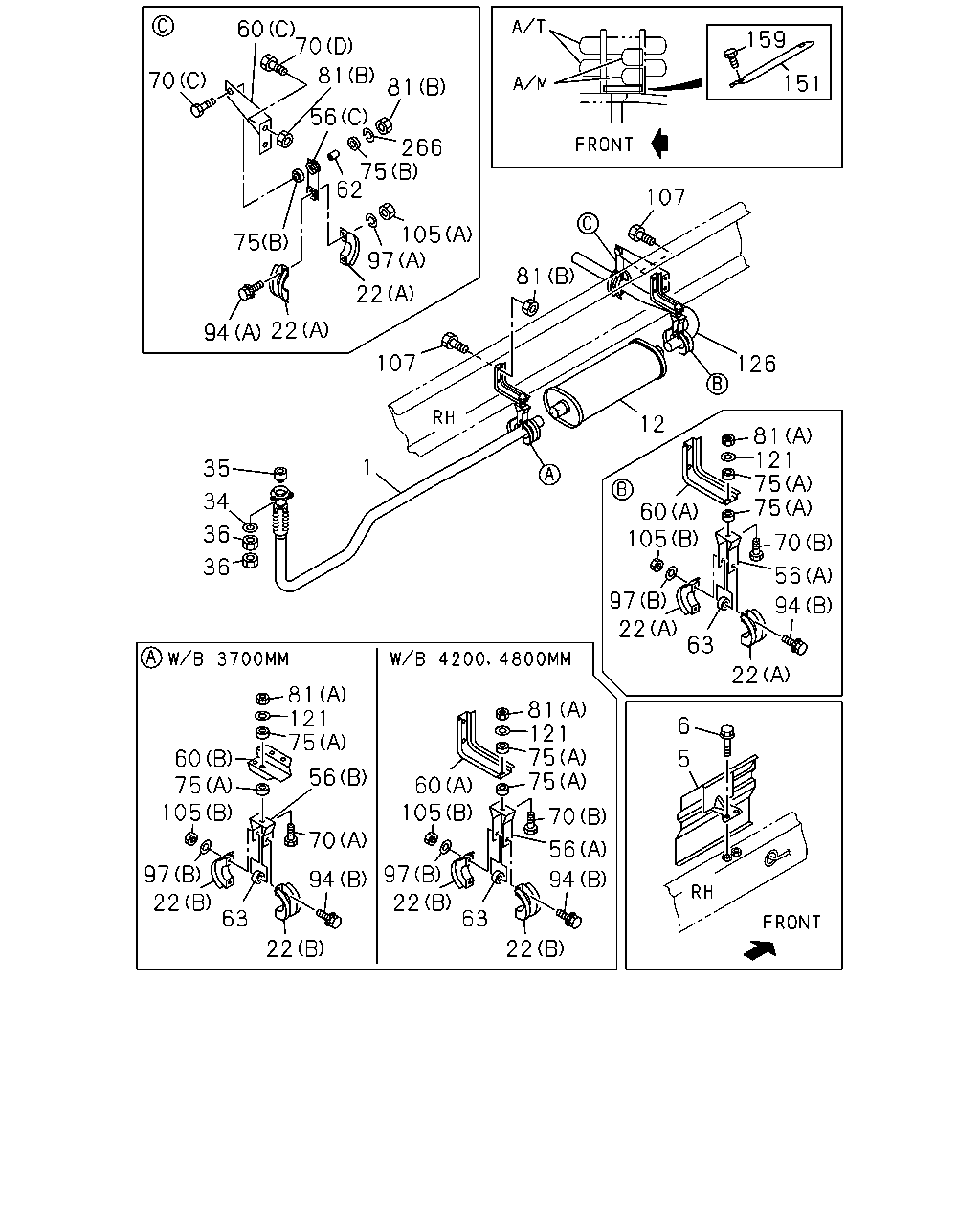

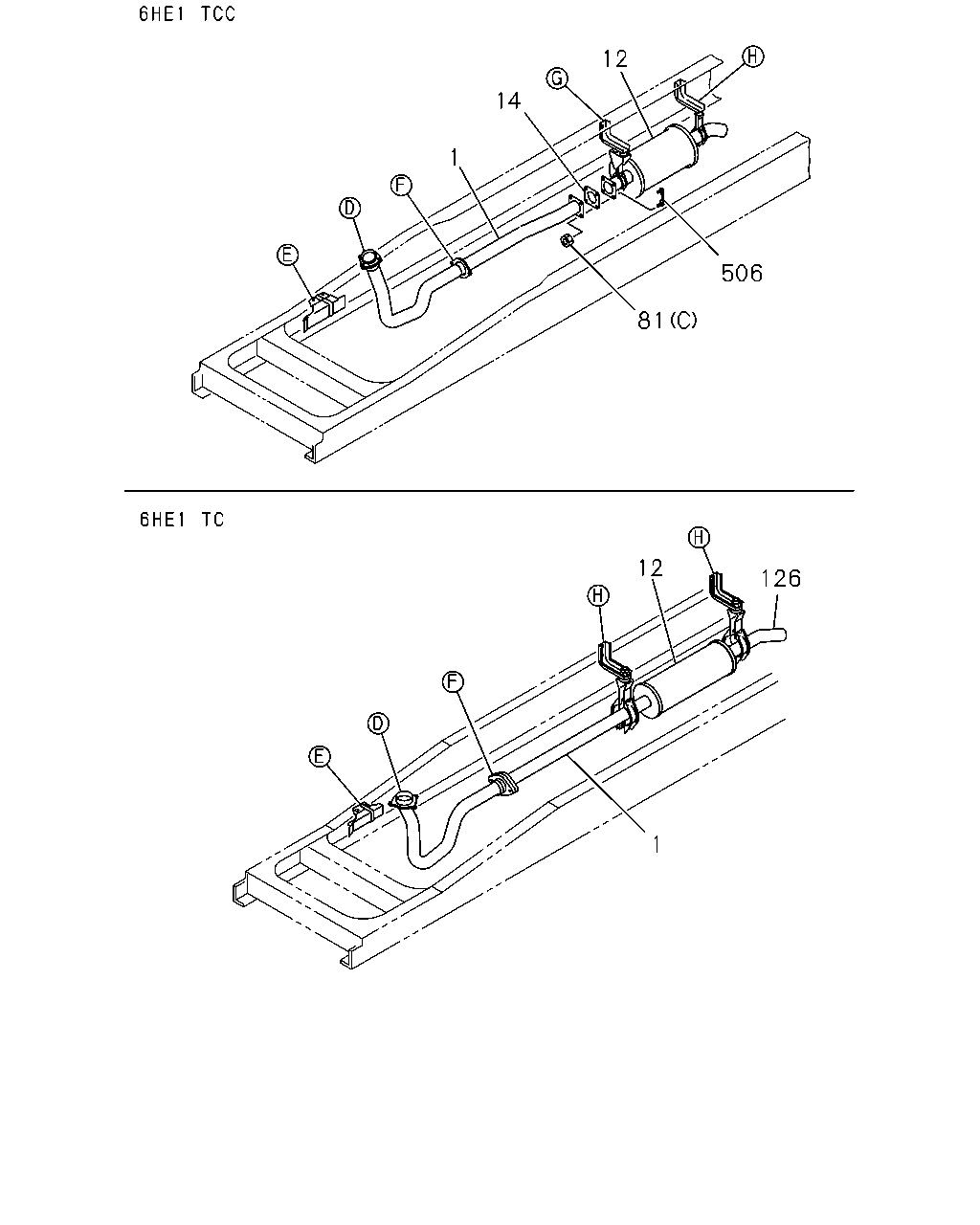

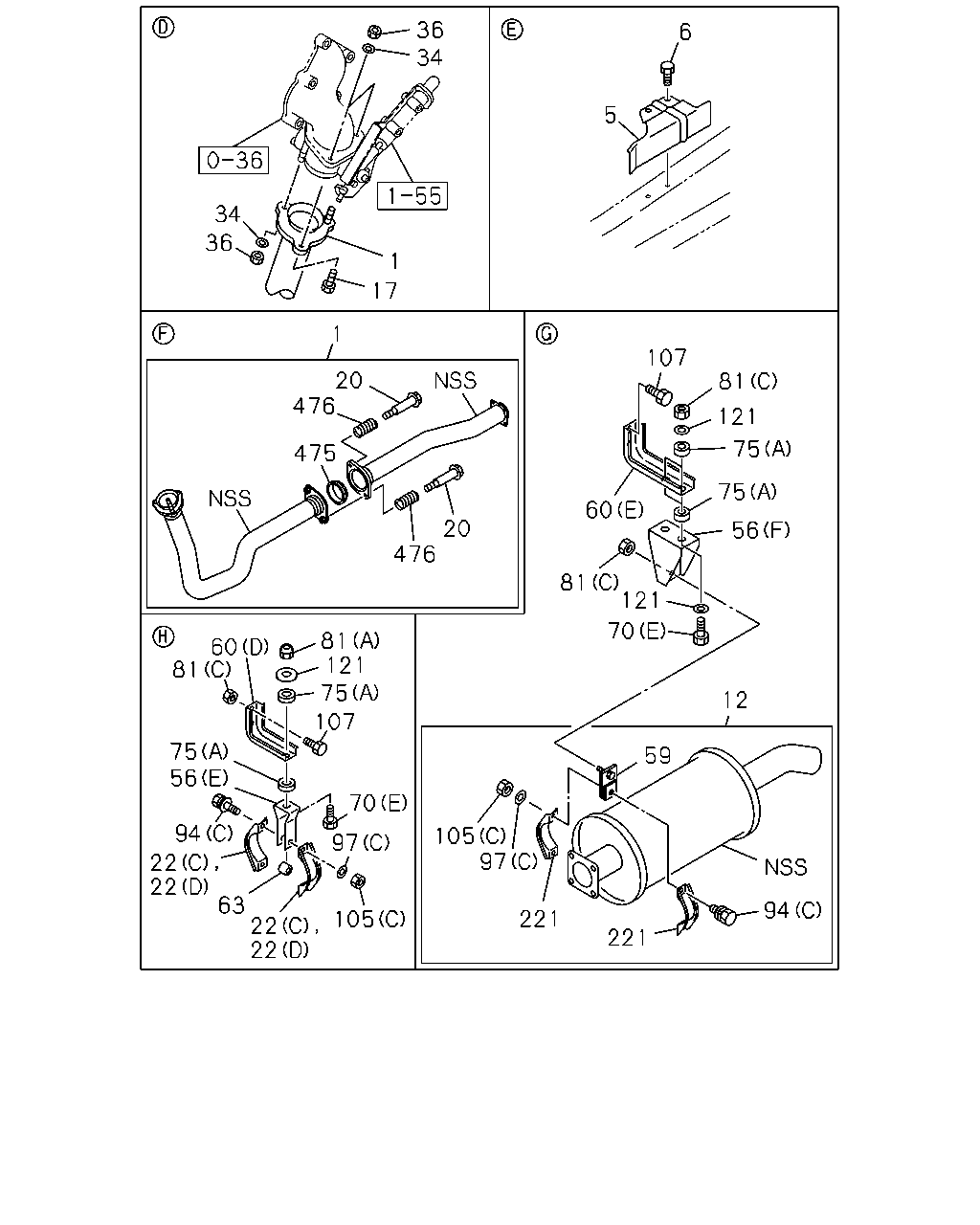

1-50 — EXHAUST PIPE AND SILENCER (#5939) — 479 parça

60 70 159 81 70 151 81 56 266 75 62 107 105 97 75 81 22 22 94 107 126 12 81 121 75 75 1 35 34 60 105 36 70 36 56 97 22 94 63 22 81 121 75 81 121 75 75 6 60 75 105 5 56 60 105 70 70 56 97 22 97 22 94 94 63 63 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH	1-22122-252-2	01	1	9606-9810	●	●
1	PIPE; EXH	1-22122-733-1	01	1	9811-0203			●
1	PIPE; EXH EURO2 SPECIFICATION<THN>	1-22122-929-1	01	1	9903-0203				●
1	PIPE; EXH	1-22122-929-3	01	1	0204-				●
5	PROTECTOR; HEAT	1-33659-167-1	01	1	9606-9810	●	●
5	PROTECTOR; HEAT	1-33659-182-1	01	1	9811-			●	●
6	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	9606-9810	●	●
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28680-825-0	02	1	9811-			●	●
12	SILENCER ASM; EXH	1-22140-715-2	01	1	9606-9810	●	●
12	SILENCER ASM; EXH	1-22140-723-2	01	1	9811-0203			●
12	SILENCER ASM; EXH EURO2 SPECIFICATION<THN>	1-22140-846-4	01	1	9903-0203				●
12	SILENCER ASM; EXH	1-22140-846-4	01	1	0204-				●
22	CLAMP; EXH PIPE (B) L=120	1-22133-231-0	02	1	9606-9810	●	●
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	02	1	9811-9902			●	●
22	CLAMP; EXH PIPE EXC. EURO2 SPECIFICATION<THN> (C) ID=80-84	1-22133-233-0	02	1	9903-0203			●	●
22	CLAMP; EXH PIPE (A) ID=75-78	1-22133-232-0	04	1	9606-9810	●	●
22	CLAMP; EXH PIPE (D) ID=94-98	1-22133-237-0	02	1	9811-9902			●
22	CLAMP; EXH PIPE EXC. EURO2 SPECIFICATION<THN> (D) ID=94-98	1-22133-237-0	02	1	9903-0203			●
22	CLAMP; EXH PIPE EURO2 SPECIFICATION<THN> (D) ID=94-98	1-22133-237-0	02	1	9903-0203				●
22	CLAMP; EXH PIPE (D) ID=94-98	1-22133-237-0	02	1	0204-				●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9606-9810	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9811-0203			●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	0204-0410				●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0411-				●
35	GASKET; EXH PIPE TO MANIF EXC. EXHAUST BRAKE(NF8)	1-22116-024-0	01	1	9606-9608	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	9606-9810	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9811-9902			●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9903-0203			●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	0204-				●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22131-584-0	01	1	9606-9810	●	●
56	BRACKET; CLAMP,EXH PIPE (A) H=100	1-22139-052-0	01	1	9606-9810	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) H=100	1-22139-052-0	01	1	9606-9810	●	●
56	BRACKET; CLAMP,EXH PIPE (E)	1-22139-082-0	01	1	9811-0203			●	●
56	BRACKET; CLAMP,EXH PIPE (E)	1-22139-082-0	01	1	9811-0203			●
56	BRACKET; CLAMP,EXH PIPE (E)	1-22139-082-0	01	1	0204-				●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (B)	1-22139-044-0	01	1	9606-9810	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (D)	1-22131-333-0	01	1	9606-9609	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-22131-333-0	01	1	9610-9810	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4800MM(48W) (D)	1-22131-333-0	02	1	9606-9609	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-22131-333-0	02	1	9610-9810	●	●
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<THN> (F)	1-22139-114-1	01	1	9903-0203				●
56	BRACKET; CLAMP,EXH PIPE (F)	1-22139-114-1	01	1	0204-0205				●
56	BRACKET; CLAMP,EXH PIPE (F)	1-22139-197-0	01	1	0206-				●
60	BRACKET; FRAME TO BRKT (C)	1-22131-639-1	01	1	9606-9810	●	●
60	BRACKET; FRAME TO BRKT (A)	1-22151-512-2	01	1	9606-9810	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A)	1-22151-512-2	01	1	9606-9810	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) (B)	1-22151-534-3	01	1	9606-9810	●	●
60	BRACKET; FRAME TO BRKT (D)	1-22151-679-0	01	1	9811-0203			●	●
60	BRACKET; FRAME TO BRKT (D)	1-22151-679-0	01	1	9811-0203			●
60	BRACKET; FRAME TO BRKT (D)	1-22151-679-1	01	1	0204-				●
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<THN> (E)	1-22151-691-0	01	1	9903-0203				●
60	BRACKET; FRAME TO BRKT (E)	1-22151-691-0	01	1	0204-				●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	9606-9810	●	●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	9606-9810	●	●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) L=11	1-22139-026-0	01	1	9606-9810	●	●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	9811-9902			●	●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	9811-9902			●
63	TUBE; DIST,BRKT EXC. EURO2 SPECIFICATION<THN> L=11	1-22139-026-0	01	1	9903-0203			●	●
63	TUBE; DIST,BRKT EXC. EURO2 SPECIFICATION<THN> L=11	1-22139-026-0	01	1	9903-0203			●
63	TUBE; DIST,BRKT WHEEL BASE 3700MM(37W) L=8.5	1-22139-057-0	01	1	9606-9810	●	●
63	TUBE; DIST,BRKT EURO2 SPECIFICATION<THN> L=8.5	1-22139-057-0	01	1	9903-0203				●
63	TUBE; DIST,BRKT L=8.5	1-22139-057-0	01	1	0204-				●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	01	1	9606-9810	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) M10X50	0-10806-050-0	01	1	9606-9810	●	●
70	BOLT; BRKT (E) M10X50	0-10806-050-0	01	1	9811-9902			●	●
70	BOLT; BRKT (E) M10X50	0-10806-050-0	01	1	9811-9902			●
70	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (E) M10X50	0-10806-050-0	01	1	9903-0203			●	●
70	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (E) M10X50	0-10806-050-0	01	1	9903-0203			●
70	BOLT; BRKT (C) M10X55	0-10806-055-0	01	1	9606-9810	●	●
70	BOLT; BRKT (D) M10X30 FLANGE	0-28681-030-0	02	1	9606-9810	●	●
70	BOLT; BRKT WHEEL BASE 3700MM(37W) (A) M10X45	0-10806-045-0	01	1	9606-9810	●	●
70	BOLT; BRKT EURO2 SPECIFICATION<THN> (E) M10X50	0-10806-050-0	03	1	9903-0203				●
70	BOLT; BRKT (E) M10X50	0-10806-050-0	03	1	0204-0512				●
70	BOLT; BRKT (E) M10X50	0-10856-050-0	03	1	0601-				●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	04	1	9606-9810	●	●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	9811-9902			●	●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	9811-9902			●
75	RUBBER; SUPPORT,BRKT EXC. EURO2 SPECIFICATION<THN> (A) OD=30	1-22159-106-1	02	1	9903-0203			●	●
75	RUBBER; SUPPORT,BRKT EXC. EURO2 SPECIFICATION<THN> (A) OD=30	1-22159-106-1	02	1	9903-0203			●
75	RUBBER; SUPPORT,BRKT (B)	1-22159-119-0	02	1	9606-9810	●	●
75	RUBBER; SUPPORT,BRKT EURO2 SPECIFICATION<THN> (A) OD=30	1-22159-106-1	06	1	9903-0203				●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	06	1	0204-				●
81	NUT; BRKT (B) M10	9-09110-510-0	03	1	9606-9810	●	●
81	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M10	9-09110-510-0	03	1	9606-9810	●	●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	01	1	9811-9902			●	●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	01	1	9811-9902			●
81	NUT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT	9-09131-510-0	01	1	9903-0203			●	●
81	NUT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT	9-09131-510-0	01	1	9903-0203			●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	02	1	9606-9810	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) M10	9-09110-510-0	02	1	9606-9810	●	●
81	NUT; BRKT EURO2 SPECIFICATION<THN> (C) M10 FLANGE	0-91150-210-0	01	1	9903-0203				●
81	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	01	1	0204-0602				●
81	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0603-				●
81	NUT; BRKT EURO2 SPECIFICATION<THN> (C) M12 FLANGE	0-91150-212-0	04	1	9903-0203				●
81	NUT; BRKT (C) M12 FLANGE	0-91150-212-0	04	1	0204-0602				●
81	NUT; BRKT (C) M12 FLANGE	0-91180-212-0	04	1	0603-				●
81	NUT; BRKT EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT	9-09131-510-0	03	1	9903-0203				●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	03	1	0204-0603				●
81	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	03	1	0604-				●
94	BOLT; CLAMP (A) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9606-9810	●	●
94	BOLT; CLAMP (C) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9811-9902			●	●
94	BOLT; CLAMP (C) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9811-9902			●
94	BOLT; CLAMP EXC. EURO2 SPECIFICATION<THN> (C) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9903-0110			●	●
94	BOLT; CLAMP EXC. EURO2 SPECIFICATION<THN> (C) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9903-0110			●
94	BOLT; CLAMP (C) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0111-0203			●	●
94	BOLT; CLAMP (C) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0111-0203			●
94	BOLT; CLAMP (C) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0204-0805				●
94	BOLT; CLAMP (C) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	0806-				●
94	BOLT; CLAMP (B) M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9606-9810	●	●
94	BOLT; CLAMP EURO2 SPECIFICATION<THN> (C) M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9903-0110				●
94	BOLT; CLAMP EURO2 SPECIFICATION<THN> (C) M10X40 FLANGE	0-28681-040-0	02	1	0111-0203				●
94	BOLT; CLAMP (C) M10X40 FLANGE	0-28681-040-0	02	1	0204-0512				●
94	BOLT; CLAMP (C) M10X40 FLANGE	0-28651-040-0	02	1	0601-				●
97	WASHER; PL,CLAMP (A) ID=10.5	9-09164-510-0	02	1	9606-9810	●	●
97	WASHER; PL,CLAMP (C) ID=10.5	9-09164-510-0	02	1	9811-9902			●	●
97	WASHER; PL,CLAMP (C) ID=10.5	9-09164-510-0	02	1	9811-9902			●
97	WASHER; PL,CLAMP EXC. EURO2 SPECIFICATION<THN> (C) ID=10.5	9-09164-510-0	02	1	9903-0110			●	●
97	WASHER; PL,CLAMP EXC. EURO2 SPECIFICATION<THN> (C) ID=10.5	9-09164-510-0	02	1	9903-0110			●
97	WASHER; PL,CLAMP (C) ID=10.5	9-09164-510-0	02	1	0111-0203			●	●
97	WASHER; PL,CLAMP (C) ID=10.5	9-09164-510-0	02	1	0111-0203			●
97	WASHER; PL,CLAMP (C) ID=10.5	9-09164-510-0	02	1	0204-				●
97	WASHER; PL,CLAMP (B) ID=10.5	9-09164-510-0	04	1	9606-9810	●	●
97	WASHER; PL,CLAMP EURO2 SPECIFICATION<THN> (C) ID=10.5	9-09164-510-0	04	1	9903-0110				●
105	NUT; CLAMP (A) M10	9-09110-510-0	02	1	9606-9810	●	●
105	NUT; CLAMP (C) M10	9-09110-510-0	02	1	9811-9902			●	●
105	NUT; CLAMP (C) M10	9-09110-510-0	02	1	9811-9902			●
105	NUT; CLAMP EXC. EURO2 SPECIFICATION<THN> (C) M10	9-09110-510-0	02	1	9903-0110			●	●
105	NUT; CLAMP EXC. EURO2 SPECIFICATION<THN> (C) M10	9-09110-510-0	02	1	9903-0110			●
105	NUT; CLAMP (C) M10	9-09110-510-0	02	1	0111-0203			●	●
105	NUT; CLAMP (C) M10	9-09110-510-0	02	1	0111-0203			●
105	NUT; CLAMP (C) M10	9-09110-510-0	02	1	0204-0512				●
105	NUT; CLAMP (C) M10	0-91110-510-0	02	1	0601-				●
105	NUT; CLAMP (B) M10	9-09110-510-0	04	1	9606-9810	●	●
105	NUT; CLAMP EURO2 SPECIFICATION<THN> (C) M10	9-09110-510-0	04	1	9903-0110				●
105	NUT; CLAMP EURO2 SPECIFICATION<THN> (C) M10 FLANGE	0-91150-210-0	02	1	0111-0203				●
105	NUT; CLAMP (C) M10 FLANGE	0-91150-210-0	02	1	0204-0602				●
105	NUT; CLAMP (C) M10 FLANGE	0-91180-210-0	02	1	0603-				●
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9606-9810	●	●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28681-030-0	02	1	9606-9810	●	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X25 FLANGE	0-28681-025-0	03	1	9606-9810	●	●
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	9811-0203			●	●
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0204-0512				●
107	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0601-				●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	02	1	9606-9810	●	●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	9811-9902			●	●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	9811-9902			●
121	WASHER; PL,BRKT EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32	9-09164-810-0	01	1	9903-0203			●	●
121	WASHER; PL,BRKT EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32	9-09164-810-0	01	1	9903-0203			●
121	WASHER; PL,BRKT EURO2 SPECIFICATION<THN> ID=10.5 OD=18	9-09160-510-0	01	1	9903-0203				●
121	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	01	1	0204-0205				●
121	WASHER; PL,BRKT EURO2 SPECIFICATION<THN> ID=10.5 OD=32	9-09164-810-0	03	1	9903-0203				●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	03	1	0204-0605				●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	03	1	0606-				●
126	PIPE; EXH,RR WHEEL BASE 3700MM(37W)	1-22126-071-0	01	1	9606-9609	●	●
126	PIPE; EXH,RR WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-22126-071-0	01	1	9610-9810	●	●
126	PIPE; EXH,RR OD=94	1-22126-059-0	01	1	9811-0009			●
126	PIPE; EXH,RR OD=94	1-22126-331-0	01	1	0010-0203			●
126	PIPE; EXH,RR WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2>	1-22126-073-0	01	1	9610-9810	●	●
126	PIPE; EXH,RR WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W)	1-22126-024-2	01	1	9606-9609	●	●
126	PIPE; EXH,RR WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-22126-024-2	01	1	9610-9810	●	●
151	PROTECTOR; HEAT,EXH PIPE	1-53319-018-0	01	1	9606-9810	●	●
159	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28680-825-0	02	1	9606-9810	●	●
266	WASHER; LK,BRKT ID=10.2	9-09150-510-0	01	1	9606-9810	●	●

36 34 6 5 34 36 1 17 1 107 20 476 81 121 75 475 75 60 20 476 56 81 121 70 81 121 75 60 81 12 107 75 56 59 94 70 105 97 97 22 22 63 22 22 94 221 105 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH	1-22122-252-2	01	1	9606-9810	●	●
1	PIPE; EXH	1-22122-733-1	01	1	9811-0203			●
1	PIPE; EXH EURO2 SPECIFICATION<THN>	1-22122-929-1	01	1	9903-0203				●
1	PIPE; EXH	1-22122-929-3	01	1	0204-				●
5	PROTECTOR; HEAT	1-33659-167-1	01	1	9606-9810	●	●
5	PROTECTOR; HEAT	1-33659-182-1	01	1	9811-			●	●
6	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	9606-9810	●	●
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28680-825-0	02	1	9811-			●	●
12	SILENCER ASM; EXH	1-22140-715-2	01	1	9606-9810	●	●
12	SILENCER ASM; EXH	1-22140-723-2	01	1	9811-0203			●
12	SILENCER ASM; EXH EURO2 SPECIFICATION<THN>	1-22140-846-4	01	1	9903-0203				●
12	SILENCER ASM; EXH	1-22140-846-4	01	1	0204-				●
17	BOLT; EXH PIPE M12X110	1-09000-290-0	01	1	9811-9811			●
17	BOLT; EXH PIPE M12X110	1-09000-290-0	01	1	9903-0203				●
17	BOLT; EXH PIPE M12X110	1-09000-290-0	01	1	0204-0401				●
17	BOLT; EXH PIPE M12X120	1-09000-293-0	01	1	0402-				●
20	BOLT; FLANGE,EXH PIPE EXC. EURO2 SPECIFICATION<THN> M10X51.4	8-94436-943-0	02	1	0005-0203			●
20	BOLT; FLANGE,EXH PIPE EURO2 SPECIFICATION<THN> M10X51.4	8-94436-943-0	02	1	0005-0203				●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	0204-0412				●
20	BOLT; FLANGE,EXH PIPE M10X49.8	8-97039-586-0	02	1	0501-				●
22	CLAMP; EXH PIPE (B) L=120	1-22133-231-0	02	1	9606-9810	●	●
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	02	1	9811-9902			●	●
22	CLAMP; EXH PIPE EXC. EURO2 SPECIFICATION<THN> (C) ID=80-84	1-22133-233-0	02	1	9903-0203			●	●
22	CLAMP; EXH PIPE (A) ID=75-78	1-22133-232-0	04	1	9606-9810	●	●
22	CLAMP; EXH PIPE (D) ID=94-98	1-22133-237-0	02	1	9811-9902			●
22	CLAMP; EXH PIPE EXC. EURO2 SPECIFICATION<THN> (D) ID=94-98	1-22133-237-0	02	1	9903-0203			●
22	CLAMP; EXH PIPE EURO2 SPECIFICATION<THN> (D) ID=94-98	1-22133-237-0	02	1	9903-0203				●
22	CLAMP; EXH PIPE (D) ID=94-98	1-22133-237-0	02	1	0204-				●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9606-9810	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9811-0203			●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	0204-0410				●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0411-				●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	9606-9810	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9811-9902			●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9903-0203			●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	0204-				●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22131-584-0	01	1	9606-9810	●	●
56	BRACKET; CLAMP,EXH PIPE (A) H=100	1-22139-052-0	01	1	9606-9810	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) H=100	1-22139-052-0	01	1	9606-9810	●	●
56	BRACKET; CLAMP,EXH PIPE (E)	1-22139-082-0	01	1	9811-0203			●	●
56	BRACKET; CLAMP,EXH PIPE (E)	1-22139-082-0	01	1	9811-0203			●
56	BRACKET; CLAMP,EXH PIPE (E)	1-22139-082-0	01	1	0204-				●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (B)	1-22139-044-0	01	1	9606-9810	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (D)	1-22131-333-0	01	1	9606-9609	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-22131-333-0	01	1	9610-9810	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4800MM(48W) (D)	1-22131-333-0	02	1	9606-9609	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-22131-333-0	02	1	9610-9810	●	●
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<THN> (F)	1-22139-114-1	01	1	9903-0203				●
56	BRACKET; CLAMP,EXH PIPE (F)	1-22139-114-1	01	1	0204-0205				●
56	BRACKET; CLAMP,EXH PIPE (F)	1-22139-197-0	01	1	0206-				●
59	BRACKET; EXH SILENCER,FRT EURO2 SPECIFICATION<THN>	1-22139-098-0	01	1	9903-0203				●
59	BRACKET; EXH SILENCER,FRT	1-22139-098-0	01	1	0204-				●
60	BRACKET; FRAME TO BRKT (C)	1-22131-639-1	01	1	9606-9810	●	●
60	BRACKET; FRAME TO BRKT (A)	1-22151-512-2	01	1	9606-9810	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A)	1-22151-512-2	01	1	9606-9810	●	●
60	BRACKET; FRAME TO BRKT WHEEL BASE 3700MM(37W) (B)	1-22151-534-3	01	1	9606-9810	●	●
60	BRACKET; FRAME TO BRKT (D)	1-22151-679-0	01	1	9811-0203			●	●
60	BRACKET; FRAME TO BRKT (D)	1-22151-679-0	01	1	9811-0203			●
60	BRACKET; FRAME TO BRKT (D)	1-22151-679-1	01	1	0204-				●
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<THN> (E)	1-22151-691-0	01	1	9903-0203				●
60	BRACKET; FRAME TO BRKT (E)	1-22151-691-0	01	1	0204-				●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	9606-9810	●	●
63	TUBE; DIST,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) L=11	1-22139-026-0	01	1	9606-9810	●	●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	9811-9902			●	●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	9811-9902			●
63	TUBE; DIST,BRKT EXC. EURO2 SPECIFICATION<THN> L=11	1-22139-026-0	01	1	9903-0203			●	●
63	TUBE; DIST,BRKT EXC. EURO2 SPECIFICATION<THN> L=11	1-22139-026-0	01	1	9903-0203			●
63	TUBE; DIST,BRKT WHEEL BASE 3700MM(37W) L=8.5	1-22139-057-0	01	1	9606-9810	●	●
63	TUBE; DIST,BRKT EURO2 SPECIFICATION<THN> L=8.5	1-22139-057-0	01	1	9903-0203				●
63	TUBE; DIST,BRKT L=8.5	1-22139-057-0	01	1	0204-				●
70	BOLT; BRKT (B) M10X50	0-10806-050-0	01	1	9606-9810	●	●
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) M10X50	0-10806-050-0	01	1	9606-9810	●	●
70	BOLT; BRKT (E) M10X50	0-10806-050-0	01	1	9811-9902			●	●
70	BOLT; BRKT (E) M10X50	0-10806-050-0	01	1	9811-9902			●
70	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (E) M10X50	0-10806-050-0	01	1	9903-0203			●	●
70	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (E) M10X50	0-10806-050-0	01	1	9903-0203			●
70	BOLT; BRKT (C) M10X55	0-10806-055-0	01	1	9606-9810	●	●
70	BOLT; BRKT (D) M10X30 FLANGE	0-28681-030-0	02	1	9606-9810	●	●
70	BOLT; BRKT WHEEL BASE 3700MM(37W) (A) M10X45	0-10806-045-0	01	1	9606-9810	●	●
70	BOLT; BRKT EURO2 SPECIFICATION<THN> (E) M10X50	0-10806-050-0	03	1	9903-0203				●
70	BOLT; BRKT (E) M10X50	0-10806-050-0	03	1	0204-0512				●
70	BOLT; BRKT (E) M10X50	0-10856-050-0	03	1	0601-				●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	04	1	9606-9810	●	●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	9811-9902			●	●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	9811-9902			●
75	RUBBER; SUPPORT,BRKT EXC. EURO2 SPECIFICATION<THN> (A) OD=30	1-22159-106-1	02	1	9903-0203			●	●
75	RUBBER; SUPPORT,BRKT EXC. EURO2 SPECIFICATION<THN> (A) OD=30	1-22159-106-1	02	1	9903-0203			●
75	RUBBER; SUPPORT,BRKT (B)	1-22159-119-0	02	1	9606-9810	●	●
75	RUBBER; SUPPORT,BRKT EURO2 SPECIFICATION<THN> (A) OD=30	1-22159-106-1	06	1	9903-0203				●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	06	1	0204-				●
81	NUT; BRKT (B) M10	9-09110-510-0	03	1	9606-9810	●	●
81	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M10	9-09110-510-0	03	1	9606-9810	●	●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	01	1	9811-9902			●	●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	01	1	9811-9902			●
81	NUT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT	9-09131-510-0	01	1	9903-0203			●	●
81	NUT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT	9-09131-510-0	01	1	9903-0203			●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	02	1	9606-9810	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) M10	9-09110-510-0	02	1	9606-9810	●	●
81	NUT; BRKT EURO2 SPECIFICATION<THN> (C) M10 FLANGE	0-91150-210-0	01	1	9903-0203				●
81	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	01	1	0204-0602				●
81	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0603-				●
81	NUT; BRKT EURO2 SPECIFICATION<THN> (C) M12 FLANGE	0-91150-212-0	04	1	9903-0203				●
81	NUT; BRKT (C) M12 FLANGE	0-91150-212-0	04	1	0204-0602				●
81	NUT; BRKT (C) M12 FLANGE	0-91180-212-0	04	1	0603-				●
81	NUT; BRKT EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT	9-09131-510-0	03	1	9903-0203				●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	03	1	0204-0603				●
81	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	03	1	0604-				●
94	BOLT; CLAMP (A) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9606-9810	●	●
94	BOLT; CLAMP (C) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9811-9902			●	●
94	BOLT; CLAMP (C) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9811-9902			●
94	BOLT; CLAMP EXC. EURO2 SPECIFICATION<THN> (C) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9903-0110			●	●
94	BOLT; CLAMP EXC. EURO2 SPECIFICATION<THN> (C) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9903-0110			●
94	BOLT; CLAMP (C) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0111-0203			●	●
94	BOLT; CLAMP (C) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0111-0203			●
94	BOLT; CLAMP (C) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0204-0805				●
94	BOLT; CLAMP (C) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	0806-				●
94	BOLT; CLAMP (B) M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9606-9810	●	●
94	BOLT; CLAMP EURO2 SPECIFICATION<THN> (C) M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	9903-0110				●
94	BOLT; CLAMP EURO2 SPECIFICATION<THN> (C) M10X40 FLANGE	0-28681-040-0	02	1	0111-0203				●
94	BOLT; CLAMP (C) M10X40 FLANGE	0-28681-040-0	02	1	0204-0512				●
94	BOLT; CLAMP (C) M10X40 FLANGE	0-28651-040-0	02	1	0601-				●
97	WASHER; PL,CLAMP (A) ID=10.5	9-09164-510-0	02	1	9606-9810	●	●
97	WASHER; PL,CLAMP (C) ID=10.5	9-09164-510-0	02	1	9811-9902			●	●
97	WASHER; PL,CLAMP (C) ID=10.5	9-09164-510-0	02	1	9811-9902			●
97	WASHER; PL,CLAMP EXC. EURO2 SPECIFICATION<THN> (C) ID=10.5	9-09164-510-0	02	1	9903-0110			●	●
97	WASHER; PL,CLAMP EXC. EURO2 SPECIFICATION<THN> (C) ID=10.5	9-09164-510-0	02	1	9903-0110			●
97	WASHER; PL,CLAMP (C) ID=10.5	9-09164-510-0	02	1	0111-0203			●	●
97	WASHER; PL,CLAMP (C) ID=10.5	9-09164-510-0	02	1	0111-0203			●
97	WASHER; PL,CLAMP (C) ID=10.5	9-09164-510-0	02	1	0204-				●
97	WASHER; PL,CLAMP (B) ID=10.5	9-09164-510-0	04	1	9606-9810	●	●
97	WASHER; PL,CLAMP EURO2 SPECIFICATION<THN> (C) ID=10.5	9-09164-510-0	04	1	9903-0110				●
105	NUT; CLAMP (A) M10	9-09110-510-0	02	1	9606-9810	●	●
105	NUT; CLAMP (C) M10	9-09110-510-0	02	1	9811-9902			●	●
105	NUT; CLAMP (C) M10	9-09110-510-0	02	1	9811-9902			●
105	NUT; CLAMP EXC. EURO2 SPECIFICATION<THN> (C) M10	9-09110-510-0	02	1	9903-0110			●	●
105	NUT; CLAMP EXC. EURO2 SPECIFICATION<THN> (C) M10	9-09110-510-0	02	1	9903-0110			●
105	NUT; CLAMP (C) M10	9-09110-510-0	02	1	0111-0203			●	●
105	NUT; CLAMP (C) M10	9-09110-510-0	02	1	0111-0203			●
105	NUT; CLAMP (C) M10	9-09110-510-0	02	1	0204-0512				●
105	NUT; CLAMP (C) M10	0-91110-510-0	02	1	0601-				●
105	NUT; CLAMP (B) M10	9-09110-510-0	04	1	9606-9810	●	●
105	NUT; CLAMP EURO2 SPECIFICATION<THN> (C) M10	9-09110-510-0	04	1	9903-0110				●
105	NUT; CLAMP EURO2 SPECIFICATION<THN> (C) M10 FLANGE	0-91150-210-0	02	1	0111-0203				●
105	NUT; CLAMP (C) M10 FLANGE	0-91150-210-0	02	1	0204-0602				●
105	NUT; CLAMP (C) M10 FLANGE	0-91180-210-0	02	1	0603-				●
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9606-9810	●	●
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28681-030-0	02	1	9606-9810	●	●
107	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X25 FLANGE	0-28681-025-0	03	1	9606-9810	●	●
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	9811-0203			●	●
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0204-0512				●
107	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0601-				●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	02	1	9606-9810	●	●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	9811-9902			●	●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	9811-9902			●
121	WASHER; PL,BRKT EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32	9-09164-810-0	01	1	9903-0203			●	●
121	WASHER; PL,BRKT EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32	9-09164-810-0	01	1	9903-0203			●
121	WASHER; PL,BRKT EURO2 SPECIFICATION<THN> ID=10.5 OD=18	9-09160-510-0	01	1	9903-0203				●
121	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	01	1	0204-0205				●
121	WASHER; PL,BRKT EURO2 SPECIFICATION<THN> ID=10.5 OD=32	9-09164-810-0	03	1	9903-0203				●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	03	1	0204-0605				●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	03	1	0606-				●
221	CLAMP; EXH SILENCER EURO2 SPECIFICATION<THN> ID=80-84	1-22133-233-0	02	1	9903-0203				●
221	CLAMP; EXH SILENCER ID=80-84	1-22133-233-0	02	1	0204-				●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. EURO2 SPECIFICATION<THN> OD=112	1-22119-294-0	01	1	0005-0203			●
475	BEARING; SEAL,VIBNON,EXH PIPE EURO2 SPECIFICATION<THN> OD=112	1-22119-294-0	01	1	0005-0203				●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	0204-				●
476	SPRING; VIBNON,EXH PIPE EXC. EURO2 SPECIFICATION<THN>	8-94141-851-0	02	1	0005-0203			●
476	SPRING; VIBNON,EXH PIPE EURO2 SPECIFICATION<THN>	8-94141-851-0	02	1	0005-0203				●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0204-				●

435 435 52 223 174 174 226 226 435 223 434 432 226 414 56 137 174 226 15 434 170 174 434 15 15 310 431 431 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	CLAMP; RR PIPE WHEEL BASE 3700MM(37W) ID=75-78	1-22133-232-0	02	1	9606-9609	●	●
15	CLAMP; RR PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) ID=75-78	1-22133-232-0	02	1	9606-9609	●	●
15	CLAMP; RR PIPE WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=75-78	1-22133-232-0	02	1	9610-9810	●	●
15	CLAMP; RR PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=75-78	1-22133-232-0	02	1	9610-9810	●	●
15	CLAMP; RR PIPE WHEEL BASE 4800MM(48W) ID=75-78	1-22133-232-0	04	1	9606-9609	●	●
15	CLAMP; RR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) ID=75-78	1-22133-232-0	04	1	9606-9609	●	●
15	CLAMP; RR PIPE WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=75-78	1-22133-232-0	04	1	9610-9810	●	●
15	CLAMP; RR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=75-78	1-22133-232-0	04	1	9610-9810	●	●
52	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) M10	9-09110-510-0	01	1	9606-9609	●	●
52	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10	9-09110-510-0	01	1	9610-9810	●	●
52	NUT; BRKT WHEEL BASE 4800MM(48W) M10	9-09110-510-0	02	1	9606-9609	●	●
52	NUT; BRKT WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10	9-09110-510-0	02	1	9610-9810	●	●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22131-584-0	01	1	9606-9810	●	●
56	BRACKET; CLAMP,EXH PIPE (A) H=100	1-22139-052-0	01	1	9606-9810	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (A) H=100	1-22139-052-0	01	1	9606-9810	●	●
56	BRACKET; CLAMP,EXH PIPE (E)	1-22139-082-0	01	1	9811-0203			●	●
56	BRACKET; CLAMP,EXH PIPE (E)	1-22139-082-0	01	1	9811-0203			●
56	BRACKET; CLAMP,EXH PIPE (E)	1-22139-082-0	01	1	0204-				●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W) (B)	1-22139-044-0	01	1	9606-9810	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (D)	1-22131-333-0	01	1	9606-9609	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-22131-333-0	01	1	9610-9810	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4800MM(48W) (D)	1-22131-333-0	02	1	9606-9609	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-22131-333-0	02	1	9610-9810	●	●
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<THN> (F)	1-22139-114-1	01	1	9903-0203				●
56	BRACKET; CLAMP,EXH PIPE (F)	1-22139-114-1	01	1	0204-0205				●
56	BRACKET; CLAMP,EXH PIPE (F)	1-22139-197-0	01	1	0206-				●
137	BRACKET; TAIL PIPE WHEEL BASE 3700MM(37W) H=89	1-22139-046-0	01	1	9606-9609	●	●
137	BRACKET; TAIL PIPE WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> H=89	1-22139-046-0	01	1	9610-9810	●	●
137	BRACKET; TAIL PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) H=89	1-22139-046-0	02	1	9606-9609	●	●
137	BRACKET; TAIL PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> H=89	1-22139-046-0	02	1	9610-9810	●	●
170	NUT; CLAMP WHEEL BASE 3700MM(37W) M10	9-09110-510-0	02	1	9606-9609	●	●
170	NUT; CLAMP WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10	9-09110-510-0	02	1	9610-9810	●	●
170	NUT; CLAMP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10	9-09110-510-0	04	1	9606-9609	●	●
170	NUT; CLAMP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10	9-09110-510-0	04	1	9610-9810	●	●
174	WASHER; PL WHEEL BASE 3700MM(37W) ID=10.5	9-09164-510-0	02	1	9606-9609	●	●
174	WASHER; PL WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) ID=10.5	9-09164-510-0	02	1	9606-9609	●	●
174	WASHER; PL WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=10.5	9-09164-510-0	02	1	9610-9810	●	●
174	WASHER; PL WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=10.5	9-09164-510-0	02	1	9610-9810	●	●
174	WASHER; PL WHEEL BASE 3700MM(37W) ID=10.5 OD=32	9-09164-810-0	01	1	9606-9609	●	●
174	WASHER; PL WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) ID=10.5 OD=32	9-09164-810-0	01	1	9606-9609	●	●
174	WASHER; PL WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=10.5 OD=32	9-09164-810-0	01	1	9610-9810	●	●
174	WASHER; PL WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=10.5 OD=32	9-09164-810-0	01	1	9610-9810	●	●
174	WASHER; PL WHEEL BASE 4800MM(48W) ID=10.5	9-09164-510-0	04	1	9606-9609	●	●
174	WASHER; PL WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) ID=10.5	9-09164-510-0	04	1	9606-9609	●	●
174	WASHER; PL WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=10.5	9-09164-510-0	04	1	9610-9810	●	●
174	WASHER; PL WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=10.5	9-09164-510-0	04	1	9610-9810	●	●
174	WASHER; PL WHEEL BASE 4800MM(48W) ID=10.5 OD=32	9-09164-810-0	02	1	9606-9609	●	●
174	WASHER; PL WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) ID=10.5 OD=32	9-09164-810-0	02	1	9606-9609	●	●
174	WASHER; PL WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=10.5 OD=32	9-09164-810-0	02	1	9610-9810	●	●
174	WASHER; PL WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=10.5 OD=32	9-09164-810-0	02	1	9610-9810	●	●
223	BRACKET; EXH PIPE WHEEL BASE 3700MM(37W) (B)	1-22131-412-0	01	1	9606-9609	●	●
223	BRACKET; EXH PIPE WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-22131-412-0	01	1	9610-9810	●	●
223	BRACKET; EXH PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A)	1-22131-336-0	01	1	9606-9609	●	●
223	BRACKET; EXH PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-22131-336-0	01	1	9610-9810	●	●
223	BRACKET; EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B)	1-22131-412-0	02	1	9606-9609	●	●
223	BRACKET; EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-22131-412-0	02	1	9610-9810	●	●
223	BRACKET; EXH PIPE WHEEL BASE 4800MM(48W) (A)	1-22131-336-0	02	1	9606-9609	●	●
223	BRACKET; EXH PIPE WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-22131-336-0	02	1	9610-9810	●	●
226	RUBBER; CUSHION WHEEL BASE 3700MM(37W) OD=30	1-22159-106-1	02	1	9606-9609	●	●
226	RUBBER; CUSHION WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) OD=30	1-22159-106-1	02	1	9606-9609	●	●
226	RUBBER; CUSHION WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> OD=30	1-22159-106-1	02	1	9610-9810	●	●
226	RUBBER; CUSHION WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> OD=30	1-22159-106-1	02	1	9610-9810	●	●
226	RUBBER; CUSHION WHEEL BASE 4800MM(48W) OD=30	1-22159-106-1	04	1	9606-9609	●	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) OD=30	1-22159-106-1	04	1	9606-9609	●	●
226	RUBBER; CUSHION WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> OD=30	1-22159-106-1	04	1	9610-9810	●	●
226	RUBBER; CUSHION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> OD=30	1-22159-106-1	04	1	9610-9810	●	●
310	TUBE; DIST,EXH PIPE WHEEL BASE 3700MM(37W) L=11	1-22139-026-0	01	1	9606-9609	●	●
310	TUBE; DIST,EXH PIPE WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=11	1-22139-026-0	01	1	9610-9810	●	●
310	TUBE; DIST,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) L=11	1-22139-026-0	02	1	9606-9609	●	●
310	TUBE; DIST,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=11	1-22139-026-0	02	1	9610-9810	●	●
414	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) M10X30 FLANGE	0-28681-030-0	01	1	9606-9609	●	●
414	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X30 FLANGE	0-28681-030-0	01	1	9610-9810	●	●
414	BOLT; BRKT WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28681-030-0	02	1	9606-9609	●	●
414	BOLT; BRKT WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X30 FLANGE	0-28681-030-0	02	1	9610-9810	●	●
431	BOLT; CLAMP WHEEL BASE 3700MM(37W) M10X40 FLANGE	0-28681-040-0	02	1	9606-9609	●	●
431	BOLT; CLAMP WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) M10X40 FLANGE	0-28681-040-0	02	1	9606-9609	●	●
431	BOLT; CLAMP WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X40 FLANGE	0-28681-040-0	02	1	9610-9810	●	●
431	BOLT; CLAMP WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X40 FLANGE	0-28681-040-0	02	1	9610-9810	●	●
431	BOLT; CLAMP WHEEL BASE 4800MM(48W) M10X40 FLANGE	0-28681-040-0	04	1	9606-9609	●	●
431	BOLT; CLAMP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X40 FLANGE	0-28681-040-0	04	1	9606-9609	●	●
431	BOLT; CLAMP WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X40 FLANGE	0-28681-040-0	04	1	9610-9810	●	●
431	BOLT; CLAMP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X40 FLANGE	0-28681-040-0	04	1	9610-9810	●	●
432	NUT; CLAMP WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) M10	9-09110-510-0	02	1	9606-9609	●	●
432	NUT; CLAMP WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10	9-09110-510-0	02	1	9610-9810	●	●
432	NUT; CLAMP WHEEL BASE 4800MM(48W) M10	9-09110-510-0	04	1	9606-9609	●	●
432	NUT; CLAMP WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10	9-09110-510-0	04	1	9610-9810	●	●
434	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X50 FLANGE	0-28081-050-0	01	1	9606-9609	●	●
434	BOLT; BRKT WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X50 FLANGE	0-28081-050-0	01	1	9610-9810	●	●
434	BOLT; BRKT WHEEL BASE 3700MM(37W) M10X30 FLANGE	0-28681-030-0	02	1	9606-9609	●	●
434	BOLT; BRKT WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X30 FLANGE	0-28681-030-0	02	1	9610-9810	●	●
434	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) M10X60 FLANGE	0-28081-060-0	01	1	9606-9609	●	●
434	BOLT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X60 FLANGE	0-28081-060-0	01	1	9610-9810	●	●
434	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X50 FLANGE	0-28081-050-0	02	1	9606-9609	●	●
434	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X50 FLANGE	0-28081-050-0	02	1	9610-9810	●	●
434	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28681-030-0	04	1	9606-9609	●	●
434	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X30 FLANGE	0-28681-030-0	04	1	9610-9810	●	●
434	BOLT; BRKT WHEEL BASE 4800MM(48W) M10X60 FLANGE	0-28081-060-0	02	1	9606-9609	●	●
434	BOLT; BRKT WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X60 FLANGE	0-28081-060-0	02	1	9610-9810	●	●
435	NUT; BRKT WHEEL BASE 3700MM(37W) M10	9-09110-510-0	02	1	9606-9609	●	●
435	NUT; BRKT WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10	9-09110-510-0	02	1	9610-9810	●	●
435	NUT; BRKT WHEEL BASE 3700MM(37W) M10 LOCK NUT	9-09131-510-0	01	1	9606-9609	●	●
435	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) M10 LOCK NUT	9-09131-510-0	01	1	9606-9609	●	●
435	NUT; BRKT WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10 LOCK NUT	9-09131-510-0	01	1	9610-9810	●	●
435	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10 LOCK NUT	9-09131-510-0	01	1	9610-9810	●	●
435	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10	9-09110-510-0	04	1	9606-9609	●	●
435	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10	9-09110-510-0	04	1	9610-9810	●	●
435	NUT; BRKT WHEEL BASE 4800MM(48W) M10 LOCK NUT	9-09131-510-0	02	1	9606-9609	●	●
435	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) M10 LOCK NUT	9-09131-510-0	02	1	9606-9609	●	●
435	NUT; BRKT WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10 LOCK NUT	9-09131-510-0	02	1	9610-9810	●	●
435	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10 LOCK NUT	9-09131-510-0	02	1	9610-9810	●	●

12 14 1 506 81 12 126 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH	1-22122-252-2	01	1	9606-9810	●	●
1	PIPE; EXH	1-22122-733-1	01	1	9811-0203			●
1	PIPE; EXH EURO2 SPECIFICATION<THN>	1-22122-929-1	01	1	9903-0203				●
1	PIPE; EXH	1-22122-929-3	01	1	0204-				●
12	SILENCER ASM; EXH	1-22140-715-2	01	1	9606-9810	●	●
12	SILENCER ASM; EXH	1-22140-723-2	01	1	9811-0203			●
12	SILENCER ASM; EXH EURO2 SPECIFICATION<THN>	1-22140-846-4	01	1	9903-0203				●
12	SILENCER ASM; EXH	1-22140-846-4	01	1	0204-				●
14	GASKET; SILENCER TO EXH PIPE EURO2 SPECIFICATION<THN>	8-94394-391-0	01	1	9903-0203				●
14	GASKET; SILENCER TO EXH PIPE	8-94394-391-0	01	1	0204-				●
81	NUT; BRKT (B) M10	9-09110-510-0	03	1	9606-9810	●	●
81	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M10	9-09110-510-0	03	1	9606-9810	●	●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	01	1	9811-9902			●	●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	01	1	9811-9902			●
81	NUT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT	9-09131-510-0	01	1	9903-0203			●	●
81	NUT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT	9-09131-510-0	01	1	9903-0203			●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	02	1	9606-9810	●	●
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) (B) M10	9-09110-510-0	02	1	9606-9810	●	●
81	NUT; BRKT EURO2 SPECIFICATION<THN> (C) M10 FLANGE	0-91150-210-0	01	1	9903-0203				●
81	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	01	1	0204-0602				●
81	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	0603-				●
81	NUT; BRKT EURO2 SPECIFICATION<THN> (C) M12 FLANGE	0-91150-212-0	04	1	9903-0203				●
81	NUT; BRKT (C) M12 FLANGE	0-91150-212-0	04	1	0204-0602				●
81	NUT; BRKT (C) M12 FLANGE	0-91180-212-0	04	1	0603-				●
81	NUT; BRKT EURO2 SPECIFICATION<THN> (A) M10 LOCK NUT	9-09131-510-0	03	1	9903-0203				●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	03	1	0204-0603				●
81	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	03	1	0604-				●
126	PIPE; EXH,RR WHEEL BASE 3700MM(37W)	1-22126-071-0	01	1	9606-9609	●	●
126	PIPE; EXH,RR WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-22126-071-0	01	1	9610-9810	●	●
126	PIPE; EXH,RR OD=94	1-22126-059-0	01	1	9811-0009			●
126	PIPE; EXH,RR OD=94	1-22126-331-0	01	1	0010-0203			●
126	PIPE; EXH,RR WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2>	1-22126-073-0	01	1	9610-9810	●	●
126	PIPE; EXH,RR WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W)	1-22126-024-2	01	1	9606-9609	●	●
126	PIPE; EXH,RR WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-22126-024-2	01	1	9610-9810	●	●
506	BRACKET; STUD EURO2 SPECIFICATION<THN>	1-22131-680-0	02	1	9903-0203				●
506	BRACKET; STUD	1-22131-680-0	02	1	0204-0206				●
506	BRACKET; STUD	1-22131-962-0	02	1	0207-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
