◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11303 - FRR AUST/NZ EURO5 SPACECAB ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#59389) — 180 parça

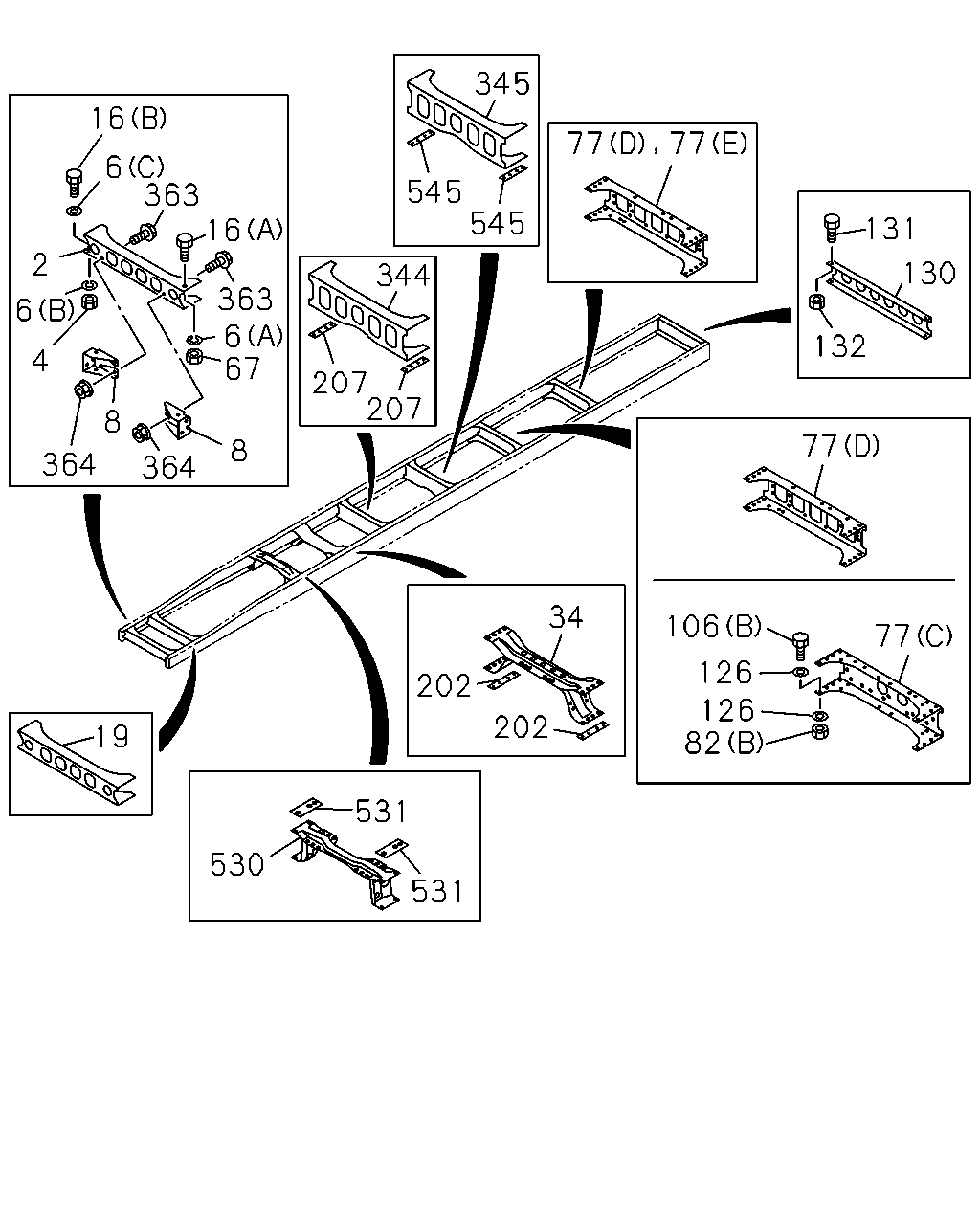

çizim 168834
345 16 6 363 16 545 545 131 2 130 344 363 6 67 6 132 4 207 207 8 77 8 364 364 34 106 77 126 126 82 202 202 19 531 530 531 77 77
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1010- ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1010- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1010- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1010- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1010- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-2 01 1 1010- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-3 01 1 1010- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1010- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1010- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1010- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1010- ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1010- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (E) 		8-97609-481-4 01 1 1010-1109 ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> (E) 		8-97609-481-4 01 1 1110- ● ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (C) 		8-97609-483-0 01 1 1010-1109 ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> (C) 		8-97609-483-0 01 1 1110- ● ●
77 MEMBER; CROSS,TRUNNION RR
POWER TAKE OFF-FLYWHEEL<6SZ> (D) 		8-97610-935-1 02 1 1010- ●
77 MEMBER; CROSS,TRUNNION RR
(D) 		8-97610-935-1 02 1 1010- ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (D) 		8-97610-935-1 02 1 1010- ●
77 MEMBER; CROSS,TRUNNION RR
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) 		8-97609-475-2 01 1 1010- ●
77 MEMBER; CROSS,TRUNNION RR
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) 		8-97609-478-4 01 1 1010- ●
82 NUT; BRKT
AIR SUS(FCD***) (B) M10 		0-91110-510-0 04 1 1010-1109 ●
82 NUT; BRKT
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> (B) M10 		0-91110-510-0 04 1 1110- ● ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 1010- ● ● ●
82 NUT; BRKT
LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 1010- ●
106 BOLT; BRKT
AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 1010-1109 ●
106 BOLT; BRKT
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> (B) M10X35 		0-10961-035-0 04 1 1110- ● ●
106 BOLT; BRKT
AIR SUS(FCD***) (C) M14X35 FLANGE 		0-28661-435-0 12 1 1010-1109 ●
106 BOLT; BRKT
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> (C) M14X35 FLANGE 		0-28661-435-0 12 1 1110- ● ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 1010- ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 1010- ●
126 WASHER; PL,BRKT
AIR SUS(FCD***) ID=10.5 OD=22 		0-91614-610-0 08 1 1010-1109 ●
126 WASHER; PL,BRKT
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> ID=10.5 OD=22 		0-91614-610-0 08 1 1110- ● ●
130 MEMBER; CROSS,END
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-470-0 01 1 1010- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1010- ● ● ●
130 MEMBER; CROSS,END
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-469-0 01 1 1010- ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1010- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1010- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1010- ● ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1010-1109 ●
207 SPACER; 4TH C/MBR
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> 		8-97609-758-0 02 1 1110- ● ●
207 SPACER; 4TH C/MBR
LEAF SUS(FCR***) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-758-0 02 1 1110- ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1010- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1010-1109 ●
344 MEMBER; CROSS,4TH
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> 		8-97609-473-2 01 1 1110- ● ●
344 MEMBER; CROSS,4TH
LEAF SUS(FCR***) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-473-2 01 1 1110- ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1010- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1010- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1010- ● ● ● ●
530 MEMBER; CROSS,T/M
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97615-671-2 01 1 1010- ●
530 MEMBER; CROSS,T/M
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-809-3 01 1 1010- ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1010- ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1010- ● ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 1010- ●

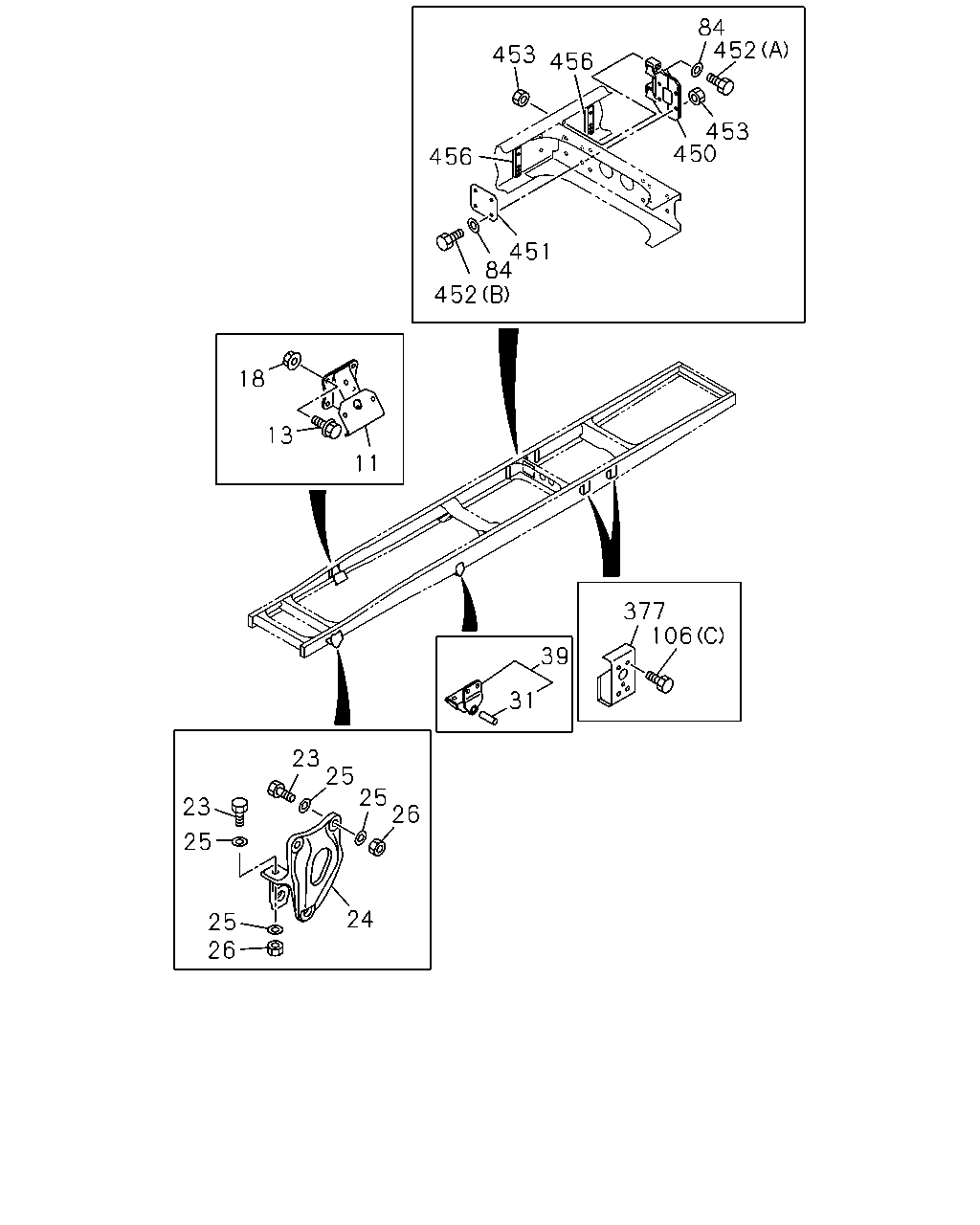

çizim 168845
84 452 453 456 453 450 456 451 84 452 18 13 11 377 106 39 31 23 25 25 26 23 25 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG 8-97604-129-0 02 1 1010- ● ● ● ●
13 BOLT; BRKT,ENG MTG
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> M12X35 FLANGE 		0-28661-235-0 16 1 1110- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1010-1109 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1110- ● ● ●
13 BOLT; BRKT,ENG MTG
LEAF SUS(FCR***) M12X35 FLANGE 		0-28661-235-0 08 1 1110- ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1010- ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1010- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1010- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1010- ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1010- ● ● ● ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1010-1109 ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> M14 		0-91110-514-0 08 1 1110- ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1010- ● ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1010- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1010- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1010- ● ● ● ●
84 WASHER; PL,BRKT
AIR SUS(FCD***) ID=16.2 		1-09503-316-0 12 1 1010-1109 ●
84 WASHER; PL,BRKT
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> ID=16.2 		1-09503-316-0 12 1 1110- ● ●
106 BOLT; BRKT
AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 1010-1109 ●
106 BOLT; BRKT
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> (B) M10X35 		0-10961-035-0 04 1 1110- ● ●
106 BOLT; BRKT
AIR SUS(FCD***) (C) M14X35 FLANGE 		0-28661-435-0 12 1 1010-1109 ●
106 BOLT; BRKT
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> (C) M14X35 FLANGE 		0-28661-435-0 12 1 1110- ● ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 1010- ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 1010- ●
377 BRACKET; TOP PLATE
AIR SUS(FCD***) 		8-98061-350-0 04 1 1010-1109 ●
377 BRACKET; TOP PLATE
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> 		8-98061-350-0 04 1 1110- ● ●
450 BRACKET; V ROD
AIR SUS(FCD***) 		1-53353-121-0 02 1 1010-1109 ●
450 BRACKET; V ROD
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> 		1-53353-121-0 02 1 1110- ● ●
451 GUSSET; V ROD
AIR SUS(FCD***) 		8-97610-436-0 02 1 1010-1109 ●
451 GUSSET; V ROD
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> 		8-97610-436-0 02 1 1110- ● ●
452 BOLT; V ROD
AIR SUS(FCD***) (B) M16X50 		1-09000-679-0 08 1 1010-1109 ●
452 BOLT; V ROD
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> (B) M16X50 		1-09000-679-0 08 1 1110- ● ●
452 BOLT; V ROD
AIR SUS(FCD***) (A) M16X110 		1-09000-738-0 04 1 1010-1109 ●
452 BOLT; V ROD
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> (A) M16X110 		1-09000-738-0 04 1 1110- ● ●
453 NUT; V ROD
AIR SUS(FCD***) M16 FLANGE 		1-09440-066-0 12 1 1010-1109 ●
453 NUT; V ROD
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		1-09440-066-0 12 1 1110- ● ●
456 PATCH; STOPPER
AIR SUS(FCD***) 		8-97610-437-1 04 1 1010-1109 ●
456 PATCH; STOPPER
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> 		8-97610-437-1 04 1 1110- ● ●

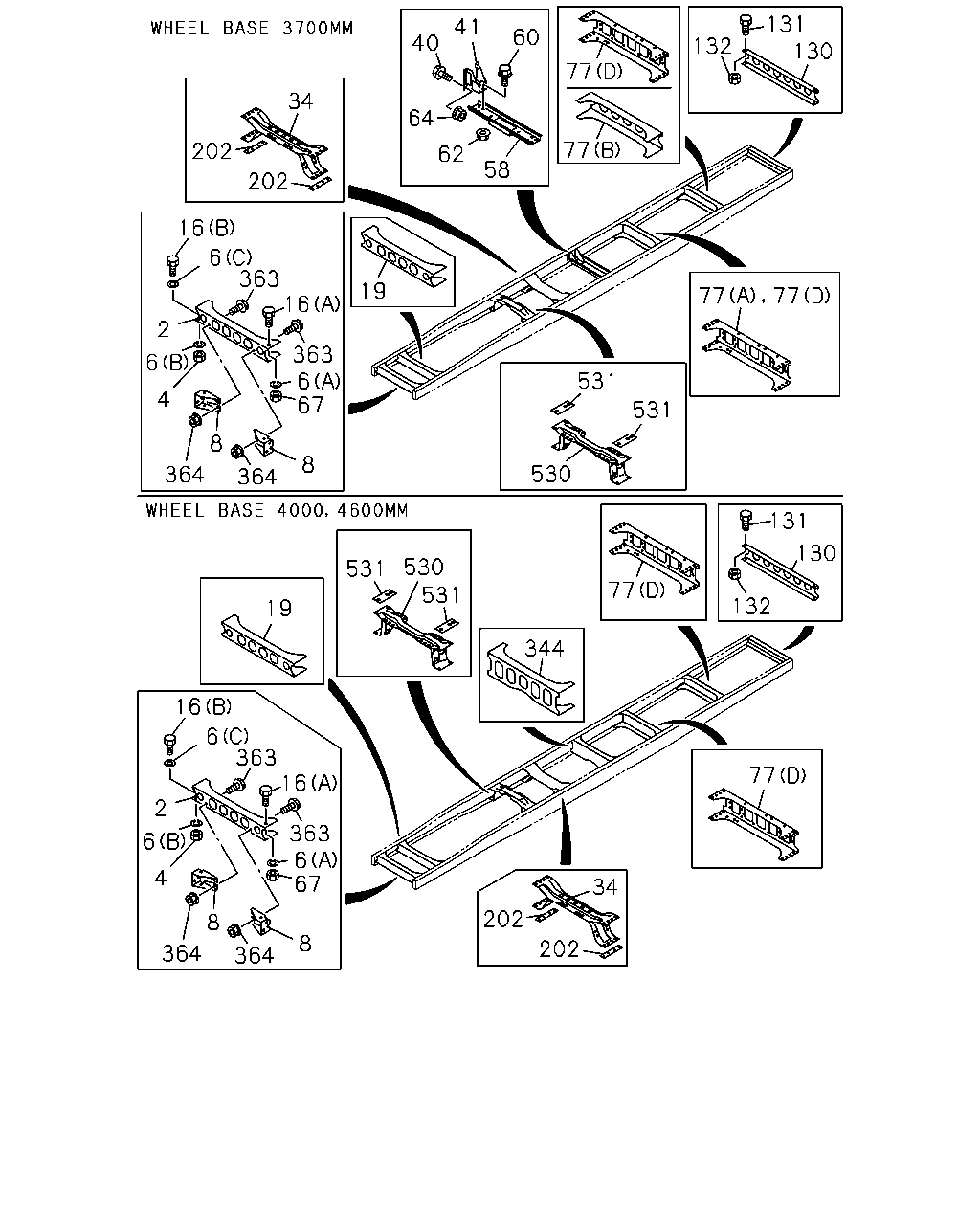

çizim 168860
131 132 130 41 60 40 77 34 64 77 202 62 58 202 16 6 363 16 19 77 77 2 363 6 67 6 531 4 531 8 8 530 364 364 131 130 530 531 531 77 132 19 344 16 6 363 16 77 2 363 6 67 6 4 34 202 8 8 202 364 364
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1010- ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1010- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1010- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1010- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1010- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-2 01 1 1010- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-3 01 1 1010- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1010- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1010- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1010- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1010- ● ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 1010- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1010- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1010- ●
58 MEMBER; CENTER BRG 8-97619-113-0 01 1 1010- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 1010- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 1010- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 1010- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1010- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (E) 		8-97609-481-4 01 1 1010-1109 ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> (E) 		8-97609-481-4 01 1 1110- ● ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (C) 		8-97609-483-0 01 1 1010-1109 ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> (C) 		8-97609-483-0 01 1 1110- ● ●
77 MEMBER; CROSS,TRUNNION RR
POWER TAKE OFF-FLYWHEEL<6SZ> (D) 		8-97610-935-1 02 1 1010- ●
77 MEMBER; CROSS,TRUNNION RR
(D) 		8-97610-935-1 02 1 1010- ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (D) 		8-97610-935-1 02 1 1010- ●
77 MEMBER; CROSS,TRUNNION RR
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) 		8-97609-475-2 01 1 1010- ●
77 MEMBER; CROSS,TRUNNION RR
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) 		8-97609-478-4 01 1 1010- ●
130 MEMBER; CROSS,END
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-470-0 01 1 1010- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1010- ● ● ●
130 MEMBER; CROSS,END
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-469-0 01 1 1010- ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1010- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1010- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1010- ● ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1010- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1010-1109 ●
344 MEMBER; CROSS,4TH
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> 		8-97609-473-2 01 1 1110- ● ●
344 MEMBER; CROSS,4TH
LEAF SUS(FCR***) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-473-2 01 1 1110- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1010- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1010- ● ● ● ●
530 MEMBER; CROSS,T/M
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97615-671-2 01 1 1010- ●
530 MEMBER; CROSS,T/M
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-809-3 01 1 1010- ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1010- ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1010- ● ● ● ●

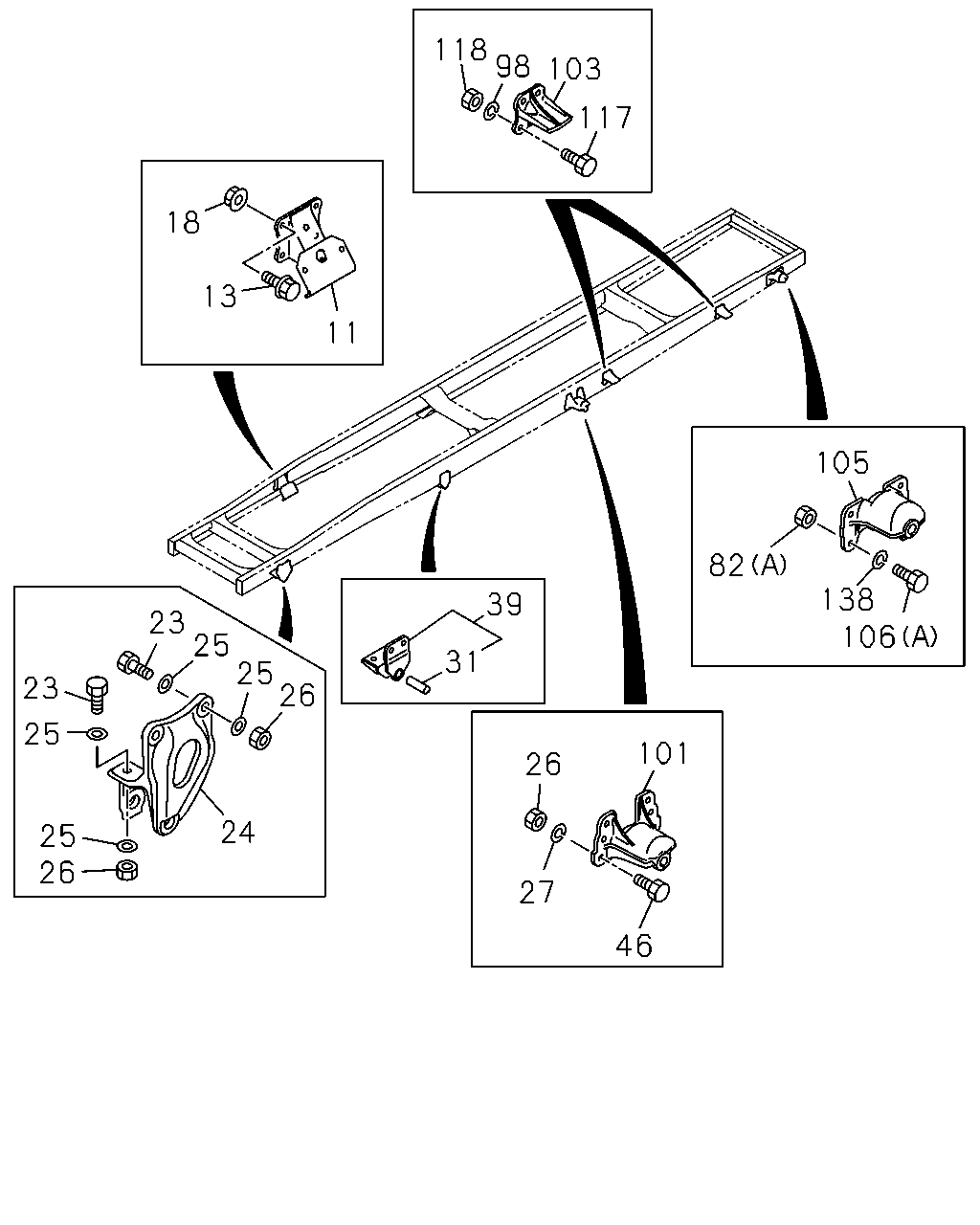

çizim 168910
118 98 103 117 18 13 11 105 82 138 106 39 23 25 25 26 31 23 25 101 26 24 25 26 27 46
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG 8-97604-129-0 02 1 1010- ● ● ● ●
13 BOLT; BRKT,ENG MTG
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> M12X35 FLANGE 		0-28661-235-0 16 1 1110- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1010-1109 ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1110- ● ● ●
13 BOLT; BRKT,ENG MTG
LEAF SUS(FCR***) M12X35 FLANGE 		0-28661-235-0 08 1 1110- ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1010- ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1010- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1010- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1010- ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1010- ● ● ● ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1010-1109 ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> M14 		0-91110-514-0 08 1 1110- ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1010- ● ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1010- ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1010- ● ● ●
27 WASHER; LK,BRKT,FRT SPR
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 12 1 1010- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1010- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1010- ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1010- ● ● ●
46 BOLT; BRKT FIX
LEAF SUS(FCR***) M14X50 		0-20951-450-0 12 1 1010- ●
82 NUT; BRKT
AIR SUS(FCD***) (B) M10 		0-91110-510-0 04 1 1010-1109 ●
82 NUT; BRKT
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> (B) M10 		0-91110-510-0 04 1 1110- ● ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 10 1 1010- ● ● ●
82 NUT; BRKT
LEAF SUS(FCR***) (A) M14 		0-91110-514-0 10 1 1010- ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1010- ● ● ●
98 WASHER; LK,STOPPER
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 16 1 1010- ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1010- ● ● ●
101 BRACKET; RR SPR,FRT
LEAF SUS(FCR***) 		1-53353-090-4 02 1 1010- ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1010- ● ● ●
103 STOPPER; SUB SPR
LEAF SUS(FCR***) 		1-53356-059-1 04 1 1010- ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1010- ● ● ●
105 BRACKET; RR SPR,RR
LEAF SUS(FCR***) 		1-53354-074-0 02 1 1010- ●
106 BOLT; BRKT
AIR SUS(FCD***) (B) M10X35 		0-10961-035-0 04 1 1010-1109 ●
106 BOLT; BRKT
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> (B) M10X35 		0-10961-035-0 04 1 1110- ● ●
106 BOLT; BRKT
AIR SUS(FCD***) (C) M14X35 FLANGE 		0-28661-435-0 12 1 1010-1109 ●
106 BOLT; BRKT
AIR SUS(FCD***) EXC. KD PREPARATORY PACK<6HF> (C) M14X35 FLANGE 		0-28661-435-0 12 1 1110- ● ●
106 BOLT; BRKT
(A) M14X50 		0-20951-450-0 10 1 1010- ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) (A) M14X50 		0-20951-450-0 10 1 1010- ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1010- ● ● ●
117 BOLT; STOPPER
LEAF SUS(FCR***) M14X50 		0-20951-450-0 16 1 1010- ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1010- ● ● ●
118 NUT; STOPPER
LEAF SUS(FCR***) M14 		0-91110-514-0 16 1 1010- ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1010- ● ● ●
138 WASHER; LK,BRKT
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 10 1 1010- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
