Isuzu WW
▶
TRUCKS
▶
FRR
▶
11303 - FRR AUST/NZ EURO5 SPACECAB
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

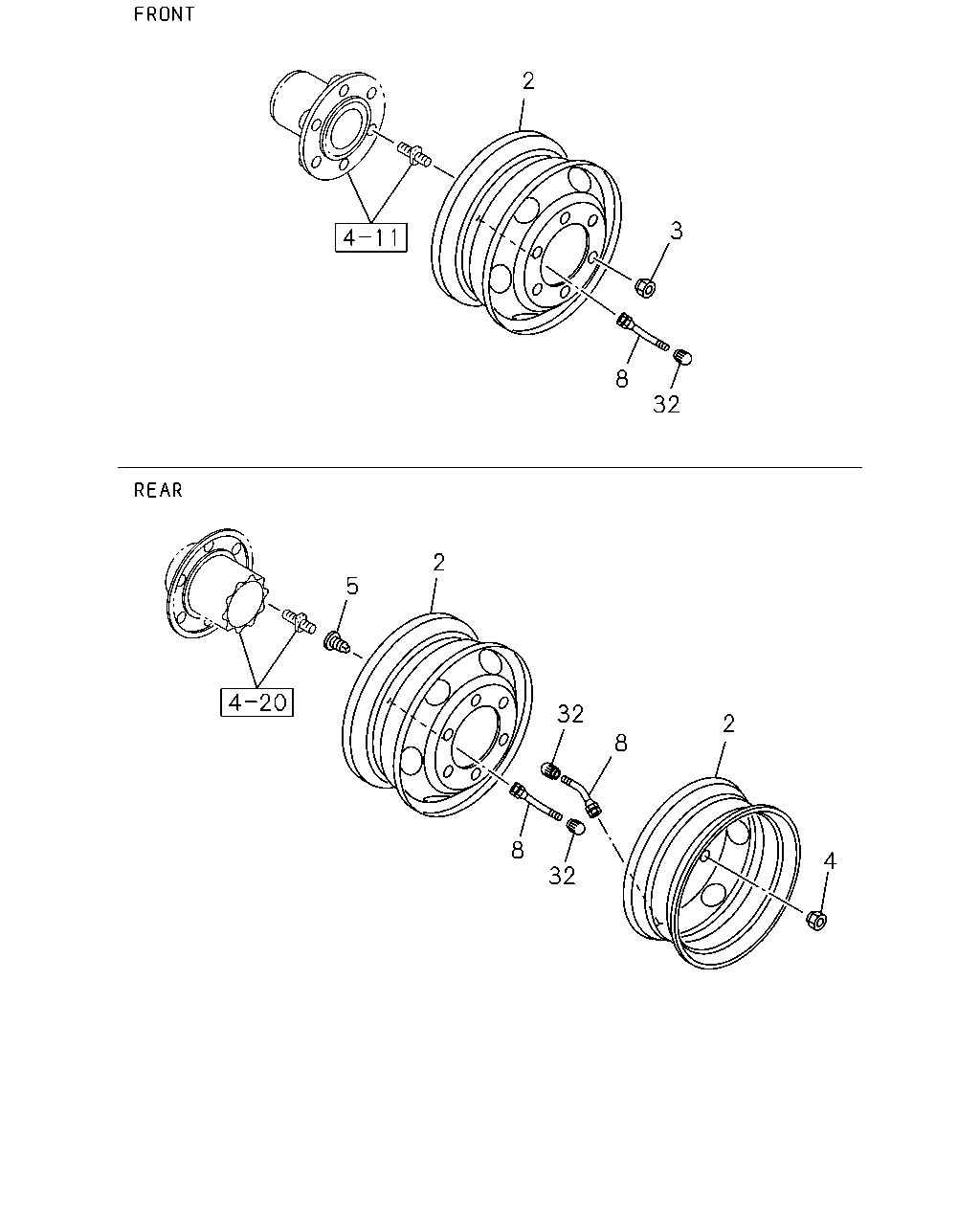

4-80 — ROAD WHEEL
(#59388) — 19 parça
Tümü
A - FCD5CS
B - FCR5CS
2
3
8
32
2
5
32
2
8
8
4
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 17.5X6.00 OFFSET=135 SILVER 6-HOLE
1-42350-770-0
01
1
1110-1201
●
●
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 17.5X6.00 OFFSET=135 SILVER 6-HOLE
1-42350-770-0
01
1
1202-1211
●
●
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> 17.5X6.00 OFFSET=135 SILVER 6-HOLE
1-42350-770-0
01
1
1212-
●
●
2
WHEEL; DISC
EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT,REAR 17.5X6.00 OFFSET=135 SILVER 6-HOLE
1-42350-770-0
06
1
1110-1211
●
●
2
WHEEL; DISC
WHEEL PAINTED LIGHT ARGENT<SKD> 17.5X6.00 OFFSET=135 SILVER 6-HOLE
1-42350-770-0
06
1
1212-
●
●
2
WHEEL; DISC
FRONT,REAR
1-42350-771-0
06
1
1010-1109
●
●
2
WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT,REAR
1-42350-771-0
06
1
1110-
●
●
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
1-42350-771-0
01
1
1010-1109
●
●
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE
1-42350-771-0
01
1
1110-
●
●
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD
1-42334-022-3
06
1
1010-
●
●
3
NUT; WHEEL,FRT AXLE
M24
1-42333-022-3
06
1
1010-
●
●
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
1010-
●
●
4
NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
1010-
●
●
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
1010-
●
●
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
1010-
●
●
8
VALVE; TIRE
FRONT,REAR
1-42370-019-3
06
1
1010-
●
●
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
1-42370-019-3
01
1
1010-
●
●
32
CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
1-42374-001-0
07
1
1010-
●
●
32
CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
1-42374-001-0
06
1
1010-
●
●
