4-60 — REAR SUSPENSION (#59382) — 62 parça

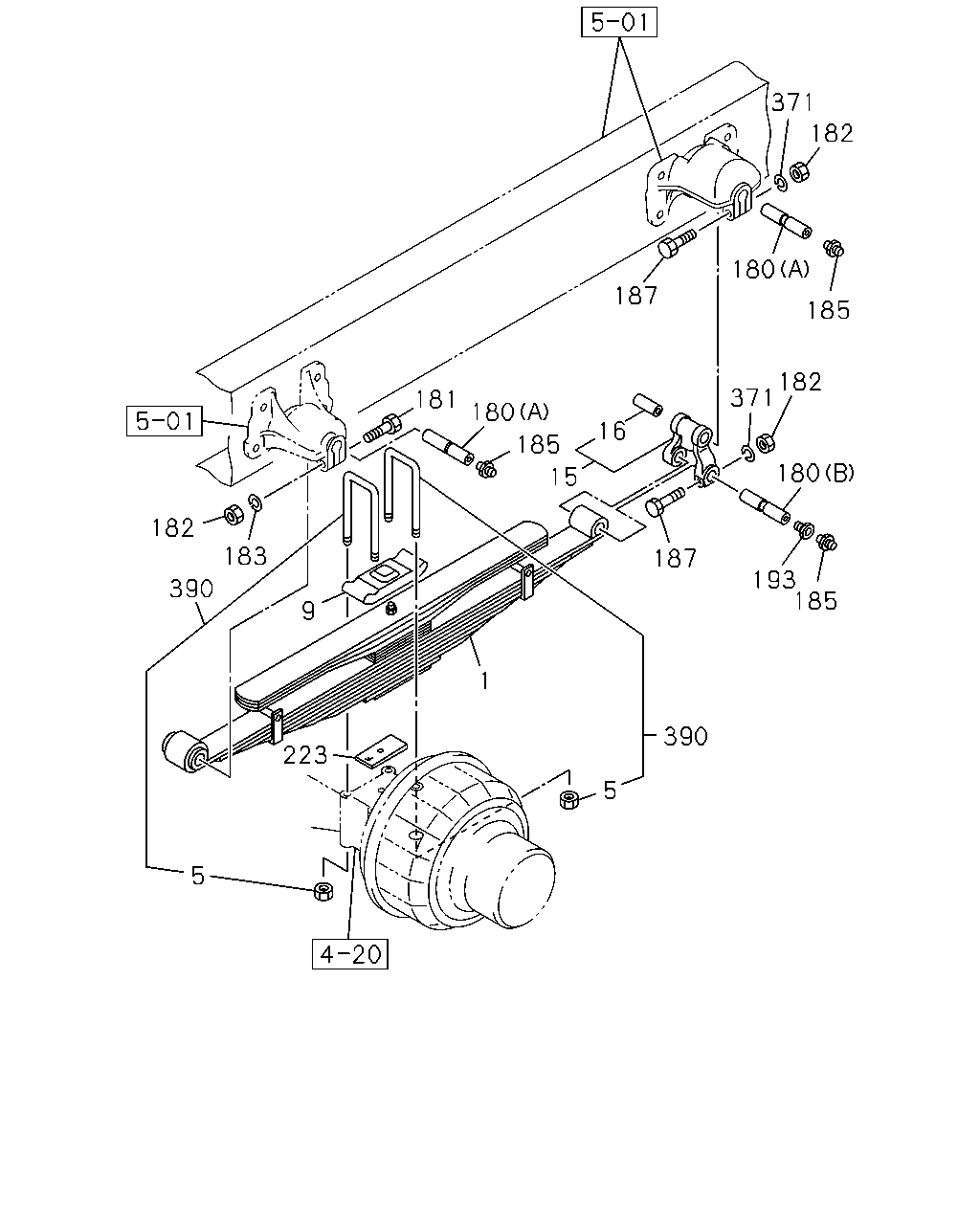

çizim 169107
371 182 180 187 185 182 371 181 180 16 185 180 15 182 183 187 193 185 390 9 1 390 223 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR(SAS) 15-LEAF 		8-98064-449-0 02 1 1010- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUS HELPER RR(SAU) 11-LEAF 		8-98079-006-0 02 1 1010- ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 1010- ●
9 PAD; U BOLT,RR SPR 1-51372-059-0 02 1 1010- ●
15 SHACKLE; RR SPR 1-51362-038-2 02 1 1010- ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		8-98082-176-0 02 1 1010- ●
180 PIN; RR SPR
(A) DO=25 L=115 PT1/8 		1-51361-016-0 04 1 1010- ●
180 PIN; RR SPR
(B) DO=25 L=115 M12 		1-51361-017-0 02 1 1010- ●
181 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 02 1 1010- ●
182 NUT; PIN,RR SPR
M12 		0-91110-512-0 06 1 1010- ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		0-91510-612-0 02 1 1010- ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 06 1 1010- ●
187 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 04 1 1010- ●
193 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 02 1 1010- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 3700MM(37W) 		8-98096-335-0 02 1 1010- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4000MM(40W) 		8-98043-891-0 02 1 1010- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) 		8-98063-307-0 02 1 1010- ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 04 1 1010- ●
390 U-BOLT SET; RR SPRING
L=390 		1-87870-399-0 04 1 1010- ●

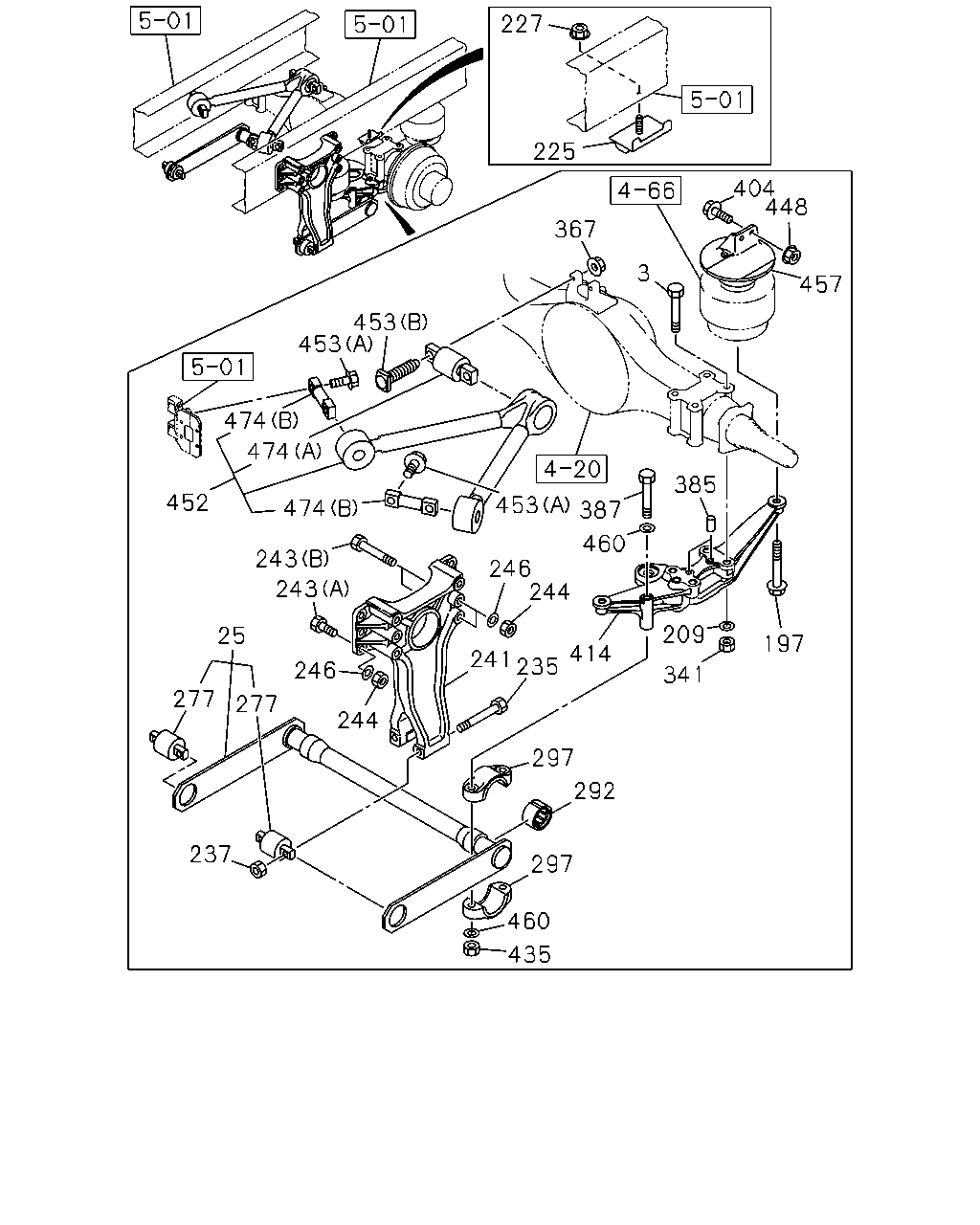

çizim 169115
227 225 404 448 367 3 457 453 453 474 474 385 452 453 387 474 460 243 246 244 243 209 25 197 414 241 235 246 341 277 277 244 297 292 237 297 460 435
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; BEAM
M18X220 		8-98015-275-0 08 1 1010- ●
25 BAR ASM; STAB,RR SUSP 8-97604-141-0 01 1 1010-1209 ●
25 BAR ASM; STAB,RR SUSP 8-98223-550-1 01 1 1210- ●
197 BOLT
M16X70 FLANGE 		8-98010-416-0 04 1 1010- ●
209 WASHER; PL
ID=19 		8-98010-401-0 08 1 1010- ●
225 RUBBER; CUSHION,RR SPR 1-53366-168-0 02 1 1010-1103 ●
225 RUBBER; CUSHION,RR SPR 8-98187-339-0 02 1 1104- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 02 1 1010- ●
235 BOLT; TORQUE ROD
M18X170 		8-98010-544-0 04 1 1010- ●
237 NUT; TORQUE ROD
M18 SELF LOCK 		8-98010-391-0 04 1 1010- ●
241 BRACKET; TORQUE ROD 1-53361-090-1 02 1 1010-1210 ●
241 BRACKET; TORQUE ROD 8-98215-267-1 02 1 1211- ●
243 BOLT; BRKT,TORQUE ROD
(A) M20X60 		8-98010-410-0 04 1 1010- ●
243 BOLT; BRKT,TORQUE ROD
(B) M20X150 		8-98010-546-0 08 1 1010- ●
244 NUT; BRKT
M20 		8-98010-408-0 12 1 1010- ●
246 WASHER; TORQUE ROD
ID=21 		8-98010-403-0 12 1 1010- ●
277 BUSHING; STAB,RR UPR 8-97604-143-1 02 1 1306- ●
277 BUSHING; STAB,RR UPR 8-97604-143-0 02 1 1010-1209 ●
292 BUSHING; RUBBER,STAB 1-51779-111-2 02 1 1010-1209 ●
292 BUSHING; RUBBER,STAB 8-98156-746-1 02 1 1210- ●
297 CAP; STAB BAR 1-52175-015-1 04 1 1010-1209 ●
297 CAP; STAB BAR 8-98174-447-0 04 1 1210- ●
341 NUT; BEAM
M18 		8-98010-407-0 08 1 1010- ●
367 NUT
M24 FLANGE 		8-98010-393-0 02 1 1010- ●
385 PIN; KNOCK,SUSP BEAM 1-52179-036-2 04 1 1010- ●
387 BOLT; CAP FIX,STAB BAR
M18X200 		8-98074-641-0 04 1 1010- ●
404 BOLT; PLATE
M14X110 		8-98010-543-0 08 1 1010- ●
414 BEAM; AIR SPR 8-98010-002-0 01 1 1010- ●
414 BEAM; AIR SPR 8-98010-000-0 01 1 1010- ●
435 NUT; CAP
M18 		8-98010-407-0 04 1 1010- ●
448 NUT; PLATE
M14 FLANGE 		8-98010-395-0 08 1 1010- ●
452 ROD ASM; V 1-51510-770-1 01 1 1010-1309 ●
452 ROD ASM; V 8-98239-062-0 01 1 1310- ●
453 PIN; AXLE
(A) M18X70 FLANGE 		8-98010-540-0 04 1 1010-1102 ●
453 PIN; AXLE
(A) M18X70 FLANGE 		8-98183-506-0 04 1 1103- ●
453 PIN; AXLE
(B) M24X78 SQUARE HEAD 		8-98010-551-0 02 1 1010- ●
457 PLATE; AIR SPRING,UPR 8-97375-200-0 02 1 1010- ●
457 PLATE; AIR SPRING,UPR 8-97375-201-0 02 1 1010- ●
460 WASHER; CAP
ID=19 		8-98010-401-0 08 1 1010- ●
474 REPAIR KIT; V-ROD
(A) 		1-51519-159-1 01 1 1010-1309 ●
474 REPAIR KIT; V-ROD
(A) 		8-98240-108-0 01 1 1310- ●
474 REPAIR KIT; V-ROD
(B) 		1-51519-160-2 02 1 1010-1309 ●
474 REPAIR KIT; V-ROD
(B) 		8-98240-109-0 02 1 1310- ●
