1-41 — FUEL PIPING; CHASSIS (#5937) — 112 parça

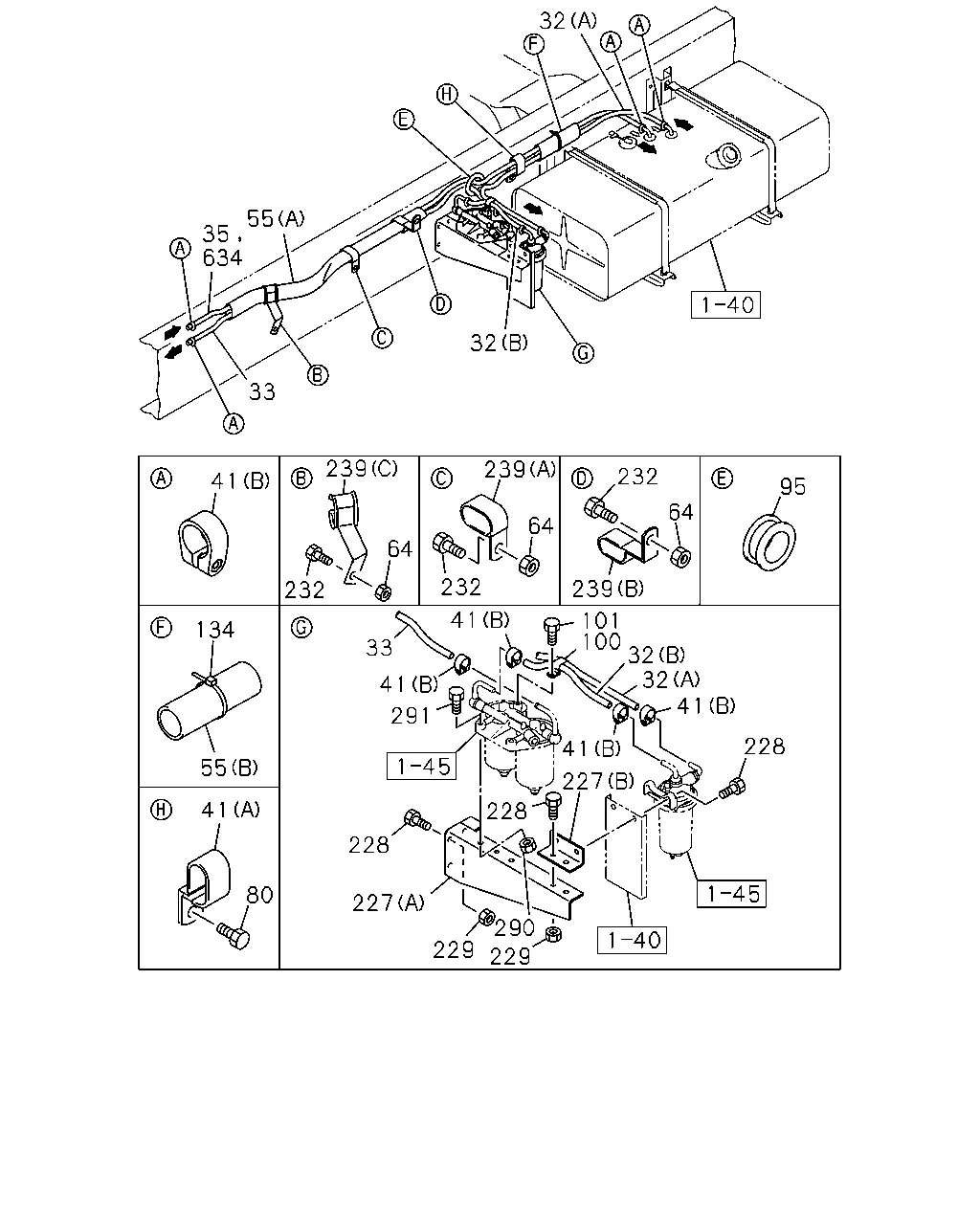

çizim 9085
32 32 55 35 634 33 41 239 239 232 95 64 232 64 232 134 33 55 41 80 227 229 228 229 290 228 291 41 101 100 32 32 41 228 227 239 64 41 41
BalonParca AdiParca NoAdetTipApplied Date A B C D
32 PIPE; DELIVERY,FUEL TANK
(A) L=1150 SERVICED BY L=10000 		9-09914-701-0 01 1 9606-9810 ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 9606-9810 ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 02 1 9811-9902 ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9903-0203 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9903-0203 ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0204- ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9903-0203 ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0204- ●
33 PIPE; VINYL,DELIVERY,PRE FILTER
L=1440 SERVICED BY L=10000 		9-09914-701-0 01 1 9606-9810 ● ●
35 PIPE; FUEL TANK,RETURN
L=2000 SERVICED BY L=10000 		1-09366-161-0 01 1 9606-9810 ● ●
35 PIPE; FUEL TANK,RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9811-9902 ● ●
35 PIPE; FUEL TANK,RETURN
EXC. EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9903-0203 ● ●
35 PIPE; FUEL TANK,RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 9903-0203 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=15 		9-09715-098-0 08 1 9606-9810 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 9811-0203 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 0204- ●
41 CLIP; FUEL PIPE,FUEL TANK
FUEL TANK 100L FRAME SIDE<N02> (A) ID=16X2 L=20 		9-09535-536-0 01 1 9606-9810 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) L=250 		5-09707-030-1 01 1 9811-0203 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) L=250 		5-09707-030-1 01 1 0204- ●
55 COVER; PIPE,FUEL TANK
(A) L=900 		1-09360-622-1 01 1 9606-9810 ● ●
55 COVER; PIPE,FUEL TANK
(B) L=500 SERVICED BY L=1300 		1-09360-677-1 01 1 9811-0203 ● ●
55 COVER; PIPE,FUEL TANK
(B) L=500 SERVICED BY L=1300 		1-09360-677-1 01 1 0204- ●
55 COVER; PIPE,FUEL TANK
(B) L=1300 		1-09360-677-1 01 1 9606-9810 ● ●
55 COVER; PIPE,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> (B) L=1300 		1-09360-677-1 01 1 9606-9810 ● ●
64 NUT; CLIP
M8 		9-09110-408-0 03 1 9606-9810 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9811-0203 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0204-0602 ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
80 BOLT; CLIP,FUEL TANK
FUEL TANK 100L FRAME SIDE<N02> M8X25 FLANGE 		0-28680-825-0 01 1 9606-9810 ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9606-9810 ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9811-0203 ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0204- ●
100 CLIP; FUEL PIPE
ID=16X2 L=20 		9-09535-536-0 01 1 9606-9810 ● ●
101 BOLT; CLIP,FUEL PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9606-9810 ● ●
134 CLIP; BAND,FUEL PIPE
L=250 		5-09707-030-0 01 1 9606-9810 ● ●
134 CLIP; BAND,FUEL PIPE
FUEL TANK 200L FRAME SIDE<N20> L=250 		5-09707-030-0 01 1 9606-9810 ● ●
227 BRACKET; FUEL SEDIMENTER
(B) 		1-19755-108-1 01 1 9606-9810 ● ●
227 BRACKET; FUEL SEDIMENTER
(A) 		1-22518-124-1 01 1 9606-9810 ● ●
228 BOLT; BRKT,SEDIMENTER
M10X30 FLANGE 		0-28681-030-0 05 1 9606-9810 ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9811-0203 ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 0204-0512 ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0601- ●
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28681-035-0 02 1 9606-9810 ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 07 1 9606-9810 ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9811-0203 ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
232 BOLT; CLIP,PIPE
M8X25 FLANGE 		0-28680-825-0 03 1 9606-9810 ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 9811-0203 ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0204-0512 ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
239 CLIP; FUEL PIPE
(A) L=25 		1-09700-927-0 01 1 9606-9810 ● ●
239 CLIP; FUEL PIPE
(D) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9811-0203 ● ●
239 CLIP; FUEL PIPE
(D) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 0204- ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9606-9810 ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9811-0203 ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0204- ●
239 CLIP; FUEL PIPE
(C) 		1-15419-291-0 01 1 9606-9810 ● ●
290 NUT; FILTER TO BRKT
M10 		9-09110-510-0 02 1 9606-9810 ● ●
291 BOLT; FILER TO BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9606-9810 ● ●
634 HOSE; RUBBER RETURN
L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 0204- ●

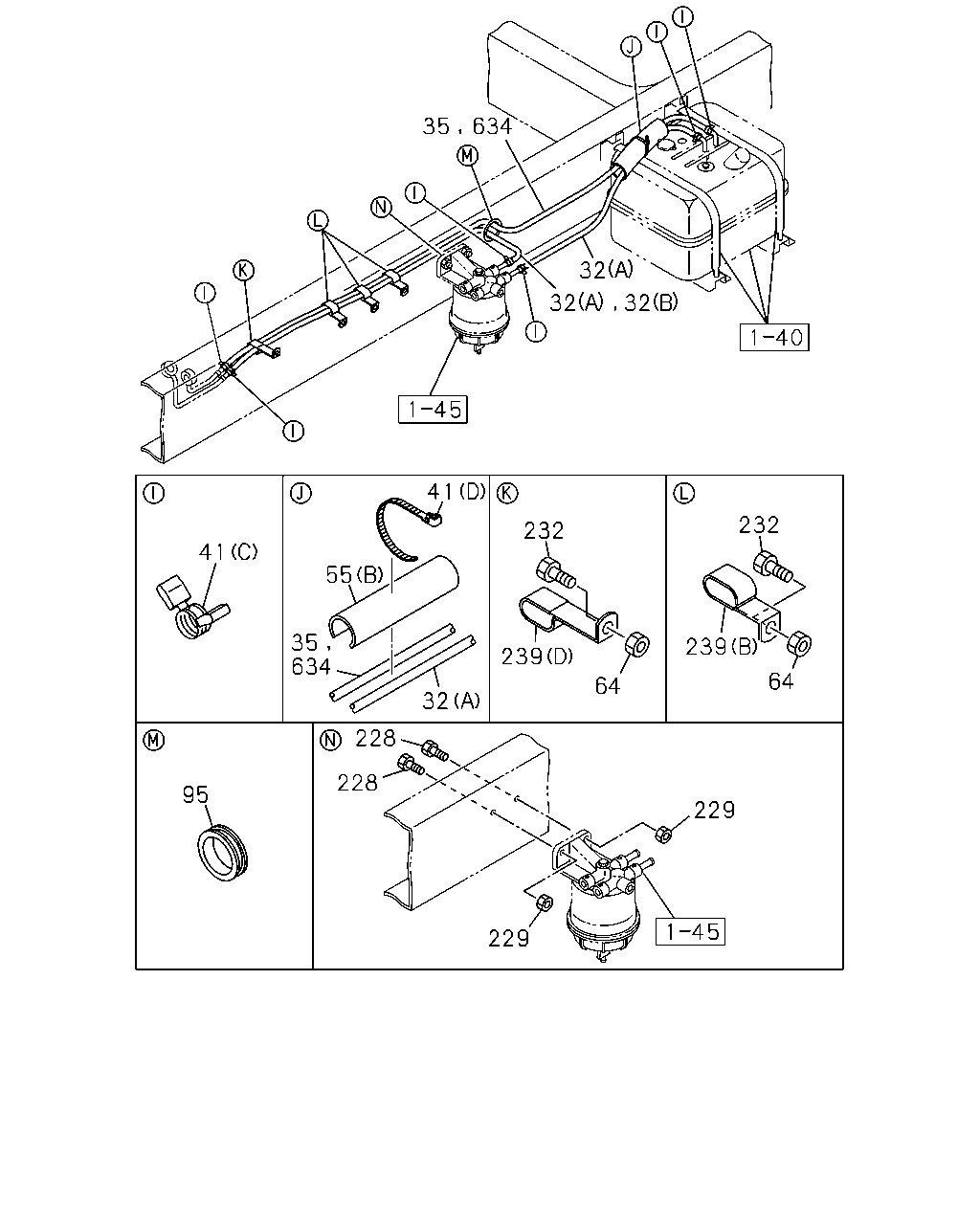

çizim 41172
35 634 32 32 32 232 232 41 41 55 35 634 32 64 239 64 229 229 228 95 228 239
BalonParca AdiParca NoAdetTipApplied Date A B C D
32 PIPE; DELIVERY,FUEL TANK
(A) L=1150 SERVICED BY L=10000 		9-09914-701-0 01 1 9606-9810 ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 9606-9810 ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 02 1 9811-9902 ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9903-0203 ● ●
32 PIPE; DELIVERY,FUEL TANK
EXC. EURO2 SPECIFICATION<THN> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 9903-0203 ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0204- ●
32 PIPE; DELIVERY,FUEL TANK
EURO2 SPECIFICATION<THN> (B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 9903-0203 ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=980 SERVICED BY L=3000 		0-01260-300-0 01 1 0204- ●
35 PIPE; FUEL TANK,RETURN
L=2000 SERVICED BY L=10000 		1-09366-161-0 01 1 9606-9810 ● ●
35 PIPE; FUEL TANK,RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9811-9902 ● ●
35 PIPE; FUEL TANK,RETURN
EXC. EURO2 SPECIFICATION<THN> L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 9903-0203 ● ●
35 PIPE; FUEL TANK,RETURN
EURO2 SPECIFICATION<THN> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 9903-0203 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=15 		9-09715-098-0 08 1 9606-9810 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 9811-0203 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 0204- ●
41 CLIP; FUEL PIPE,FUEL TANK
FUEL TANK 100L FRAME SIDE<N02> (A) ID=16X2 L=20 		9-09535-536-0 01 1 9606-9810 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) L=250 		5-09707-030-1 01 1 9811-0203 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) L=250 		5-09707-030-1 01 1 0204- ●
55 COVER; PIPE,FUEL TANK
(A) L=900 		1-09360-622-1 01 1 9606-9810 ● ●
55 COVER; PIPE,FUEL TANK
(B) L=500 SERVICED BY L=1300 		1-09360-677-1 01 1 9811-0203 ● ●
55 COVER; PIPE,FUEL TANK
(B) L=500 SERVICED BY L=1300 		1-09360-677-1 01 1 0204- ●
55 COVER; PIPE,FUEL TANK
(B) L=1300 		1-09360-677-1 01 1 9606-9810 ● ●
55 COVER; PIPE,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> (B) L=1300 		1-09360-677-1 01 1 9606-9810 ● ●
64 NUT; CLIP
M8 		9-09110-408-0 03 1 9606-9810 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9811-0203 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0204-0602 ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9606-9810 ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9811-0203 ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0204- ●
228 BOLT; BRKT,SEDIMENTER
M10X30 FLANGE 		0-28681-030-0 05 1 9606-9810 ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 9811-0203 ● ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28681-040-0 02 1 0204-0512 ●
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28651-040-0 02 1 0601- ●
228 BOLT; BRKT,SEDIMENTER
M10X35 FLANGE 		0-28681-035-0 02 1 9606-9810 ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 07 1 9606-9810 ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 9811-0203 ● ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ●
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
232 BOLT; CLIP,PIPE
M8X25 FLANGE 		0-28680-825-0 03 1 9606-9810 ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 9811-0203 ● ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28680-830-0 02 1 0204-0512 ●
232 BOLT; CLIP,PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
239 CLIP; FUEL PIPE
(A) L=25 		1-09700-927-0 01 1 9606-9810 ● ●
239 CLIP; FUEL PIPE
(D) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9811-0203 ● ●
239 CLIP; FUEL PIPE
(D) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 0204- ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9606-9810 ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 9811-0203 ● ●
239 CLIP; FUEL PIPE
(B) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0204- ●
239 CLIP; FUEL PIPE
(C) 		1-15419-291-0 01 1 9606-9810 ● ●
634 HOSE; RUBBER RETURN
L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 0204- ●
