3-70 — BRAKE PIPING; AIR,AIR MASTER (#59364) — 113 parça

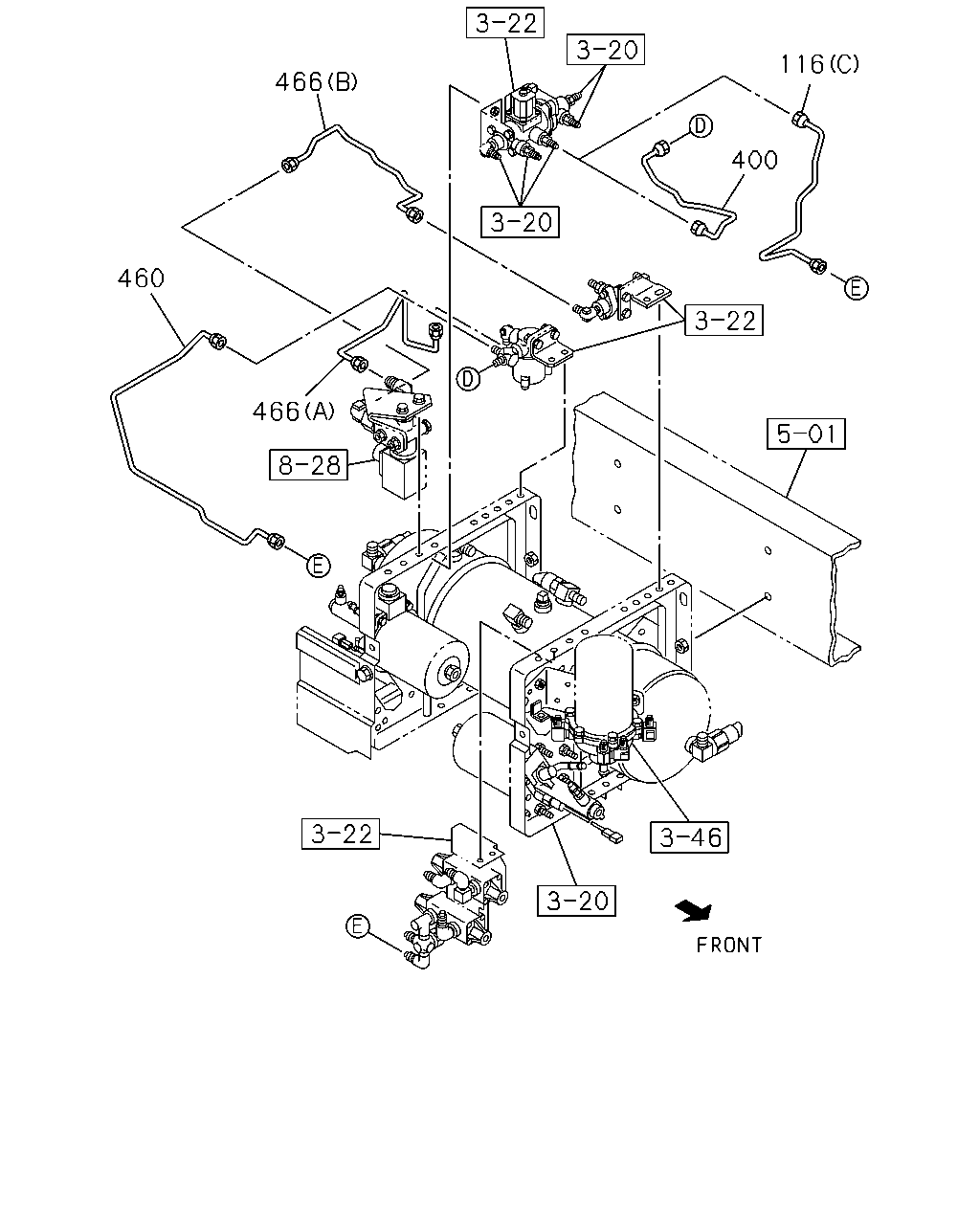

çizim 169106
116 466 400 460 466
BalonParca AdiParca NoAdetTipApplied Date A B
116 PIPE; AIR,PROTECTION VLV
(D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 1010- ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 1010- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1010- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 1010- ● ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 1010- ● ●
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) 		8-98066-846-0 01 1 1010- ● ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800 		1-47428-872-0 01 1 1010- ● ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 1010- ● ●

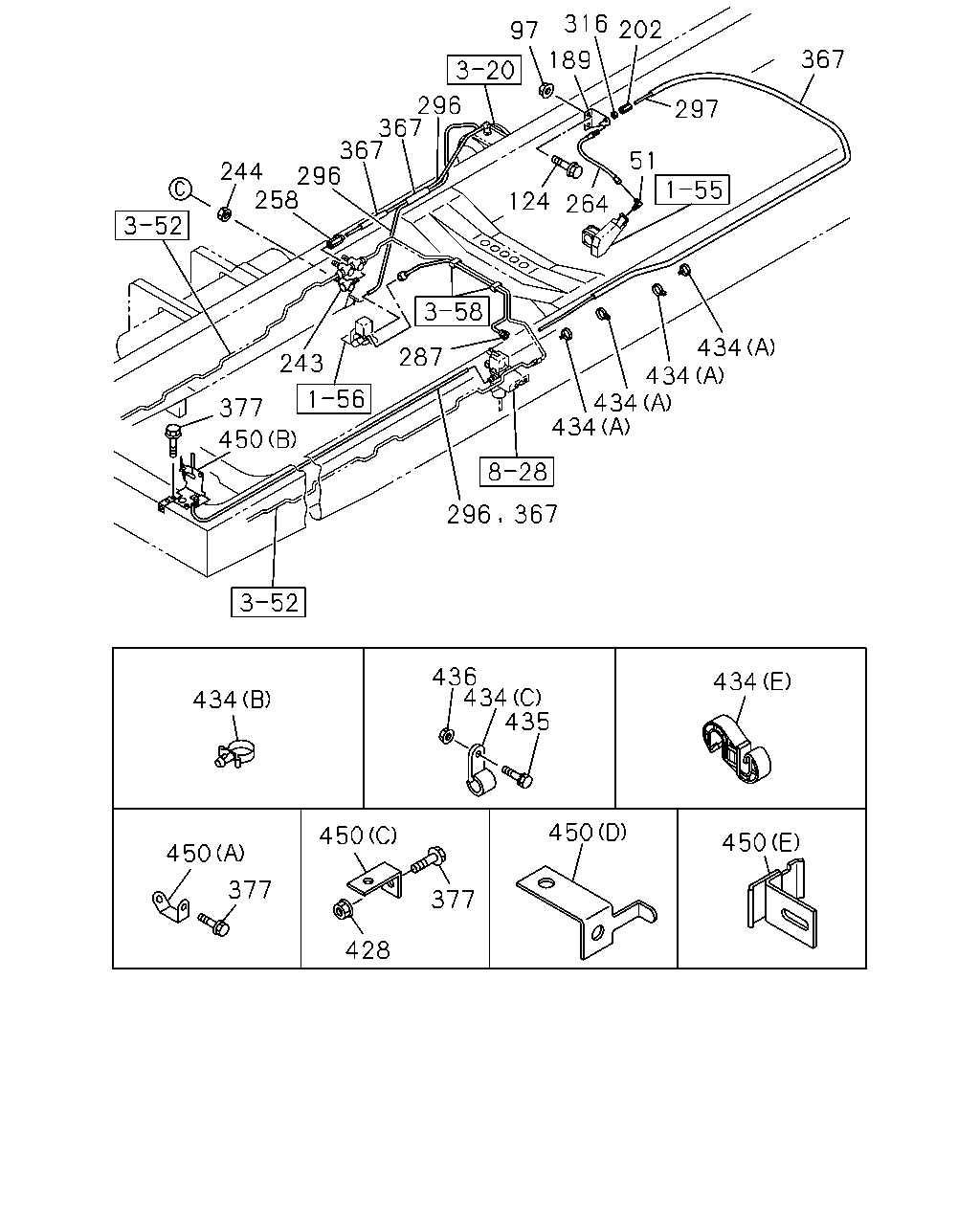

çizim 169113
316 202 97 367 189 296 367 367 244 296 258 297 51 124 264 434 434 434 434 287 243 377 450 296 367 436 434 435 434 434 450 450 450 450 377 377 428
BalonParca AdiParca NoAdetTipApplied Date A B
51 UNION
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1010- ● ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
124 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 1010- ● ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 1010- ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1010- ● ●
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1010- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1010- ● ●
258 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1010- ● ●
264 HOSE; FLEX
L=220 		1-09363-627-0 01 1 1010- ● ●
287 PIPE; AIR,MAG VLV
L=816 SERVICED BY L=900 		1-47428-813-0 01 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1010- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1010- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1010- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1010- ● ●
316 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 1010- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 1010- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1010- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87411-020-0 AR 1 1010- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1010- ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 03 1 1010- ●
377 BOLT; BRKT FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10X30 FLANGE 		0-28651-030-0 03 1 1010- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 1010- ●
377 BOLT; BRKT FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M8X25 FLANGE 		0-28650-825-0 01 1 1010- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1010- ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 1010- ● ●
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) M10X30 FLANGE 		0-28651-030-0 01 1 1010- ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1010- ●
428 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10 FLANGE 		0-91180-210-0 03 1 1010- ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1010- ●
428 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 01 1 1010- ●
428 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 01 1 1010- ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 02 1 1110- ●
434 CLIP
(A) L=350 		1-09707-183-0 05 1 1010-1109 ●
434 CLIP
(A) L=350 		1-09707-183-0 05 1 1010-1109 ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 1010-1109 ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 1010-1109 ●
434 CLIP
(A) L=350 		1-09707-183-0 05 1 1110- ●
434 CLIP
WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 1110- ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 1110- ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 1110- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1010- ● ●
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 1010- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1010-1109 ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 01 1 1010-1109 ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1110- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 08 1 1010- ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 08 1 1010- ●
434 CLIP
(E) ID=10 & 15 		1-09709-279-1 01 1 1010- ● ●
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1010- ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (C) ID=22 L=32 		1-09700-126-1 01 1 1010- ●
434 CLIP
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 07 1 1010-1109 ●
434 CLIP
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 07 1 1110- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
435 BOLT; CLIP
WHEEL BASE 3700MM(37W) M8X25 FLANGE 		0-28650-825-0 01 1 1010- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
436 NUT; CLIP
WHEEL BASE 3700MM(37W) M8 FLANGE 		0-91180-108-0 01 1 1010- ●
450 BRACKET; CLIP
(E) 		1-47479-693-0 01 1 1010- ●
450 BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (E) 		1-47479-693-0 01 1 1010- ●
450 BRACKET; CLIP
(D) 		8-98100-216-1 03 1 1010- ●
450 BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (D) 		8-98100-216-1 03 1 1010- ●
450 BRACKET; CLIP
(C) 		1-47477-694-0 01 1 1010- ● ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 1010- ● ●
450 BRACKET; CLIP
(A) 		8-98117-686-0 02 1 1010- ● ●
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) (D) 		8-98100-216-1 01 1 1010- ●

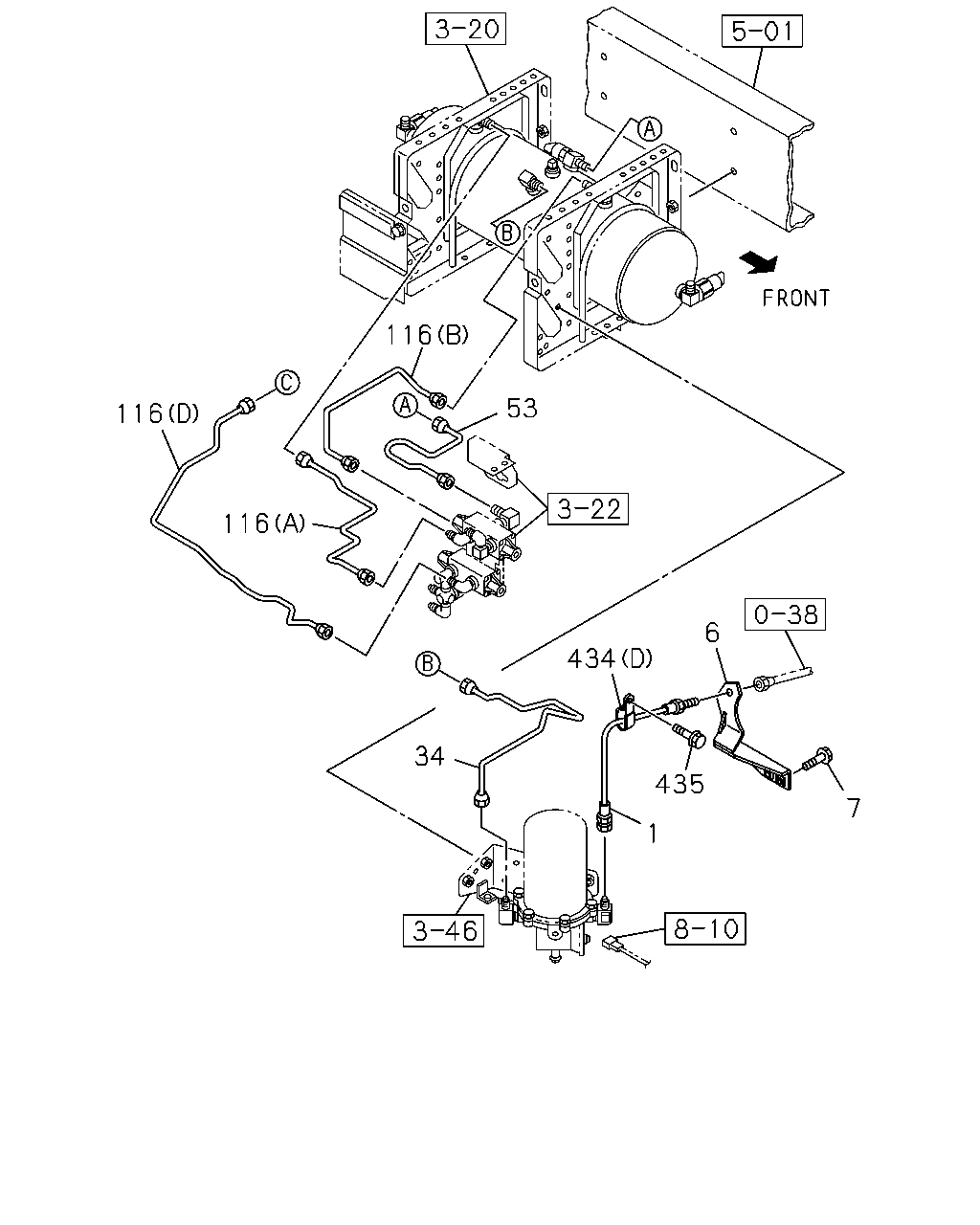

çizim 169114
116 116 116 53 34 434 435 7 6 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-98066-976-1 01 1 1010- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-98066-976-1 01 1 1010- ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-98080-163-1 01 1 1010- ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98066-733-1 01 1 1010-1205 ● ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98214-081-1 01 1 1206- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1010- ● ●
34 PIPE; AIR
L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1010- ● ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98061-086-0 01 1 1010- ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 1010- ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 1010- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1010- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 1010- ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 02 1 1110- ●
434 CLIP
(A) L=350 		1-09707-183-0 05 1 1010-1109 ●
434 CLIP
(A) L=350 		1-09707-183-0 05 1 1010-1109 ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 1010-1109 ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 1010-1109 ●
434 CLIP
(A) L=350 		1-09707-183-0 05 1 1110- ●
434 CLIP
WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 1110- ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 1110- ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 1110- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1010- ● ●
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 1010- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1010-1109 ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 01 1 1010-1109 ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1110- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 08 1 1010- ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 08 1 1010- ●
434 CLIP
(E) ID=10 & 15 		1-09709-279-1 01 1 1010- ● ●
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 1010- ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (C) ID=22 L=32 		1-09700-126-1 01 1 1010- ●
434 CLIP
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 07 1 1010-1109 ●
434 CLIP
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 07 1 1110- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
435 BOLT; CLIP
WHEEL BASE 3700MM(37W) M8X25 FLANGE 		0-28650-825-0 01 1 1010- ●
