Isuzu WW
▶
TRUCKS
▶
FRR
▶
11303 - FRR AUST/NZ EURO5 SPACECAB
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#59363) — 25 parça
Tümü
A - FCD5CS
B - FCR5CS
◀

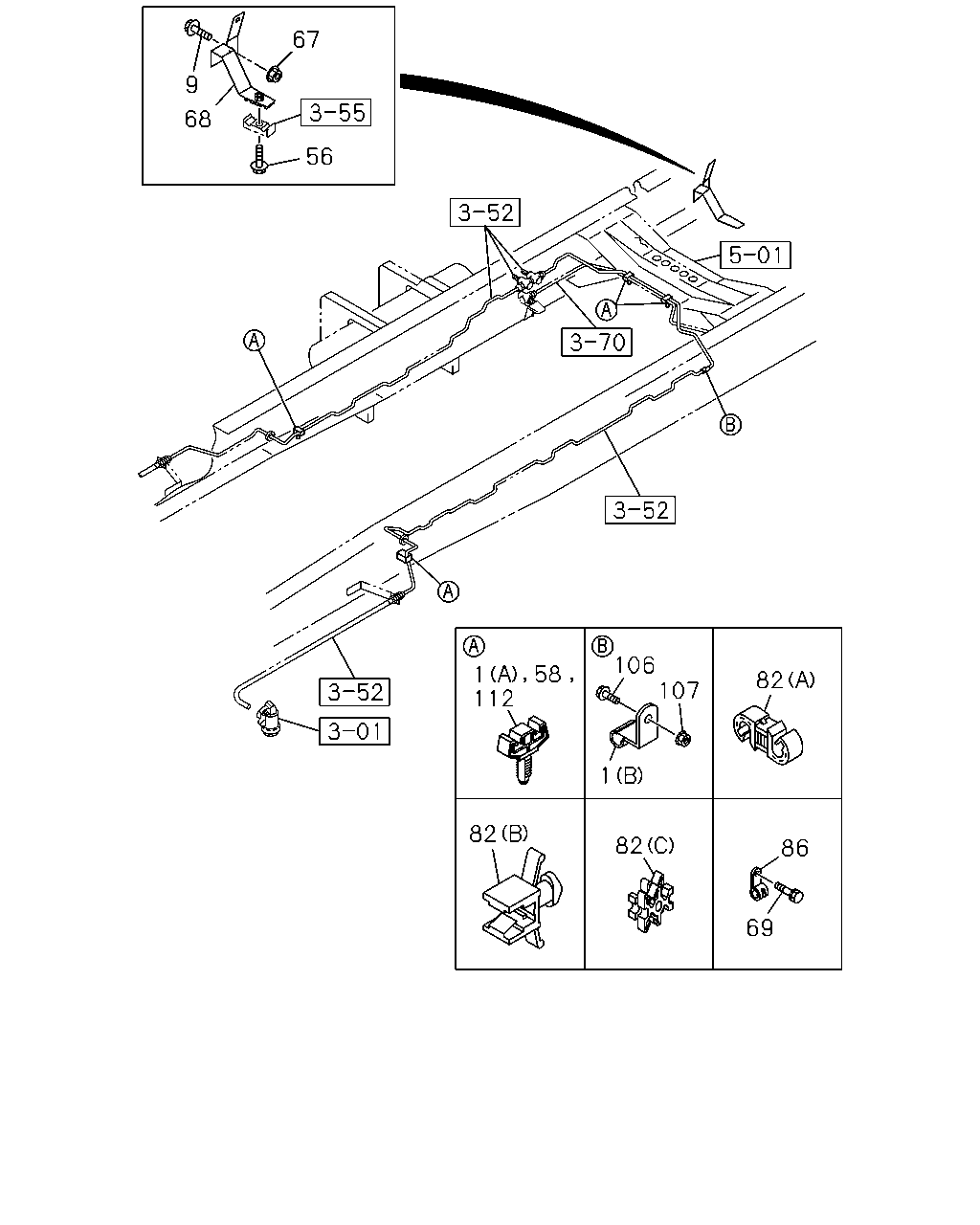

[358A] FRAME SIDE (22 parça)

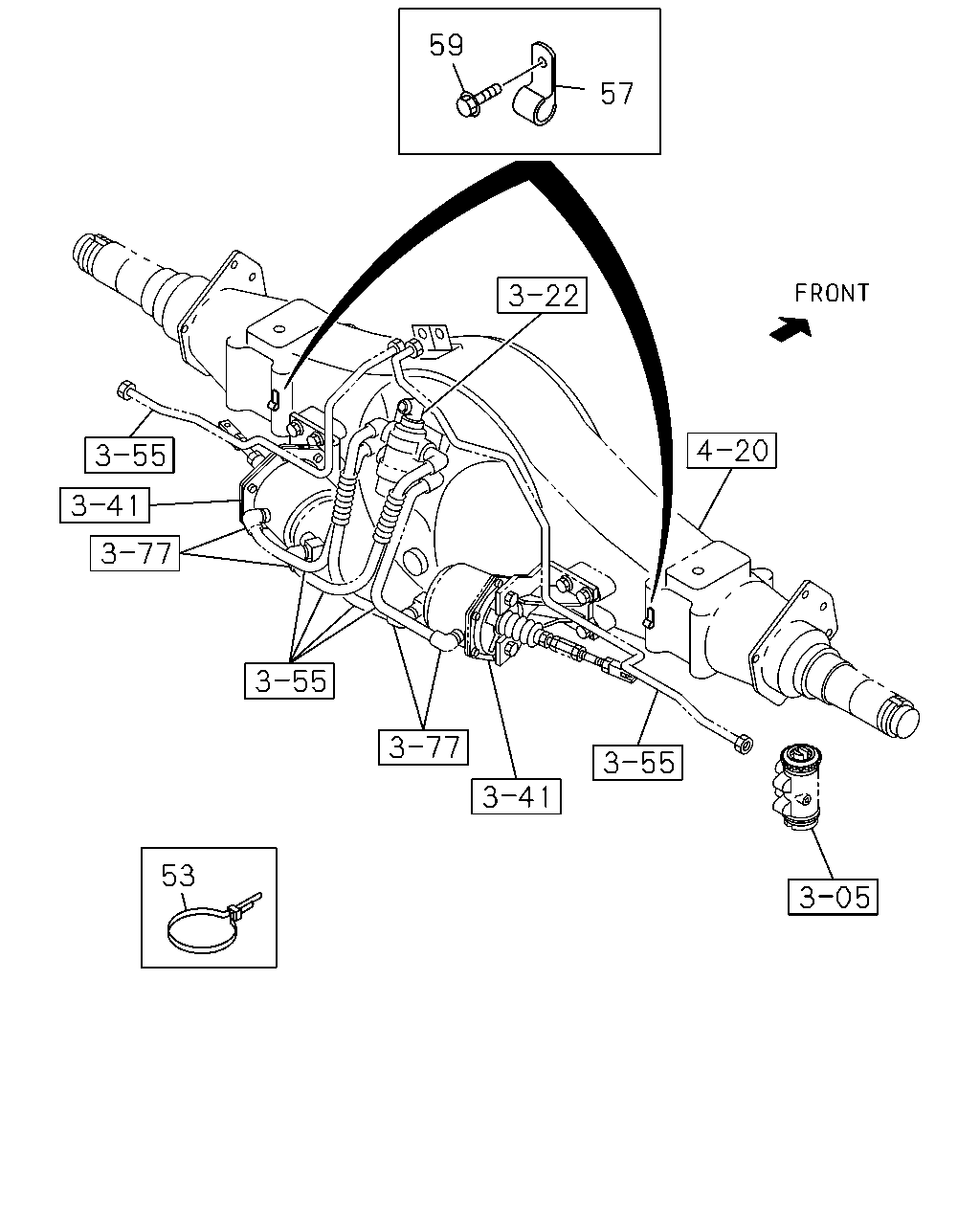

[358A] REAR AXLE SIDE (3 parça)
▶
67
9
68
56
106
107
82
1
82
82
86
69
1
58
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
03
1
1010-
●
●
1
CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20
8-98040-714-0
04
1
1010-
●
●
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
04
1
1010-
●
●
9
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
1010-
●
56
BOLT; CLIP
M8X40 FLANGE
0-28050-840-0
01
1
1010-
●
58
CLIP; OIL PIPE
8-98012-254-1
03
1
1010-
●
58
CLIP; OIL PIPE
8-98012-254-1
05
1
1010-
●
67
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1010-
●
68
BRACKET; CLIP
8-98012-145-2
01
1
1010-
●
69
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
02
1
1010-
●
●
82
CLIP; OIL PIPE
(C) ID=4.7X4
1-09701-304-0
03
1
1010-
●
●
82
CLIP; OIL PIPE
(A) ID=4.76 & 6.35
1-09709-304-0
03
1
1010-
●
●
82
CLIP; OIL PIPE
(A) ID=4.76 & 10.0
1-09709-305-0
01
1
1010-
●
●
82
CLIP; OIL PIPE
(B) ID=4.8X2
8-94316-410-0
01
1
1010-
●
●
86
CLIP; OIL PIPE
8-98085-372-0
02
1
1010-
●
●
106
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28650-825-0
04
1
1010-
●
●
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
04
1
1010-
●
●
112
CLIP; OIL PIPE
WHEEL BASE 5300MM(53W)
8-98012-254-1
08
1
1010-
●
●
112
CLIP; OIL PIPE
WHEEL BASE 3700MM(37W)
8-98012-254-1
03
1
1010-
●
112
CLIP; OIL PIPE
WHEEL BASE 4000MM(40W)
8-98012-254-1
04
1
1010-
●
112
CLIP; OIL PIPE
WHEEL BASE 4600MM(46W)
8-98012-254-1
06
1
1010-1109
●
112
CLIP; OIL PIPE
WHEEL BASE 4600MM(46W)
8-98012-254-1
06
1
1110-
●
●
59
57
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
CLIP; UNION
L=250
1-09707-126-0
05
1
1010-
●
●
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
02
1
1010-
●
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
02
1
1010-
●
●
