1-40 — FUEL TANK (#5936) — 157 parça

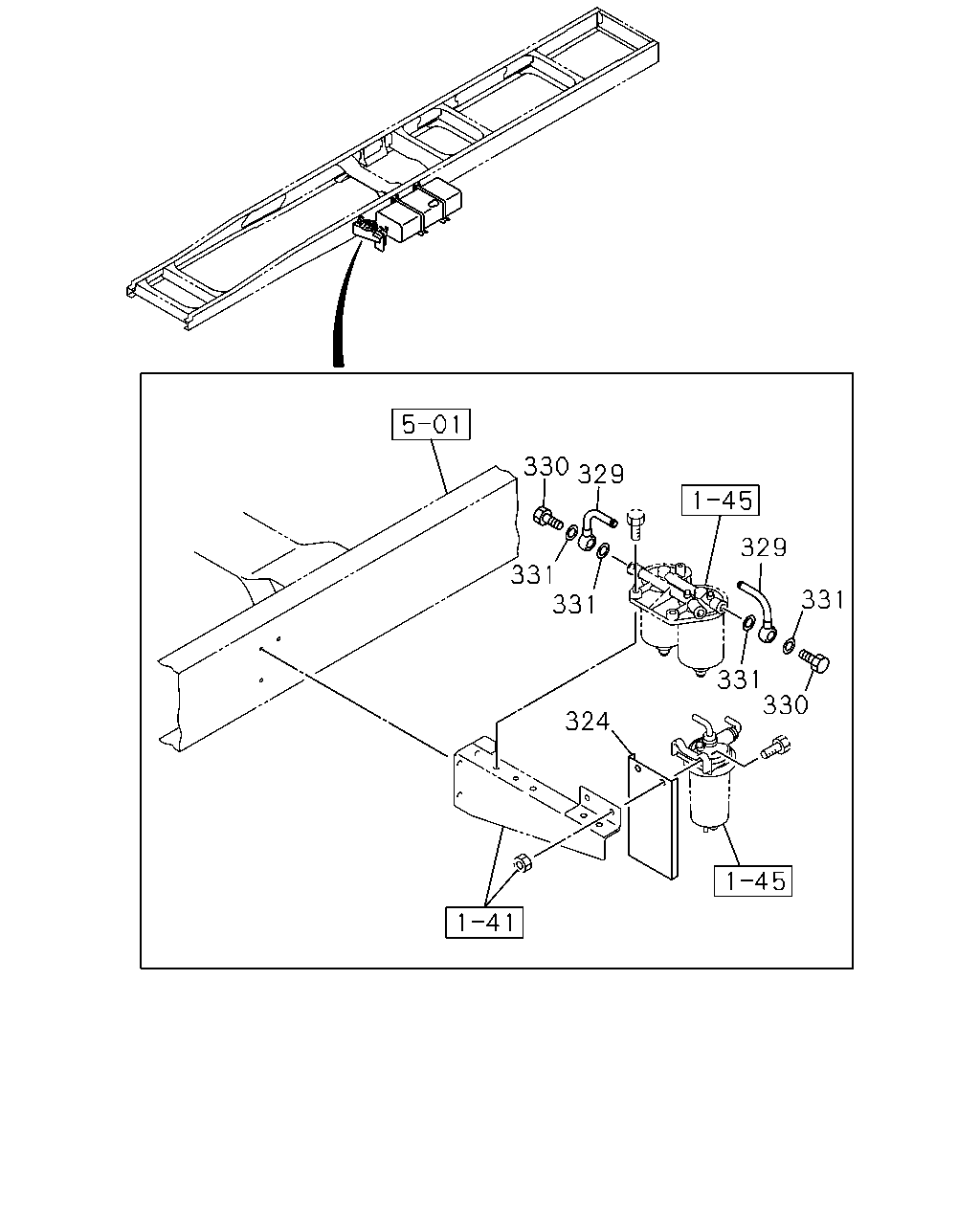

330 329 329 331 331 331 331 330 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
324	PROTECTOR; FUEL SEDIMENTER	1-19759-012-0	01	1	9606-9810	●	●
329	JOINT ASM; EYE,FUEL PIPE	5-15411-472-0	02	1	9606-9810	●	●
330	BOLT; EYE,JOINT M14X27 FLANGE	1-09675-086-0	02	1	9606-9810	●	●
331	GASKET; EYE JOINT ID=14.2 OD=19.2	1-09630-085-0	04	1	9606-9810	●	●

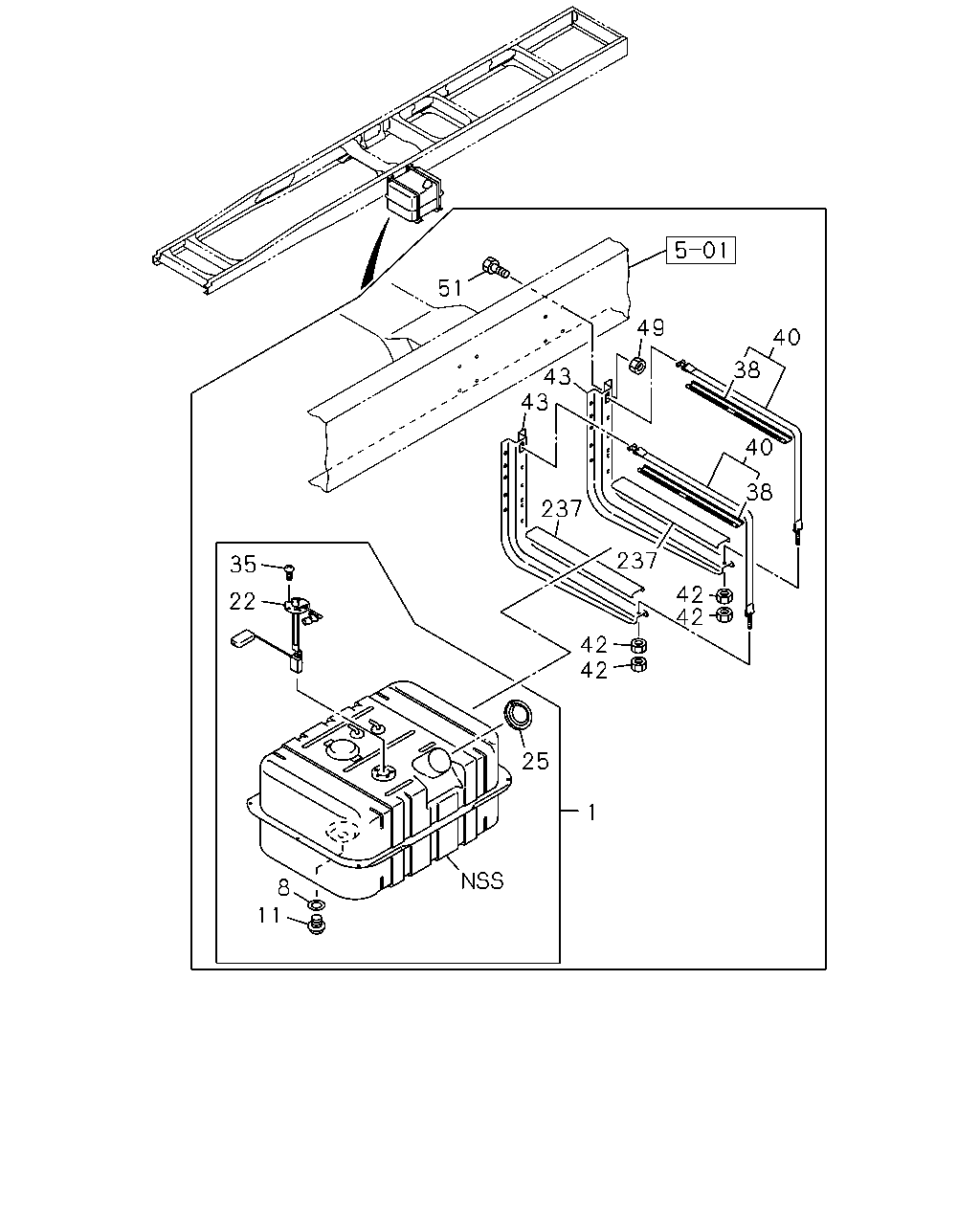

51 43 43 49 40 38 40 51 38 237 35 35 32 29 411 237 42 42 49 25 22 42 42 19 1 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL FUEL TANK 100L FRAME SIDE<N02> 690X502X316 100L	1-22401-016-0	01	1	9606-9810	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 1220X532.4X322.4 200L	1-22400-508-3	01	1	9606-9810	●	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-2	01	1	9811-			●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> ID=14.2 OD=23.0	9-09572-014-0	01	1	9606-9810	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> T=2.0	9-09923-030-0	01	1	9606-9810	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9811-0509			●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	8-98030-375-0	01	1	0510-			●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> M14X14	9-09862-156-0	01	1	9606-9810	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	9606-9810	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	9811-0005			●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	0006-			●	●
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	9811-			●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42	9-83135-011-0	01	1	9606-9810	●	●
22	UNIT; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-83141-069-0	01	1	9606-9810	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-031-0	01	1	9606-9810	●	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	9811-			●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-22440-046-0	01	1	9606-9810	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9606-9810	●	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	9811-			●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	9606-9810	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9811-0605			●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	0-91610-505-0	01	1	0606-			●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	01	1	9606-9810	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	01	1	9811-0501			●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02> M5X10 W/LK WASHER	9-03910-510-0	05	1	9606-9810	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9606-9810	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9811-0501			●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604			●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-			●	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	0802-			●	●
38	INSULATION; SUPPORT BELT FUEL TANK 100L FRAME SIDE<N02> L=540	1-22553-014-2	02	1	9606-9810	●	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	9811-0112			●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> L=755	1-22550-182-2	02	1	9606-9810	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=790	1-22550-186-2	02	1	9606-9810	●	●
40	BELT; SUPPORT,FUEL TANK L=775	1-22550-211-2	02	1	9811-0112			●	●
40	BELT; SUPPORT,FUEL TANK L=790	1-22550-186-2	02	1	0201-			●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9606-9810	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9811-0512			●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-			●	●
43	BRACKET; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-53461-402-2	02	1	9606-9810	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-206-1	02	1	9606-9810	●	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	9811-			●	●
49	NUT; BRKT FUEL TANK 100L FRAME SIDE<N02> M12	9-99110-512-0	08	1	9606-9810	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9606-9810	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9811-0602			●	●
49	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	0603-			●	●
51	BOLT; BRKT TO FRAME FUEL TANK 100L FRAME SIDE<N02> M12X40 FLANGE	0-28681-240-0	08	1	9606-9810	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28681-235-0	12	1	9606-9810	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9811-0512			●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0601-			●	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	9606-9810	●	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	9811-			●	●
411	CLIP; FUEL TANK UNIT HARNESS FUEL TANK 200L FRAME SIDE<N20> L=50	1-09700-416-0	01	1	9606-9810	●	●
411	CLIP; FUEL TANK UNIT HARNESS L=50	1-09700-416-0	01	1	9811-			●	●

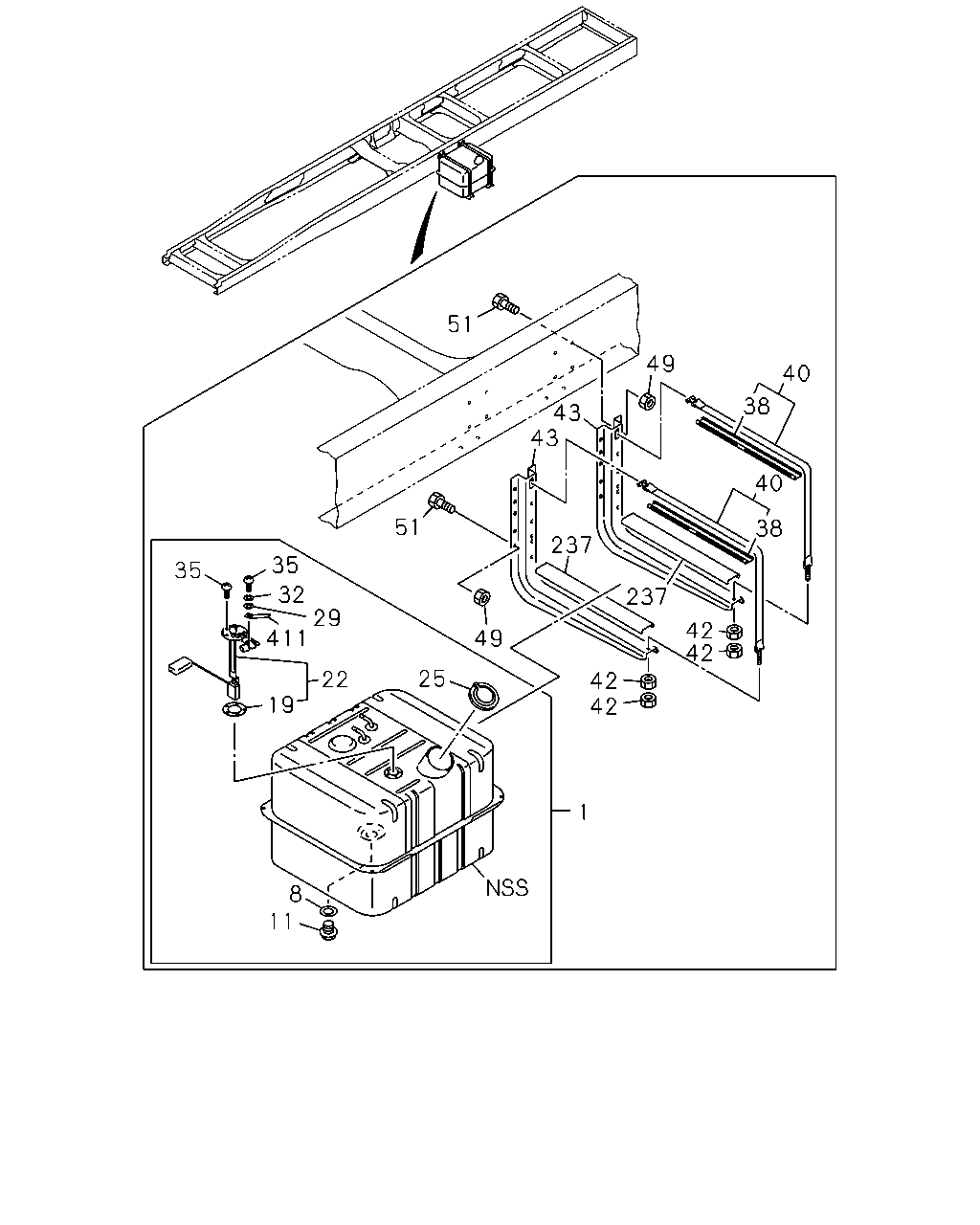

51 43 43 49 40 38 40 38 237 237 35 42 42 22 42 42 25 1 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL FUEL TANK 100L FRAME SIDE<N02> 690X502X316 100L	1-22401-016-0	01	1	9606-9810	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 1220X532.4X322.4 200L	1-22400-508-3	01	1	9606-9810	●	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-2	01	1	9811-			●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> ID=14.2 OD=23.0	9-09572-014-0	01	1	9606-9810	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> T=2.0	9-09923-030-0	01	1	9606-9810	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9811-0509			●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	8-98030-375-0	01	1	0510-			●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> M14X14	9-09862-156-0	01	1	9606-9810	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	9606-9810	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	9811-0005			●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	0006-			●	●
22	UNIT; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-83141-069-0	01	1	9606-9810	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-031-0	01	1	9606-9810	●	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	9811-			●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-22440-046-0	01	1	9606-9810	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9606-9810	●	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	9811-			●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02> M5X10 W/LK WASHER	9-03910-510-0	05	1	9606-9810	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9606-9810	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9811-0501			●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604			●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-			●	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	0802-			●	●
38	INSULATION; SUPPORT BELT FUEL TANK 100L FRAME SIDE<N02> L=540	1-22553-014-2	02	1	9606-9810	●	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	9811-0112			●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> L=755	1-22550-182-2	02	1	9606-9810	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=790	1-22550-186-2	02	1	9606-9810	●	●
40	BELT; SUPPORT,FUEL TANK L=775	1-22550-211-2	02	1	9811-0112			●	●
40	BELT; SUPPORT,FUEL TANK L=790	1-22550-186-2	02	1	0201-			●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9606-9810	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9811-0512			●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-			●	●
43	BRACKET; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-53461-402-2	02	1	9606-9810	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-206-1	02	1	9606-9810	●	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	9811-			●	●
49	NUT; BRKT FUEL TANK 100L FRAME SIDE<N02> M12	9-99110-512-0	08	1	9606-9810	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9606-9810	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9811-0602			●	●
49	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	0603-			●	●
51	BOLT; BRKT TO FRAME FUEL TANK 100L FRAME SIDE<N02> M12X40 FLANGE	0-28681-240-0	08	1	9606-9810	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28681-235-0	12	1	9606-9810	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9811-0512			●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0601-			●	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	9606-9810	●	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	9811-			●	●

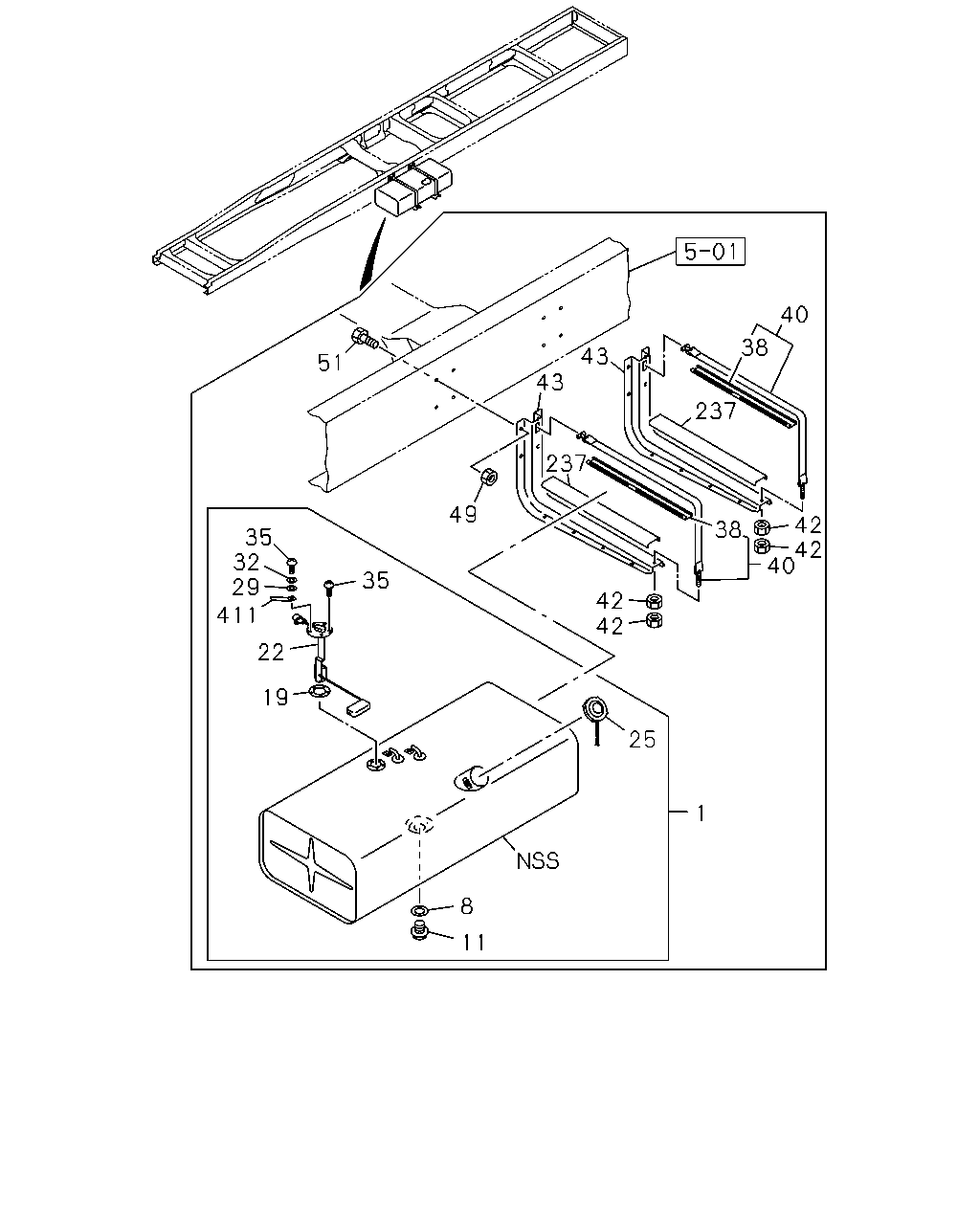

40 38 43 51 43 237 237 49 42 42 40 38 35 32 29 35 42 42 411 22 19 25 1 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL FUEL TANK 100L FRAME SIDE<N02> 690X502X316 100L	1-22401-016-0	01	1	9606-9810	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 1220X532.4X322.4 200L	1-22400-508-3	01	1	9606-9810	●	●
1	TANK; FUEL 1220X533X323 200L	1-22400-995-2	01	1	9811-			●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> ID=14.2 OD=23.0	9-09572-014-0	01	1	9606-9810	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> T=2.0	9-09923-030-0	01	1	9606-9810	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9811-0509			●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	8-98030-375-0	01	1	0510-			●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> M14X14	9-09862-156-0	01	1	9606-9810	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	9606-9810	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	9811-0005			●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	0006-			●	●
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	9811-			●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42	9-83135-011-0	01	1	9606-9810	●	●
22	UNIT; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-83141-069-0	01	1	9606-9810	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-031-0	01	1	9606-9810	●	●
22	UNIT; FUEL TANK	1-83141-084-1	01	1	9811-			●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-22440-046-0	01	1	9606-9810	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9606-9810	●	●
25	CAP; FILLER,FUEL TANK	1-22440-028-0	01	1	9811-			●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	9606-9810	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9811-0605			●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	0-91610-505-0	01	1	0606-			●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	01	1	9606-9810	●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	01	1	9811-0501			●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02> M5X10 W/LK WASHER	9-03910-510-0	05	1	9606-9810	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9606-9810	●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9811-0501			●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0502-0604			●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-			●	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	0802-			●	●
38	INSULATION; SUPPORT BELT FUEL TANK 100L FRAME SIDE<N02> L=540	1-22553-014-2	02	1	9606-9810	●	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	9811-0112			●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> L=755	1-22550-182-2	02	1	9606-9810	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=790	1-22550-186-2	02	1	9606-9810	●	●
40	BELT; SUPPORT,FUEL TANK L=775	1-22550-211-2	02	1	9811-0112			●	●
40	BELT; SUPPORT,FUEL TANK L=790	1-22550-186-2	02	1	0201-			●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9606-9810	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9811-0512			●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-			●	●
43	BRACKET; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-53461-402-2	02	1	9606-9810	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-206-1	02	1	9606-9810	●	●
43	BRACKET; FUEL TANK	1-53461-206-1	02	1	9811-			●	●
49	NUT; BRKT FUEL TANK 100L FRAME SIDE<N02> M12	9-99110-512-0	08	1	9606-9810	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9606-9810	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9811-0602			●	●
49	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	0603-			●	●
51	BOLT; BRKT TO FRAME FUEL TANK 100L FRAME SIDE<N02> M12X40 FLANGE	0-28681-240-0	08	1	9606-9810	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28681-235-0	12	1	9606-9810	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9811-0512			●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	12	1	0601-			●	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	9606-9810	●	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	9811-			●	●
411	CLIP; FUEL TANK UNIT HARNESS FUEL TANK 200L FRAME SIDE<N20> L=50	1-09700-416-0	01	1	9606-9810	●	●
411	CLIP; FUEL TANK UNIT HARNESS L=50	1-09700-416-0	01	1	9811-			●	●
