Isuzu WW
▶
TRUCKS
▶
FRR
▶
11303 - FRR AUST/NZ EURO5 SPACECAB
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶
3-05 — REAR WHEEL BRAKE
(#59351) — 82 parça
Tümü
A - FCD5CS
B - FCR5CS
◀

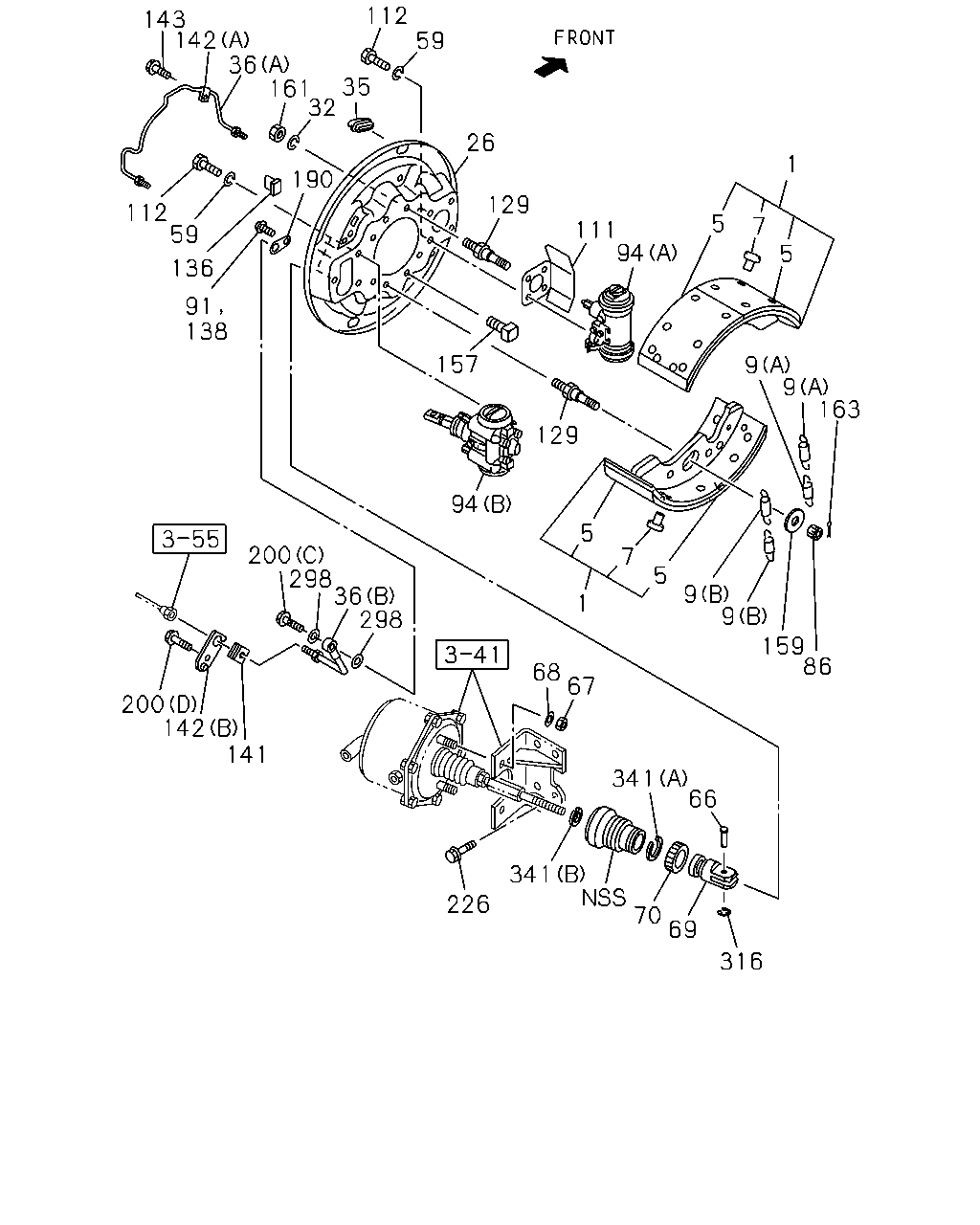

[305A] NO.1 (46 parça)

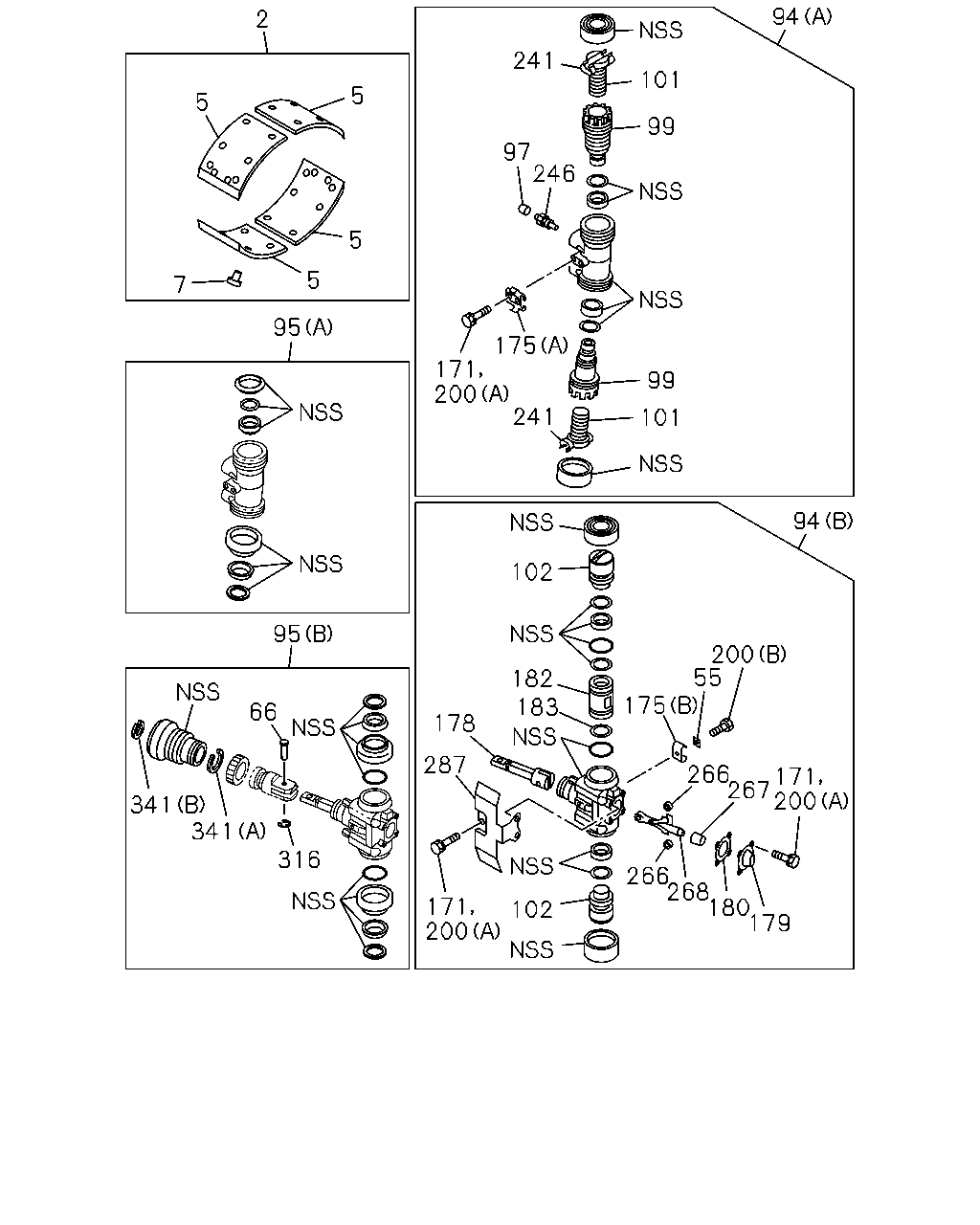

[305A] NO.2 (36 parça)
▶
143
142
36
112
161
32
35
59
26
129
111
94
1
5
7
5
9
9
163
129
157
138
91
136
59
112
190
94
5
1
7
5
9
9
159
86
68
67
341
66
316
69
70
341
226
141
142
200
298
36
298
200
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHOE; BRK,RR
1-47170-485-1
04
1
1010-
●
●
5
LINING; RR BRK SHOE,STANDARD
1-47126-802-0
08
1
1010-
●
●
7
RIVET; LINING,RR BRK
D6X11.5
1-09732-019-0
96
1
1010-
●
●
9
SPRING; RETURN,BRK SHOE
(A)
1-09583-381-1
04
1
1010-
●
●
9
SPRING; RETURN,BRK SHOE
(B)
1-09583-382-0
04
1
1010-
●
●
26
PLATE; BACK,RR BRK
1-47150-712-2
01
1
1010-
●
●
26
PLATE; BACK,RR BRK
1-47150-713-2
01
1
1010-
●
●
32
WASHER; LK
1-47159-110-0
04
1
1010-
●
●
35
GROMMET; CHECK HOLE
1-09333-139-0
04
1
1010-
●
●
36
PIPE; OIL,RR BRK
(A)
1-49167-857-0
01
1
1010-
●
●
36
PIPE; OIL,RR BRK
(A)
1-49167-858-0
01
1
1010-
●
●
36
PIPE; OIL,RR BRK
(B)
1-49167-905-0
02
1
1010-
●
●
59
WASHER; LK,RR WHEEL CYL
ID=12.2
0-91510-612-0
14
1
1010-
●
●
66
PIN; JAW JOINT
1-09744-129-0
02
1
1010-
●
●
67
NUT; POWER CHAMBER FIX
M16
0-91110-516-0
04
1
1010-
●
●
68
WASHER; LK,CHAMBER
ID=16.2
0-91510-816-0
04
1
1010-
●
●
69
JOINT; JAW
1-09768-106-1
02
1
1010-
●
●
70
NUT; LK,JAW JOINT
M18
0-91111-518-0
02
1
1010-
●
●
86
NUT; FLANGE
1-09440-101-0
04
1
1010-
●
●
91
BOLT; CHAMBER
M5X10 W/LK WASHER
0-36220-510-0
02
1
1010-
●
●
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-166-1
02
1
1010-
●
●
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
1-47601-218-0
01
1
1010-
●
●
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
1-47601-219-0
01
1
1010-
●
●
111
COVER; WHEEL CYL
1-47159-230-0
02
1
1010-
●
●
112
BOLT; WHEEL CYL SETTING
1-47159-112-0
14
1
1010-
●
●
129
PIN; SHOE HOLD
1-47162-044-0
04
1
1010-
●
●
136
GROMMET
1-09333-138-0
04
1
1010-
●
●
138
SCREW; LOCK PLATE
M5X10 W/LK WASHER
0-36220-510-0
02
1
1010-
●
●
141
PROTECTOR; RR BRK PIPE
1-09332-133-0
02
1
1010-
●
●
142
CLAMP; OIL PIPE
(A)
1-09701-322-0
02
1
1010-
●
●
142
CLAMP; OIL PIPE
(B)
1-47619-189-0
02
1
1010-
●
●
143
BOLT; CLAMP,OIL PIPE
M6X10
9-01900-610-0
02
1
1010-
●
●
157
BOLT; RR BRK SET
M14X43
1-09060-003-0
12
1
1010-
●
●
159
WASHER; SHOE HOLD
1-47169-037-0
04
1
1010-
●
●
161
NUT; SHOE HOLD LOCK
1-47159-111-0
04
1
1010-
●
●
163
PIN; SPLIT,SHOE HOLD
OD=1.8 L=20
0-81122-020-0
04
1
1010-
●
●
190
PLATE; LK,CONNECTOR
1-47619-032-0
04
1
1010-
●
●
200
BOLT
(C)
1-47159-240-0
02
1
1010-
●
●
200
BOLT
(D)
1-47159-241-0
02
1
1010-
●
●
200
BOLT
(A)
1-47622-071-0
04
1
1010-
●
●
200
BOLT
(B)
1-47622-072-0
02
1
1010-
●
●
226
BOLT; BRKT
M14X35 FLANGE
0-28651-435-0
08
1
1010-
●
●
298
GASKET
1-47616-115-0
04
1
1010-
●
●
316
RING; SNAP
ID=9
0-91805-509-0
02
1
1010-
●
●
341
SPRING; ASSIST,BOOT
(A)
1-47616-110-0
02
1
1010-
●
●
341
SPRING; ASSIST,BOOT
(B)
1-47619-184-0
02
1
1010-
●
●
2
5
7
5
5
5
95
95
66
341
341
316
241
101
99
97
246
175
171
200
241
99
101
94
94
102
182
183
178
287
171
200
102
200
55
175
266
267
171
200
266
268
180
179
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
LINING SET; RR BRK,STANDARD
1-88311-387-0
02
1
1010-
●
●
5
LINING; RR BRK SHOE,STANDARD
1-47126-802-0
08
1
1010-
●
●
7
RIVET; LINING,RR BRK
D6X11.5
1-09732-019-0
96
1
1010-
●
●
55
PLATE; LK,RR WHEEL CYL
1-47622-073-0
02
1
1010-
●
●
66
PIN; JAW JOINT
1-09744-129-0
02
1
1010-
●
●
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-166-1
02
1
1010-
●
●
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
1-47601-218-0
01
1
1010-
●
●
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
1-47601-219-0
01
1
1010-
●
●
95
CUP SET; RR WHEEL CYL
(A) FORWARD
1-87831-324-0
02
1
1010-
●
●
95
CUP SET; RR WHEEL CYL
(B) BACKWARD
1-87831-325-0
02
1
1010-
●
●
97
CAP; BLEEDER,RR WHEEL CYL
OD=12
1-47619-011-0
02
1
1010-
●
●
99
PISTON; RR WHEEL CYL
1-47620-240-0
04
1
1010-
●
●
101
SCREW; ADJ,RR WHEEL CYL
1-47622-070-0
04
1
1010-
●
●
102
PISTON; REAR WHEEL CYL
1-47620-241-0
02
1
1010-
●
●
171
BOLT; RR WHEEL CYL
1-47622-071-0
10
1
1010-
●
●
175
HANGER; RR WHEEL BRK
(A)
1-47619-187-0
02
1
1010-
●
●
175
HANGER; RR WHEEL BRK
(B)
1-47619-188-0
02
1
1010-
●
●
178
WEDGE; RR WHEEL CYL
1-47640-013-0
02
1
1010-
●
●
179
COVER; WEDGE,RR WHEEL CYL
1-47649-045-0
02
1
1010-
●
●
180
GASKET; COVER,RR WHEEL CYL
1-47619-013-0
02
1
1010-
●
●
182
TAPPET; RR WHEEL CYL
1-47629-280-0
04
1
1010-
●
●
183
GASKET; TAPPET,WHEEL CYL
1-09623-690-0
02
1
1010-
●
●
200
BOLT
(C)
1-47159-240-0
02
1
1010-
●
●
200
BOLT
(D)
1-47159-241-0
02
1
1010-
●
●
200
BOLT
(A)
1-47622-071-0
04
1
1010-
●
●
200
BOLT
(B)
1-47622-072-0
02
1
1010-
●
●
241
HOLDER
1-47619-097-0
04
1
1010-
●
●
246
BLEEDER
1-47615-018-1
02
1
1010-1406
●
●
246
BLEEDER
1-47615-009-0
02
1
1407-
●
●
266
ROLLER; WEDGE
1-47643-003-0
04
1
1010-
●
●
267
CAGE; WEDGE
1-47649-004-0
02
1
1010-
●
●
268
RETAINER; WEDGE
1-47649-003-0
02
1
1010-
●
●
287
COVER
1-47619-186-0
02
1
1010-
●
●
316
RING; SNAP
ID=9
0-91805-509-0
02
1
1010-
●
●
341
SPRING; ASSIST,BOOT
(A)
1-47616-110-0
02
1
1010-
●
●
341
SPRING; ASSIST,BOOT
(B)
1-47619-184-0
02
1
1010-
●
●
