◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11303 - FRR AUST/NZ EURO5 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#59343) — 86 parça

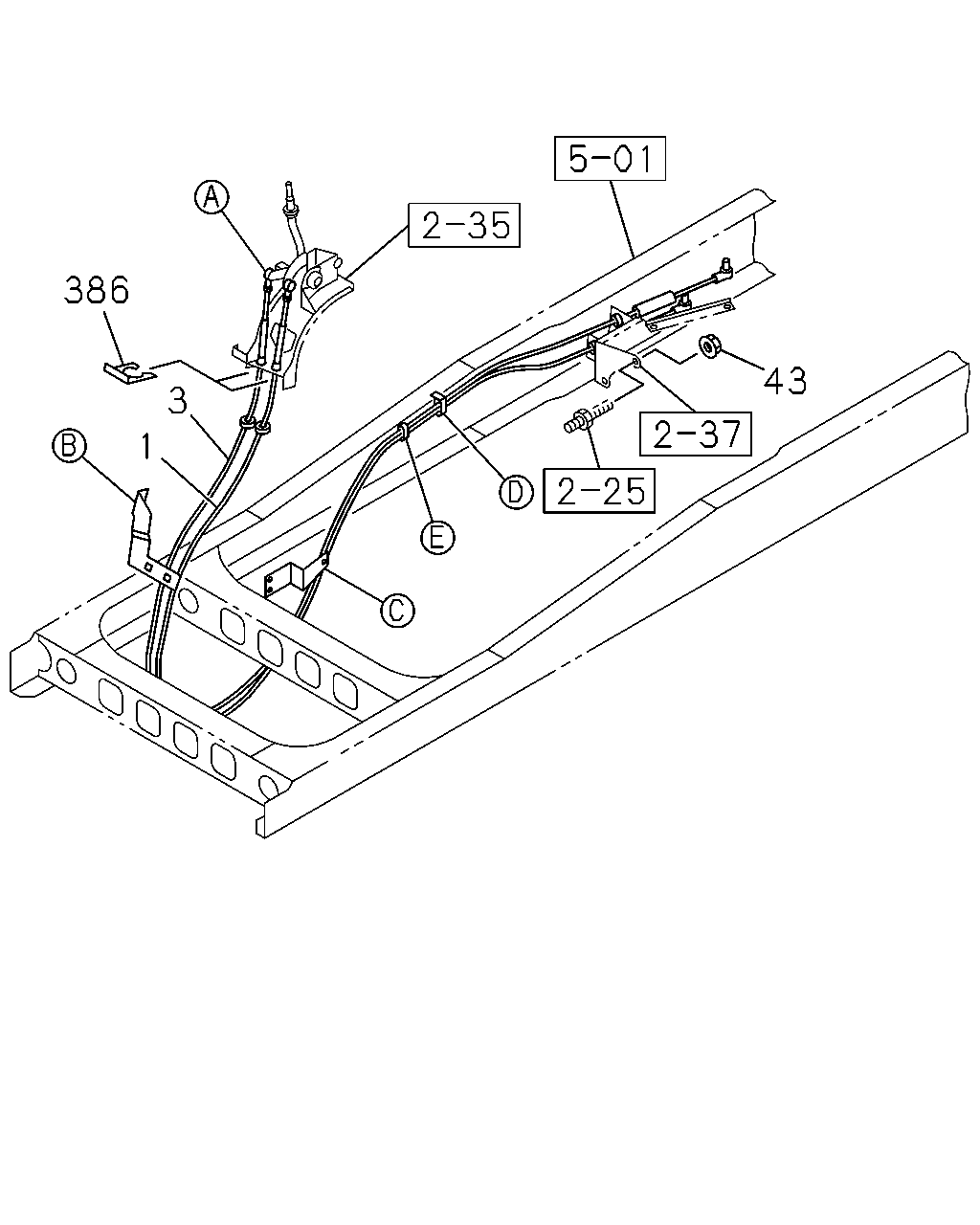

çizim 169084
386 43 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3050 		8-98077-960-3 01 1 1203- ●
1 CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=2990 		8-98077-959-3 01 1 1010- ●
1 CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59>,POWER TAKE OFF-FLYWHEEL<6SZ> L=2990 		8-98077-959-3 01 1 1010- ●
1 CABLE; SHIFT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3065 		8-98133-213-2 01 1 1010- ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-3 01 1 1010-1010 ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-4 01 1 1010- ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL<6SZ> L=2950 		8-98010-422-4 01 1 1010- ●
1 CABLE; SHIFT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-1 01 1 1010-1010 ● ●
1 CABLE; SHIFT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-1 01 1 1010-1010 ●
1 CABLE; SHIFT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3005 		8-98133-212-1 01 1 1010-1010 ●
1 CABLE; SHIFT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-2 01 1 1010- ●
1 CABLE; SHIFT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3005 		8-98133-212-2 01 1 1010- ●
1 CABLE; SHIFT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3060 		8-98133-214-3 01 1 1010- ● ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3000 		8-98041-380-5 01 1 1010- ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3010 		8-98010-424-3 01 1 1010-1010 ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3010 		8-98010-424-4 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3165 		8-98077-962-3 01 1 1203- ●
3 CABLE; SELECT,TRANS CONT
GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3105 		8-98077-961-4 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59>,POWER TAKE OFF-FLYWHEEL<6SZ> L=3105 		8-98077-961-4 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3200 		8-98133-221-2 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-1 01 1 1010-1010 ● ●
3 CABLE; SELECT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-1 01 1 1010-1010 ●
3 CABLE; SELECT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3140 		8-98133-220-1 01 1 1010-1010 ●
3 CABLE; SELECT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-2 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3140 		8-98133-220-2 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3140 		8-98133-220-2 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3085 		8-98010-462-4 01 1 1010-1010 ● ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3085 		8-98010-462-5 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3085 		8-98010-462-5 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL<6SZ> L=3085 		8-98010-462-5 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3145 		8-98010-464-3 01 1 1010-1010 ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3145 		8-98010-464-4 01 1 1010- ●
43 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 1010- ● ●

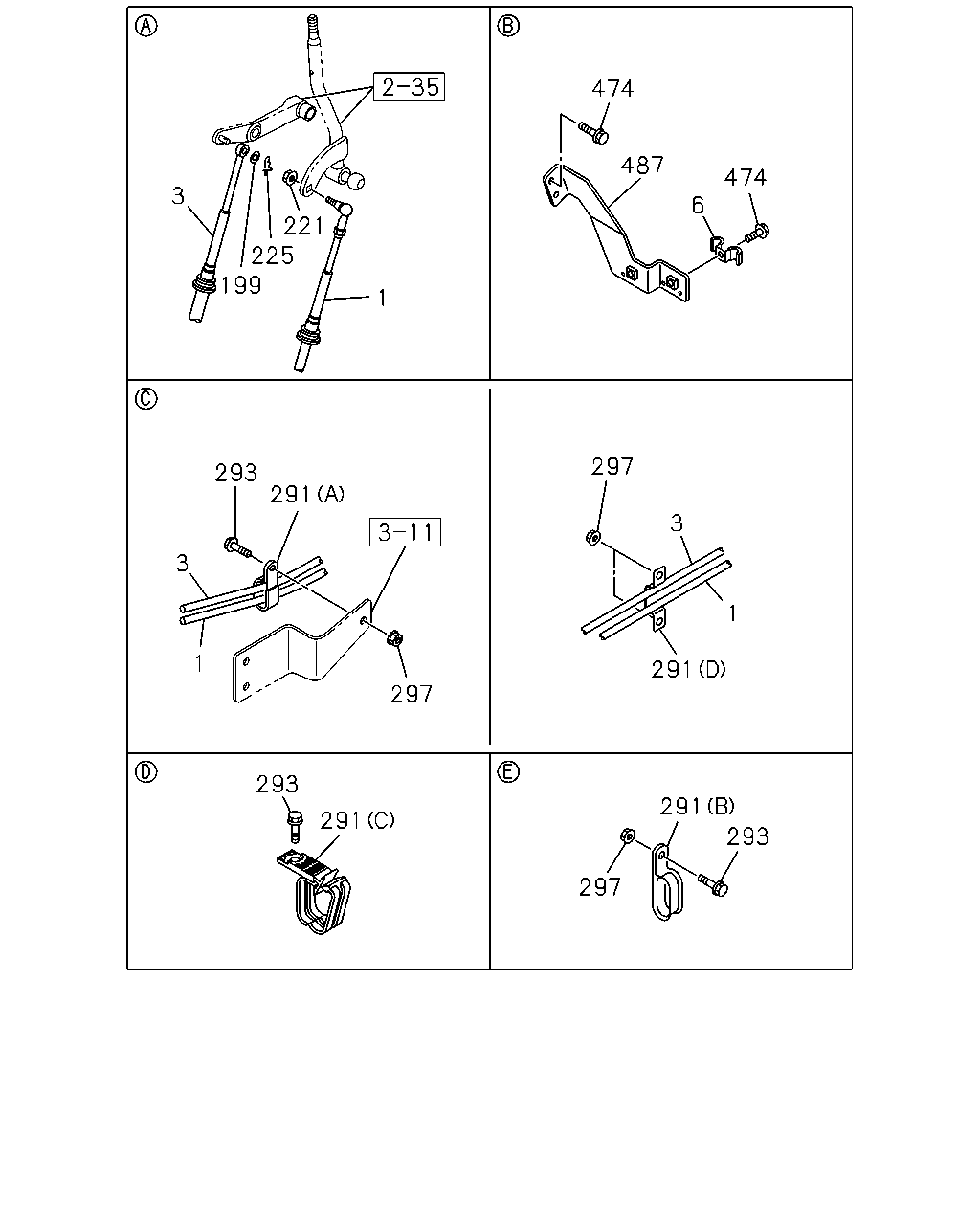

çizim 169085
474 487 474 3 6 221 225 199 1 297 293 291 3 3 1 1 291 297 293 291 291 293 297
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3050 		8-98077-960-3 01 1 1203- ●
1 CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=2990 		8-98077-959-3 01 1 1010- ●
1 CABLE; SHIFT,TRANS CONT
GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59>,POWER TAKE OFF-FLYWHEEL<6SZ> L=2990 		8-98077-959-3 01 1 1010- ●
1 CABLE; SHIFT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3065 		8-98133-213-2 01 1 1010- ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-3 01 1 1010-1010 ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-4 01 1 1010- ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL<6SZ> L=2950 		8-98010-422-4 01 1 1010- ●
1 CABLE; SHIFT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-1 01 1 1010-1010 ● ●
1 CABLE; SHIFT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-1 01 1 1010-1010 ●
1 CABLE; SHIFT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3005 		8-98133-212-1 01 1 1010-1010 ●
1 CABLE; SHIFT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-2 01 1 1010- ●
1 CABLE; SHIFT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3005 		8-98133-212-2 01 1 1010- ●
1 CABLE; SHIFT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3060 		8-98133-214-3 01 1 1010- ● ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3000 		8-98041-380-5 01 1 1010- ● ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3010 		8-98010-424-3 01 1 1010-1010 ●
1 CABLE; SHIFT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3010 		8-98010-424-4 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3165 		8-98077-962-3 01 1 1203- ●
3 CABLE; SELECT,TRANS CONT
GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3105 		8-98077-961-4 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59>,POWER TAKE OFF-FLYWHEEL<6SZ> L=3105 		8-98077-961-4 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3200 		8-98133-221-2 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-1 01 1 1010-1010 ● ●
3 CABLE; SELECT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-1 01 1 1010-1010 ●
3 CABLE; SELECT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3140 		8-98133-220-1 01 1 1010-1010 ●
3 CABLE; SELECT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-2 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3140 		8-98133-220-2 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=3140 		8-98133-220-2 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3085 		8-98010-462-4 01 1 1010-1010 ● ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3085 		8-98010-462-5 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),ASSISTOR SHIFT CONTROL<WX8> L=3085 		8-98010-462-5 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL<6SZ> L=3085 		8-98010-462-5 01 1 1010- ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3145 		8-98010-464-3 01 1 1010-1010 ●
3 CABLE; SELECT,TRANS CONT
ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3145 		8-98010-464-4 01 1 1010- ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1010- ● ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 1010- ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 1010-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 1010- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=13 & 13 L=32 		8-97389-264-0 02 1 1010- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98080-966-0 01 1 1010- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1010-1504 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 10 & 10 L=43.5 		8-98292-921-0 01 1 1505- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (A) ID=11X2 L=16 		0-95325-026-0 01 1 1010- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (B) ID=13 & 13 L=32 		8-97389-264-0 01 1 1010- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE 		0-28650-825-0 03 1 1010- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) M8X16 FLANGE 		0-28050-816-0 01 1 1010- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) M8X25 FLANGE 		0-28650-825-0 02 1 1010- ● ●
297 NUT; CLIP
GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 1010- ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 1010- ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-920-2 01 1 1010-1012 ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98183-009-0 01 1 1101- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
