1-11 — RADIATOR HOSE AND SUB TANK (#59338) — 15 parça

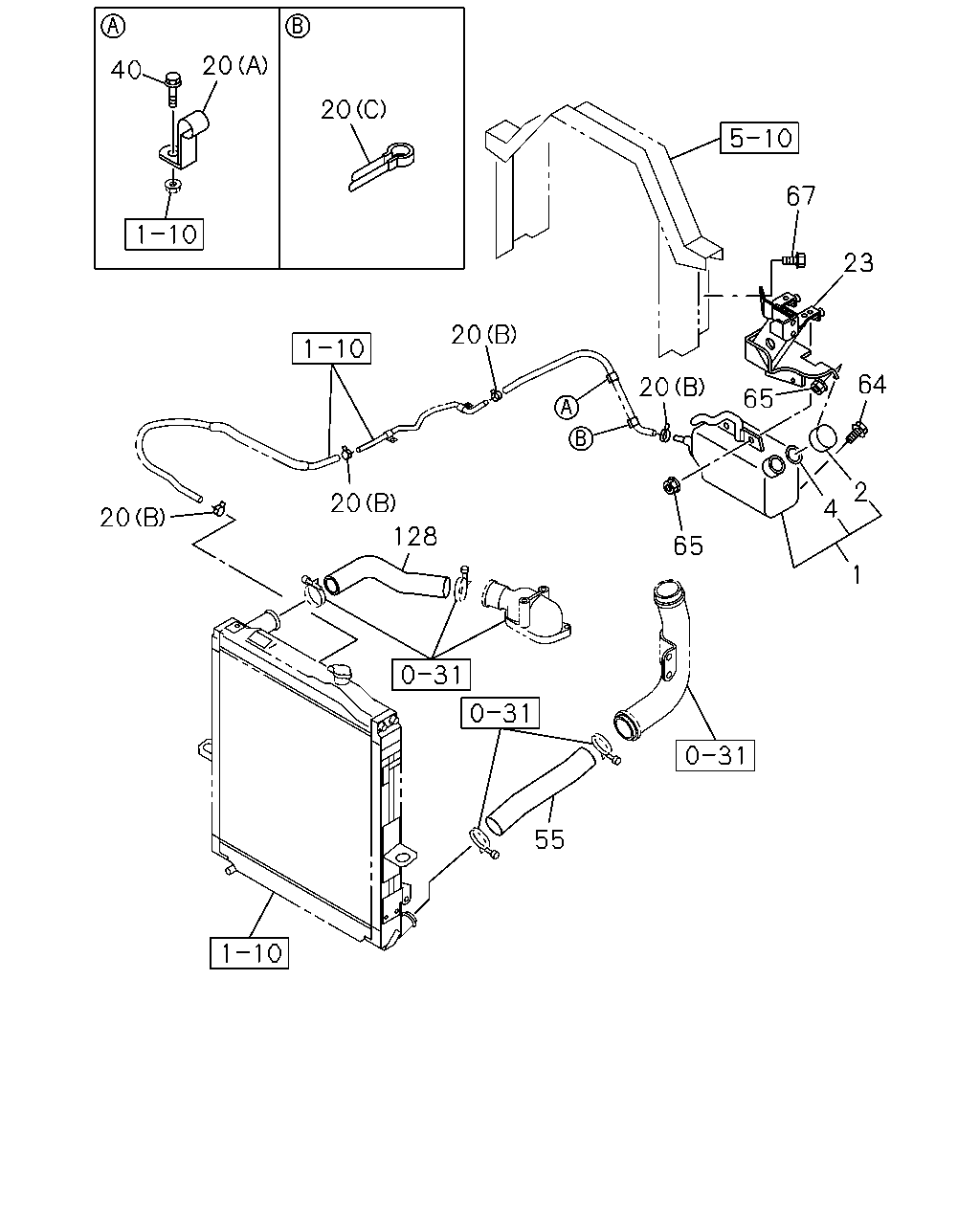

çizim 164203
20 40 20 67 23 20 64 20 65 2 20 4 20 128 65 1 55
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; SURGE,RAD 8-98125-804-0 01 1 0906-1009
1 TANK; SURGE,RAD 8-98171-757-0 01 1 1010-
2 CAP; SURGE TANK 8-98125-843-0 01 1 0906-1009
2 CAP; SURGE TANK 8-98178-074-0 01 1 1010-
4 GASKET; SURGE TANK
D=43 T=1.2 		1-21489-093-0 01 1 0906-1009
20 CLIP; HOSE,RAD
(A) ID=13 H=40 L=25 		1-09700-620-0 01 1 0906-
20 CLIP; HOSE,RAD
(B) ID=11.5 		8-97375-638-0 04 1 0906-
20 CLIP; HOSE,RAD
(C) ID=20 L=50 		9-09917-430-0 01 1 0906-
23 BRACKET; RESERVE TANK 8-98049-965-4 01 1 0906-
40 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0906-
55 HOSE; WATER,RAD OUTLET 8-98079-429-1 01 1 0906-
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 0906-
65 NUT; BRKT,SUB TANK
M8 FLANGE 		0-91180-108-0 03 1 0906-
67 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 0906-
128 HOSE; WATER,RAD INL 8-98050-924-1 01 1 0906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
