◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11234 - FTR-RHD EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#59333) — 94 parça

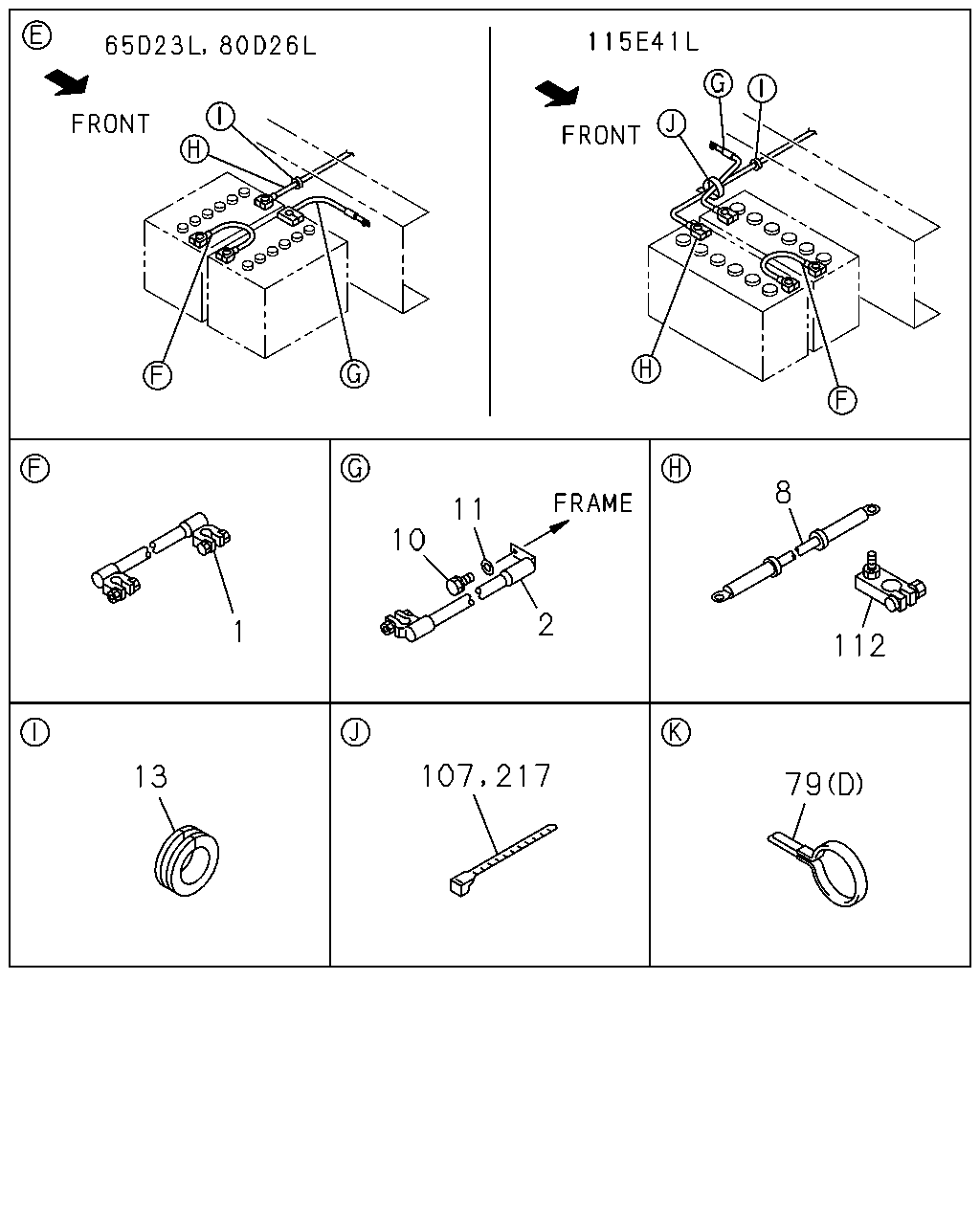

çizim 164193
8 11 10 2 1 112 13 79 107 217
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0906-
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280 		8-98035-647-1 01 1 0906-
2 CABLE; BATTERY
WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA> L=400 		8-97619-733-1 01 1 0906-
2 CABLE; BATTERY
WHEEL BASE 5500MM(55W) BATTERY 115E41L<8MA> L=440 		8-97615-309-1 01 1 0906-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA> 		8-98069-153-4 01 1 0906-1004
8 CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA> 		8-98159-384-0 01 1 1005-1502
8 CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA> 		8-98295-485-0 01 1 1503-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98069-152-3 01 1 0906-1004
8 CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98159-383-0 01 1 1005-1502
8 CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-484-0 01 1 1503-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 115E41L<8MA> L=3020 		8-98107-554-1 01 1 0906-1004
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 115E41L<8MA> 		8-98159-392-0 01 1 1005-1502
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 115E41L<8MA> 		8-98295-493-0 01 1 1503-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2820 		8-98107-553-1 01 1 0906-1004
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98159-391-0 01 1 1005-1502
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-492-0 01 1 1503-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0906-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0906-
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 0906-
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 0906-1004
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1005-
79 CLIP; BATTERY CABLE
(E) ID=13-18 L=26 		1-09709-293-0 02 1 0906-
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 03 1 0906-
79 CLIP; BATTERY CABLE
(D) ID=20 L=50 		9-09917-430-0 01 1 0906-
79 CLIP; BATTERY CABLE
WHEEL BASE 5000MM(50W) (C) ID=21 L=24 		8-98019-191-0 02 1 0906-
79 CLIP; BATTERY CABLE
WHEEL BASE 5500MM(55W) (C) ID=19 L=40 		0-95235-876-0 01 1 0906-
79 CLIP; BATTERY CABLE
WHEEL BASE 5500MM(55W) (B) ID=19 L=24 H=21 		1-09700-109-1 01 1 0906-
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 0906-
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0906-1408
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409-
217 CLIP; BAND,CABLE
L=250 		5-09707-030-1 01 1 0908-

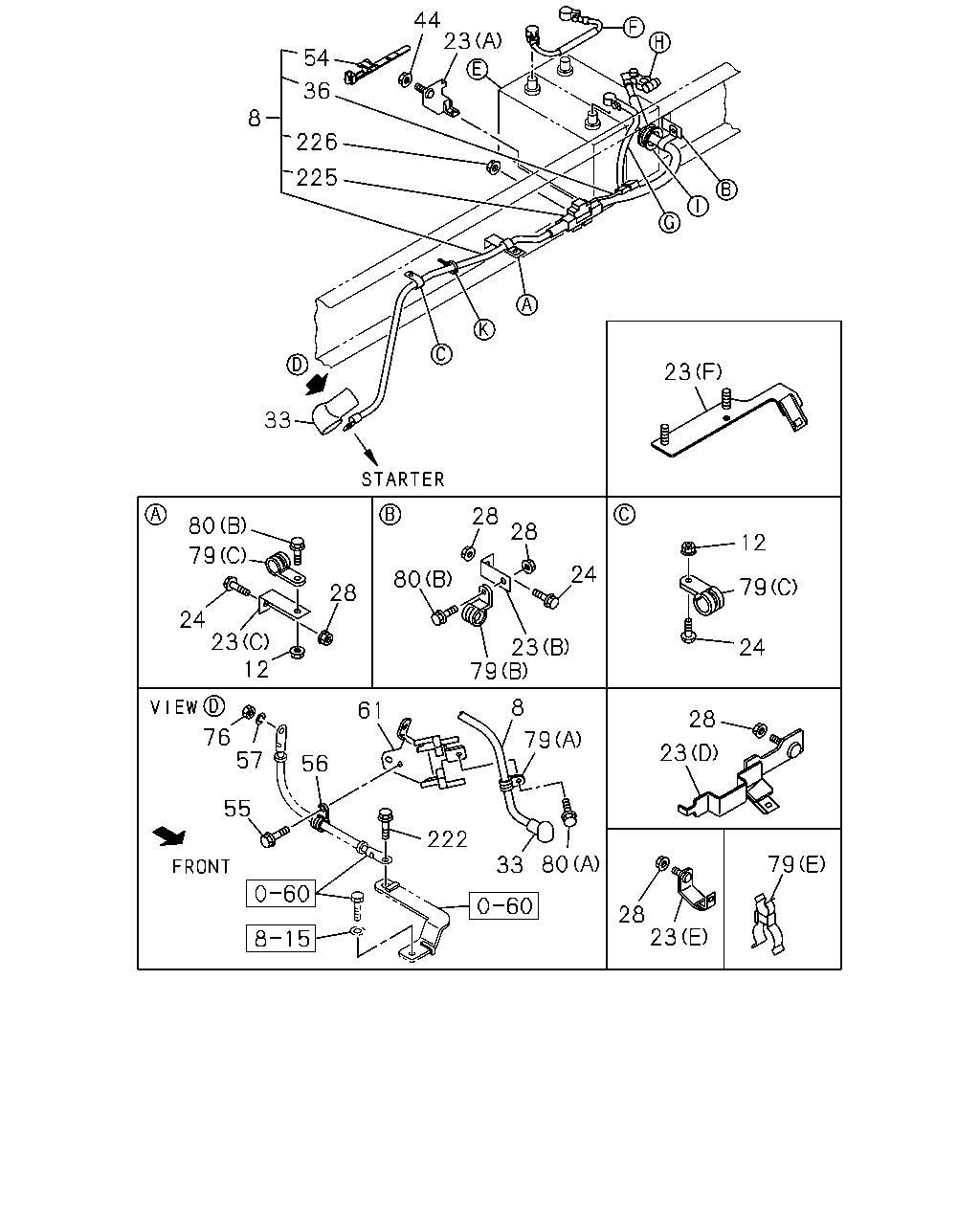

çizim 164194
44 23 54 36 8 226 225 23 33 28 80 28 12 79 24 80 79 28 24 23 12 23 79 24 8 61 28 76 57 79 23 56 55 222 80 79 33 28 23
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA> 		8-98069-153-4 01 1 0906-1004
8 CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA> 		8-98159-384-0 01 1 1005-1502
8 CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA> 		8-98295-485-0 01 1 1503-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98069-152-3 01 1 0906-1004
8 CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98159-383-0 01 1 1005-1502
8 CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-484-0 01 1 1503-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 115E41L<8MA> L=3020 		8-98107-554-1 01 1 0906-1004
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 115E41L<8MA> 		8-98159-392-0 01 1 1005-1502
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 115E41L<8MA> 		8-98295-493-0 01 1 1503-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2820 		8-98107-553-1 01 1 0906-1004
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98159-391-0 01 1 1005-1502
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-492-0 01 1 1503-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0906-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0906-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 03 1 0906-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 0906-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98085-160-4 01 1 0906-1111
23 BRACKET; CABLE CLIP TO FRAME
(F) 		8-98201-025-0 01 1 1112-
23 BRACKET; CABLE CLIP TO FRAME
MLD6W M/T(Y2C) WHEEL BASE 5000MM(50W) (B) L=65 		1-47479-064-1 01 1 0906-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 5500MM(55W) (B) L=65 		1-47479-064-1 01 1 0906-
23 BRACKET; CABLE CLIP TO FRAME
MLD6W M/T(Y2C) WHEEL BASE 5000MM(50W) (C) L=95 		1-82699-085-0 01 1 0906-
23 BRACKET; CABLE CLIP TO FRAME
MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) (C) L=95 		1-82699-085-0 02 1 0906-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 5000MM(50W) (E) 		8-97612-957-1 01 1 0906-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 5500MM(55W) (C) L=55 		1-47475-304-0 01 1 0906-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 03 1 0906-
24 BOLT; BRKT TO FRAME
MLD6W M/T(Y2C) WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28650-825-0 01 1 0906-
24 BOLT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) M8X25 FLANGE 		0-28650-825-0 01 1 0906-
24 BOLT; BRKT TO FRAME
MLD6W M/T(Y2C) WHEEL BASE 5000MM(50W) M8X30 FLANGE 		0-28650-830-0 01 1 0906-
24 BOLT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) M8X30 FLANGE 		0-28650-830-0 01 1 0906-
24 BOLT; BRKT TO FRAME
MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) M8X30 FLANGE 		0-28650-830-0 02 1 0906-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0906-1111
28 NUT; BRKT TO FRAME
WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91180-108-0 01 1 0906-1111
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1112-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1112-
28 NUT; BRKT TO FRAME
WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91180-108-0 01 1 1112-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0906-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 0906-
33 CAP; INSULATOR 1-82699-431-0 01 1 0906-
36 FUSIBLE LINK; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> 		8-97615-498-1 01 1 0906-1502
36 FUSIBLE LINK; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> 		8-98295-762-0 01 1 1503-
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-
54 CLIP; BAND,BATTERY CABLE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> L=175 		1-09707-176-1 01 1 0906-1004
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 0906-
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 0906-
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0906-
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 0906-
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 0906-
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 0906-1004
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1005-
79 CLIP; BATTERY CABLE
(E) ID=13-18 L=26 		1-09709-293-0 02 1 0906-
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 03 1 0906-
79 CLIP; BATTERY CABLE
(D) ID=20 L=50 		9-09917-430-0 01 1 0906-
79 CLIP; BATTERY CABLE
WHEEL BASE 5000MM(50W) (C) ID=21 L=24 		8-98019-191-0 02 1 0906-
79 CLIP; BATTERY CABLE
WHEEL BASE 5500MM(55W) (C) ID=19 L=40 		0-95235-876-0 01 1 0906-
79 CLIP; BATTERY CABLE
WHEEL BASE 5500MM(55W) (B) ID=19 L=24 H=21 		1-09700-109-1 01 1 0906-
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0906-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0906-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0906-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0906-
225 BLOCK; TERMINAL
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> 		8-98029-689-0 01 1 0906-1502
225 BLOCK; TERMINAL
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> 		8-98294-524-0 01 1 1503-
226 NUT; FUSIBLE LINK
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M6 W/LK WASHER 		8-94424-179-0 01 1 0906-1502
226 NUT; FUSIBLE LINK
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503-
