1-30 — AIR CLEANER (#5933) — 129 parça

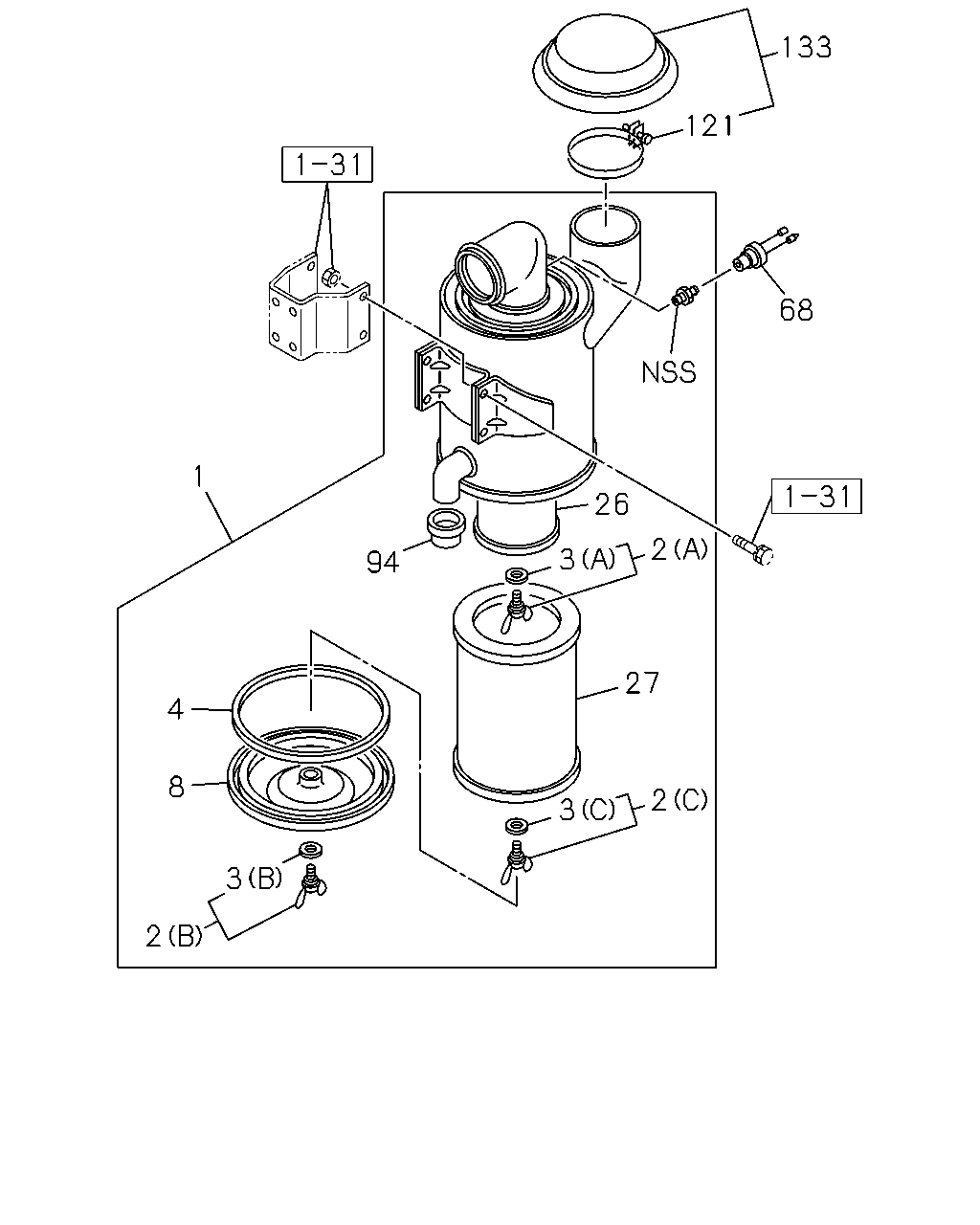

çizim 7162
133 121 68 1 26 2 3 94 27 4 8 2 3 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14210-645-1 01 1 9606-9810 ● ●
1 CLEANER ASM; AIR 1-14210-815-0 01 1 9811-9902 ●
1 CLEANER ASM; AIR 1-14210-815-0 01 1 9903-0203 ● ●
1 CLEANER ASM; AIR 1-14210-815-1 01 1 0204- ●
1 CLEANER ASM; AIR
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14210-611-1 01 1 9606-9810 ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-036-0 01 1 9606-9810 ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-003-0 01 1 9811-9902 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-003-0 01 1 9903-0203 ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-003-0 01 1 0204- ●
2 NUT; WING,ELEMENT
(B) 		1-14217-049-0 01 1 9606-9810 ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-049-0 01 1 9811-9902 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-049-0 01 1 9903-0203 ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-049-0 01 1 0204- ●
2 NUT; WING,ELEMENT
(C) 		1-14217-050-0 01 1 9606-9810 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-050-0 01 1 9811-9902 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-050-0 01 1 9903-0203 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-050-0 01 1 0204- ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-118-0 01 1 9606-9810 ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-118-0 01 1 9811-9902 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-118-0 01 1 9903-0203 ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-118-0 01 1 0204- ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9606-9810 ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9811-9902 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9903-0203 ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0204- ●
3 WASHER; SEAL,WING NUT
(A) 		9-14219-177-0 01 1 9606-9810 ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-032-0 01 1 9811-9902 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-032-0 01 1 9903-0203 ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-032-0 01 1 0204- ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9606-9810 ● ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9811-9902 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9903-0203 ● ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0204- ●
8 COVER ASM; ACL
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14212-095-0 01 1 9606-9810 ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9811-9902 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9903-0203 ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0204- ●
26 FILTER; ACL,INNER
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14215-111-0 01 1 9606-9810 ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9811-9902 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9903-0203 ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0204- ●
26 FILTER; ACL,INNER
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14215-145-0 01 1 9606-9810 ● ●
27 FILTER; ACL,OUTER
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14215-172-0 01 1 9606-9810 ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9811-9902 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9903-0203 ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0204- ●
27 FILTER; ACL,OUTER
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14215-171-0 01 1 9606-9810 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9606-9810 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9811-0203 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0204- ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9606-9810 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9811-9902 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9903-0203 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0204- ●
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 9606-9810 ● ●
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 9606-9810 ● ●

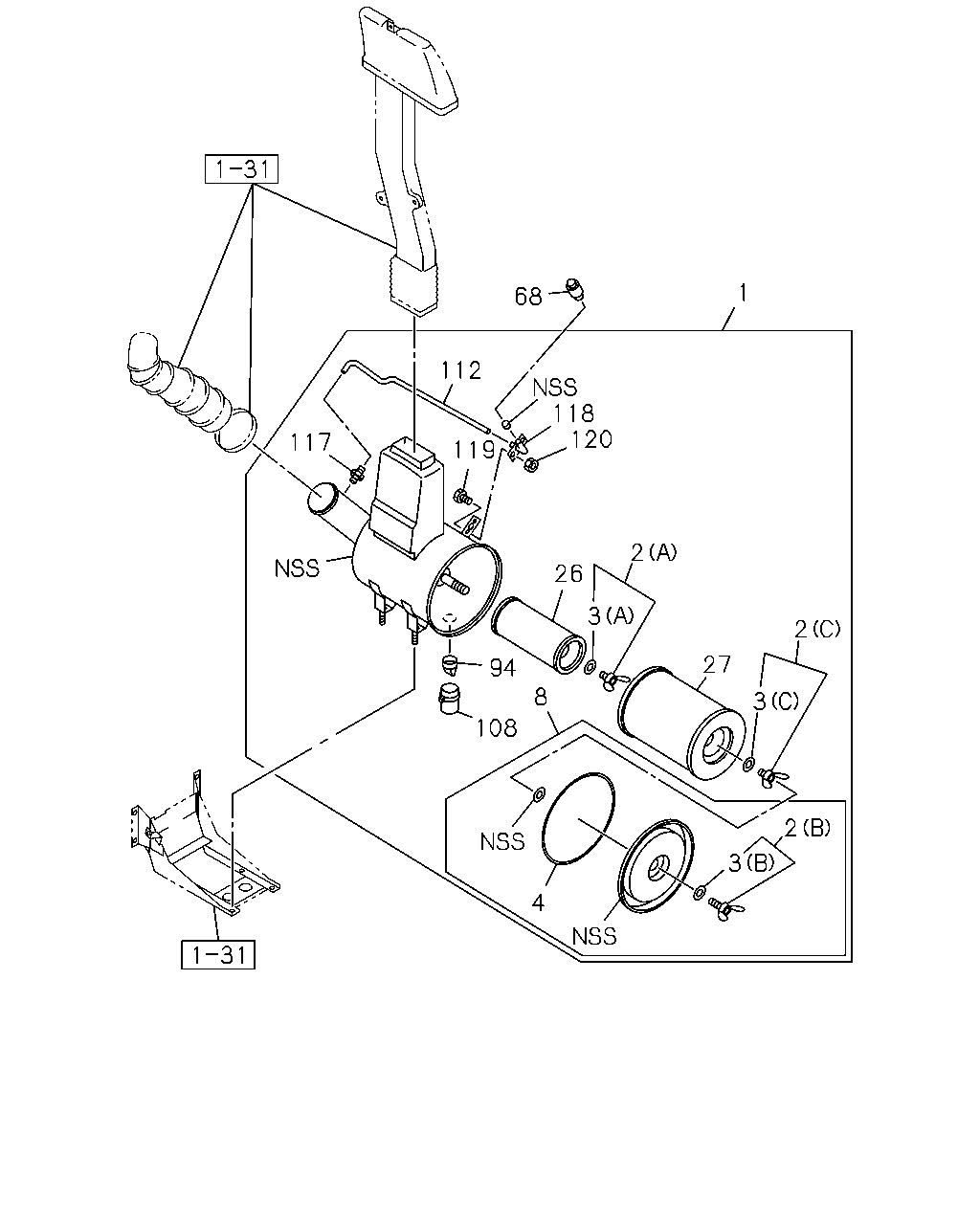

çizim 42944
1 68 112 118 120 117 119 2 26 3 2 27 94 8 3 108 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14210-645-1 01 1 9606-9810 ● ●
1 CLEANER ASM; AIR 1-14210-815-0 01 1 9811-9902 ●
1 CLEANER ASM; AIR 1-14210-815-0 01 1 9903-0203 ● ●
1 CLEANER ASM; AIR 1-14210-815-1 01 1 0204- ●
1 CLEANER ASM; AIR
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14210-611-1 01 1 9606-9810 ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-036-0 01 1 9606-9810 ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-003-0 01 1 9811-9902 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-003-0 01 1 9903-0203 ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-003-0 01 1 0204- ●
2 NUT; WING,ELEMENT
(B) 		1-14217-049-0 01 1 9606-9810 ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-049-0 01 1 9811-9902 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-049-0 01 1 9903-0203 ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-049-0 01 1 0204- ●
2 NUT; WING,ELEMENT
(C) 		1-14217-050-0 01 1 9606-9810 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-050-0 01 1 9811-9902 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-050-0 01 1 9903-0203 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-050-0 01 1 0204- ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-118-0 01 1 9606-9810 ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-118-0 01 1 9811-9902 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-118-0 01 1 9903-0203 ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-118-0 01 1 0204- ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9606-9810 ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9811-9902 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9903-0203 ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0204- ●
3 WASHER; SEAL,WING NUT
(A) 		9-14219-177-0 01 1 9606-9810 ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-032-0 01 1 9811-9902 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-032-0 01 1 9903-0203 ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-032-0 01 1 0204- ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9606-9810 ● ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9811-9902 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9903-0203 ● ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0204- ●
8 COVER ASM; ACL
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14212-095-0 01 1 9606-9810 ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9811-9902 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 9903-0203 ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0204- ●
26 FILTER; ACL,INNER
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14215-111-0 01 1 9606-9810 ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9811-9902 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 9903-0203 ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0204- ●
26 FILTER; ACL,INNER
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14215-145-0 01 1 9606-9810 ● ●
27 FILTER; ACL,OUTER
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14215-172-0 01 1 9606-9810 ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9811-9902 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 9903-0203 ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0204- ●
27 FILTER; ACL,OUTER
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14215-171-0 01 1 9606-9810 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9606-9810 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9811-0203 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0204- ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9606-9810 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9811-9902 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9903-0203 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0204- ●
108 COVER; ACL 1-14219-270-0 01 1 9811-9902 ●
108 COVER; ACL 1-14219-270-0 01 1 9903-0203 ● ●
108 COVER; ACL 1-14219-270-0 01 1 0204-0206 ●
108 COVER; ACL 1-14219-281-0 01 1 0207- ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 9811-9902 ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 9903-0203 ● ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 0204- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9811-9902 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 9903-0203 ● ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0204- ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9811-9902 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 9903-0203 ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0204- ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9811-9902 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 9903-0203 ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0204- ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9811-9902 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 9903-0203 ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0204- ●
