1-11 — RADIATOR HOSE AND SUB TANK (#5932) — 125 parça

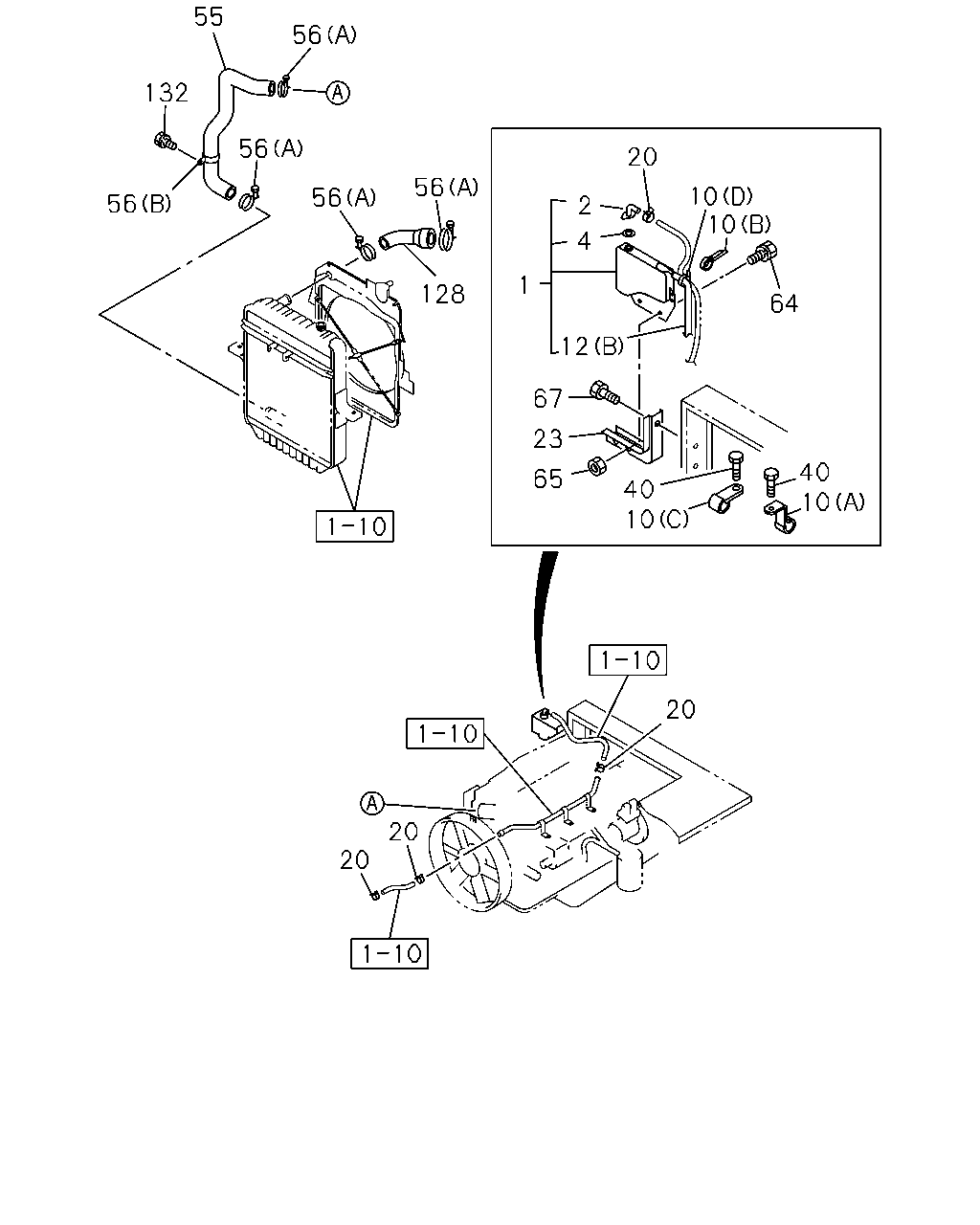

çizim 41739
55 56 132 56 20 56 10 10 56 56 2 4 1 128 64 12 67 23 40 10 65 40 10 20 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 TANK; SURGE,RAD 1-21480-077-2 01 1 9606-9810 ● ●
1 TANK; SURGE,RAD 1-21480-077-2 01 1 9811-9812 ● ●
1 TANK; SURGE,RAD 1-21480-104-0 01 1 9901-0203 ● ●
1 TANK; SURGE,RAD 1-21480-104-1 01 1 0204- ●
2 CAP; SURGE TANK 5-21483-001-1 01 1 9606-9810 ● ●
2 CAP; SURGE TANK 5-21483-001-1 01 1 9811-9812 ● ●
2 CAP; SURGE TANK 1-21483-008-0 01 1 9901-0203 ● ●
2 CAP; SURGE TANK 1-21483-008-0 01 1 0204- ●
4 GASKET; SURGE TANK 5-21489-006-0 01 1 9606-9810 ● ●
4 GASKET; SURGE TANK 5-21489-006-0 01 1 9811-0203 ● ●
4 GASKET; SURGE TANK 5-21489-006-0 01 1 0204- ●
10 CLIP; RUBBER HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 02 1 9606-9810 ● ●
10 CLIP; RUBBER HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 9811-0203 ● ●
10 CLIP; RUBBER HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0204- ●
10 CLIP; RUBBER HOSE
(D) L=140 		5-09707-031-0 01 1 9606-9810 ● ●
10 CLIP; RUBBER HOSE
(D) L=140 		5-09707-031-1 01 1 9811-0203 ● ●
10 CLIP; RUBBER HOSE
(D) L=140 		5-09707-031-1 01 1 0204- ●
10 CLIP; RUBBER HOSE
(A) ID=13 L=40 		9-09525-276-0 01 1 9606-9810 ● ●
10 CLIP; RUBBER HOSE
(A) ID=13 L=50 		9-09525-286-0 01 1 9811-0203 ● ●
10 CLIP; RUBBER HOSE
(A) ID=13 L=50 		9-09525-286-0 01 1 0204-0606 ●
10 CLIP; RUBBER HOSE
(A) ID=13 L=50 		0-95235-286-0 01 1 0607- ●
10 CLIP; RUBBER HOSE
(B) ID=14 L=44 		9-09917-427-0 01 1 9606-9810 ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 L=44 		9-09917-427-0 03 1 9811-0203 ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 L=44 		9-09917-427-0 03 1 0204- ●
12 HOSE; SURGE TANK
(A) 		1-21489-203-0 01 1 9901-0203 ● ●
12 HOSE; SURGE TANK
(A) 		1-21489-203-0 01 1 0204- ●
12 HOSE; SURGE TANK
(B) L=300 		1-09366-199-0 01 1 9606-9810 ● ●
12 HOSE; SURGE TANK
(B) L=300 		1-09366-199-0 01 1 9811-0203 ● ●
12 HOSE; SURGE TANK
(B) L=300 		1-09366-199-0 01 1 0204- ●
20 CLIP; HOSE,RAD
ID=12 		8-94238-610-0 04 1 9606-9810 ● ●
20 CLIP; HOSE,RAD
ID=12 		8-94238-610-0 04 1 9811-0203 ● ●
20 CLIP; HOSE,RAD
ID=12 		8-94238-610-0 04 1 0204- ●
23 BRACKET; RESERVE TANK 1-21489-128-0 01 1 9606-9810 ● ●
23 BRACKET; RESERVE TANK 1-21489-128-0 01 1 9811-0203 ● ●
23 BRACKET; RESERVE TANK 1-21489-128-0 01 1 0204- ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 03 1 9606-9810 ● ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 9811-0203 ● ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0204-0512 ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
55 HOSE; WATER,RAD OUTLET 1-21437-361-0 01 1 9606-9810 ● ●
55 HOSE; WATER,RAD OUTLET 1-21437-560-2 01 1 9811-0203 ● ●
55 HOSE; WATER,RAD OUTLET 1-21437-560-2 01 1 0204- ●
56 CLIP; WATER HOSE,RAD
(B) 		1-09700-842-1 01 1 9606-9810 ● ●
56 CLIP; WATER HOSE,RAD
(A) ID=63 		1-09704-067-0 04 1 9606-9810 ● ●
56 CLIP; WATER HOSE,RAD
(A) ID=63 		1-09704-067-0 04 1 9811-0203 ● ●
56 CLIP; WATER HOSE,RAD
(A) ID=63 		1-09704-067-0 04 1 0204- ●
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 9606-9810 ● ●
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 9811-0203 ● ●
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 0204-0707 ●
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 0708- ●
65 NUT; BRKT,SUB TANK
M8 		9-09110-408-0 04 1 9606-9810 ● ●
65 NUT; BRKT,SUB TANK
M8 FLANGE 		0-91150-108-0 04 1 9811-0203 ● ●
65 NUT; BRKT,SUB TANK
M8 FLANGE 		0-91150-108-0 04 1 0204-0602 ●
65 NUT; BRKT,SUB TANK
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
67 BOLT; BRKT
M10X20 FLANGE 		0-28681-020-0 02 1 9606-9810 ● ●
67 BOLT; BRKT
M10X20 FLANGE 		0-28681-020-0 02 1 9811-0203 ● ●
67 BOLT; BRKT
M10X20 FLANGE 		0-28681-020-0 02 1 0204-0512 ●
67 BOLT; BRKT
M10X20 FLANGE 		0-28651-020-0 02 1 0601- ●
128 HOSE; WATER,RAD INL 1-21437-356-0 01 1 9606-9810 ● ●
128 HOSE; WATER,RAD INL 1-21437-675-0 01 1 9811-0203 ● ●
128 HOSE; WATER,RAD INL 1-21437-675-0 01 1 0204-0707 ●
128 HOSE; WATER,RAD INL 1-21437-450-0 01 1 0708- ●
132 BOLT; CLIP,WATER HOSE,OUTLET
M8X20 FLANGE 		0-28680-820-0 01 1 9606-9810 ● ●

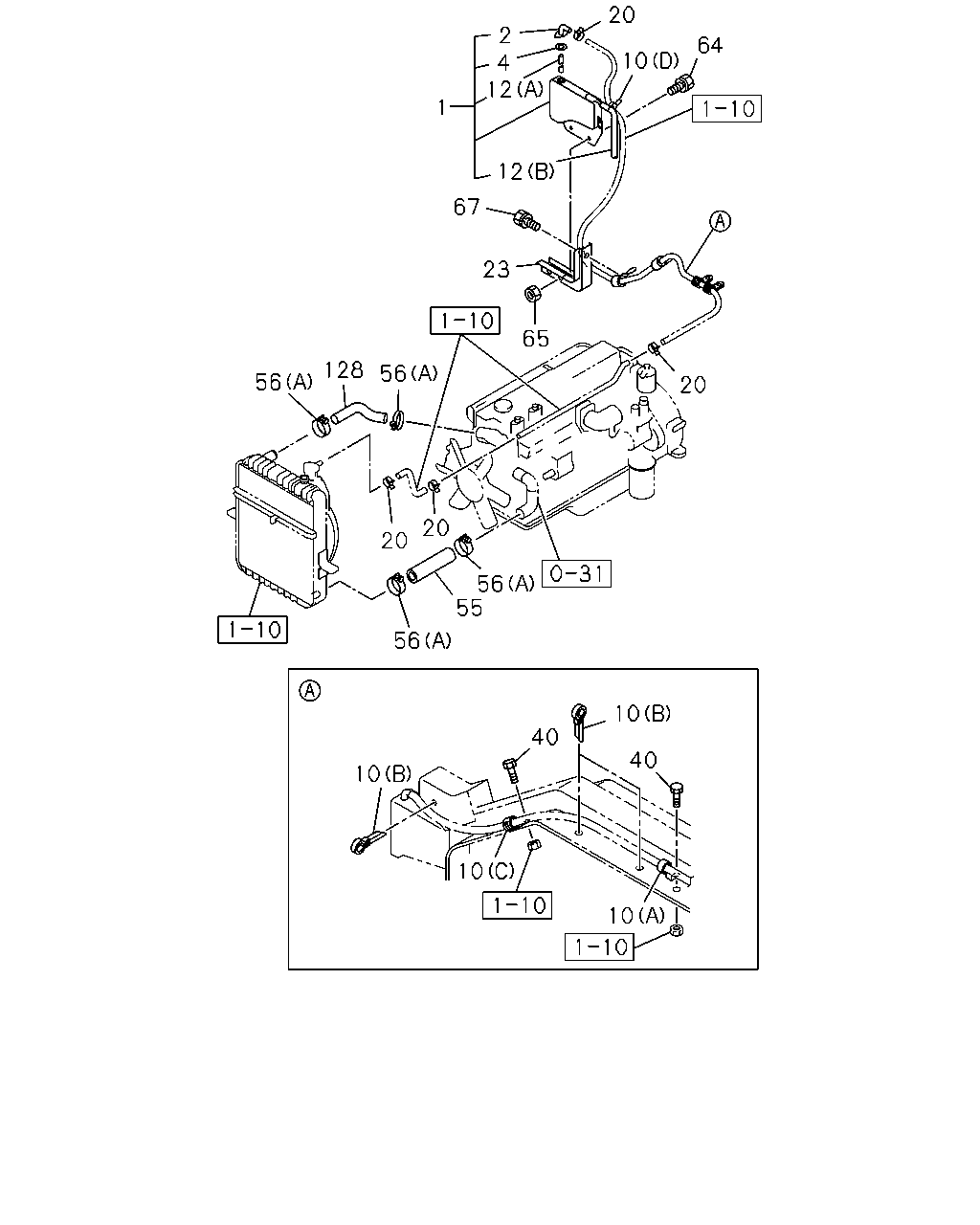

çizim 45646
20 2 4 12 64 10 1 12 67 23 65 128 56 56 20 20 20 56 55 56 10 40 40 10 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 TANK; SURGE,RAD 1-21480-077-2 01 1 9606-9810 ● ●
1 TANK; SURGE,RAD 1-21480-077-2 01 1 9811-9812 ● ●
1 TANK; SURGE,RAD 1-21480-104-0 01 1 9901-0203 ● ●
1 TANK; SURGE,RAD 1-21480-104-1 01 1 0204- ●
2 CAP; SURGE TANK 5-21483-001-1 01 1 9606-9810 ● ●
2 CAP; SURGE TANK 5-21483-001-1 01 1 9811-9812 ● ●
2 CAP; SURGE TANK 1-21483-008-0 01 1 9901-0203 ● ●
2 CAP; SURGE TANK 1-21483-008-0 01 1 0204- ●
4 GASKET; SURGE TANK 5-21489-006-0 01 1 9606-9810 ● ●
4 GASKET; SURGE TANK 5-21489-006-0 01 1 9811-0203 ● ●
4 GASKET; SURGE TANK 5-21489-006-0 01 1 0204- ●
10 CLIP; RUBBER HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 02 1 9606-9810 ● ●
10 CLIP; RUBBER HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 9811-0203 ● ●
10 CLIP; RUBBER HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0204- ●
10 CLIP; RUBBER HOSE
(D) L=140 		5-09707-031-0 01 1 9606-9810 ● ●
10 CLIP; RUBBER HOSE
(D) L=140 		5-09707-031-1 01 1 9811-0203 ● ●
10 CLIP; RUBBER HOSE
(D) L=140 		5-09707-031-1 01 1 0204- ●
10 CLIP; RUBBER HOSE
(A) ID=13 L=40 		9-09525-276-0 01 1 9606-9810 ● ●
10 CLIP; RUBBER HOSE
(A) ID=13 L=50 		9-09525-286-0 01 1 9811-0203 ● ●
10 CLIP; RUBBER HOSE
(A) ID=13 L=50 		9-09525-286-0 01 1 0204-0606 ●
10 CLIP; RUBBER HOSE
(A) ID=13 L=50 		0-95235-286-0 01 1 0607- ●
10 CLIP; RUBBER HOSE
(B) ID=14 L=44 		9-09917-427-0 01 1 9606-9810 ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 L=44 		9-09917-427-0 03 1 9811-0203 ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 L=44 		9-09917-427-0 03 1 0204- ●
12 HOSE; SURGE TANK
(A) 		1-21489-203-0 01 1 9901-0203 ● ●
12 HOSE; SURGE TANK
(A) 		1-21489-203-0 01 1 0204- ●
12 HOSE; SURGE TANK
(B) L=300 		1-09366-199-0 01 1 9606-9810 ● ●
12 HOSE; SURGE TANK
(B) L=300 		1-09366-199-0 01 1 9811-0203 ● ●
12 HOSE; SURGE TANK
(B) L=300 		1-09366-199-0 01 1 0204- ●
20 CLIP; HOSE,RAD
ID=12 		8-94238-610-0 04 1 9606-9810 ● ●
20 CLIP; HOSE,RAD
ID=12 		8-94238-610-0 04 1 9811-0203 ● ●
20 CLIP; HOSE,RAD
ID=12 		8-94238-610-0 04 1 0204- ●
23 BRACKET; RESERVE TANK 1-21489-128-0 01 1 9606-9810 ● ●
23 BRACKET; RESERVE TANK 1-21489-128-0 01 1 9811-0203 ● ●
23 BRACKET; RESERVE TANK 1-21489-128-0 01 1 0204- ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 03 1 9606-9810 ● ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 9811-0203 ● ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0204-0512 ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
55 HOSE; WATER,RAD OUTLET 1-21437-361-0 01 1 9606-9810 ● ●
55 HOSE; WATER,RAD OUTLET 1-21437-560-2 01 1 9811-0203 ● ●
55 HOSE; WATER,RAD OUTLET 1-21437-560-2 01 1 0204- ●
56 CLIP; WATER HOSE,RAD
(B) 		1-09700-842-1 01 1 9606-9810 ● ●
56 CLIP; WATER HOSE,RAD
(A) ID=63 		1-09704-067-0 04 1 9606-9810 ● ●
56 CLIP; WATER HOSE,RAD
(A) ID=63 		1-09704-067-0 04 1 9811-0203 ● ●
56 CLIP; WATER HOSE,RAD
(A) ID=63 		1-09704-067-0 04 1 0204- ●
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 9606-9810 ● ●
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 9811-0203 ● ●
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 0204-0707 ●
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 0708- ●
65 NUT; BRKT,SUB TANK
M8 		9-09110-408-0 04 1 9606-9810 ● ●
65 NUT; BRKT,SUB TANK
M8 FLANGE 		0-91150-108-0 04 1 9811-0203 ● ●
65 NUT; BRKT,SUB TANK
M8 FLANGE 		0-91150-108-0 04 1 0204-0602 ●
65 NUT; BRKT,SUB TANK
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
67 BOLT; BRKT
M10X20 FLANGE 		0-28681-020-0 02 1 9606-9810 ● ●
67 BOLT; BRKT
M10X20 FLANGE 		0-28681-020-0 02 1 9811-0203 ● ●
67 BOLT; BRKT
M10X20 FLANGE 		0-28681-020-0 02 1 0204-0512 ●
67 BOLT; BRKT
M10X20 FLANGE 		0-28651-020-0 02 1 0601- ●
128 HOSE; WATER,RAD INL 1-21437-356-0 01 1 9606-9810 ● ●
128 HOSE; WATER,RAD INL 1-21437-675-0 01 1 9811-0203 ● ●
128 HOSE; WATER,RAD INL 1-21437-675-0 01 1 0204-0707 ●
128 HOSE; WATER,RAD INL 1-21437-450-0 01 1 0708- ●
