Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#5931) — 312 parça

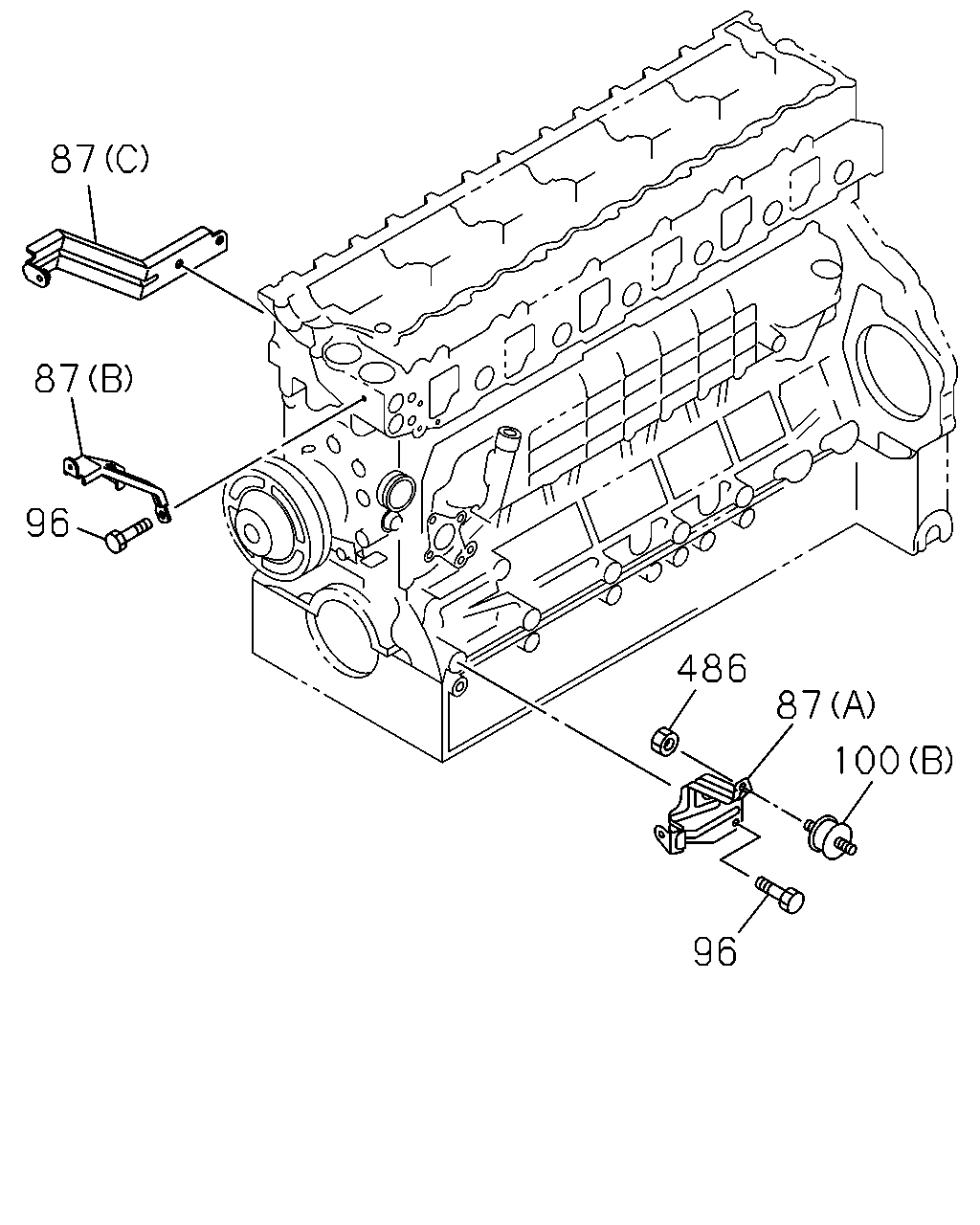

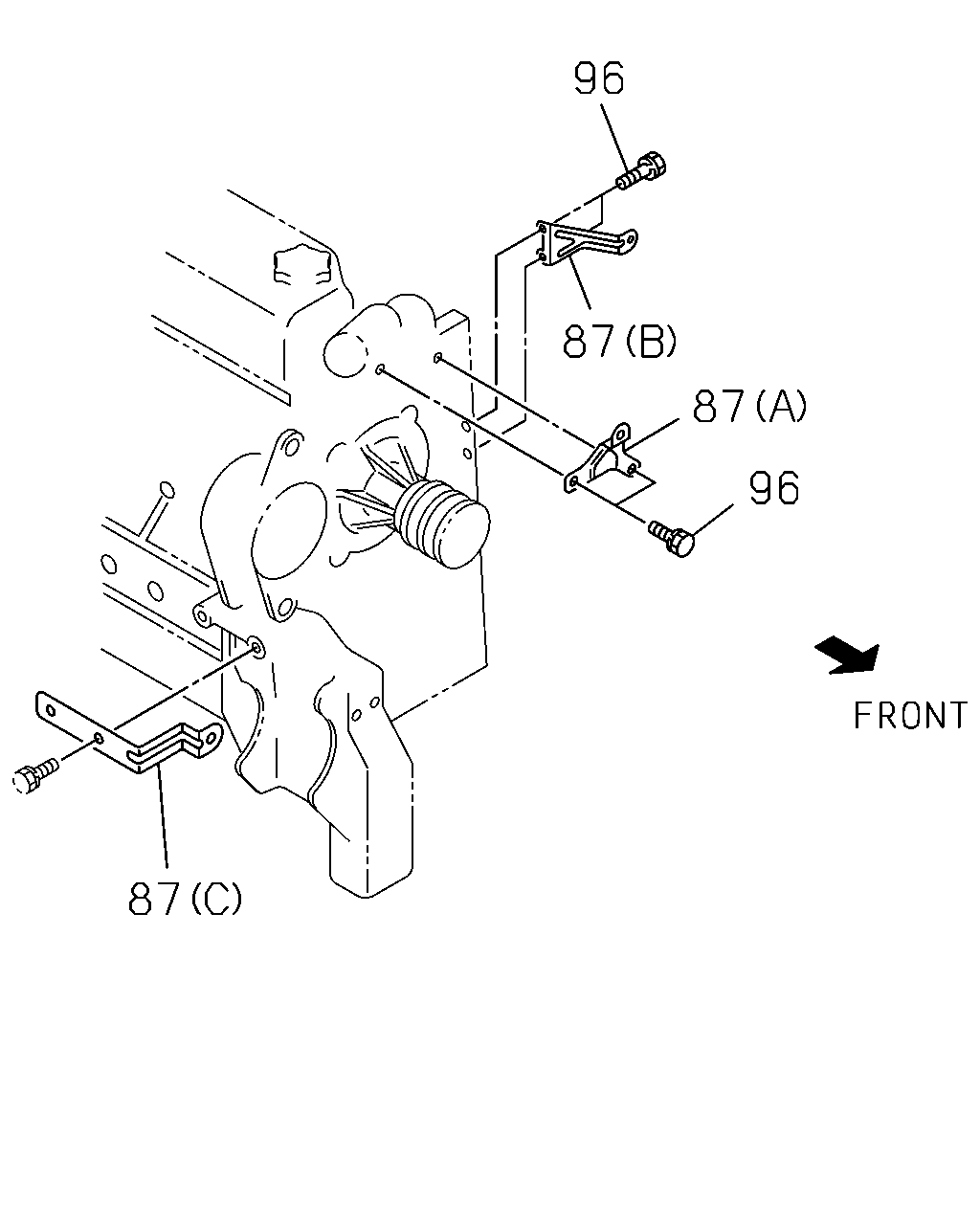

96 87 87 96 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	9606-9810	●	●
87	STAY; FAN GUIDE (C)	8-94393-119-2	01	1	9811-9902			●
87	STAY; FAN GUIDE (C)	8-94393-119-2	01	1	9903-0203			●	●
87	STAY; FAN GUIDE (C)	8-94393-119-2	01	1	0204-				●
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	9606-9810	●	●
87	STAY; FAN GUIDE (A)	8-94394-263-2	01	1	9811-9902			●
87	STAY; FAN GUIDE (A)	8-94394-263-2	01	1	9903-0203			●	●
87	STAY; FAN GUIDE (A)	8-94394-263-2	01	1	0204-				●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	9606-9810	●	●
87	STAY; FAN GUIDE (B)	8-94393-726-0	01	1	9811-9902			●
87	STAY; FAN GUIDE (B)	8-94393-726-0	01	1	9903-0203			●	●
87	STAY; FAN GUIDE (B)	8-94393-726-0	01	1	0204-				●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	9606-9810	●	●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	9811-9902			●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	9903-0203			●	●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	0204-0512				●
96	BOLT; STAY FIX M10X16 FLANGE	0-28151-016-0	02	1	0601-				●

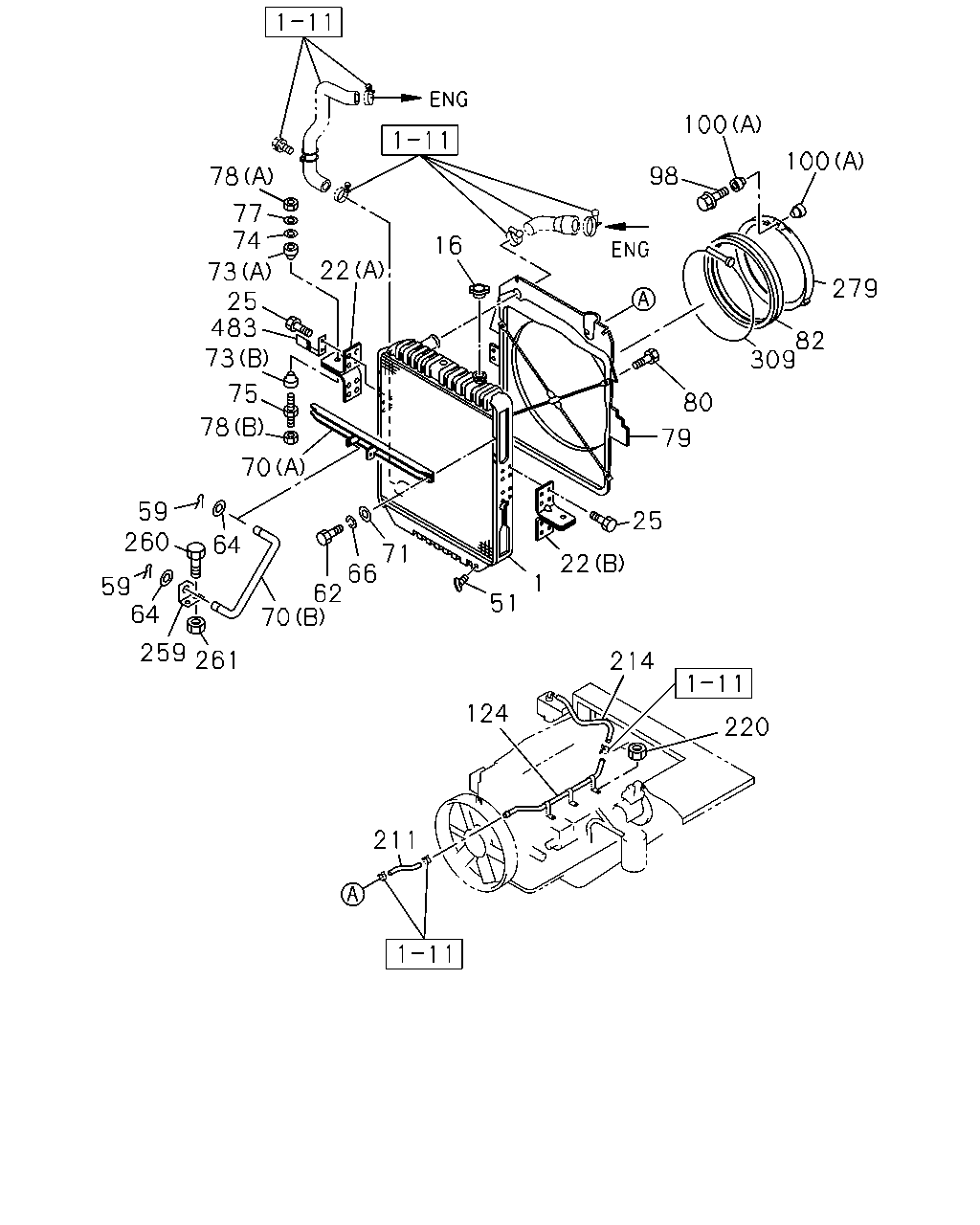

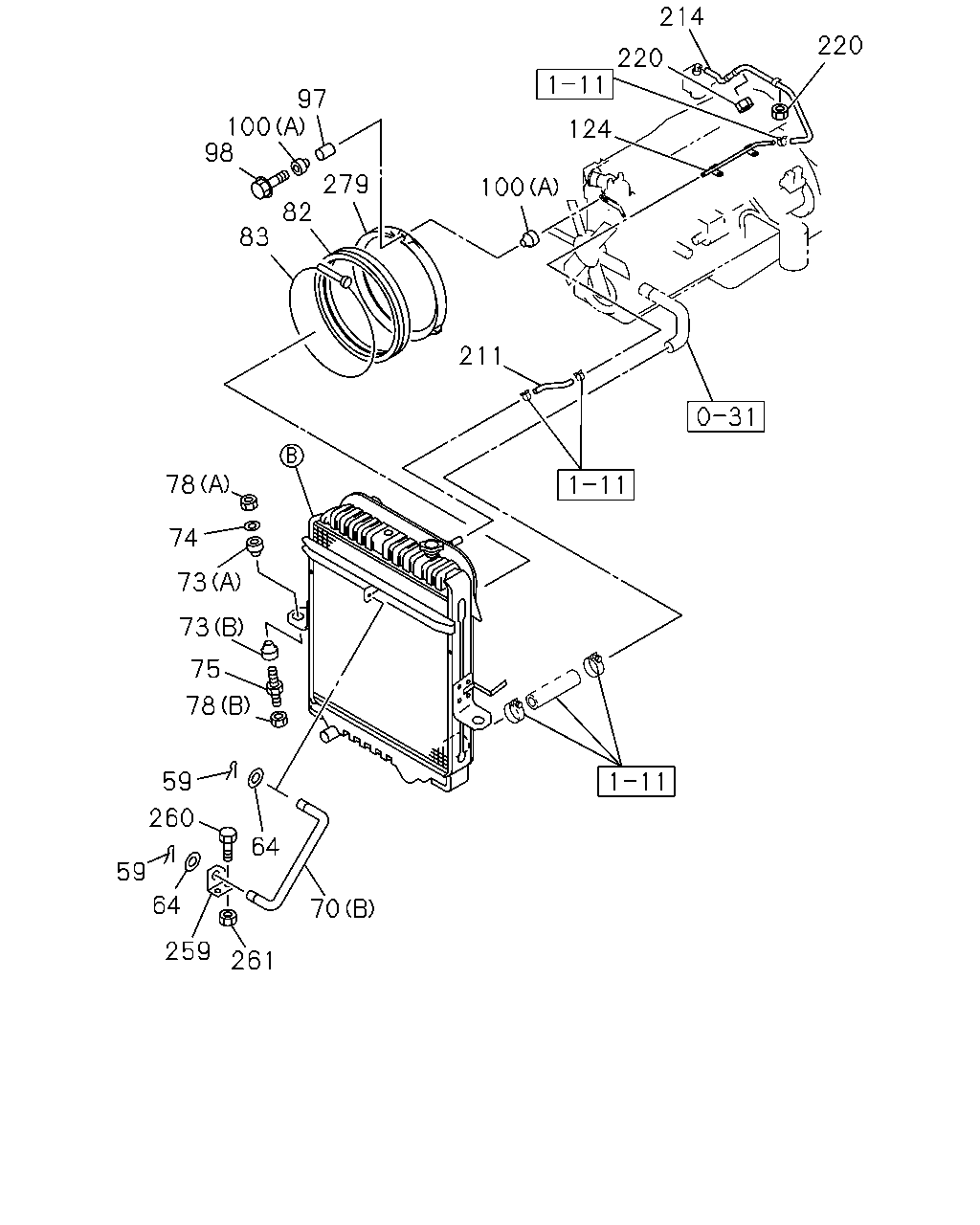

100 100 98 78 77 74 16 73 25 483 73 279 82 309 75 80 78 79 70 59 260 25 64 71 66 62 70 22 1 59 64 51 259 261 214 124 220 211 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM	1-21410-677-1	01	1	9606-9810	●	●
1	RADIATOR ASM	1-21410-675-1	01	1	9811-9902			●
1	RADIATOR ASM	1-21410-675-1	01	1	9903-0203			●	●
1	RADIATOR ASM	1-21410-675-1	01	1	0204-				●
16	CAP; RAD	1-21450-053-1	01	1	9606-9810	●	●
16	CAP; RAD	1-21450-053-1	01	1	9811-9902			●
16	CAP; RAD	1-21450-053-1	01	1	9903-0203			●	●
16	CAP; RAD	1-21450-053-2	01	1	0204-0311				●
16	CAP; RAD	1-21450-142-0	01	1	0312-				●
22	BRACKET; RAD MTG (A)	1-21464-131-2	01	1	9606-9810	●	●
22	BRACKET; RAD MTG (A)	1-21464-548-0	01	1	9811-9902			●
22	BRACKET; RAD MTG (A)	1-21464-548-0	01	1	9903-0203			●	●
22	BRACKET; RAD MTG (A)	1-21464-548-0	01	1	0204-				●
22	BRACKET; RAD MTG (B)	1-21464-130-2	01	1	9606-9810	●	●
22	BRACKET; RAD MTG (B)	1-21464-361-0	01	1	9811-9902			●
22	BRACKET; RAD MTG (B)	1-21464-361-0	01	1	9903-0203			●	●
22	BRACKET; RAD MTG (B)	1-21464-361-0	01	1	0204-				●
25	BOLT; BRKT M8X16 W/LK WASHER	9-01900-816-0	16	1	9606-9810	●	●
25	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	15	1	9811-9902			●
25	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	15	1	9903-0203			●	●
25	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	15	1	0204-				●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9811-9902			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9903-0203			●	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	0204-				●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9606-9810	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9811-9902			●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9903-0203			●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0204-				●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9606-9810	●	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9811-0203			●	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	0204-				●
62	BOLT; STAY M10X16	9-02041-016-0	02	1	9606-9810	●	●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	02	1	9811-9902			●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	02	1	9903-0203			●	●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	02	1	0204-				●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9606-9810	●	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9811-0203			●	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	0204-0605				●
64	WASHER; STAY TO RAD ID=12.5 OD=22	0-91610-512-0	02	1	0606-				●
66	WASHER; LK,STAY ID=10.2	9-09150-510-0	02	1	9606-9810	●	●
70	STAY; RAD (A)	1-21522-040-1	01	1	9606-9810	●	●
70	STAY; RAD (A)	1-21522-064-0	01	1	9811-9902			●
70	STAY; RAD (A)	1-21522-064-0	01	1	9903-0203			●	●
70	STAY; RAD (A)	1-21522-064-0	01	1	0204-				●
70	STAY; RAD (B)	1-21522-069-0	01	1	9606-9810	●	●
70	STAY; RAD (B)	1-21522-069-0	01	1	9811-0203			●	●
70	STAY; RAD (B)	1-21522-069-0	01	1	0204-				●
71	WASHER; PL,STAY ID=10.5 OD=22	9-09160-610-0	02	1	9606-9810	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9606-9810	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9811-0203			●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0204-				●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9606-9810	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9811-0203			●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0204-				●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	9606-9810	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	9811-0203			●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	0204-				●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-2	02	1	9606-9810	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-2	02	1	9811-0203			●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	04	1	0204-				●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9606-9810	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9606-9810	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9811-0203			●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	0204-				●
78	NUT; CUSHION RUBBER (B) M12	9-99110-512-0	02	1	9606-9810	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	9811-0203			●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	0204-0602				●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0603-				●
79	GUIDE; FAN,RAD	1-21551-341-2	01	1	9606-9810	●	●
79	GUIDE; FAN,RAD	1-21551-374-2	01	1	9811-9902			●
79	GUIDE; FAN,RAD	1-21551-374-2	01	1	9903-0203			●	●
79	GUIDE; FAN,RAD	1-21551-374-4	01	1	0204-				●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9606-9810	●	●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	9811-9902			●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	9903-0203			●	●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	0204-				●
82	COVER; FAN,RAD	1-21559-157-0	01	1	9606-9810	●	●
82	COVER; FAN,RAD	1-21559-211-0	01	1	9811-9902			●
82	COVER; FAN,RAD	1-21559-211-0	01	1	9903-0203			●	●
82	COVER; FAN,RAD	1-21559-211-0	01	1	0204-				●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28680-825-0	03	1	9606-9810	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9811-0203			●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	0204-0512				●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28650-830-0	03	1	0601-				●
100	RUBBER; MTG (A)	1-09337-027-0	06	1	9606-9606	●	●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	9607-9810	●	●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	9811-0203			●	●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	0204-				●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	9811-9902			●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	9903-0203			●	●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	0204-				●
124	PIPE; WATER,TANK TO RAD	8-94396-222-1	01	1	9606-9810	●	●
124	PIPE; WATER,TANK TO RAD	8-94394-422-0	01	1	9811-0203			●
124	PIPE; WATER,TANK TO RAD	8-94395-451-1	01	1	9903-				●
211	HOSE; RAD TO PIPE L=200 SERVICED BY L=3000	0-03257-300-0	01	1	9606-9810	●	●
211	HOSE; RAD TO PIPE L=430 SERVICED BY L=3000	0-03257-300-0	01	1	9811-9902			●
211	HOSE; RAD TO PIPE L=430 SERVICED BY L=3000	0-03257-300-0	01	1	9903-0103			●	●
211	HOSE; RAD TO PIPE L=430 SERVICED BY L=3000	0-03557-300-0	01	1	0104-0203			●	●
211	HOSE; RAD TO PIPE L=430 SERVICED BY L=3000	0-03557-300-0	01	1	0204-				●
214	HOSE; PIPE TO RESERVE TANK L=1050 SERVICED BY L=3000	0-03257-300-0	01	1	9606-9810	●	●
214	HOSE; PIPE TO RESERVE TANK L=1350 SERVICED BY L=3000	0-03257-300-0	01	1	9811-9902			●
214	HOSE; PIPE TO RESERVE TANK L=1350 SERVICED BY L=3000	0-03257-300-0	01	1	9903-0103			●	●
214	HOSE; PIPE TO RESERVE TANK L=1350 SERVICED BY L=3000	0-03557-300-0	01	1	0104-0203			●	●
214	HOSE; PIPE TO RESERVE TANK L=1350 SERVICED BY L=3000	0-03557-300-0	01	1	0204-				●
220	NUT; CLIP M8	9-09110-408-0	03	1	9606-9810	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9811-9902			●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9811-9902			●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9903-0203			●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9903-0203			●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0204-0602				●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0204-0602				●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-				●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-				●
259	BRACKET; RAD STAY	1-21523-024-0	01	1	9606-9810	●	●
259	BRACKET; RAD STAY	1-21523-024-0	01	1	9811-0203			●	●
259	BRACKET; RAD STAY	1-21523-024-0	01	1	0204-				●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9606-9810	●	●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9811-0203			●	●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0204-0512				●
260	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
261	NUT; BRKT M8	9-09110-408-0	02	1	9606-9810	●	●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0203			●	●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0204-0602				●
261	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-				●
279	BELL MOUTH	8-94397-008-1	01	1	9606-9810	●	●
279	BELL MOUTH	8-94394-174-1	01	1	9811-9902			●
279	BELL MOUTH	8-94394-174-1	01	1	9903-0203			●	●
279	BELL MOUTH	8-94394-174-1	01	1	0204-				●
309	WIRE; FAN COVER	1-09704-088-0	01	1	9606-9810	●	●
483	BRACKET; SEAL	1-21559-343-0	01	1	9606-9810	●	●

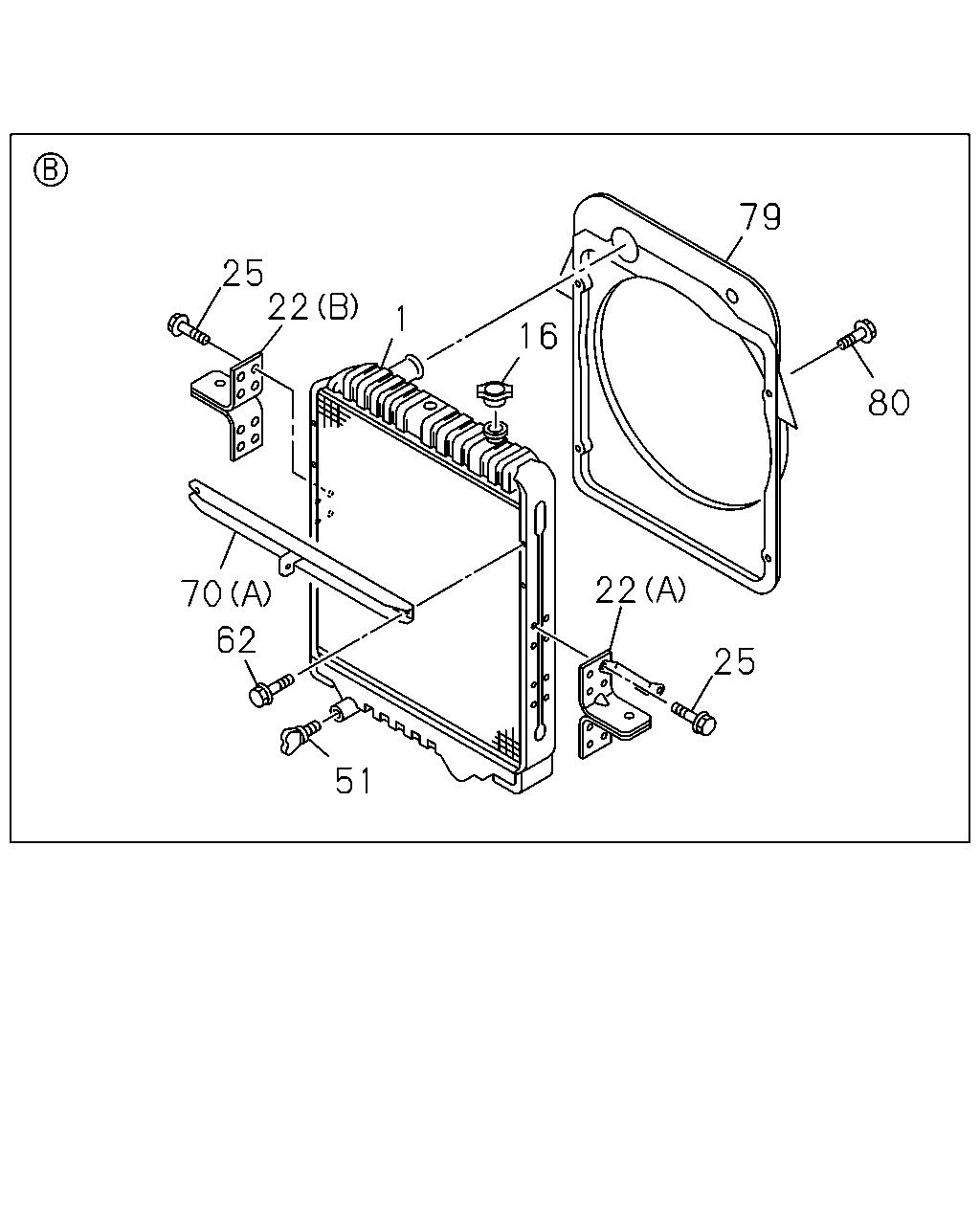

79 25 22 1 16 80 22 70 62 25 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM	1-21410-677-1	01	1	9606-9810	●	●
1	RADIATOR ASM	1-21410-675-1	01	1	9811-9902			●
1	RADIATOR ASM	1-21410-675-1	01	1	9903-0203			●	●
1	RADIATOR ASM	1-21410-675-1	01	1	0204-				●
16	CAP; RAD	1-21450-053-1	01	1	9606-9810	●	●
16	CAP; RAD	1-21450-053-1	01	1	9811-9902			●
16	CAP; RAD	1-21450-053-1	01	1	9903-0203			●	●
16	CAP; RAD	1-21450-053-2	01	1	0204-0311				●
16	CAP; RAD	1-21450-142-0	01	1	0312-				●
22	BRACKET; RAD MTG (A)	1-21464-131-2	01	1	9606-9810	●	●
22	BRACKET; RAD MTG (A)	1-21464-548-0	01	1	9811-9902			●
22	BRACKET; RAD MTG (A)	1-21464-548-0	01	1	9903-0203			●	●
22	BRACKET; RAD MTG (A)	1-21464-548-0	01	1	0204-				●
22	BRACKET; RAD MTG (B)	1-21464-130-2	01	1	9606-9810	●	●
22	BRACKET; RAD MTG (B)	1-21464-361-0	01	1	9811-9902			●
22	BRACKET; RAD MTG (B)	1-21464-361-0	01	1	9903-0203			●	●
22	BRACKET; RAD MTG (B)	1-21464-361-0	01	1	0204-				●
25	BOLT; BRKT M8X16 W/LK WASHER	9-01900-816-0	16	1	9606-9810	●	●
25	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	15	1	9811-9902			●
25	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	15	1	9903-0203			●	●
25	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	15	1	0204-				●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9811-9902			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9903-0203			●	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	0204-				●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9606-9810	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9811-9902			●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9903-0203			●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0204-				●
62	BOLT; STAY M10X16	9-02041-016-0	02	1	9606-9810	●	●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	02	1	9811-9902			●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	02	1	9903-0203			●	●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	02	1	0204-				●
70	STAY; RAD (A)	1-21522-040-1	01	1	9606-9810	●	●
70	STAY; RAD (A)	1-21522-064-0	01	1	9811-9902			●
70	STAY; RAD (A)	1-21522-064-0	01	1	9903-0203			●	●
70	STAY; RAD (A)	1-21522-064-0	01	1	0204-				●
70	STAY; RAD (B)	1-21522-069-0	01	1	9606-9810	●	●
70	STAY; RAD (B)	1-21522-069-0	01	1	9811-0203			●	●
70	STAY; RAD (B)	1-21522-069-0	01	1	0204-				●
79	GUIDE; FAN,RAD	1-21551-341-2	01	1	9606-9810	●	●
79	GUIDE; FAN,RAD	1-21551-374-2	01	1	9811-9902			●
79	GUIDE; FAN,RAD	1-21551-374-2	01	1	9903-0203			●	●
79	GUIDE; FAN,RAD	1-21551-374-4	01	1	0204-				●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9606-9810	●	●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	9811-9902			●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	9903-0203			●	●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	0204-				●

214 220 220 97 100 98 124 279 82 100 83 211 78 74 73 73 75 78 59 260 64 59 64 70 259 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9606-9810	●	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9811-0203			●	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	0204-				●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9606-9810	●	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9811-0203			●	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	0204-0605				●
64	WASHER; STAY TO RAD ID=12.5 OD=22	0-91610-512-0	02	1	0606-				●
70	STAY; RAD (A)	1-21522-040-1	01	1	9606-9810	●	●
70	STAY; RAD (A)	1-21522-064-0	01	1	9811-9902			●
70	STAY; RAD (A)	1-21522-064-0	01	1	9903-0203			●	●
70	STAY; RAD (A)	1-21522-064-0	01	1	0204-				●
70	STAY; RAD (B)	1-21522-069-0	01	1	9606-9810	●	●
70	STAY; RAD (B)	1-21522-069-0	01	1	9811-0203			●	●
70	STAY; RAD (B)	1-21522-069-0	01	1	0204-				●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9606-9810	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9811-0203			●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0204-				●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9606-9810	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9811-0203			●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0204-				●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	9606-9810	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	9811-0203			●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	0204-				●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-2	02	1	9606-9810	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-2	02	1	9811-0203			●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	04	1	0204-				●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9606-9810	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9811-0203			●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	0204-				●
78	NUT; CUSHION RUBBER (B) M12	9-99110-512-0	02	1	9606-9810	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	9811-0203			●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	0204-0602				●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0603-				●
82	COVER; FAN,RAD	1-21559-157-0	01	1	9606-9810	●	●
82	COVER; FAN,RAD	1-21559-211-0	01	1	9811-9902			●
82	COVER; FAN,RAD	1-21559-211-0	01	1	9903-0203			●	●
82	COVER; FAN,RAD	1-21559-211-0	01	1	0204-				●
83	CLIP; FAN COVER	1-09707-177-2	01	1	9811-0203			●	●
83	CLIP; FAN COVER	1-09707-177-2	01	1	0204-				●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	9607-9810	●	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	9811-0203			●	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	0204-				●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28680-825-0	03	1	9606-9810	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9811-0203			●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	0204-0512				●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28650-830-0	03	1	0601-				●
100	RUBBER; MTG (A)	1-09337-027-0	06	1	9606-9606	●	●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	9607-9810	●	●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	9811-0203			●	●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	0204-				●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	9811-9902			●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	9903-0203			●	●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	0204-				●
124	PIPE; WATER,TANK TO RAD	8-94396-222-1	01	1	9606-9810	●	●
124	PIPE; WATER,TANK TO RAD	8-94394-422-0	01	1	9811-0203			●
124	PIPE; WATER,TANK TO RAD	8-94395-451-1	01	1	9903-				●
211	HOSE; RAD TO PIPE L=200 SERVICED BY L=3000	0-03257-300-0	01	1	9606-9810	●	●
211	HOSE; RAD TO PIPE L=430 SERVICED BY L=3000	0-03257-300-0	01	1	9811-9902			●
211	HOSE; RAD TO PIPE L=430 SERVICED BY L=3000	0-03257-300-0	01	1	9903-0103			●	●
211	HOSE; RAD TO PIPE L=430 SERVICED BY L=3000	0-03557-300-0	01	1	0104-0203			●	●
211	HOSE; RAD TO PIPE L=430 SERVICED BY L=3000	0-03557-300-0	01	1	0204-				●
214	HOSE; PIPE TO RESERVE TANK L=1050 SERVICED BY L=3000	0-03257-300-0	01	1	9606-9810	●	●
214	HOSE; PIPE TO RESERVE TANK L=1350 SERVICED BY L=3000	0-03257-300-0	01	1	9811-9902			●
214	HOSE; PIPE TO RESERVE TANK L=1350 SERVICED BY L=3000	0-03257-300-0	01	1	9903-0103			●	●
214	HOSE; PIPE TO RESERVE TANK L=1350 SERVICED BY L=3000	0-03557-300-0	01	1	0104-0203			●	●
214	HOSE; PIPE TO RESERVE TANK L=1350 SERVICED BY L=3000	0-03557-300-0	01	1	0204-				●
220	NUT; CLIP M8	9-09110-408-0	03	1	9606-9810	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9811-9902			●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9811-9902			●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9903-0203			●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9903-0203			●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0204-0602				●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0204-0602				●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-				●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-				●
259	BRACKET; RAD STAY	1-21523-024-0	01	1	9606-9810	●	●
259	BRACKET; RAD STAY	1-21523-024-0	01	1	9811-0203			●	●
259	BRACKET; RAD STAY	1-21523-024-0	01	1	0204-				●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9606-9810	●	●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9811-0203			●	●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0204-0512				●
260	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
261	NUT; BRKT M8	9-09110-408-0	02	1	9606-9810	●	●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0203			●	●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0204-0602				●
261	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-				●
279	BELL MOUTH	8-94397-008-1	01	1	9606-9810	●	●
279	BELL MOUTH	8-94394-174-1	01	1	9811-9902			●
279	BELL MOUTH	8-94394-174-1	01	1	9903-0203			●	●
279	BELL MOUTH	8-94394-174-1	01	1	0204-				●

87 87 96 486 87 100 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	9606-9810	●	●
87	STAY; FAN GUIDE (C)	8-94393-119-2	01	1	9811-9902			●
87	STAY; FAN GUIDE (C)	8-94393-119-2	01	1	9903-0203			●	●
87	STAY; FAN GUIDE (C)	8-94393-119-2	01	1	0204-				●
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	9606-9810	●	●
87	STAY; FAN GUIDE (A)	8-94394-263-2	01	1	9811-9902			●
87	STAY; FAN GUIDE (A)	8-94394-263-2	01	1	9903-0203			●	●
87	STAY; FAN GUIDE (A)	8-94394-263-2	01	1	0204-				●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	9606-9810	●	●
87	STAY; FAN GUIDE (B)	8-94393-726-0	01	1	9811-9902			●
87	STAY; FAN GUIDE (B)	8-94393-726-0	01	1	9903-0203			●	●
87	STAY; FAN GUIDE (B)	8-94393-726-0	01	1	0204-				●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	9606-9810	●	●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	9811-9902			●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	9903-0203			●	●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	0204-0512				●
96	BOLT; STAY FIX M10X16 FLANGE	0-28151-016-0	02	1	0601-				●
100	RUBBER; MTG (A)	1-09337-027-0	06	1	9606-9606	●	●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	9607-9810	●	●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	9811-0203			●	●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	0204-				●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	9811-9902			●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	9903-0203			●	●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	0204-				●
486	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	9811-9902			●
486	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	9903-0203			●	●
486	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	0204-0602				●
486	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	0603-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
