Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#5930) — 385 parça

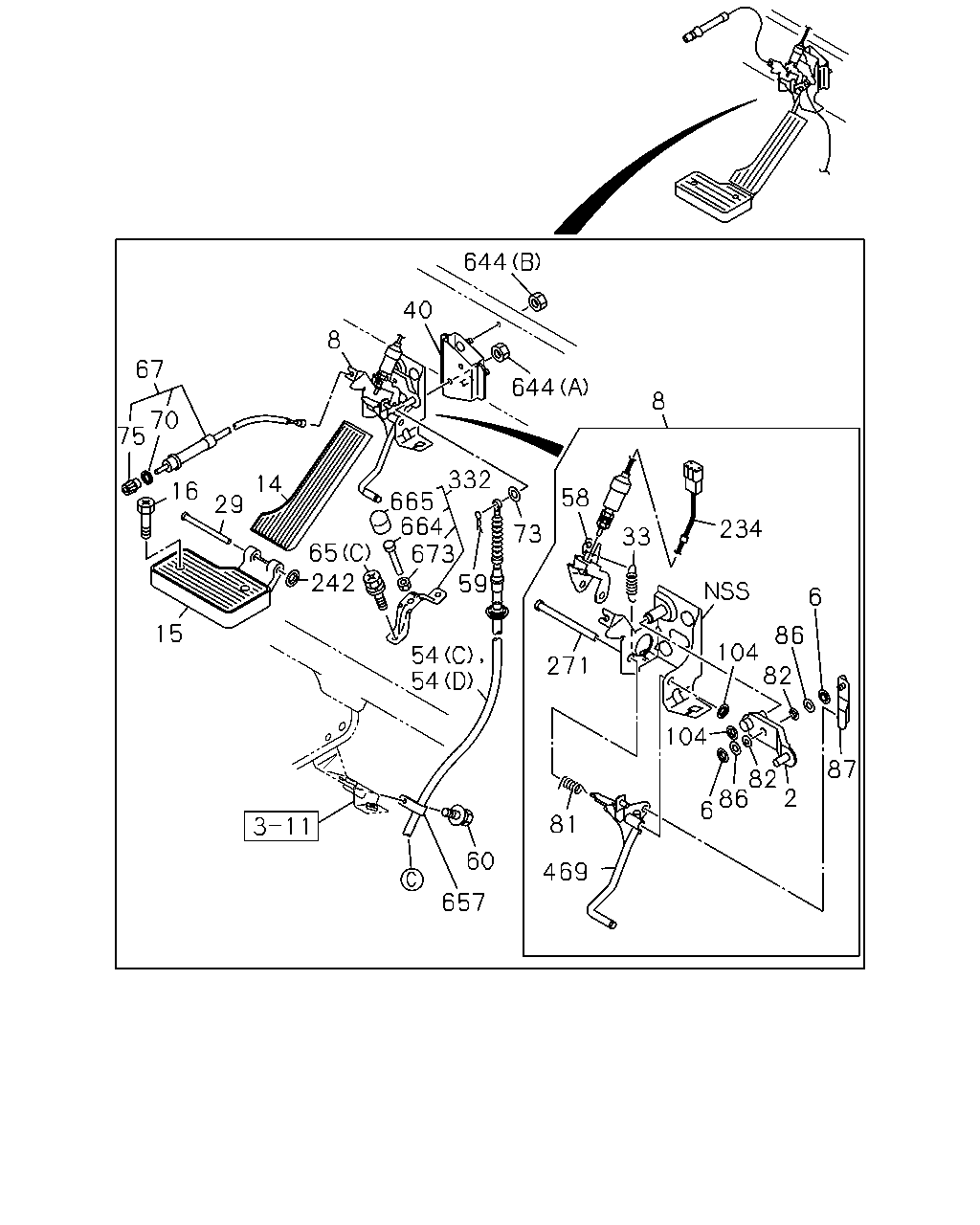

644 40 8 67 644 8 70 75 332 14 16 58 665 664 673 59 29 234 73 33 6 242 54 54 6 15 86 104 82 271 104 87 82 6 81 60 469 657 2 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT	1-73998-716-1	01	1	9606-9810	●	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9811-0203			●	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	0204-				●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	9811-0203			●	●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	0204-0604				●
6	RING; SNAP,LINK TO LINK ID=4	0-91805-504-0	02	1	0605-				●
8	LINK ASM; ENG CONT	1-23240-075-1	01	1	9606-9810	●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9811-0203			●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	0204-				●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9811-0203			●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0204-				●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9811-0203			●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0204-				●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9811-9812			●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9901-0203			●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0204-				●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9811-0203			●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0204-				●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9811-0203			●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	0204-				●
40	BRACKET; ENG CONT CABLE	1-71907-269-0	01	1	9811-			●	●
54	CABLE; ENG CONT HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=2551	1-23210-977-2	01	1	9610-9810	●
54	CABLE; ENG CONT (C) L=1659	1-73996-294-9	01	1	9811-0102			●
54	CABLE; ENG CONT (C) L=1659	1-73996-483-0	01	1	0103-0203			●
54	CABLE; ENG CONT HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=320	1-73998-772-0	01	1	9610-9810	●
54	CABLE; ENG CONT (A) L=1570	1-23230-032-0	01	1	9606-9609	●	●
54	CABLE; ENG CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=1570	1-23230-032-0	01	1	9610-9810	●	●
54	CABLE; ENG CONT (B) L=252	1-73998-543-1	01	1	9606-9609	●	●
54	CABLE; ENG CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=252	1-73998-543-1	01	1	9610-9810	●	●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> (D) L=1706.5	1-73908-297-5	01	1	9903-				●
58	LEVER; IDLING CONT	1-73997-781-2	01	1	9606-9810	●	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9811-0203			●	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	0204-				●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9811-0203			●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	0204-				●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9606-9810	●	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9811-0203			●	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0204-				●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9811-0203			●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	0204-0204				●
67	CABLE ASM; IDLE CONT L=315	1-73908-423-0	01	1	0205-				●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9811-0203			●	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	0204-				●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9811-0203			●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	0204-0605				●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-				●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9811-0109			●	●
75	KNOB ASM; IDLING CONT	8-97137-504-0	01	1	0110-0203			●	●
75	KNOB ASM; IDLING CONT	8-97137-504-0	01	1	0204-0204				●
75	KNOB ASM; IDLING CONT	1-73908-409-0	01	1	0205-				●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9811-0203			●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0204-				●
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	9606-9810	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9811-0203			●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	0204-				●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9811-0203			●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0204-				●
87	LINK; ENG CONT	1-71907-211-1	01	1	9811-0203			●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	0204-				●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9811-0203			●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	0204-				●
234	SWITCH; ACCEL	1-82380-114-2	01	1	9811-0203			●	●
234	SWITCH; ACCEL	1-82380-114-3	01	1	0204-				●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9811-0203			●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0204-				●
271	SHAFT; ENG CONT	1-09987-081-0	01	1	9606-9810	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9811-0203			●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0204-				●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9811-0203			●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0204-				●
469	LEVER ASM	1-71907-209-5	01	1	9811-0203			●	●
469	LEVER ASM	1-71907-209-5	01	1	0204-				●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91150-108-0	02	1	9811-0602			●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91180-108-0	02	1	0603-			●	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9811-			●	●
657	CLIP; ENG CONT CABLE D=18 H=30	1-09701-028-0	01	1	9811-			●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9811-0203			●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0204-				●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9811-0203			●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0204-				●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9811-0203			●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0204-0512				●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-				●

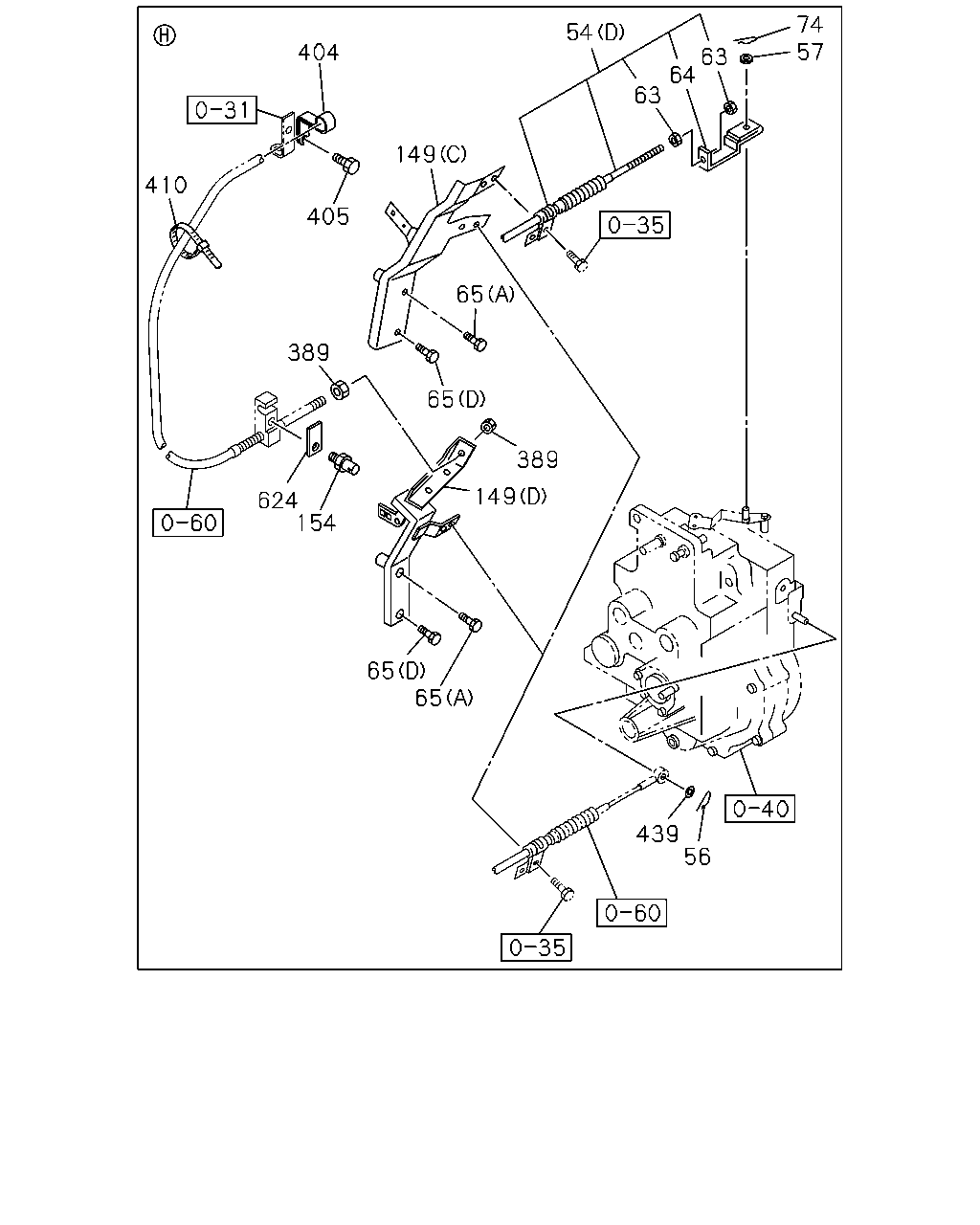

74 57 54 404 63 64 63 149 410 405 65 389 65 389 149 624 154 65 65 439 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	CABLE; ENG CONT HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=2551	1-23210-977-2	01	1	9610-9810	●
54	CABLE; ENG CONT (C) L=1659	1-73996-294-9	01	1	9811-0102			●
54	CABLE; ENG CONT (C) L=1659	1-73996-483-0	01	1	0103-0203			●
54	CABLE; ENG CONT HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=320	1-73998-772-0	01	1	9610-9810	●
54	CABLE; ENG CONT (A) L=1570	1-23230-032-0	01	1	9606-9609	●	●
54	CABLE; ENG CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=1570	1-23230-032-0	01	1	9610-9810	●	●
54	CABLE; ENG CONT (B) L=252	1-73998-543-1	01	1	9606-9609	●	●
54	CABLE; ENG CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=252	1-73998-543-1	01	1	9610-9810	●	●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> (D) L=1706.5	1-73908-297-5	01	1	9903-				●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9606-9810	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9811-0203			●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0204-				●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9606-9810	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9811-0203			●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	0204-0605				●
57	WASHER; ENG CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-				●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9606-9810	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9811-9902			●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9903-0203			●	●
63	NUT; LOCK,BRKT EURO2 SPECIFICATION<THN> M8	9-09111-408-0	02	1	0204-				●
64	BRACKET; ENG CONT CABLE HEAVY DUTY PACKAGE TRUCK<RD2>	1-23219-105-1	01	1	9610-9810	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9811-9902			●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9903-0203			●	●
64	BRACKET; ENG CONT CABLE EURO2 SPECIFICATION<THN>	1-23219-105-1	01	1	0204-				●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9606-9609	●	●
64	BRACKET; ENG CONT CABLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-09768-018-1	01	1	9610-9810	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9606-9810	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9811-9902			●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9903-0203			●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0204-0512				●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-				●
65	BOLT (A) M10X20 FLANGE	0-28181-020-0	01	1	9606-9810	●	●
65	BOLT (D) M10X20 FLANGE	0-28181-020-0	01	1	9811-9902			●
65	BOLT (D) M10X20 FLANGE	0-28181-020-0	01	1	9903-0203			●	●
65	BOLT (D) M10X20 FLANGE	0-28181-020-0	01	1	0204-0512				●
65	BOLT (D) M10X20 FLANGE	0-28151-020-0	01	1	0601-				●
65	BOLT (B) M6X16 FLANGE	0-28680-616-0	01	1	9606-9810	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0203			●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0204-				●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	9606-9810	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	9811-0203			●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	0204-				●
149	BRACKET; ENG CONT (A)	8-94394-516-5	01	1	9606-9810	●	●
149	BRACKET; ENG CONT (B)	8-94390-006-2	01	1	9811-0203			●
149	BRACKET; ENG CONT (C)	8-94394-532-1	01	1	9903-9905				●
149	BRACKET; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (C)	8-94394-532-1	01	1	9906-0203				●
149	BRACKET; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (C)	8-94394-532-1	01	1	0204-			●	●
149	BRACKET; ENG CONT SPEED LIMITER CABLE STROKE CONTROL<TDT> (D)	8-94392-784-0	01	1	9906-				●
154	BOLT; CABLE BRKT SPEED LIMITER CABLE STROKE CONTROL<TDT>	9-23321-272-0	01	1	9906-				●
389	NUT; ACCEL CONT CABLE FIX SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE	0-91150-106-0	02	1	9906-0602				●
389	NUT; ACCEL CONT CABLE FIX SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE	0-91180-106-0	02	1	0603-				●
404	CLIP; CABLE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=18 L=25 H=50	1-09701-096-0	01	1	9906-				●
405	BOLT; CABLE CLIP SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE	0-28080-816-0	01	1	9906-0512				●
405	BOLT; CABLE CLIP SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE	0-28050-816-0	01	1	0601-				●
410	CLIP; BAND SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN>	1-09707-187-0	03	1	9906-0203				●
410	CLIP; BAND SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-09707-187-0	03	1	0204-				●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9606-9810	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9811-0203			●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0204-0605				●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-				●
624	PLATE; CONT LINK SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-47477-576-0	01	1	9906-				●

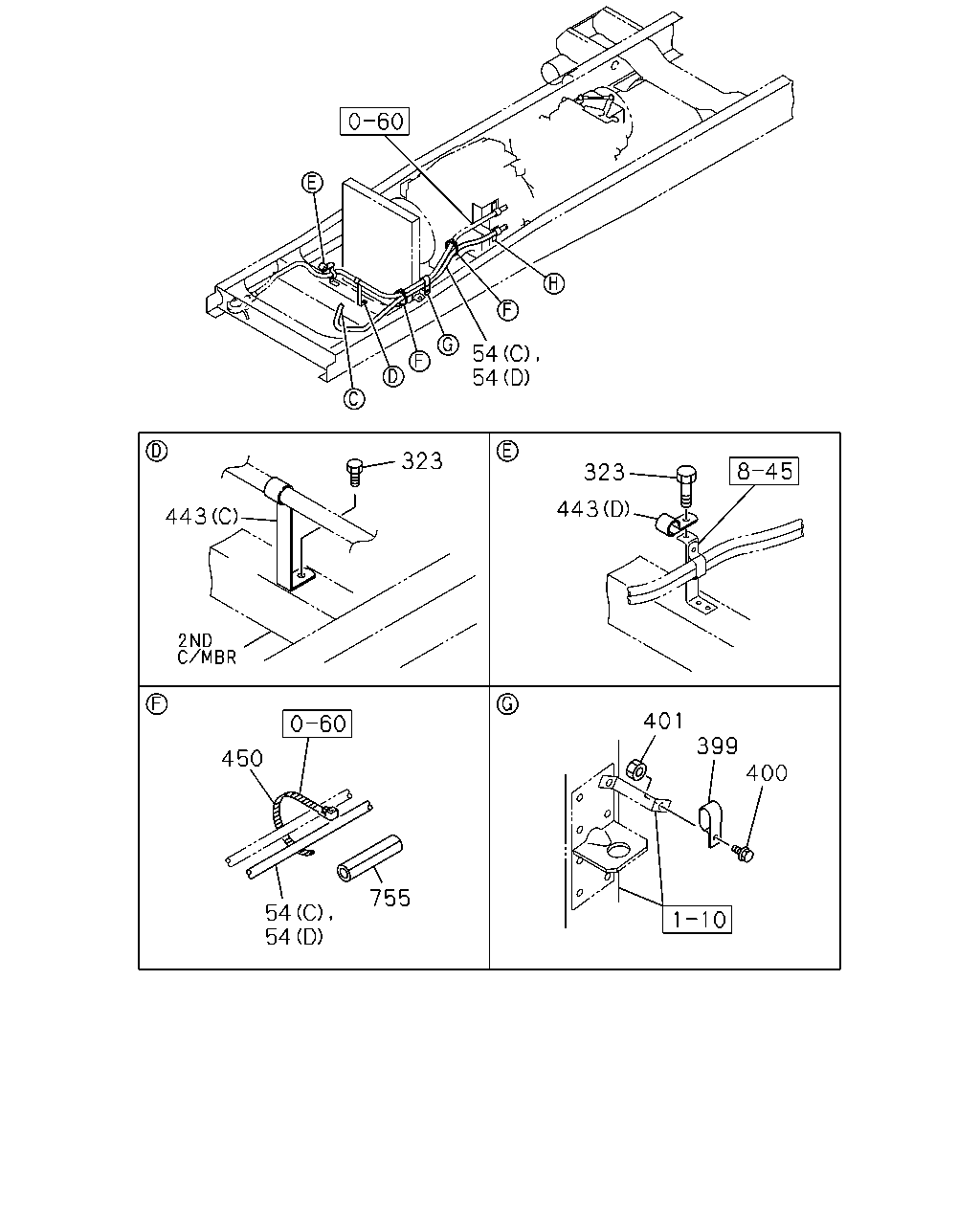

54 54 323 323 443 443 401 399 400 450 755 54 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	CABLE; ENG CONT HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=2551	1-23210-977-2	01	1	9610-9810	●
54	CABLE; ENG CONT (C) L=1659	1-73996-294-9	01	1	9811-0102			●
54	CABLE; ENG CONT (C) L=1659	1-73996-483-0	01	1	0103-0203			●
54	CABLE; ENG CONT HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=320	1-73998-772-0	01	1	9610-9810	●
54	CABLE; ENG CONT (A) L=1570	1-23230-032-0	01	1	9606-9609	●	●
54	CABLE; ENG CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=1570	1-23230-032-0	01	1	9610-9810	●	●
54	CABLE; ENG CONT (B) L=252	1-73998-543-1	01	1	9606-9609	●	●
54	CABLE; ENG CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=252	1-73998-543-1	01	1	9610-9810	●	●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> (D) L=1706.5	1-73908-297-5	01	1	9903-				●
323	BOLT; CLIP AUTO ENG SHUTOFF(KB6) M8X16 FLANGE	0-28080-816-0	01	1	9606-9810	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9811-0512	●	●	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9811-0512	●	●	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●
399	CLIP; CABLE,RAD SIDE ID=9X2 L=16	9-09534-825-0	01	1	9606-9810	●	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	9811-0203			●	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	0204-				●
400	BOLT; CLIP,RAD SIDE M8X12 FLANGE	0-28080-812-0	01	1	9606-9810	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	9811-0203			●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	0204-0512				●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28050-816-0	01	1	0601-				●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91150-108-0	01	1	9811-0203			●	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91150-108-0	01	1	0204-0602				●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91180-108-0	01	1	0603-				●
443	CLIP; CABLE (A) ID=7 L=16	9-09524-622-0	01	1	9606-9810	●	●
443	CLIP; CABLE (D) ID=7 L=20	9-09524-635-0	01	1	9811-0203			●	●
443	CLIP; CABLE (D) ID=7 L=20	9-09524-635-0	01	1	0204-0606				●
443	CLIP; CABLE (D) ID=7 L=20	0-95234-635-0	01	1	0607-			●	●
443	CLIP; CABLE AUTO ENG SHUTOFF(KB6) (B) ID=9 L=25 H=45	1-09700-867-0	01	1	9606-9810	●	●
443	CLIP; CABLE (C)	8-94107-647-0	01	1	9811-			●	●
443	CLIP; CABLE EXC. AUTO ENG SHUTOFF(KB6) (A) ID=7X2 L=16	9-09534-622-0	01	1	9606-9810	●	●
450	CLIP; BAND L=140	5-09707-031-0	01	1	9606-9810	●	●	●	●
450	CLIP; BAND EXC. AUTO ENG SHUTOFF(KB6) L=140	5-09707-031-0	01	1	9606-9810	●	●	●	●
450	CLIP; BAND L=140	5-09707-031-1	02	1	9811-0203			●	●
450	CLIP; BAND L=140	5-09707-031-1	02	1	0204-				●
755	SLEEVE; RUBBER,CABLE SPEED LIMITER CABLE STROKE CONTROL<TDT> EURO2 SPECIFICATION<THN> ID=29 OD=39 L=40	1-09337-013-0	02	1	9906-0203				●
755	SLEEVE; RUBBER,CABLE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=29 OD=39 L=40	1-09337-013-0	02	1	0204-				●

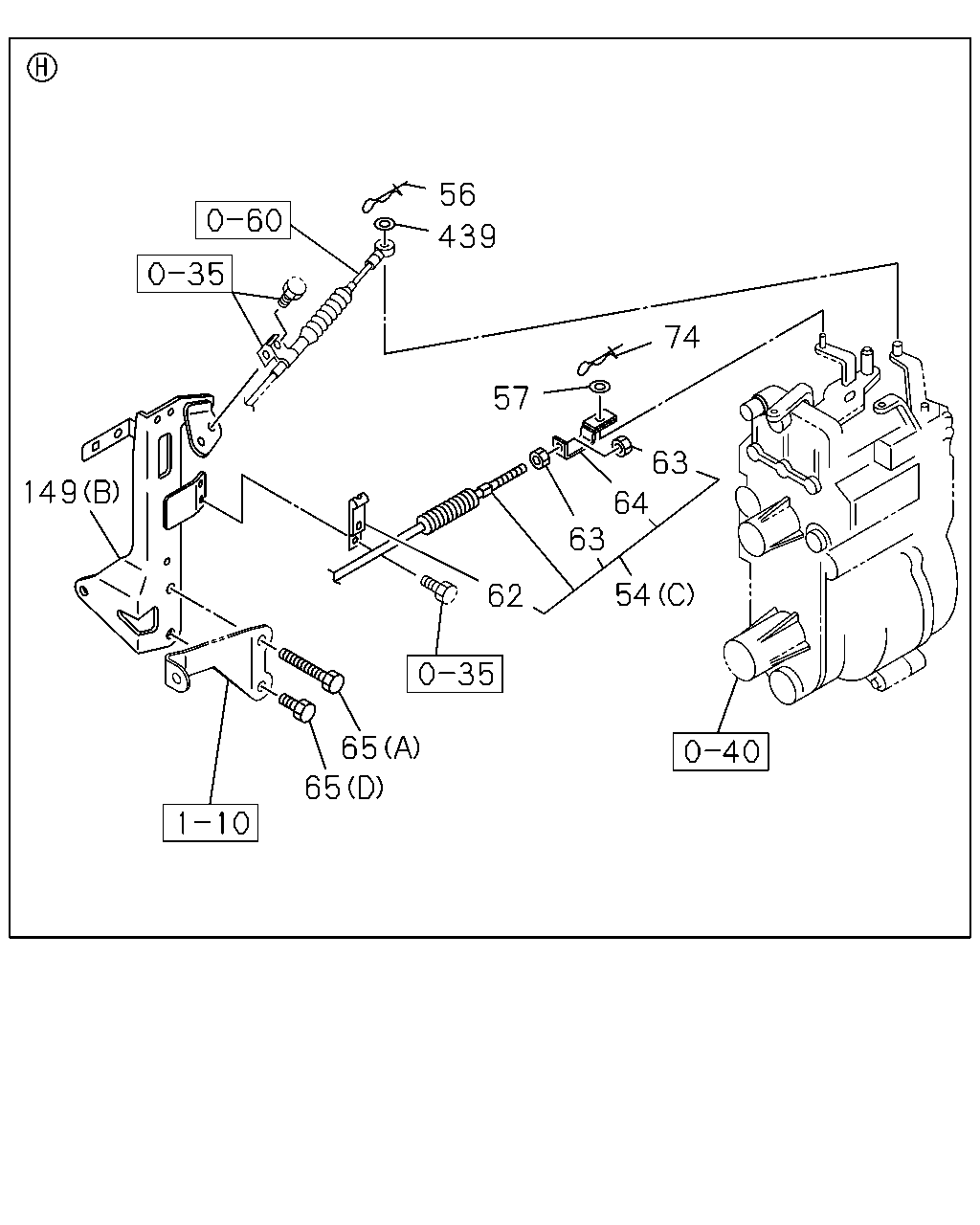

56 439 74 57 63 149 64 63 54 62 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	CABLE; ENG CONT HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=2551	1-23210-977-2	01	1	9610-9810	●
54	CABLE; ENG CONT (C) L=1659	1-73996-294-9	01	1	9811-0102			●
54	CABLE; ENG CONT (C) L=1659	1-73996-483-0	01	1	0103-0203			●
54	CABLE; ENG CONT HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=320	1-73998-772-0	01	1	9610-9810	●
54	CABLE; ENG CONT (A) L=1570	1-23230-032-0	01	1	9606-9609	●	●
54	CABLE; ENG CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=1570	1-23230-032-0	01	1	9610-9810	●	●
54	CABLE; ENG CONT (B) L=252	1-73998-543-1	01	1	9606-9609	●	●
54	CABLE; ENG CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=252	1-73998-543-1	01	1	9610-9810	●	●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> (D) L=1706.5	1-73908-297-5	01	1	9903-				●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9606-9810	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9811-0203			●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0204-				●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9606-9810	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9811-0203			●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	0204-0605				●
57	WASHER; ENG CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-				●
62	CLIP; ENG CONT CABLE HEAVY DUTY PACKAGE TRUCK<RD2> L=30	1-09700-326-0	01	1	9610-9810	●
62	CLIP; ENG CONT CABLE	8-94397-228-0	01	1	9811-9902			●
62	CLIP; ENG CONT CABLE	8-94397-228-0	01	1	9903-9908			●	●
62	CLIP; ENG CONT CABLE	1-23219-097-0	01	1	9606-9609	●	●
62	CLIP; ENG CONT CABLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-23219-097-0	01	1	9610-9810	●	●
62	CLIP; ENG CONT CABLE L=30	1-09701-104-0	01	1	0008-0203			●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9606-9810	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9811-9902			●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9903-0203			●	●
63	NUT; LOCK,BRKT EURO2 SPECIFICATION<THN> M8	9-09111-408-0	02	1	0204-				●
64	BRACKET; ENG CONT CABLE HEAVY DUTY PACKAGE TRUCK<RD2>	1-23219-105-1	01	1	9610-9810	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9811-9902			●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9903-0203			●	●
64	BRACKET; ENG CONT CABLE EURO2 SPECIFICATION<THN>	1-23219-105-1	01	1	0204-				●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9606-9609	●	●
64	BRACKET; ENG CONT CABLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-09768-018-1	01	1	9610-9810	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9606-9810	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9811-9902			●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9903-0203			●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0204-0512				●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-				●
65	BOLT (A) M10X20 FLANGE	0-28181-020-0	01	1	9606-9810	●	●
65	BOLT (D) M10X20 FLANGE	0-28181-020-0	01	1	9811-9902			●
65	BOLT (D) M10X20 FLANGE	0-28181-020-0	01	1	9903-0203			●	●
65	BOLT (D) M10X20 FLANGE	0-28181-020-0	01	1	0204-0512				●
65	BOLT (D) M10X20 FLANGE	0-28151-020-0	01	1	0601-				●
65	BOLT (B) M6X16 FLANGE	0-28680-616-0	01	1	9606-9810	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0203			●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0204-				●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	9606-9810	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	9811-0203			●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	0204-				●
149	BRACKET; ENG CONT (A)	8-94394-516-5	01	1	9606-9810	●	●
149	BRACKET; ENG CONT (B)	8-94390-006-2	01	1	9811-0203			●
149	BRACKET; ENG CONT (C)	8-94394-532-1	01	1	9903-9905				●
149	BRACKET; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (C)	8-94394-532-1	01	1	9906-0203				●
149	BRACKET; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (C)	8-94394-532-1	01	1	0204-			●	●
149	BRACKET; ENG CONT SPEED LIMITER CABLE STROKE CONTROL<TDT> (D)	8-94392-784-0	01	1	9906-				●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9606-9810	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9811-0203			●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0204-0605				●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-				●

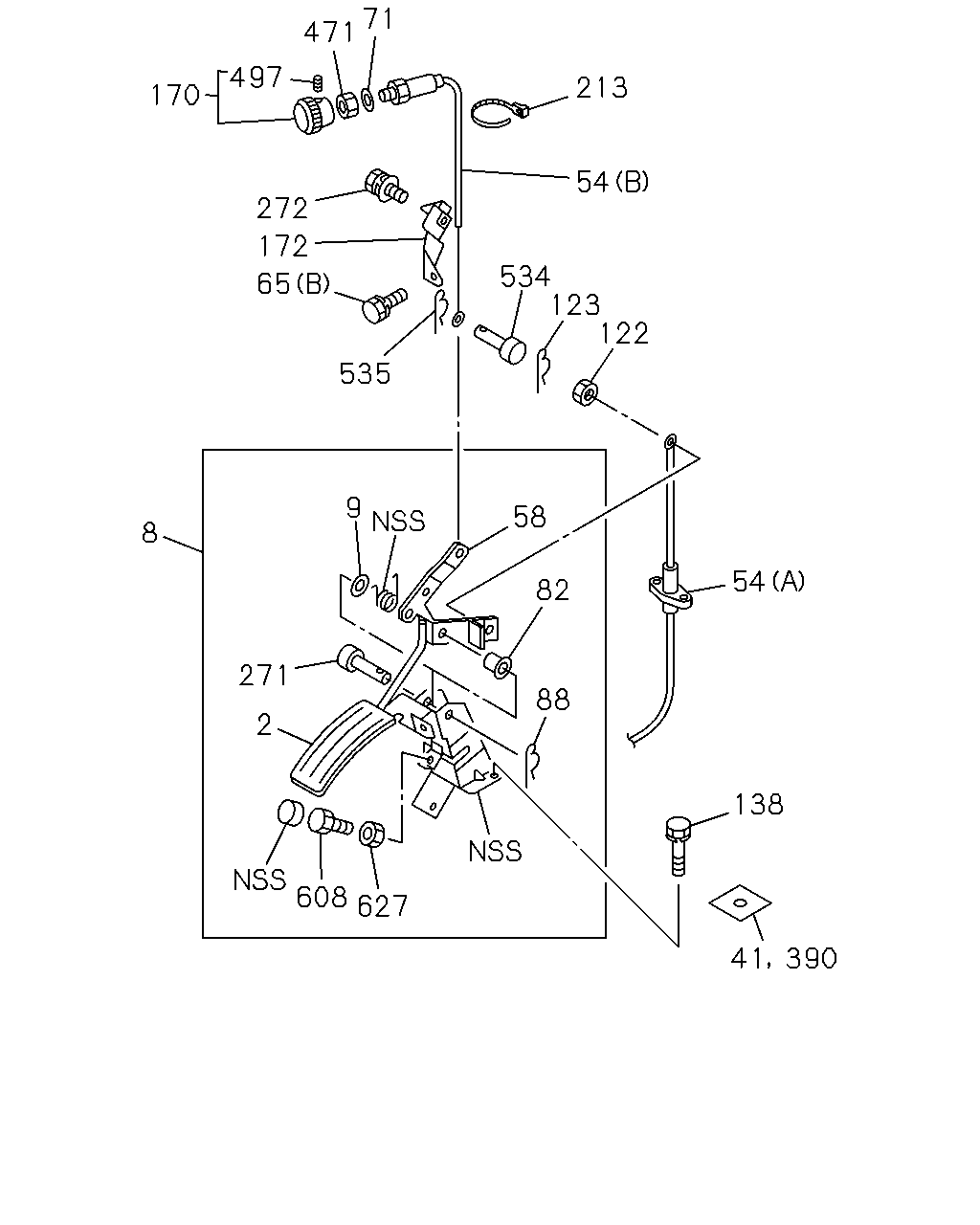

71 471 497 213 170 54 272 172 534 123 122 65 535 9 58 8 54 82 271 88 2 138 608 627 390 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT	1-73998-716-1	01	1	9606-9810	●	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9811-0203			●	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	0204-				●
8	LINK ASM; ENG CONT	1-23240-075-1	01	1	9606-9810	●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9811-0203			●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	0204-				●
9	WASHER; PL,CONT LINK ID=10.5 OD=16	9-09855-178-0	01	1	9606-9810	●	●
41	SEAL; BRKT,ENG CONT CABLE 25X25	8-94272-533-0	03	1	9606-9609	●	●
41	SEAL; BRKT,ENG CONT CABLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 25X25	8-94272-533-0	03	1	9610-9810	●	●
54	CABLE; ENG CONT HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=2551	1-23210-977-2	01	1	9610-9810	●
54	CABLE; ENG CONT (C) L=1659	1-73996-294-9	01	1	9811-0102			●
54	CABLE; ENG CONT (C) L=1659	1-73996-483-0	01	1	0103-0203			●
54	CABLE; ENG CONT HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=320	1-73998-772-0	01	1	9610-9810	●
54	CABLE; ENG CONT (A) L=1570	1-23230-032-0	01	1	9606-9609	●	●
54	CABLE; ENG CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=1570	1-23230-032-0	01	1	9610-9810	●	●
54	CABLE; ENG CONT (B) L=252	1-73998-543-1	01	1	9606-9609	●	●
54	CABLE; ENG CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=252	1-73998-543-1	01	1	9610-9810	●	●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> (D) L=1706.5	1-73908-297-5	01	1	9903-				●
58	LEVER; IDLING CONT	1-73997-781-2	01	1	9606-9810	●	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9811-0203			●	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	0204-				●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9606-9810	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9811-9902			●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9903-0203			●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0204-0512				●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-				●
65	BOLT (A) M10X20 FLANGE	0-28181-020-0	01	1	9606-9810	●	●
65	BOLT (D) M10X20 FLANGE	0-28181-020-0	01	1	9811-9902			●
65	BOLT (D) M10X20 FLANGE	0-28181-020-0	01	1	9903-0203			●	●
65	BOLT (D) M10X20 FLANGE	0-28181-020-0	01	1	0204-0512				●
65	BOLT (D) M10X20 FLANGE	0-28151-020-0	01	1	0601-				●
65	BOLT (B) M6X16 FLANGE	0-28680-616-0	01	1	9606-9810	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0203			●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0204-				●
71	WASHER; WAVE,CONT CABLE ID=18.5	5-09550-005-0	01	1	9606-9810	●	●
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	9606-9810	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9811-0203			●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	0204-				●
88	PIN; SNAP,ENG CONT LEVER L=32.6	8-94202-777-0	01	1	9606-9810	●	●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	9606-9810	●	●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	9606-9810	●	●
138	BOLT; LINK ROD M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9606-9609	●	●
138	BOLT; LINK ROD M6X16 FLANGE	0-28080-616-0	03	1	9610-9810	●	●
138	BOLT; LINK ROD EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9610-9810	●	●
170	KNOB W/SCREW	8-94134-716-0	01	1	9606-9810	●	●
172	BRACKET; IDLE CONT	1-73998-527-1	01	1	9606-9810	●	●
213	CLIP; IDLING CONT L=100	5-09707-036-0	01	1	9606-9810	●	●
271	SHAFT; ENG CONT	1-09987-081-0	01	1	9606-9810	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9811-0203			●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0204-				●
272	BOLT; LEVER M5X14 W/LK WASHER	1-09980-023-0	01	1	9606-9810	●	●
390	SEAL; BRKT,ACCEL CONT LINK ROD 25X25	8-94272-533-0	02	1	9606-9609	●	●
390	SEAL; BRKT,ACCEL CONT LINK ROD EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 25X25	8-94272-533-0	02	1	9610-9810	●	●
471	NUT; LEVER M18 RING NUT	5-09409-004-1	01	1	9606-9810	●	●
497	SCREW; SET,KNOB,IDLE CONT CABLE	5-09120-004-0	01	1	9606-9810	●	●
534	PIN; JAW JOINT,IDLING CONT CABLE	1-09987-034-1	01	1	9606-9810	●	●
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	9606-9810	●	●
608	BOLT; LEVER TO SHAFT M6X25	0-20800-625-0	01	1	9606-9810	●	●
627	NUT; ACCEL SHAFT M6	9-09111-406-0	01	1	9606-9810	●	●

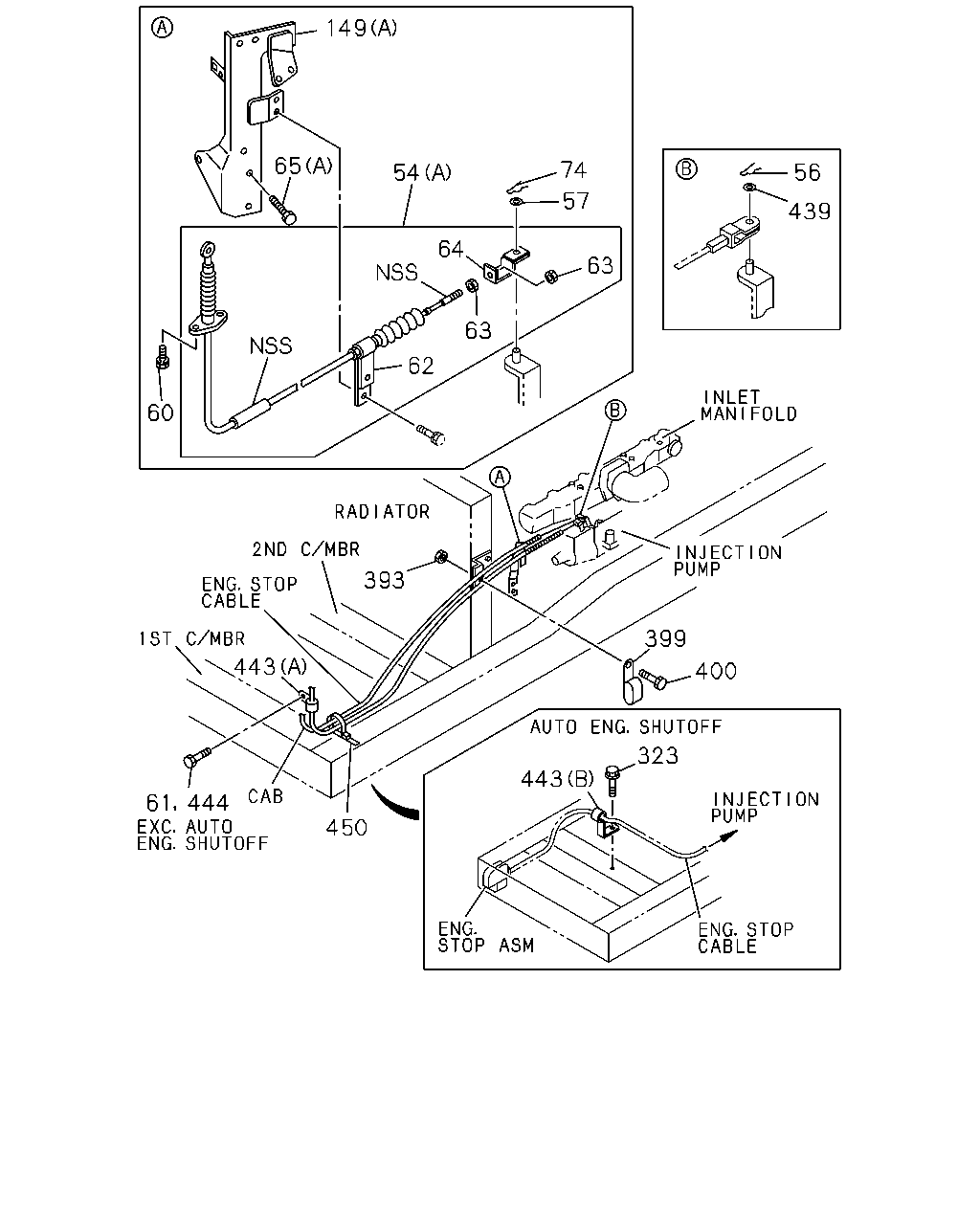

149 65 74 56 54 57 439 64 63 63 62 60 393 399 443 400 323 443 444 450 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	CABLE; ENG CONT HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=2551	1-23210-977-2	01	1	9610-9810	●
54	CABLE; ENG CONT (C) L=1659	1-73996-294-9	01	1	9811-0102			●
54	CABLE; ENG CONT (C) L=1659	1-73996-483-0	01	1	0103-0203			●
54	CABLE; ENG CONT HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=320	1-73998-772-0	01	1	9610-9810	●
54	CABLE; ENG CONT (A) L=1570	1-23230-032-0	01	1	9606-9609	●	●
54	CABLE; ENG CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=1570	1-23230-032-0	01	1	9610-9810	●	●
54	CABLE; ENG CONT (B) L=252	1-73998-543-1	01	1	9606-9609	●	●
54	CABLE; ENG CONT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=252	1-73998-543-1	01	1	9610-9810	●	●
54	CABLE; ENG CONT EURO2 SPECIFICATION<THN> (D) L=1706.5	1-73908-297-5	01	1	9903-				●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9606-9810	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9811-0203			●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0204-				●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9606-9810	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9811-0203			●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	0204-0605				●
57	WASHER; ENG CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-				●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9606-9810	●	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9811-0203			●	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0204-				●
61	BOLT; BRKT TO FRAME ENG CONT CABLE EXC. AUTO ENG SHUTOFF(KB6) M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9606-9810	●	●
62	CLIP; ENG CONT CABLE HEAVY DUTY PACKAGE TRUCK<RD2> L=30	1-09700-326-0	01	1	9610-9810	●
62	CLIP; ENG CONT CABLE	8-94397-228-0	01	1	9811-9902			●
62	CLIP; ENG CONT CABLE	8-94397-228-0	01	1	9903-9908			●	●
62	CLIP; ENG CONT CABLE	1-23219-097-0	01	1	9606-9609	●	●
62	CLIP; ENG CONT CABLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-23219-097-0	01	1	9610-9810	●	●
62	CLIP; ENG CONT CABLE L=30	1-09701-104-0	01	1	0008-0203			●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9606-9810	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9811-9902			●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9903-0203			●	●
63	NUT; LOCK,BRKT EURO2 SPECIFICATION<THN> M8	9-09111-408-0	02	1	0204-				●
64	BRACKET; ENG CONT CABLE HEAVY DUTY PACKAGE TRUCK<RD2>	1-23219-105-1	01	1	9610-9810	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9811-9902			●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9903-0203			●	●
64	BRACKET; ENG CONT CABLE EURO2 SPECIFICATION<THN>	1-23219-105-1	01	1	0204-				●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9606-9609	●	●
64	BRACKET; ENG CONT CABLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-09768-018-1	01	1	9610-9810	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9606-9810	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9811-9902			●
65	BOLT (A) M10X60	0-16811-060-0	01	1	9903-0203			●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0204-0512				●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-				●
65	BOLT (A) M10X20 FLANGE	0-28181-020-0	01	1	9606-9810	●	●
65	BOLT (D) M10X20 FLANGE	0-28181-020-0	01	1	9811-9902			●
65	BOLT (D) M10X20 FLANGE	0-28181-020-0	01	1	9903-0203			●	●
65	BOLT (D) M10X20 FLANGE	0-28181-020-0	01	1	0204-0512				●
65	BOLT (D) M10X20 FLANGE	0-28151-020-0	01	1	0601-				●
65	BOLT (B) M6X16 FLANGE	0-28680-616-0	01	1	9606-9810	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0203			●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0204-				●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	9606-9810	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	9811-0203			●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	0204-				●
149	BRACKET; ENG CONT (A)	8-94394-516-5	01	1	9606-9810	●	●
149	BRACKET; ENG CONT (B)	8-94390-006-2	01	1	9811-0203			●
149	BRACKET; ENG CONT (C)	8-94394-532-1	01	1	9903-9905				●
149	BRACKET; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (C)	8-94394-532-1	01	1	9906-0203				●
149	BRACKET; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (C)	8-94394-532-1	01	1	0204-			●	●
149	BRACKET; ENG CONT SPEED LIMITER CABLE STROKE CONTROL<TDT> (D)	8-94392-784-0	01	1	9906-				●
323	BOLT; CLIP AUTO ENG SHUTOFF(KB6) M8X16 FLANGE	0-28080-816-0	01	1	9606-9810	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9811-0512	●	●	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9811-0512	●	●	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●
393	NUT; CLIP TO FRAME M6 FLANGE	0-91150-106-0	02	1	9606-9810	●	●
399	CLIP; CABLE,RAD SIDE ID=9X2 L=16	9-09534-825-0	01	1	9606-9810	●	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	9811-0203			●	●
399	CLIP; CABLE,RAD SIDE	1-09701-260-0	01	1	0204-				●
400	BOLT; CLIP,RAD SIDE M8X12 FLANGE	0-28080-812-0	01	1	9606-9810	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	9811-0203			●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	0204-0512				●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28050-816-0	01	1	0601-				●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9606-9810	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9811-0203			●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0204-0605				●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-				●
443	CLIP; CABLE (A) ID=7 L=16	9-09524-622-0	01	1	9606-9810	●	●
443	CLIP; CABLE (D) ID=7 L=20	9-09524-635-0	01	1	9811-0203			●	●
443	CLIP; CABLE (D) ID=7 L=20	9-09524-635-0	01	1	0204-0606				●
443	CLIP; CABLE (D) ID=7 L=20	0-95234-635-0	01	1	0607-			●	●
443	CLIP; CABLE AUTO ENG SHUTOFF(KB6) (B) ID=9 L=25 H=45	1-09700-867-0	01	1	9606-9810	●	●
443	CLIP; CABLE (C)	8-94107-647-0	01	1	9811-			●	●
443	CLIP; CABLE EXC. AUTO ENG SHUTOFF(KB6) (A) ID=7X2 L=16	9-09534-622-0	01	1	9606-9810	●	●
444	BOLT; CABLE CLIP M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9606-9810	●	●
450	CLIP; BAND L=140	5-09707-031-0	01	1	9606-9810	●	●	●	●
450	CLIP; BAND EXC. AUTO ENG SHUTOFF(KB6) L=140	5-09707-031-0	01	1	9606-9810	●	●	●	●
450	CLIP; BAND L=140	5-09707-031-1	02	1	9811-0203			●	●
450	CLIP; BAND L=140	5-09707-031-1	02	1	0204-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
