8-21 — METER ASM (#593) — 130 parça

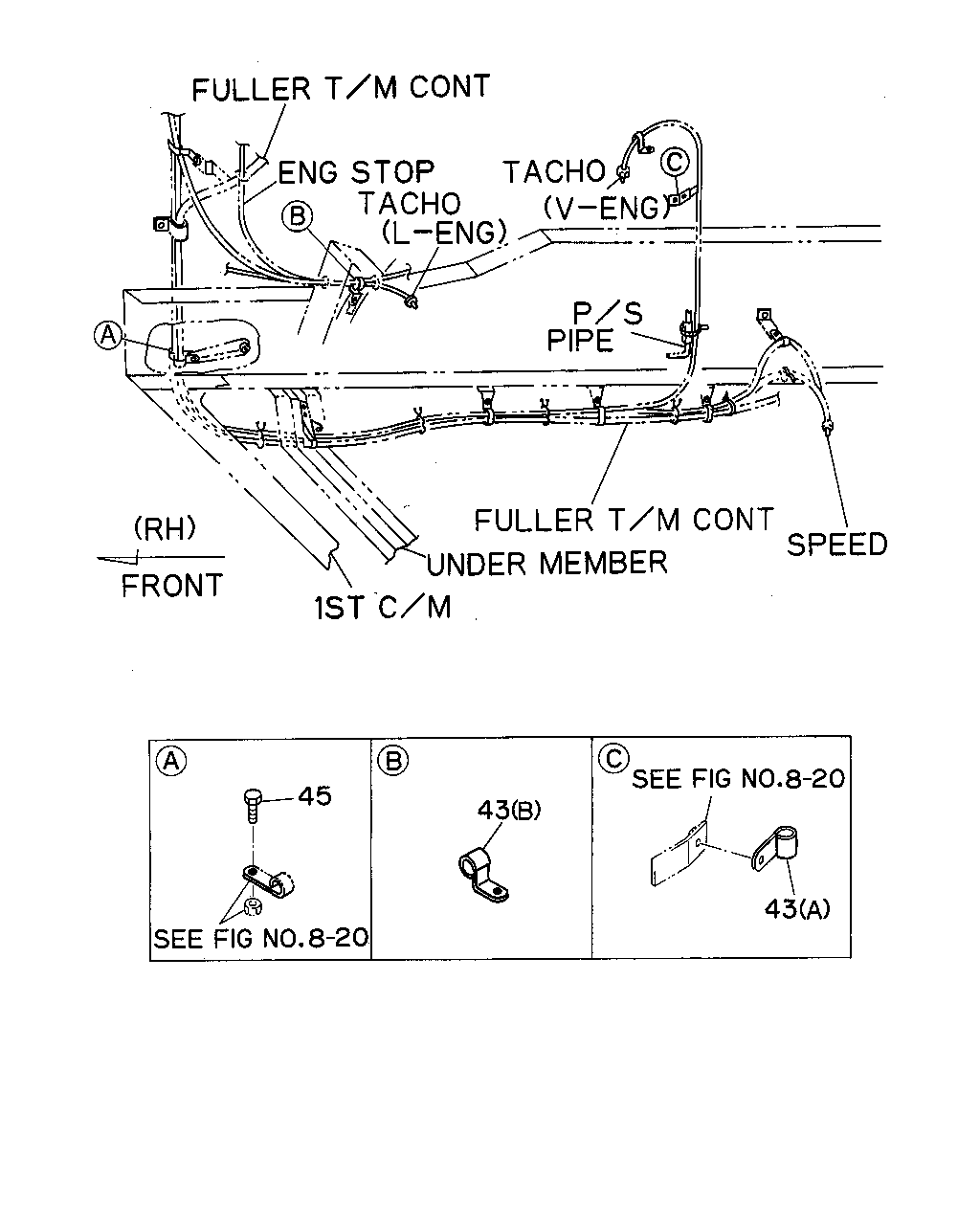

45 43 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	CLIP; SHAFT TO TACHOMETER (B) ID=19 L=24 H=21	1-09700-109-1	01	1	8712-8801
43	CLIP; SHAFT TO TACHOMETER (A) ID=8 L=31	1-09700-112-0	01	1	8712-8801
43	CLIP; SHAFT TO TACHOMETER V TYPE ENG<91L> (A) ID=11 L=32	9-09525-065-0	01	1	8802-9001
43	CLIP; SHAFT TO TACHOMETER L TYPE ENG<90L> (B) ID=19 L=24 H=21	1-09700-109-1	01	1	9002-9306
43	CLIP; SHAFT TO TACHOMETER V TYPE ENG<91L> (A) ID=11 L=16	9-09525-025-0	01	1	9002-
45	BOLT; FLEX SHAFT CLIP M8X25 W/LK&PL WASHER	9-01960-825-0	01	1	9008-9204
45	BOLT; FLEX SHAFT CLIP M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9205-

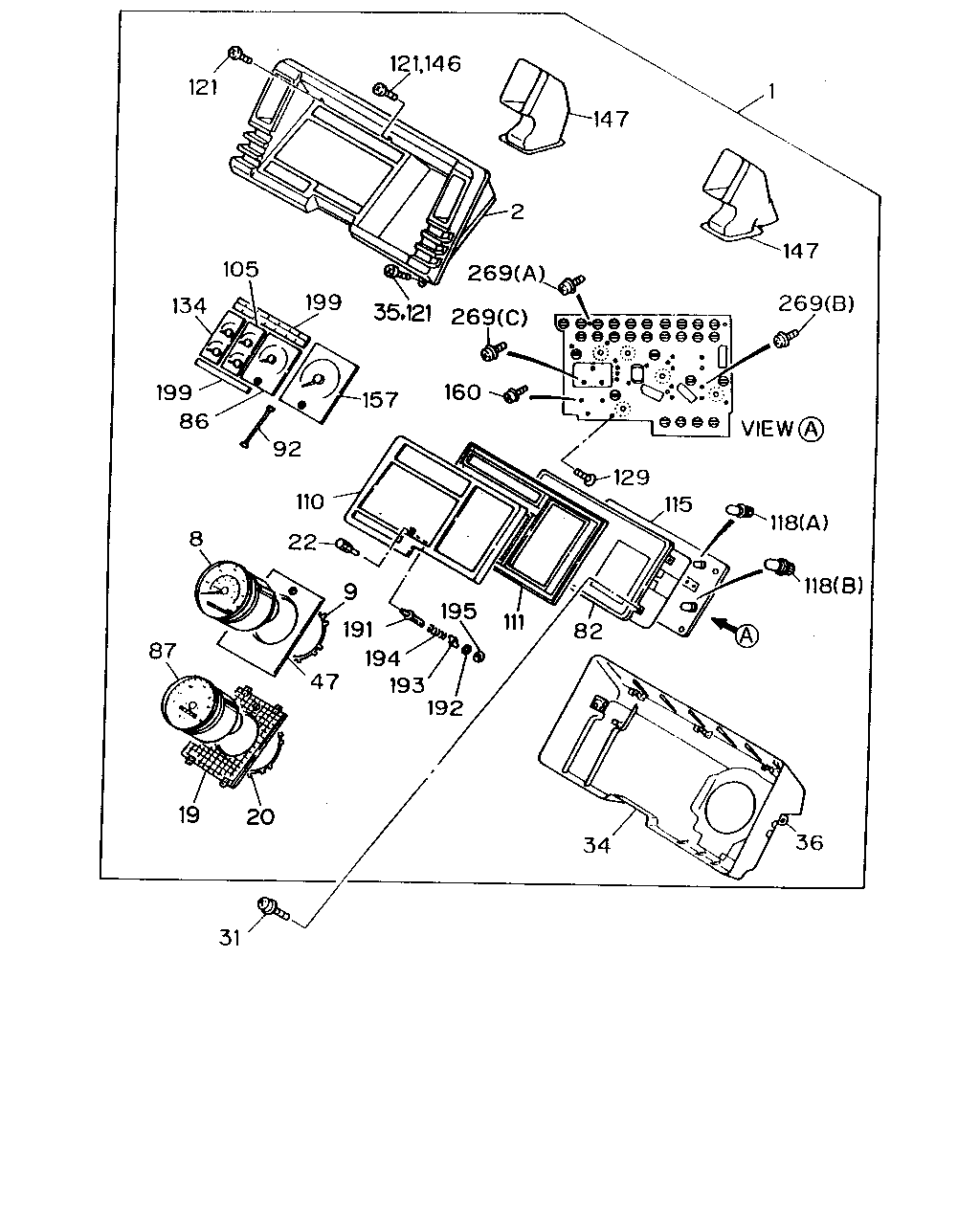

121 121 146 147 1 147 269 2 269 269 160 129 115 118 118 36 34 82 111 195 192 193 194 191 9 22 31 20 19 47 87 8 110 92 86 199 134 105 199 157 35 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER L TYPE ENG<90L> NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) TACHOGRAPH 120KM/H<SM8>	1-83111-169-3	01	1	8712-9001
1	METER COMPL; CLUSTER L TYPE ENG<90L> NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) EXC. TACHOGRAPH 120KM/H<SM8>	1-83111-211-4	01	1	8712-9001
1	METER COMPL; CLUSTER L TYPE ENG<90L> NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) EXC. TACHOGRAPH 120KM/H<SM8>	1-83114-094-0	01	1	9002-9306
1	METER COMPL; CLUSTER L TYPE ENG<90L> NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) TACHOGRAPH 120KM/H<SM8>	1-83114-111-0	01	1	9002-9306
1	METER COMPL; CLUSTER L TYPE ENG<90L> NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) EXC. TACHOGRAPH 120KM/H<SM8>	1-83114-586-0	01	1	9307-
1	METER COMPL; CLUSTER L TYPE ENG<90L> NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) TACHOGRAPH 120KM/H<SM8>	1-83114-603-0	01	1	9307-
1	METER COMPL; CLUSTER L TYPE ENG<90L> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5),TACHOGRAPH 120KM/H<SM8>	1-83111-210-4	01	1	8712-9001
1	METER COMPL; CLUSTER L TYPE ENG<90L> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5),TACHOGRAPH 120KM/H<SM8>	1-83114-093-0	01	1	9002-9306
1	METER COMPL; CLUSTER L TYPE ENG<90L> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5),TACHOGRAPH 120KM/H<SM8>	1-83114-585-0	01	1	9307-
1	METER COMPL; CLUSTER L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)	1-83111-213-3	01	1	8712-9001
1	METER COMPL; CLUSTER L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)	1-83114-120-0	01	1	9002-9306
1	METER COMPL; CLUSTER L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)	1-83114-612-0	01	1	9307-
1	METER COMPL; CLUSTER 10PC1 STD ENG(10L) TACHOGRAPH 120KM/H<SM8>	1-83111-170-3	01	1	8712-9001
1	METER COMPL; CLUSTER 10PC1 STD ENG(10L) EXC. TACHOGRAPH 120KM/H<SM8>	1-83111-160-4	01	1	8712-9001
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8>	1-83114-112-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8>	1-83114-604-0	01	1	9307-
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) EXC. TACHOGRAPH 120KM/H<SM8>	1-83114-085-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) EXC. TACHOGRAPH 120KM/H<SM8>	1-83114-577-0	01	1	9307-
2	PANEL; CLUSTER	1-83117-129-1	01	1	8712-9001
2	PANEL; CLUSTER	1-83117-439-0	01	1	9002-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8> 120KM/H	1-83120-250-0	01	1	8712-
9	PLATE; BASE,TACHOGRAPH,CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83129-036-0	01	1	8712-9001
19	COVER; SPEEDOMETER,CLUSTER METER EXC. TACHOGRAPH 120KM/H<SM8>	1-83129-035-0	01	1	8712-9001
19	COVER; SPEEDOMETER,CLUSTER METER EXC. TACHOGRAPH 120KM/H<SM8>	1-83129-081-0	01	1	9002-
20	PLATE; BASE,SPEEDOMETER,CLUSTER METER EXC. TACHOGRAPH 120KM/H<SM8>	1-83129-039-0	01	1	8712-9001
22	RHEOSTAT; CLUSTER METER	1-82380-075-0	01	1	8712-
31	SCREW; METER,INST PANEL M4X14 TAPPING	1-09140-009-0	03	1	8712-
31	SCREW; METER,INST PANEL M6X20 W/PL WASHER	5-09981-023-0	04	1	8712-
34	HOOD; CLUSTER METER	1-83117-125-0	01	1	8712-9001
34	HOOD; CLUSTER METER	1-83117-440-0	01	1	9002-9306
34	HOOD; CLUSTER METER	1-83117-454-0	01	1	9307-
35	SCREW; HOOD FIX,CLUSTER METER M4 TAPPING	1-87590-049-0	05	1	8712-9001
36	BRACKET; CLUSTER METER	1-83119-118-0	01	1	9307-
36	BRACKET; CLUSTER METER	1-83119-117-0	01	1	9307-
47	COVER; TACHOGRAPH,CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83129-034-1	01	1	8712-
82	CASE ASM; CLUSTER METER L TYPE ENG<90L> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5),TACHOGRAPH 120KM/H<SM8>	1-83180-097-0	01	1	8712-
82	CASE ASM; CLUSTER METER L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8>	1-83180-092-0	01	1	8712-9001
82	CASE ASM; CLUSTER METER V TYPE ENG<91L>	1-83180-092-0	01	1	8712-9001
82	CASE ASM; CLUSTER METER NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) EXC. TACHOGRAPH 120KM/H<SM8>	1-83180-135-0	01	1	9002-
82	CASE ASM; CLUSTER METER 10PD1 STD ENG(40L) EXC. TACHOGRAPH 120KM/H<SM8>	1-83180-135-0	01	1	9002-
82	CASE ASM; CLUSTER METER TACHOGRAPH 120KM/H<SM8>	1-83180-092-0	01	1	9002-
86	TACHOMETER; CLUSTER METER L TYPE ENG<90L>	1-83120-229-0	01	1	8712-9001
86	TACHOMETER; CLUSTER METER V TYPE ENG<91L>	1-83120-241-0	01	1	8712-9001
86	TACHOMETER; CLUSTER METER L TYPE ENG<90L>	1-83120-434-0	01	1	9002-
86	TACHOMETER; CLUSTER METER V TYPE ENG<91L>	1-83120-419-0	01	1	9002-
87	SPEEDOMETER EXC. TACHOGRAPH 120KM/H<SM8> 120KM/H	1-83120-233-0	01	1	8712-
92	RETAINER; CLUSTER METER	1-83119-049-0	02	1	8712-
105	GAUGE; THERMO & FUEL,CLUSTER METER THERMO & FUEL	1-83180-050-0	01	1	8712-
110	GLASS; CLUSTER METER	1-83119-046-0	01	1	8712-
111	RIM; GLASS,CLUSTER METER	1-83119-047-0	01	1	8712-
115	CIRCUIT; PRINTED,CLUSTER METER	1-83189-018-0	01	1	8712-9001
115	CIRCUIT; PRINTED,CLUSTER METER	1-83189-150-0	01	1	9002-
118	BULB; CLUSTER METER (A) 24V 3W	1-82194-043-0	28	1	8712-9001
118	BULB; CLUSTER METER TACHOGRAPH 120KM/H<SM8> (A) 24V 3W	1-82258-003-0	28	1	9002-9306
118	BULB; CLUSTER METER TACHOGRAPH 120KM/H<SM8> (A) 24V 3W	1-82194-043-0	28	1	9307-
118	BULB; CLUSTER METER EXC. TACHOGRAPH 120KM/H<SM8> (B) 24V 3W	1-82194-022-0	02	1	9002-9306
118	BULB; CLUSTER METER EXC. TACHOGRAPH 120KM/H<SM8> (A) 24V 3W	1-82258-003-0	27	1	9002-9306
118	BULB; CLUSTER METER EXC. TACHOGRAPH 120KM/H<SM8> (A) 24V 3W	1-82194-043-0	27	1	9307-
121	SCREW; PANEL FIX,CLUSTER METER M4 TAPPING	1-87590-049-0	02	1	8712-
121	SCREW; PANEL FIX,CLUSTER METER M4X16 TAPPING	1-83119-033-0	04	1	9307-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER M3 TAPPING	1-83119-052-0	09	1	8712-
134	GAUGE; OIL PRESSURE & VOLTAGE	1-83180-051-2	01	1	8712-9001
134	GAUGE; OIL PRESSURE & VOLTAGE	1-83180-122-0	01	1	9002-
146	SCREW; AIR DUCT FIX,METER FOOD M4X16 TAPPING	1-83119-033-0	06	1	9307-
147	DUCT; AIR,CLUSTER METER	1-83119-043-0	01	1	8712-
147	DUCT; AIR,CLUSTER METER	1-83119-042-0	01	1	8712-
157	METER; AIR PRESSURE,CLUSTER METER	1-83150-130-0	01	1	8712-9306
157	METER; AIR PRESSURE,CLUSTER METER L TYPE ENG<90L> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5),TACHOGRAPH 120KM/H<SM8>	1-83150-130-0	01	1	9307-
157	METER; AIR PRESSURE,CLUSTER METER NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) L TYPE ENG<90L>	1-83150-130-0	01	1	9307-
157	METER; AIR PRESSURE,CLUSTER METER 10PD1 STD ENG(40L)	1-83150-130-0	01	1	9307-
157	METER; AIR PRESSURE,CLUSTER METER L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)	1-83150-128-0	01	1	9307-
160	SCREW; RHEOSTAT,CLUSTER METER	1-83119-050-0	03	1	8712-
191	KNOB; BULB CHECK	1-83119-316-0	01	1	9307-
192	WASHER; BULB CHECK KNOB	1-83119-317-0	01	1	9307-
193	PLATE; BULB CHECK	1-83119-318-0	01	1	9307-
194	SPRING; BULB CHECK KNOB	1-83119-319-0	01	1	9307-
195	RING; SNAP,KNOB	1-83119-320-0	01	1	9307-
199	LENS; WARNING LAMP L TYPE ENG<90L> NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) EXC. TACHOGRAPH 120KM/H<SM8>	1-83119-297-0	01	1	9307-
199	LENS; WARNING LAMP L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)	1-83119-297-0	01	1	9307-
199	LENS; WARNING LAMP V TYPE ENG<91L> EXC. TACHOGRAPH 120KM/H<SM8>	1-83119-297-0	01	1	9307-
199	LENS; WARNING LAMP L TYPE ENG<90L> NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) TACHOGRAPH 120KM/H<SM8>	1-83119-299-0	01	1	9307-
199	LENS; WARNING LAMP V TYPE ENG<91L> TACHOGRAPH 120KM/H<SM8>	1-83119-299-0	01	1	9307-
199	LENS; WARNING LAMP L TYPE ENG<90L> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5),TACHOGRAPH 120KM/H<SM8>	1-83119-143-0	01	1	8712-9001
199	LENS; WARNING LAMP L TYPE ENG<90L> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5),TACHOGRAPH 120KM/H<SM8>	1-83119-298-0	01	1	9002-
199	LENS; WARNING LAMP TACHOGRAPH 120KM/H<SM8>	1-83119-137-0	01	1	8712-9001
199	LENS; WARNING LAMP TACHOGRAPH 120KM/H<SM8>	1-83119-297-0	01	1	9002-9306
269	SCREW; METER CLUSTER (C) M4X10	1-83119-051-0	05	1	8712-9306
269	SCREW; METER CLUSTER (B) M3X8	1-83119-058-0	11	1	8712-9001
269	SCREW; METER CLUSTER (A) M3 TAPPING	1-83119-106-0	04	1	8712-9001
269	SCREW; METER CLUSTER (B) M3X8	1-83119-058-0	14	1	9002-
269	SCREW; METER CLUSTER (E) M4 TAPPING	1-83119-059-0	04	1	9002-9306
269	SCREW; METER CLUSTER (C) M4X10	1-83119-051-0	05	1	9307-
269	SCREW; METER CLUSTER EXC. TACHOGRAPH 120KM/H<SM8> (A) M3 TAPPING	1-83119-084-0	04	1	9002-

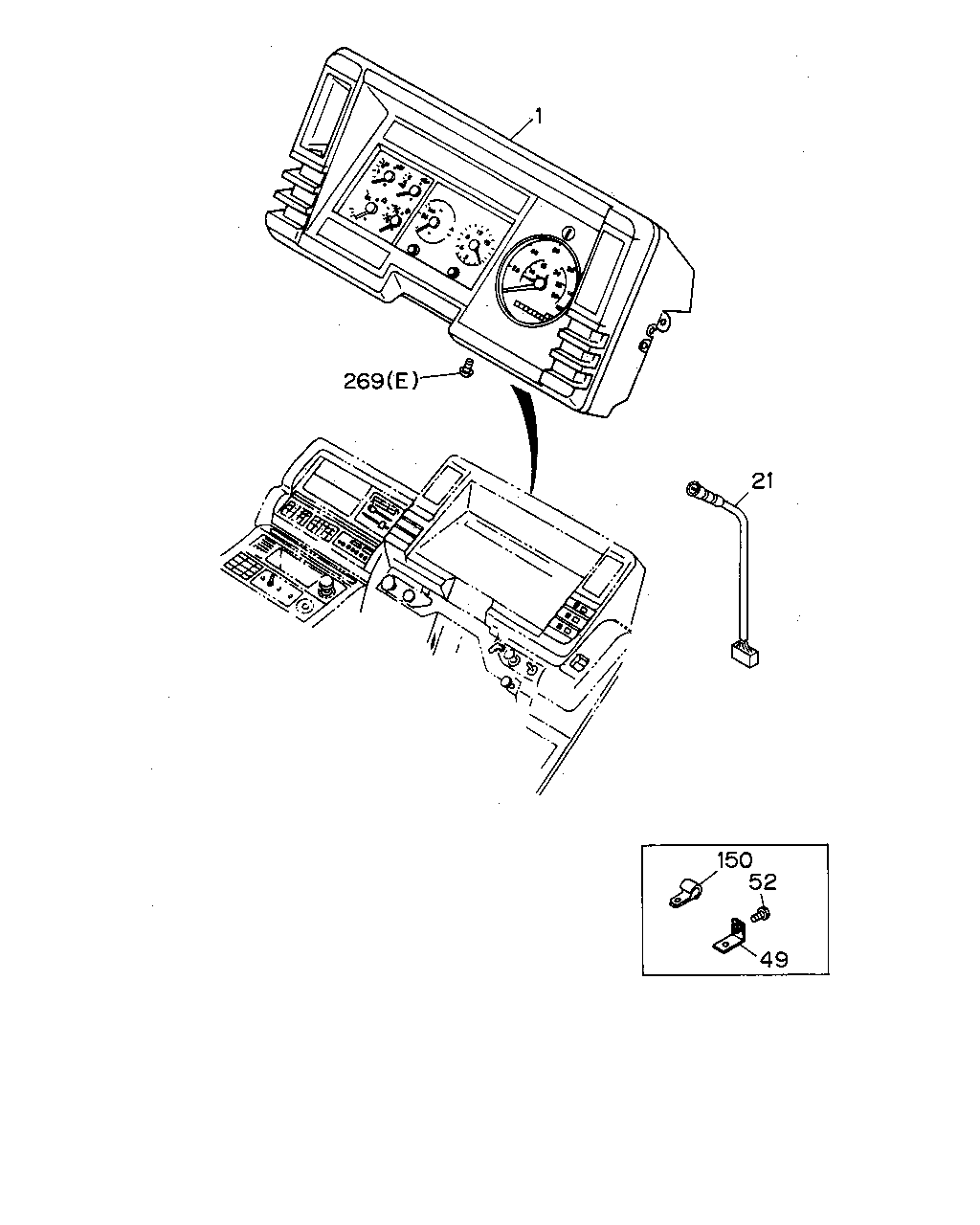

1 21 269 150 52 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER L TYPE ENG<90L> NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) TACHOGRAPH 120KM/H<SM8>	1-83111-169-3	01	1	8712-9001
1	METER COMPL; CLUSTER L TYPE ENG<90L> NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) EXC. TACHOGRAPH 120KM/H<SM8>	1-83111-211-4	01	1	8712-9001
1	METER COMPL; CLUSTER L TYPE ENG<90L> NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) EXC. TACHOGRAPH 120KM/H<SM8>	1-83114-094-0	01	1	9002-9306
1	METER COMPL; CLUSTER L TYPE ENG<90L> NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) TACHOGRAPH 120KM/H<SM8>	1-83114-111-0	01	1	9002-9306
1	METER COMPL; CLUSTER L TYPE ENG<90L> NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) EXC. TACHOGRAPH 120KM/H<SM8>	1-83114-586-0	01	1	9307-
1	METER COMPL; CLUSTER L TYPE ENG<90L> NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) TACHOGRAPH 120KM/H<SM8>	1-83114-603-0	01	1	9307-
1	METER COMPL; CLUSTER L TYPE ENG<90L> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5),TACHOGRAPH 120KM/H<SM8>	1-83111-210-4	01	1	8712-9001
1	METER COMPL; CLUSTER L TYPE ENG<90L> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5),TACHOGRAPH 120KM/H<SM8>	1-83114-093-0	01	1	9002-9306
1	METER COMPL; CLUSTER L TYPE ENG<90L> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5),TACHOGRAPH 120KM/H<SM8>	1-83114-585-0	01	1	9307-
1	METER COMPL; CLUSTER L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)	1-83111-213-3	01	1	8712-9001
1	METER COMPL; CLUSTER L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)	1-83114-120-0	01	1	9002-9306
1	METER COMPL; CLUSTER L TYPE ENG<90L> TACHOGRAPH 120KM/H<SM8> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)	1-83114-612-0	01	1	9307-
1	METER COMPL; CLUSTER 10PC1 STD ENG(10L) TACHOGRAPH 120KM/H<SM8>	1-83111-170-3	01	1	8712-9001
1	METER COMPL; CLUSTER 10PC1 STD ENG(10L) EXC. TACHOGRAPH 120KM/H<SM8>	1-83111-160-4	01	1	8712-9001
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8>	1-83114-112-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) TACHOGRAPH 120KM/H<SM8>	1-83114-604-0	01	1	9307-
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) EXC. TACHOGRAPH 120KM/H<SM8>	1-83114-085-0	01	1	9002-9306
1	METER COMPL; CLUSTER 10PD1 STD ENG(40L) EXC. TACHOGRAPH 120KM/H<SM8>	1-83114-577-0	01	1	9307-
21	HARNESS; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>	1-82621-815-1	01	1	8712-
49	BRACKET; SENSOR L TYPE ENG<90L>	1-15419-097-0	01	1	8712-
52	BOLT; SENSOR L TYPE ENG<90L> M8X12	9-01910-812-0	01	1	8712-9005
52	BOLT; SENSOR L TYPE ENG<90L> M8X12 W/LK WASHER	0-50040-812-0	01	1	9006-
150	CLIP; TACHO SENSOR L TYPE ENG<90L>	9-09524-515-0	01	1	8712-
269	SCREW; METER CLUSTER (C) M4X10	1-83119-051-0	05	1	8712-9306
269	SCREW; METER CLUSTER (B) M3X8	1-83119-058-0	11	1	8712-9001
269	SCREW; METER CLUSTER (A) M3 TAPPING	1-83119-106-0	04	1	8712-9001
269	SCREW; METER CLUSTER (B) M3X8	1-83119-058-0	14	1	9002-
269	SCREW; METER CLUSTER (E) M4 TAPPING	1-83119-059-0	04	1	9002-9306
269	SCREW; METER CLUSTER (C) M4X10	1-83119-051-0	05	1	9307-
269	SCREW; METER CLUSTER EXC. TACHOGRAPH 120KM/H<SM8> (A) M3 TAPPING	1-83119-084-0	04	1	9002-
