0-87 — COUPLING; INJECTION PUMP (#5929) — 98 parça
çizim 8638
5 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-014-0 01 1 9606-9810 ● ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15782-019-0 01 1 9811-0203 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15781-031-0 01 1 9903- ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-041-0 01 1 9903- ●
3 NUT; COUPLING FIX,INJ PUMP 1-15619-132-0 01 1 9903- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15619-131-0 01 1 9903- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15789-021-0 01 1 9903- ●

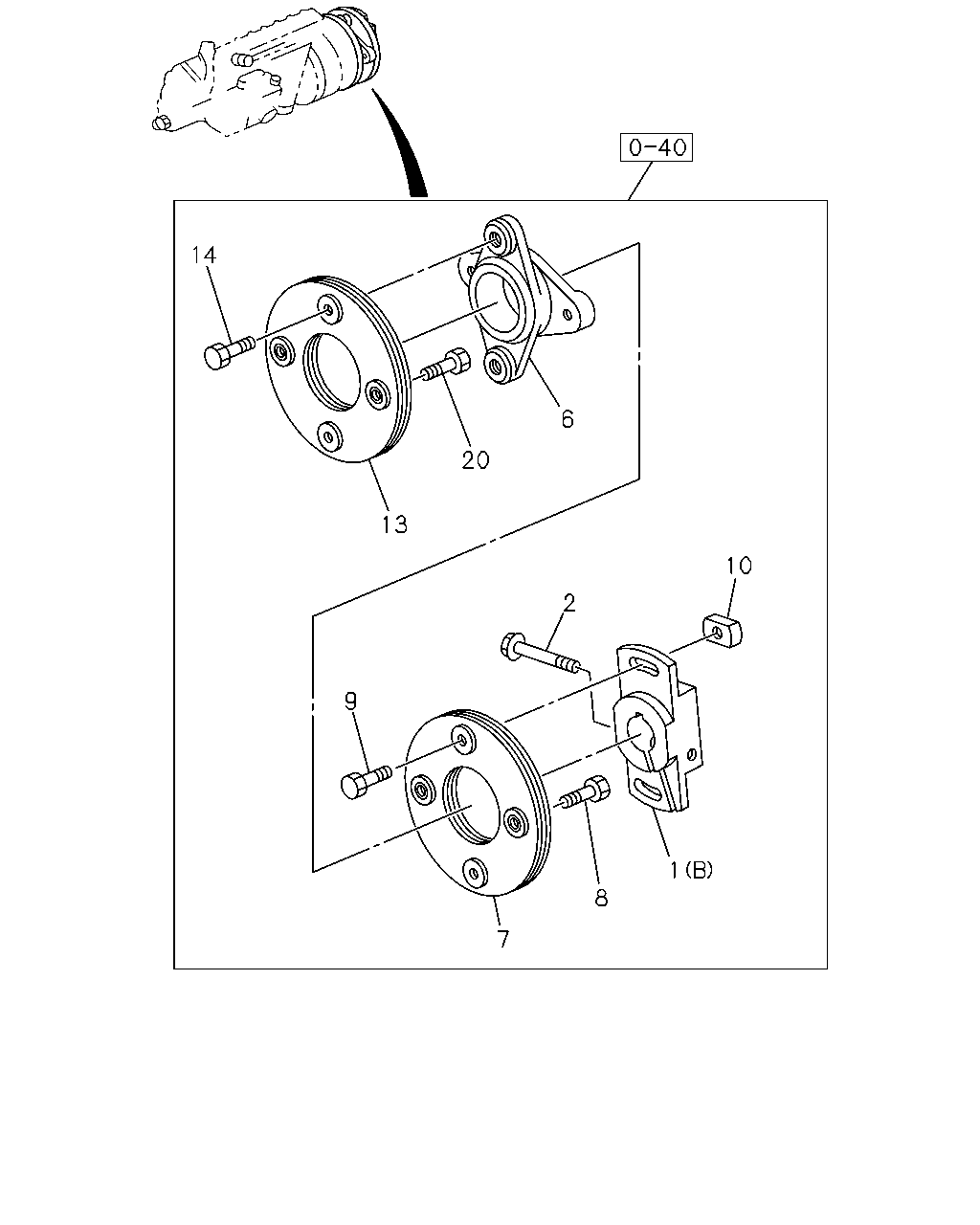

çizim 40743
14 6 20 13 10 2 9 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-014-0 01 1 9606-9810 ● ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15782-019-0 01 1 9811-0203 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15781-031-0 01 1 9903- ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-041-0 01 1 9903- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9606-9810 ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9811-0203 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9903- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-186-0 01 1 9606-9810 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9811-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9903- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9606-9810 ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9811-0203 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9903- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9606-9810 ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9811-0203 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9903- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9606-9810 ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 9811-0203 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9903- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9606-9810 ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-167-0 02 1 9811-0203 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9606-9810 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9811-0203 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9903- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9606-9810 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9811-0203 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9903- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9606-9810 ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9811-0203 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9903- ●
çizim 42520
14 6 20 13 9 11 5 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-014-0 01 1 9606-9810 ● ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15782-019-0 01 1 9811-0203 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15781-031-0 01 1 9903- ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-041-0 01 1 9903- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9606-9810 ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9811-0203 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9903- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15619-131-0 01 1 9903- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15789-021-0 01 1 9903- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-186-0 01 1 9606-9810 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9811-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9903- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9606-9810 ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9811-0203 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9903- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9606-9810 ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9811-0203 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9903- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9606-9810 ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 9811-0203 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9903- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 9903- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9606-9810 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9811-0203 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9903- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9606-9810 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9811-0203 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9903- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9606-9810 ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9811-0203 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9903- ●
çizim 42595
2 1 10 7 9 6 8 13 20 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-014-0 01 1 9606-9810 ● ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15782-019-0 01 1 9811-0203 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15781-031-0 01 1 9903- ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-041-0 01 1 9903- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9606-9810 ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-170-0 01 1 9811-0203 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9903- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-186-0 01 1 9606-9810 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-184-0 01 1 9811-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9903- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9606-9810 ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-199-0 01 1 9811-0203 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9903- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9606-9810 ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-183-0 02 1 9811-0203 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9903- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9606-9810 ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-182-0 02 1 9811-0203 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9903- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9606-9810 ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-167-0 02 1 9811-0203 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9606-9810 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-199-0 01 1 9811-0203 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9903- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9606-9810 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-183-0 02 1 9811-0203 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9903- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9606-9810 ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-183-0 02 1 9811-0203 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9903- ●
