◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11233 - FSR-R EU5 EXC.SPACE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#59289) — 95 parça
çizim 163998
237
BalonParca AdiParca NoAdetTipApplied Date
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 0906-
çizim 164000
164
BalonParca AdiParca NoAdetTipApplied Date
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0906-

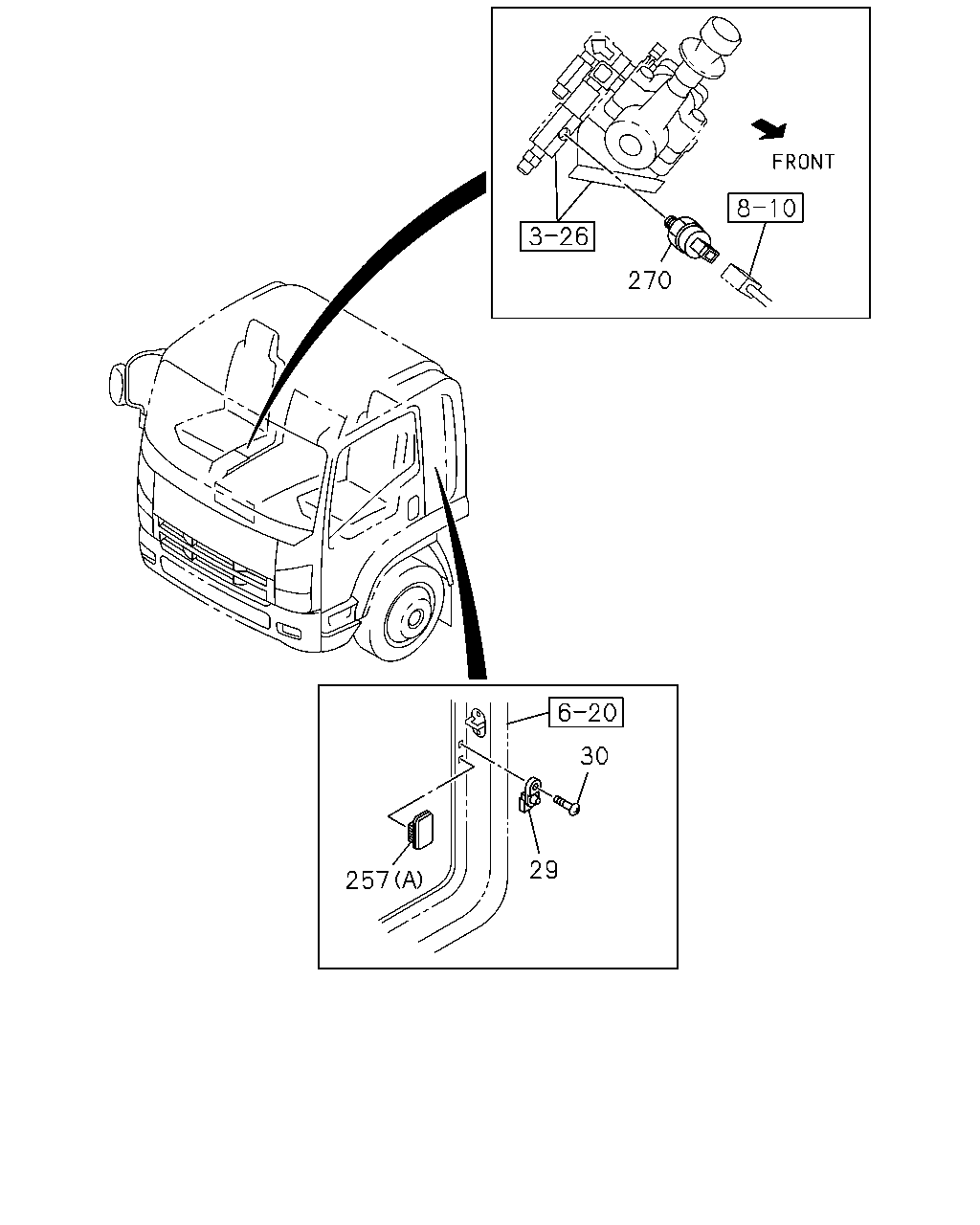

çizim 164006
270 30 29 257
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0906-
29 SWITCH; DOOR
H.S.A SYSTEM<6EP> BLACK 		8-98022-211-0 01 1 0906-
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0906-
30 SCREW; DOOR SW
H.S.A SYSTEM<6EP> M5X18 		8-98047-201-0 01 1 0906-
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 0906-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (A) 		8-98029-917-0 01 1 0906-
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0906-1004
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 0906-1004
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0906-1004
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 0906-1004
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0906-1004
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0906-1004
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1005-
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1005-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1005-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1005-
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 1005-
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1005-
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98029-914-1 01 1 0906-
270 SWITCH; PRESS,WHEEL PARKING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 2.0 		8-98010-856-2 01 1 0906-

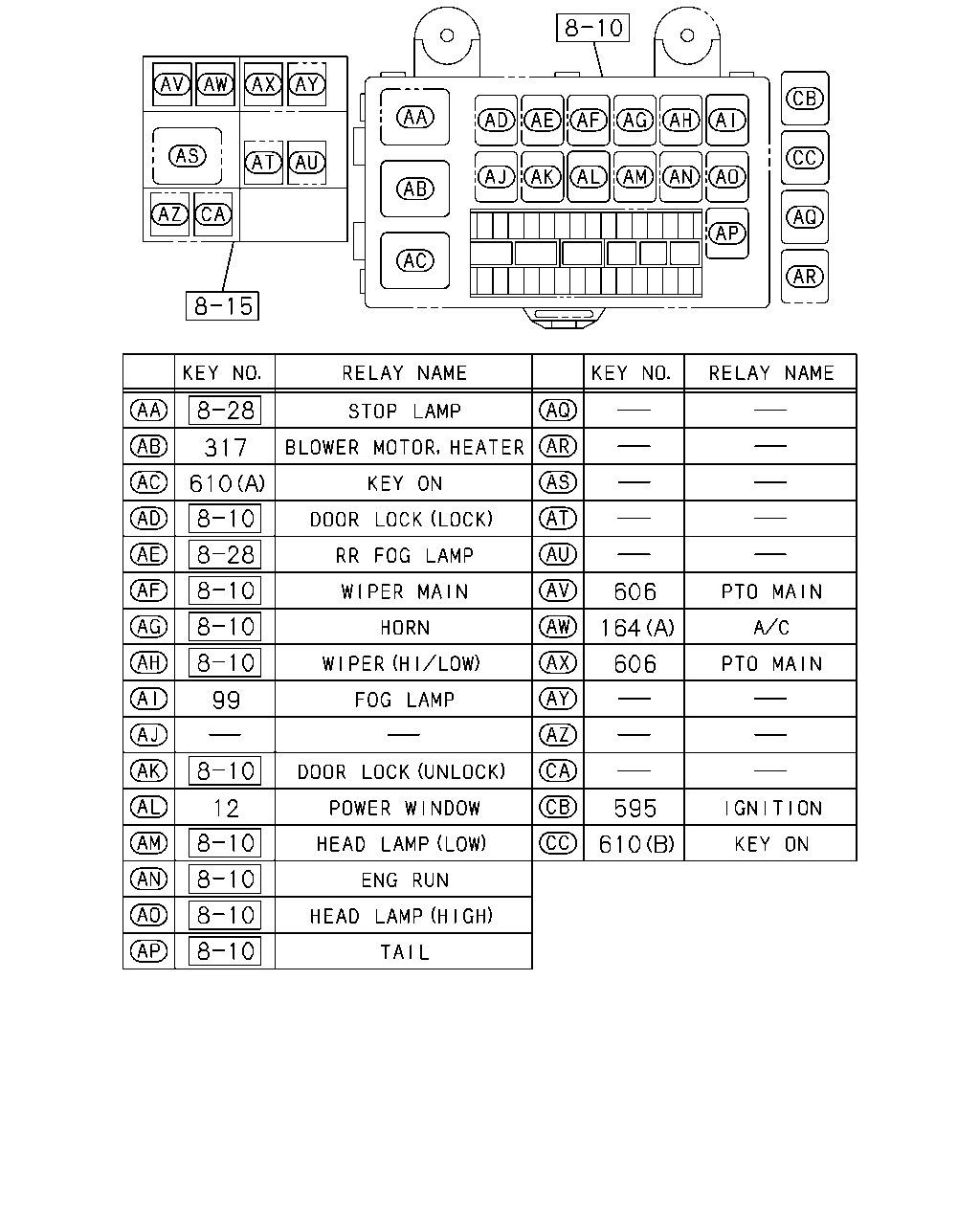

çizim 164007
12 99 610 317 610 595 606 164 606
BalonParca AdiParca NoAdetTipApplied Date
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0906-
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0906-
317 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0906-
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1207-
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1207-
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0906-

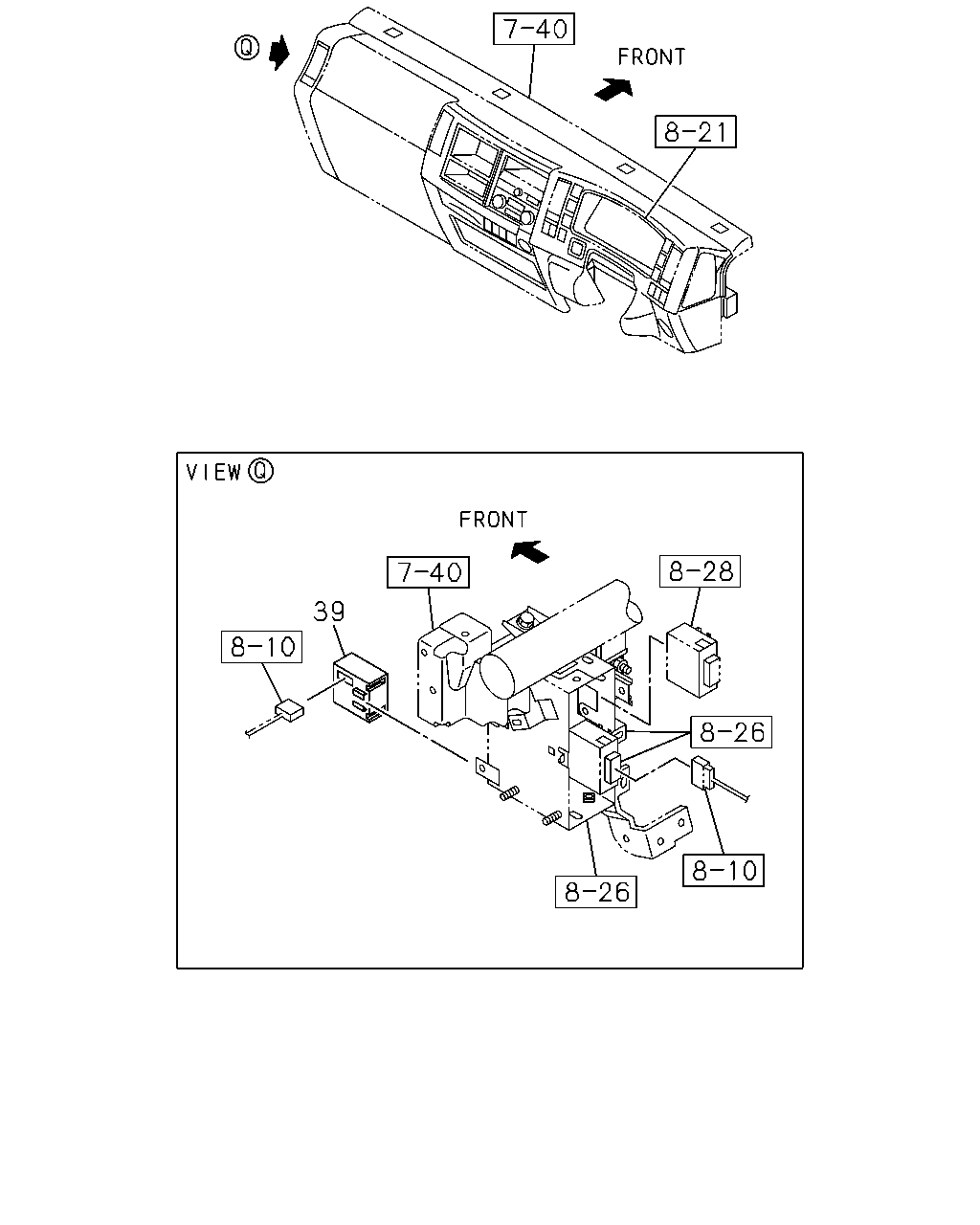

çizim 164009
39
BalonParca AdiParca NoAdetTipApplied Date
39 RELAY; DOOR LK 8-98060-789-0 01 1 0906-

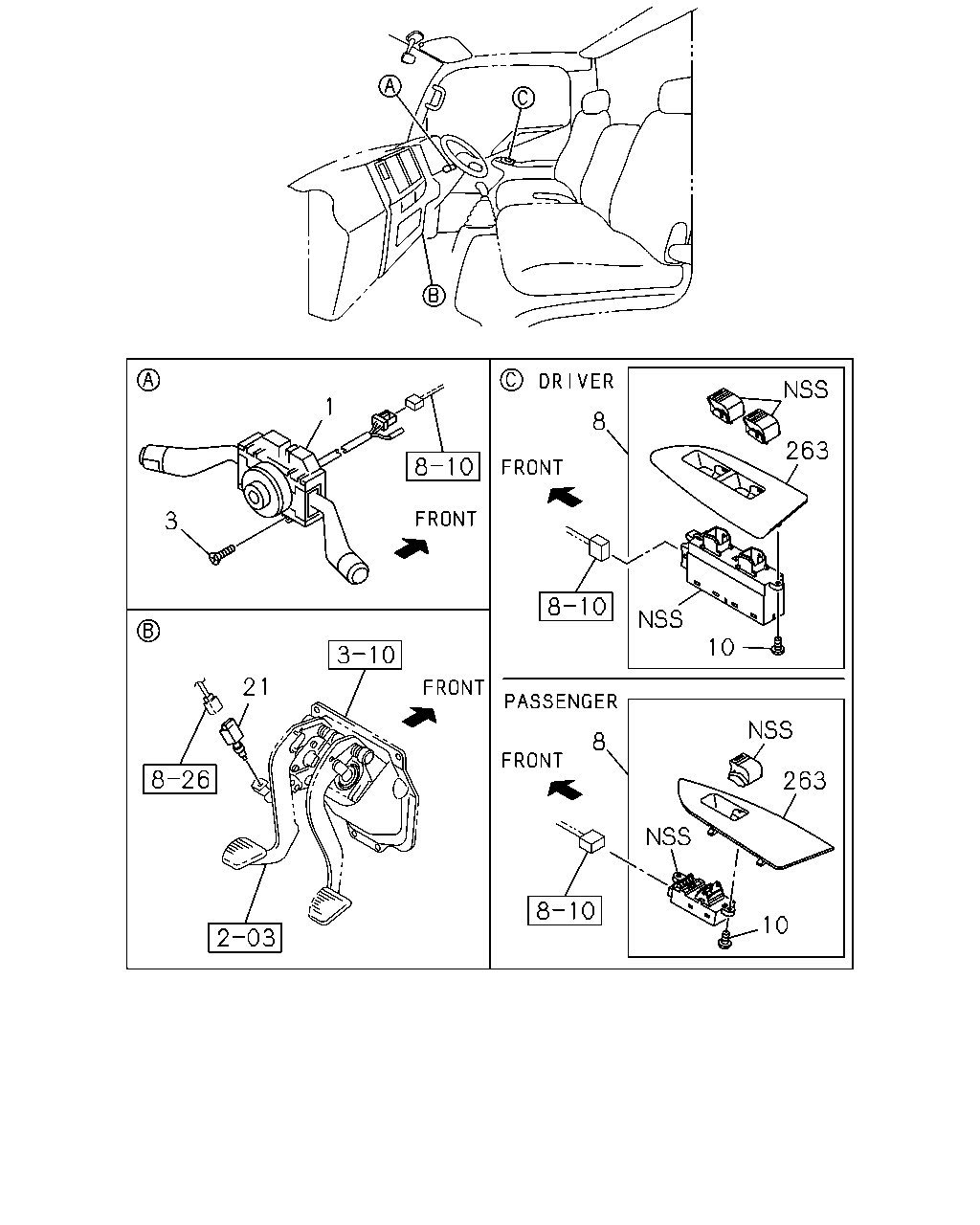

çizim 164015
1 8 263 3 10 21 8 263 10
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) AUTO CRUISE<K30> EXC. RR FOG LAMP<T79> 		8-98146-619-0 01 1 0906-1210
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) AUTO CRUISE<K30> EXC. RR FOG LAMP<T79> 		8-98217-821-0 01 1 1211-1310
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) AUTO CRUISE<K30> EXC. RR FOG LAMP<T79> 		8-98243-692-0 01 1 1311-
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) EXC. AUTO CRUISE<K30>,RR FOG LAMP<T79> 		8-98146-618-0 01 1 0906-1210
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) EXC. AUTO CRUISE<K30>,RR FOG LAMP<T79> 		8-98217-820-0 01 1 1211-1310
1 SWITCH; COMB
AIR BAG DRIVER(AJ3) EXC. AUTO CRUISE<K30>,RR FOG LAMP<T79> 		8-98243-691-0 01 1 1311-
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AUTO CRUISE<K30>,RR FOG LAMP<T79> 		8-98060-302-1 01 1 0906-1310
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AUTO CRUISE<K30>,RR FOG LAMP<T79> 		8-98243-704-0 01 1 1311-
1 SWITCH; COMB
AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),RR FOG LAMP<T79> 		8-98024-269-1 01 1 0906-1310
1 SWITCH; COMB
AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),RR FOG LAMP<T79> 		8-98243-705-0 01 1 1311-
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0906-
8 SWITCH; POWER WINDOW
PASSENGER 		8-97387-034-2 01 1 0906-1509
8 SWITCH; POWER WINDOW
DRIVER 		8-98298-750-0 01 1 1510-
8 SWITCH; POWER WINDOW
DRIVER 		8-98129-844-0 01 1 0906-1001
8 SWITCH; POWER WINDOW
DRIVER 		8-98159-543-0 01 1 1002-1509
8 SWITCH; POWER WINDOW
PASSENGER 		8-98316-415-0 01 1 1510-
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 0906-
21 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 0906-
21 SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94337-761-0 01 1 0906-
263 COVER; SW
DRIVER 		8-98153-836-0 01 1 0906-
263 COVER; SW
PASSENGER 		8-98153-841-0 01 1 0906-

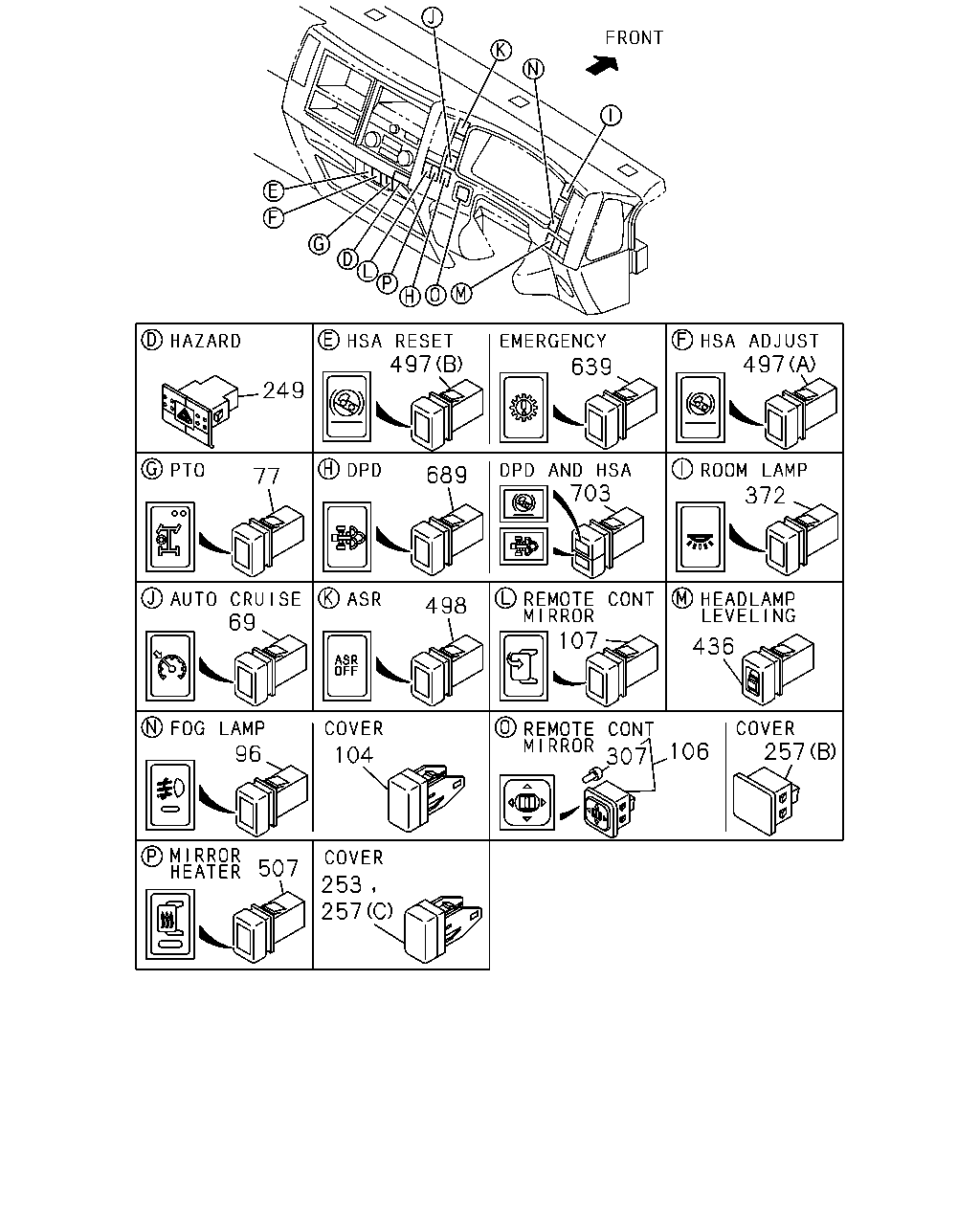

çizim 164020
497 639 497 249 372 703 689 77 69 107 498 436 96 104 257 106 307 253 257 507
BalonParca AdiParca NoAdetTipApplied Date
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 0906-
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-488-2 01 1 0906-
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 0906-
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 0906-
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 1009-
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 0906-
107 SWITCH; REMOTE CONT,MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-98011-343-2 01 1 0906-
249 SWITCH; HAZARD 8-97386-922-1 01 1 0906-
253 COVER; SW HOLE 8-98025-954-1 02 1 0906-1004
253 COVER; SW HOLE 8-98025-954-1 01 1 1005-
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 1005-
253 COVER; SW HOLE
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98025-954-1 01 1 1005-
253 COVER; SW HOLE 8-98025-954-1 01 1 1005-
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 0906-1004
253 COVER; SW HOLE
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98025-954-1 01 1 0906-1004
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 0906-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (A) 		8-98029-917-0 01 1 0906-
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0906-1004
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 0906-1004
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0906-1004
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 0906-1004
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0906-1004
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 0906-1004
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1005-
257 COVER; HOLE,SW
EXC. FLUORESCENT LAMP<6UC> (C) 		8-98025-954-1 01 1 1005-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1005-
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1005-
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98025-954-1 01 1 1005-
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1005-
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98029-914-1 01 1 0906-
307 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 0906-
372 SWITCH; ROOM LAMP
FLUORESCENT LAMP<6UC> 		8-97386-917-2 01 1 0906-
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 0906-
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-98119-947-1 01 1 0906-
497 SWITCH; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) RESET 		8-98119-946-0 01 1 0906-
498 SWITCH; ASR
THROTTLE CONTROL SYSTEM(6XH) 		8-97386-920-2 01 1 0906-
507 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97386-924-3 01 1 0906-
639 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 0906-
689 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 0906-
703 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> 		8-98011-346-2 01 1 0906-
