Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#59286) — 242 parça

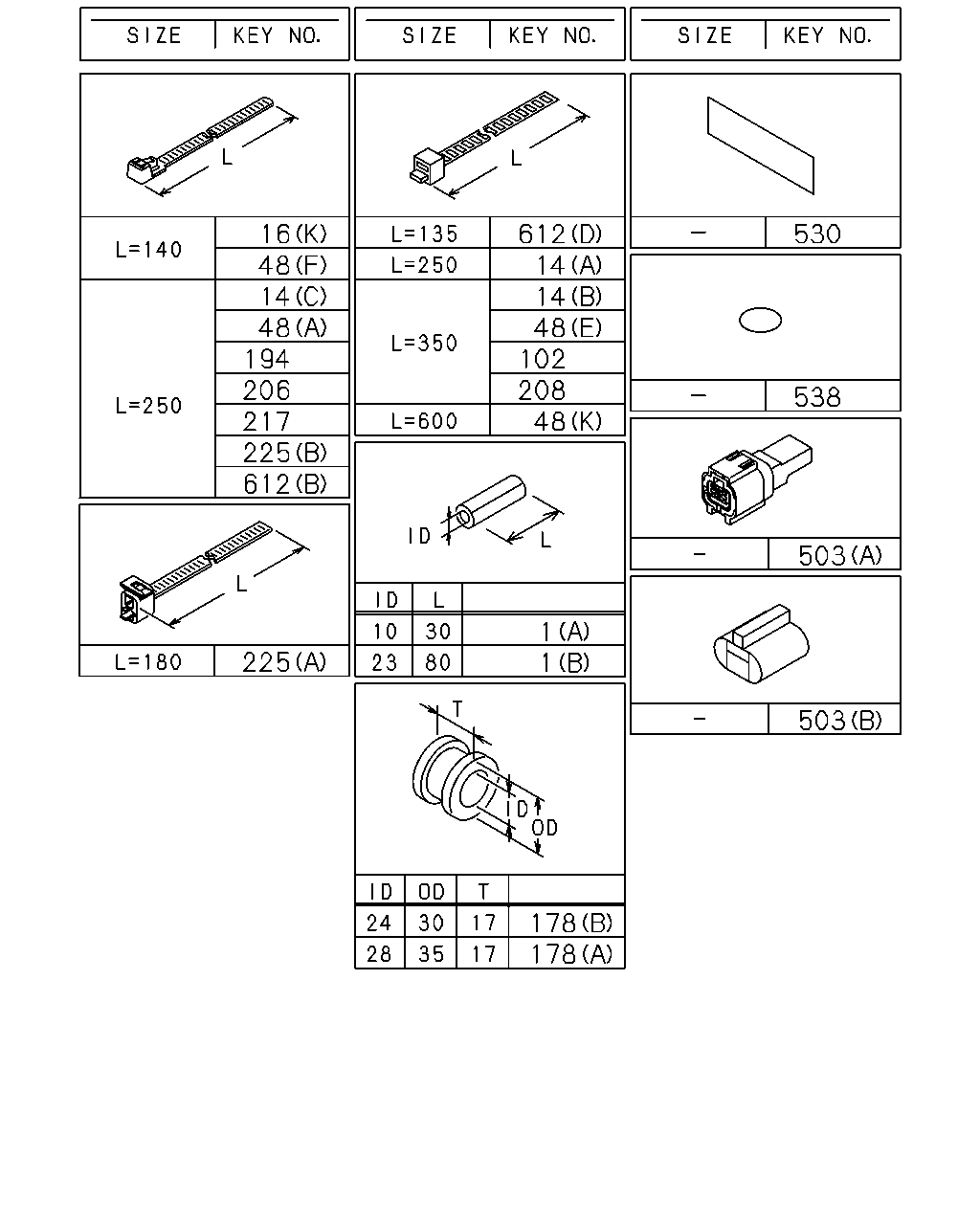

16 48 14 48 194 206 217 225 612 612 14 14 48 102 208 48 530 538 503 1 1 225 503 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0906-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0906-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0906-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	0906-
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	13	1	0906-1205
14	CLIP; BAND,HARNESS (C) L=250	8-98216-430-0	13	1	1206-
16	CLIP; HARNESS (G) ID=11 L=16	0-95235-025-0	04	1	0906-
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	0906-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0906-0911
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	0912-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	0906-
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	01	1	0906-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0906-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	0906-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	0906-
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0906-
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0906-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0906-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	0906-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0906-
48	CLIP; FRAME HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0906-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0906-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0906-
48	CLIP; FRAME HARNESS (G) ID=13-18 L=22	1-09709-292-0	01	1	0906-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0906-1201
48	CLIP; FRAME HARNESS (M) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	15	1	0906-1007
48	CLIP; FRAME HARNESS (M) ID=14 L=44	9-09917-427-0	15	1	1008-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50	1-09701-055-1	01	1	0906-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (J) ID=35 L=50	1-09701-214-0	01	1	0906-
102	CLIP; BAND L=350	1-09707-183-0	01	1	0906-0911
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0906-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0906-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	03	1	0906-
194	CLIP; BAND L=250	5-09707-030-1	01	1	0906-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	0906-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	0906-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0906-
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	0906-
225	CLIP; AIR TANK HARNESS (B) L=250	5-09707-030-1	01	1	0906-1012
503	CONNECTOR EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	0906-
503	CONNECTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-82690-668-0	01	1	0906-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0906-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0906-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0906-
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0906-
612	CLIP; HARNESS DPD (C) ID=4.76 & 10.0	1-09709-305-0	03	1	0906-
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0906-
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0906-

304 139 304 304 304 38 516 38 304 139 127 38 386 38 139 38 139 313 150 38 38 139 139 313 184 516 38 377 386 524 294 525 294 219 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	03	1	0906-
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28050-825-0	02	1	0906-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0906-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0906-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	0906-
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE	0-28651-030-0	01	1	0906-
38	BOLT; CLIP,HARNESS (F) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0906-1201
38	BOLT; CLIP,HARNESS (H) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
38	BOLT; CLIP,HARNESS MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) M10X20 FLANGE	0-28751-020-0	01	1	0906-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0906-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0906-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0906-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0906-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0906-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0906-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0906-
139	BOLT; BRKT (F) M10X30 FLANGE	0-28651-030-0	02	1	0906-1005
139	BOLT; BRKT (F) M10X30 FLANGE	0-28651-030-0	01	1	1006-
139	BOLT; BRKT (F) M10X30 FLANGE	0-28651-030-0	01	1	1006-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	0906-
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	0906-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0906-
150	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	0906-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0906-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0906-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-
294	NUT (A) M8 FLANGE	0-91180-108-0	06	1	0906-1107
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1108-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0906-
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	0906-
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	0906-
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	0906-1010
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	0906-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	02	1	0906-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0906-
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0906-
313	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	01	1	0906-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0906-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0906-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0906-
516	BOLT; HARNESS MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	0906-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0906-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0906-
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	0906-

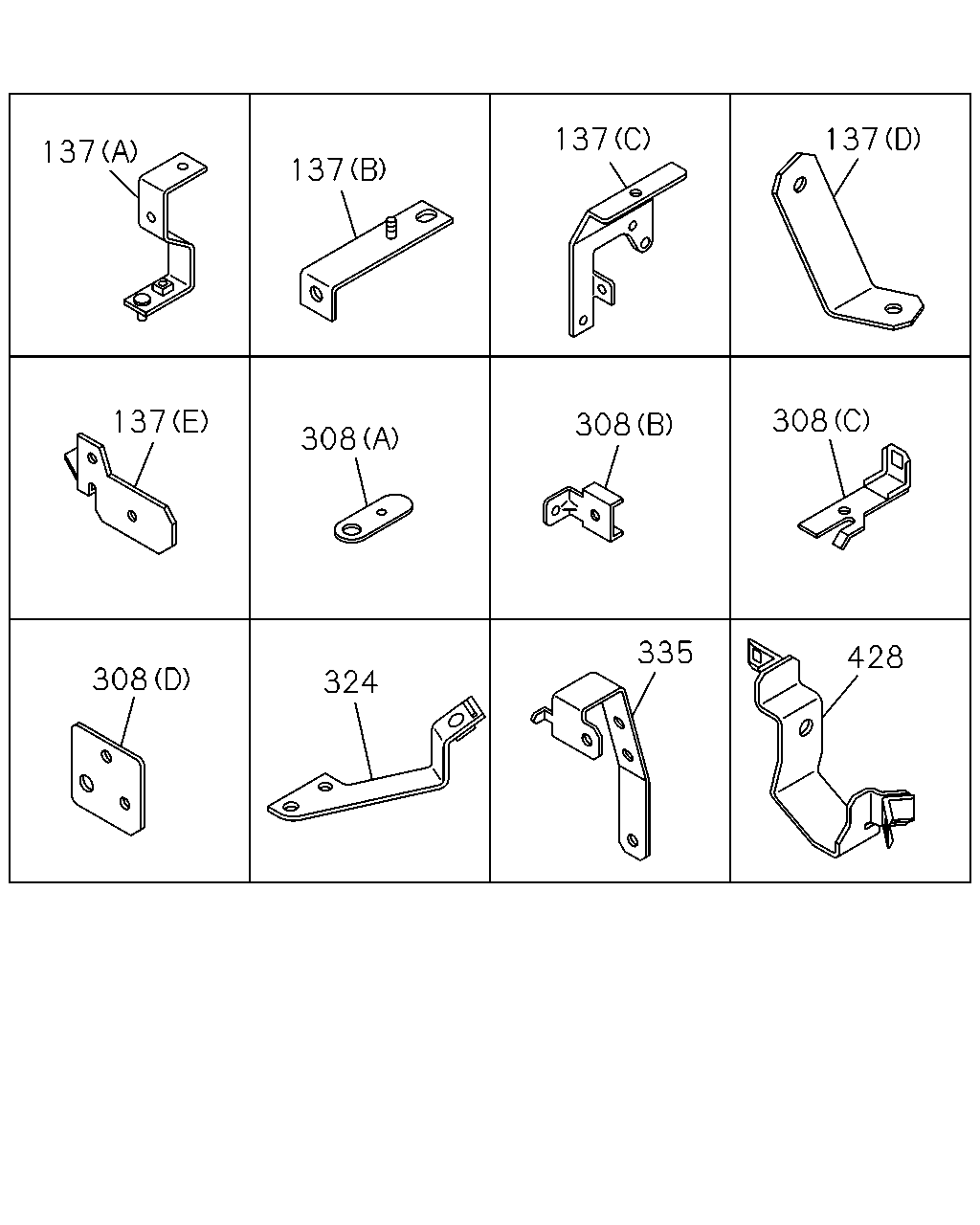

137 137 137 137 308 137 308 308 335 428 308 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (D)	8-97614-728-1	01	1	0906-
137	BRACKET; HARNESS CLAMP (C)	8-97618-098-2	01	1	0906-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	0906-
137	BRACKET; HARNESS CLAMP (A)	8-98065-904-0	01	1	0906-
137	BRACKET; HARNESS CLAMP (E)	8-98059-231-1	01	1	0906-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	0906-1010
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	0906-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0906-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0906-
324	BRACKET; CLIP	8-98051-649-1	01	1	0906-
324	BRACKET; CLIP	8-98051-648-1	01	1	0906-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0906-
428	BRACKET	8-98090-952-0	01	1	0906-

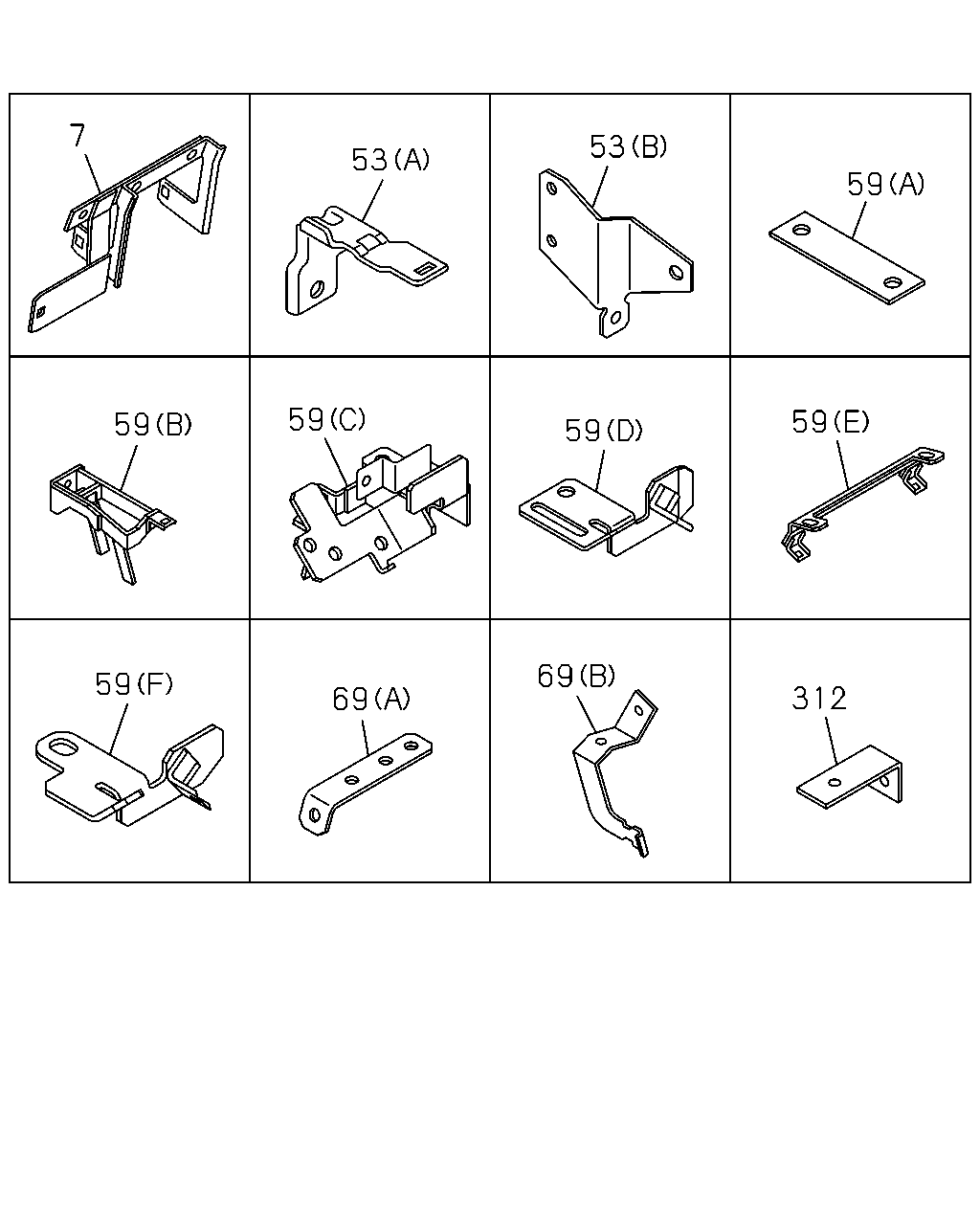

7 53 53 59 59 59 59 59 59 69 69 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0906-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	0906-
53	BRACKET; HARNESS (B)	8-98047-891-0	01	1	0906-
53	BRACKET; HARNESS (B)	8-98047-890-0	01	1	0906-
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	0906-
59	BRACKET; FRAME HARNESS (A) L=85	8-98044-743-0	01	1	0906-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0906-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (C)	8-97619-534-0	01	1	0906-
59	BRACKET; FRAME HARNESS MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97627-325-0	01	1	0906-
59	BRACKET; FRAME HARNESS MZW6P M/T(RSZ) (B)	8-97609-264-2	01	1	0906-
69	BRACKET; CLIP (B)	8-97616-357-3	01	1	0906-
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-82698-167-0	01	1	0906-
312	BRACKET; CLIP HARNESS L=55	1-47475-304-0	01	1	0906-

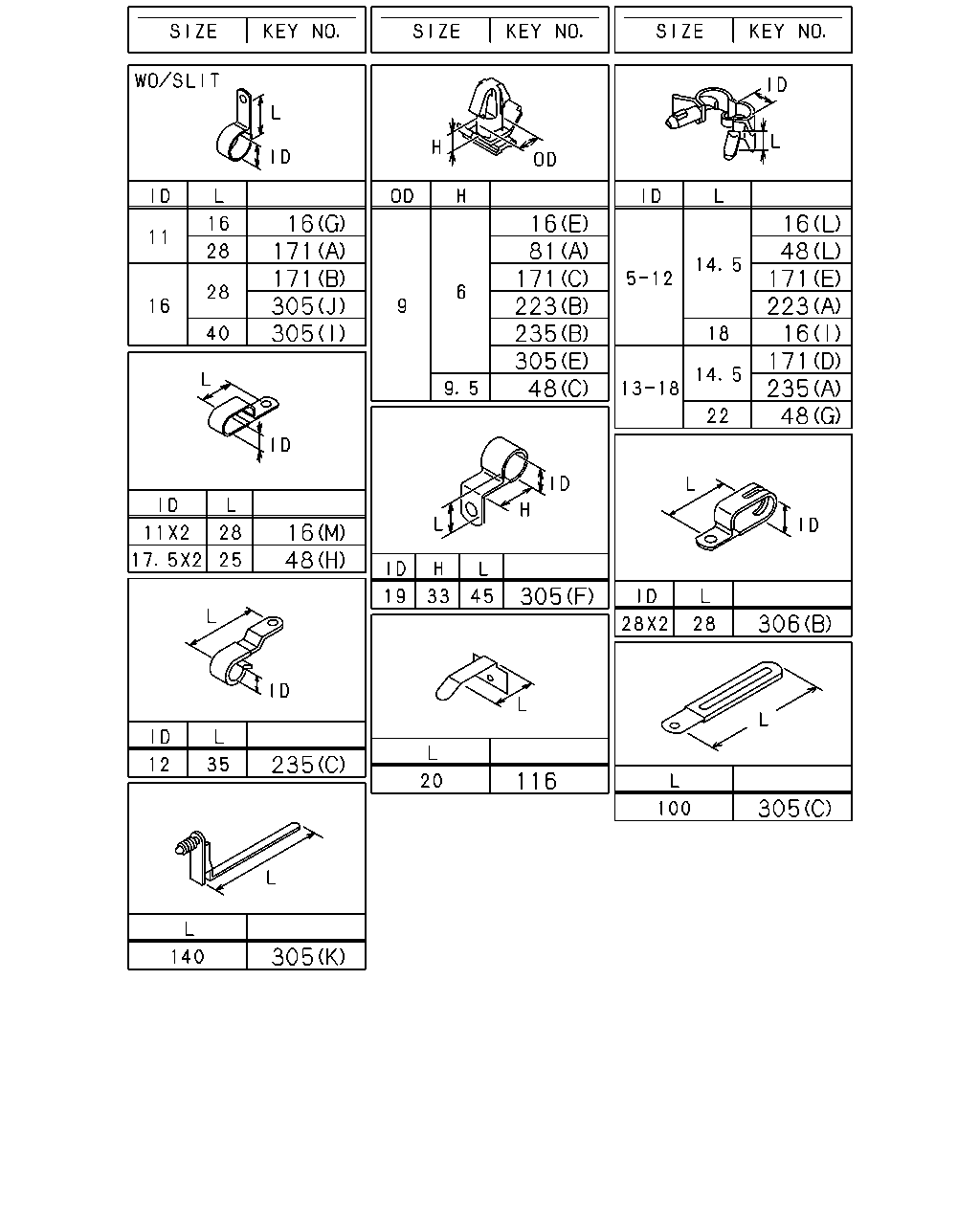

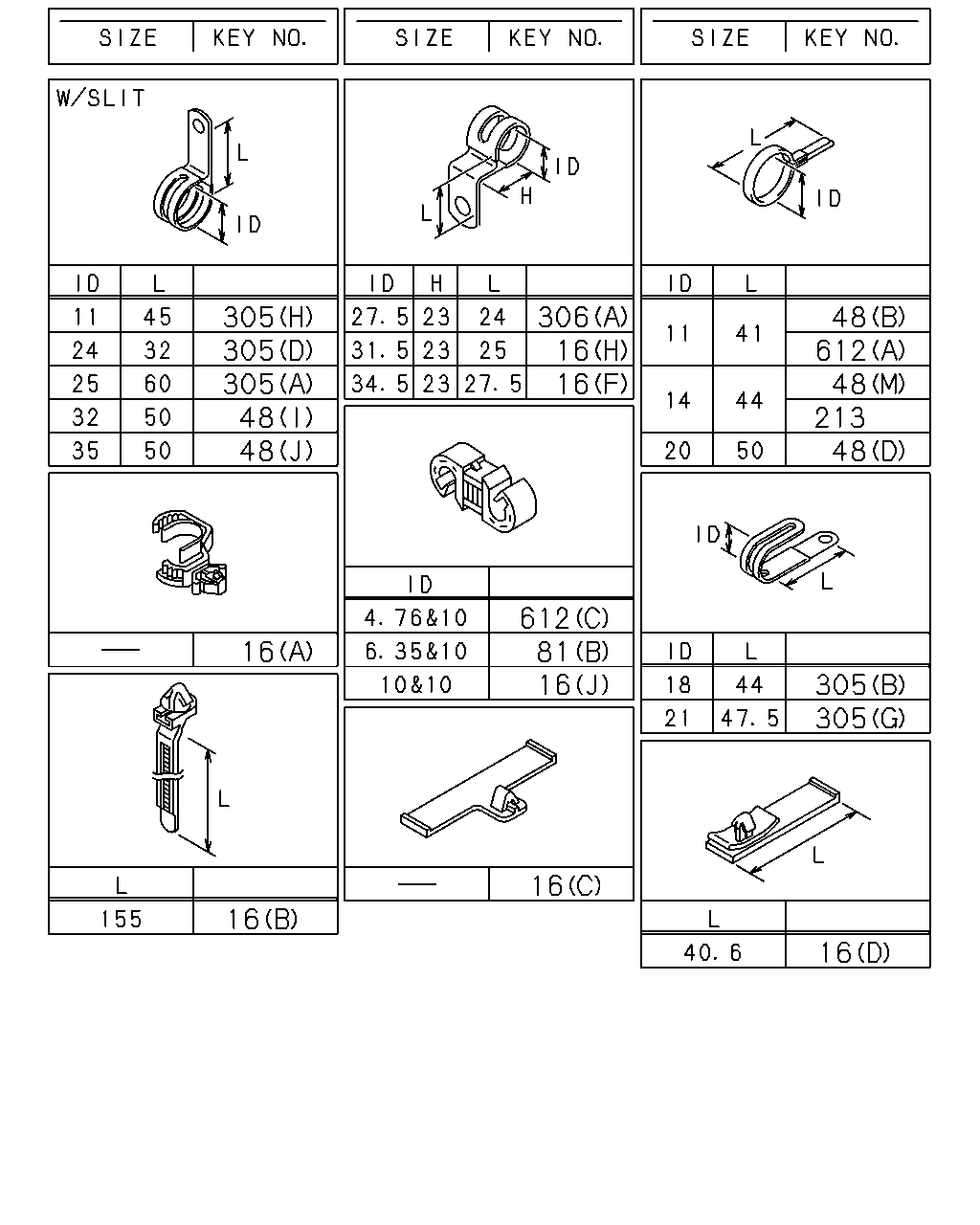

16 171 171 305 305 16 81 171 223 235 305 48 16 48 171 223 16 171 235 48 16 48 305 306 235 116 305 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (G) ID=11 L=16	0-95235-025-0	04	1	0906-
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	0906-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0906-0911
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	0912-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	0906-
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	01	1	0906-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0906-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	0906-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	0906-
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0906-
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0906-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0906-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	0906-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0906-
48	CLIP; FRAME HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0906-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0906-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0906-
48	CLIP; FRAME HARNESS (G) ID=13-18 L=22	1-09709-292-0	01	1	0906-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0906-1201
48	CLIP; FRAME HARNESS (M) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	15	1	0906-1007
48	CLIP; FRAME HARNESS (M) ID=14 L=44	9-09917-427-0	15	1	1008-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50	1-09701-055-1	01	1	0906-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (J) ID=35 L=50	1-09701-214-0	01	1	0906-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	0906-1010
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1011-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0906-
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	04	1	0906-
116	CLIP; ROOF HARNESS EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	03	1	0906-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 L=28	0-95235-055-0	01	1	0906-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=16 L=28	0-95235-556-0	01	1	0906-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) OD=9 H=6	1-09709-178-0	02	1	0906-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	0906-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0906-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	01	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=12 L=35	5-09700-206-0	01	1	0906-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0906-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0906-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0906-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0906-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0906-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0906-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0906-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0906-
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	0906-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0906-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0906-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0906-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0906-

305 305 305 48 48 306 16 16 48 612 48 213 48 612 81 16 16 305 305 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (G) ID=11 L=16	0-95235-025-0	04	1	0906-
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	0906-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0906-0911
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	0912-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	0906-
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	01	1	0906-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0906-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	0906-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	0906-
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0906-
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0906-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0906-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	0906-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0906-
48	CLIP; FRAME HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0906-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0906-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0906-
48	CLIP; FRAME HARNESS (G) ID=13-18 L=22	1-09709-292-0	01	1	0906-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0906-1201
48	CLIP; FRAME HARNESS (M) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	15	1	0906-1007
48	CLIP; FRAME HARNESS (M) ID=14 L=44	9-09917-427-0	15	1	1008-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50	1-09701-055-1	01	1	0906-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (J) ID=35 L=50	1-09701-214-0	01	1	0906-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	0906-1010
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1011-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0906-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0906-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0906-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0906-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0906-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0906-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0906-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0906-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0906-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0906-
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	0906-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0906-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0906-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0906-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0906-
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0906-
612	CLIP; HARNESS DPD (C) ID=4.76 & 10.0	1-09709-305-0	03	1	0906-
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0906-
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
