Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#59273) — 415 parça

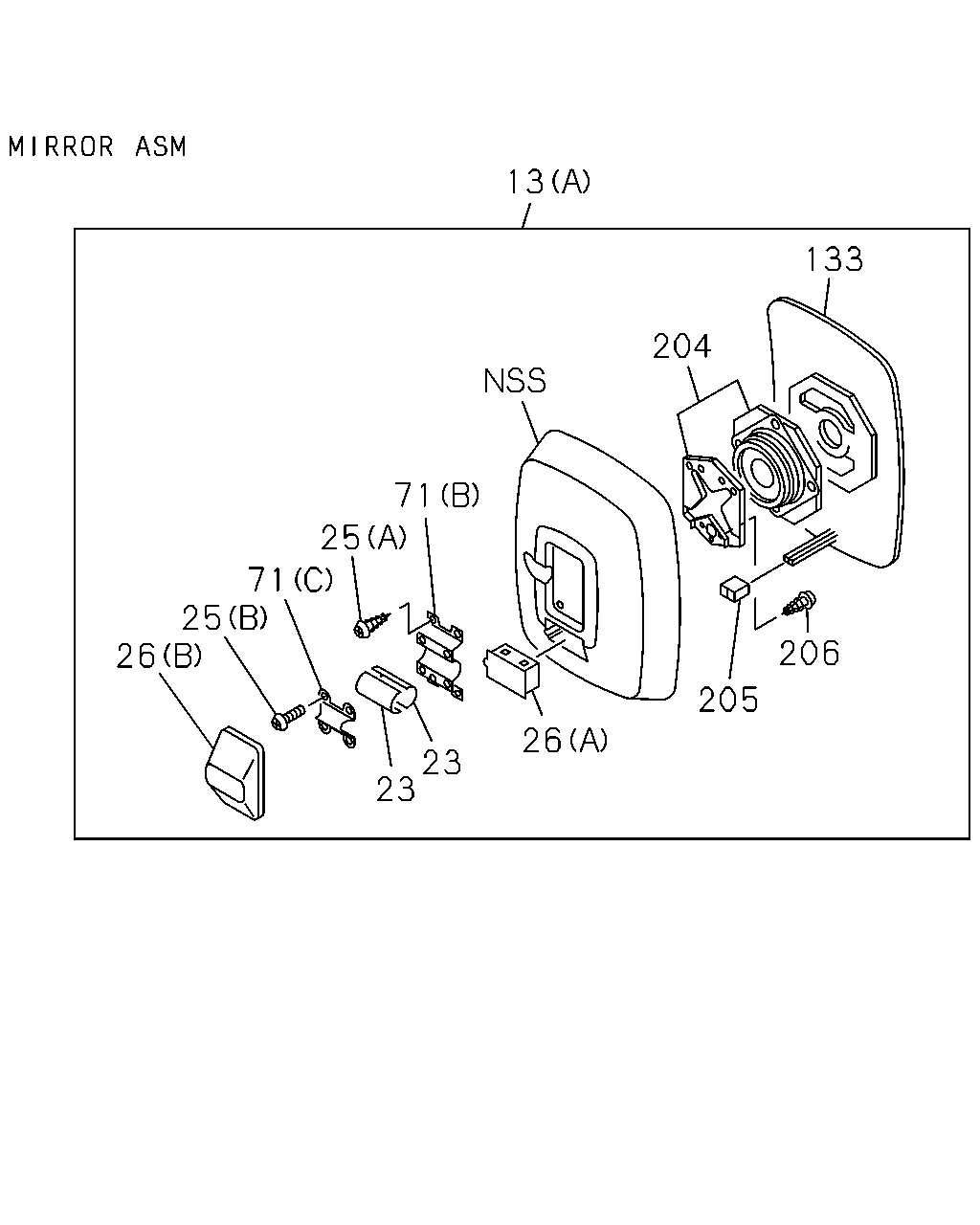

13 133 204 71 25 71 25 26 206 205 26 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71707-101-2	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71707-100-2	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98043-176-1	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98043-060-1	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98055-992-1	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98055-991-1	01	1	0906-
23	WASHER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	1-71797-883-0	04	1	0906-
25	SCREW; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M5X14	1-71797-881-0	08	1	0906-
25	SCREW; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M6X10	1-71797-882-0	08	1	0906-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71797-879-0	02	1	0906-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71797-880-0	02	1	0906-
26	COVER; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98031-806-0	01	1	0906-
26	COVER; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98031-805-0	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71797-877-0	02	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71797-878-0	02	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	0906-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98039-277-2	02	1	0906-1202
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98039-277-2	02	1	1203-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (I)	1-71798-484-1	01	1	0906-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-794-2	01	1	0906-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-793-2	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (G)	8-98060-240-0	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (H)	8-98092-492-3	01	1	0906-
133	LENS; MIRROR,OUTSIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	1-71797-953-0	01	1	0906-
133	LENS; MIRROR,OUTSIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	1-71797-952-1	01	1	0906-
204	MOTOR KIT; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	1-71707-144-0	02	1	0906-
205	CONNECTOR KIT; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	1-71797-955-0	02	1	0906-
206	SCREW; MOTOR,MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98134-316-0	04	1	0906-

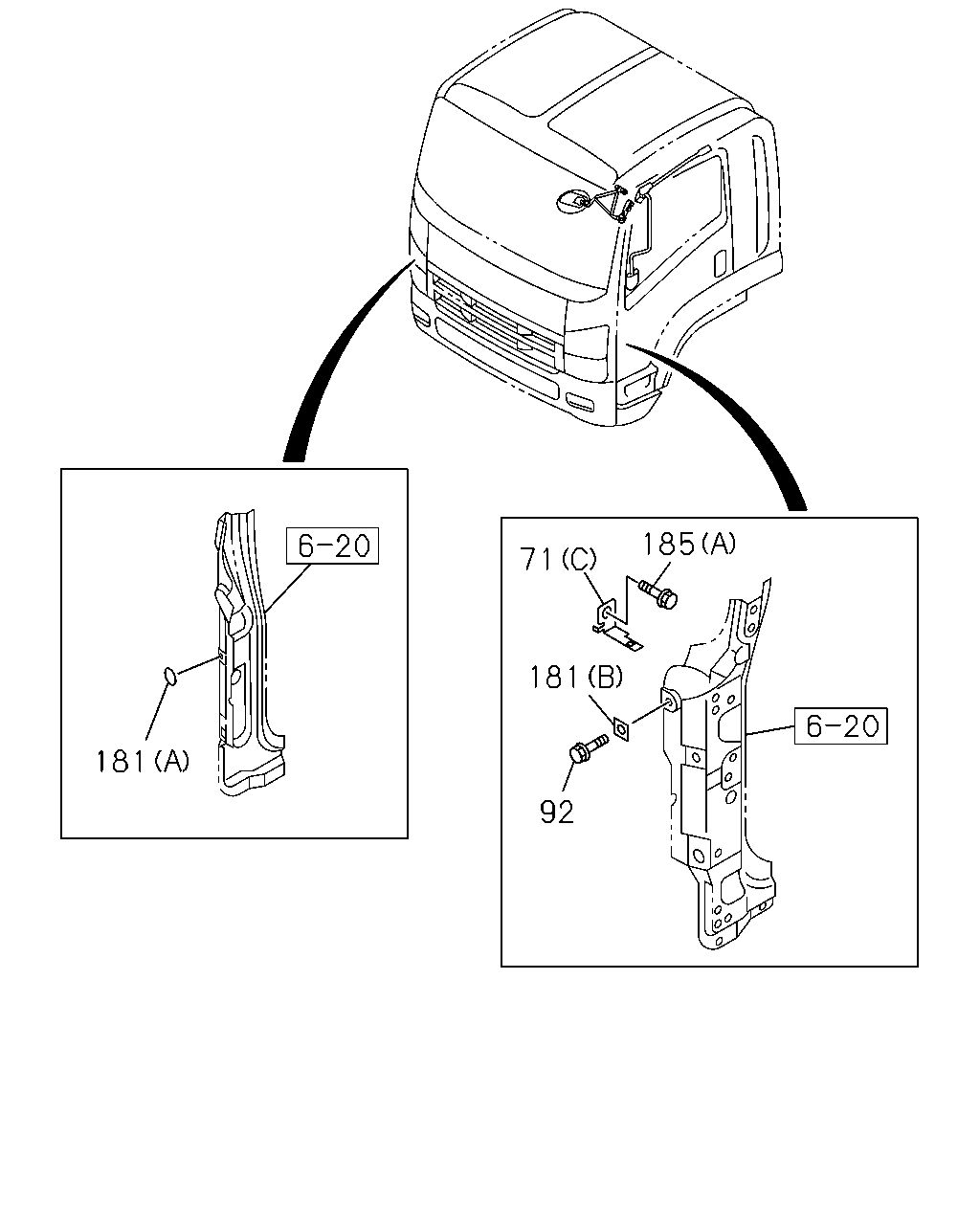

185 71 181 181 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71797-877-0	02	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71797-878-0	02	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	0906-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98039-277-2	02	1	0906-1202
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98039-277-2	02	1	1203-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (I)	1-71798-484-1	01	1	0906-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-794-2	01	1	0906-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-793-2	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (G)	8-98060-240-0	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (H)	8-98092-492-3	01	1	0906-
92	BOLT; STAY BRKT,MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	04	1	0906-
92	BOLT; STAY BRKT,MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	01	1	0906-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	0906-
181	SEAL; BRKT EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) OD=25 BLACK	1-76798-019-0	01	1	0906-
185	BOLT; BRKT EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-1202
185	BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M8X16 FLANGE	0-28050-816-0	02	1	1203-
185	BOLT; BRKT EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) SCREW M8X23	8-97310-216-1	08	1	0906-0908

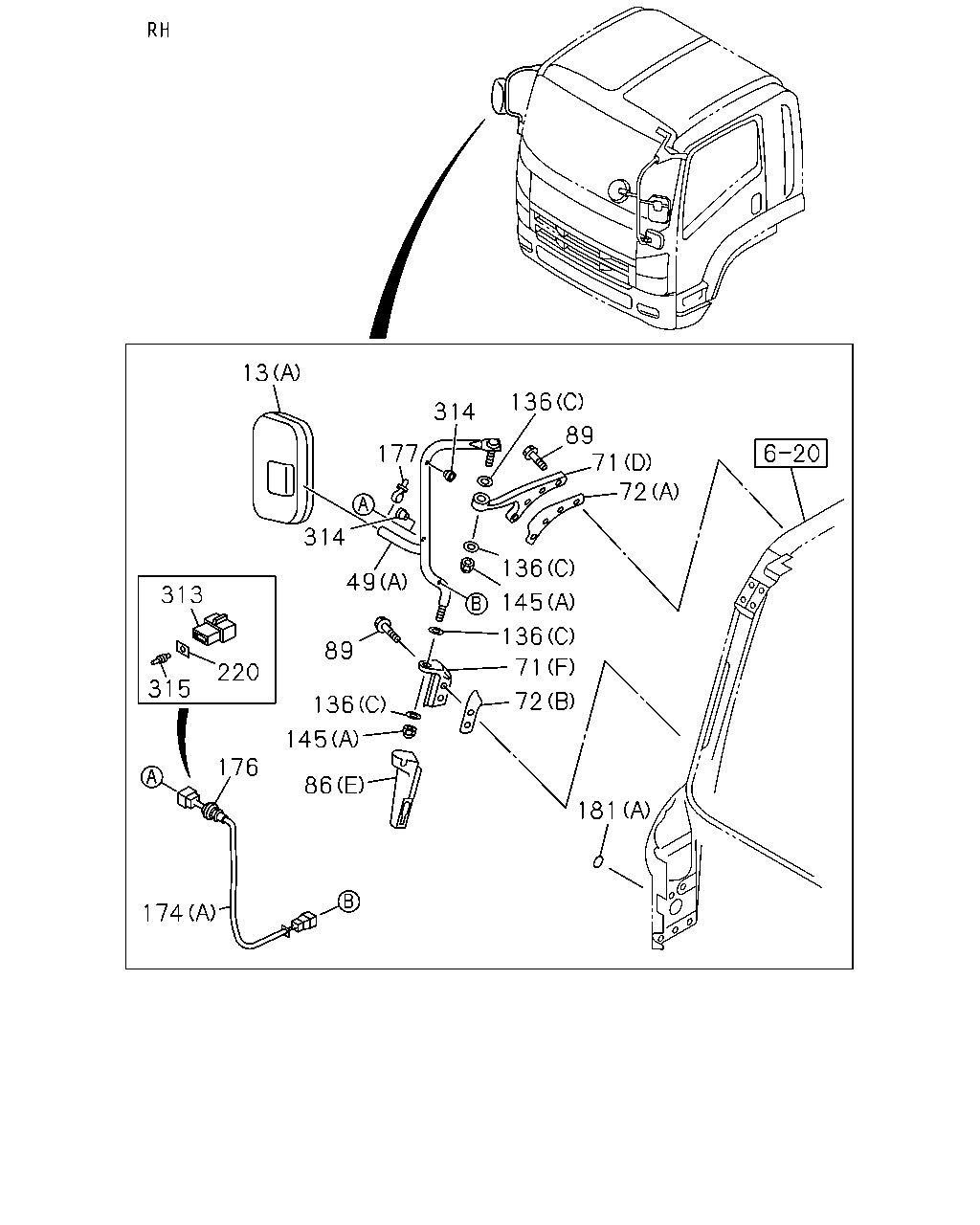

13 136 314 89 71 177 72 314 136 49 313 145 136 89 71 220 315 72 136 145 176 86 181 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71707-101-2	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71707-100-2	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98043-176-1	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98043-060-1	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98055-992-1	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98055-991-1	01	1	0906-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98060-218-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-195-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98064-777-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-194-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98064-781-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-199-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98064-780-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-198-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-067-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-211-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-066-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-210-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98083-831-1	01	1	0906-1402
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98257-753-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98091-456-0	01	1	0906-1502
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98305-584-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-053-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-189-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-052-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-188-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-051-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-181-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-050-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-180-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-065-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-207-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-064-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-206-0	01	1	1203-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71797-877-0	02	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71797-878-0	02	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	0906-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98039-277-2	02	1	0906-1202
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98039-277-2	02	1	1203-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (I)	1-71798-484-1	01	1	0906-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-794-2	01	1	0906-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-793-2	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (G)	8-98060-240-0	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (H)	8-98092-492-3	01	1	0906-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1203-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1203-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-865-0	01	1	0906-1202
72	SHEET O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-865-0	01	1	1203-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-864-0	01	1	0906-1202
72	SHEET O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-864-0	01	1	1203-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	0906-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	0906-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	0906-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	0906-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-797-0	01	1	0906-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-796-0	01	1	0906-
72	SHEET O/SIDE MIRROR UNDER VIEW<RR9> (F)	8-98060-245-1	01	1	0906-
72	SHEET O/SIDE MIRROR UNDER VIEW<RR9> (G)	8-98064-776-0	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-542-2	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-649-1	01	1	0906-1005
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1006-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	0906-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	0909-
89	SCREW; BRKT,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	0906-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	0906-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0906-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0906-
136	WASHER; LK,BRKT,MIRROR STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	0906-
145	NUT; CAP,SUB STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M10 CAP NUT	1-09984-134-0	03	1	0906-
145	NUT; CAP,SUB STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M8 CAP NUT	8-98059-914-0	10	1	0906-
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98047-367-0	01	1	0906-1402
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98258-260-0	01	1	1403-
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98047-368-2	01	1	0906-
176	GROMMET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	1-82699-906-0	01	1	0906-
176	GROMMET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	1-82699-906-0	01	1	0906-
177	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> L=140	5-09707-031-1	01	1	0906-
177	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> L=140	5-09707-031-1	02	1	0906-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	0906-
181	SEAL; BRKT EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) OD=25 BLACK	1-76798-019-0	01	1	0906-
220	HOLDER; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	8-94447-536-0	01	1	0906-
220	HOLDER; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-94447-536-0	01	1	0906-
313	CONNECTOR; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	8-94447-532-0	01	1	0906-
313	CONNECTOR; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-94447-532-0	01	1	0906-
314	BUFFER; STOPPER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-94314-317-0	01	1	0906-
315	RUBBER ASM; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	1-82691-026-0	01	1	0906-
315	RUBBER ASM; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	1-82691-026-0	01	1	0906-

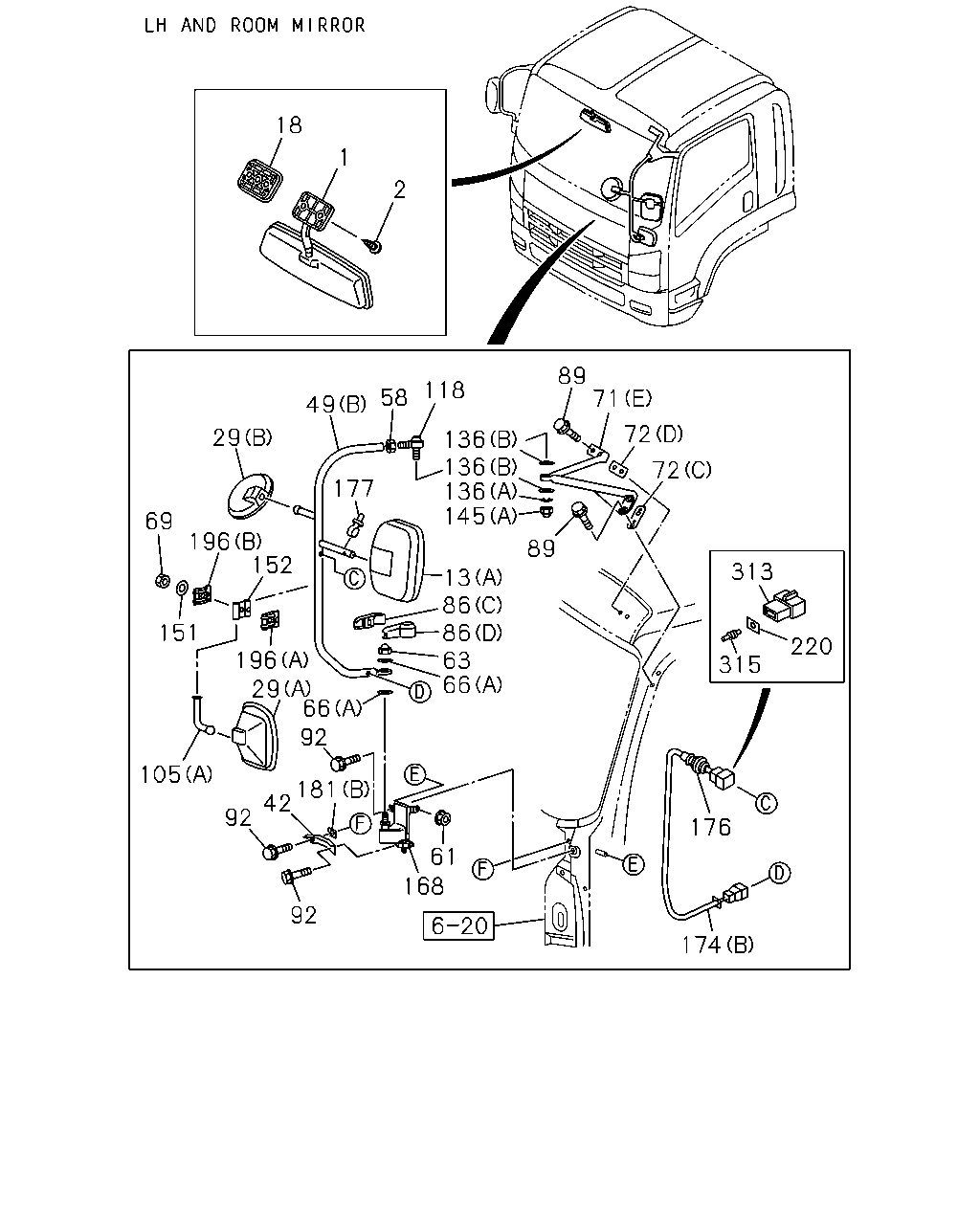

18 1 2 89 71 118 58 49 72 29 136 136 136 145 72 177 69 196 152 89 313 13 86 86 63 66 151 220 196 29 66 92 315 105 181 42 92 176 61 168 92 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	0906-
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71707-101-2	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71707-100-2	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98043-176-1	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98043-060-1	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98055-992-1	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98055-991-1	01	1	0906-
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	0906-
29	MIRROR ASM; UNDER O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-421-1	01	1	0906-
29	MIRROR ASM; UNDER O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-422-0	01	1	0906-1005
29	MIRROR ASM; UNDER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-422-0	01	1	1006-
42	ATTACHMENT; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98070-643-0	01	1	0906-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98060-218-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-195-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98064-777-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-194-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98064-781-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-199-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98064-780-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-198-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-067-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-211-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-066-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-210-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98083-831-1	01	1	0906-1402
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98257-753-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98091-456-0	01	1	0906-1502
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98305-584-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-053-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-189-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-052-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-188-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-051-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-181-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-050-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-180-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-065-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-207-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-064-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-206-0	01	1	1203-
58	NUT; MIRROR STAY O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> M12	8-98061-883-0	01	1	0906-
61	NUT; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8 FLANGE	0-91180-108-0	01	1	0906-
63	NUT; STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	0909-
63	NUT; STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M14 CAP NUT	8-98041-311-1	01	1	0906-
66	WASHER; PL O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ID=14.5 OD=30	9-09851-946-0	02	1	0906-
66	WASHER; PL EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	0906-
66	WASHER; PL EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	0906-
69	NUT; CAP EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	01	1	0906-
69	NUT; CAP O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> M10 CAP NUT	1-09984-134-0	01	1	0906-
69	NUT; CAP EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	0906-0908
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71797-877-0	02	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71797-878-0	02	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	0906-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98039-277-2	02	1	0906-1202
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98039-277-2	02	1	1203-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (I)	1-71798-484-1	01	1	0906-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-794-2	01	1	0906-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-793-2	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (G)	8-98060-240-0	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (H)	8-98092-492-3	01	1	0906-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1203-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1203-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-865-0	01	1	0906-1202
72	SHEET O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-865-0	01	1	1203-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-864-0	01	1	0906-1202
72	SHEET O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-864-0	01	1	1203-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	0906-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	0906-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	0906-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	0906-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-797-0	01	1	0906-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-796-0	01	1	0906-
72	SHEET O/SIDE MIRROR UNDER VIEW<RR9> (F)	8-98060-245-1	01	1	0906-
72	SHEET O/SIDE MIRROR UNDER VIEW<RR9> (G)	8-98064-776-0	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-542-2	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-649-1	01	1	0906-1005
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1006-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	0906-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	0909-
89	SCREW; BRKT,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	0906-
92	BOLT; STAY BRKT,MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	04	1	0906-
92	BOLT; STAY BRKT,MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	01	1	0906-
105	STAY; SUB UNDER MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98080-109-2	01	1	0906-
105	STAY; SUB UNDER MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A)	8-98041-571-2	01	1	0906-1402
105	STAY; SUB UNDER MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A)	8-98257-761-0	01	1	1403-
118	JOINT ASM; BALL O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	1-71798-356-2	01	1	0906-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	0906-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0906-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0906-
136	WASHER; LK,BRKT,MIRROR STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	0906-
145	NUT; CAP,SUB STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M10 CAP NUT	1-09984-134-0	03	1	0906-
145	NUT; CAP,SUB STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M8 CAP NUT	8-98059-914-0	10	1	0906-
151	WASHER; PL,MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> ID=10.5 T=2.0	1-09985-183-0	01	1	0906-
152	SHEET; MIRROR STAY O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	1-71798-445-1	02	1	0906-
168	POWER UNIT; MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH>	8-97612-287-2	01	1	0906-
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98047-367-0	01	1	0906-1402
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98258-260-0	01	1	1403-
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98047-368-2	01	1	0906-
176	GROMMET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	1-82699-906-0	01	1	0906-
176	GROMMET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	1-82699-906-0	01	1	0906-
177	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> L=140	5-09707-031-1	01	1	0906-
177	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> L=140	5-09707-031-1	02	1	0906-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	0906-
181	SEAL; BRKT EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) OD=25 BLACK	1-76798-019-0	01	1	0906-
196	HOLDER; STAY O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-442-2	01	1	0906-
196	HOLDER; STAY O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-444-2	01	1	0906-
220	HOLDER; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	8-94447-536-0	01	1	0906-
220	HOLDER; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-94447-536-0	01	1	0906-
313	CONNECTOR; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	8-94447-532-0	01	1	0906-
313	CONNECTOR; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-94447-532-0	01	1	0906-
315	RUBBER ASM; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	1-82691-026-0	01	1	0906-
315	RUBBER ASM; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	1-82691-026-0	01	1	0906-

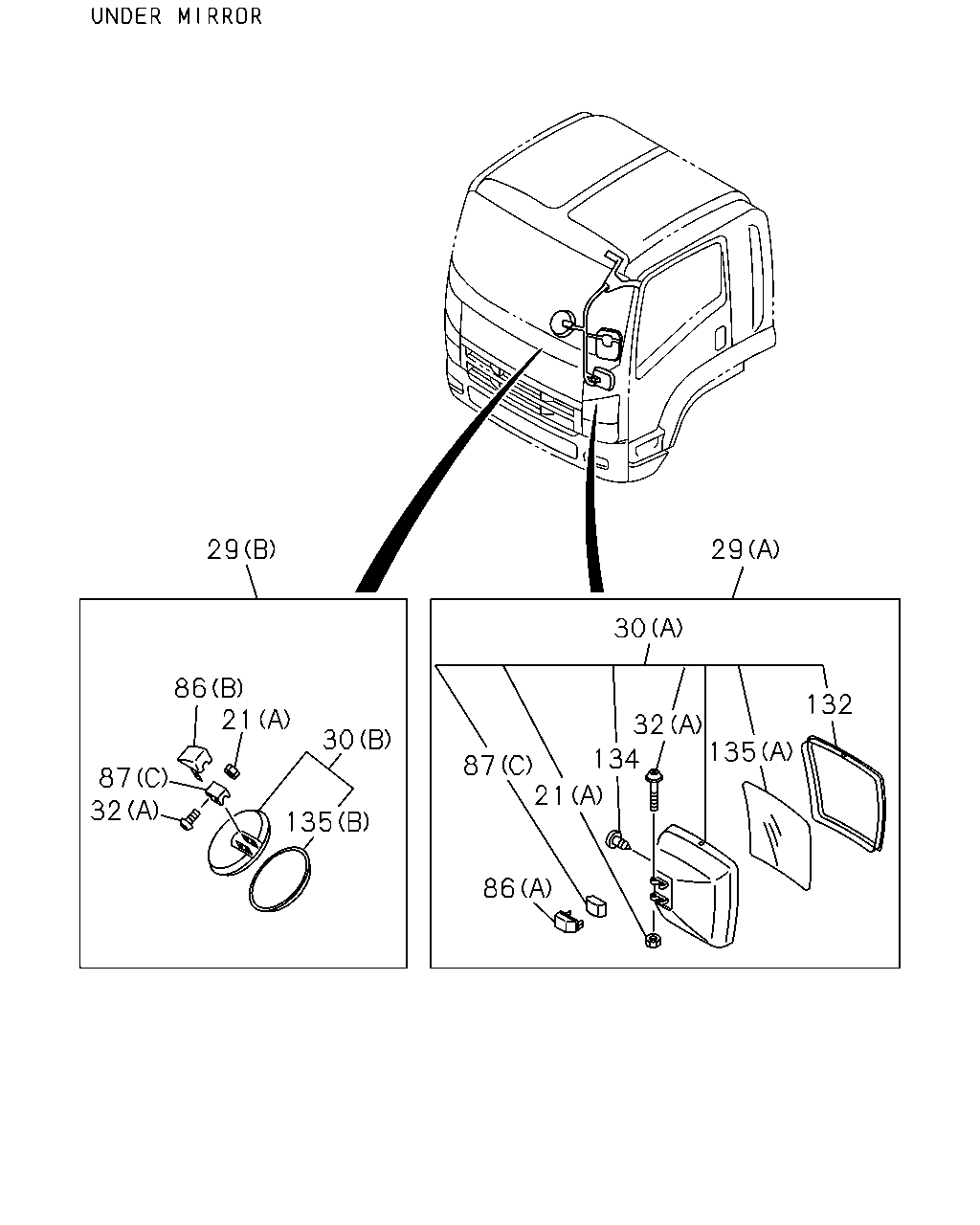

29 29 30 86 21 132 32 135 30 134 87 32 87 21 135 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M5	1-09984-124-0	02	1	0906-
21	NUT; MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) M5	1-09984-124-0	02	1	0906-
21	NUT; MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (B) M10 CAP NUT	1-09984-134-0	02	1	0906-
29	MIRROR ASM; UNDER O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-421-1	01	1	0906-
29	MIRROR ASM; UNDER O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-422-0	01	1	0906-1005
29	MIRROR ASM; UNDER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-422-0	01	1	1006-
30	MIRROR; UNDER EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98043-061-0	02	1	0906-
30	MIRROR; UNDER EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98043-065-0	01	1	0906-
30	MIRROR; UNDER O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-591-1	01	1	0906-1005
30	MIRROR; UNDER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-591-1	01	1	1006-
30	MIRROR; UNDER O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-592-1	01	1	0906-
30	MIRROR; UNDER O/SIDE MIRROR UNDER VIEW<RR9> (C)	8-98055-994-0	01	1	0906-1504
30	MIRROR; UNDER O/SIDE MIRROR UNDER VIEW<RR9> (C)	8-98309-725-0	01	1	1505-
32	SCREW; UNDER MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M5X40 W/PL WASHER	1-71737-797-0	02	1	0906-
32	SCREW; UNDER MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) M5X40 W/PL WASHER	1-71737-797-0	02	1	0906-
32	SCREW; UNDER MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (B) M8X26 W/PL WASHER	8-98067-249-2	04	1	0906-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-542-2	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-649-1	01	1	0906-1005
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1006-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	0906-
87	SPACER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	01	1	0906-
87	SPACER O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-646-2	01	1	0906-
87	SPACER EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	0906-
87	SPACER EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	01	1	0906-
132	RING; MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	1-71737-935-0	01	1	0906-
134	CLIP; MIRROR LENS O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	01	1	0906-
135	LENS; MIRROR,SIDE UNDER O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-929-0	01	1	0906-
135	LENS; MIRROR,SIDE UNDER O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-838-0	01	1	0906-1005
135	LENS; MIRROR,SIDE UNDER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-838-0	01	1	1006-

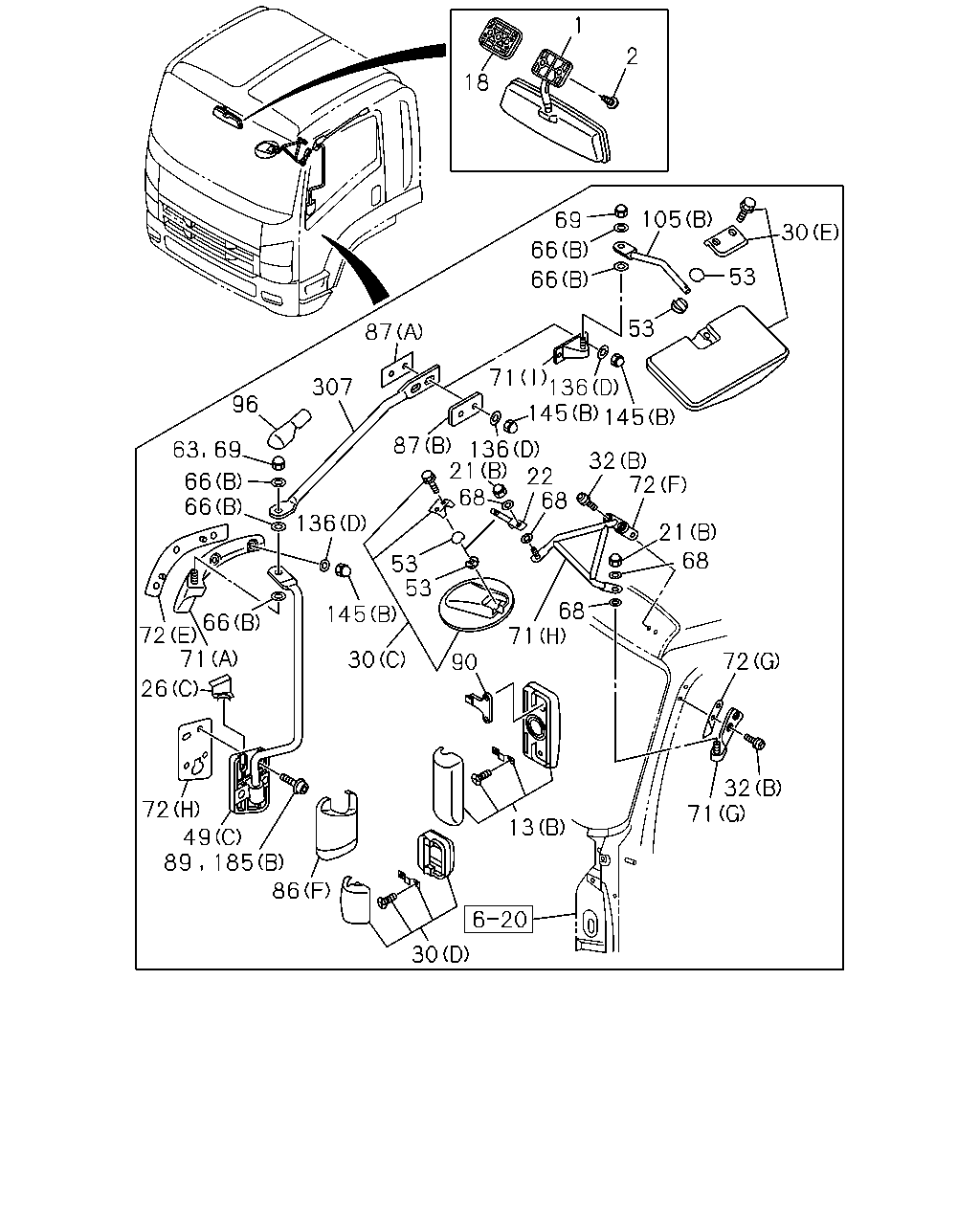

2 1 18 69 66 105 53 30 66 71 87 307 96 63 69 66 66 72 26 66 71 72 49 89 185 86 30 13 71 72 71 90 30 145 53 136 53 87 22 21 136 68 68 68 32 68 21 72 32 145 145 136 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	0906-
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71707-101-2	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71707-100-2	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98043-176-1	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98043-060-1	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98055-992-1	01	1	0906-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98055-991-1	01	1	0906-
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	0906-
21	NUT; MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M5	1-09984-124-0	02	1	0906-
21	NUT; MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) M5	1-09984-124-0	02	1	0906-
21	NUT; MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (B) M10 CAP NUT	1-09984-134-0	02	1	0906-
22	STAY; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9>	8-98092-493-0	01	1	0906-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71797-879-0	02	1	0906-
26	COVER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71797-880-0	02	1	0906-
26	COVER; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98031-806-0	01	1	0906-
26	COVER; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98031-805-0	01	1	0906-
30	MIRROR; UNDER EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98043-061-0	02	1	0906-
30	MIRROR; UNDER EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98043-065-0	01	1	0906-
30	MIRROR; UNDER O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-591-1	01	1	0906-1005
30	MIRROR; UNDER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-591-1	01	1	1006-
30	MIRROR; UNDER O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-592-1	01	1	0906-
30	MIRROR; UNDER O/SIDE MIRROR UNDER VIEW<RR9> (C)	8-98055-994-0	01	1	0906-1504
30	MIRROR; UNDER O/SIDE MIRROR UNDER VIEW<RR9> (C)	8-98309-725-0	01	1	1505-
32	SCREW; UNDER MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M5X40 W/PL WASHER	1-71737-797-0	02	1	0906-
32	SCREW; UNDER MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) M5X40 W/PL WASHER	1-71737-797-0	02	1	0906-
32	SCREW; UNDER MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (B) M8X26 W/PL WASHER	8-98067-249-2	04	1	0906-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98060-218-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-195-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98064-777-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-194-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98064-781-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-199-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98064-780-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-198-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-067-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-211-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-066-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-210-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98083-831-1	01	1	0906-1402
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B)	8-98257-753-0	01	1	1403-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98091-456-0	01	1	0906-1502
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98305-584-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-053-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-189-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-052-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-188-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-051-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-181-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-050-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-180-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-065-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-207-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98075-064-1	01	1	0906-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98166-206-0	01	1	1203-
53	PIVOT; SIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> ID=19.1	1-71737-633-2	02	1	0906-
53	PIVOT; SIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> ID=19.1	1-71737-633-2	02	1	0906-
63	NUT; STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	0909-
63	NUT; STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M14 CAP NUT	8-98041-311-1	01	1	0906-
66	WASHER; PL O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ID=14.5 OD=30	9-09851-946-0	02	1	0906-
66	WASHER; PL EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	0906-
66	WASHER; PL EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	0906-
68	WASHER; STAY O/SIDE MIRROR UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0906-
69	NUT; CAP EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	01	1	0906-
69	NUT; CAP O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> M10 CAP NUT	1-09984-134-0	01	1	0906-
69	NUT; CAP EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	0906-0908
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71797-877-0	02	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71797-878-0	02	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-022-1	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-021-0	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98040-543-1	01	1	0906-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98039-277-2	02	1	0906-1202
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98039-277-2	02	1	1203-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (I)	1-71798-484-1	01	1	0906-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-794-2	01	1	0906-
71	BRACKET; OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98031-793-2	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (G)	8-98060-240-0	01	1	0906-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR UNDER VIEW<RR9> (H)	8-98092-492-3	01	1	0906-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1203-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDEMIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1203-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-865-0	01	1	0906-1202
72	SHEET O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-865-0	01	1	1203-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-864-0	01	1	0906-1202
72	SHEET O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-864-0	01	1	1203-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	0906-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	0906-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	0906-
72	SHEET O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	0906-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-797-0	01	1	0906-
72	SHEET EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-796-0	01	1	0906-
72	SHEET O/SIDE MIRROR UNDER VIEW<RR9> (F)	8-98060-245-1	01	1	0906-
72	SHEET O/SIDE MIRROR UNDER VIEW<RR9> (G)	8-98064-776-0	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-542-2	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	0906-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-649-1	01	1	0906-1005
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1006-
86	COVER; STAY,OUTSIDE MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	0906-
87	SPACER O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	01	1	0906-
87	SPACER O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (C)	1-71737-646-2	01	1	0906-
87	SPACER EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	0906-
87	SPACER EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	01	1	0906-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	0909-
89	SCREW; BRKT,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	0906-
90	BRACKET; MIRROR STAY O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98129-822-0	02	1	1506-
96	CAP; MIRROR STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98080-173-0	02	1	0906-
105	STAY; SUB UNDER MIRROR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98080-109-2	01	1	0906-
105	STAY; SUB UNDER MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A)	8-98041-571-2	01	1	0906-1402
105	STAY; SUB UNDER MIRROR O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A)	8-98257-761-0	01	1	1403-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	0906-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0906-
136	WASHER; LK,BRKT,MIRROR STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0906-
136	WASHER; LK,BRKT,MIRROR STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	0906-
145	NUT; CAP,SUB STAY O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M10 CAP NUT	1-09984-134-0	03	1	0906-
145	NUT; CAP,SUB STAY EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M8 CAP NUT	8-98059-914-0	10	1	0906-
185	BOLT; BRKT EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-1202
185	BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M8X16 FLANGE	0-28050-816-0	02	1	1203-
185	BOLT; BRKT EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) SCREW M8X23	8-97310-216-1	08	1	0906-0908
307	STAY; MIRROR SUPPORT EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98063-785-2	01	1	0906-
307	STAY; MIRROR SUPPORT EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98063-784-2	01	1	0906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
