6-60 — ROOF PANEL (#59261) — 19 parça

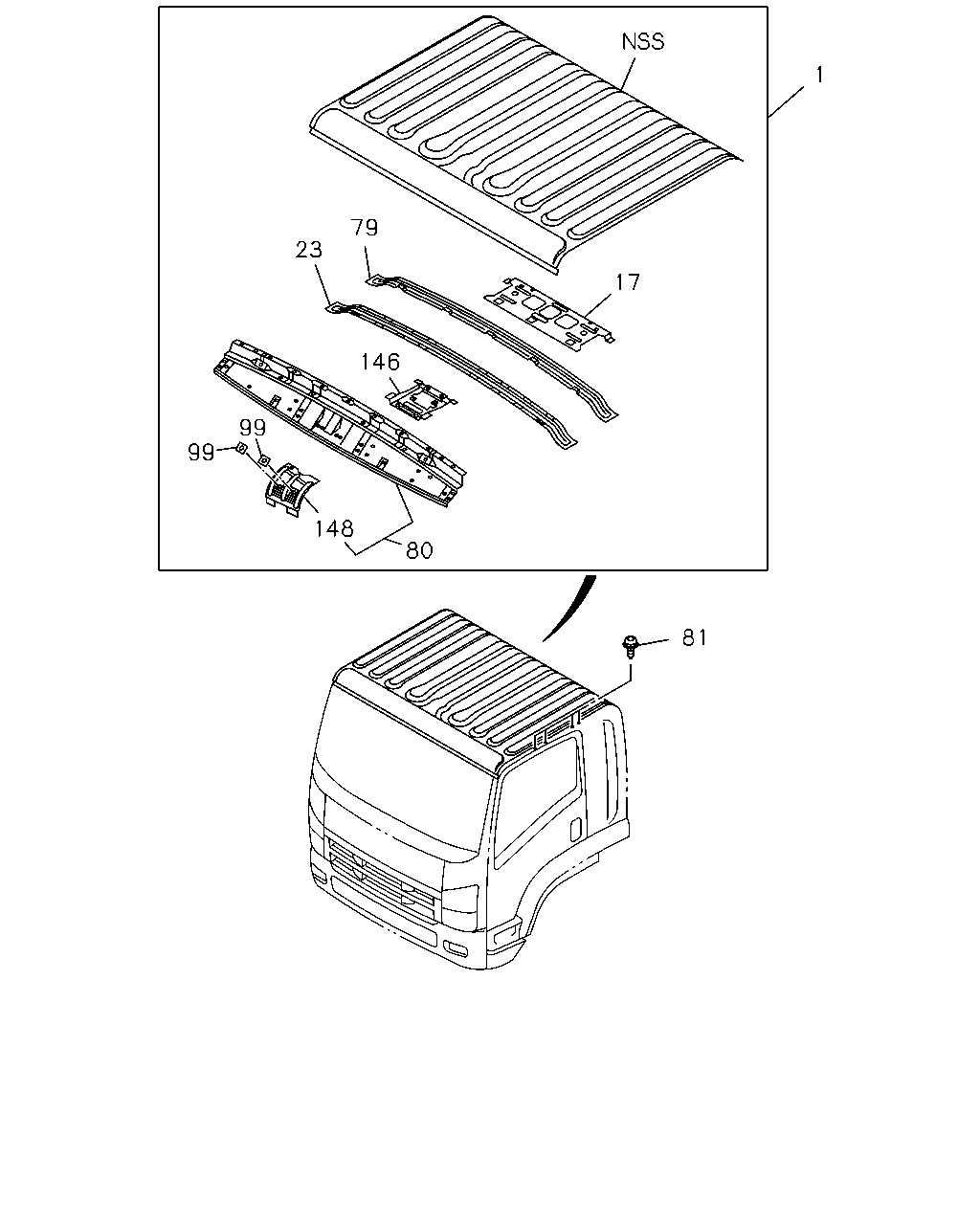

çizim 163939
1 79 23 17 146 99 99 148 80 81
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-98017-276-6 01 1 1006-
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> EXC. FLUORESCENT LAMP<6UC> 		8-98152-801-0 01 1 1002-1005
1 PANEL; ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. FLUORESCENT LAMP<6UC> 		8-98152-801-1 01 1 1006-
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, FLUORESCENT LAMP<6UC> 		8-98152-801-1 01 1 1006-
1 PANEL; ROOF 8-97584-170-6 01 1 0906-1001
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> FLUORESCENT LAMP<6UC> 		8-97584-170-6 01 1 1002-1005
1 PANEL; ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> FLUORESCENT LAMP<6UC> 		8-97584-170-7 01 1 1006-
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97584-170-7 01 1 1006-
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 0906-1001
17 REINFORCEMENT; ROOF PNL CENTER
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> FLUORESCENT LAMP<6UC> 		8-97584-203-5 01 1 1002-1005
17 REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC> 		8-97584-203-5 01 1 1006-
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 0906-
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-199-1 01 1 0906-
80 PANEL; HEADER,ROOF 8-97584-191-4 01 1 0906-
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98028-744-0 08 1 0906-0910
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 0911-
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 02 1 0906-
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 0906-
148 REINFORCEMENT; MIRROR 8-97411-015-1 01 1 0906-
