Isuzu WW
▶
TRUCKS
▶
FSR
▶
11233 - FSR-R EU5 EXC.SPACE
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#59244) — 38 parça
◀

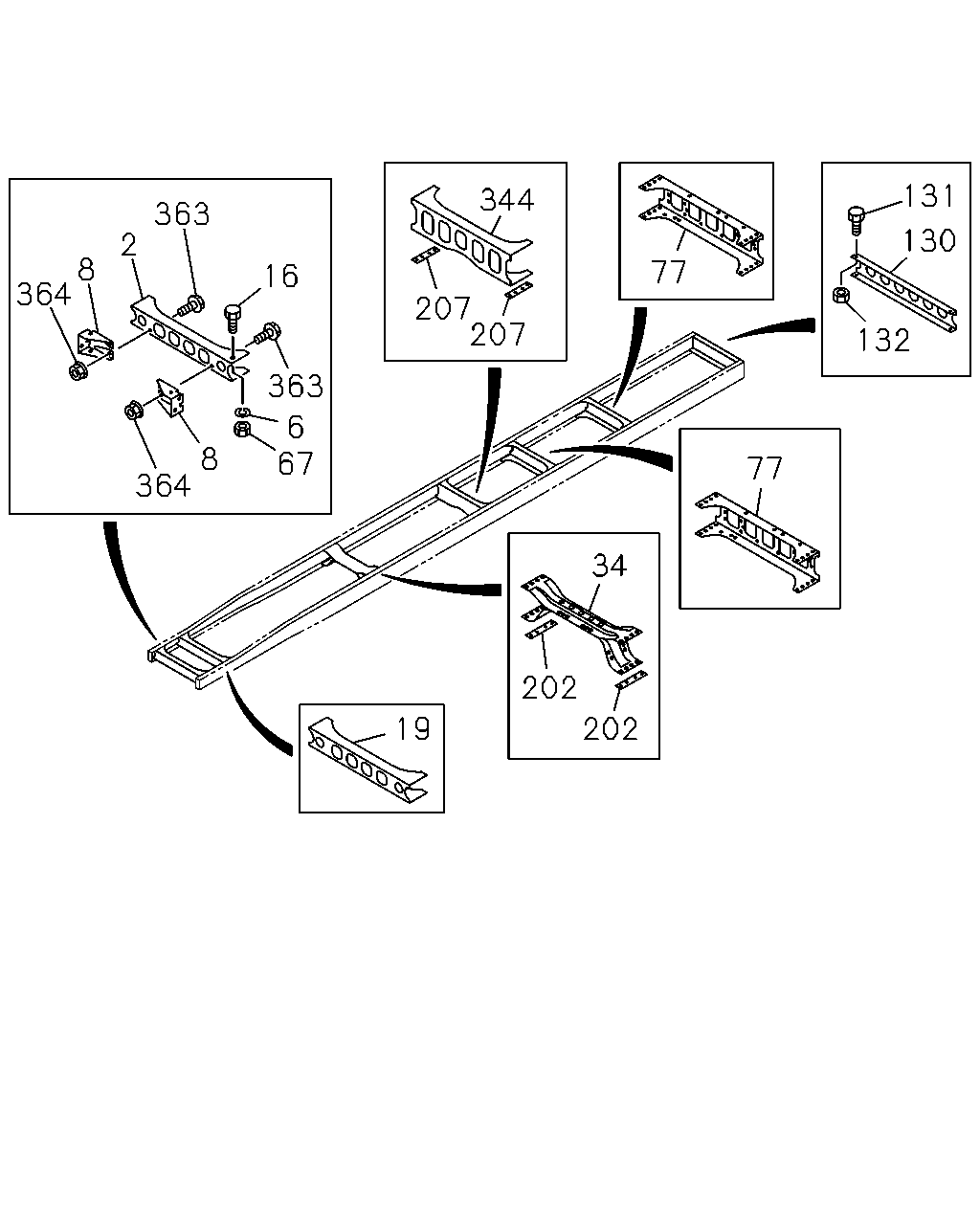

[501A] CROSS MEMBER (17 parça)
[501A] BRACKET AND OTHER PARTS (21 parça)
▶
131
344
363
130
2
8
364
77
16
207
207
132
363
6
67
8
364
77
34
202
19
202
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97615-669-3
01
1
0906-
6
WASHER; LK,1ST C/MBR
ID=12.2
0-91510-512-0
02
1
0906-
8
GUSSET; 1ST C/MBR
8-97609-759-2
01
1
0906-
8
GUSSET; 1ST C/MBR
8-97609-760-3
01
1
0906-
16
BOLT; 1ST C/MBR TO S/MBR
M12X30
0-20851-230-0
02
1
0906-
19
MEMBER; CROSS,2ND
8-97615-670-4
01
1
0906-
34
MEMBER; CROSS,3RD
8-97609-755-0
01
1
0906-
67
NUT; C/MBR
M12
0-91110-512-0
02
1
0906-
77
MEMBER; CROSS,TRUNNION RR
8-97609-481-4
02
1
0906-
130
MEMBER; CROSS,END
8-97609-470-0
01
1
0906-
131
BOLT; END C/MBR
M10X25 W/LK WASHER
0-50541-025-0
04
1
0906-
132
NUT; END C/MBR
M10
0-91110-510-0
04
1
0906-
202
SPACER; 3RD C/MBR
8-97609-757-0
02
1
0906-
207
SPACER; 4TH C/MBR
8-97609-758-0
02
1
0906-
344
MEMBER; CROSS,4TH
8-97609-473-2
01
1
0906-
363
BOLT; GUSSET
M12X25 FLANGE
0-28661-225-0
04
1
0906-
364
NUT; GUSSET
M12 FLANGE
0-91180-212-0
04
1
0906-
118
98
103
117
18
11
13
82
138
105
106
39
101
23
25
25
26
31
23
26
27
25
46
24
25
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
8-97609-502-0
02
1
0906-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
0906-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
0906-
23
BOLT; BRKT,SPR
M14X50
0-20951-450-0
08
1
0906-
24
BRACKET; FRT SPR,FRT
8-98018-983-0
01
1
0906-
24
BRACKET; FRT SPR,FRT
8-98018-984-0
01
1
0906-
25
WASHER; PL,BRKT
ID=15
8-98010-627-1
16
1
0906-
26
NUT; BRKT,SPR
M14
0-91110-514-0
20
1
0906-
27
WASHER; LK,BRKT,FRT SPR
ID=14.2
0-91510-614-0
12
1
0906-
31
BUSHING; FRT SPR,RR
ID=25
8-98082-176-0
02
1
0906-
39
BRACKET; FRT SPR,RR
1-53352-126-2
02
1
0906-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
12
1
0906-
82
NUT; BRKT
M14
0-91110-514-0
10
1
0906-
98
WASHER; LK,STOPPER
ID=14.2
0-91510-614-0
16
1
0906-
101
BRACKET; RR SPR,FRT
1-53353-090-4
02
1
0906-
103
STOPPER; SUB SPR
1-53356-059-1
04
1
0906-
105
BRACKET; RR SPR,RR
1-53354-074-0
02
1
0906-
106
BOLT; BRKT
M14X50
0-20951-450-0
10
1
0906-
117
BOLT; STOPPER
M14X50
0-20951-450-0
16
1
0906-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
0906-
138
WASHER; LK,BRKT
ID=14.2
0-91510-614-0
10
1
0906-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
