◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11233 - FSR-R EU5 EXC.SPACE ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#59239) — 47 parça

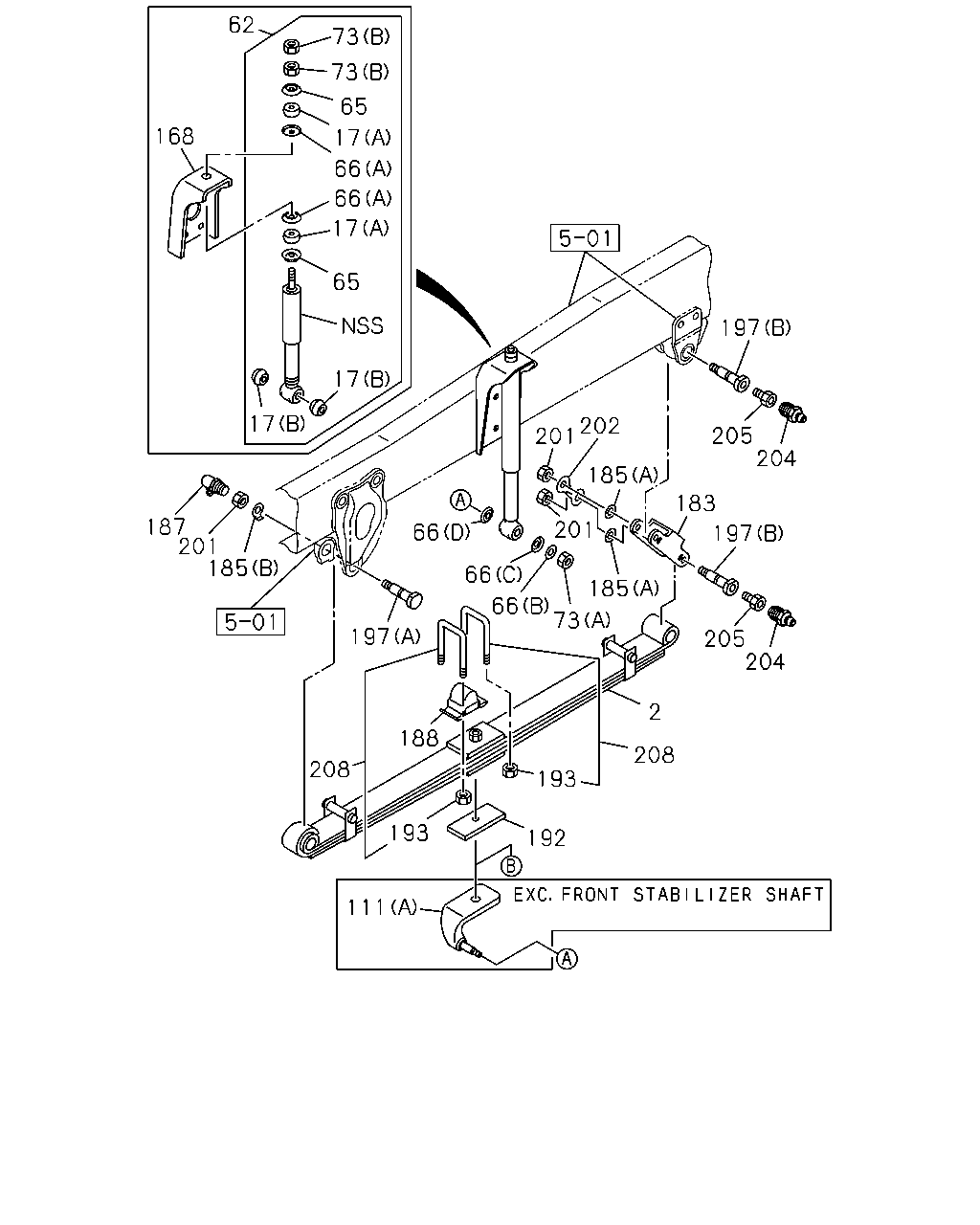

çizim 163896
73 62 168 73 17 66 65 17 66 17 17 65 202 201 183 205 197 204 197 205 204 185 201 66 185 73 66 66 197 187 201 185 208 193 2 208 192 193 111 188
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98063-483-0 01 1 0906-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98229-528-0 01 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98063-484-0 01 1 0906-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98229-529-0 01 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 6-LEAF 		8-98017-556-0 01 1 0906-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 6-LEAF 		8-98017-557-0 01 1 0906-
17 BUSHING; RUBBER,S/ABS
(B) 		1-51631-009-1 04 1 0906-
17 BUSHING; RUBBER,S/ABS
(A) 		9-51631-050-0 04 1 0906-
62 ABSORBER ASM; SHOCK,FRT 1-51630-302-1 02 1 0906-
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 04 1 0906-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 0906-
66 WASHER; LK,S/ABS SETTING
(D) ID=23 		1-51631-019-0 02 1 0906-
66 WASHER; LK,S/ABS SETTING
(C) ID=17 		1-51631-020-0 02 1 0906-
66 WASHER; LK,S/ABS SETTING
(A) ID=16.8 		1-51631-022-0 04 1 0906-
73 NUT; BRKT,SHOCK
(A) M16 		0-91110-516-0 02 1 0906-
73 NUT; BRKT,SHOCK
(B) M12 		8-98010-412-0 04 1 0906-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B) 		1-51681-655-1 01 1 0906-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B) 		1-51681-654-1 01 1 0906-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51681-642-2 01 1 0906-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51681-641-2 01 1 0906-
168 BRACKET; S/ABS,FRT SUSP 1-51681-820-0 02 1 0906-
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 0906-
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 0906-
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 0906-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0906-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-124-0 02 1 0906-
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 0906-
193 NUT; U BOLT
M18 FLANGE 		1-09440-039-1 08 1 0906-
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 0906-
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 0906-
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0906-
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 0906-
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0906-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 0906-
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=165 		1-87870-444-0 04 1 0906-
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=180 		1-87870-484-0 04 1 0906-

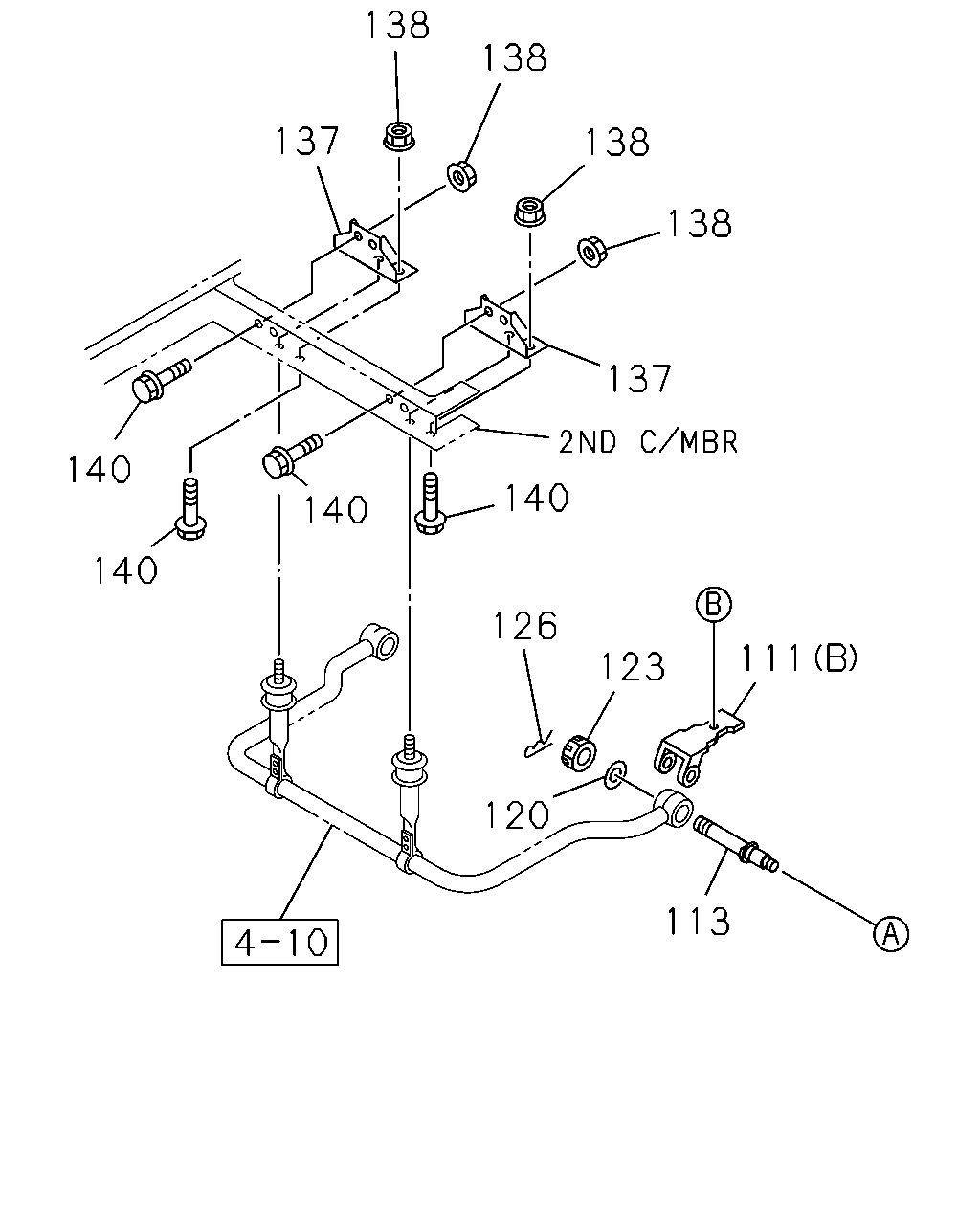

çizim 163904
138 138 137 138 138 137 140 140 140 140 126 111 123 120 113
BalonParca AdiParca NoAdetTipApplied Date
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B) 		1-51681-655-1 01 1 0906-
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> (B) 		1-51681-654-1 01 1 0906-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51681-642-2 01 1 0906-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> (A) 		1-51681-641-2 01 1 0906-
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> 		8-98019-317-0 02 1 0906-
120 WASHER; PL,SUPPORT BRKT TO BODY
FRONT STABILIZER SHAFT<F59> ID=23 		0-91614-522-0 02 1 0906-
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> M22 		0-91116-522-0 02 1 0906-
126 PIN; SPLIT,STAB
FRONT STABILIZER SHAFT<F59> OD=4.6 L=45 		0-81125-045-0 02 1 0906-
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-060-2 02 1 0906-
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 FLANGE 		0-91180-210-0 08 1 0906-
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X25 FLANGE 		0-28651-025-0 08 1 0906-
