4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#59235) — 55 parça

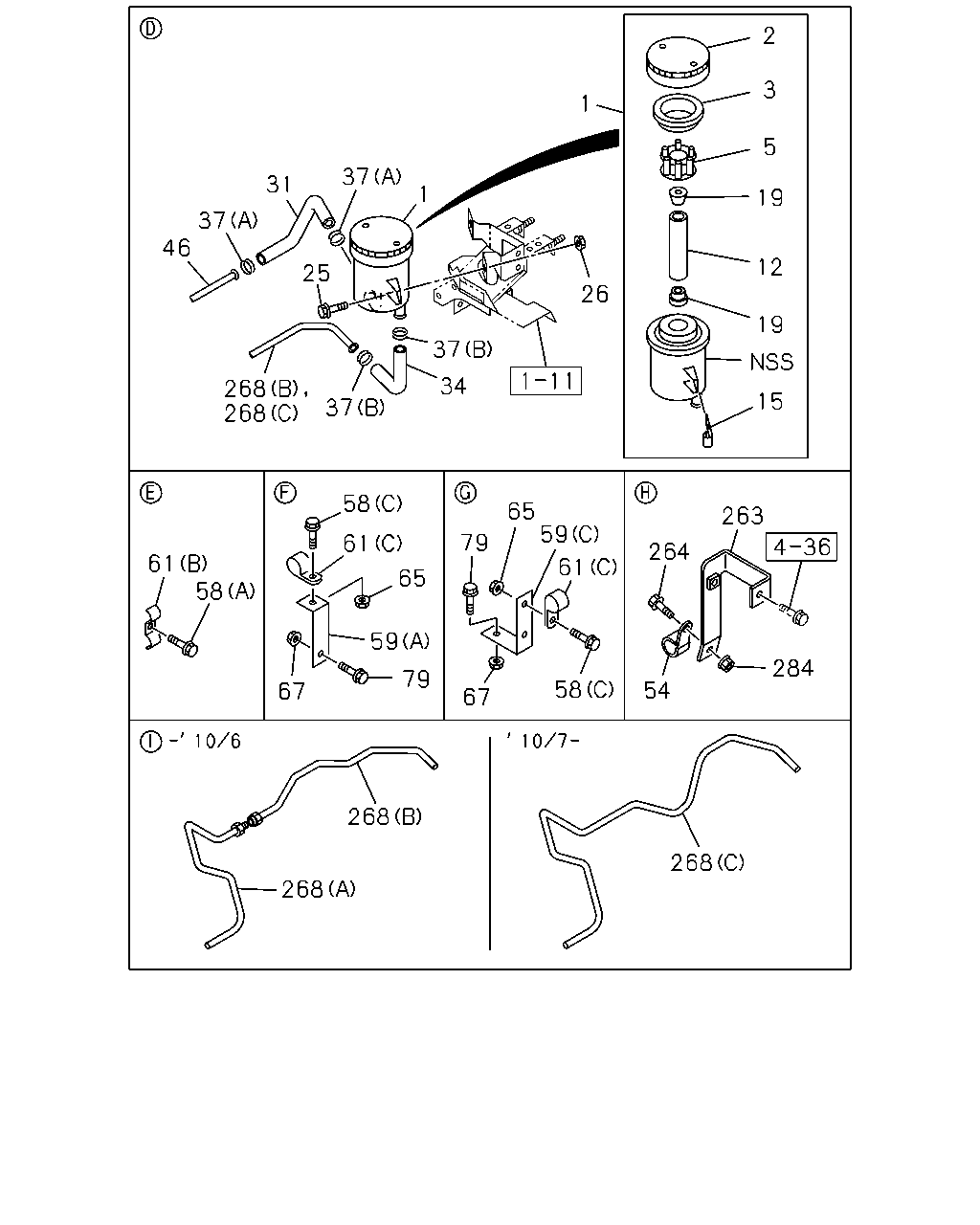

2 3 1 5 37 31 1 19 37 46 12 25 26 19 37 34 268 268 15 37 58 65 59 263 79 61 264 61 58 61 65 59 284 79 58 54 67 67 268 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0906-1006
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0906-1006
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0906-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0906-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0906-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0906-
19	SEAT; OIL TANK	1-21249-004-0	02	1	0906-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0906-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0906-
31	HOSE; P/S OIL TANK,INL	8-98093-500-0	01	1	0906-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0906-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0906-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0906-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2747	8-98099-153-0	01	1	0906-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	0906-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	0906-
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0906-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0906-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0906-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0906-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0906-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0906-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0906-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0906-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0906-0906
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0907-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0906-
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	0906-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0906-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-961-0	01	1	0906-1006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98154-041-0	01	1	1007-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	0906-1006
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0906-

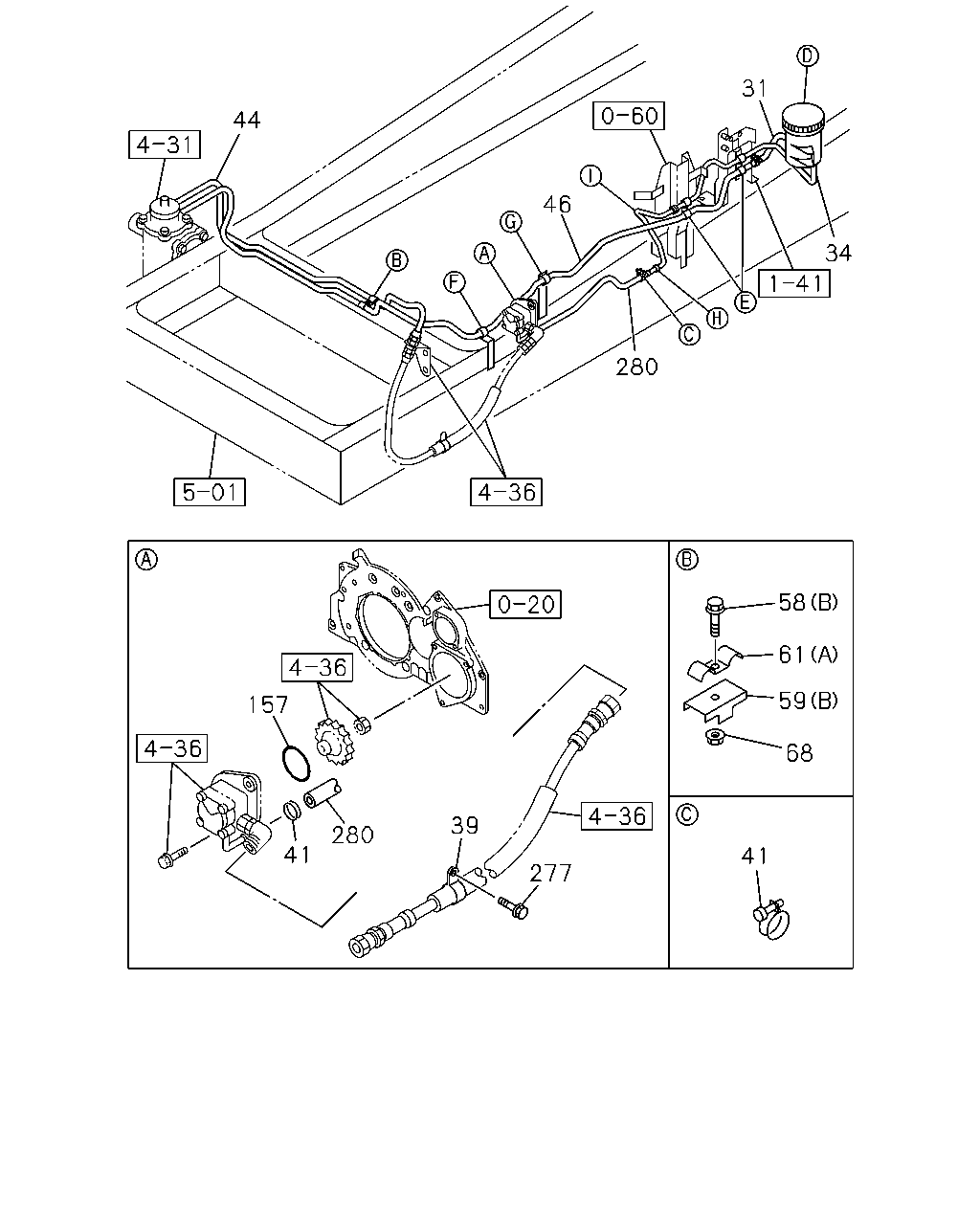

31 44 46 34 280 58 61 59 157 68 39 280 41 41 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98093-500-0	01	1	0906-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0906-
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0906-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0906-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98099-152-0	01	1	0906-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2747	8-98099-153-0	01	1	0906-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	0906-
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	0906-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0906-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	0906-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0906-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0906-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0906-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0906-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0906-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0906-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0906-
280	HOSE; P/S OIL PUMP,INL	8-98094-167-0	01	1	0906-
