3-70 — BRAKE PIPING; AIR,AIR MASTER (#59223) — 77 parça

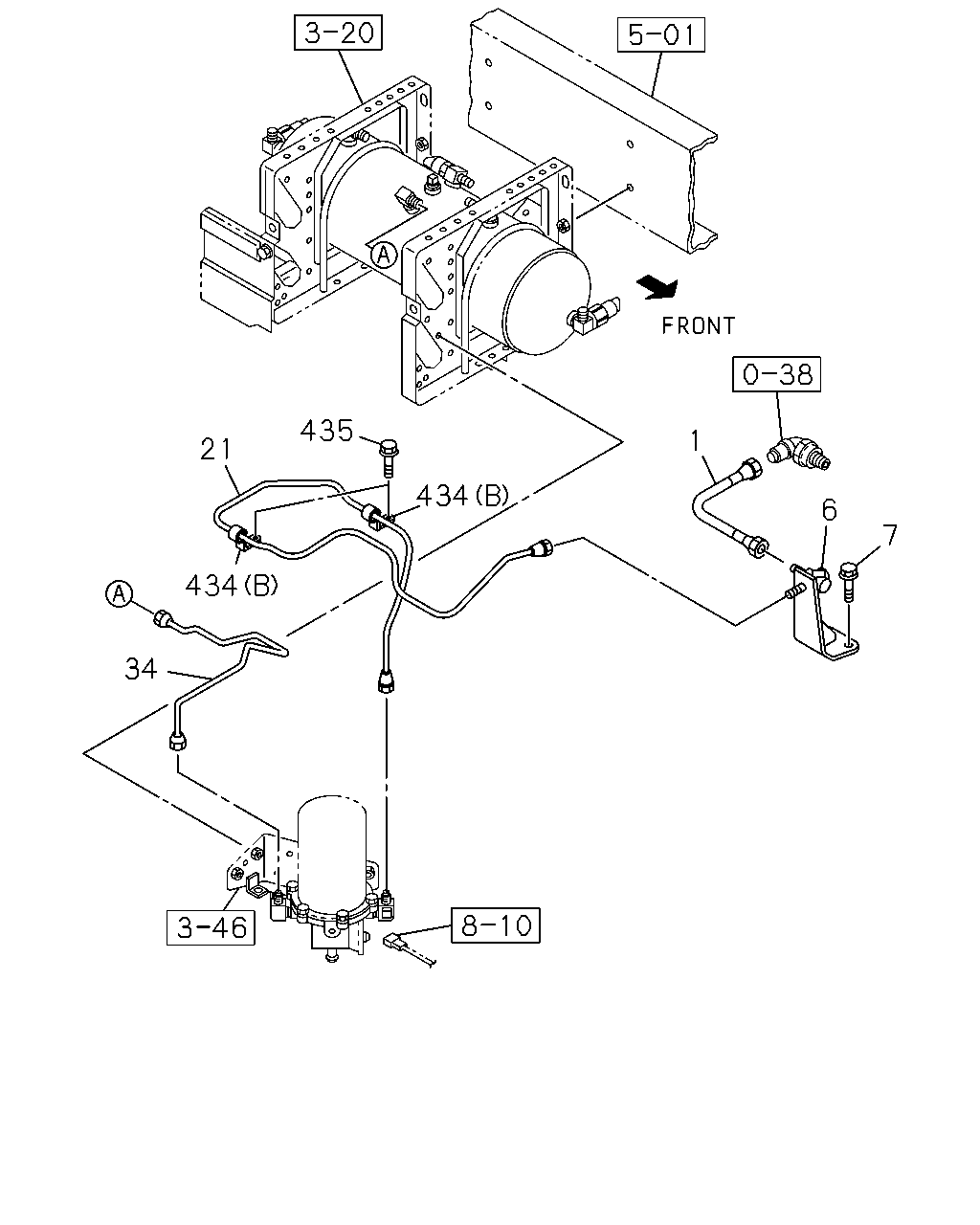

çizim 163870
435 1 21 434 6 7 434 34
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 0906-
6 BRACKET; FLEX HOSE,AIR TANK 8-98079-987-1 01 1 0906-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0906-
21 PIPE; AIR,UNION TO AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1816 		8-98083-100-0 01 1 0906-
21 PIPE; AIR,UNION TO AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1798 		8-98083-099-0 01 1 0906-
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0906-
34 PIPE; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 0906-
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0906-
434 CLIP
(A) L=350 		1-09707-183-0 06 1 0906-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0906-1008
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1009-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1009-1109
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 01 1 1009-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1110-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0906-1109
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0906-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1110-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 13 1 1110-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0906-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0906-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0906-

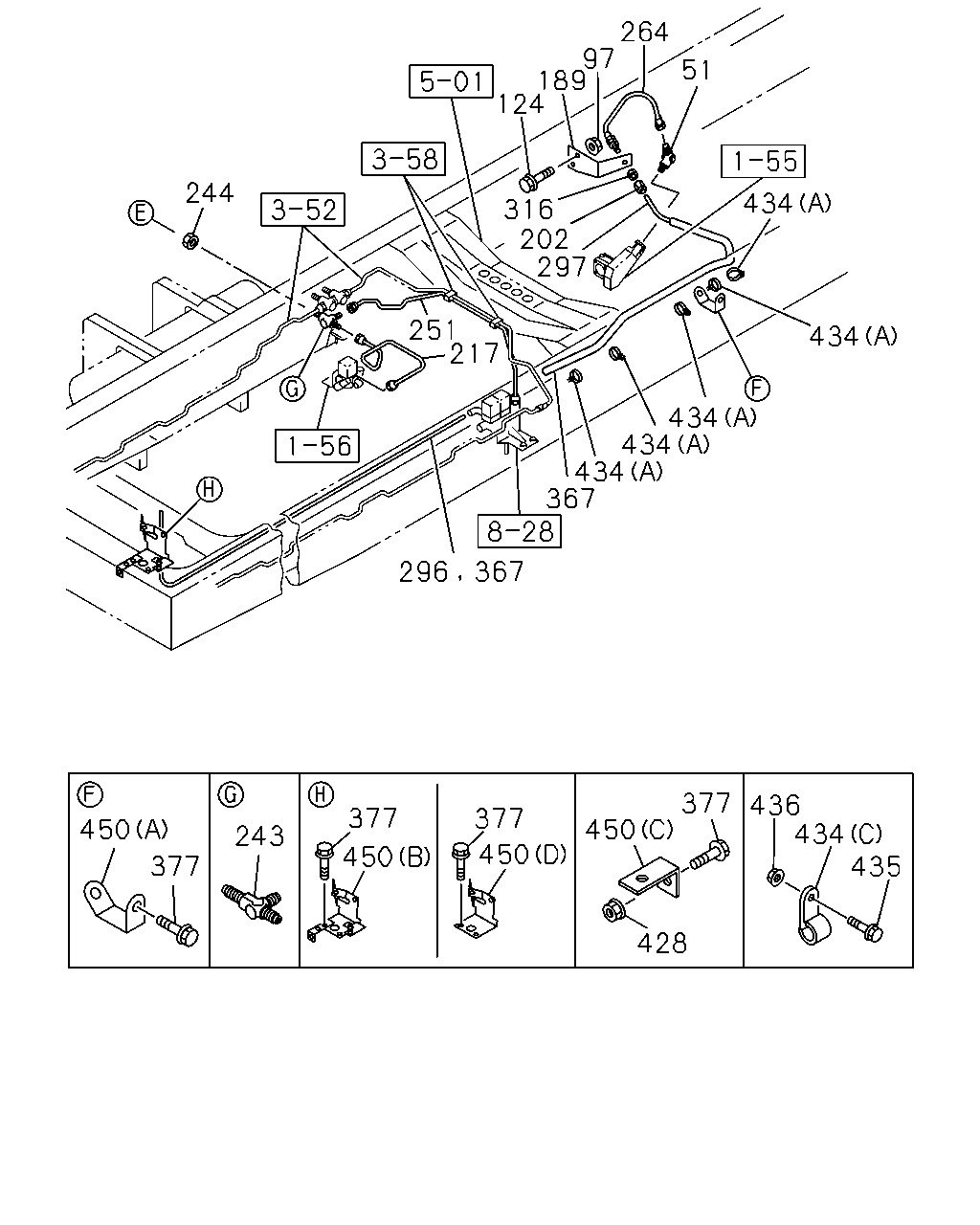

çizim 163883
435 434 436 428 377 450 450 377 450 377 243 377 450 296 367 367 434 434 434 434 434 51 264 97 189 124 316 202 297 217 251 244
BalonParca AdiParca NoAdetTipApplied Date
51 UNION
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906-
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-
124 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0906-
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 0906-
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0906-
217 PIPE; VAC,UNION TO MAG VLV
L=456 		8-98067-434-0 01 1 0906-
243 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0906-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0906-
251 PIPE; AIR,UNION TO MAG VLV
L=980 SERVICED BY L=1000 		1-47428-814-0 01 1 0906-
264 HOSE; FLEX
L=370 		1-09363-621-0 01 1 0906-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0906-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0906-
316 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0906-
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 0906-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0906-
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 03 1 0906-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 03 1 0906-
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 03 1 0906-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 03 1 0906-
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0906-
428 NUT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0906-
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0906-
434 CLIP
(A) L=350 		1-09707-183-0 06 1 0906-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0906-1008
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1009-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1009-1109
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 01 1 1009-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1110-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 0906-1109
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 0906-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1110-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 13 1 1110-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 0906-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0906-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0906-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0906-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (D) 		8-98254-305-0 01 1 1501-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-47477-694-0 01 1 0906-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C) 		1-47477-694-0 01 1 0906-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 0906-1412
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 0906-1412
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 1501-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98117-686-0 03 1 0906-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98117-686-0 03 1 0906-

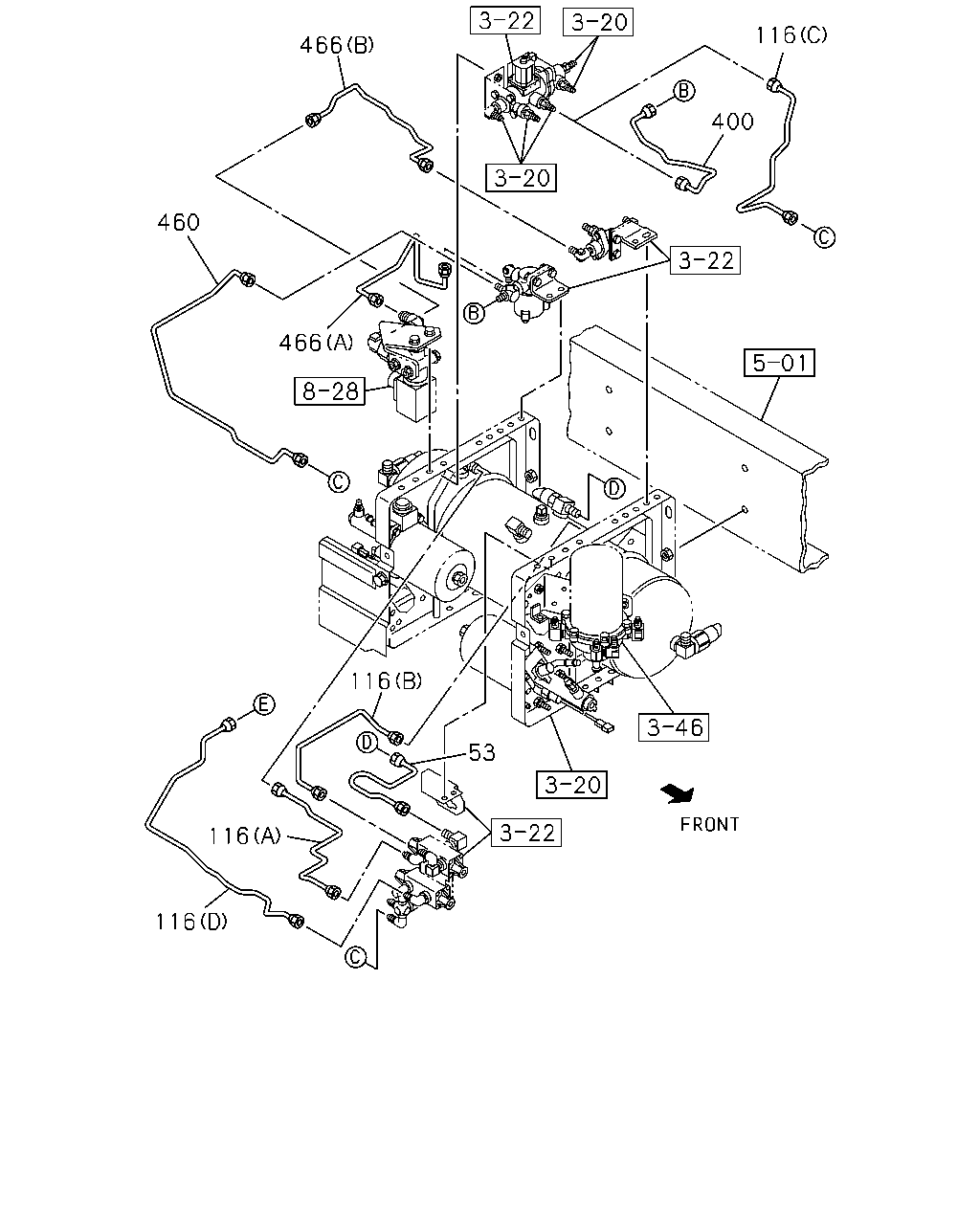

çizim 163886
116 466 400 460 466 116 53 116 116
BalonParca AdiParca NoAdetTipApplied Date
53 PIPE; AIR,AIR TANK TO VALVE 8-98061-086-0 01 1 0906-
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0906-
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0906-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0906-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 0906-
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0906-
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 0906-
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 0906-
460 PIPE; AIR,PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98066-846-0 01 1 0906-
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98066-847-0 01 1 0906-
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800 		1-47428-872-0 01 1 0906-
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 0906-
