Isuzu WW
▶
TRUCKS
▶
FSR
▶
11233 - FSR-R EU5 EXC.SPACE
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#59221) — 28 parça
◀

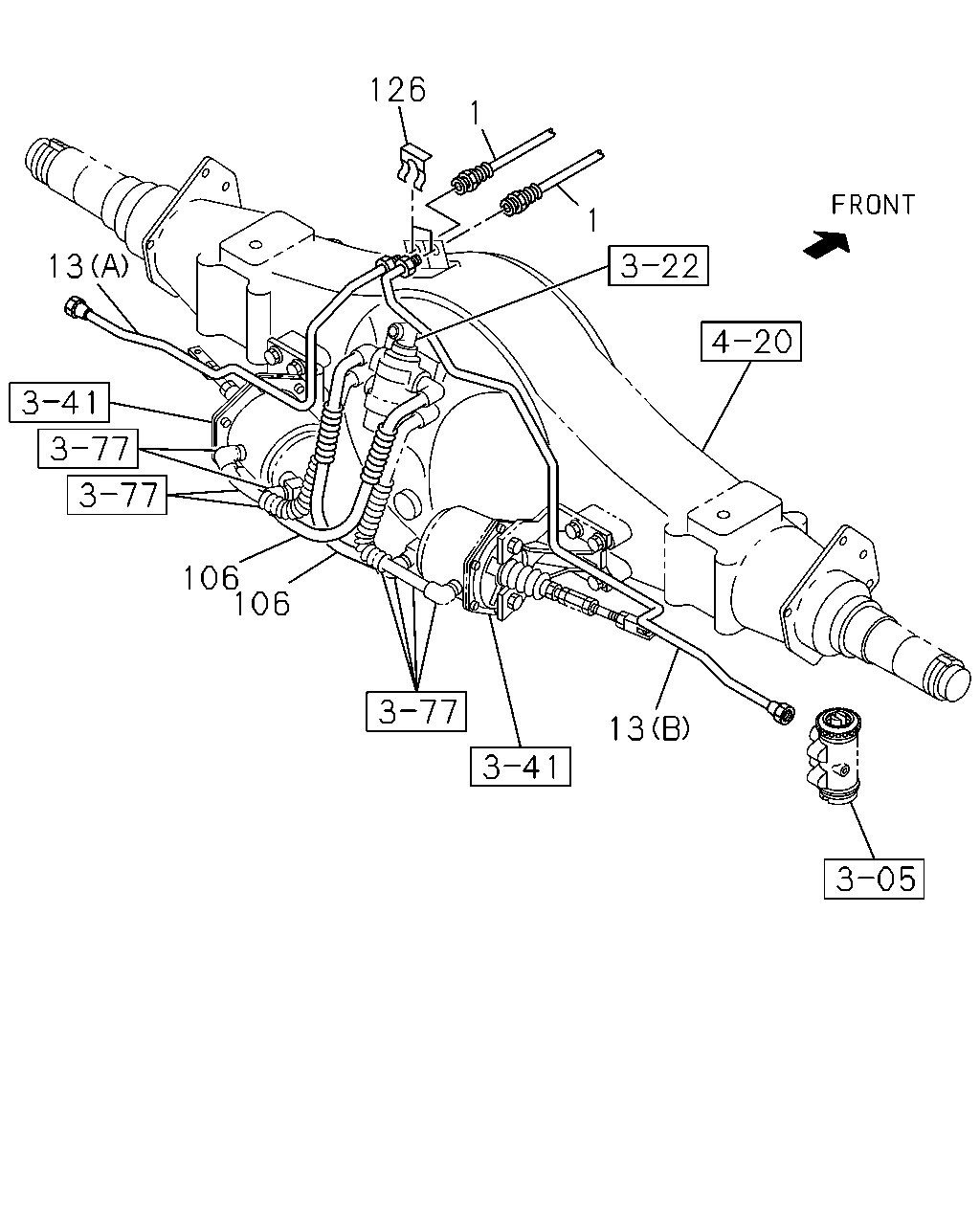

[355A] REAR AXLE SIDE (9 parça)
[355A] AIR TANK SIDE (7 parça)

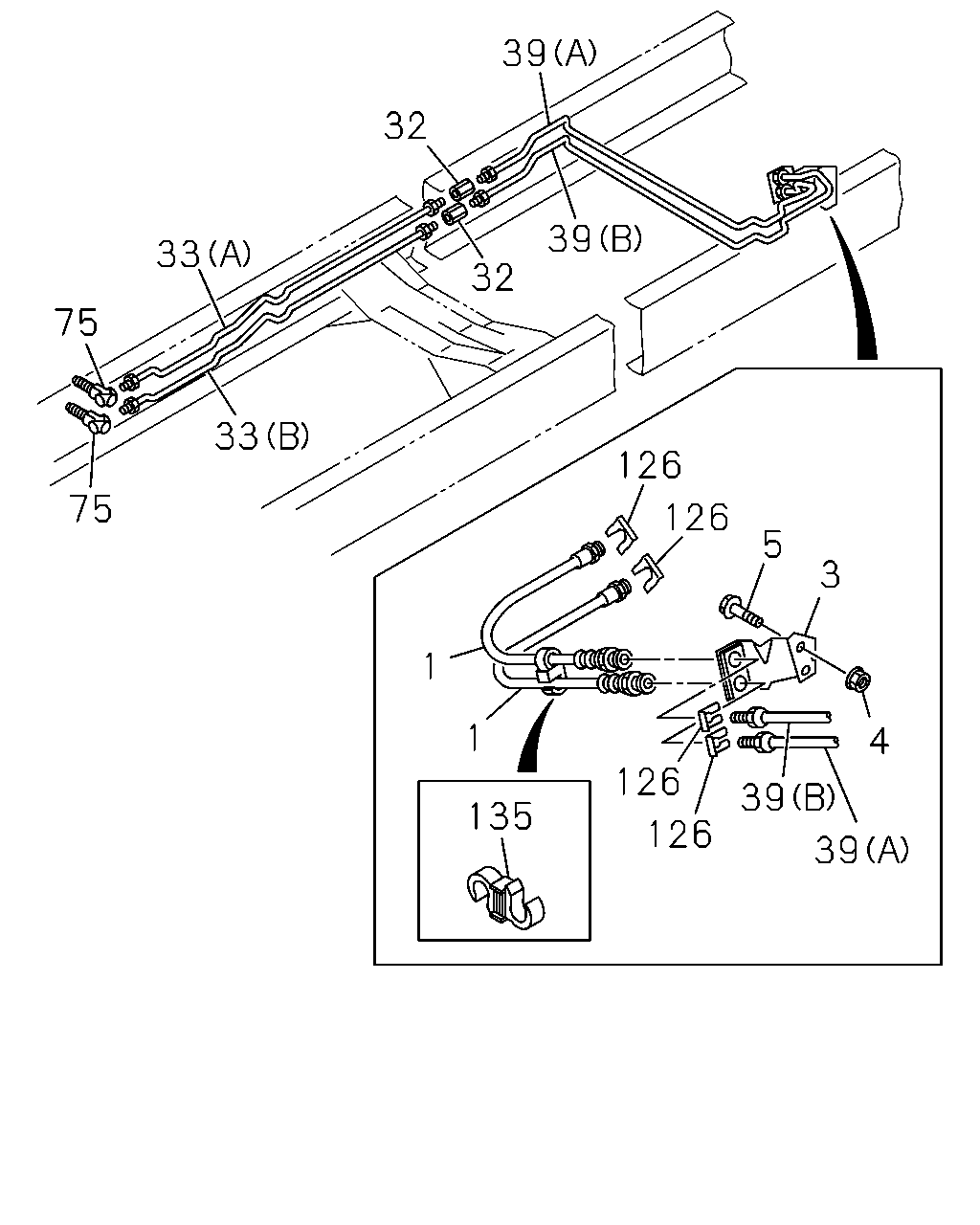

[355A] FRAME SIDE (12 parça)
▶
126
1
1
13
106
106
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=350
8-97138-885-0
02
1
0906-
13
PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE
8-98066-082-1
01
1
0906-1302
13
PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE
8-98207-113-0
01
1
1303-
13
PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE
8-98066-083-0
01
1
0906-1302
13
PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE
8-98207-114-0
01
1
1303-
13
PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE
8-98029-683-1
01
1
0906-
13
PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE
8-98029-684-0
01
1
0906-
106
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98061-971-0
02
1
0906-
126
CLIP; FLEX HOSE
8-97360-054-0
04
1
0906-
33
75
33
46
75
46
138
138
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
PIPE; OIL,UNION TO UNION
(A) LH LINE L=2124
8-98076-347-0
01
1
0906-
33
PIPE; OIL,UNION TO UNION
(B) RH LINE L=2078
8-98076-348-0
01
1
0906-
46
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
02
1
0906-
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
0906-
138
PIPE; HYDRAULIC UNIT
(C) L=296
8-98066-107-0
01
1
0906-
138
PIPE; HYDRAULIC UNIT
(A) LH LINE L=657
8-98012-129-0
01
1
0906-
138
PIPE; HYDRAULIC UNIT
(B) RH LINE L=703
8-98012-146-0
01
1
0906-
75
75
33
33
32
32
39
39
126
126
1
1
5
3
126
126
39
39
135
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=350
8-97138-885-0
02
1
0906-
3
BRACKET; FLEX HOSE,RR BRK
8-98065-999-2
01
1
0906-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
0906-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
02
1
0906-
32
UNION; OIL PIPE
M10 STRAIGHT
0-92107-005-0
02
1
0906-
33
PIPE; OIL,UNION TO UNION
(A) LH LINE L=2124
8-98076-347-0
01
1
0906-
33
PIPE; OIL,UNION TO UNION
(B) RH LINE L=2078
8-98076-348-0
01
1
0906-
39
PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710
8-98106-485-0
01
1
0906-
39
PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1772
8-98106-486-0
01
1
0906-
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
0906-
126
CLIP; FLEX HOSE
8-97360-054-0
04
1
0906-
135
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
01
1
0906-
