Isuzu WW
▶
TRUCKS
▶
FSR
▶
11233 - FSR-R EU5 EXC.SPACE
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#59220) — 16 parça
◀

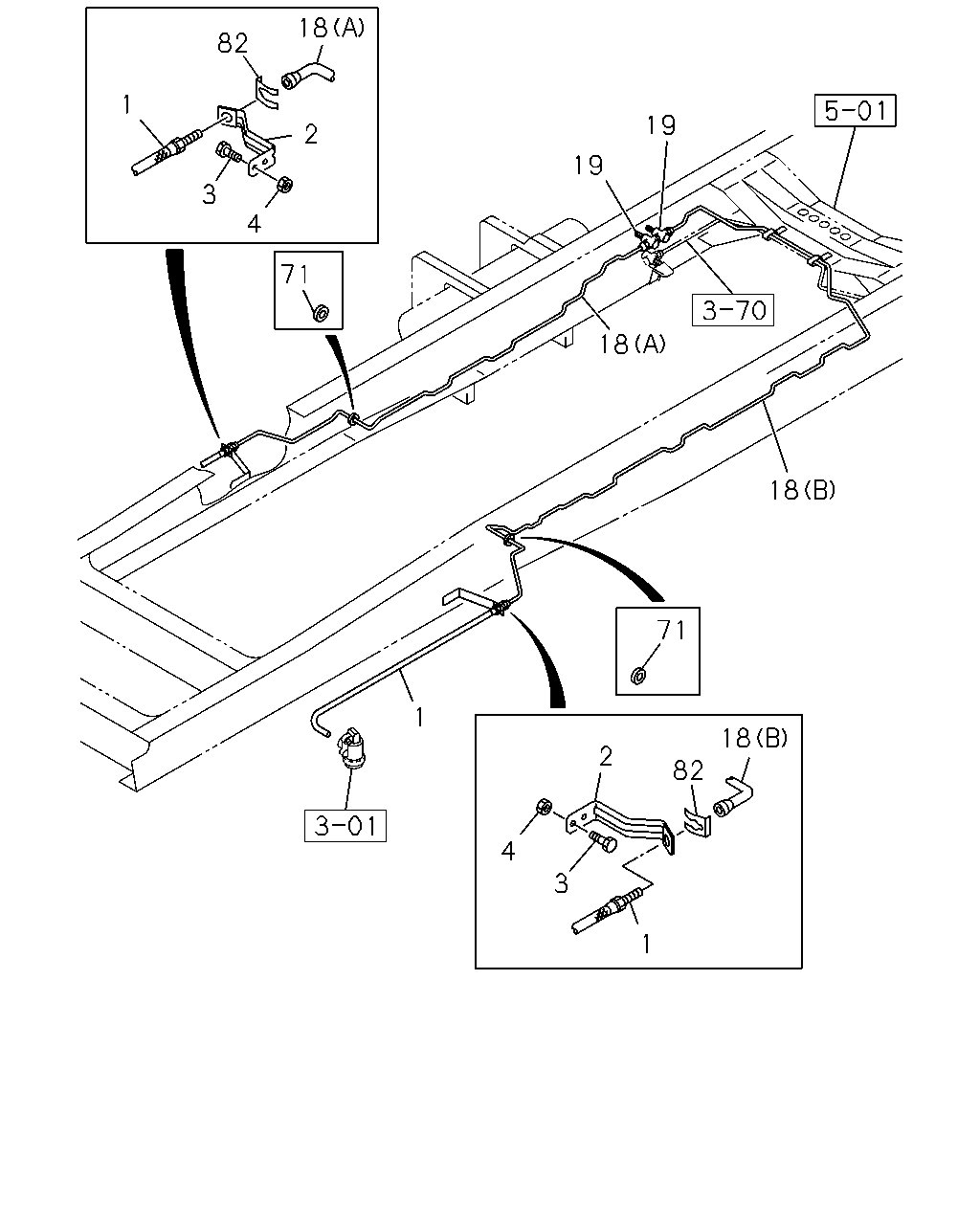

[352A] FRAME SIDE (9 parça)

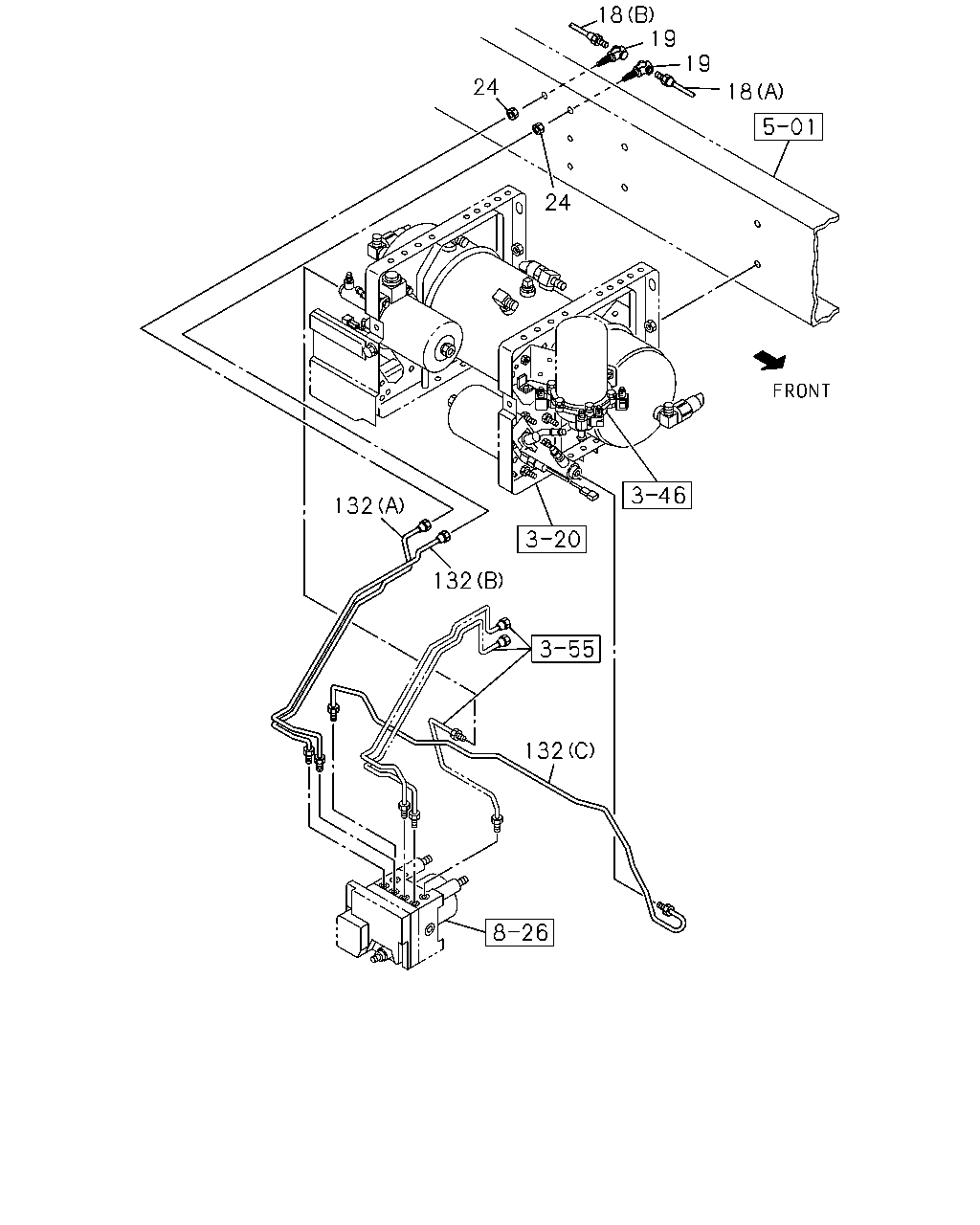

[352A] AIR TANK SIDE (7 parça)
▶
18
82
1
19
2
19
3
4
71
18
18
71
1
18
2
82
4
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=330
8-98024-433-0
02
1
0906-
2
BRACKET; FLEX HOSE,FRT BRK
8-98012-343-1
02
1
0906-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE
0-28650-825-0
04
1
0906-
4
NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE
0-91180-108-0
04
1
0906-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=3240
8-98078-161-0
01
1
0906-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=1940
8-98067-420-1
01
1
0906-
19
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
0906-
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
0906-
82
PLATE; FLEX HOSE
8-97360-054-0
02
1
0906-
18
19
19
24
18
24
132
132
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=3240
8-98078-161-0
01
1
0906-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=1940
8-98067-420-1
01
1
0906-
19
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
0906-
24
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
02
1
0906-
132
PIPE; OIL,BRK,HYD UNIT
(C) L=949
8-98078-732-0
01
1
0906-
132
PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=625
8-98116-095-0
01
1
0906-
132
PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=645
8-98011-949-0
01
1
0906-
