◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11233 - FSR-R EU5 EXC.SPACE ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#59211) — 50 parça

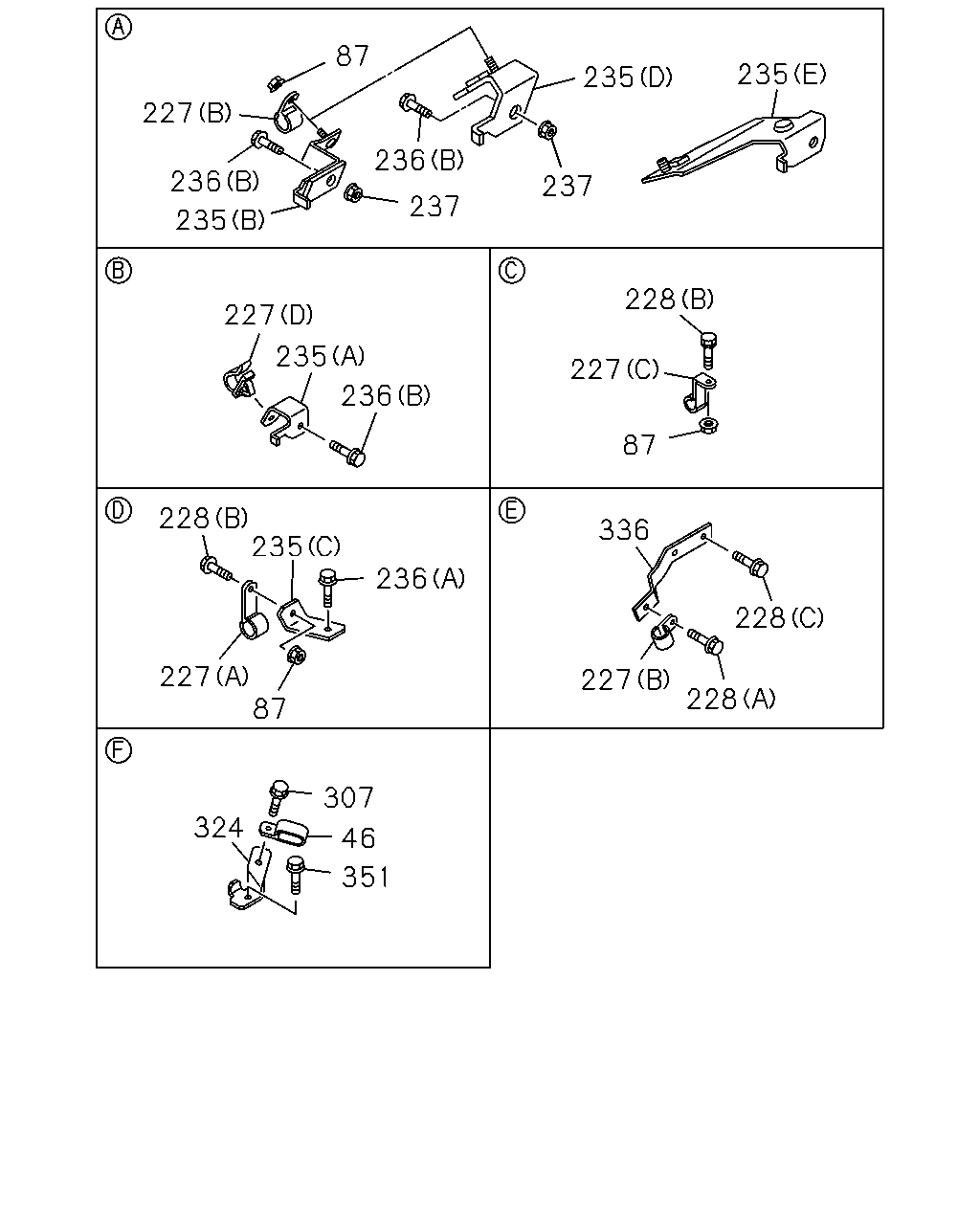

çizim 163832
87 235 235 227 236 236 237 237 235 228 227 235 227 236 87 228 235 336 236 228 227 87 227 228 307 324 46 351
BalonParca AdiParca NoAdetTipApplied Date
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		0-95235-535-0 01 1 0906-
87 NUT
MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE 		0-91180-108-0 02 1 0910-
87 NUT
MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0910-
87 NUT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0906-0909
87 NUT
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 03 1 0910-
227 CLIP; RAD
MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=13 L=20 		0-95235-235-0 02 1 0910-
227 CLIP; RAD
MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		0-95235-235-0 02 1 0910-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		0-95235-235-0 01 1 0906-0906
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		0-95235-235-0 02 1 0906-0909
227 CLIP; RAD
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		0-95235-235-0 03 1 0910-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=13 L=32 		0-95235-265-0 01 1 0906-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=16 H=30 L=30 		1-09701-080-0 01 1 0906-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=9.5 		5-09709-020-0 01 1 0906-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0906-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0906-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0906-
235 BRACKET; CONT CABLE TO FRAME
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) 		8-98141-146-0 01 1 0906-0909
235 BRACKET; CONT CABLE TO FRAME
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) 		8-98148-112-0 01 1 0910-
235 BRACKET; CONT CABLE TO FRAME
MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98111-492-0 01 1 0906-
235 BRACKET; CONT CABLE TO FRAME
MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98077-903-2 01 1 0906-
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-82699-199-0 01 1 0906-
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98100-151-0 01 1 0906-
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0906-
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28651-030-0 02 1 0906-1504
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28051-030-0 02 1 1505-
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 01 1 0906-
307 BOLT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 01 1 0906-
324 BRACKET
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-482-1 01 1 0906-
336 BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98044-680-0 01 1 0906-
351 BOLT; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 03 1 0906-
çizim 163834
97
BalonParca AdiParca NoAdetTipApplied Date
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98029-219-1 01 1 0906-
97 GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=35 		8-94122-971-0 01 1 0906-

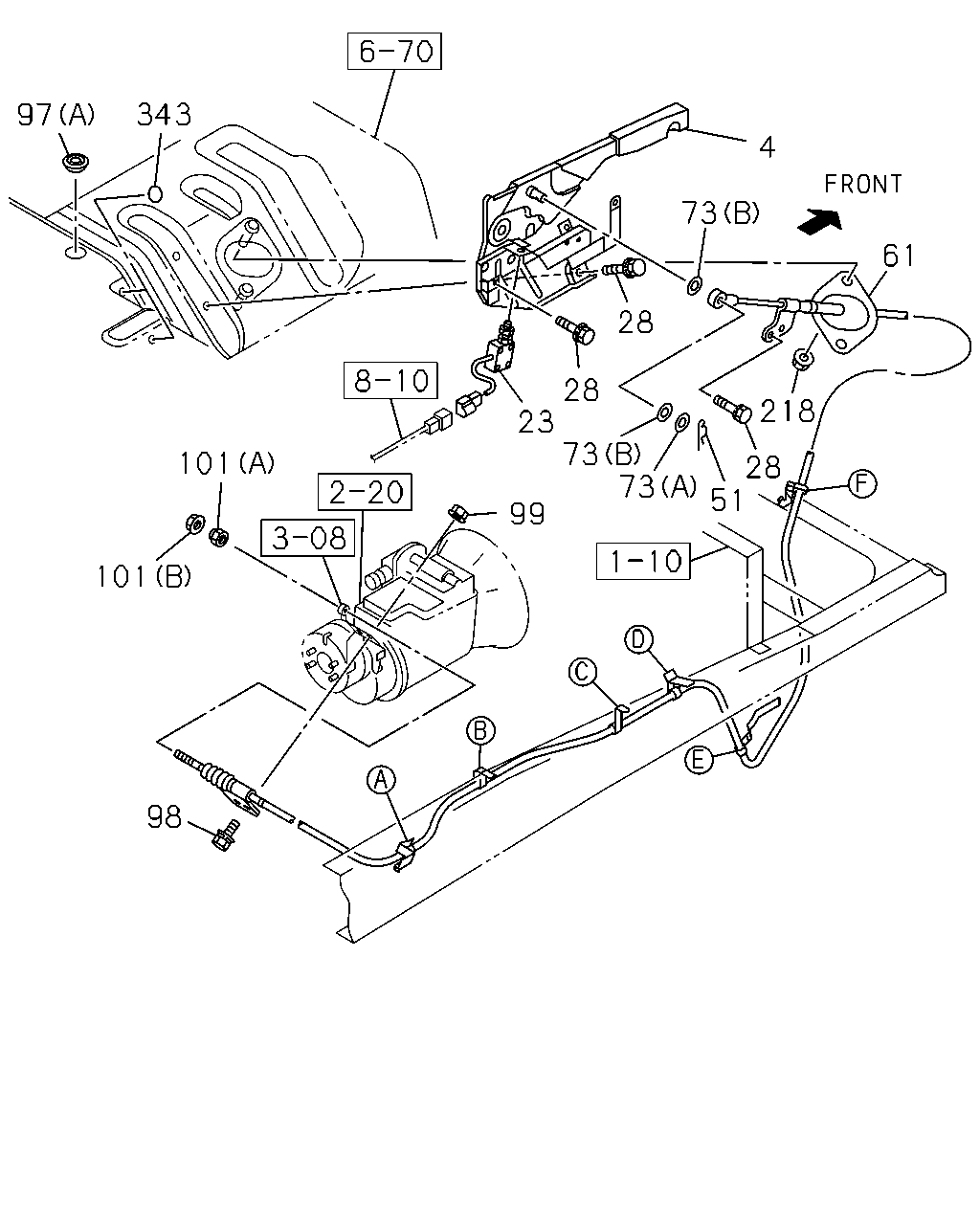

çizim 163842
343 97 4 73 61 28 28 23 73 73 218 101 28 51 99 101 98
BalonParca AdiParca NoAdetTipApplied Date
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-548-0 01 1 0906-
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 0906-
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0906-
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 0906-
61 CABLE; PARKING BRK
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4801 		8-98146-671-0 01 1 0906-0909
61 CABLE; PARKING BRK
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4816 		8-98102-332-3 01 1 0910-
61 CABLE; PARKING BRK
MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4658 		8-98119-717-3 01 1 0906-
61 CABLE; PARKING BRK
MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION CONTROL-SMOOTHER(8GF) L=4736 		8-98102-331-3 01 1 0906-
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30 		0-91610-516-0 01 1 0906-
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19 		8-94206-429-1 02 1 0906-
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98029-219-1 01 1 0906-
97 GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=35 		8-94122-971-0 01 1 0906-
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0906-
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 0906-
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE 		0-91180-108-0 01 1 0906-
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 		1-46259-007-0 01 1 0906-
218 NUT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0906-
343 SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 05 1 0906-
