3-08 — PARKING BRAKE (#59209) — 62 parça

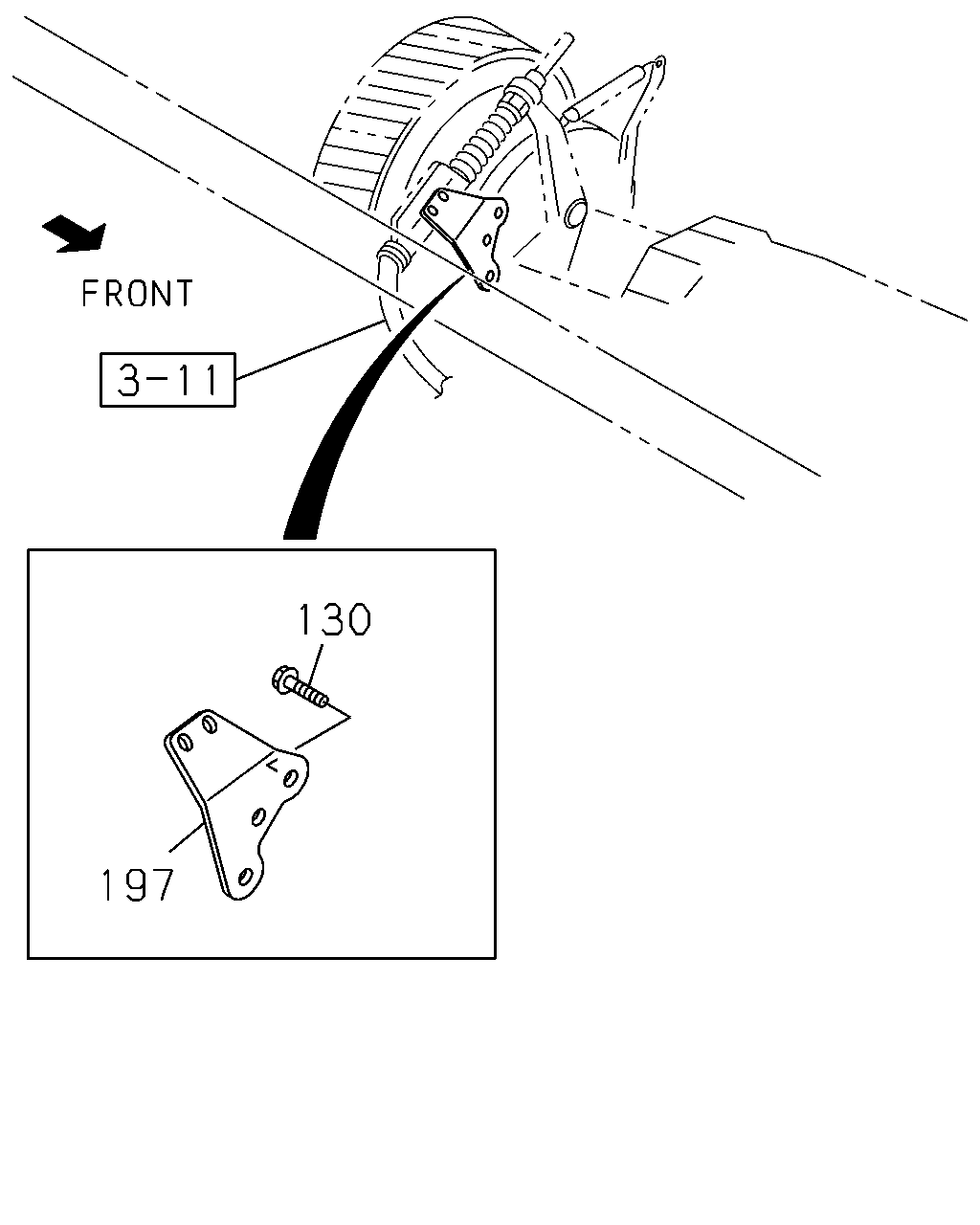

130 197

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	130	BOLT; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28751-025-0	03	1	0906-	●
	197	BRACKET; CENTER BRAKE CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98009-002-1	01	1	0906-	●

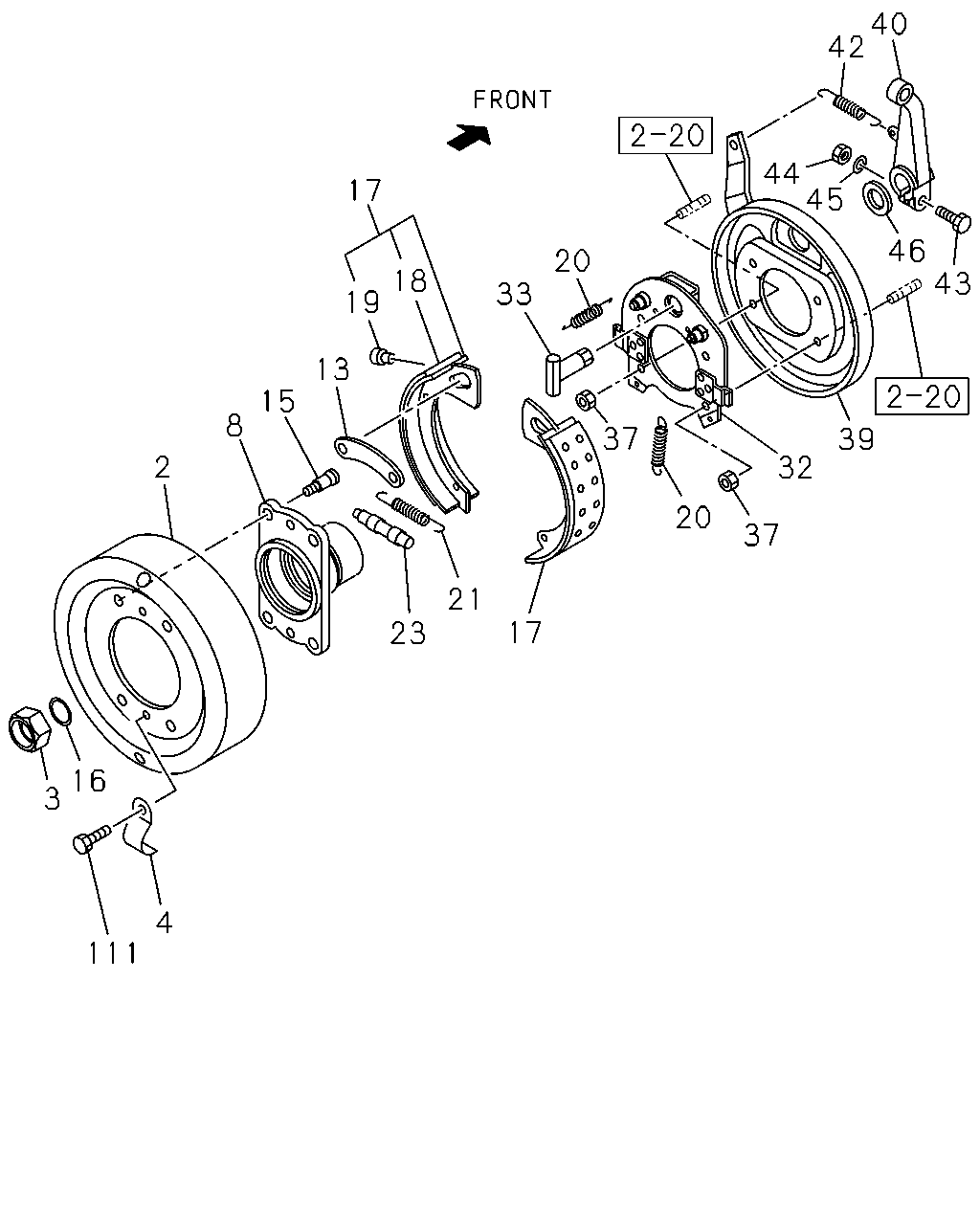

40 42 44 45 17 46 43 20 18 33 19 13 15 8 37 39 2 32 20 37 21 17 23 16 3 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-019-0	01	1	0906-	●	●
3	NUT; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	8-98014-140-0	01	1	0906-		●
4	COVER; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46219-030-0	02	1	0906-		●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98153-193-0	01	1	1001-1002	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98153-193-0	01	1	1003-	●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-235-0	01	1	0906-0912	●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-235-0	01	1	1001-1002		●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-002-0	01	1	0906-	●	●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X55	8-98023-172-0	04	1	0906-		●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	0906-		●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-022-1	02	1	0906-	●	●
18	LINING; BRK,PARKING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46225-023-0	02	1	0906-	●	●
19	RIVET; LINING,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-058-0	32	1	0906-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-434-0	02	1	0906-	●	●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-516-0	01	1	0906-	●	●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46240-003-0	01	1	0906-	●	●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-039-0	01	1	0906-	●	●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-010-0	01	1	0906-	●	●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	04	1	0906-	●	●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-038-0	01	1	0906-	●	●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-046-0	01	1	0906-	●	●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-104-0	01	1	0906-	●	●
43	BOLT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-595-0	01	1	0906-		●
44	NUT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	0-91111-510-0	01	1	0906-		●
45	WASHER; LK,LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	0-91510-510-0	01	1	0906-		●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-362-0	01	1	0906-	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0906-0906		●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-1009		●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50740-820-0	02	1	0906-1009	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50740-820-0	02	1	1010-	●	●

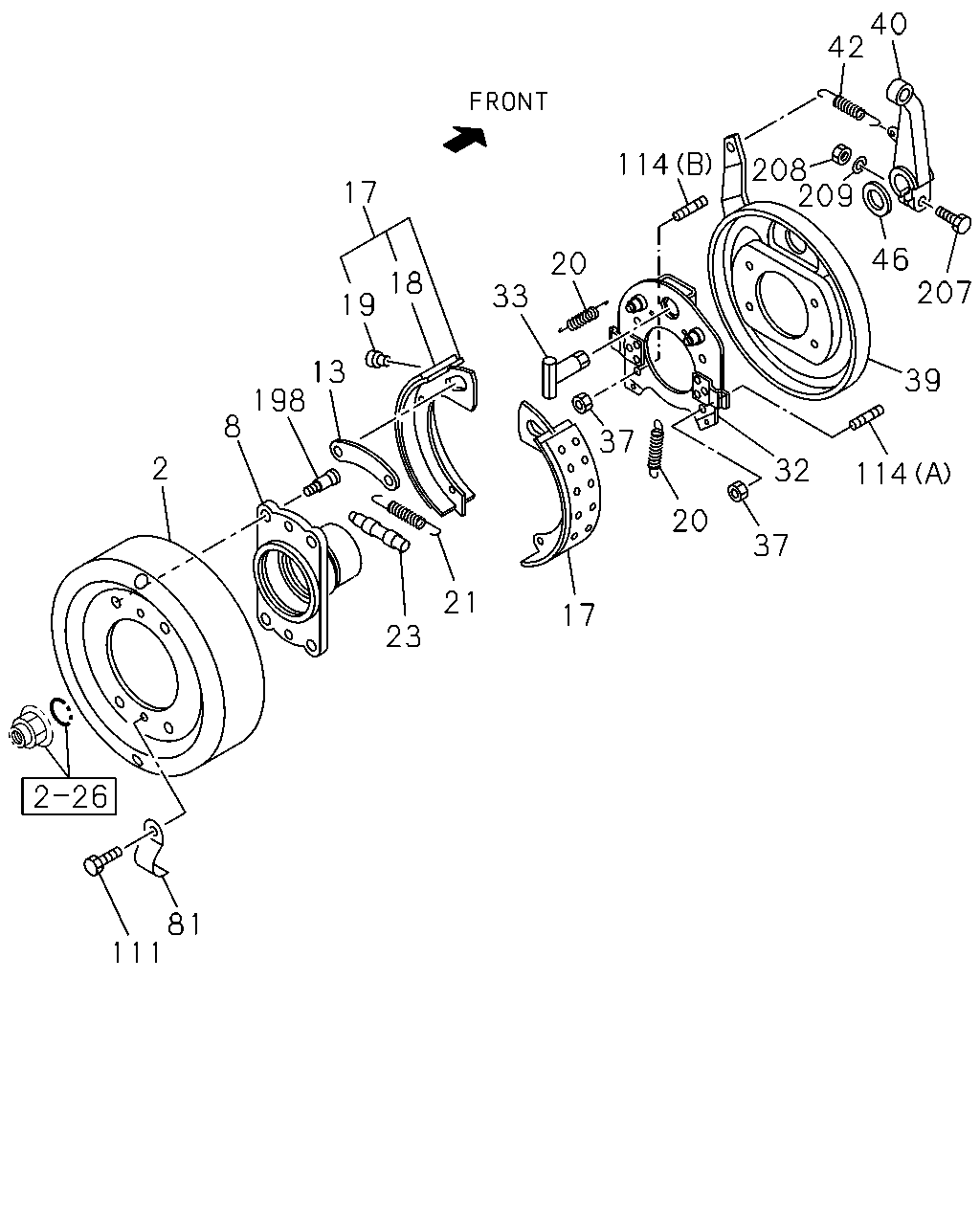

40 42 114 208 209 17 46 207 20 18 33 19 13 198 39 8 37 2 32 114 20 37 21 17 23 81 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-019-0	01	1	0906-	●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98153-193-0	01	1	1001-1002	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98153-193-0	01	1	1003-	●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-235-0	01	1	0906-0912	●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-235-0	01	1	1001-1002		●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-002-0	01	1	0906-	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-022-1	02	1	0906-	●	●
18	LINING; BRK,PARKING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46225-023-0	02	1	0906-	●	●
19	RIVET; LINING,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-058-0	32	1	0906-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-434-0	02	1	0906-	●	●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-516-0	01	1	0906-	●	●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46240-003-0	01	1	0906-	●	●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-039-0	01	1	0906-	●	●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-010-0	01	1	0906-	●	●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	04	1	0906-	●	●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-038-0	01	1	0906-	●	●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-046-0	01	1	0906-	●	●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-104-0	01	1	0906-	●	●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-362-0	01	1	0906-	●	●
81	COVER; CHECK HOLE,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46219-030-0	02	1	0906-	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0906-0906		●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-1009		●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50740-820-0	02	1	0906-1009	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50740-820-0	02	1	1010-	●	●
114	STUD; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0906-	●
114	STUD; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0906-	●
198	BOLT; KNURL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X55	8-98023-172-0	04	1	0906-	●
207	BOLT; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-595-0	01	1	0906-	●
208	NUT; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	0-91111-510-0	01	1	0906-	●
209	WASHER; SP,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	0-91510-510-0	01	1	0906-	●
