3-05 — REAR WHEEL BRAKE (#59208) — 124 parça

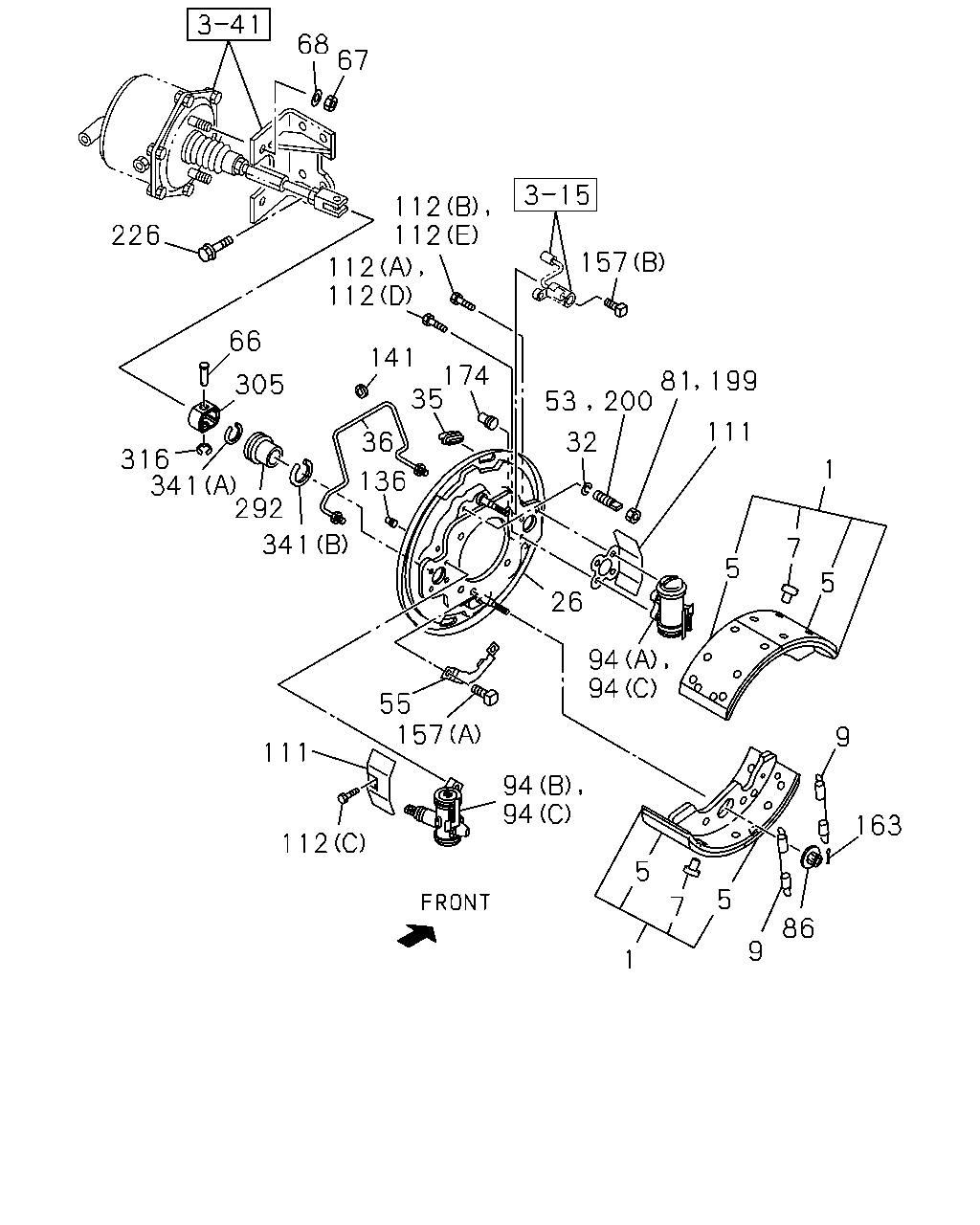

68 67 112 112 112 112 226 157 66 141 174 35 81 199 305 111 32 36 316 341 1 136 292 341 7 26 5 5 94 94 55 157 9 111 94 94 163 112 5 5 7 86 9 1 53 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-466-0	04	1	0906-
1	SHOE; BRK,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-003-0	04	1	0906-
5	LINING; RR BRK SHOE,STANDARD	1-47126-161-0	08	1	0906-
7	RIVET; LINING,RR BRK	1-09732-029-0	96	1	0906-
9	SPRING; RETURN,BRK SHOE	1-09583-346-0	04	1	0906-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-642-0	01	1	0906-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-643-0	01	1	0906-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-612-1	01	1	0906-
26	PLATE; BACK,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-613-1	01	1	0906-
32	WASHER; LK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09985-346-0	04	1	0906-
32	WASHER; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-512-0	04	1	0906-
35	GROMMET; CHECK HOLE	1-09333-033-0	04	1	0906-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49167-875-0	01	1	0906-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49167-876-0	01	1	0906-
36	PIPE; OIL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47421-727-0	02	1	0906-
53	BOLT; LOCK PLATE	1-47162-050-0	02	1	0906-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-169-0	02	1	0906-
55	PLATE; LK,RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47139-064-0	02	1	0906-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-128-0	02	1	0906-
67	NUT; POWER CHAMBER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91110-516-0	04	1	0906-
68	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2	0-91510-816-0	04	1	0906-
81	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-167-0	02	1	0906-
81	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-100-0	02	1	0906-
86	NUT; FLANGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-102-0	04	1	0906-
86	NUT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09440-003-0	04	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-184-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-185-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-186-0	01	1	0906-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	8-98289-367-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-187-0	01	1	0906-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	8-98289-368-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-010-1	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-011-1	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) BACKWARD	1-47601-198-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) BACKWARD	1-47601-199-0	01	1	0906-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-233-0	04	1	0906-
111	COVER; WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-164-0	04	1	0906-
112	BOLT; WHEEL CYL SETTING (C) M6X10 FLANGE	8-94134-103-0	08	1	0906-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47159-231-0	08	1	0906-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47159-232-0	06	1	0906-
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M14	1-47159-183-0	08	1	0906-
112	BOLT; WHEEL CYL SETTING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M12	1-47159-184-0	08	1	0906-
136	GROMMET	9-09956-640-0	04	1	0906-
141	PROTECTOR; RR BRK PIPE	1-47143-008-0	02	1	0906-
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09060-021-0	12	1	0906-
157	BOLT; RR BRK SET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09060-022-0	04	1	0906-
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14X50 SQUARE HEAD	1-09060-013-0	12	1	0906-
157	BOLT; RR BRK SET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14X55 SQUARE HEAD	1-09060-014-0	04	1	0906-
163	PIN; SPLIT,SHOE HOLD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09740-098-0	04	1	0906-
163	PIN; SPLIT,SHOE HOLD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09874-040-0	04	1	0906-
174	COVER; CYL,RR WHEEL CYL	1-47154-008-0	04	1	0906-
199	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-167-0	02	1	0906-
199	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09400-100-0	02	1	0906-
200	BOLT	1-47162-050-0	02	1	0906-
226	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X35 FLANGE	0-28651-435-0	08	1	0906-
292	BOOT; ROD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47616-107-0	02	1	0906-
305	GUIDE; SLACK ADJ REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46346-023-0	02	1	0906-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	0906-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47619-175-0	02	1	0906-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-176-0	02	1	0906-

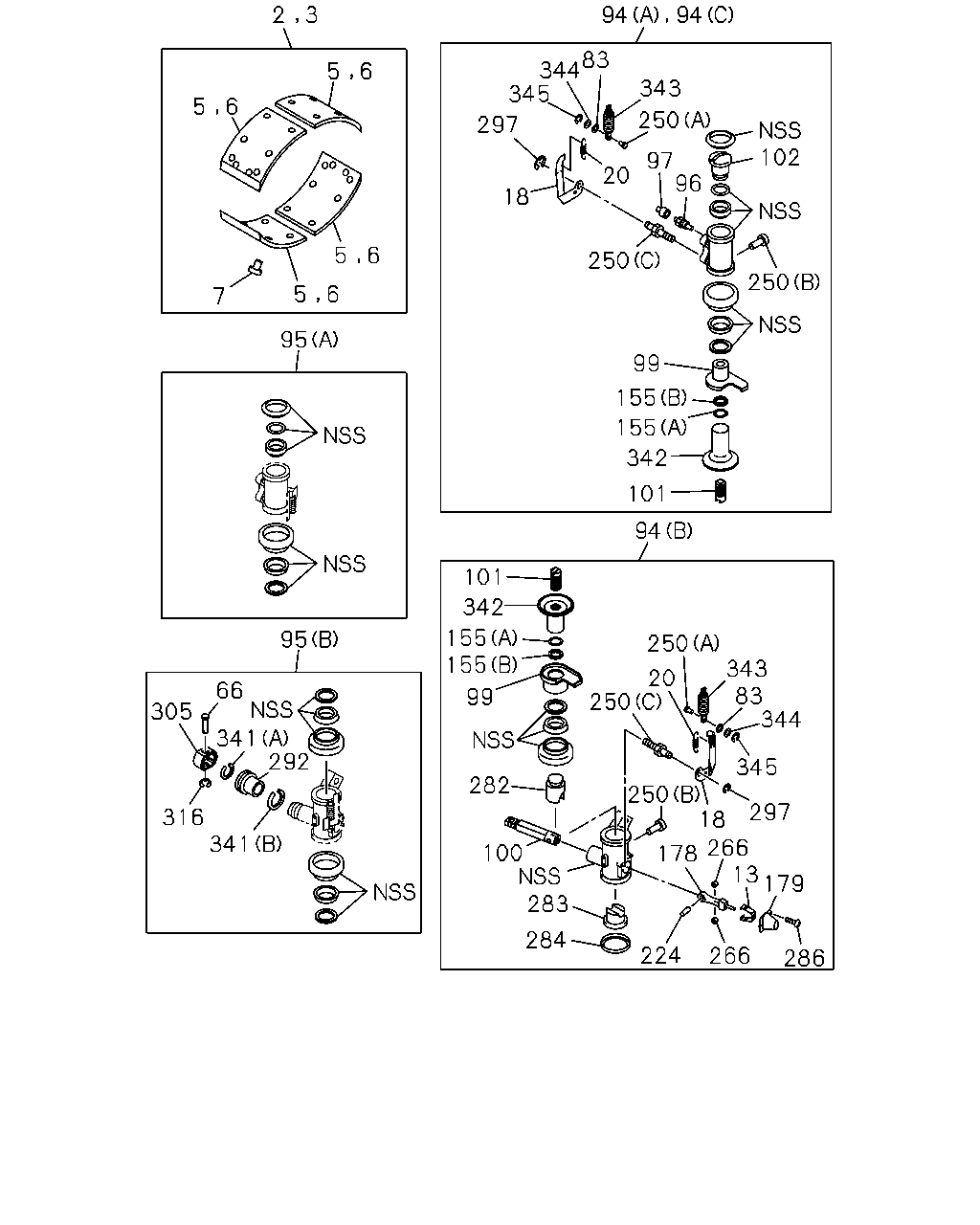

2 3 94 94 83 344 345 5 6 343 5 6 250 297 102 97 96 20 18 5 6 250 250 5 6 7 95 99 155 155 342 101 94 101 342 155 155 95 250 343 83 344 20 250 66 99 305 341 292 345 250 18 282 297 316 341 266 178 13 179 100 283 284 224 266 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINING SET; RR BRK,STANDARD	1-88310-839-1	02	1	0906-
3	LINING SET; RR BRK,OVER SIZE	1-88310-840-1	02	1	0906-
5	LINING; RR BRK SHOE,STANDARD	1-47126-161-0	08	1	0906-
6	LINING; RR BRK SHOE,OVER SIZE	1-47126-162-0	08	1	0906-
7	RIVET; LINING,RR BRK	1-09732-029-0	96	1	0906-
13	CLIP; ROLLER PIN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-139-0	02	1	0906-
18	LEVER; AUTO ADJ	1-47629-164-0	02	1	0906-
18	LEVER; AUTO ADJ	1-47629-165-0	02	1	0906-
20	SPRING; ADJ LEVER	1-09583-345-0	04	1	0906-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09744-128-0	02	1	0906-
83	WASHER; PL	1-47619-108-0	04	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-184-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) FORWARD	1-47601-185-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-186-0	01	1	0906-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	8-98289-367-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	1-47601-187-0	01	1	0906-1410
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) BACKWARD	8-98289-368-0	01	1	1411-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-010-1	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-011-1	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) BACKWARD	1-47601-198-0	01	1	0906-
94	CYLINDER; WHEEL,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) BACKWARD	1-47601-199-0	01	1	0906-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-933-0	02	1	0906-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-87831-246-1	02	1	0906-
95	CUP SET; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-87830-933-0	04	1	0906-
96	SCREW; BLEEDER,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98050-477-0	02	1	0906-
96	SCREW; BLEEDER,RR BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98050-476-0	02	1	0906-
97	CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	02	1	0906-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-349-0	01	1	0906-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) FORWARD	1-47624-350-0	01	1	0906-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-351-0	01	1	0906-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BACKWARD	1-47624-352-0	01	1	0906-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-349-0	02	1	0906-
99	PISTON; RR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-350-0	02	1	0906-
100	ROD; PUSH,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-169-0	02	1	0906-1410
100	ROD; PUSH,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98290-467-0	02	1	1411-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-053-0	02	1	0906-
101	SCREW; ADJ,RR WHEEL CYL	1-47622-054-0	02	1	0906-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-333-0	02	1	0906-
102	PISTON; REAR WHEEL CYL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47624-333-0	04	1	0906-
155	WASHER; PL,WHEEL CYL (A)	1-47629-150-0	04	1	0906-
155	WASHER; PL,WHEEL CYL (B)	1-47629-151-0	04	1	0906-
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-168-0	02	1	0906-
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-141-0	02	1	0906-
224	PIN; ROD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-130-0	02	1	0906-
250	PIN; RETAINING (B)	1-47629-112-0	04	1	0906-
250	PIN; RETAINING (C)	1-47629-262-0	04	1	0906-
250	PIN; RETAINING (A)	1-47619-106-0	04	1	0906-
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-138-0	04	1	0906-
282	PLUNGER; INNER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-255-0	02	1	0906-
283	PLUNGER; OUTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-256-0	01	1	0906-
283	PLUNGER; OUTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47629-257-0	01	1	0906-
284	BOOT; PISTON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47616-093-0	02	1	0906-
286	SCREW; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-132-0	06	1	0906-
292	BOOT; ROD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47616-107-0	02	1	0906-
297	RING; SNAP	1-47629-263-0	04	1	0906-
305	GUIDE; SLACK ADJ REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46346-023-0	02	1	0906-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	0-91805-509-0	02	1	0906-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47619-175-0	02	1	0906-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47619-176-0	02	1	0906-
342	GEAR; WHEEL CYL	1-47629-158-0	02	1	0906-
342	GEAR; WHEEL CYL	1-47629-159-0	02	1	0906-
343	SPRING; WHEEL CYL	1-47629-141-0	04	1	0906-
344	WASHER; WAVE	1-47619-107-0	04	1	0906-
345	RETAINER; LEVER	1-47619-109-0	04	1	0906-
