Isuzu WW
▶
TRUCKS
▶
FTS
▶
11405 - FTS(RHD)EURO1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#59205) — 31 parça
◀

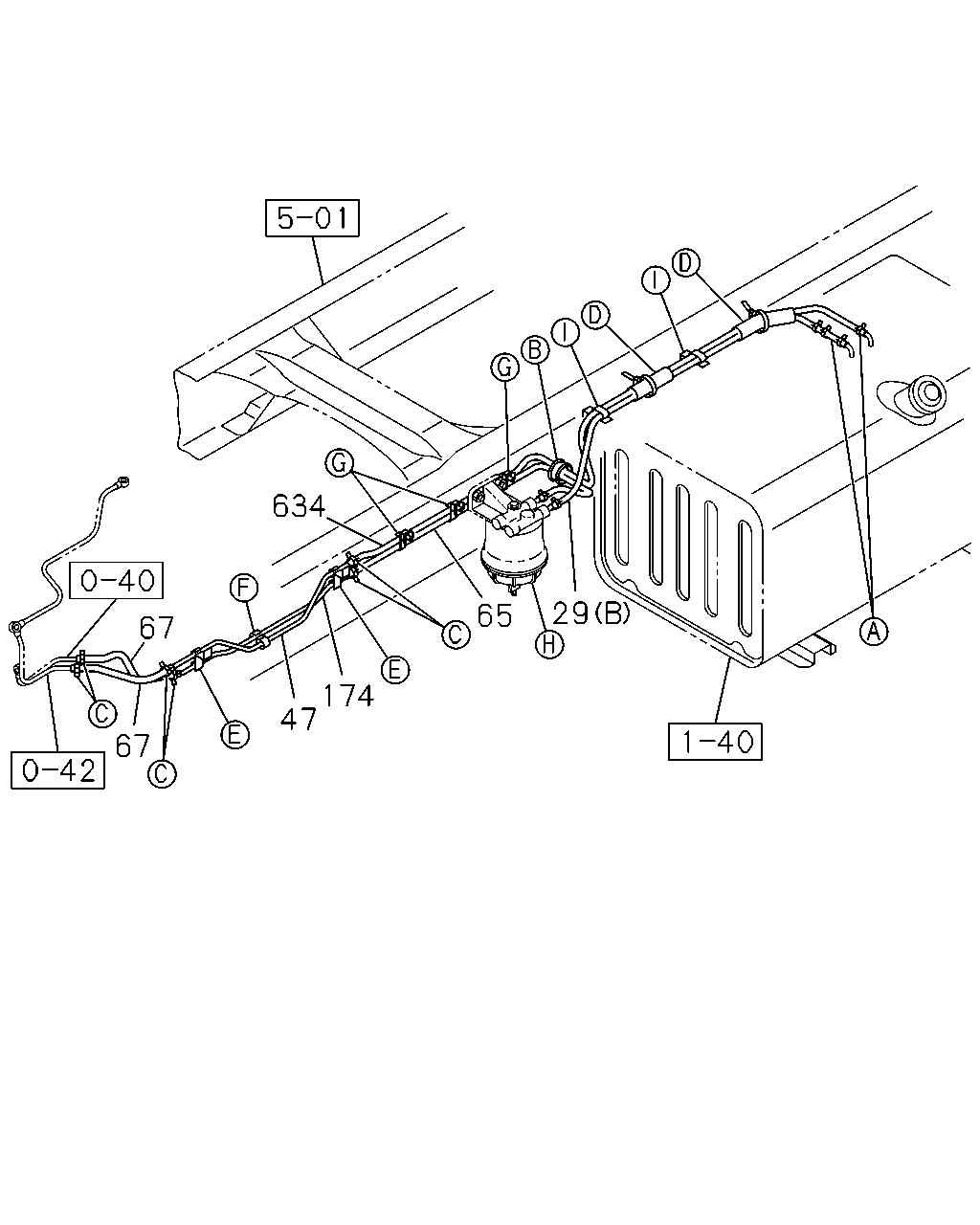

[141A] PIPING (8 parça)

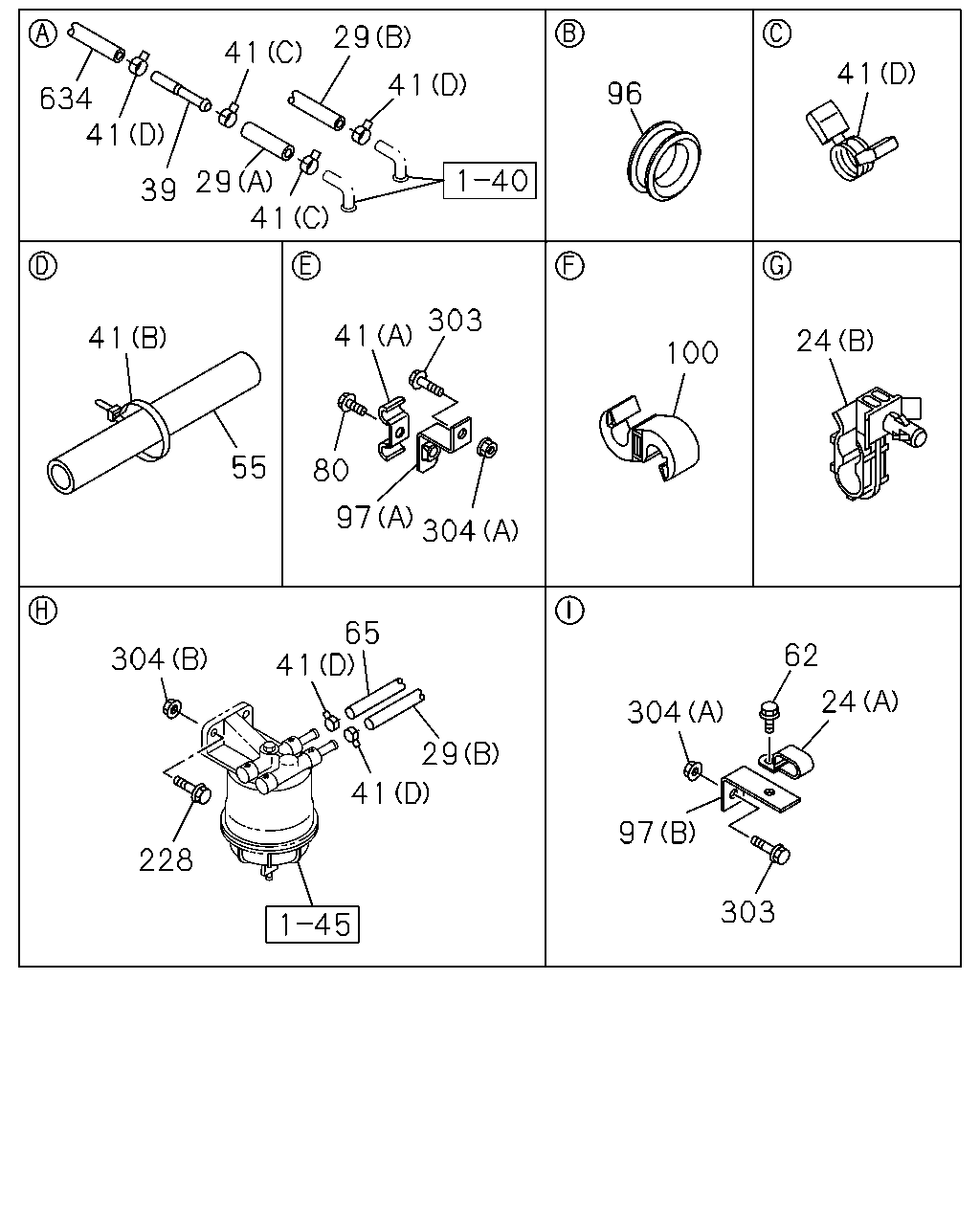

[141A] FIXING PARTS (23 parça)
▶
29
65
634
174
47
67
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
HOSE; FUEL
(B) L=1200 SERVICED BY L=3000
0-01260-300-0
01
1
1112-
29
HOSE; FUEL
(A) L=80 SERVICED BY L=3000
0-01558-300-0
01
1
1112-
47
PIPE; FUEL,RETURN
L=776
8-98201-768-0
01
1
1112-
65
HOSE; FUEL,DELIVERY PIPE
L=1100 SERVICED BY L=3000
0-01260-300-0
01
1
1112-
67
HOSE; FUEL,DELIVERY
L=230 SERVICED BY L=3000
0-01260-300-0
01
1
1112-
67
HOSE; FUEL,DELIVERY
L=280 SERVICED BY L=3000
0-01260-300-0
01
1
1112-
174
PIPE; FUEL,FEED,FRT
L=716
8-98146-598-0
01
1
1112-
634
HOSE; RUBBER RETURN
L=1950 SERVICED BY L=3000
0-01260-300-0
01
1
1112-
634
41
41
39
29
29
41
41
41
55
41
303
80
97
304
100
96
41
24
24
62
304
97
303
65
29
41
41
304
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
CLIP; FUEL HOSE
(A) ID=14X29 H=15 L=20
1-09700-744-0
02
1
1112-
24
CLIP; FUEL HOSE
(B) ID=14.5 & 14.5
1-09701-246-1
03
1
1112-
29
HOSE; FUEL
(B) L=1200 SERVICED BY L=3000
0-01260-300-0
01
1
1112-
29
HOSE; FUEL
(A) L=80 SERVICED BY L=3000
0-01558-300-0
01
1
1112-
39
PIPE; FUEL
8-98009-438-1
01
1
1112-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
02
1
1112-
41
CLIP; FUEL PIPE,FUEL TANK
(B) L=250
5-09707-030-1
02
1
1112-
41
CLIP; FUEL PIPE,FUEL TANK
(C) ID=13
8-94238-571-0
02
1
1112-
41
CLIP; FUEL PIPE,FUEL TANK
(D) ID=14
8-97173-221-0
10
1
1112-
55
COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300
1-09360-677-1
02
1
1112-
62
BOLT; CLIP FIX
M8X16 FLANGE
0-28050-816-0
02
1
1112-
65
HOSE; FUEL,DELIVERY PIPE
L=1100 SERVICED BY L=3000
0-01260-300-0
01
1
1112-
80
BOLT; CLIP,FUEL TANK
M8X16 FLANGE
0-28050-816-0
02
1
1112-
96
GROMMET; PIPE,FUEL TANK
ID=28 OD=35 T=17
9-09956-256-2
01
1
1112-
97
BRACKET; CLIP
(A)
1-47478-981-0
02
1
1112-
97
BRACKET; CLIP
(B)
8-98111-711-0
02
1
1112-
100
CLIP; FUEL PIPE
ID=10 & 10
1-09709-277-1
01
1
1112-
228
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
0-28651-040-0
02
1
1112-
303
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
04
1
1112-
304
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
1112-
304
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
1112-
304
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
02
1
1112-
634
HOSE; RUBBER RETURN
L=1950 SERVICED BY L=3000
0-01260-300-0
01
1
1112-
