1-31 — AIR DUCT (#59203) — 41 parça

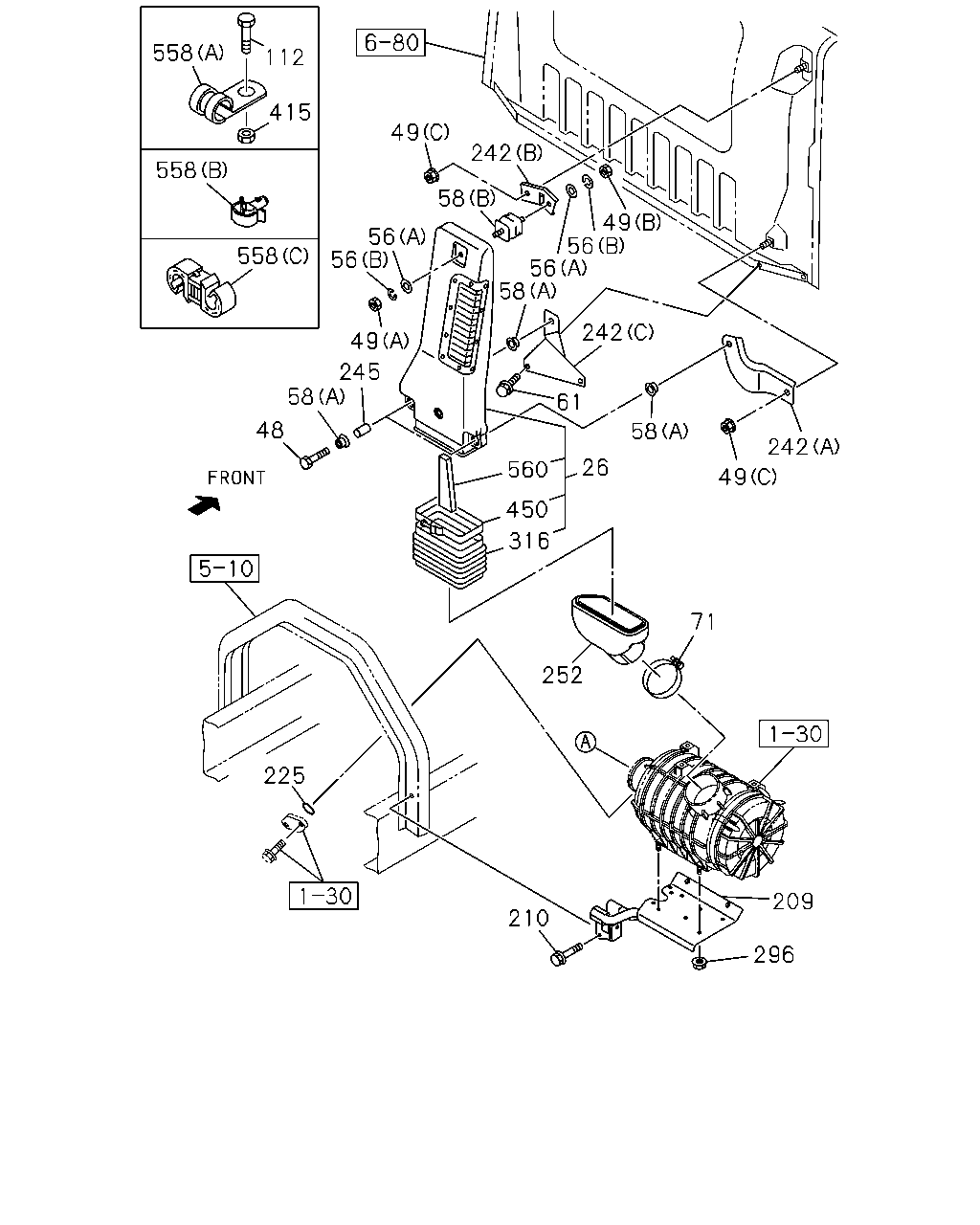

çizim 150757
558 112 415 49 242 558 58 49 56 56 58 56 56 558 242 49 245 61 58 48 58 242 26 560 49 450 316 71 252 225 209 210 296
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 1112-
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 1112-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1112-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1112-
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1112-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1112-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1112-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1112-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1112-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1112-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1112-
112 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1112-
209 BRACKET; ACL 8-98021-995-1 01 1 1112-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1112-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1112-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1112-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1112-
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1112-
242 BRACKET; AIR DUCT
(D) 		8-98100-411-1 01 1 1112-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1112-
252 DUCT; AIR INT 8-98012-861-1 01 1 1112-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1112-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1112-
415 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1112-
450 CLAMP; HOSE 9-09915-504-1 01 1 1112-
558 CLIP; AIR FLOW SENSOR
(A) ID=15 L=28 		1-09701-216-0 03 1 1112-
558 CLIP; AIR FLOW SENSOR
(C) ID=10 & 15 		1-09709-279-1 01 1 1112-
558 CLIP; AIR FLOW SENSOR
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1112-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1112-

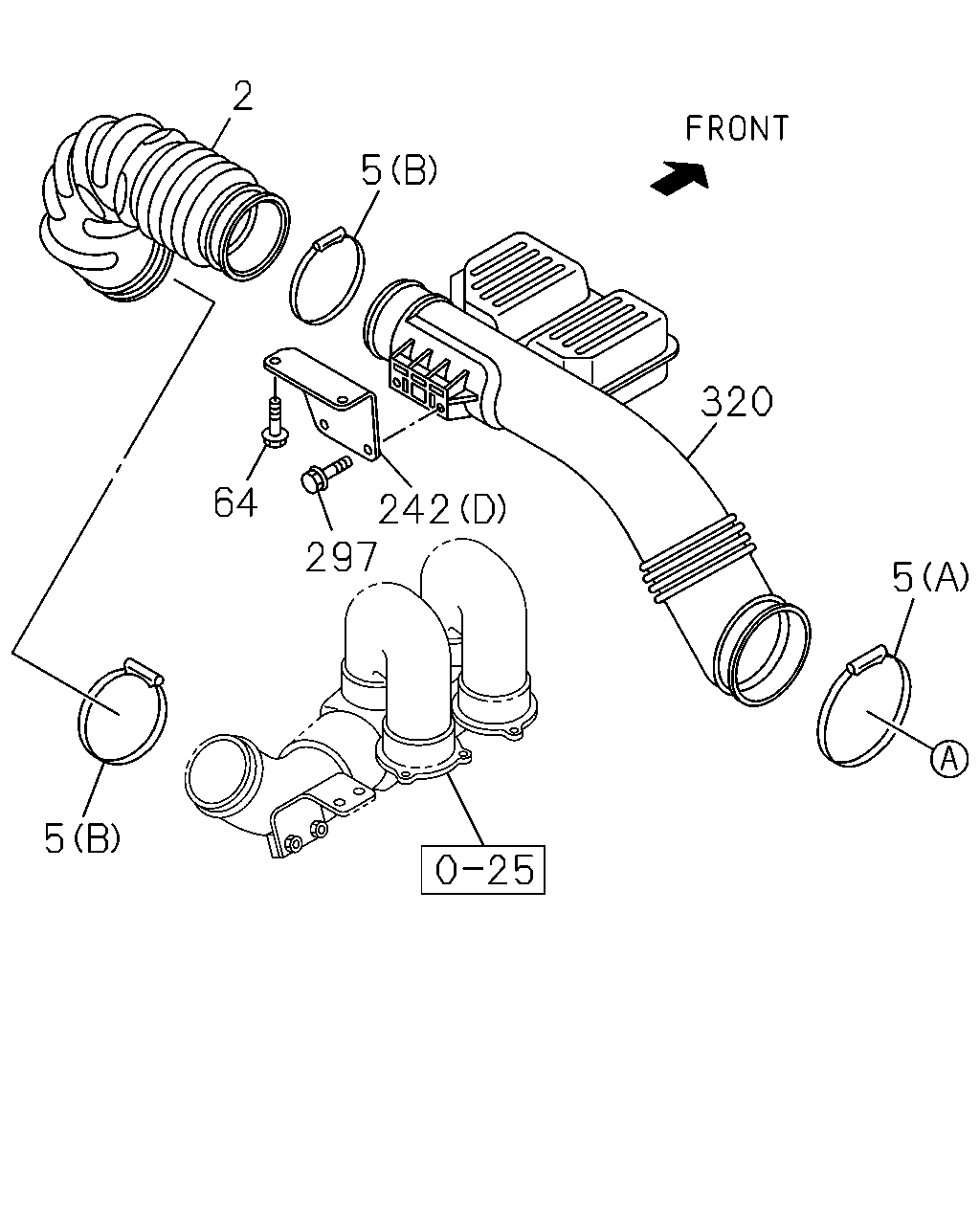

çizim 150759
2 5 320 64 242 297 5 5
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL 8-98144-931-0 01 1 1112-
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1112-
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=90-110 		8-98133-365-0 02 1 1112-
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=87-116 		1-09707-138-0 02 1 1112-
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1112-
64 BOLT; BRKT,AIR DUCT
M10X25 FLANGE 		0-28651-025-0 02 1 1112-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1112-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1112-
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1112-
242 BRACKET; AIR DUCT
(D) 		8-98100-411-1 01 1 1112-
297 BOLT; DUCT
M8X25 FLANGE 		0-28650-825-0 02 1 1112-
320 HOSE; CONN,ACL 8-98185-864-0 01 1 1112-
