◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#5920) — 167 parça

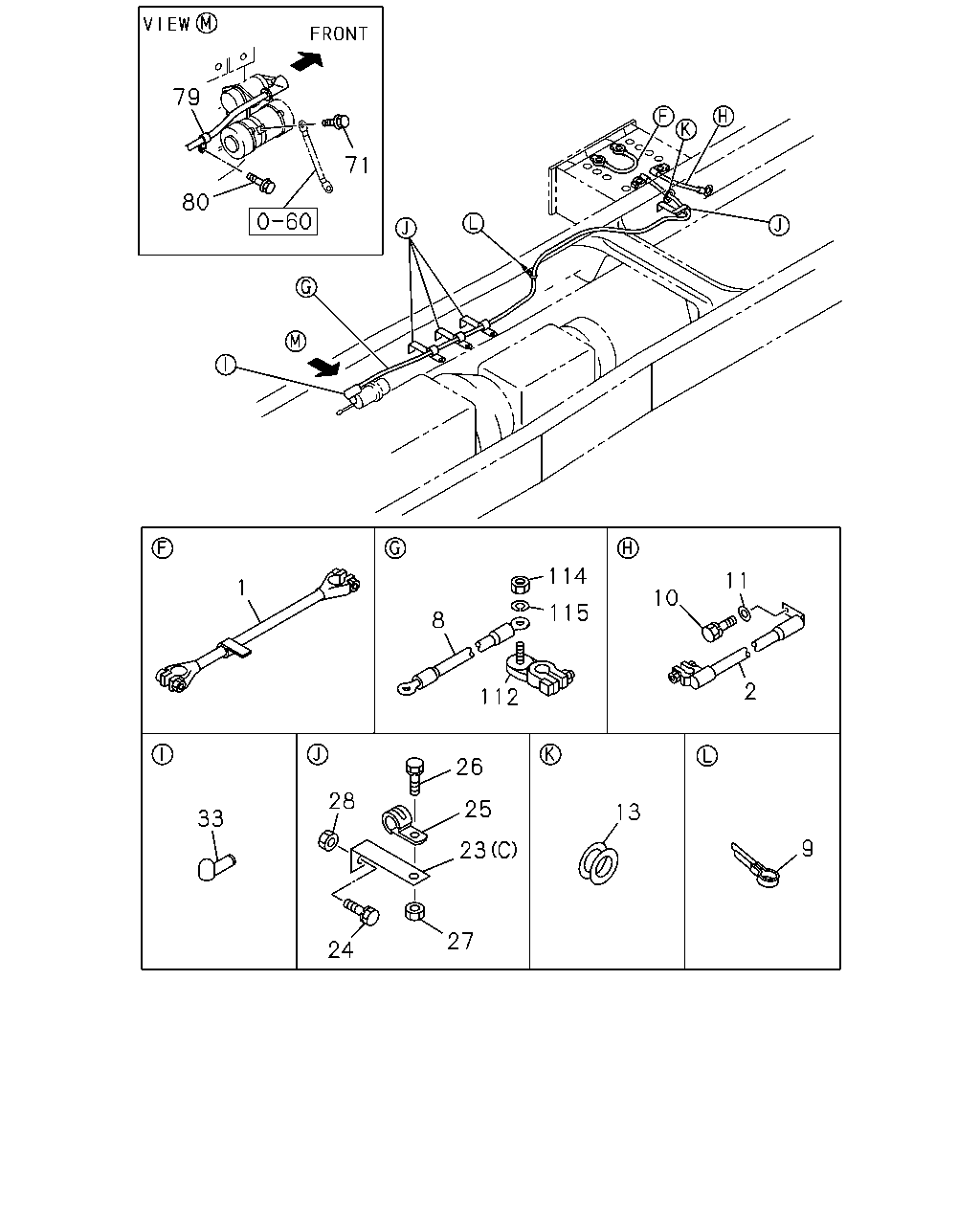

çizim 42484
79 71 80 114 11 1 10 115 8 2 112 26 2 25 13 33 9 23 27 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=450 		1-82650-281-2 01 1 9606-9810 ● ●
1 CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=180 		1-82650-265-0 01 1 9606-9810 ● ●
1 CABLE; BATTERY
L=180 		1-82650-265-0 01 1 9811-0203 ● ●
1 CABLE; BATTERY
L=180 		1-82650-265-0 01 1 0204- ●
2 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=380 		9-82932-713-2 01 1 9606-9810 ● ●
2 CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=185 		1-82650-067-2 01 1 9606-9810 ● ●
2 CABLE; BATTERY
L=185 		1-82650-067-2 01 1 9811-0203 ● ●
2 CABLE; BATTERY
L=185 		1-82650-067-3 02 1 0204- ●
8 CABLE; BATTERY,STARTER
L=4250 		1-82650-231-1 01 1 9606-9810 ● ●
8 CABLE; BATTERY,STARTER
L=2250 		1-82650-261-1 01 1 9811-0203 ● ●
8 CABLE; BATTERY,STARTER
L=2250 		1-82650-261-1 01 1 0204- ●
8 CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1450 		1-82650-217-1 01 1 9610-9810 ● ●
8 CABLE; BATTERY,STARTER
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=850 		1-82650-219-1 01 1 9610-9810 ● ●
9 CLIP; BATTERY CABLE
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14 L=44 		9-09917-427-0 01 1 9606-9810 ● ●
9 CLIP; BATTERY CABLE
ID=14 L=44 		9-09917-427-0 01 1 9811-0203 ● ●
9 CLIP; BATTERY CABLE
ID=14 L=44 		9-09917-427-0 01 1 0204- ●
10 BOLT; BATTERY CABLE CLIP
M10X35 FLANGE 		0-28681-035-0 01 1 9606-9810 ● ●
10 BOLT; BATTERY CABLE CLIP
M10X30 W/LK&PL WASHER 		8-97087-206-0 01 1 9811-0203 ● ●
10 BOLT; BATTERY CABLE CLIP
M10X30 W/LK&PL WASHER 		8-97087-206-0 01 1 0204- ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 		9-09160-610-0 01 1 9606-9810 ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 		9-09160-610-0 01 1 9811-0203 ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 		9-09160-610-0 01 1 0204-0605 ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0606- ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=25 		1-09332-011-1 01 1 9606-9810 ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9811-0203 ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0204- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		1-82699-584-0 01 1 9606-9810 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 05 1 9811-0203 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 05 1 0204- ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=55 		1-47475-304-0 01 1 9606-9810 ● ●
24 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28680-825-0 02 1 9606-9810 ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 05 1 9811-0203 ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 05 1 0204-0512 ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 05 1 0601- ●
24 BOLT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28680-825-0 01 1 9606-9810 ● ●
25 CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=28 		1-09700-872-0 02 1 9606-9810 ● ●
25 CLIP; BATTERY CABLE TO BRKT
ID=15 L=28 		1-09701-216-0 05 1 9811-0203 ● ●
25 CLIP; BATTERY CABLE TO BRKT
ID=15 L=28 		1-09701-216-0 05 1 0204- ●
25 CLIP; BATTERY CABLE TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=28 		1-09700-872-0 01 1 9606-9810 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28680-825-0 02 1 9606-9810 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28680-820-0 05 1 9811-0203 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28680-820-0 05 1 0204-0512 ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28650-820-0 05 1 0601- ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28680-825-0 01 1 9606-9810 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 02 1 9606-9810 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 05 1 9811-0203 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 05 1 0204-0602 ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
27 NUT; BATTERY CABLE CLIP TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 01 1 9606-9810 ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 9606-9810 ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 9811-0203 ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 0204- ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28081-020-0 01 1 9606-9810 ● ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28081-020-0 01 1 9811-9902 ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28081-020-0 01 1 9903-0203 ● ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28081-020-0 01 1 0204-0512 ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28051-020-0 01 1 0601- ●
79 CLIP; BATTERY CABLE
ID=16 H=30 L=30 		1-09701-080-0 01 1 9606-9609 ● ●
79 CLIP; BATTERY CABLE
ID=16 H=30 L=30 		1-09701-080-0 01 1 9610-9810 ● ●
79 CLIP; BATTERY CABLE
MLD6A M/T(X5N) HEAVY DUTY PACKAGE TRUCK<RD2> ID=16 H=30 L=30 		1-09701-080-0 01 1 9610-9810 ●
79 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 9811-0203 ● ●
79 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 0204- ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9606-9609 ● ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9610-9810 ● ●
80 BOLT; BATTERY CABLE CLIP
MLD6A M/T(X5N) HEAVY DUTY PACKAGE TRUCK<RD2> M8X16 FLANGE 		0-28080-816-0 01 1 9610-9810 ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9811-0203 ● ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
112 TERMINAL; BATTERY
<+> 		1-82695-003-0 01 1 9606-9810 ● ●
112 TERMINAL; BATTERY
<+> 		1-82695-003-0 01 1 9811-0203 ● ●
112 TERMINAL; BATTERY
<+> 		1-82695-003-0 01 1 0204-0403 ●
112 TERMINAL; BATTERY
<+> 		1-82695-175-0 01 1 0404- ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		9-09110-510-0 01 1 9606-9810 ● ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		9-09110-510-0 01 1 9811-0203 ● ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		9-09110-510-0 01 1 0204-0512 ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		0-91110-510-0 01 1 0601- ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		9-09150-510-0 01 1 9606-9810 ● ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		9-09150-510-0 01 1 9811-0203 ● ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		9-09150-510-0 01 1 0204-0603 ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		0-91510-510-0 01 1 0604- ●

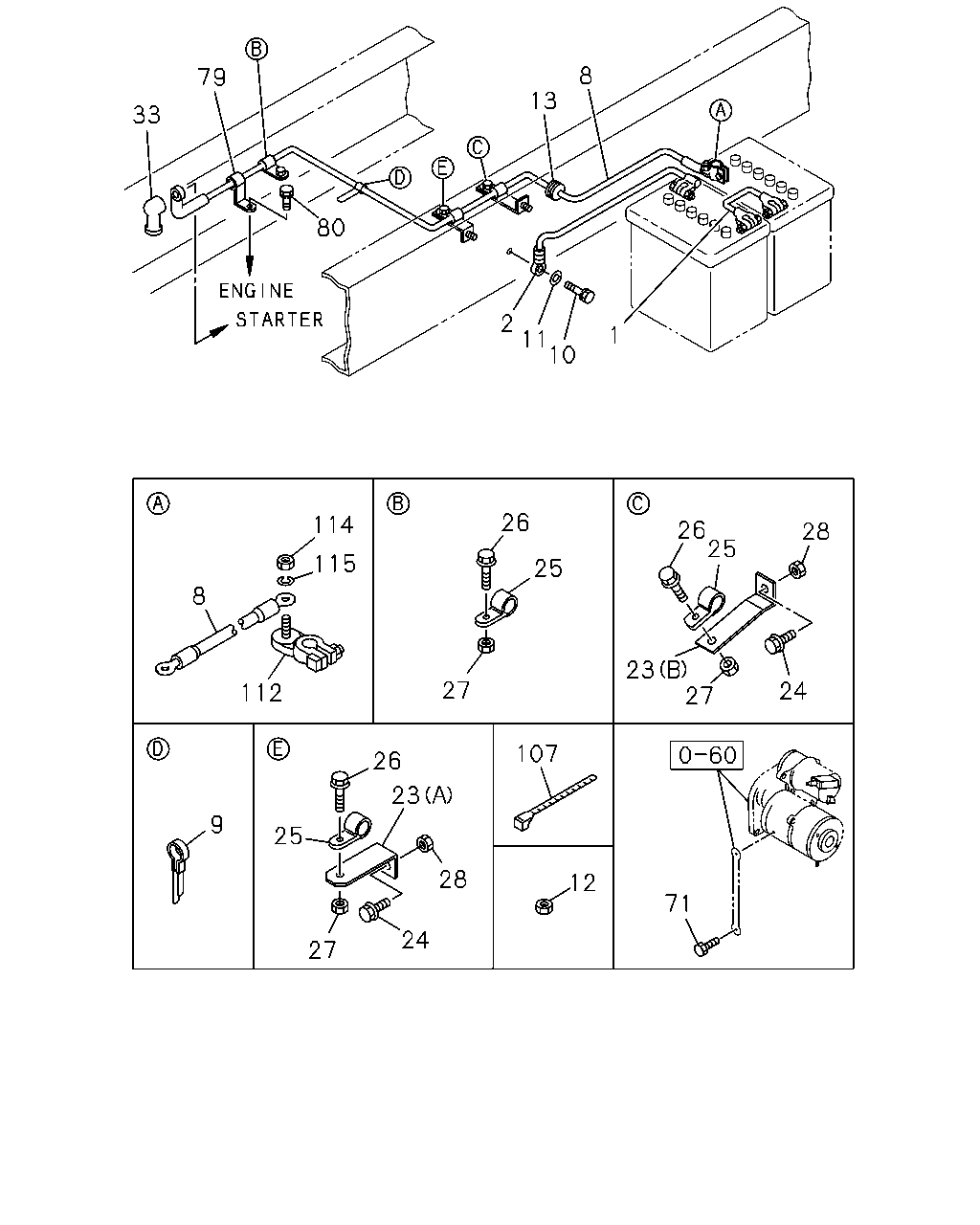

çizim 42598
8 79 13 33 80 2 11 10 1 26 114 26 25 28 115 25 8 23 27 27 24 112 107 26 23 9 25 28 12 71 24 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=450 		1-82650-281-2 01 1 9606-9810 ● ●
1 CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=180 		1-82650-265-0 01 1 9606-9810 ● ●
1 CABLE; BATTERY
L=180 		1-82650-265-0 01 1 9811-0203 ● ●
1 CABLE; BATTERY
L=180 		1-82650-265-0 01 1 0204- ●
2 CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=380 		9-82932-713-2 01 1 9606-9810 ● ●
2 CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=185 		1-82650-067-2 01 1 9606-9810 ● ●
2 CABLE; BATTERY
L=185 		1-82650-067-2 01 1 9811-0203 ● ●
2 CABLE; BATTERY
L=185 		1-82650-067-3 02 1 0204- ●
8 CABLE; BATTERY,STARTER
L=4250 		1-82650-231-1 01 1 9606-9810 ● ●
8 CABLE; BATTERY,STARTER
L=2250 		1-82650-261-1 01 1 9811-0203 ● ●
8 CABLE; BATTERY,STARTER
L=2250 		1-82650-261-1 01 1 0204- ●
8 CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1450 		1-82650-217-1 01 1 9610-9810 ● ●
8 CABLE; BATTERY,STARTER
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=850 		1-82650-219-1 01 1 9610-9810 ● ●
9 CLIP; BATTERY CABLE
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14 L=44 		9-09917-427-0 01 1 9606-9810 ● ●
9 CLIP; BATTERY CABLE
ID=14 L=44 		9-09917-427-0 01 1 9811-0203 ● ●
9 CLIP; BATTERY CABLE
ID=14 L=44 		9-09917-427-0 01 1 0204- ●
10 BOLT; BATTERY CABLE CLIP
M10X35 FLANGE 		0-28681-035-0 01 1 9606-9810 ● ●
10 BOLT; BATTERY CABLE CLIP
M10X30 W/LK&PL WASHER 		8-97087-206-0 01 1 9811-0203 ● ●
10 BOLT; BATTERY CABLE CLIP
M10X30 W/LK&PL WASHER 		8-97087-206-0 01 1 0204- ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 		9-09160-610-0 01 1 9606-9810 ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 		9-09160-610-0 01 1 9811-0203 ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 		9-09160-610-0 01 1 0204-0605 ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0606- ●
12 NUT; BATTERY CABLE CLIP
HEAVY DUTY PACKAGE TRUCK<RD2> MLD6 M/T<X9Y> M8 		9-09110-408-0 01 1 9610-9810 ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=25 		1-09332-011-1 01 1 9606-9810 ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9811-0203 ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0204- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		1-82699-584-0 01 1 9606-9810 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 05 1 9811-0203 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 05 1 0204- ●
23 BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=55 		1-47475-304-0 01 1 9606-9810 ● ●
24 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28680-825-0 02 1 9606-9810 ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 05 1 9811-0203 ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 05 1 0204-0512 ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 05 1 0601- ●
24 BOLT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28680-825-0 01 1 9606-9810 ● ●
25 CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=28 		1-09700-872-0 02 1 9606-9810 ● ●
25 CLIP; BATTERY CABLE TO BRKT
ID=15 L=28 		1-09701-216-0 05 1 9811-0203 ● ●
25 CLIP; BATTERY CABLE TO BRKT
ID=15 L=28 		1-09701-216-0 05 1 0204- ●
25 CLIP; BATTERY CABLE TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=28 		1-09700-872-0 01 1 9606-9810 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28680-825-0 02 1 9606-9810 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28680-820-0 05 1 9811-0203 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28680-820-0 05 1 0204-0512 ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28650-820-0 05 1 0601- ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28680-825-0 01 1 9606-9810 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 02 1 9606-9810 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 05 1 9811-0203 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 05 1 0204-0602 ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
27 NUT; BATTERY CABLE CLIP TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 01 1 9606-9810 ● ●
28 NUT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 03 1 9606-9810 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 05 1 9811-0203 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 05 1 0204-0602 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
28 NUT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 01 1 9606-9810 ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 9606-9810 ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 9811-0203 ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 0204- ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28081-020-0 01 1 9606-9810 ● ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28081-020-0 01 1 9811-9902 ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28081-020-0 01 1 9903-0203 ● ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28081-020-0 01 1 0204-0512 ●
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28051-020-0 01 1 0601- ●
79 CLIP; BATTERY CABLE
ID=16 H=30 L=30 		1-09701-080-0 01 1 9606-9609 ● ●
79 CLIP; BATTERY CABLE
ID=16 H=30 L=30 		1-09701-080-0 01 1 9610-9810 ● ●
79 CLIP; BATTERY CABLE
MLD6A M/T(X5N) HEAVY DUTY PACKAGE TRUCK<RD2> ID=16 H=30 L=30 		1-09701-080-0 01 1 9610-9810 ●
79 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 9811-0203 ● ●
79 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 0204- ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9606-9609 ● ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9610-9810 ● ●
80 BOLT; BATTERY CABLE CLIP
MLD6A M/T(X5N) HEAVY DUTY PACKAGE TRUCK<RD2> M8X16 FLANGE 		0-28080-816-0 01 1 9610-9810 ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9811-0203 ● ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
107 CLIP; BAND
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=140 		5-09707-031-0 01 1 9606-9810 ● ●
112 TERMINAL; BATTERY
<+> 		1-82695-003-0 01 1 9606-9810 ● ●
112 TERMINAL; BATTERY
<+> 		1-82695-003-0 01 1 9811-0203 ● ●
112 TERMINAL; BATTERY
<+> 		1-82695-003-0 01 1 0204-0403 ●
112 TERMINAL; BATTERY
<+> 		1-82695-175-0 01 1 0404- ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		9-09110-510-0 01 1 9606-9810 ● ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		9-09110-510-0 01 1 9811-0203 ● ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		9-09110-510-0 01 1 0204-0512 ●
114 NUT; CABLE,BATTERY TERMINAL
M10 		0-91110-510-0 01 1 0601- ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		9-09150-510-0 01 1 9606-9810 ● ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		9-09150-510-0 01 1 9811-0203 ● ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		9-09150-510-0 01 1 0204-0603 ●
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		0-91510-510-0 01 1 0604- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
