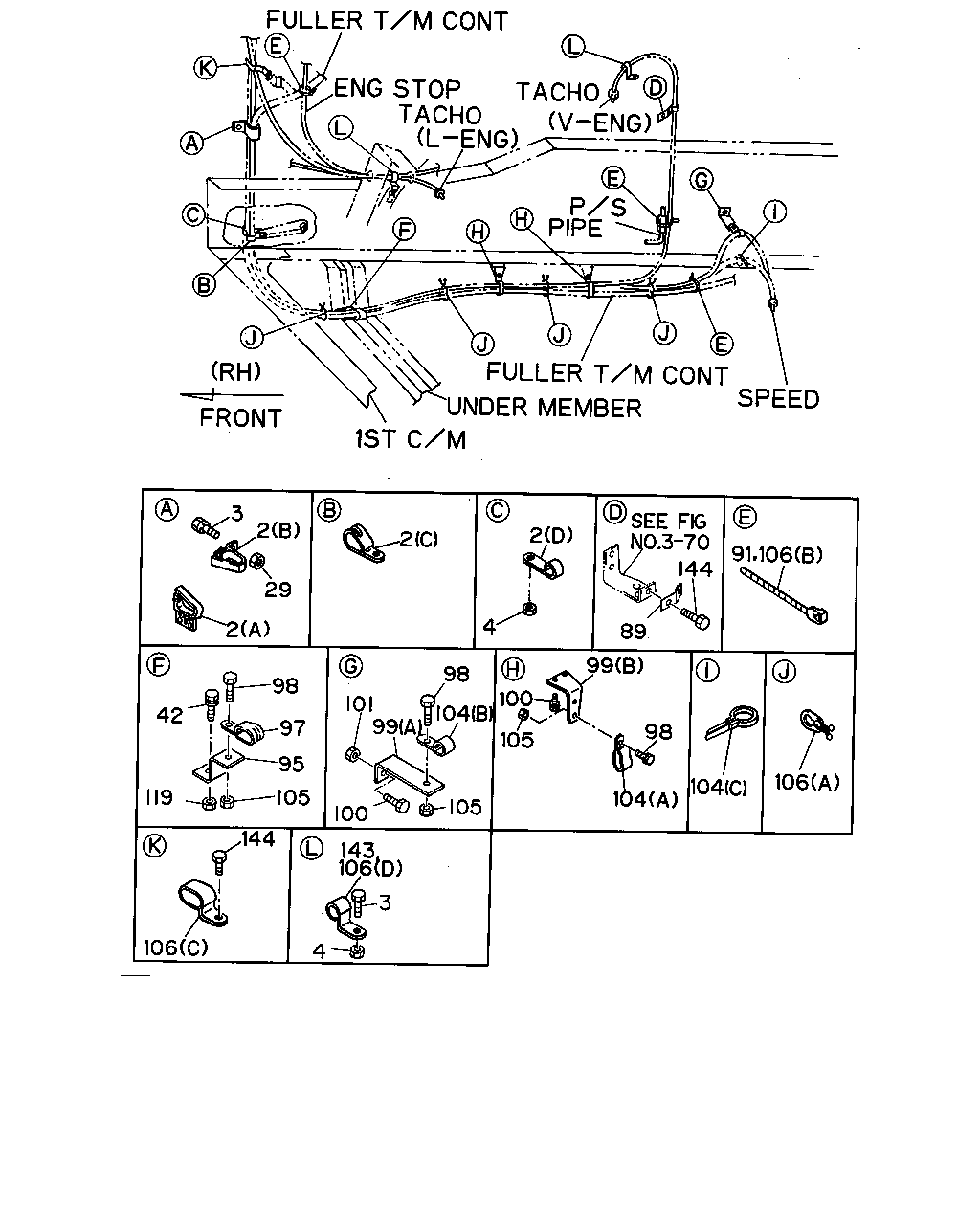

8-20 — METER CABLE (#592) — 117 parça

3 2 29 2 42 119 105 95 97 98 2 2 4 144 89 91 106 106 104 104 98 99 100 105 98 104 105 100 99 101 143 106 3 4 144 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CLIP; FLEX SHAFT (D) ID=8 L=31	1-09700-112-1	01	1	9307-
2	CLIP; FLEX SHAFT (C) ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	9307-
2	CLIP; FLEX SHAFT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB UP +50MM<W60> (B)	1-09700-772-2	01	1	9307-
2	CLIP; FLEX SHAFT L TYPE ENG<90L> (C) ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	9008-9306
2	CLIP; FLEX SHAFT REINFORCEMENT BUMPER<VG7> (A)	1-09700-780-1	01	1	9307-
2	CLIP; FLEX SHAFT V TYPE ENG<91L> (D) ID=11X2 L=16	9-09535-026-0	01	1	9008-9306
3	BOLT; FLEX SHAFT,CLIP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB UP +50MM<W60> M8X25 FLANGE	0-28080-825-0	01	1	9307-
3	BOLT; FLEX SHAFT,CLIP REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-
3	BOLT; FLEX SHAFT,CLIP V TYPE ENG<91L> M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-9204
3	BOLT; FLEX SHAFT,CLIP V TYPE ENG<91L> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
3	BOLT; FLEX SHAFT,CLIP V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	01	1	9303-
4	NUT; FLEX SHAFT CLIP M8	9-09110-408-0	01	1	9008-
4	NUT; FLEX SHAFT CLIP V TYPE ENG<91L> M8	9-09110-408-0	01	1	9008-
4	NUT; FLEX SHAFT CLIP V TYPE ENG<91L> M8	9-09110-408-0	01	1	8712-9007
29	NUT; CLIP,METER FLEX SHAFT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,CAB UP +50MM<W60> M8	9-09110-408-0	01	1	9307-
29	NUT; CLIP,METER FLEX SHAFT REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	02	1	9307-
42	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9008-9204
42	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
42	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9303-
89	BRACKET; CLIP TACHOMETER V TYPE ENG<91L>	1-83129-037-1	01	1	8712-
91	CLIP; BAND V TYPE ENG<91L> L=100	5-09707-036-0	01	1	8802-8802
91	CLIP; BAND V TYPE ENG<91L> L=140	5-09707-031-0	01	1	8803-9003
95	BRACKET; CLIP,UNDER MEMBER	1-47465-488-0	01	1	9008-
97	CLIP; SHAFT UNDER MEMBER L TYPE ENG<90L> ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	9008-
97	CLIP; SHAFT UNDER MEMBER V TYPE ENG<91L> ID=11X2 L=16	9-09535-026-0	01	1	9008-9306
97	CLIP; SHAFT UNDER MEMBER V TYPE ENG<91L> ID=11X2 L=16	9-09535-025-0	01	1	9307-
98	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-9204
98	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
98	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-
98	BOLT; CLIP M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9008-9204
98	BOLT; CLIP M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-
98	BOLT; CLIP M8X25 W/LK&PL WASHER	9-01960-825-0	01	1	9008-9204
98	BOLT; CLIP M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9205-
99	BRACKET; FRAME (A)	9-22518-066-0	01	1	8712-8801
99	BRACKET; FRAME (A)	1-22518-099-0	01	1	8802-9001
99	BRACKET; FRAME (A)	1-47475-305-0	01	1	9002-
99	BRACKET; FRAME (B)	1-46147-049-1	02	1	9008-9110
99	BRACKET; FRAME (B)	1-46147-183-0	02	1	9111-
100	BOLT; BRKT FRAME M8X25 W/LK WASHER	9-01900-825-0	01	1	8712-9204
100	BOLT; BRKT FRAME M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
100	BOLT; BRKT FRAME M8X25 FLANGE	0-28080-825-0	01	1	9303-
100	BOLT; BRKT FRAME M8X20 W/LK WASHER	9-01900-820-0	04	1	9008-9204
100	BOLT; BRKT FRAME M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302
100	BOLT; BRKT FRAME M8X20 FLANGE	0-28080-820-0	04	1	9303-9312
100	BOLT; BRKT FRAME HONG KONG EQUIPMENT(PQ1) M8X35 FLANGE	0-28080-835-0	04	1	9401-
100	BOLT; BRKT FRAME EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28080-825-0	04	1	9401-
101	NUT; BRKT FRAME M8	9-09110-408-0	01	1	8712-
104	CLIP; SHAFT,FRAME (B) ID=11 L=20	9-09525-035-0	01	1	8802-
104	CLIP; SHAFT,FRAME L TYPE ENG<90L> (A) ID=10.5 & 14.5 L=20	1-09701-085-0	02	1	9008-
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> (C) ID=11 L=41	1-09700-403-0	01	1	9002-9002
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> (A) ID=11X2 L=16	9-09535-026-0	02	1	9008-9306
104	CLIP; SHAFT,FRAME V TYPE ENG<91L> (A) ID=11X2 L=16	9-09535-025-0	02	1	9307-
105	NUT; CLIP M8	9-09110-408-0	03	1	9008-
106	CLIP; SPEEDOMETER CABLE (C) ID=11 & 11	1-09700-734-0	01	1	8712-
106	CLIP; SPEEDOMETER CABLE FULLER M/T<X9B> (A) ID=13.5 & 11	1-09709-123-0	04	1	9008-
106	CLIP; SPEEDOMETER CABLE FULLER M/T<X9B> (B) L=140	5-09707-031-0	01	1	9008-
106	CLIP; SPEEDOMETER CABLE V TYPE ENG<91L> (D) ID=11 L=28	9-09525-055-0	01	1	8712-8804
106	CLIP; SPEEDOMETER CABLE V TYPE ENG<91L> (D) ID=16 L=28	9-09525-556-0	01	1	8805-8809
106	CLIP; SPEEDOMETER CABLE V TYPE ENG<91L> (D) ID=11 L=28	9-09525-055-0	01	1	8810-9306
106	CLIP; SPEEDOMETER CABLE V TYPE ENG<91L> (D) ID=11 H=20 L=20	5-09700-351-0	01	1	9307-
119	NUT; BRKT M8	9-09110-408-0	01	1	9008-
143	CLIP; TACHOMETER CABLE ID=19 L=24 H=21	1-09700-109-1	01	1	8802-8803
143	CLIP; TACHOMETER CABLE L TYPE ENG<90L> ID=19 L=24 H=21	1-09700-109-1	01	1	8804-9001
143	CLIP; TACHOMETER CABLE V TYPE ENG<91L> ID=20 H=23 L=27	1-09700-861-0	01	1	8804-9001
144	BOLT; CLIP SHAFT M8X20 W/LK WASHER	9-01900-820-0	02	1	8712-9204
144	BOLT; CLIP SHAFT V TYPE ENG<91L> M8X20 W/LK WASHER	9-01900-820-0	02	1	8712-9204
144	BOLT; CLIP SHAFT M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302
144	BOLT; CLIP SHAFT V TYPE ENG<91L> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302
144	BOLT; CLIP SHAFT M8X20 FLANGE	0-28080-820-0	02	1	9303-9306
144	BOLT; CLIP SHAFT V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	02	1	9303-9306
144	BOLT; CLIP SHAFT V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	02	1	9307-
144	BOLT; CLIP SHAFT M8X20 FLANGE	0-28080-820-0	01	1	9307-

5 1 5 165 164 48 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11613 M/T FULLER(MV6) FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) TACHOGRAPH 120KM/H<SM8> L=4500	1-83123-585-0	01	1	8712-8804
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11613 M/T FULLER(MV6) FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) TACHOGRAPH 120KM/H<SM8> L=4400	1-83123-583-0	01	1	8805-8910
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11613 M/T FULLER(MV6) FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) EXC. TACHOGRAPH 120KM/H<SM8> L=4530	1-83123-635-0	01	1	8712-8804
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11613 M/T FULLER(MV6) FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) EXC. TACHOGRAPH 120KM/H<SM8> L=4450	1-83123-636-0	01	1	8805-8910
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11613 M/T FULLER(MV6) FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) EXC. TACHOGRAPH 120KM/H<SM8> L=4500	1-83123-585-0	01	1	8911-9001
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11613 M/T FULLER(MV6) FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) TACHOGRAPH 120KM/H<SM8> L=4450	1-83123-636-0	01	1	8911-9001
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 17.5"(W4B) TACHOGRAPH 120KM/H<SM8> L=4400	1-83123-493-0	01	1	8712-9001
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 17.5"(W4B) EXC. TACHOGRAPH 120KM/H<SM8> L=4600	1-83123-572-0	01	1	8712-9001
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RT11609A M/T FULLER(PQ4) FINAL GEAR 39/7 17.5"(W3Z) EXC. TACHOGRAPH 120KM/H<SM8> L=4450	1-83123-636-0	01	1	8712-9001
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RT11609A M/T FULLER(PQ4) FINAL GEAR 39/7 17.5"(W3Z) TACHOGRAPH 120KM/H<SM8> L=4400	1-83123-637-0	01	1	8712-9001
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 17.5"(W4B) EXC. TACHOGRAPH 120KM/H<SM8> L=4500	1-83123-571-0	01	1	8712-9001
1	SHAFT; FLEX,SPD TO CONN L TYPE ENG<90L> RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 17.5"(W4B) TACHOGRAPH 120KM/H<SM8> L=4450	1-83123-652-0	01	1	8712-9001
1	SHAFT; FLEX,SPD TO CONN MJA7 M/T<X9Q> TACHOGRAPH 120KM/H<SM8> L=4250	1-83123-747-1	01	1	8902-
1	SHAFT; FLEX,SPD TO CONN MJA7 M/T<X9Q> EXC. TACHOGRAPH 120KM/H<SM8> L=4300	1-83123-543-1	01	1	8902-
1	SHAFT; FLEX,SPD TO CONN RTO11613 M/T FULLER(MV6) FINAL GEAR 43/11 17.5"(W4S) TACHOGRAPH 120KM/H<SM8> L=4450	1-83123-636-0	01	1	9307-
1	SHAFT; FLEX,SPD TO CONN RTO11613 M/T FULLER(MV6) FINAL GEAR 43/11 17.5"(W4S) EXC. TACHOGRAPH 120KM/H<SM8> L=4500	1-83123-585-0	01	1	9307-
1	SHAFT; FLEX,SPD TO CONN RTO14613 M/T FULLER(MRU) FINAL GEAR 39/8 17.5"(W4B) TACHOGRAPH 120KM/H<SM8> L=4400	1-83123-493-0	01	1	9307-
1	SHAFT; FLEX,SPD TO CONN RTO14613 M/T FULLER(MRU) FINAL GEAR 39/8 17.5"(W4B) EXC. TACHOGRAPH 120KM/H<SM8> L=4600	1-83123-572-0	01	1	9307-
1	SHAFT; FLEX,SPD TO CONN RTO14613 M/T FULLER(MRU),RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 17.5"(W4B) TACHOGRAPH 120KM/H<SM8> L=4400	1-83123-493-0	01	1	9002-9004
1	SHAFT; FLEX,SPD TO CONN RTO14613 M/T FULLER(MRU) FINAL GEAR 39/8 17.5"(W4B) TACHOGRAPH 120KM/H<SM8> L=4400	1-83123-493-0	01	1	9005-9306
1	SHAFT; FLEX,SPD TO CONN RTO14613 M/T FULLER(MRU),RTO11613 M/T FULLER(MV6) FINAL GEAR 39/8 17.5"(W4B) EXC. TACHOGRAPH 120KM/H<SM8> L=4600	1-83123-572-0	01	1	9002-9004
1	SHAFT; FLEX,SPD TO CONN RTO14613 M/T FULLER(MRU) FINAL GEAR 39/8 17.5"(W4B) EXC. TACHOGRAPH 120KM/H<SM8> L=4600	1-83123-572-0	01	1	9005-9306
1	SHAFT; FLEX,SPD TO CONN RTO14613 M/T FULLER(MRU),RTO11613 M/T FULLER(MV6), RT14715 M/T FULLER(X8L) FINAL GEAR 39/9 17.5"(W4R),FINAL GEAR 43/11 17.5"(W4S) TACHOGRAPH 120KM/H<SM8> L=4400	1-83123-583-0	01	1	9002-9004
1	SHAFT; FLEX,SPD TO CONN FULLER M/T<X9B> FINAL GEAR 39/9 17.5"(W4R),FINAL GEAR 43/11 17.5"(W4S) TACHOGRAPH 120KM/H<SM8> L=4450	1-83123-636-0	01	1	9005-9306
1	SHAFT; FLEX,SPD TO CONN RTO14613 M/T FULLER(MRU),RT14715 M/T FULLER(X8L) EXC. TACHOGRAPH 120KM/H<SM8> L=4500	1-83123-585-0	01	1	9002-9004
1	SHAFT; FLEX,SPD TO CONN RTO14613 M/T FULLER(MRU),RTO11613 M/T FULLER(MV6), RT14715 M/T FULLER(X8L) FINAL GEAR 39/9 17.5"(W4R),FINAL GEAR 43/11 17.5"(W4S) EXC. TACHOGRAPH 120KM/H<SM8> L=4500	1-83123-585-0	01	1	9005-9306
1	SHAFT; FLEX,SPD TO CONN 10PC1 STD ENG(10L) RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 17.5"(W4B) TACHOGRAPH 120KM/H<SM8> RR TIRE 11.00-20 BIAS<86X> L=4050	1-83123-481-1	01	1	8712-9001
1	SHAFT; FLEX,SPD TO CONN 10PC1 STD ENG(10L) RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20 BIAS<88X> EXC. TACHOGRAPH 120KM/H<SM8> L=4150	1-83123-603-0	01	1	8712-9001
1	SHAFT; FLEX,SPD TO CONN 10PC1 STD ENG(10L) RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 17.5"(W4B) TACHOGRAPH 120KM/H<SM8> RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>,RR TIRE10.00-20 BIAS<88X> L=4100	1-83123-604-0	01	1	8712-9001
1	SHAFT; FLEX,SPD TO CONN 10PC1 STD ENG(10L) RT11609A M/T FULLER(PQ4) FINAL GEAR 39/8 17.5"(W4B) RR TIRE 11.00-20 BIAS<86X> EXC. TACHOGRAPH 120KM/H<SM8> L=4100	1-83123-650-0	01	1	8712-9001
5	SHAFT; FLEX,TACHOMETER TO ENG L TYPE ENG<90L> (A) L=1950	1-83123-917-1	01	1	8712-
5	SHAFT; FLEX,TACHOMETER TO ENG V TYPE ENG<91L> (B) L=200	1-83123-450-1	01	1	8712-
5	SHAFT; FLEX,TACHOMETER TO ENG V TYPE ENG<91L> (A) L=4600	1-83123-475-1	01	1	8712-8803
5	SHAFT; FLEX,TACHOMETER TO ENG V TYPE ENG<91L> (A) L=4800	1-83123-546-1	01	1	8804-8809
5	SHAFT; FLEX,TACHOMETER TO ENG V TYPE ENG<91L> (A) L=4170	1-83124-051-0	01	1	8810-
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 39/7 17.5"(W3Z)	1-83126-109-0	01	1	8712-9001
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 39/8 17.5"(W4B) FULLER M/T<X9B> RR TIRE 10.00R20<87X>	1-83126-110-0	01	1	9602-
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 39/9 17.5"(W4R) RR TIRE 10.00R20<87X>,RR TIRE 10.00-20 BIAS<88X>	1-83126-217-0	01	1	8712-9001
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 39/9 17.5"(W4R) RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X>	1-83126-217-0	01	1	9002-9306
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 41/9 17.5"(W4C)	1-83126-209-0	01	1	8712-9001
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 43/11 17.5"(W4S) RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X>	1-83126-293-0	01	1	9012-
32	BOX; GEAR,FLEX SHAFT FINAL GEAR 43/11 17.5"(W4S) RR TIRE 11.00R20<85X>,RR TIRE 11.00-20<97X>	1-83126-294-0	01	1	9012-
48	GROMMET; FLEX SHAFT	1-09333-093-1	01	1	8712-
164	COVER; GROMMET	1-73997-758-0	01	1	8712-
165	SCREW; GROMMET M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	8712-
