0-60 — ENGINE ELECTRICAL CONTROL PARTS (#5919) — 126 parça

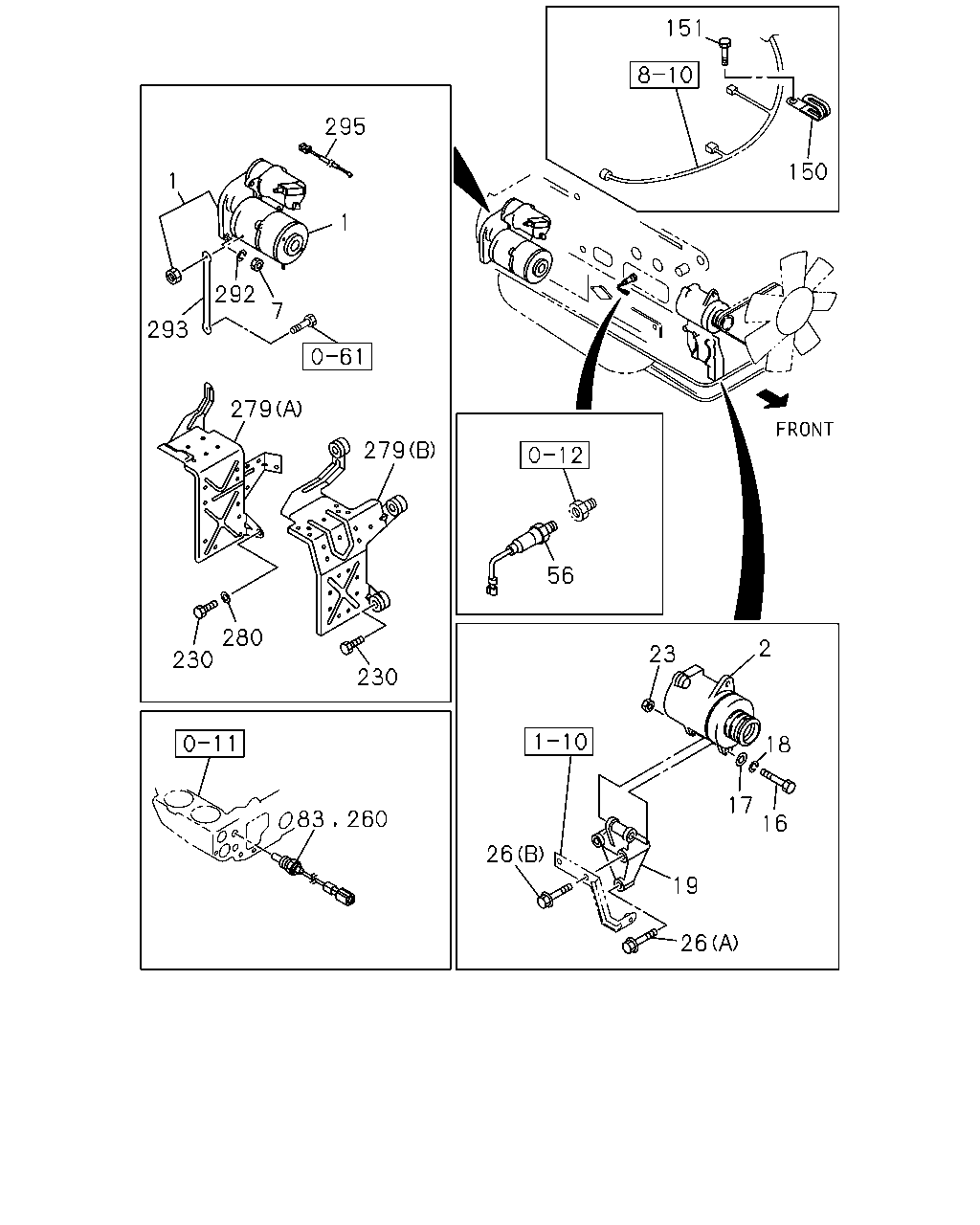

çizim 38722
151 295 150 1 1 292 7 293 279 279 56 280 230 2 23 230 18 17 260 16 26 19 26 83
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-295-0 01 1 9606-9810 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94399-159-4 01 1 9811-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-97602-167-1 01 1 0109-0203 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94394-151-2 01 1 9903-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-97602-169-1 01 1 0109- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-40A 1KW(SC5) 24V 40A NIKKO 		1-81200-416-4 01 1 9606-9810 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9811-9902 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9903-0203 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 0204- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) 24V 30A DENSO 		1-81200-321-4 01 1 9606-9810 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9904-9905 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-577-0 01 1 9906-9907 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9606-9810 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9811-9902 ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9903-0203 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0204-0512 ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601- ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9606-9810 ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9811-9902 ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9903-0203 ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0204- ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9606-9810 ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9811-9902 ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9903-0203 ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0204-0605 ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606- ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9606-9810 ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9811-9902 ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9903-0203 ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 0204-0603 ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0604- ●
19 BRACKET; GEN 8-94396-297-0 01 1 9606-9810 ● ●
19 BRACKET; GEN 8-94396-297-0 01 1 9811-9902 ●
19 BRACKET; GEN 8-94396-297-0 01 1 9903-0112 ● ●
19 BRACKET; GEN 8-97602-318-0 01 1 0201-0203 ● ●
19 BRACKET; GEN 8-97602-318-0 01 1 0204- ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9606-9810 ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9811-9902 ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9903-0203 ● ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0204-0512 ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0601- ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28181-040-0 01 1 9606-9810 ● ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28181-040-0 01 1 9811-9902 ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28181-040-0 01 1 9903-0203 ● ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28181-040-0 01 1 0204-0512 ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28151-040-0 01 1 0601- ●
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28181-080-0 02 1 9606-9810 ● ●
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28181-080-0 02 1 9811-9902 ●
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28181-080-0 02 1 9903-0203 ● ●
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28181-080-0 02 1 0204-0512 ●
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28151-080-0 02 1 0601- ●
56 SWITCH; OIL PRESSURE WARNING
PT1/8 		1-82410-160-0 01 1 9606-9810 ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 9811-9902 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 9903-0203 ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0204- ●
83 THERMOMETER UNIT 1-83161-019-1 01 1 9606-9810 ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9811-0203 ●
150 CLIP; HARNESS,SOLENOID VLV
ID=18 L=44 		8-94225-185-0 02 1 9903-0801 ●
150 CLIP; HARNESS,SOLENOID VLV
ID=18 L=44 		8-97367-985-1 02 1 0802- ●
151 BOLT; HARNESS CLIP,SOLENOID VLV
M8X12 FLANGE 		0-28080-812-0 02 1 9903-0512 ●
151 BOLT; HARNESS CLIP,SOLENOID VLV
M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
230 BOLT; HEAT PROTECTOR
M8X14 		0-20800-814-0 03 1 9606-9810 ● ●
230 BOLT; HEAT PROTECTOR
M8X28 FLANGE 		0-28080-828-0 01 1 9811-0203 ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 9811-0203 ●
260 SENSOR; WATER TEMP 1-80210-004-0 01 1 9903- ●
279 PROTECTOR; STARTER
(A) 		8-94394-435-2 01 1 9606-9810 ● ●
279 PROTECTOR; STARTER
(B) 		8-94394-501-0 01 1 9811-0203 ●
280 WASHER; PL,HEAT PROTECTOR
ID=8.4 OD=18 		9-09160-608-0 03 1 9606-9810 ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9606-9810 ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9811-9902 ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9903-0203 ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 0204-0603 ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0604- ●
293 CABLE; STARTER EARTH
FRONT AXLE F049<FS4> L=360 		1-82650-230-1 01 1 9610-9810 ●
293 CABLE; STARTER EARTH
L=360 		1-82650-230-1 01 1 9811-0006 ●
293 CABLE; STARTER EARTH
L=300 		1-82650-223-0 01 1 0007-0203 ●
293 CABLE; STARTER EARTH
L=300 		1-82650-223-0 01 1 9606-9609 ● ●
293 CABLE; STARTER EARTH
EXC. FRONT AXLE F049<FS4> L=300 		1-82650-223-0 01 1 9610-9810 ●
293 CABLE; STARTER EARTH
L=300 		1-82650-223-0 01 1 9610-9810 ●
293 CABLE; STARTER EARTH
L=290 		1-82650-279-0 01 1 9903- ●
295 HARNESS; STARTER 1-82640-527-0 01 1 9606-9810 ● ●

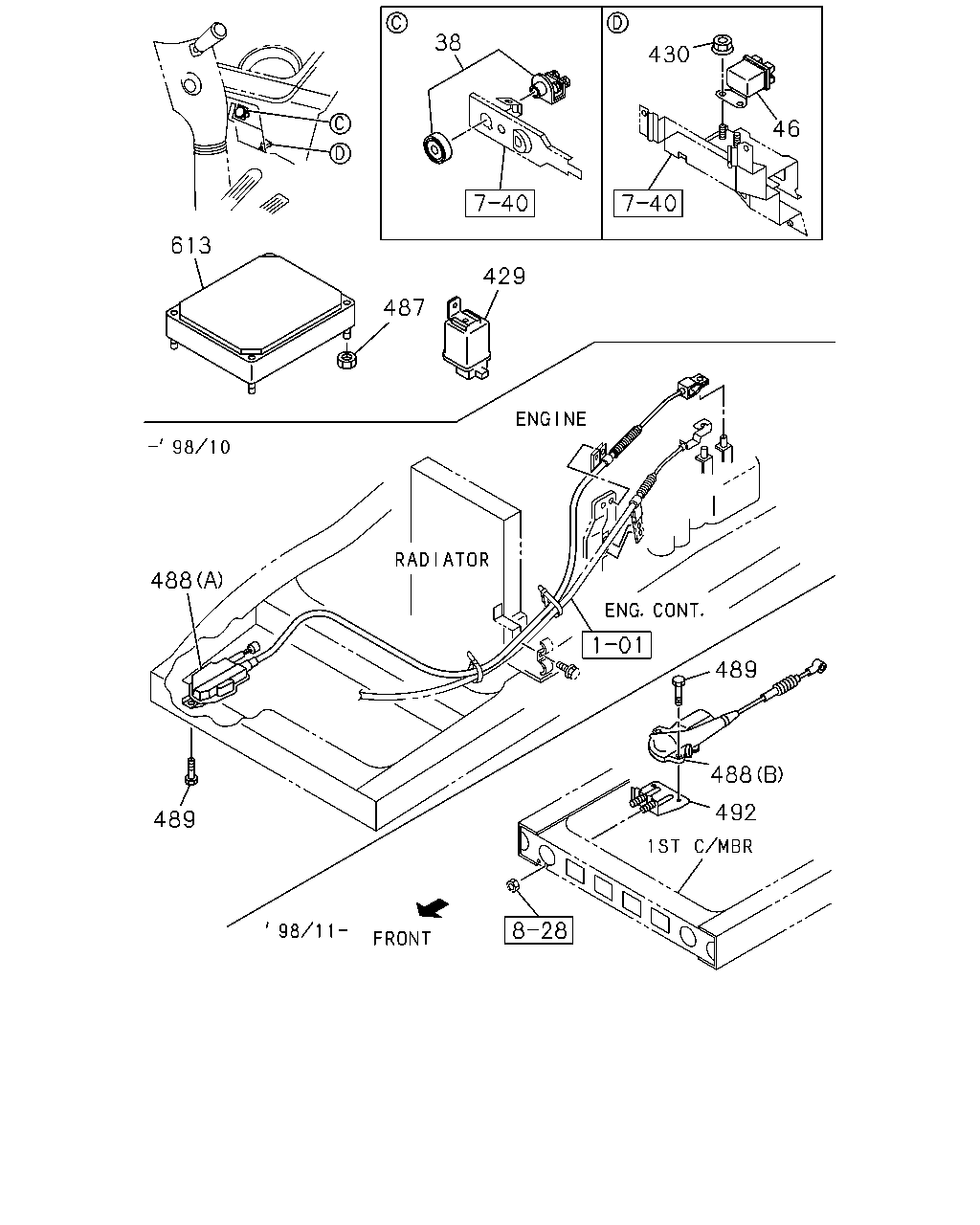

çizim 40909
38 430 46 613 429 487 488 489 488 492 489
BalonParca AdiParca NoAdetTipApplied Date A B C D
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 9606-9810 ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 9811- ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 9606-9810 ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 9811-0203 ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0204- ●
429 RELAY; HTR
HEATER & DEFROSTER<C41> 24V 		1-82550-176-0 01 1 9606-9810 ● ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91150-106-0 01 1 9811-0602 ● ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
487 NUT
EURO2 SPECIFICATION<THN> M6 FLANGE 		0-91150-106-0 04 1 9903-0203 ●
487 NUT
M6 FLANGE 		0-91150-106-0 04 1 0204-0602 ●
487 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603- ●
488 STOPPER; ENG
AUTO ENG SHUTOFF(KB6) (A) 		1-82840-056-3 01 1 9606-9810 ● ●
488 STOPPER; ENG
(B) 		1-82840-128-2 01 1 9811-9902 ● ●
488 STOPPER; ENG
(B) 		1-82840-128-2 01 1 9903-0203 ●
488 STOPPER; ENG
EURO2 SPECIFICATION<THN> (B) 		1-82840-153-1 01 1 9903-0203 ●
488 STOPPER; ENG
(B) 		1-82840-153-1 01 1 0204- ●
489 BOLT; ENG STOPPER
AUTO ENG SHUTOFF(KB6) M8X20 FLANGE 		0-28680-820-0 02 1 9606-9810 ● ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9811-0203 ● ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0204-0512 ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50640-825-0 02 1 0601- ●
492 BRACKET; ENG STOPPER 1-82849-067-0 01 1 9811-0203 ● ●
492 BRACKET; ENG STOPPER 1-82849-067-0 01 1 0204- ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> 		1-80110-179-0 01 1 9903-0203 ●
613 CONTROL UNIT; ENG 1-80110-179-0 01 1 0204- ●

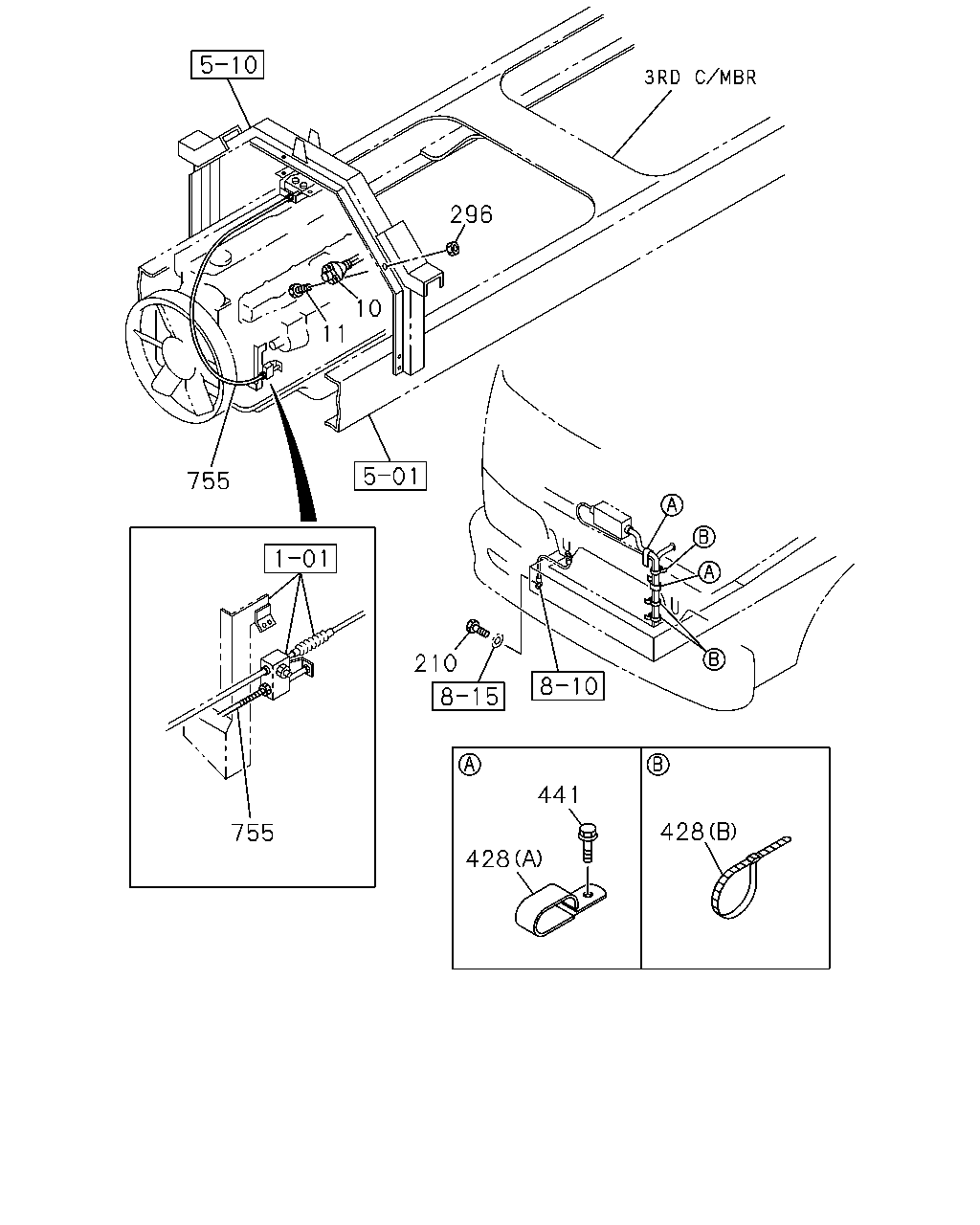

çizim 45100
296 10 11 755 210 441 428 755 428
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 RELAY; STARTER
NIKKO 		1-81171-067-0 01 1 9606-9608 ● ●
10 RELAY; STARTER
NIKKO 		1-81171-075-0 01 1 9609-9810 ● ●
10 RELAY; STARTER
DENSO 		1-81171-070-0 01 1 9811- ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 9606-9810 ● ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28680-825-0 02 1 9811-0203 ● ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28680-825-0 02 1 0204-0512 ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
210 BOLT; CABLE FIX
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9811-0203 ● ●
210 BOLT; CABLE FIX
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0204- ●
296 NUT; RELAY,STARTER
M8 		9-09110-408-0 02 1 9606-9810 ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9811-0203 ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 0204-0602 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 9811-0203 ● ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 0204- ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (B) L=300 		1-09707-001-1 04 1 9903-0203 ●
428 CLIP; HARNESS
(B) L=300 		1-09707-001-1 04 1 0204- ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 9811-0203 ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0204-0512 ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
755 MOTOR; SERVO
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-82840-159-1 01 1 9906- ● ● ● ●
