◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#5918) — 236 parça

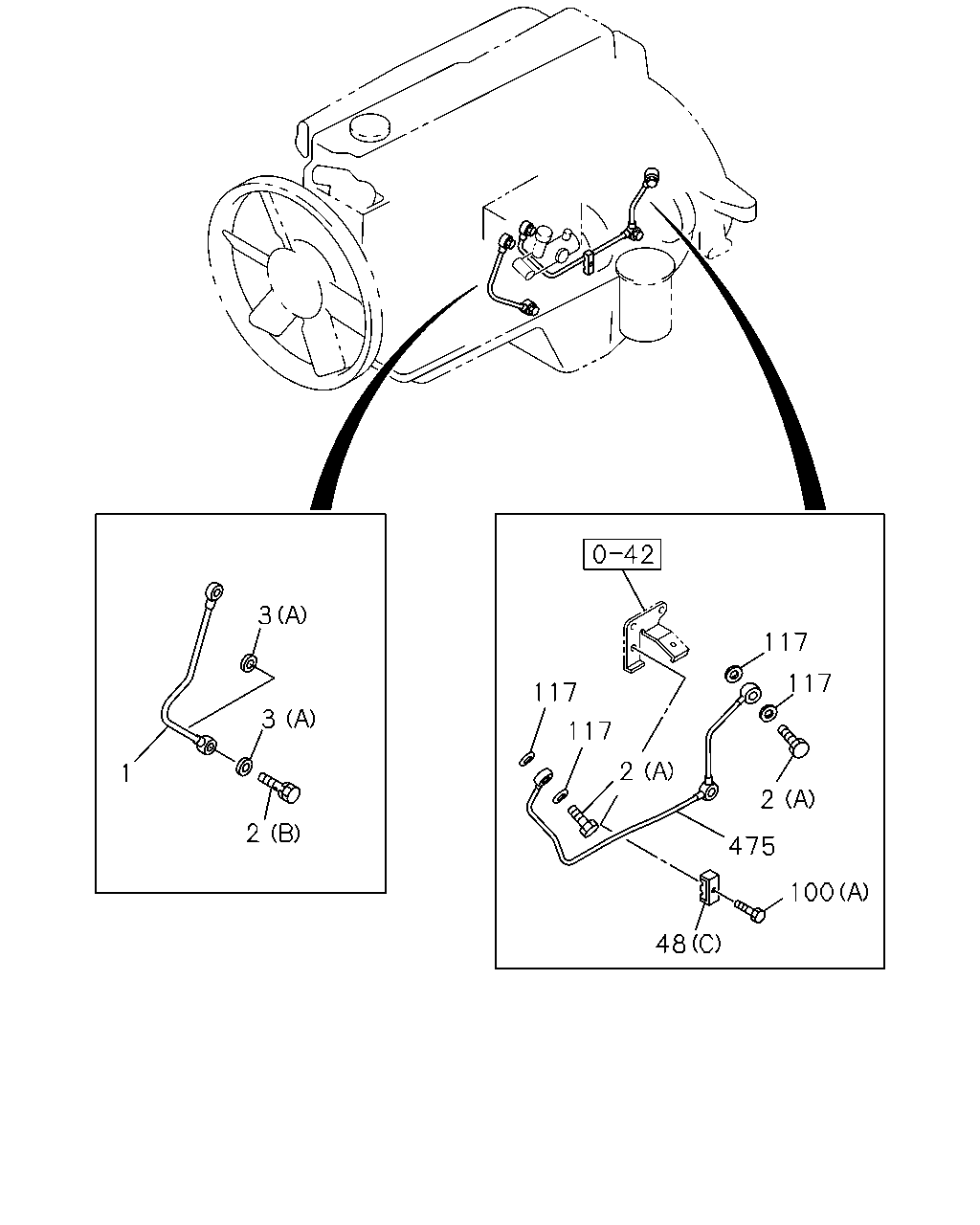

çizim 38756
3 117 117 117 3 117 2 1 2 475 100 48 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9606-9810 ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9811-0203 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9903- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9606-9810 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9811-0203 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9606-9810 ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9811-9902 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9903-0203 ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0204- ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 9811-0203 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 9811-0203 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 9903-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ●
2 BOLT; EYE,OIL PIPE
(F) M10X21 FLANGE 		1-09675-077-0 01 1 9903- ●
2 BOLT; EYE,OIL PIPE
(E) M14X27 FLANGE 		1-09675-086-0 02 1 9903- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9606-9810 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 06 1 9811-0203 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9903- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9903- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9903- ●
48 CLIP; OIL PIPE
(A) 		1-09701-265-0 01 1 9901-0203 ●
48 CLIP; OIL PIPE
(B) 		8-94396-860-0 01 1 9901-0203 ●
48 CLIP; OIL PIPE
(C) 		1-09701-091-0 01 1 9903- ●
48 CLIP; OIL PIPE
(D) 		8-94395-170-0 01 1 9903- ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28080-616-0 01 1 9903-0512 ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28050-616-0 01 1 0601- ●
100 BOLT; CLIP
(A) M6X22 FLANGE 		0-28080-622-0 01 1 9903- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9606-9810 ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811-9902 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9903-0203 ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0204- ●
475 PIPE; OIL,OIL FILTER TO INJ PUMP 8-94390-488-0 01 1 9903-9906 ●
475 PIPE; OIL,OIL FILTER TO INJ PUMP 8-97600-567-1 01 1 9907- ●

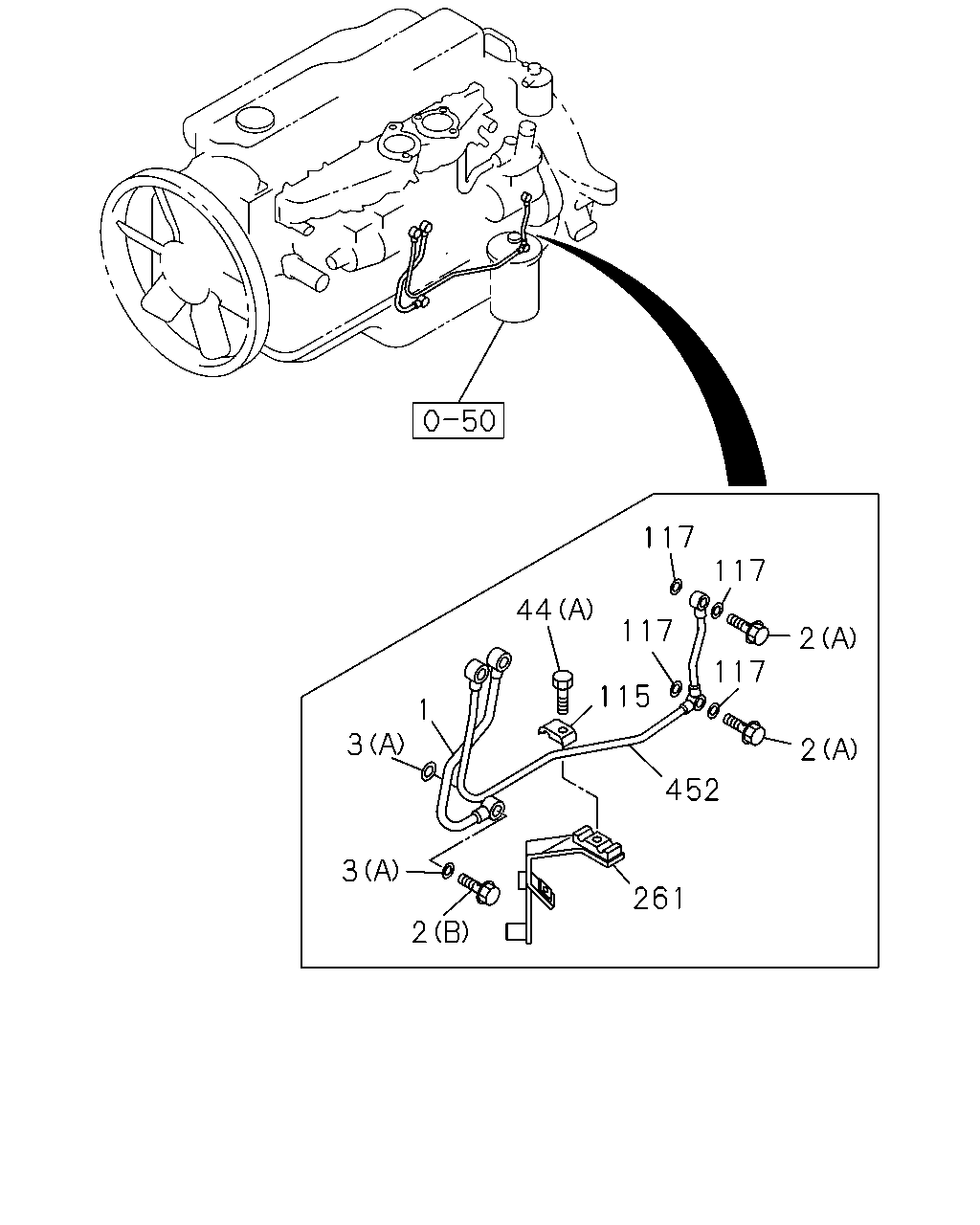

çizim 41750
117 117 44 117 2 117 115 1 3 2 452 3 261 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9606-9810 ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9811-0203 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9903- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9606-9810 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9811-0203 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9606-9810 ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9811-9902 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9903-0203 ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0204- ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 9811-0203 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 9811-0203 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 9903-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ●
2 BOLT; EYE,OIL PIPE
(F) M10X21 FLANGE 		1-09675-077-0 01 1 9903- ●
2 BOLT; EYE,OIL PIPE
(E) M14X27 FLANGE 		1-09675-086-0 02 1 9903- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9606-9810 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 06 1 9811-0203 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9903- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9903- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9903- ●
44 BOLT; CLIP,OIL PIPE
(A) M6X22 FLANGE 		0-28080-622-0 01 1 9606-9810 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M6X22 FLANGE 		0-28080-622-0 01 1 9811-0203 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9811-9812 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X35 FLANGE 		0-28680-635-0 02 1 9901-0203 ●
44 BOLT; CLIP,OIL PIPE
(C) M8X16 FLANGE 		0-28080-816-0 02 1 9811-9812 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9901-9902 ●
44 BOLT; CLIP,OIL PIPE
(D) M8X12 FLANGE 		0-28080-812-0 01 1 9903-0512 ●
44 BOLT; CLIP,OIL PIPE
(D) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9903-0203 ● ●
44 BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9606-9810 ● ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9811-0203 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9606-9810 ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811-9902 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9903-0203 ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0204- ●
261 BRACKET; CLIP,OIL PIPE 8-94396-695-0 01 1 9606-9810 ● ●
261 BRACKET; CLIP,OIL PIPE 8-94394-410-3 01 1 9811-0203 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94397-462-0 01 1 9606-9810 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9811-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 9907-0203 ●

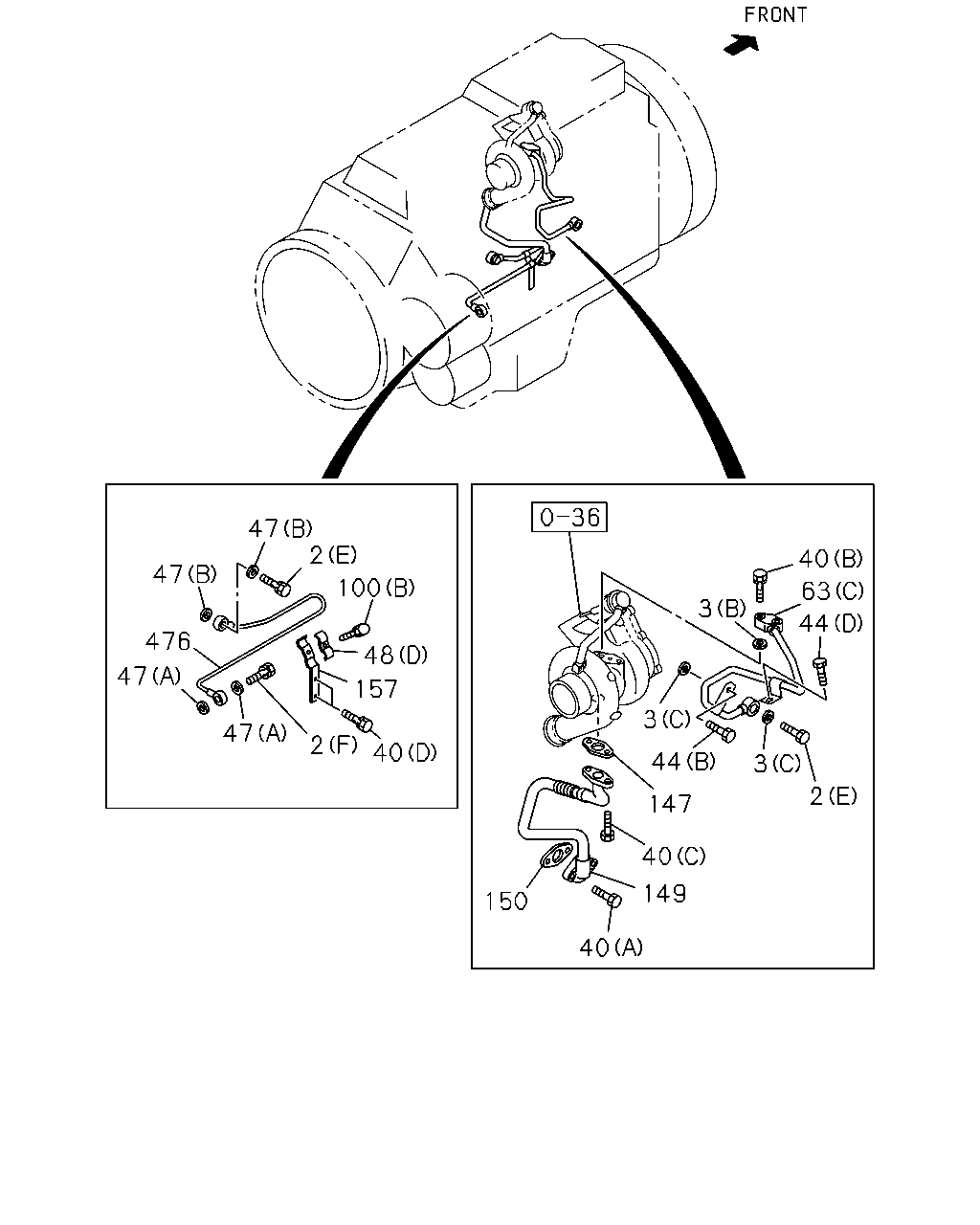

çizim 42449
47 2 40 47 100 63 3 44 476 48 47 157 3 47 2 40 44 3 2 147 40 149 150 40
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9606-9810 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9811-0203 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9606-9810 ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9811-9902 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9903-0203 ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0204- ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 9811-0203 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 9811-0203 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 9903-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ●
2 BOLT; EYE,OIL PIPE
(F) M10X21 FLANGE 		1-09675-077-0 01 1 9903- ●
2 BOLT; EYE,OIL PIPE
(E) M14X27 FLANGE 		1-09675-086-0 02 1 9903- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9606-9810 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 06 1 9811-0203 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9903- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9903- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9903- ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9811-9902 ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9903-0203 ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0204-0512 ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 9811-9902 ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 9903-0203 ● ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 0204- ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 9903-0512 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
40 BOLT; OIL PIPE
(D) M10X16 FLANGE 		0-28181-016-0 02 1 9903-0512 ●
40 BOLT; OIL PIPE
(D) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(A) M6X22 FLANGE 		0-28080-622-0 01 1 9606-9810 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M6X22 FLANGE 		0-28080-622-0 01 1 9811-0203 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9811-9812 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X35 FLANGE 		0-28680-635-0 02 1 9901-0203 ●
44 BOLT; CLIP,OIL PIPE
(C) M8X16 FLANGE 		0-28080-816-0 02 1 9811-9812 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9901-9902 ●
44 BOLT; CLIP,OIL PIPE
(D) M8X12 FLANGE 		0-28080-812-0 01 1 9903-0512 ●
44 BOLT; CLIP,OIL PIPE
(D) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9903-0203 ● ●
44 BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9903- ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9903- ●
48 CLIP; OIL PIPE
(A) 		1-09701-265-0 01 1 9901-0203 ●
48 CLIP; OIL PIPE
(B) 		8-94396-860-0 01 1 9901-0203 ●
48 CLIP; OIL PIPE
(C) 		1-09701-091-0 01 1 9903- ●
48 CLIP; OIL PIPE
(D) 		8-94395-170-0 01 1 9903- ●
63 PIPE; OIL,TURBOCHARGER FEED
(B) 		8-94301-581-0 01 1 9811-9812 ●
63 PIPE; OIL,TURBOCHARGER FEED
(B) 		8-97600-198-0 01 1 9901-0203 ●
63 PIPE; OIL,TURBOCHARGER FEED
(A) 		8-94395-102-0 01 1 9811-0203 ●
63 PIPE; OIL,TURBOCHARGER FEED
(C) 		8-94392-976-0 01 1 9903- ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28080-616-0 01 1 9903-0512 ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28050-616-0 01 1 0601- ●
100 BOLT; CLIP
(A) M6X22 FLANGE 		0-28080-622-0 01 1 9903- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-058-1 01 1 9811-9902 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-058-1 01 1 9903-0203 ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-058-2 01 1 0204- ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94395-380-0 01 1 9811-0203 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94392-977-0 01 1 9903- ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 9811-9902 ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 9903-0203 ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 0204- ●
157 BRACKET; OIL PIPE 8-94395-168-0 01 1 9903- ●
476 PIPE; OIL,C/BL TO AIR CMPR 8-94394-940-1 01 1 9903- ●

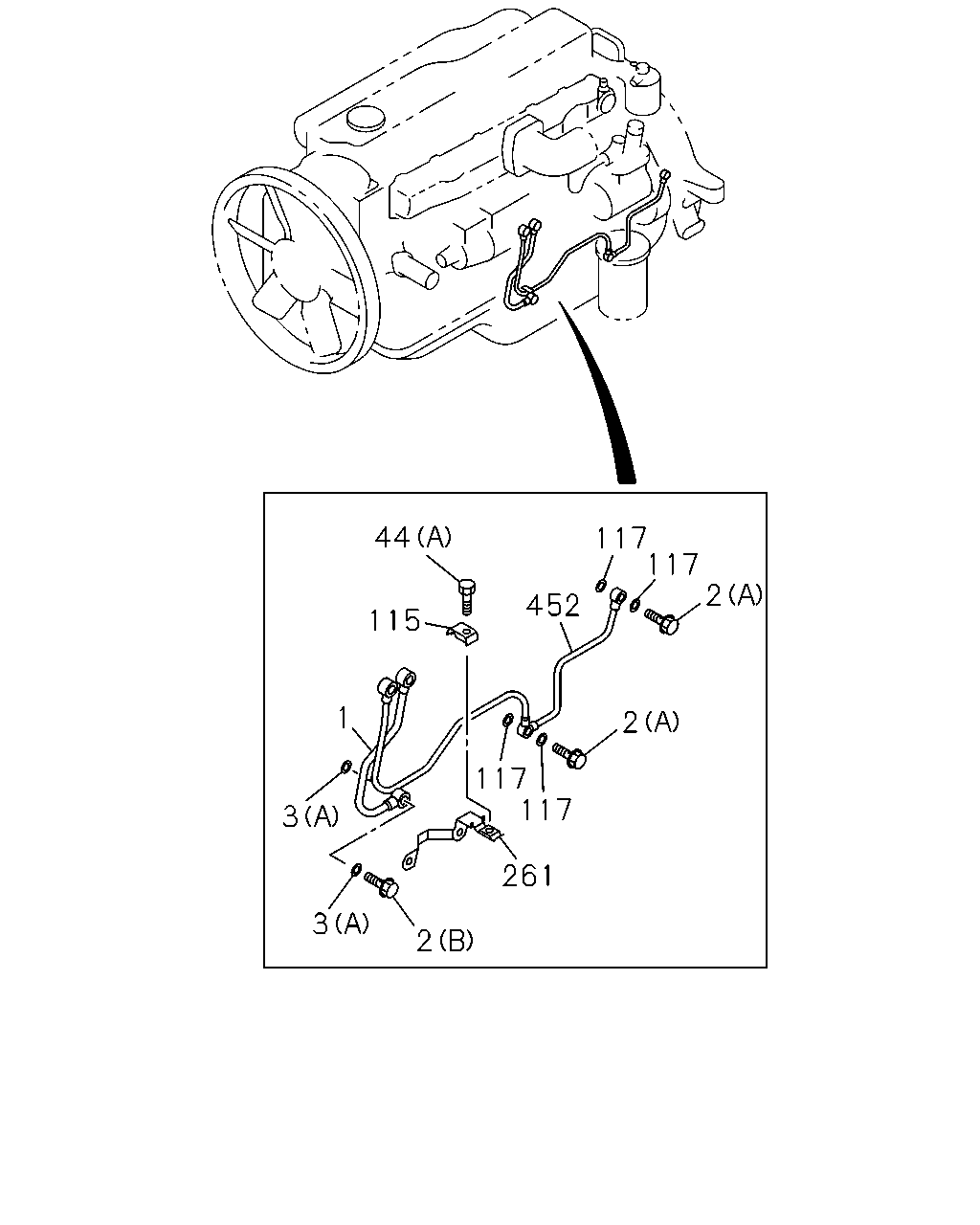

çizim 42837
44 117 117 2 452 115 1 2 117 117 3 261 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9606-9810 ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9811-0203 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9903- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9606-9810 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9811-0203 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9606-9810 ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9811-9902 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9903-0203 ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0204- ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 9811-0203 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 9811-0203 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 9903-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ●
2 BOLT; EYE,OIL PIPE
(F) M10X21 FLANGE 		1-09675-077-0 01 1 9903- ●
2 BOLT; EYE,OIL PIPE
(E) M14X27 FLANGE 		1-09675-086-0 02 1 9903- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9606-9810 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 06 1 9811-0203 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9903- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9903- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9903- ●
44 BOLT; CLIP,OIL PIPE
(A) M6X22 FLANGE 		0-28080-622-0 01 1 9606-9810 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M6X22 FLANGE 		0-28080-622-0 01 1 9811-0203 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9811-9812 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X35 FLANGE 		0-28680-635-0 02 1 9901-0203 ●
44 BOLT; CLIP,OIL PIPE
(C) M8X16 FLANGE 		0-28080-816-0 02 1 9811-9812 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9901-9902 ●
44 BOLT; CLIP,OIL PIPE
(D) M8X12 FLANGE 		0-28080-812-0 01 1 9903-0512 ●
44 BOLT; CLIP,OIL PIPE
(D) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9903-0203 ● ●
44 BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9606-9810 ● ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9811-0203 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9606-9810 ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811-9902 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9903-0203 ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0204- ●
261 BRACKET; CLIP,OIL PIPE 8-94396-695-0 01 1 9606-9810 ● ●
261 BRACKET; CLIP,OIL PIPE 8-94394-410-3 01 1 9811-0203 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94397-462-0 01 1 9606-9810 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9811-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 9907-0203 ●

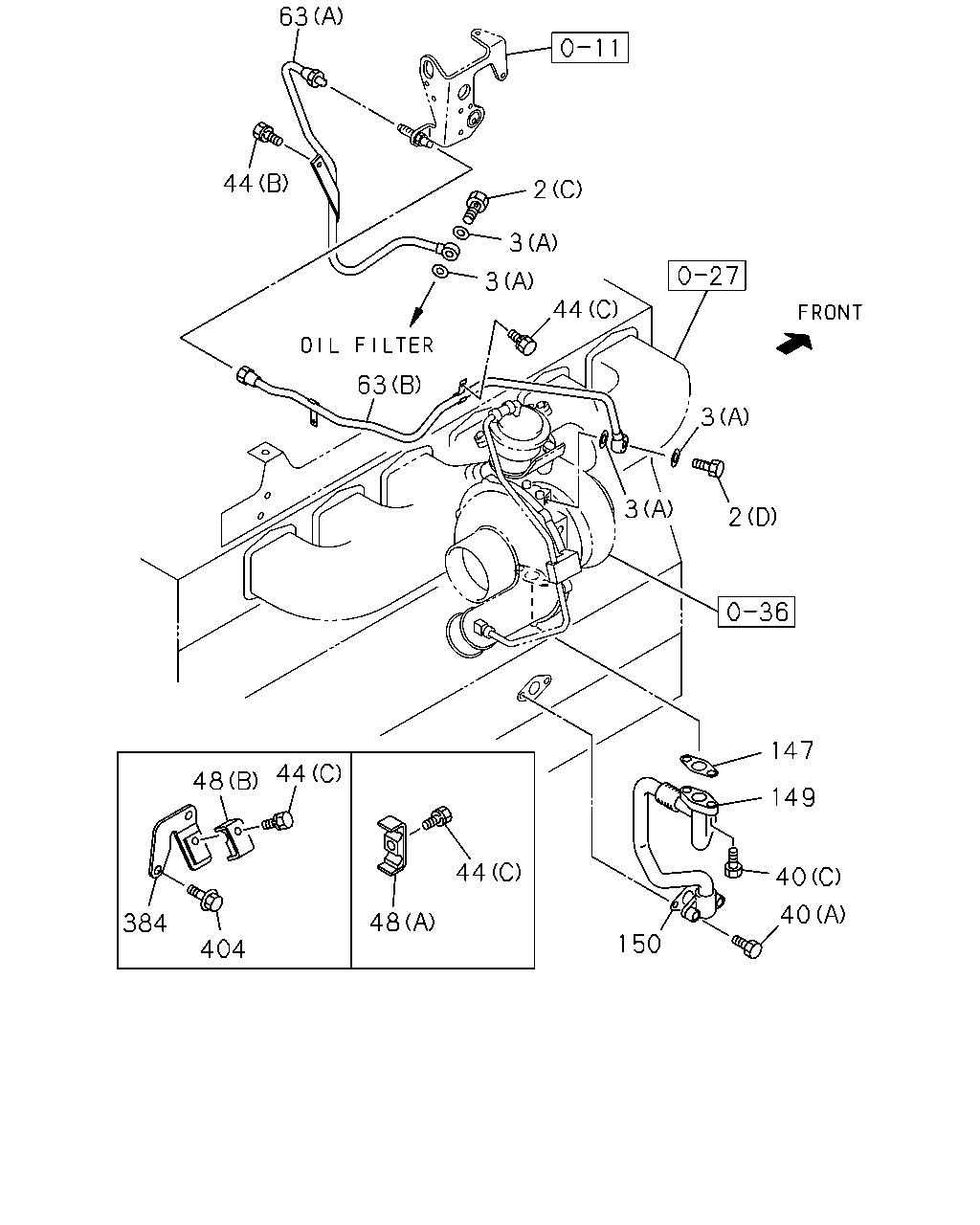

çizim 44269
63 44 2 3 3 44 63 3 3 2 147 44 48 149 44 40 40 48 384 150 404
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9606-9810 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9811-0203 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9606-9810 ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9811-9902 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9903-0203 ● ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0204- ●
2 BOLT; EYE,OIL PIPE
(D) M12X33 FLANGE 		1-09675-083-0 01 1 9811-0203 ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 		5-09675-006-1 01 1 9811-0203 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 9903-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ●
2 BOLT; EYE,OIL PIPE
(F) M10X21 FLANGE 		1-09675-077-0 01 1 9903- ●
2 BOLT; EYE,OIL PIPE
(E) M14X27 FLANGE 		1-09675-086-0 02 1 9903- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9606-9810 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 06 1 9811-0203 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9903- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9903- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9903- ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9811-9902 ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9903-0203 ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0204-0512 ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 9811-9902 ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 9903-0203 ● ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 0204- ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 9903-0512 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
40 BOLT; OIL PIPE
(D) M10X16 FLANGE 		0-28181-016-0 02 1 9903-0512 ●
40 BOLT; OIL PIPE
(D) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(A) M6X22 FLANGE 		0-28080-622-0 01 1 9606-9810 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M6X22 FLANGE 		0-28080-622-0 01 1 9811-0203 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9811-9812 ●
44 BOLT; CLIP,OIL PIPE
(C) M6X35 FLANGE 		0-28680-635-0 02 1 9901-0203 ●
44 BOLT; CLIP,OIL PIPE
(C) M8X16 FLANGE 		0-28080-816-0 02 1 9811-9812 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9901-9902 ●
44 BOLT; CLIP,OIL PIPE
(D) M8X12 FLANGE 		0-28080-812-0 01 1 9903-0512 ●
44 BOLT; CLIP,OIL PIPE
(D) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9903-0203 ● ●
44 BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
48 CLIP; OIL PIPE
(A) 		1-09701-265-0 01 1 9901-0203 ●
48 CLIP; OIL PIPE
(B) 		8-94396-860-0 01 1 9901-0203 ●
48 CLIP; OIL PIPE
(C) 		1-09701-091-0 01 1 9903- ●
48 CLIP; OIL PIPE
(D) 		8-94395-170-0 01 1 9903- ●
63 PIPE; OIL,TURBOCHARGER FEED
(B) 		8-94301-581-0 01 1 9811-9812 ●
63 PIPE; OIL,TURBOCHARGER FEED
(B) 		8-97600-198-0 01 1 9901-0203 ●
63 PIPE; OIL,TURBOCHARGER FEED
(A) 		8-94395-102-0 01 1 9811-0203 ●
63 PIPE; OIL,TURBOCHARGER FEED
(C) 		8-94392-976-0 01 1 9903- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-058-1 01 1 9811-9902 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-058-1 01 1 9903-0203 ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-058-2 01 1 0204- ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94395-380-0 01 1 9811-0203 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94392-977-0 01 1 9903- ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 9811-9902 ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 9903-0203 ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 0204- ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER 8-97600-199-0 01 1 9901-0203 ●
404 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 9901-0203 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
