0-51 — OIL PUMP AND OIL STRAINER (#5917) — 54 parça

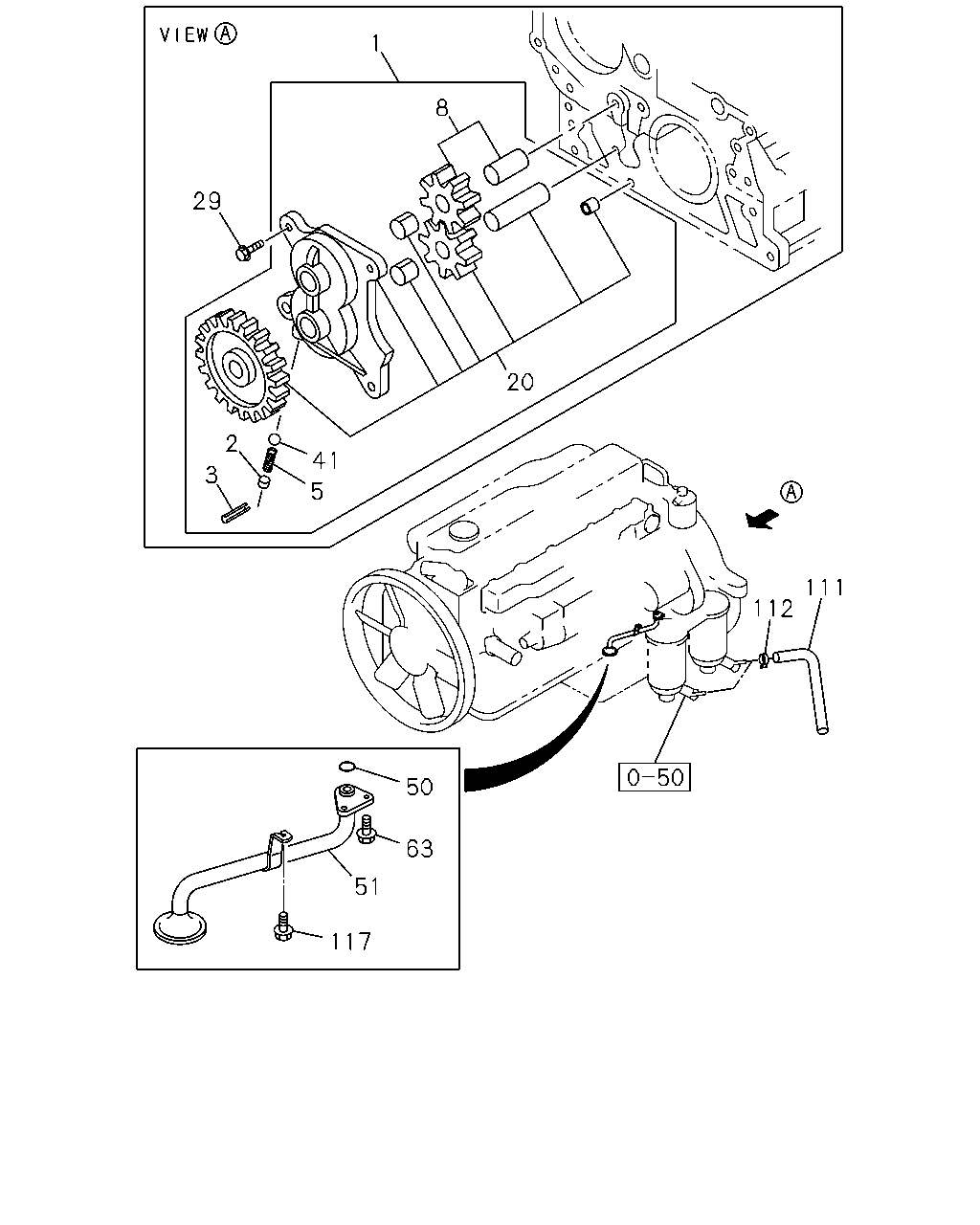

çizim 5825
1 8 29 20 2 41 3 5 111 112 50 63 51 117
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; OIL 8-94393-830-3 01 1 9606-9805 ● ●
1 PUMP ASM; OIL 8-94395-564-1 01 1 9806-9810 ● ●
1 PUMP ASM; OIL 8-94395-564-1 01 1 9811-9902 ●
1 PUMP ASM; OIL 8-94395-564-1 01 1 9903-0203 ● ●
1 PUMP ASM; OIL 8-94395-564-3 01 1 0204- ●
2 SEAT; SPR 5-13165-004-0 01 1 9811-9902 ●
2 SEAT; SPR 5-13165-004-0 01 1 9903-0203 ● ●
2 SEAT; SPR 5-13165-004-0 01 1 0204- ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 9606-9810 ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 9811-9902 ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 9903-0203 ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 0204- ●
5 SPRING; COIL 5-09580-098-0 01 1 9811-9902 ●
5 SPRING; COIL 5-09580-098-0 01 1 9903-0203 ● ●
5 SPRING; COIL 5-09580-098-0 01 1 0204- ●
8 GEAR; DRIVEN,OIL PUMP 8-94393-834-0 01 1 9606-9805 ● ●
8 GEAR; DRIVEN,OIL PUMP 8-94392-559-0 01 1 9806-9810 ● ●
8 GEAR; DRIVEN,OIL PUMP 8-94392-559-0 01 1 9811-9902 ●
8 GEAR; DRIVEN,OIL PUMP 8-94392-559-0 01 1 9903-0203 ● ●
8 GEAR; DRIVEN,OIL PUMP 8-94392-559-0 01 1 0204- ●
20 GEAR; DRIVE,OIL PUMP 8-94393-831-3 01 1 9606-9805 ● ●
20 GEAR; DRIVE,OIL PUMP 8-94392-557-0 01 1 9806-9810 ● ●
20 GEAR; DRIVE,OIL PUMP 8-94392-557-0 01 1 9811-9902 ●
20 GEAR; DRIVE,OIL PUMP 8-94392-557-0 01 1 9903-0203 ● ●
20 GEAR; DRIVE,OIL PUMP 8-94392-557-1 01 1 0204- ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 04 1 9606-9810 ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 04 1 9811-9902 ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 04 1 9903-0203 ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 04 1 0204-0512 ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28050-825-0 04 1 0601- ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 9606-9810 ● ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 9811-9902 ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 9903-0203 ● ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 0204- ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 9606-9810 ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 9811-9902 ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 9903-0112 ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 0201-0203 ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 0204- ●
51 STRAINER & PIPE ASM; OIL 8-94396-067-0 01 1 9606-9805 ● ●
51 STRAINER & PIPE ASM; OIL 8-94392-597-0 01 1 9806-9810 ● ●
51 STRAINER & PIPE ASM; OIL 8-94392-597-0 01 1 9811-9902 ●
51 STRAINER & PIPE ASM; OIL 8-94392-597-0 01 1 9903-0203 ● ●
51 STRAINER & PIPE ASM; OIL 8-94392-597-0 01 1 0204- ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 9606-9810 ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 9811-9902 ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 9903-0203 ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 0204- ●
111 HOSE; OIL DRAIN 8-94396-950-0 02 1 9606-9810 ● ●
112 CLIP; HOSE,OIL DRAIN
ID=14 		5-09707-004-1 02 1 9606-9810 ● ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 9606-9810 ● ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 9811-9902 ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 9903-0203 ● ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 0204- ●
