◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

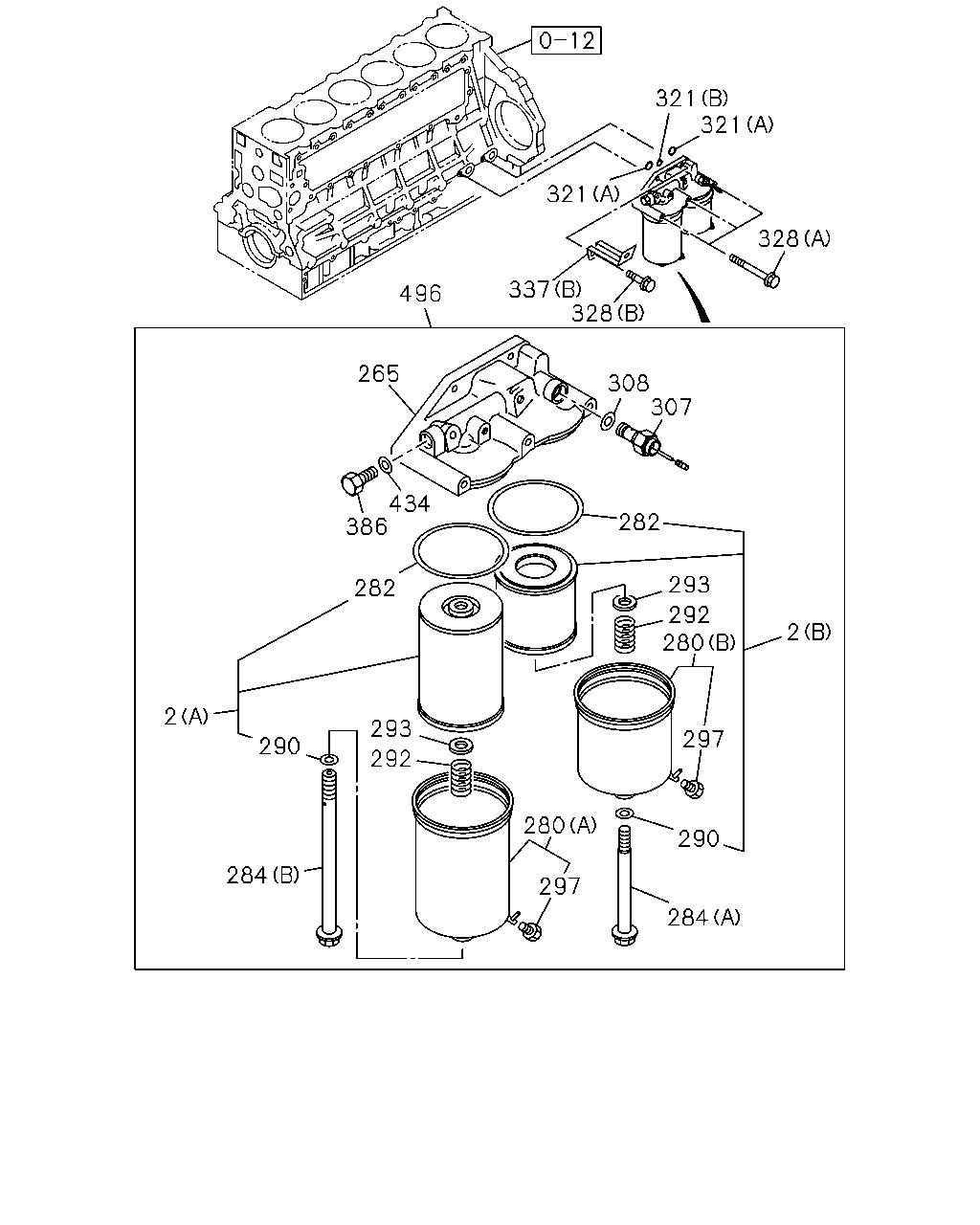

0-50 — OIL COOLER AND OIL FILTER (#5916) — 155 parça

496 307 308 265 328 328 2 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	ELEMENT; OIL FILTER (A)	1-13240-132-0	01	1	9606-9810	●	●
2	ELEMENT; OIL FILTER (C)	8-94391-049-0	01	1	9811-9902			●
2	ELEMENT; OIL FILTER (C)	8-94391-049-0	01	1	9903-0203			●	●
2	ELEMENT; OIL FILTER (C)	8-94391-049-2	01	1	0204-				●
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	9606-9810	●	●
265	BODY; OIL FILTER	8-94393-503-0	01	1	9606-9810	●	●
265	BODY; OIL FILTER	8-94391-020-3	01	1	9811-0203			●
265	BODY; OIL FILTER	8-94391-016-4	01	1	9903-				●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9606-9810	●	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9811-9902			●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9903-0203			●	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0204-				●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9606-9810	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9811-9902			●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9903-0203			●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0204-				●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	02	1	9606-9810	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9811-9902			●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9903-0203			●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0204-				●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9606-9810	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9811-9902			●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9903-0203			●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0204-				●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28181-030-0	02	1	9606-9810	●	●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28181-030-0	02	1	9811-9902			●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28181-030-0	02	1	9903-0203			●	●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28181-030-0	02	1	0204-0512				●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28151-030-0	02	1	0601-				●
328	BOLT; OIL FILTER (A) M10X135	8-94397-139-1	03	1	9606-9810	●	●
328	BOLT; OIL FILTER (C) M10X90 FLANGE	0-28181-090-0	02	1	9811-9902			●
328	BOLT; OIL FILTER (C) M10X90 FLANGE	0-28181-090-0	02	1	9903-0203			●	●
328	BOLT; OIL FILTER (C) M10X90 FLANGE	0-28181-090-0	02	1	0204-0512				●
328	BOLT; OIL FILTER (C) M10X90 FLANGE	0-28151-090-0	02	1	0601-				●
496	FILTER ASM; OIL	8-94393-427-1	01	1	9606-9810	●	●
496	FILTER ASM; OIL	8-94391-018-3	01	1	9811-0203			●
496	FILTER ASM; OIL	8-94391-015-6	01	1	9903-				●

321 321 321 328 337 328 496 265 308 307 434 386 282 293 282 292 280 2 2 293 297 290 292 280 290 284 297 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	ELEMENT; OIL FILTER (A)	1-13240-132-0	01	1	9606-9810	●	●
2	ELEMENT; OIL FILTER (C)	8-94391-049-0	01	1	9811-9902			●
2	ELEMENT; OIL FILTER (C)	8-94391-049-0	01	1	9903-0203			●	●
2	ELEMENT; OIL FILTER (C)	8-94391-049-2	01	1	0204-				●
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	9606-9810	●	●
265	BODY; OIL FILTER	8-94393-503-0	01	1	9606-9810	●	●
265	BODY; OIL FILTER	8-94391-020-3	01	1	9811-0203			●
265	BODY; OIL FILTER	8-94391-016-4	01	1	9903-				●
280	CASE ASM; OIL FILTER (B)	8-94393-504-1	01	1	9606-9810	●	●
280	CASE ASM; OIL FILTER (A)	8-94393-505-1	01	1	9606-9810	●	●
282	GASKET; BODY TO CASE	9-09920-311-0	02	1	9606-9810	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9606-9810	●	●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9606-9810	●	●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9606-9810	●	●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9606-9810	●	●
293	SEAT; SPR	9-13239-025-0	02	1	9606-9810	●	●
297	PLUG; COVER	1-13219-275-0	02	1	9606-9810	●	●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9606-9810	●	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9811-9902			●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9903-0203			●	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0204-				●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9606-9810	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9811-9902			●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9903-0203			●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0204-				●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	02	1	9606-9810	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9811-9902			●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9903-0203			●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0204-				●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9606-9810	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9811-9902			●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9903-0203			●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0204-				●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28181-030-0	02	1	9606-9810	●	●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28181-030-0	02	1	9811-9902			●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28181-030-0	02	1	9903-0203			●	●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28181-030-0	02	1	0204-0512				●
328	BOLT; OIL FILTER (B) M10X30 FLANGE	0-28151-030-0	02	1	0601-				●
328	BOLT; OIL FILTER (A) M10X135	8-94397-139-1	03	1	9606-9810	●	●
328	BOLT; OIL FILTER (C) M10X90 FLANGE	0-28181-090-0	02	1	9811-9902			●
328	BOLT; OIL FILTER (C) M10X90 FLANGE	0-28181-090-0	02	1	9903-0203			●	●
328	BOLT; OIL FILTER (C) M10X90 FLANGE	0-28181-090-0	02	1	0204-0512				●
328	BOLT; OIL FILTER (C) M10X90 FLANGE	0-28151-090-0	02	1	0601-				●
337	BRACKET; FUEL PIPE (A)	8-94396-688-1	01	1	9606-9810	●	●
337	BRACKET; FUEL PIPE (B)	8-94399-726-0	01	1	9606-9810	●	●
386	PLUG; OIL FILTER M16X9	9-13226-011-0	01	1	9606-9810	●	●
434	GASKET; PLUG,OIL FILTER	9-09920-526-0	01	1	9606-9810	●	●
496	FILTER ASM; OIL	8-94393-427-1	01	1	9606-9810	●	●
496	FILTER ASM; OIL	8-94391-018-3	01	1	9811-0203			●
496	FILTER ASM; OIL	8-94391-015-6	01	1	9903-				●

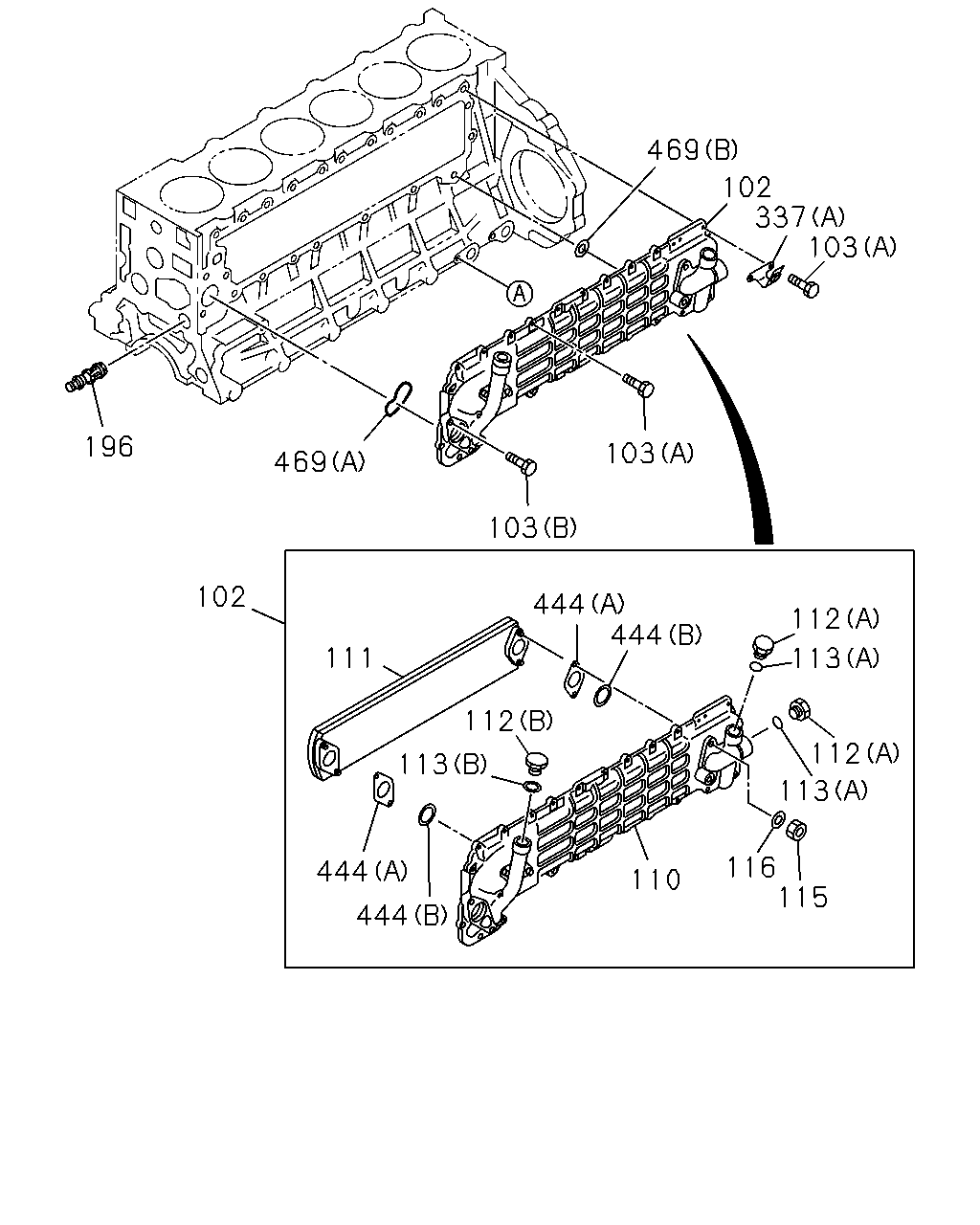

469 102 337 103 196 103 469 103 102 444 444 112 111 113 112 112 113 113 116 115 444 110 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
102	COOLER ASM; OIL	8-94396-405-4	01	1	9606-9810	●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-405-4	01	1	9606-9810		●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94393-320-1	01	1	9606-9810		●
102	COOLER ASM; OIL	8-94395-917-0	01	1	9811-0203			●
102	COOLER ASM; OIL	8-94390-536-0	01	1	9903-				●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	9606-9810	●	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	9811-9902			●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	9903-0203			●	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	25	1	0204-				●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	9606-9810	●	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	9811-9902			●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	9903-0203			●	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28080-835-0	02	1	0204-0512				●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	02	1	0601-				●
110	BODY; CASE,OIL COOLER	8-94396-713-2	01	1	9606-9810	●
110	BODY; CASE,OIL COOLER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-713-2	01	1	9606-9810		●
110	BODY; CASE,OIL COOLER AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-714-2	01	1	9606-9810		●
110	BODY; CASE,OIL COOLER	8-94393-602-3	01	1	9811-0203			●
110	BODY; CASE,OIL COOLER	8-94395-283-4	01	1	9903-				●
111	CORE; OIL COOLER	8-94396-716-0	01	1	9606-9810	●	●
111	CORE; OIL COOLER	8-94395-918-0	01	1	9811-0203			●
111	CORE; OIL COOLER	8-94390-537-0	01	1	9903-				●
112	PLUG; OIL COOLER CASE (A),(B)	8-94396-753-0	03	1	9606-9810	●	●
112	PLUG; OIL COOLER CASE (A)	8-94396-753-0	02	1	9811-9902			●
112	PLUG; OIL COOLER CASE (A)	8-94396-753-0	02	1	9903-0203			●	●
112	PLUG; OIL COOLER CASE (A)	8-94396-753-0	02	1	0204-				●
112	PLUG; OIL COOLER CASE (B)	8-94393-604-0	01	1	9811-9902			●
112	PLUG; OIL COOLER CASE (B)	8-94393-604-0	01	1	9903-0203			●	●
112	PLUG; OIL COOLER CASE (B)	8-94393-604-0	01	1	0204-				●
113	GASKET; PLUG,OIL COOLER CASE (A),(B) M24	8-94396-755-0	03	1	9606-9810	●	●
113	GASKET; PLUG,OIL COOLER CASE (A) M24	8-94396-755-0	02	1	9811-9902			●
113	GASKET; PLUG,OIL COOLER CASE (A) M24	8-94396-755-0	02	1	9903-0203			●	●
113	GASKET; PLUG,OIL COOLER CASE (A) M24	8-94396-755-0	02	1	0204-				●
113	GASKET; PLUG,OIL COOLER CASE (B)	1-09623-499-0	01	1	9811-9902			●
113	GASKET; PLUG,OIL COOLER CASE (B)	1-09623-499-0	01	1	9903-0203			●	●
113	GASKET; PLUG,OIL COOLER CASE (B)	1-09623-499-0	01	1	0204-				●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9606-9810	●	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9811-9902			●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9903-0203			●	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	0204-0512				●
115	NUT; ELEMENT M10	0-91111-510-0	04	1	0601-				●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9606-9810	●	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9811-9902			●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9903-0203			●	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	0204-				●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9606-9810	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9811-9902			●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9903-0111			●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-935-0	01	1	0112-0203			●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-935-0	01	1	0204-				●
337	BRACKET; FUEL PIPE (A)	8-94396-688-1	01	1	9606-9810	●	●
337	BRACKET; FUEL PIPE (B)	8-94399-726-0	01	1	9606-9810	●	●
444	GASKET; ELEMENT TO BODY (A)	8-94396-754-0	02	1	9606-9810	●	●
444	GASKET; ELEMENT TO BODY (A)	8-94396-754-0	02	1	9811-0203			●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	0204-				●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9606-9810	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9811-9902			●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	9903-				●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9903-0203			●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9606-9810	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9811-9902			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9903-0203			●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0204-				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9606-9810	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9811-9902			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9903-0203			●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	0204-0606				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98045-449-0	01	1	0607-				●
