8-60 — HEATER UNIT; FRONT (#59157) — 84 parça

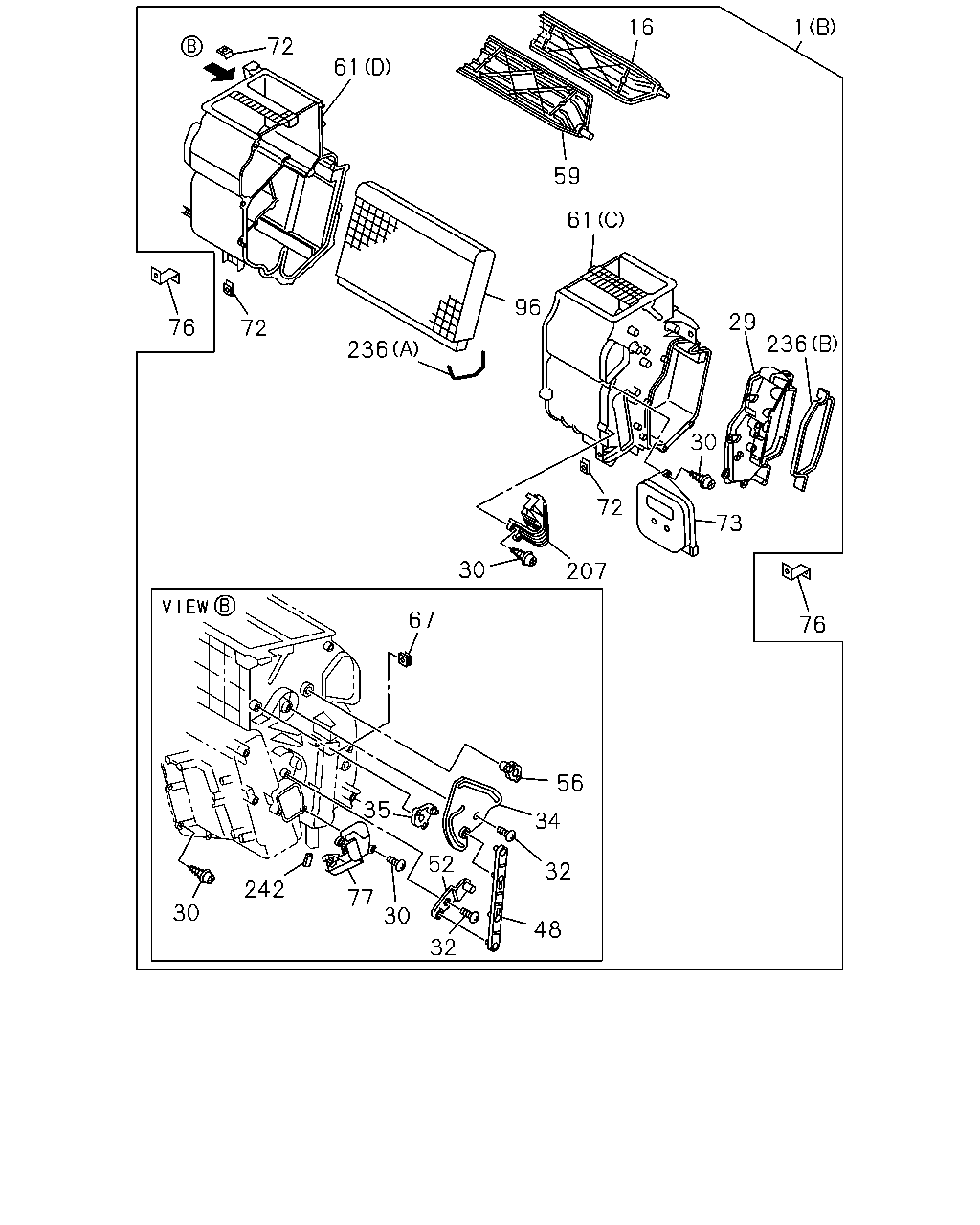

çizim 150631
1 16 72 61 59 61 96 29 76 72 236 236 30 72 73 30 207 67 76 56 35 34 52 32 242 77 30 30 48 32
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1112-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98062-757-1 01 1 1112-1301
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98214-400-1 01 1 1302-
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 1112-
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-367-0 01 1 1302-
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98074-119-0 01 1 1112-1301
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98074-119-0 01 1 1302-
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1302-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 25 1 1112-1301
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1302-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1112-
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 1112-
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 1112-
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-392-0 01 1 1112-
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 1112-
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 1112-
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-393-0 01 1 1112-
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 1112-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		8-98047-375-0 01 1 1112-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98047-376-0 01 1 1112-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 1112-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 1112-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-417-0 02 1 1112-
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 1112-
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 1112-
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1112-
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98077-419-0 01 1 1112-1301
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 1112-
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-414-0 01 1 1112-
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-815-0 01 1 1112-1301
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1302-
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-379-0 01 1 1112-1301
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-379-0 01 1 1302-
236 GASKET; HEATER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 1112-
236 GASKET; HEATER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 1112-
242 GASKET; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 1112-1411
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1412-

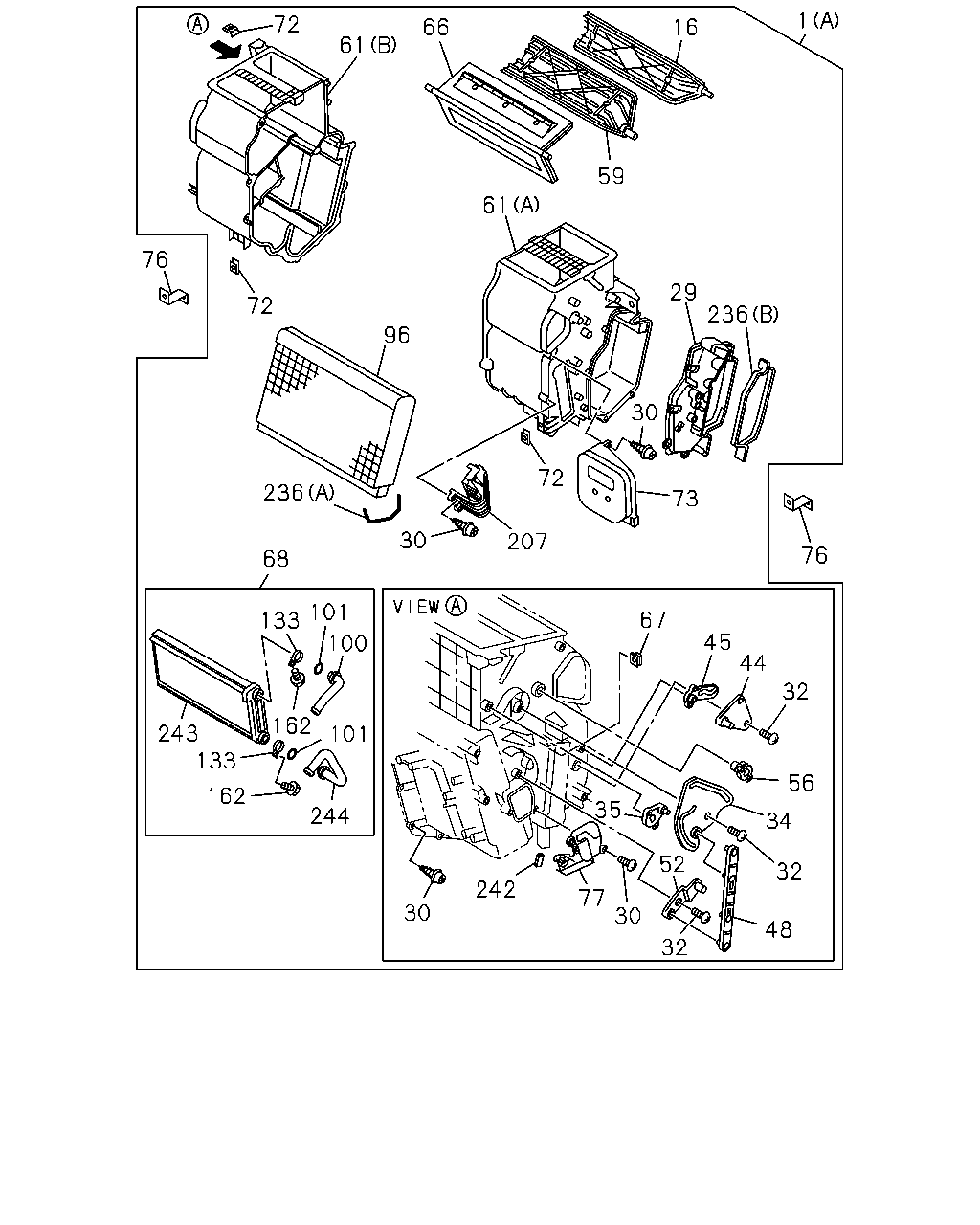

çizim 150647
1 72 66 16 61 59 61 76 29 72 236 96 30 72 236 73 30 207 76 68 101 67 133 45 44 100 32 162 243 133 101 56 162 35 244 34 52 32 242 77 30 30 48 32
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1112-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98062-757-1 01 1 1112-1301
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98214-400-1 01 1 1302-
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-387-0 01 1 1112-
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-367-0 01 1 1302-
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98074-119-0 01 1 1112-1301
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98074-119-0 01 1 1302-
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1302-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 25 1 1112-1301
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1302-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1112-
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 1112-
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 1112-
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-392-0 01 1 1112-
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-394-0 01 1 1112-
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-395-0 01 1 1112-
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 1112-
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 1112-
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-393-0 01 1 1112-
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-386-0 01 1 1112-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		8-98047-375-0 01 1 1112-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98047-376-0 01 1 1112-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 1112-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 1112-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41) 		8-98047-385-0 01 1 1112-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-417-0 02 1 1112-
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 1112-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-380-0 01 1 1112-
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 		8-98047-428-0 03 1 1112-
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1112-
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98077-419-0 01 1 1112-1301
76 BRACKET; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98009-742-1 02 1 1112-
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-414-0 01 1 1112-
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-815-0 01 1 1112-1301
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1302-
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-528-0 01 1 1112-
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-531-0 02 1 1112-
133 CLIP; PIPE
HEATER & DEFROSTER(C41) 		8-98072-530-0 02 1 1112-
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41) 		8-98072-529-0 02 1 1112-
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-379-0 01 1 1112-1301
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-379-0 01 1 1302-
236 GASKET; HEATER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98047-420-0 01 1 1112-
236 GASKET; HEATER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98047-421-0 01 1 1112-
242 GASKET; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 1112-1411
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1412-
243 CORE
HEATER & DEFROSTER(C41) 		8-98048-508-0 01 1 1112-
244 PIPE; INLET
HEATER & DEFROSTER(C41) 		8-98048-510-0 01 1 1112-
