8-45 — HEATER PIPING
(#59155) — 15 parça
◀
[845A] NO.2 (6 parça)

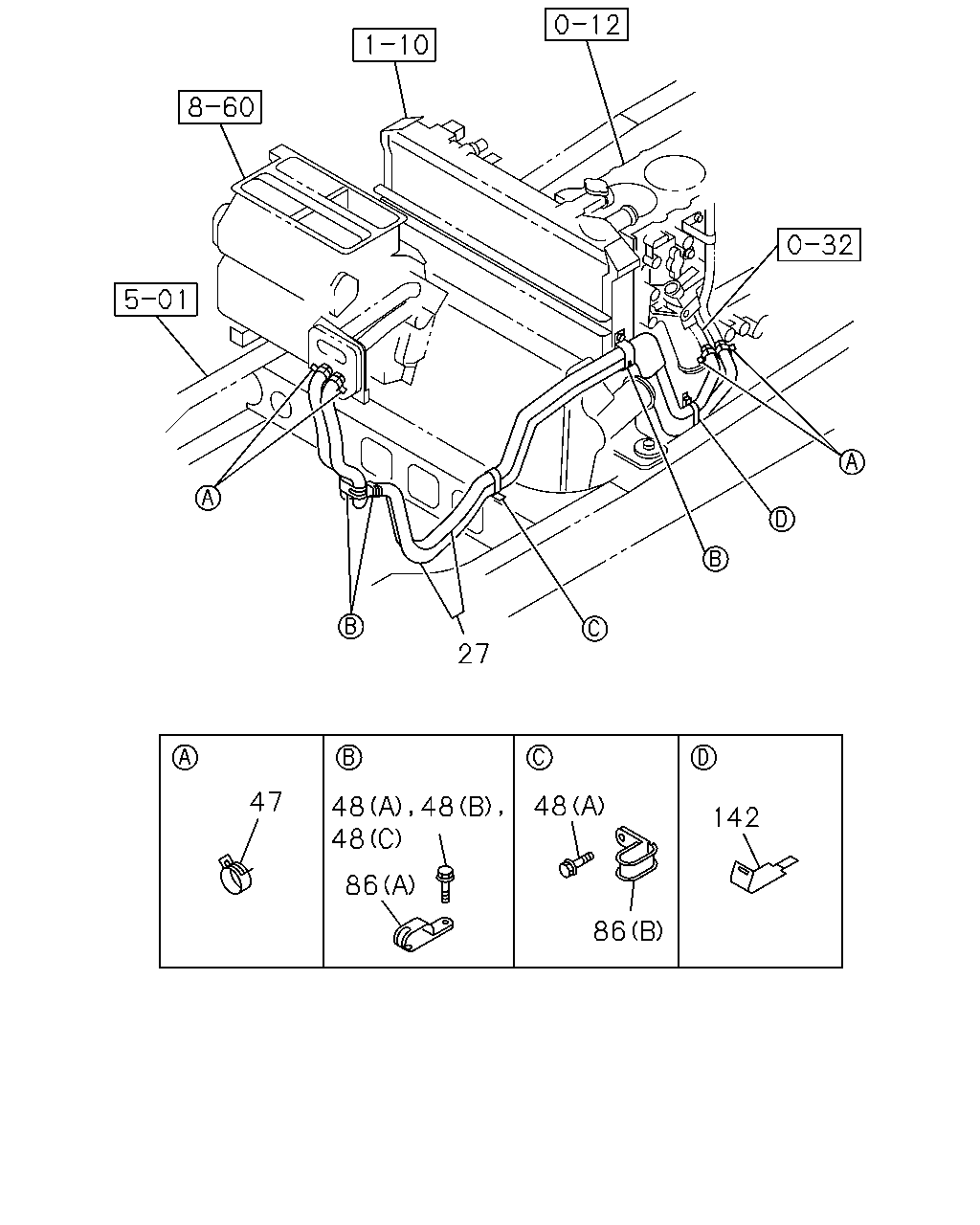

[845A] NO.1 (9 parça)
▶
27
63
56
56
103
103
56
56
63
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41)
8-98105-397-1
01
1
1112-
56
CLAMP; HTR HOSE
HEATER & DEFROSTER(C41) ID=22
8-97359-141-0
04
1
1112-
63
HOSE; WATER
HEATER & DEFROSTER(C41) (A)
8-98200-852-0
01
1
1112-
63
HOSE; WATER
HEATER & DEFROSTER(C41) (B)
8-98200-853-0
01
1
1112-
63
HOSE; WATER
HEATER & DEFROSTER(C41) (C)
8-98200-854-0
01
1
1112-
103
CONNECTOR; HOSE
HEATER & DEFROSTER(C41)
9-09703-048-0
02
1
1112-
27
47
48
48
142
86
86
48
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41)
8-98105-397-1
01
1
1112-
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=22
8-97359-141-0
04
1
1112-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (C) M8X16 FLANGE
0-28050-816-0
01
1
1112-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (B) M8X25 FLANGE
0-28650-825-0
02
1
1112-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
1112-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41) (A) ID=24X2 L=25
1-09700-710-0
03
1
1112-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41) (B)
8-98029-677-0
01
1
1112-
142
CLIP; BAND
HEATER & DEFROSTER(C41) L=170
1-83574-139-0
01
1
1112-1205
142
CLIP; BAND
HEATER & DEFROSTER(C41) L=170
8-98166-021-0
01
1
1206-
