8-28 — CHASSIS ELECTRICAL (#59153) — 75 parça

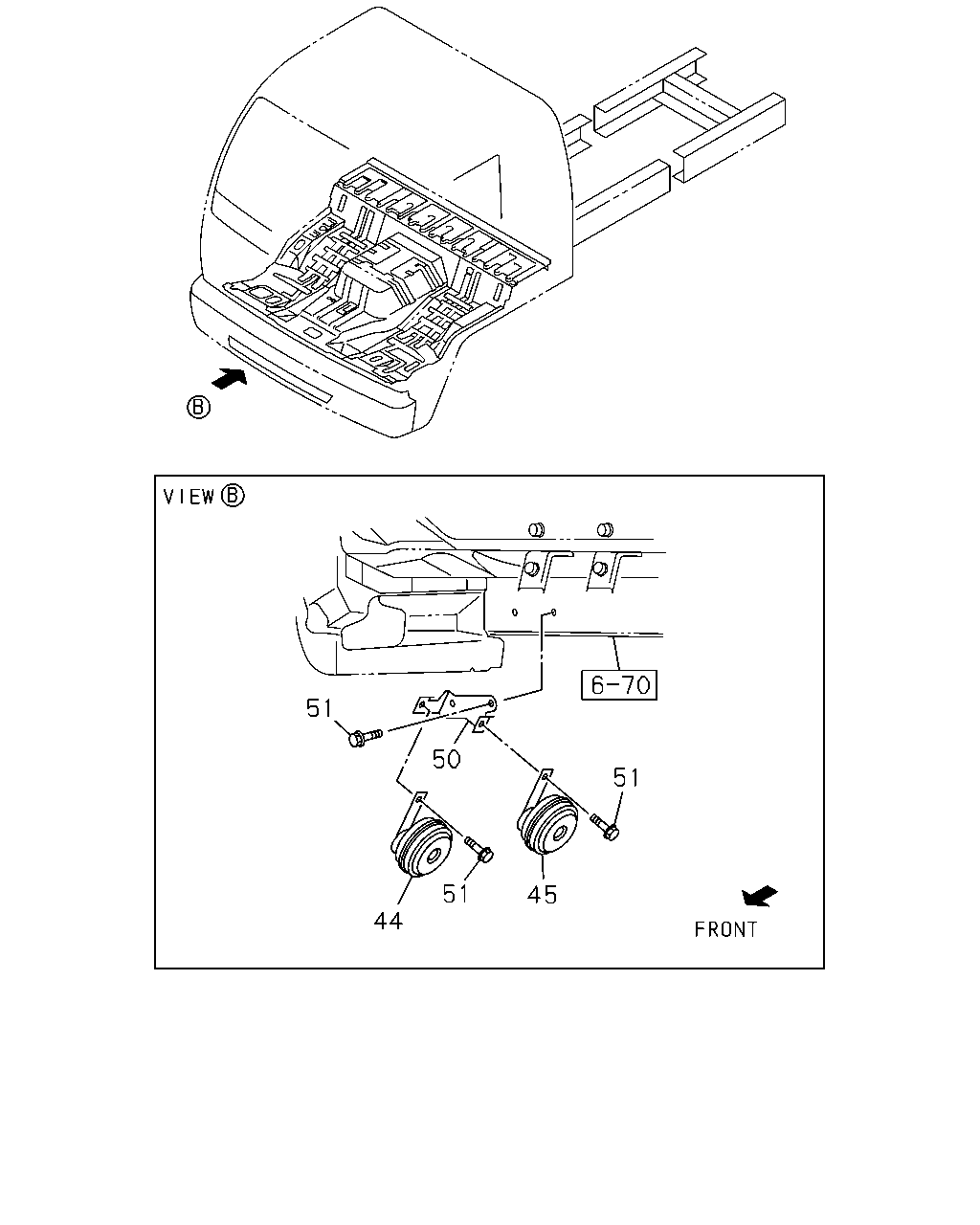

51 50 51 51 45 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	8-98022-022-0	01	1	1112-
45	HORN; LOW NOTE	8-98022-023-0	01	1	1112-
50	BRACKET; HORN	8-97613-300-2	01	1	1112-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	1112-

286 388

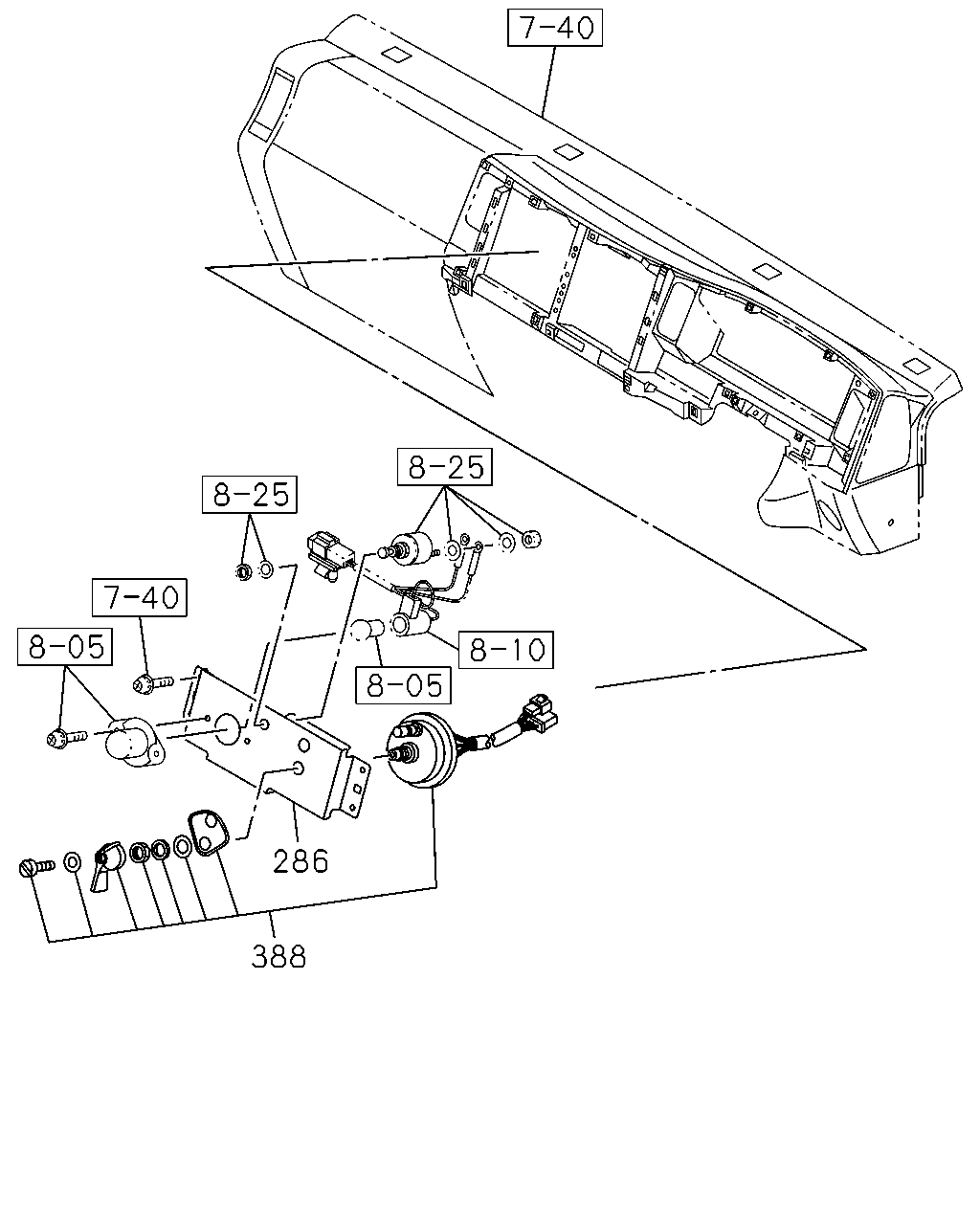

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	286	BRACKET LAMPS EXP PACKAGE<WL5>	8-97623-460-2	01	1	1112-
	388	SWITCH; ROTARY LAMPS EXP PACKAGE<WL5>	1-82430-003-0	01	1	1112-

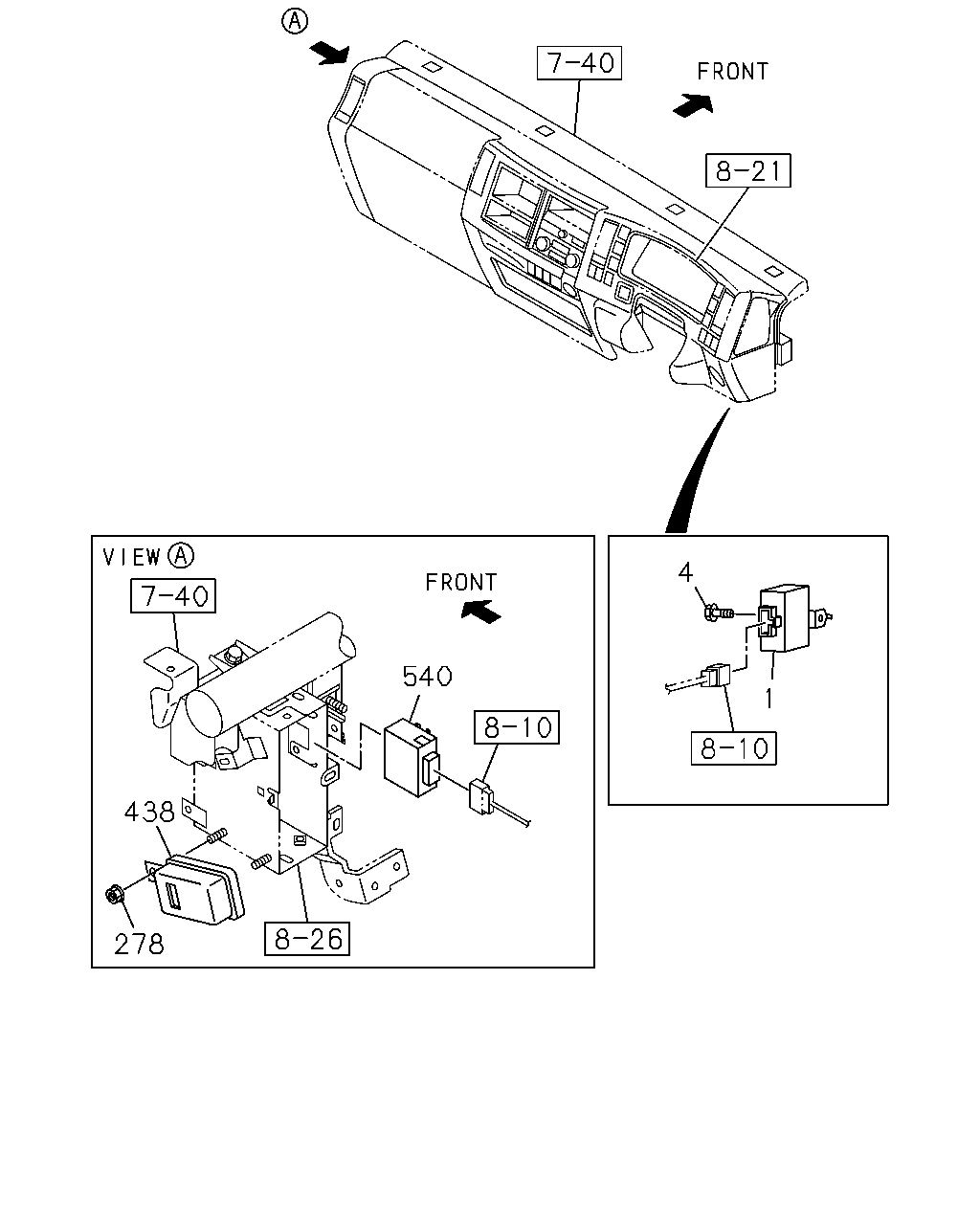

4 540 1 438 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-98025-533-1	01	1	1112-
4	SCREW; FLASHER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1112-
4	SCREW; FLASHER UNIT EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) BOLT M6X16 FLANGE	0-28650-616-0	01	1	1112-
278	NUT; CONT UNIT M6 FLANGE	0-91180-106-0	01	1	1112-
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	1112-
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1112-1308
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-

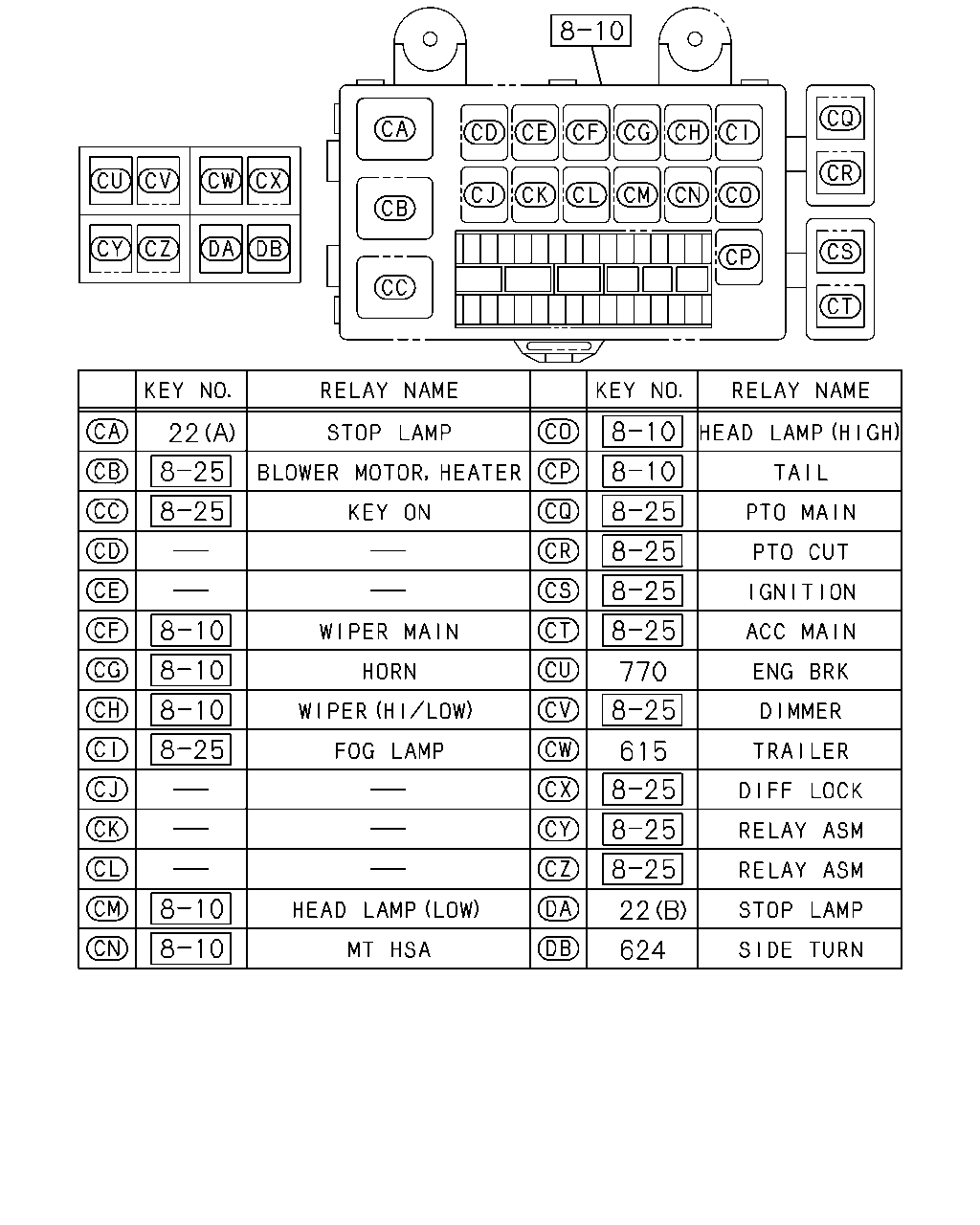

22 770 624 22 615

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1112-
22	RELAY; STOP LAMP LAMPS EXP PACKAGE<WL5> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1112-
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1112-
624	RELAY; SIDE TURN LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC	8-97173-035-1	01	1	1112-
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1112-

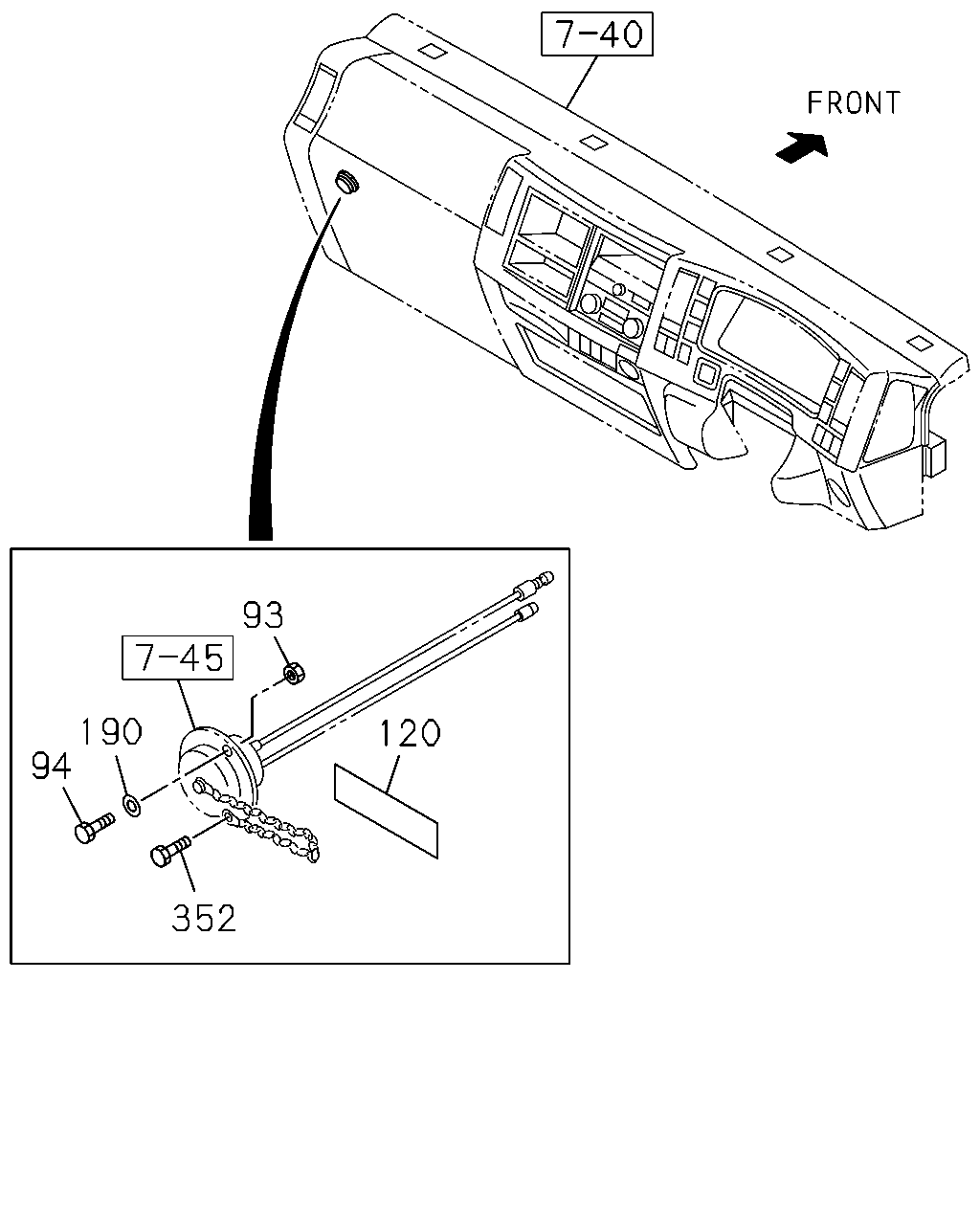

93 190 94 120 352

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
93	NUT; CONSENT TO BLIND PNL ACCESSORY SOCKET<KC5> M3	9-99110-403-0	03	1	1112-
94	SCREW; CONSENT TO BLIND PNL ACCESSORY SOCKET<KC5> M3X10 CK-HEAD	9-93090-310-0	02	1	1112-
120	SEAL ACCESSORY SOCKET<KC5> 100X40	1-72498-022-1	01	1	1112-
190	WASHER ACCESSORY SOCKET<KC5> ID=3.1	0-91510-503-0	01	1	1112-
352	SCREW; BRKT ACCESSORY SOCKET<KC5> M3X10	9-93490-310-0	01	1	1112-

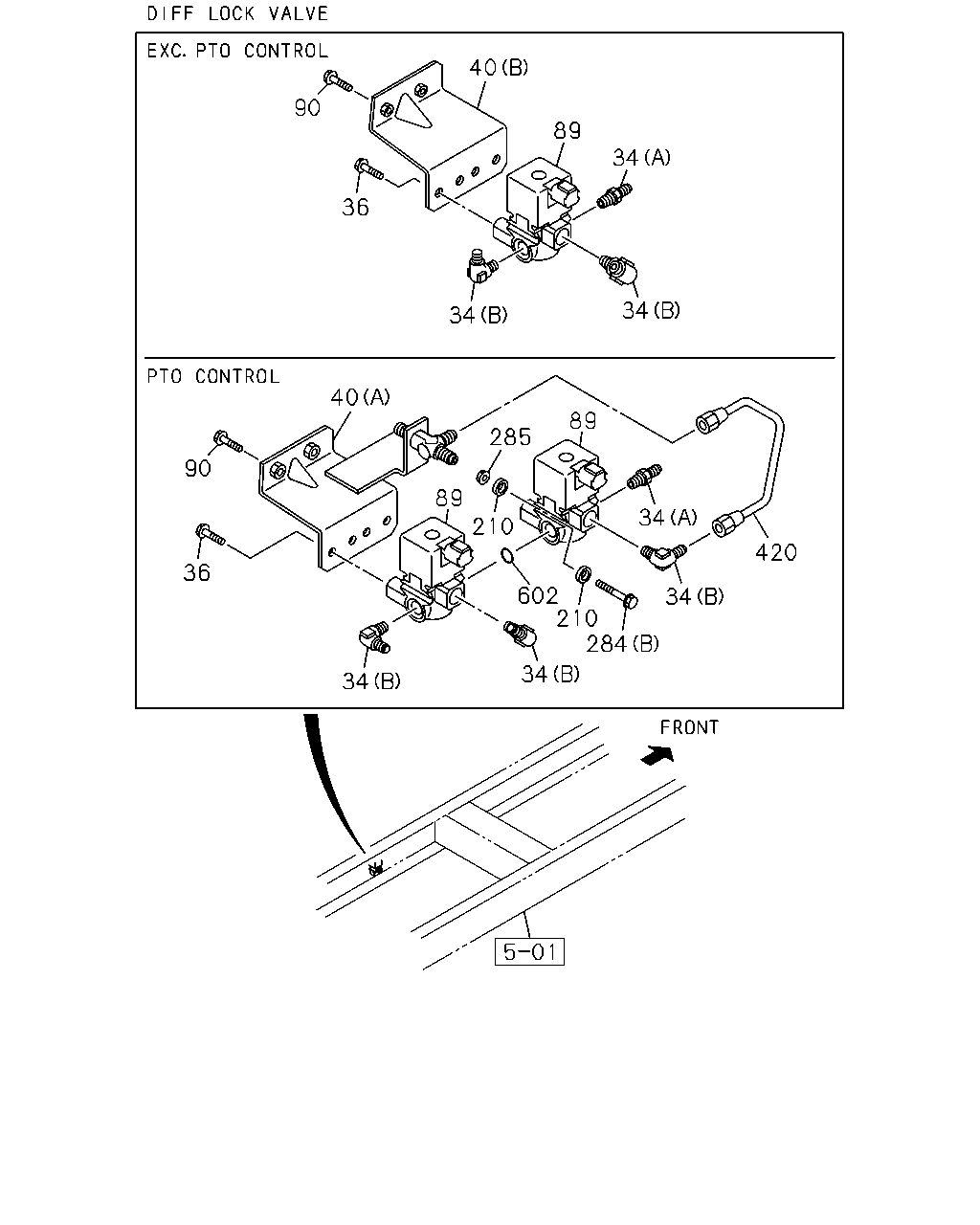

40 90 89 34 36 34 34 40 89 285 90 89 210 34 420 36 602 210 284 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1112-
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1112-
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1112-
34	CONNECTOR; MAG VLV,INL PORT (C) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1112-
36	BOLT; MAG VLV,PTO CONT EXC. PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	1112-
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	1112-
40	BRACKET; MAG VLV PTO CONTROL<SV6> (A)	8-98203-385-0	01	1	1112-
40	BRACKET; MAG VLV EXC. PTO CONTROL<SV6> (B)	8-98034-702-0	01	1	1112-
40	BRACKET; MAG VLV (C)	8-98090-008-3	01	1	1112-
89	VALVE; MAG,DIFF LOCK PTO CONTROL<SV6>	1-82563-871-2	02	1	1112-1205
89	VALVE; MAG,DIFF LOCK PTO CONTROL<SV6>	1-82563-871-2	01	1	1206-
89	VALVE; MAG,DIFF LOCK EXC. PTO CONTROL<SV6>	1-82563-871-2	01	1	1112-1205
89	VALVE; MAG,DIFF LOCK	8-97641-594-0	01	1	1206-
90	BOLT; MAG VLV M10X25 FLANGE	0-28651-025-0	02	1	1112-
90	BOLT; MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	1112-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1112-
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1112-
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M8X20 FLANGE	0-28650-820-0	02	1	1112-
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1112-
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1112-
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	1112-
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	1112-
420	PIPE; AIR,MAG VLV PTO CONTROL<SV6>	8-98203-037-0	01	1	1112-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1112-
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1112-

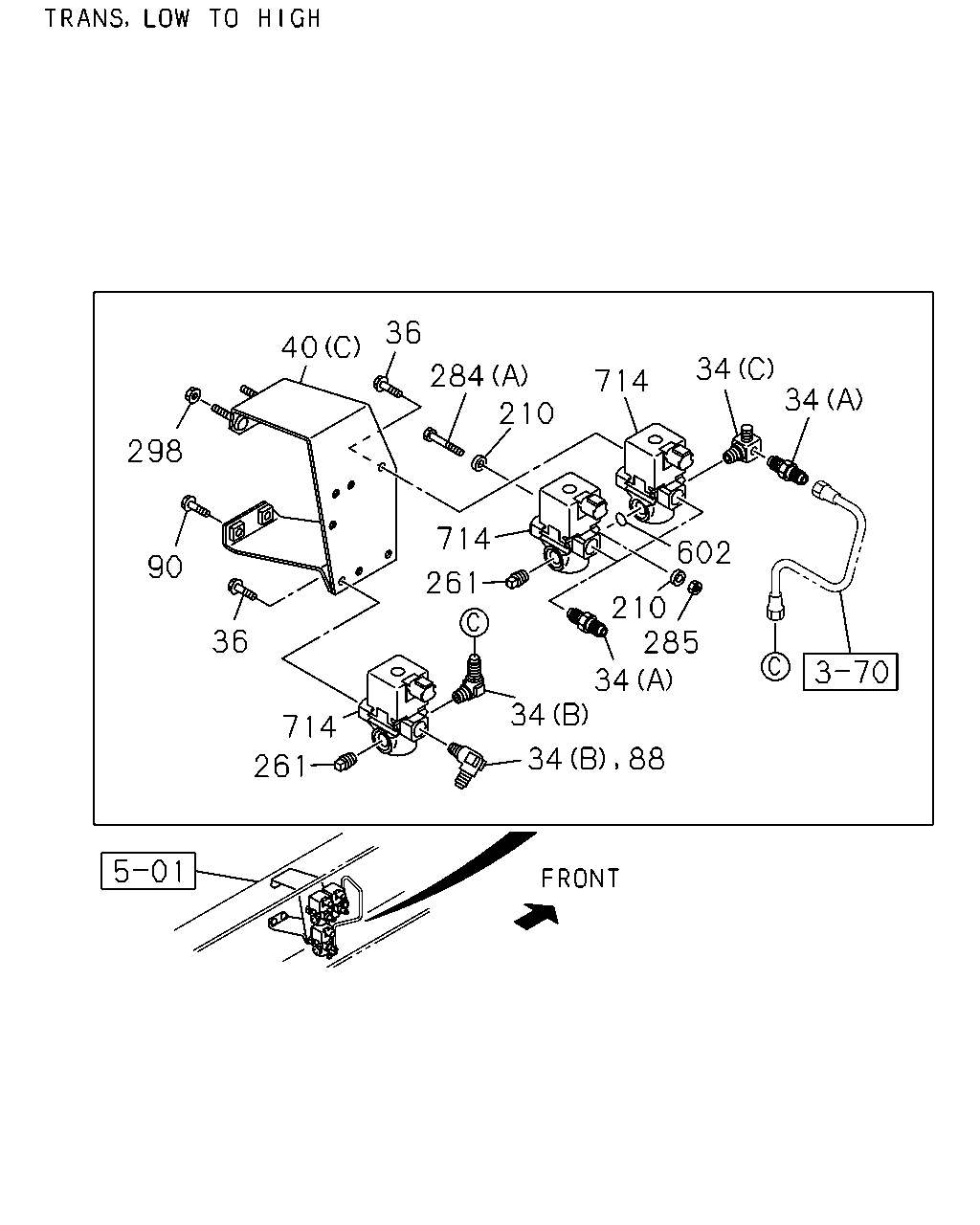

36 40 34 34 284 210 714 298 602 210 285 34 34 714 90 261 36 714 261 34 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1112-
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1112-
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1112-
34	CONNECTOR; MAG VLV,INL PORT (C) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	1112-
36	BOLT; MAG VLV,PTO CONT EXC. PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	1112-
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	1112-
40	BRACKET; MAG VLV PTO CONTROL<SV6> (A)	8-98203-385-0	01	1	1112-
40	BRACKET; MAG VLV EXC. PTO CONTROL<SV6> (B)	8-98034-702-0	01	1	1112-
40	BRACKET; MAG VLV (C)	8-98090-008-3	01	1	1112-
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1112-
90	BOLT; MAG VLV M10X25 FLANGE	0-28651-025-0	02	1	1112-
90	BOLT; MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	1112-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1112-
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1112-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1112-1205
261	PLUG; MAG VLV	0-92004-813-0	01	1	1206-1206
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	1112-
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M8X20 FLANGE	0-28650-820-0	02	1	1112-
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1112-
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1112-
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	1112-
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	1112-
298	NUT; MAG VLV M10 FLANGE	0-91180-210-0	02	1	1112-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1112-
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1112-
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	03	1	1112-
