◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11401 - FSS(RHD)EURO1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#59151) — 37 parça

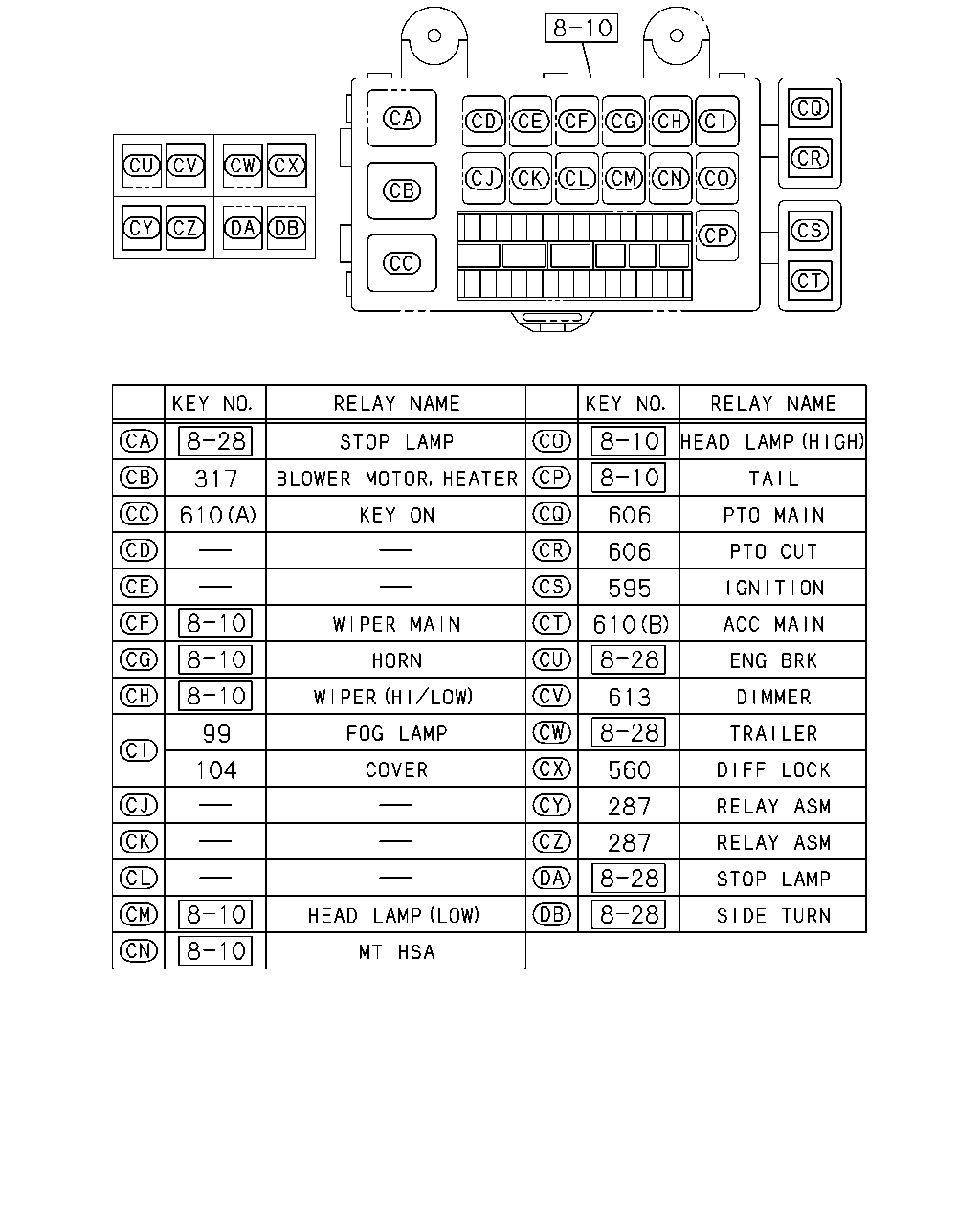

çizim 150603
317 610 99 104 606 606 595 610 613 560 287 287
BalonParca AdiParca NoAdetTipApplied Date
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 1112-
287 RELAY ASM
LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC 		8-97173-035-1 02 1 1112-
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112-
560 RELAY; DIFF LOCK
24V 10A PANASONIC 		8-97173-035-1 01 1 1112-
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1505-
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 02 1 1112-
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1505-
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112-
613 RELAY; DIMMER
LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC 		8-97173-035-1 02 1 1112-
613 RELAY; DIMMER
TRANSMISSION SIDE PTO WO/LEVER(SH5) LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-
çizim 150605
524
BalonParca AdiParca NoAdetTipApplied Date
524 RELAY; LAMP
LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-

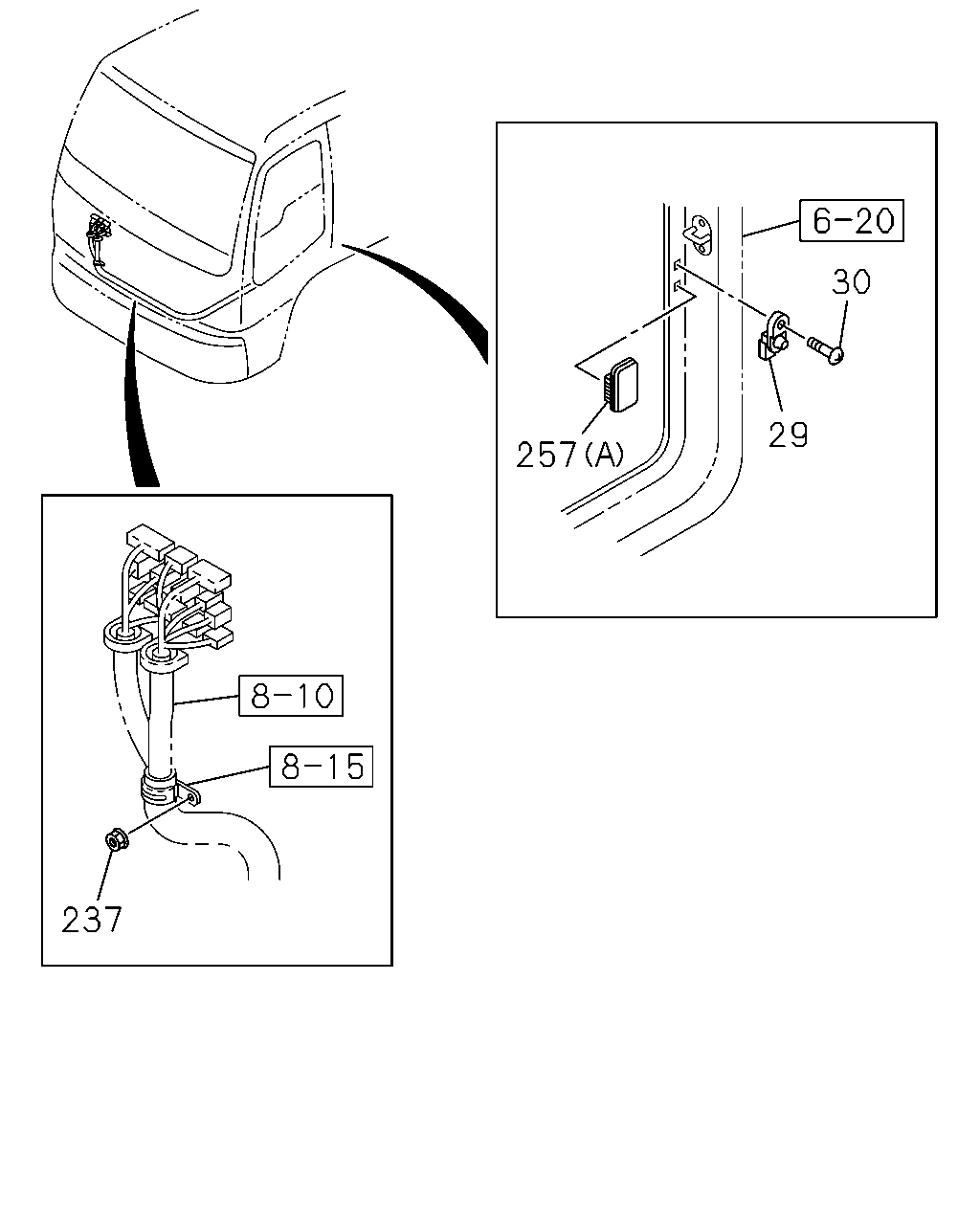

çizim 150611
30 29 257 237
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1112-
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1112-
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 1112-
257 COVER; HOLE,SW
(C) 		8-98025-954-1 08 1 1112-
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1112-
257 COVER; HOLE,SW
(A) 		8-98029-917-0 01 1 1112-
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1112-

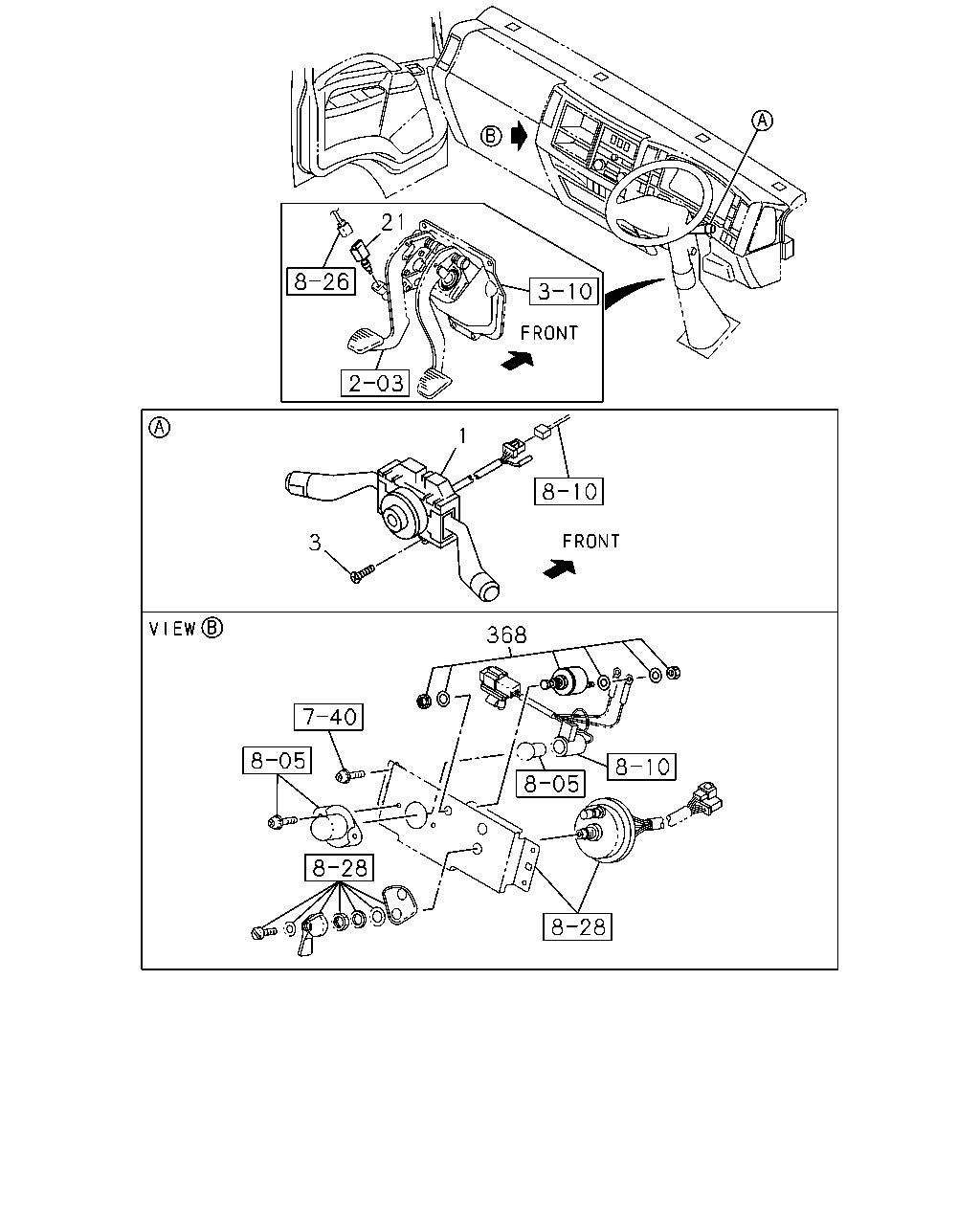

çizim 150620
21 1 3 368
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB 8-98114-823-0 01 1 1112-1310
1 SWITCH; COMB 8-98243-707-0 01 1 1311-
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1112-
21 SWITCH; CLU
PTO CONTROL<SV6> 		8-94337-761-0 01 1 1112-
21 SWITCH; CLU
EXC. PTO CONTROL<SV6> 		8-97358-248-0 01 1 1112-
368 SWITCH; LAMP
USER EXP GOVERNMENT<D6M> 		9-82750-469-0 01 1 1112-

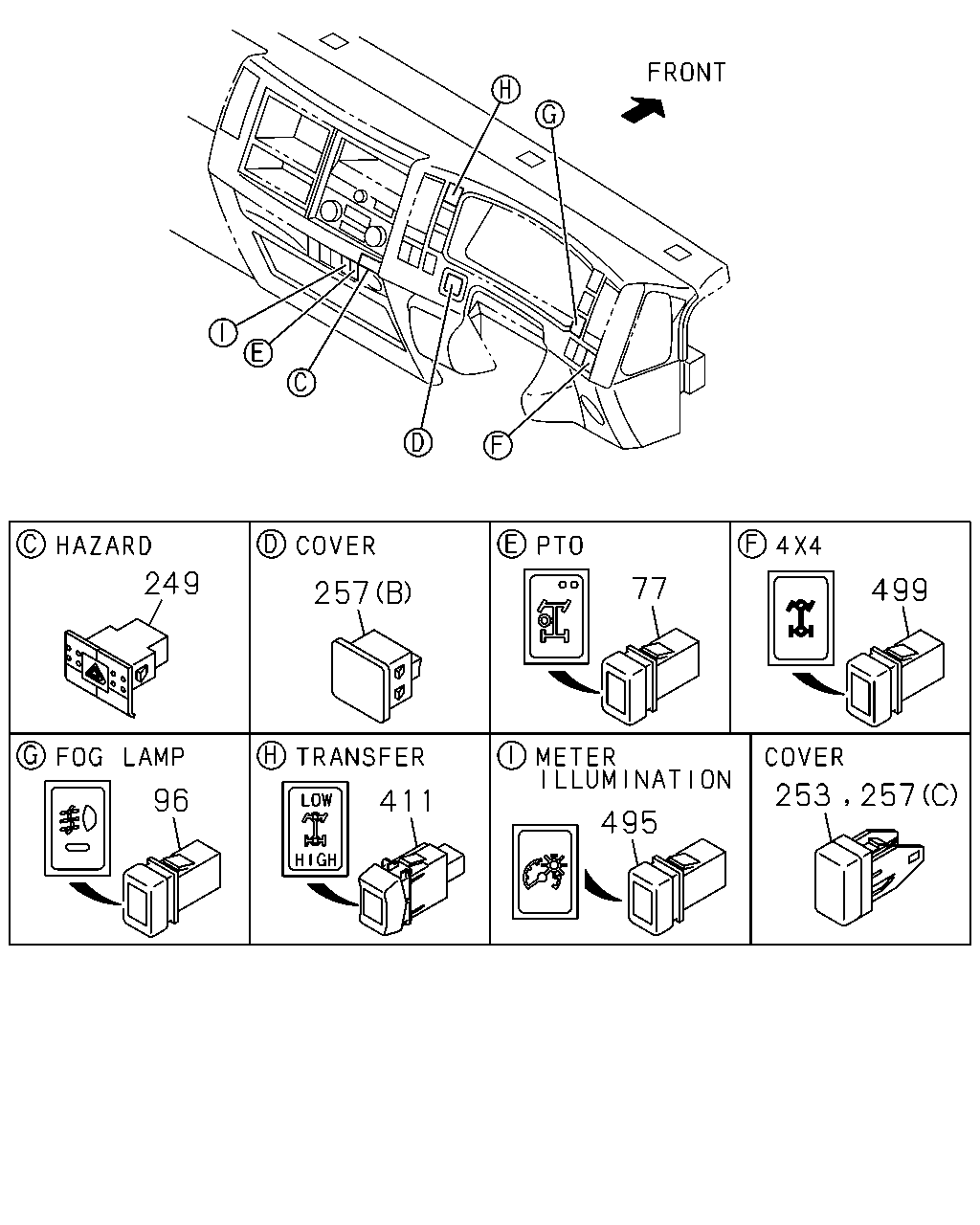

çizim 150652
249 77 499 257 253 257 96 411 495
BalonParca AdiParca NoAdetTipApplied Date
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97615-488-2 01 1 1112-
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1112-
249 SWITCH; HAZARD 8-97386-922-1 01 1 1112-
253 COVER; SW HOLE 8-98025-954-1 02 1 1112-
253 COVER; SW HOLE
EXC. LAMPS EXP PACKAGE<WL5> 		8-98025-954-1 01 1 1112-
257 COVER; HOLE,SW
(C) 		8-98025-954-1 08 1 1112-
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1112-
257 COVER; HOLE,SW
(A) 		8-98029-917-0 01 1 1112-
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1112-
411 SWITCH; TRANSFER 8-97613-967-1 01 1 1112-
495 SWITCH; METER,ILLUMINATION
LAMPS EXP PACKAGE<WL5> 		8-97614-232-1 01 1 1112-
499 SWITCH; 4X4 8-97386-914-3 01 1 1112-
