◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11401 - FSS(RHD)EURO1 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#59142) — 127 parça

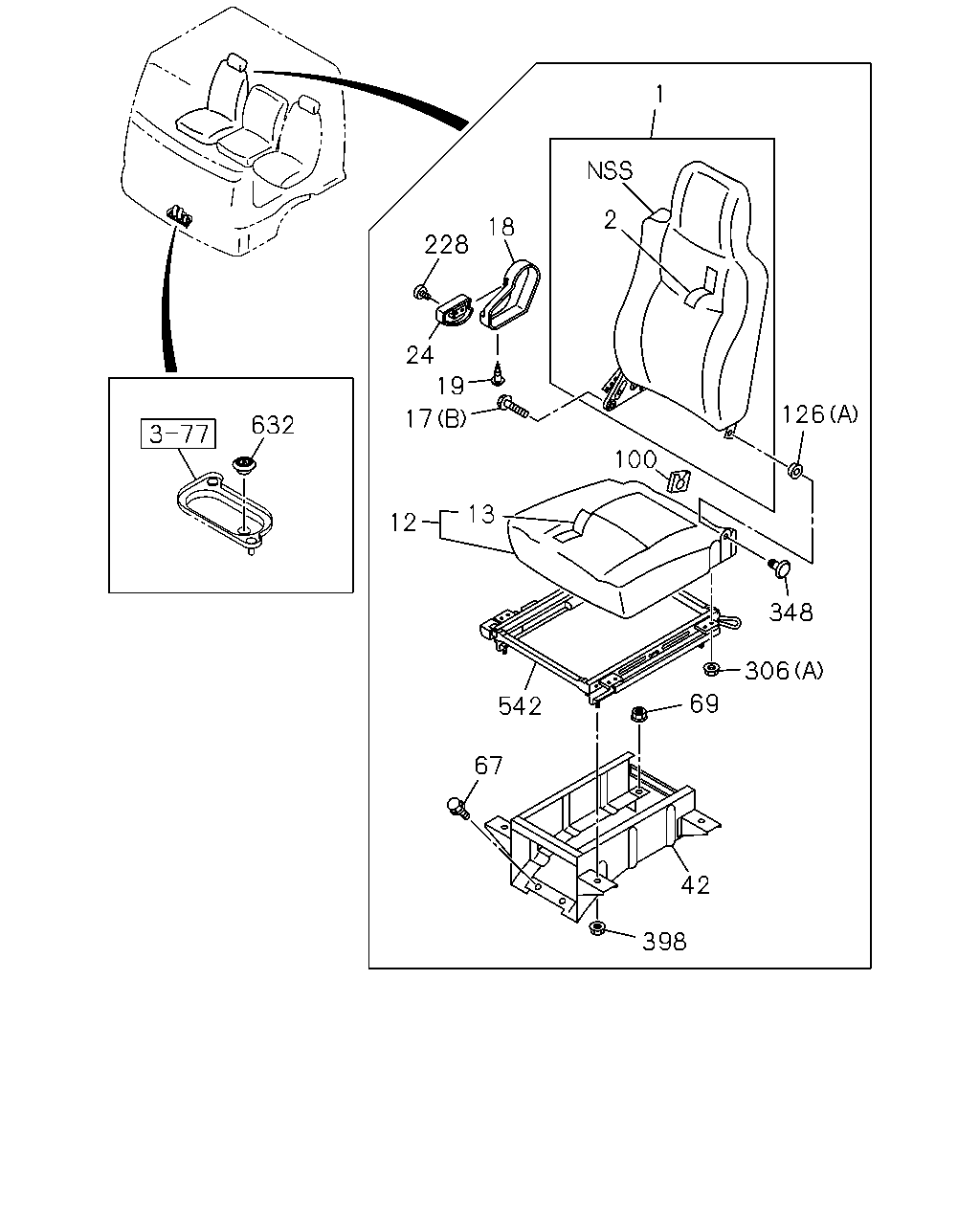

çizim 150549
1 2 18 228 24 17 12 13 542 67 398 42 69 306 348 126 100 19 632
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
DARK GRAY 		8-97409-955-5 01 1 1112-1502
1 BACK ASM; SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-955-5 01 1 1503-1509
1 BACK ASM; SEAT
DARK GRAY 		8-97409-955-5 01 1 1510-1512
1 BACK ASM; SEAT
DARK GRAY 		8-97466-618-0 01 1 1601-
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97411-910-2 01 1 1112-1502
2 COVER; TRIM,FRT SEAT,BACK
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-910-2 01 1 1503-1509
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97411-910-2 01 1 1510-
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97414-123-2 01 1 1510-1512
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-608-0 01 1 1601-
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97414-123-2 01 1 1112-1502
12 CUSHION; SEAT,FRT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-954-2 01 1 1112-1512
12 CUSHION; SEAT,FRT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97466-606-0 01 1 1601-
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97411-909-1 01 1 1112-1502
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-909-1 01 1 1503-1509
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97411-909-1 01 1 1510-
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1112-1502
17 BOLT; RECLINING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1503-1509
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1510-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1112-
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1112-1502
18 COVER; RECLINING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-332-0 01 1 1503-1509
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1510-
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1112-1502
19 SCREW; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M5 		8-98062-663-0 01 1 1503-1509
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1510-
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1112-1502
24 KNOB; RECLINING,FRT,SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> GRAY 		8-97409-333-0 01 1 1503-1509
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1510-
42 STAND; DRIVER SEAT 1-75558-604-2 01 1 1112-1502
42 STAND; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75558-604-2 01 1 1503-1509
42 STAND; DRIVER SEAT 1-75558-604-2 01 1 1510-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1112-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1112-
100 COVER; HINGE 8-98203-070-0 01 1 1112-1502
100 COVER; HINGE
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98203-070-0 01 1 1503-1509
100 COVER; HINGE 8-98203-070-0 01 1 1510-1512
100 COVER; HINGE 8-98286-009-0 01 1 1601-
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1112-1502
126 BUSHING; HINGE,RECLINING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1503-1509
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-1512
126 BUSHING; HINGE,RECLINING
(A) 		8-98286-007-0 01 1 1601-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1112-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1112-1502
228 SCREW; KNOB
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M4 		8-98062-662-0 01 1 1503-1509
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1112-
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1112-1502
306 NUT; SEAT ADJ
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1509
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1510-
348 BOLT; HINGE,SEAT 8-98286-008-0 01 1 1601-
398 NUT; STAND
M8 FLANGE 		1-75538-207-0 04 1 1112-1502
398 NUT; STAND
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 1503-1509
398 NUT; STAND
M8 FLANGE 		1-75538-207-0 04 1 1510-
542 ADJUSTER ASM; SEAT SLIDE 8-98093-310-0 01 1 1112-1502
542 ADJUSTER ASM; SEAT SLIDE
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-653-0 01 1 1503-1509
542 ADJUSTER ASM; SEAT SLIDE 8-98291-653-0 01 1 1510-
632 GROMMET
OD=24 		8-94119-796-0 01 1 1112-
çizim 150552
506 360 175 176 188 16 126 359 188 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1112-
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1112-1502
126 BUSHING; HINGE,RECLINING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		8-98063-218-0 01 1 1503-1509
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-1512
126 BUSHING; HINGE,RECLINING
(A) 		8-98286-007-0 01 1 1601-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1112-
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-975-1 01 1 1112-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-976-1 01 1 1112-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-974-1 01 1 1112-
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-973-3 01 1 1112-
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1112-
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1112-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1112-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1112-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1112-
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1112-
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1112-

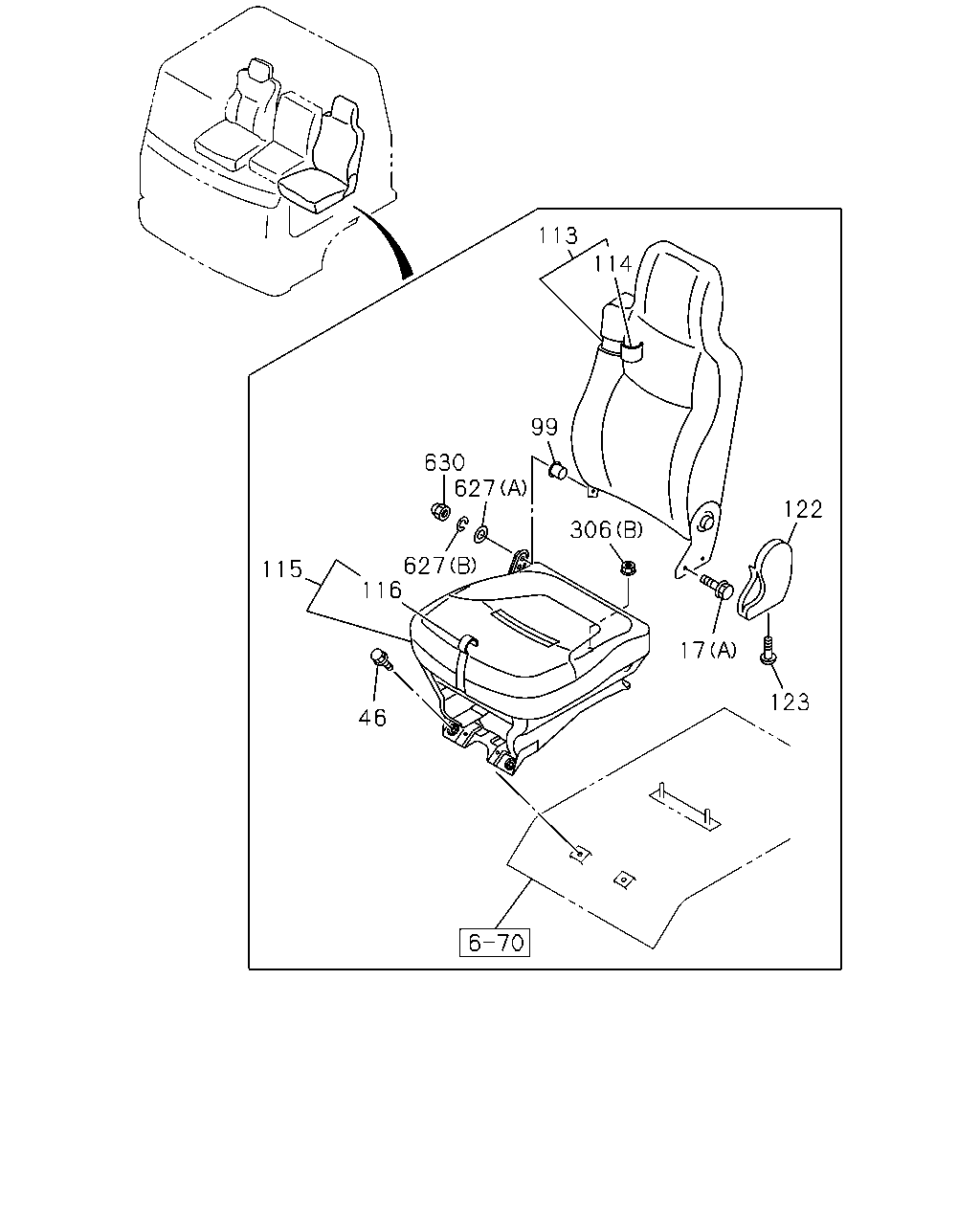

çizim 150553
113 114 99 630 627 122 306 627 116 115 17 123 46
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1112-1502
17 BOLT; RECLINING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) M10X20 		8-98062-661-0 02 1 1503-1509
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1510-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1112-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1112-
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1112-
113 BACK ASM; SEAT
DARK GRAY 		8-97409-966-1 01 1 1112-
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97411-916-0 01 1 1112-
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97409-965-1 01 1 1112-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97411-915-0 01 1 1112-
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1112-
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1112-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1112-
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1112-1502
306 NUT; SEAT ADJ
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1509
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1510-
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1112-
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1112-
630 NUT; CAP
M8 		8-98063-225-0 01 1 1112-

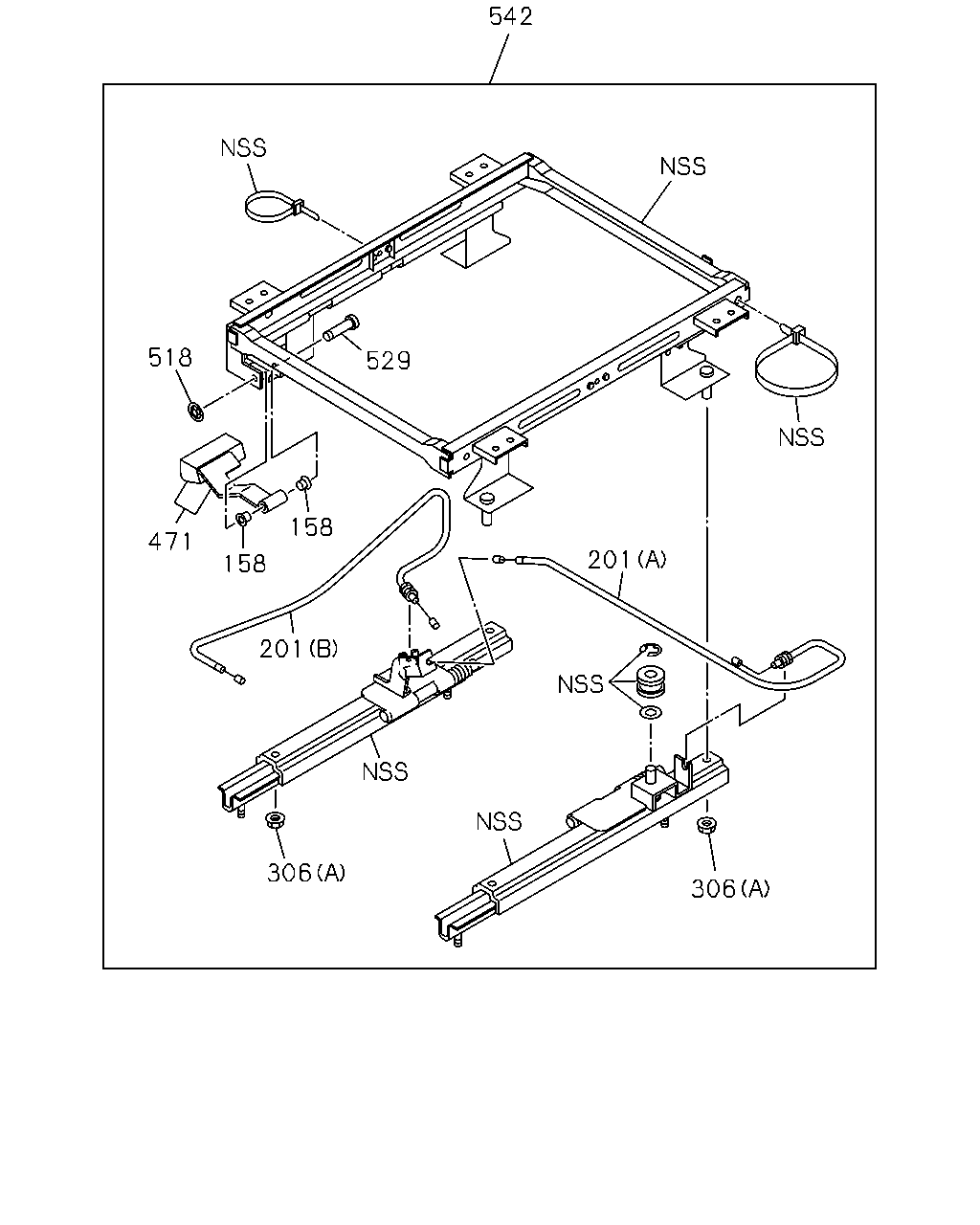

çizim 150569
542 201 529 518 471 158 158 201 306 306
BalonParca AdiParca NoAdetTipApplied Date
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1112-1502
158 BUSHING; LINK ARM
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-209-0 02 1 1503-1509
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1510-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1112-1502
201 CABLE; ADJ
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) L=667 		1-75518-288-0 01 1 1503-1509
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1510-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1112-1502
201 CABLE; ADJ
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) L=605 		1-75518-289-1 01 1 1503-1509
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1112-
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1112-1502
306 NUT; SEAT ADJ
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (A) M8 FLANGE 		1-75538-207-0 08 1 1503-1509
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1510-
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1112-1502
471 LEVER; SEAT ADJ
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98107-869-0 01 1 1503-1509
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1510-
518 NUT; TILT ADJ 1-75518-263-0 01 1 1112-1502
518 NUT; TILT ADJ
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-263-0 01 1 1503-1509
518 NUT; TILT ADJ 1-75518-263-0 01 1 1510-
529 PIN; LINK 1-75518-262-0 01 1 1112-1502
529 PIN; LINK
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-262-0 01 1 1503-1509
529 PIN; LINK 1-75518-262-0 01 1 1510-
542 ADJUSTER ASM; SEAT SLIDE 8-98093-310-0 01 1 1112-1502
542 ADJUSTER ASM; SEAT SLIDE
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-98291-653-0 01 1 1503-1509
542 ADJUSTER ASM; SEAT SLIDE 8-98291-653-0 01 1 1510-

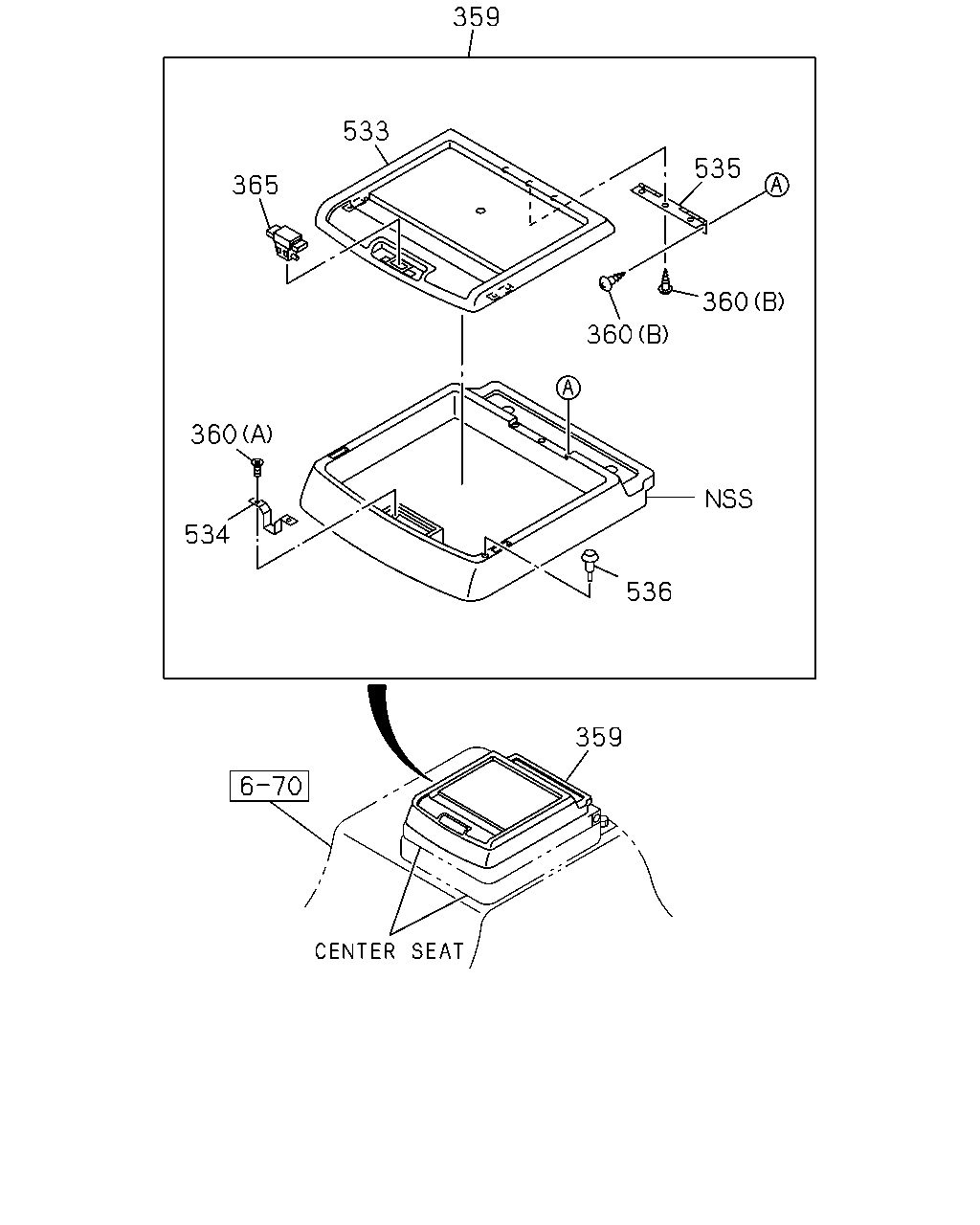

çizim 150582
359 533 535 365 360 360 360 534 536 359
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1112-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1112-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1112-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1112-
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1112-
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1112-
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1112-
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1112-
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1112-
